New 3-5 ton (40mm pin) JB Excavator Mechanical Quick Hitch Coupler

New JB Attachments Excavator Mechanical Quick Hitch Coupler to suit 3-5 Ton machines.

Want a quick hitch but don't have any spare auxiliary hydraulic lines for a hydraulic hitch? This hitch is identical to a hydraulic hitch setup and there is no need to pull either of the 40mm pins out of your buckets like some manual hitches require.

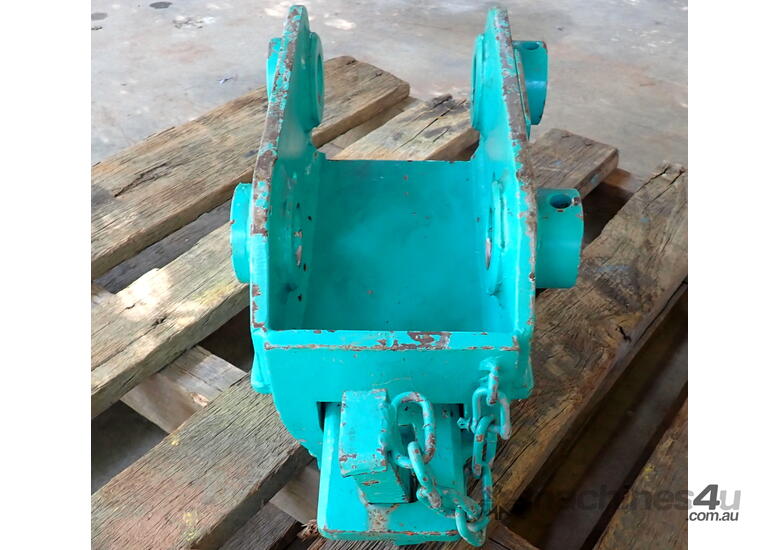

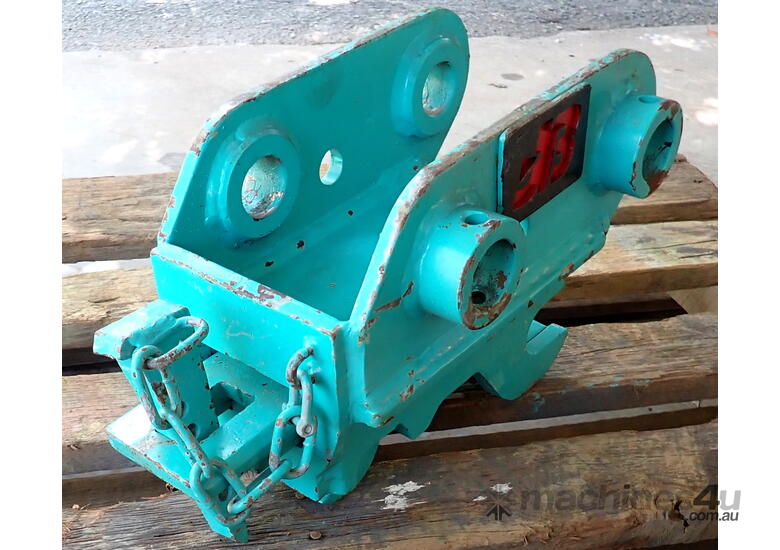

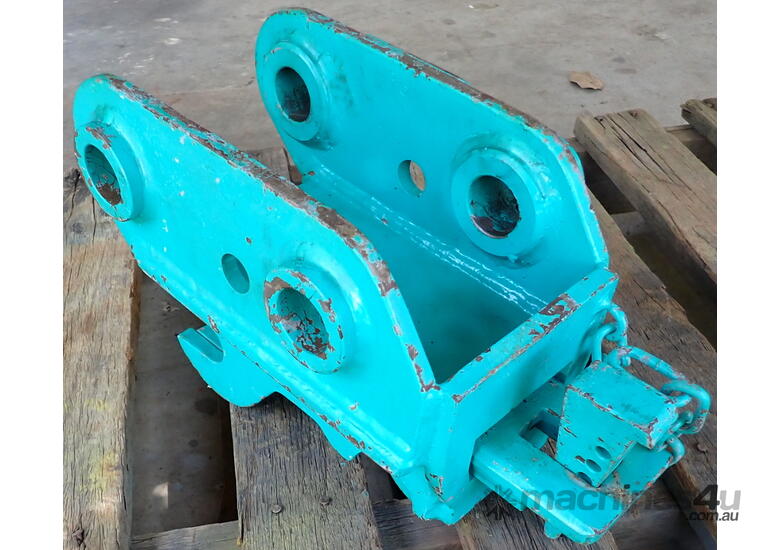

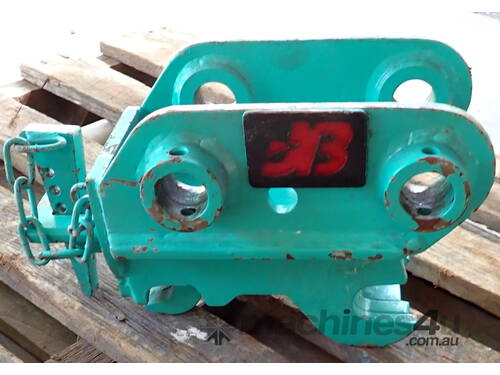

Instead you simply sit the lower front hooks of the hitch over your bucket's front pin and rock the hitch back so it seats fully into the bucket's headstock just like a full hydraulic hitch. Then manually slide the tongue at the rear (see pics# 1-5) to grab the rear pin, put the locking wedge in and slide a pin or bolt in the appropriate hole to lock the wedge in place.

Condition is new & unused but was sitting in a warehouse and has some paint chips.

This is a quality, well built hitch, made in Australia by JB Attachments.

Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 40mm.
* Pin Center to Pin Center (CtoC): 190mm.
* Between The Ears (BTE): 126mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 145mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).

Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 40mm.
* Pin Center to Pin Center (CtoC): this is a variable pin spacing hitch (Multi-Hitch), looks around 185mm-195mm range, possibly wider.
* Between The Ears (BTE): 123mm.

Should fit: Airman AX30 / AX32U / AX36U, Case CX 31 / CX 35 / CX 36, Hitachi EX 30 / EX 30U / EX 33U / EX 35 / EX 40UR, Hitachi Zaxis 30U, IHI 35J / (Cheiftain) 35G/H/J / 35NX, Kobelco SK 30SR-2 / SK 32 / SK 35 / SK 35SR / SK 35SR-2, Kubota KX 91-3 / KX 101-3 / U35 / U35-3, New Holland EH 35 / LE 35, Pel Job EB 36 / EB 406, Sumitomo SH 35, Takeuchi TB 35 / TB 36 / TB 135, Yuchai YC 35SR.

Maybe fit: Case CX 36B, Caterpillar 303.5 / 303CR-ISJ / 303CR-OSJ, Daewoo Solar 035, JCB 802 1986 Model, Kobelco SK 30SR-3 / SK 35SR-3, Kubota KH 14 / KH 15 / KH 90 / KH 91 / KH 101 / KX 91 / KX 91-2 / KX101 / KX121-2 / KX121-3, New Holland EC 35 / EH 30.B / EH 35.B, SMC MX35, Wacker Neuson 3003 / 3503 / 3703 / 28Z3 / 38z3 and possibly other machines with similar pin spacings.


Hitch Overall Dimensions: 220mm Wide, 390mm Long, 262mm High. Weight: 27kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
