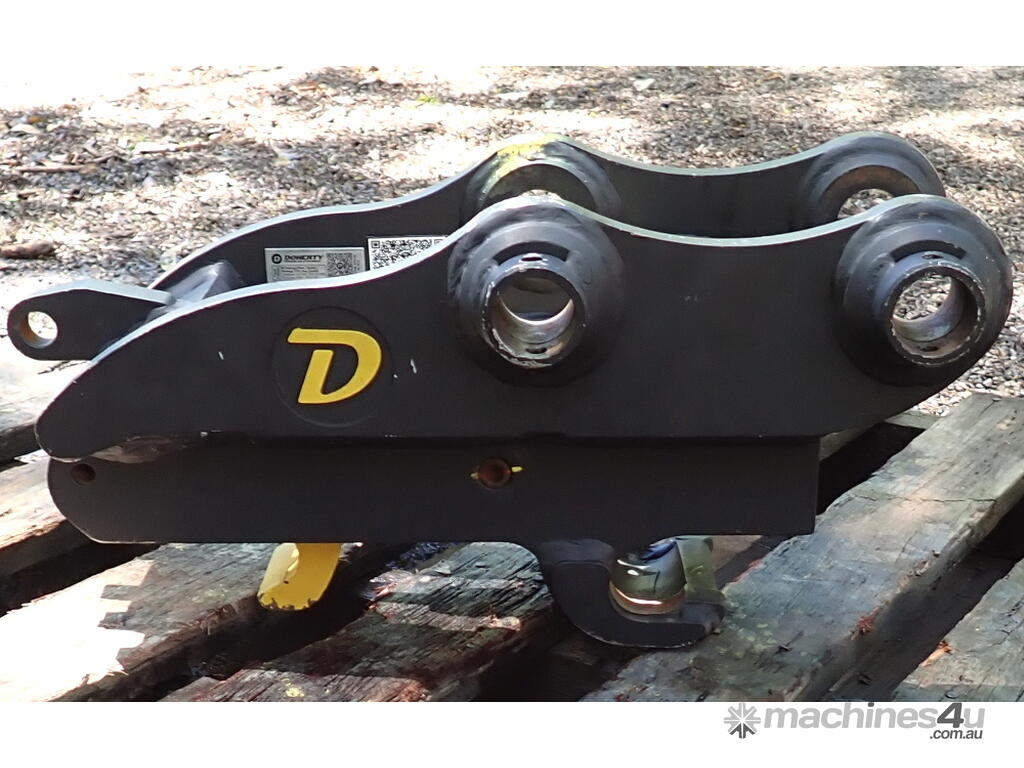

New 3-6 ton (40mm pin) Doherty Hydraulic Excavator Quick Hitch Coupling

Name: New 3-6 ton 40mm pin Doherty Hydraulic Excavator Quick Hitch Coupling
Brand: doherty
SKU: 931234
Price: 2409 AUD
Availability: InStock

PULLENVALE, QLD

$2,409 AUD($2,650 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Quick Hitch

Make:

DOHERTY

Year:

Not specified

Member Since: Oct 2023

Bronze Member

Listings: 177

Hitch/3PL Pin size(mm):

Description

New price from Doherty is $4500.

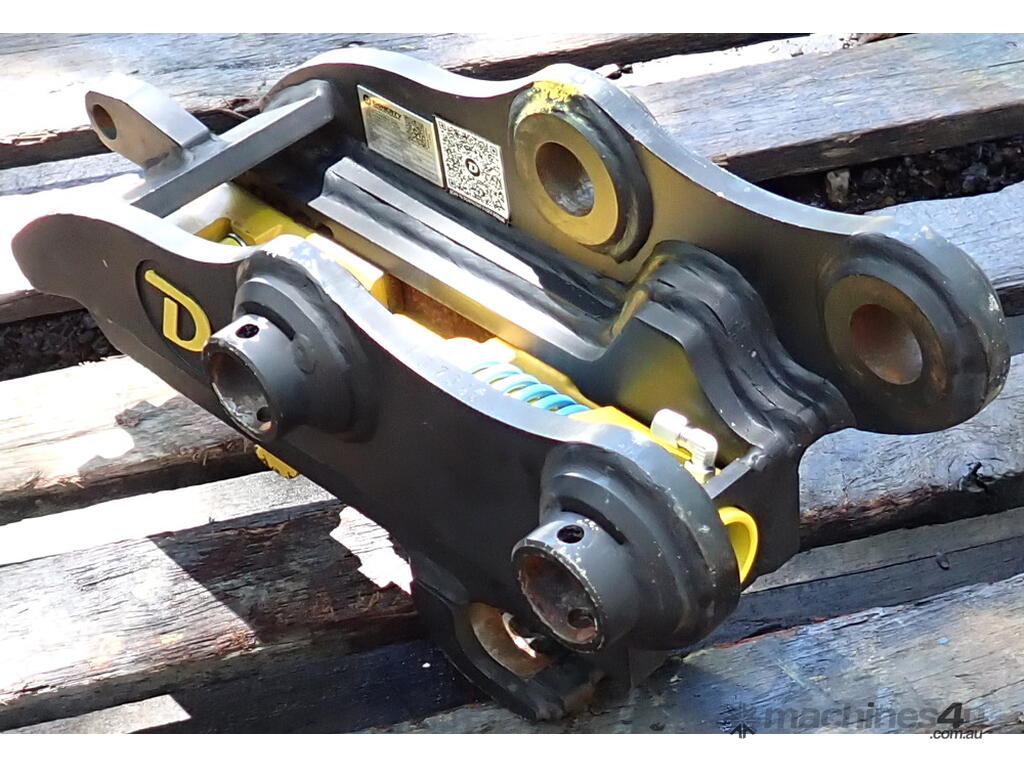

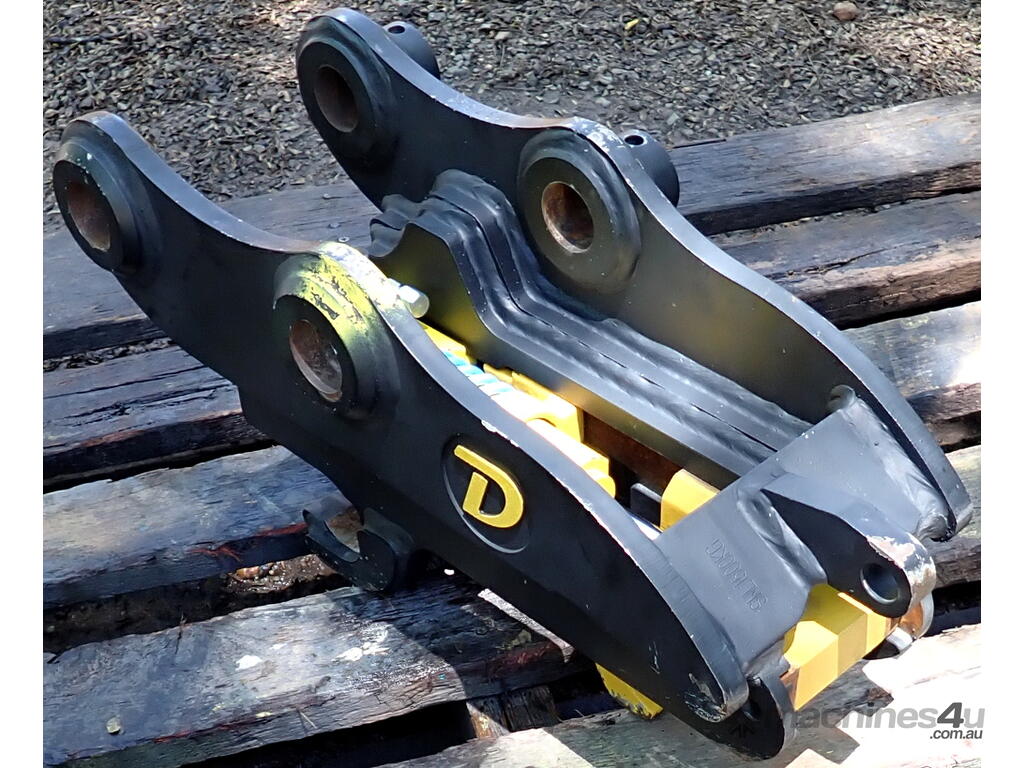

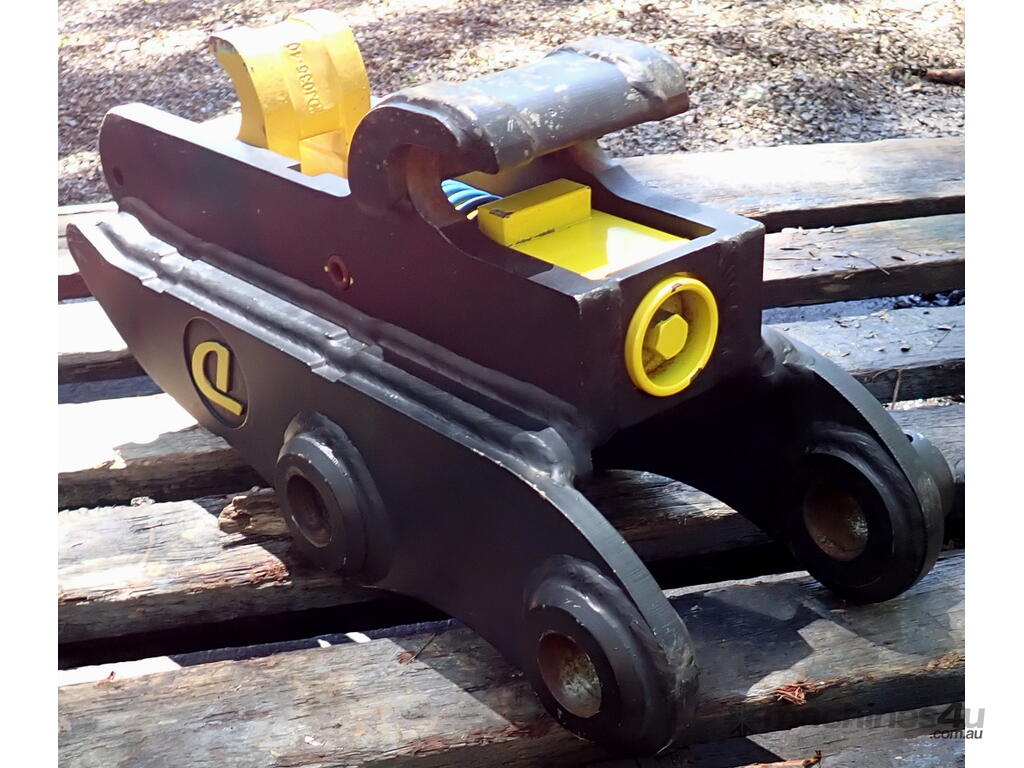

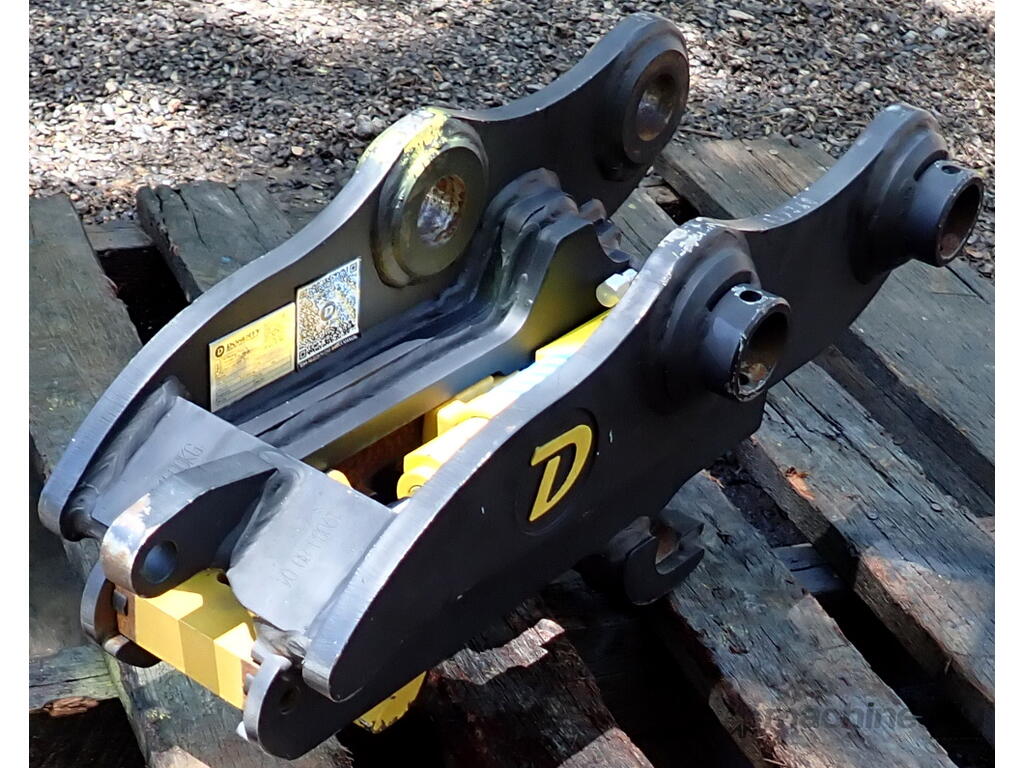

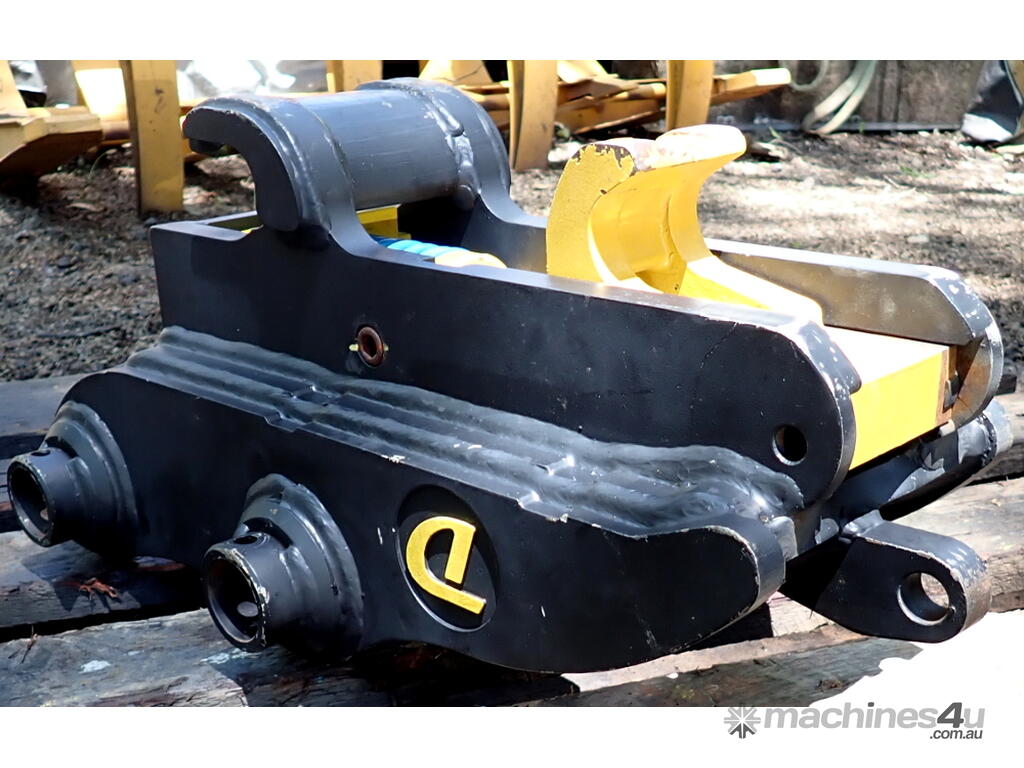

New Excavator Hydraulic Snaplock Multi Hitch to suit 3-6 Ton machines.

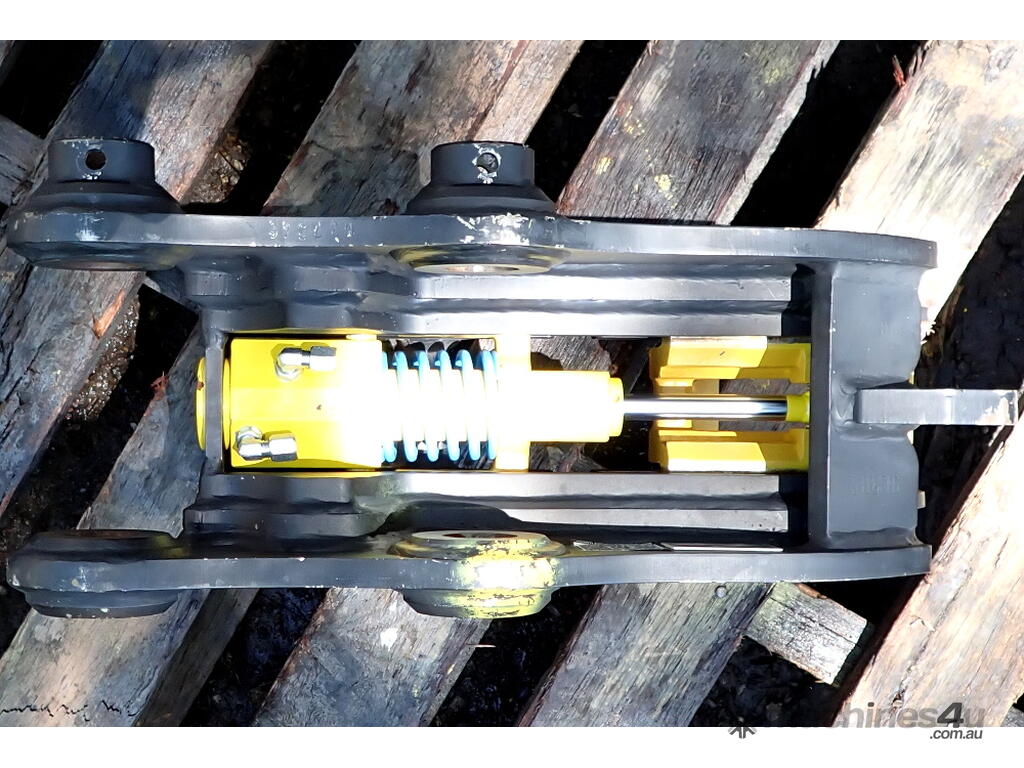

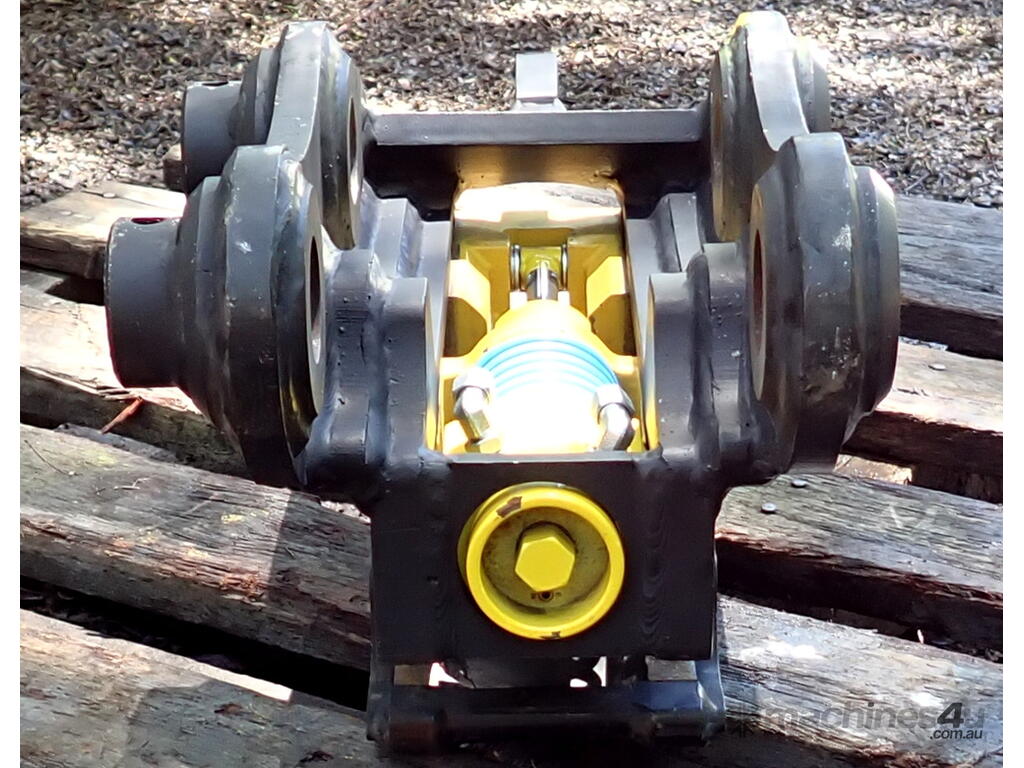

Snaplock + Quick Coupler, Fully Automatic with Dual Pin Locking (no need to leave the cab to remove / re-insert the safety pin).
This is a Multi Pin Center pickup hitch so it can grab attachments used on other machines with a 175mm-215mm Pin Center to Pin Center range.

It has a very low profile, light weight.

Lifting Eye rated: SWL 1,500kg.

Condition is New & Unused, there are just a few paint chips and some light surface rust on the pins.

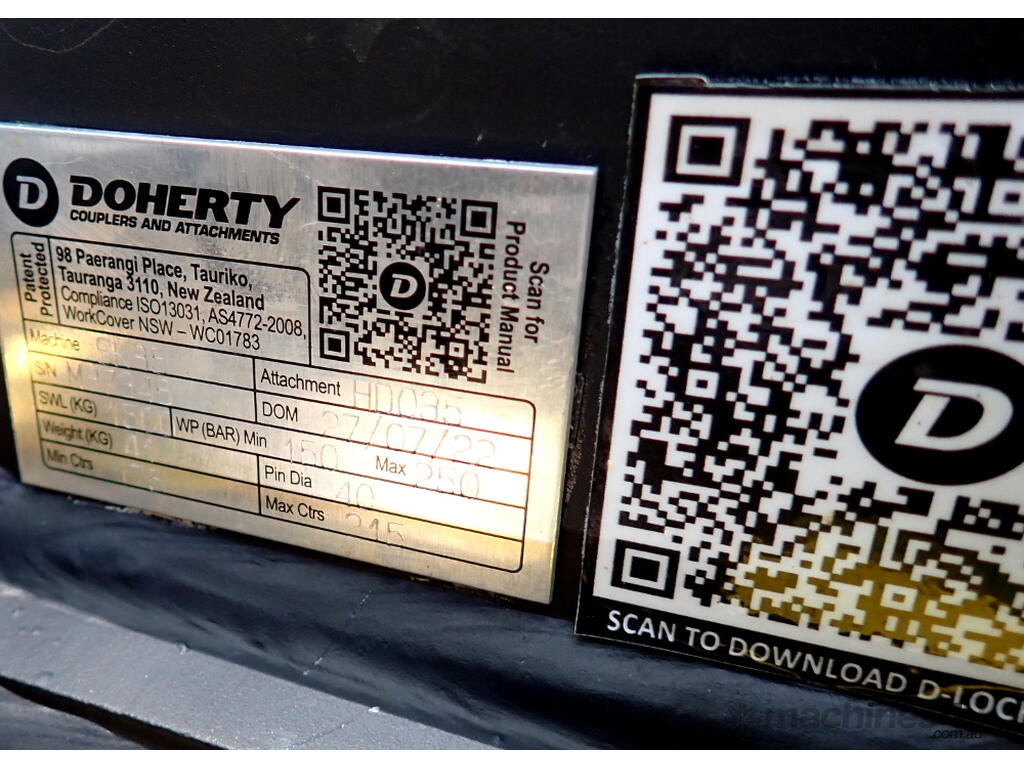

Strong and well engineered. Made in New Zealand by Doherty Couplers and Attachments.

Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 40mm.
* Pin Center to Pin Center (CtoC): 200mm.
* Between The Ears (BTE): 141mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 159mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).

Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 40mm.
* Pin Center to Pin Center (CtoC): Variable Distance Pickup - 175mm-215mm.
* Between The Ears (BTE): 140mm (your buckets/attachments need to have at least this much width between the ears).

Should fit: Case CX 31 / CX 35 / CX 36 / CX 36B, Caterpillar 303.5 / 303CR-ISJ / 303CR-OSJ, Daewoo Solar 035, IHI 35J / (Cheiftain) 35G/H/J / 35NX, Kobelco SK 30SR-2 / SK 30SR-3 / SK 30UR / SK 32 / SK 35 / SK 35SR / SK 35SR-2 / SK 35SR-3, New Holland EC 35 / EH 30.B / EH 35 / EH 35.B / LE 35, Pel Job EB 36 / EB406, SMC MX35, Sumitomo SH 35, Takeuchi TB 35 / TB 36 / TB 135.

Maybe fit: Airman AX30 / AX32U / AX36U, Hitachi EX 30 / EX 30U / EX 33U / EX 35 / EX 40UR, Hitachi Zaxis 30U, JCB 802 1986 Model, Kubota KX 91-3 / KX101-3 / KX121-3 / U35 / U35-3, Wacker Neuson 3003 / 3503 / 3703 / 28Z3 / 38z3, Yanmar B 25 / B 27 / B 30V / B 37 / VIO27-2 / VIO30 / VIO30-1 / VIO35-2 / VIO40 Import to UK / YB301 / YB351, Yuchai YC 35SR and possibly other machines with similar pin spacings.

Hitch dimensions: 555mm long, 245mm wide, 274mm high. Weight: 42kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
