New 3-7 ton (45mm Pin) Excavator Hydraulic Grapple Grab

Name: New 3-7 ton 45mm Pin Excavator Hydraulic Grapple Grab
Brand: Jea Wen
SKU: 1538AR2405011080
Price: 3590 AUD
Availability: InStock

PULLENVALE, QLD

$3,591 AUD($3,950 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$12.24
Per Week

3.18% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Excavator Grab

Make:

JEA WEN

Model:

ASC45

Year:

2024

Member Since: Oct 2023

Bronze Member

Listings: 181

Hitch/3PL Pin size(mm):

Sellers stock ID:

1538AR2405011080

Description

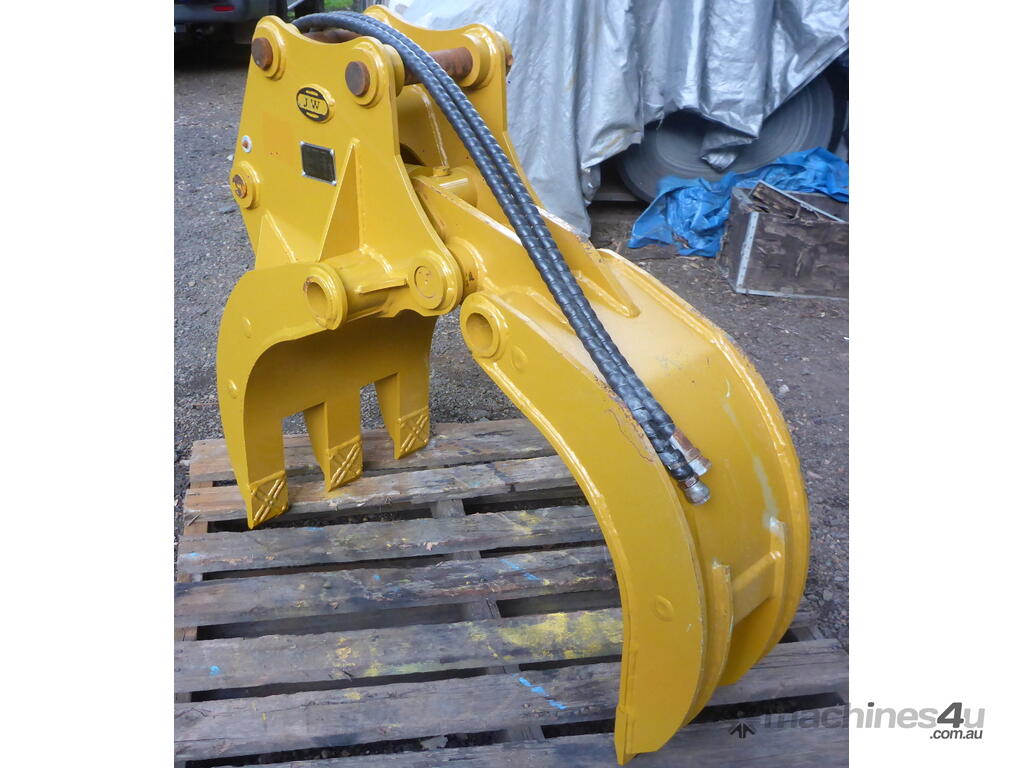

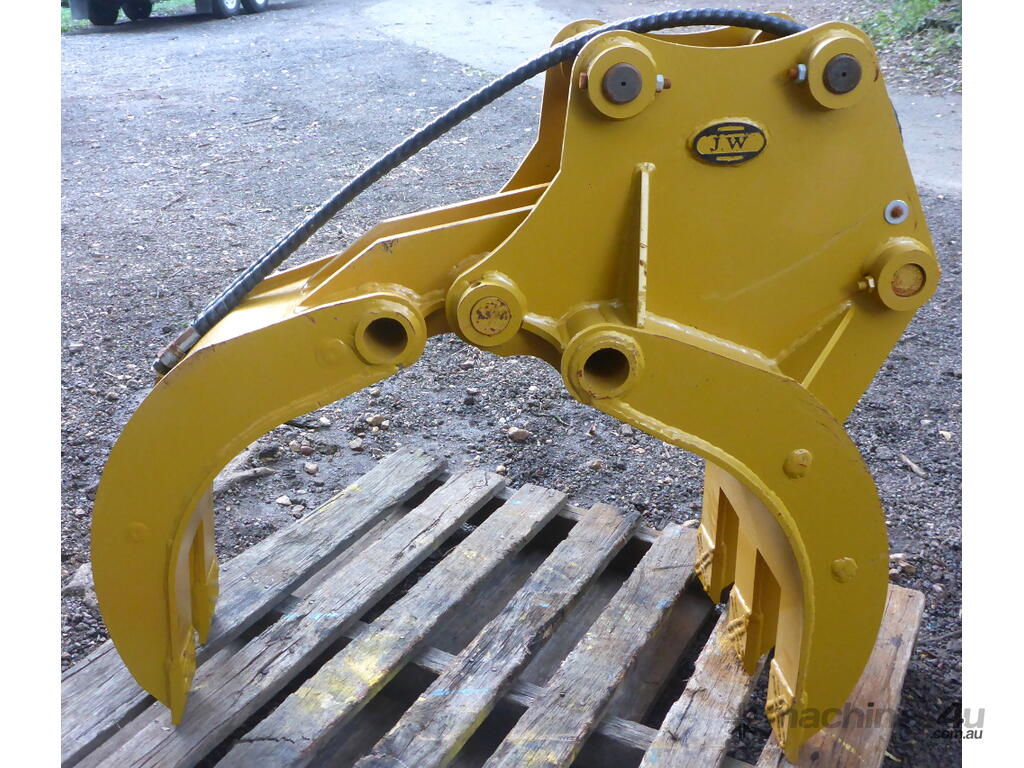

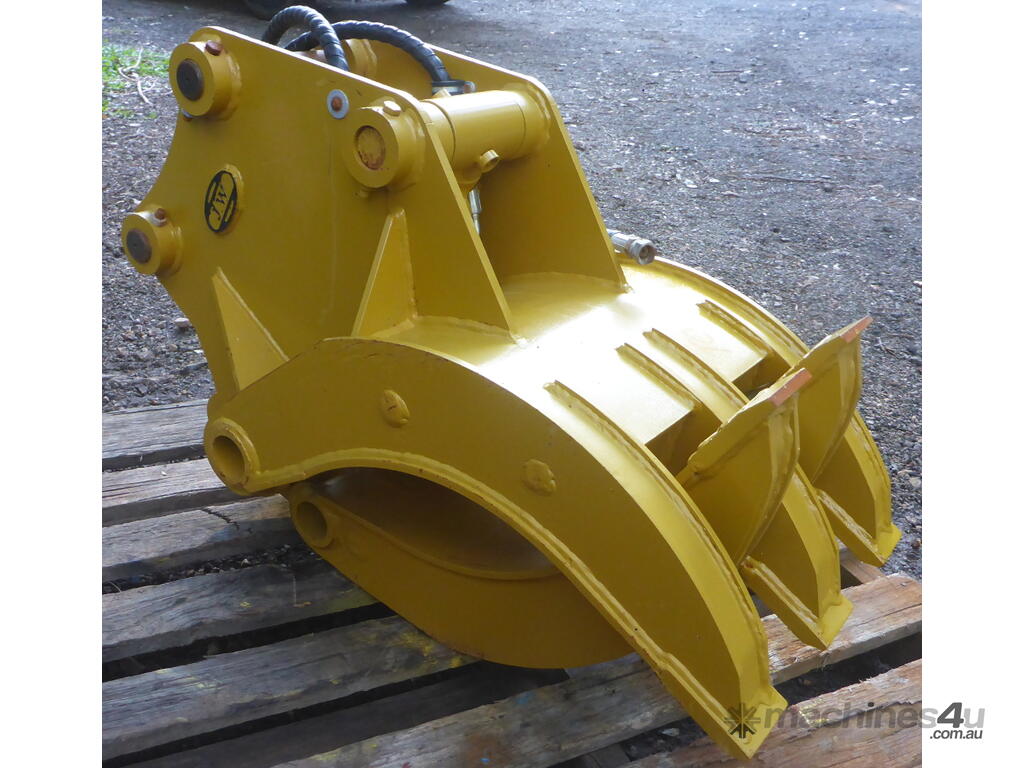

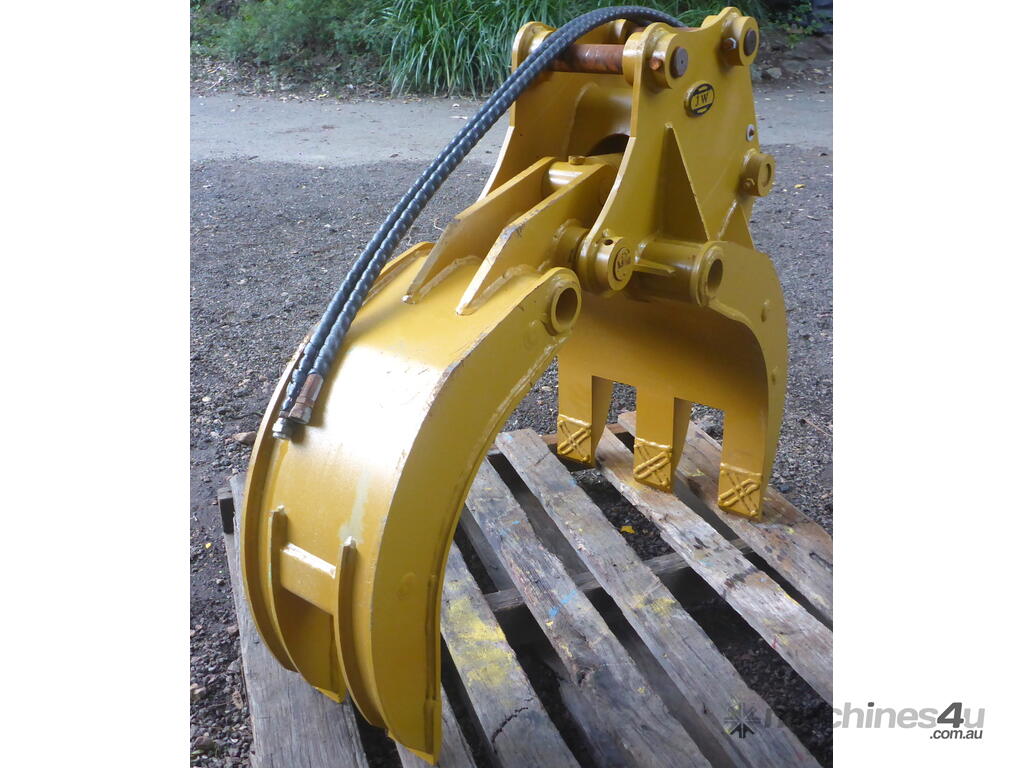

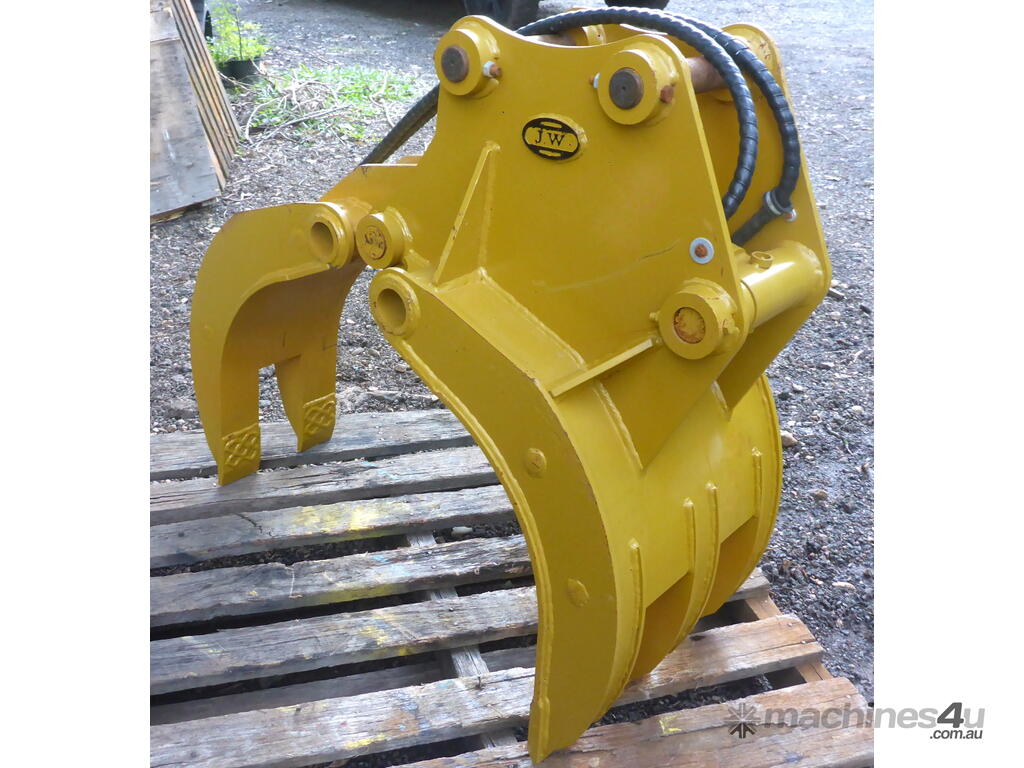

New Jea Wen ASC45 Excavator Hydraulic Grapple Grab suit 3-7 Ton machine.

Designed for Rock & Log work, but can also be used for demolition and general material handling, picking things up, moving them around and other careful placement tasks.

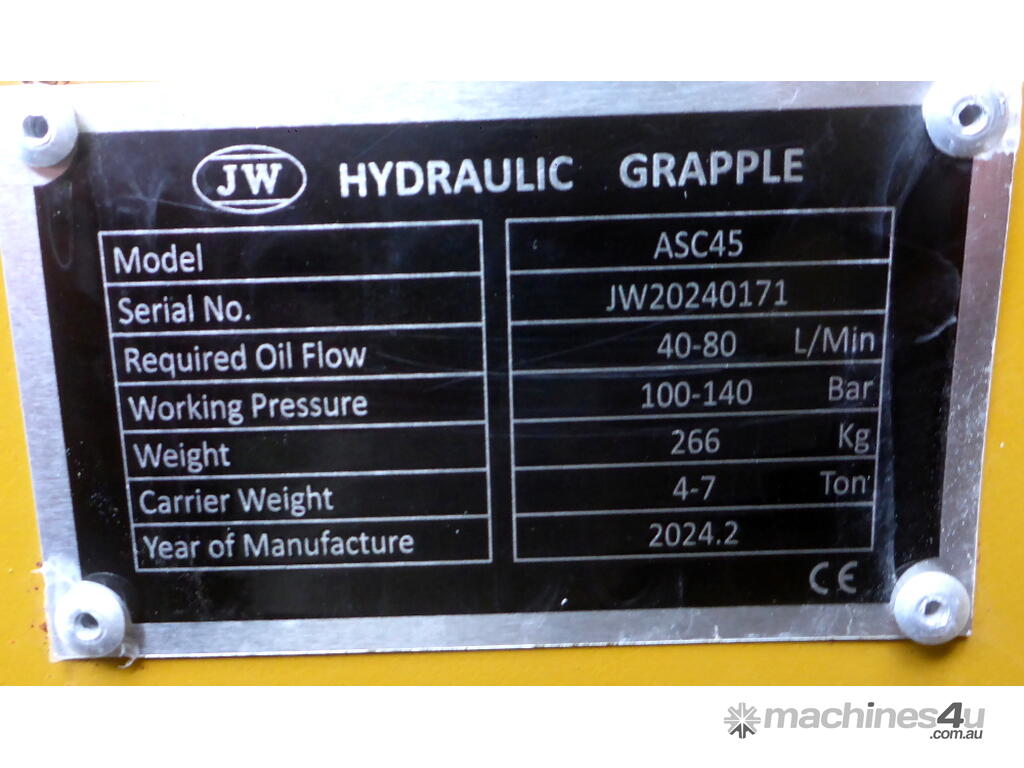

Required Oil Flow: 40-80 L/min.
Working Pressure: 100-140 bar.

Opening Width: 900mm.

Headstock configuration:
45mm Pin Diameter, 258mm Pin Center to Pin Center (CtoC), 155mm Between the inside Ear Bosses (which can be shaved back up to 218mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Caterpillar 304CR-ISJ / 305CR-ISJ / 304C CR / 305C CR, Daewoo Solar 055 / 055V / 055V PLUS, Doosan S 55-V, Hitachi EX 55UR, Kobelco 45SR-2 / 50SR-3 / SK 50UR-2, Komatsu PC 50UU-2, Samsung SE 50W.

Maybe fit: Airman AX40 / AX40U / AX50U / AX50UU, Case CX 47 / CX 50B, Daewoo Solar 070 / 075-V, Doosan S 75-V, Ferguson MF 760 / MF 860, Fermac 760 / 860, Hitachi EX 40 / EX 40-2 / EX 40U / EX 45 / EX 50U / EX 55UR Import / EX 58MU / Zaxis 40U / Zaxis 40U-2 / Zaxis 50U, Hyundai R 55 / R 55-3 / R 55-7 / R 55S, Kobelco SK 40SR-2 / SK 40SR-3 / SK 45 / SK 45SR / SK 45SR-2 / SK 45SR-3 / SK 50SR-3, Komatsu PC 40 / PC 40-7 / PC 40-7E / PC 40FR / PC 40MR-2 / PC 40MRX / PC 40R-8 / PC 45-1 / PC 45R-8 / PC 45R-8E / PC 50FR / PC 50MR-2 / PC 50MRX-2 / PC 50UU-1 / PC 58UU-3, Kubota KH151 / KH161-3 / KH191 / KX151 / KX161-2 / KX161-3 / KX191 / RX501 / U45, New Holland EH 50.B, Pel Job EB506, Samsung SE 50-3, Takeuchi TB 45 / TB 53FR / TB 53R / TB 145, Volvo EC 55 / EC50/W / ECR 58 / MX 55/W / SE 50-3, Yanmar B 50 / B 50-2 / B 50-2B / VIO40-1 / VIO40-2 / VIO40V / VIO45 / VIO45-5 / VIO50 / VIO50-1 / VIO50-2 / VIO55 / VIO55-5 / YB 50 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

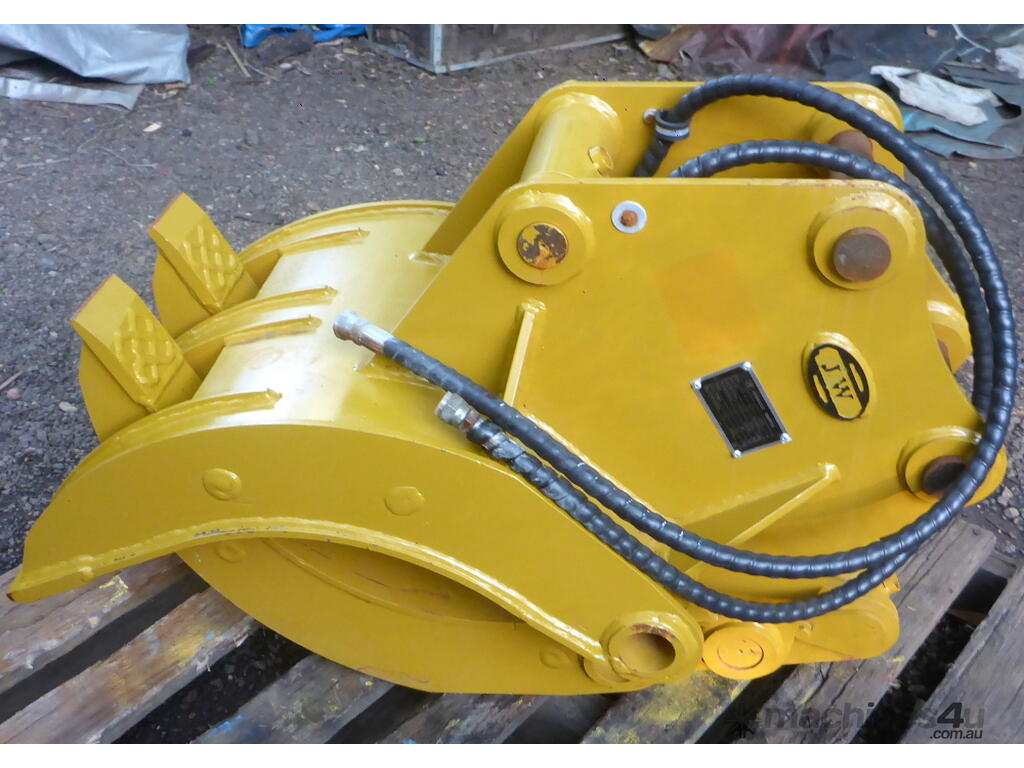

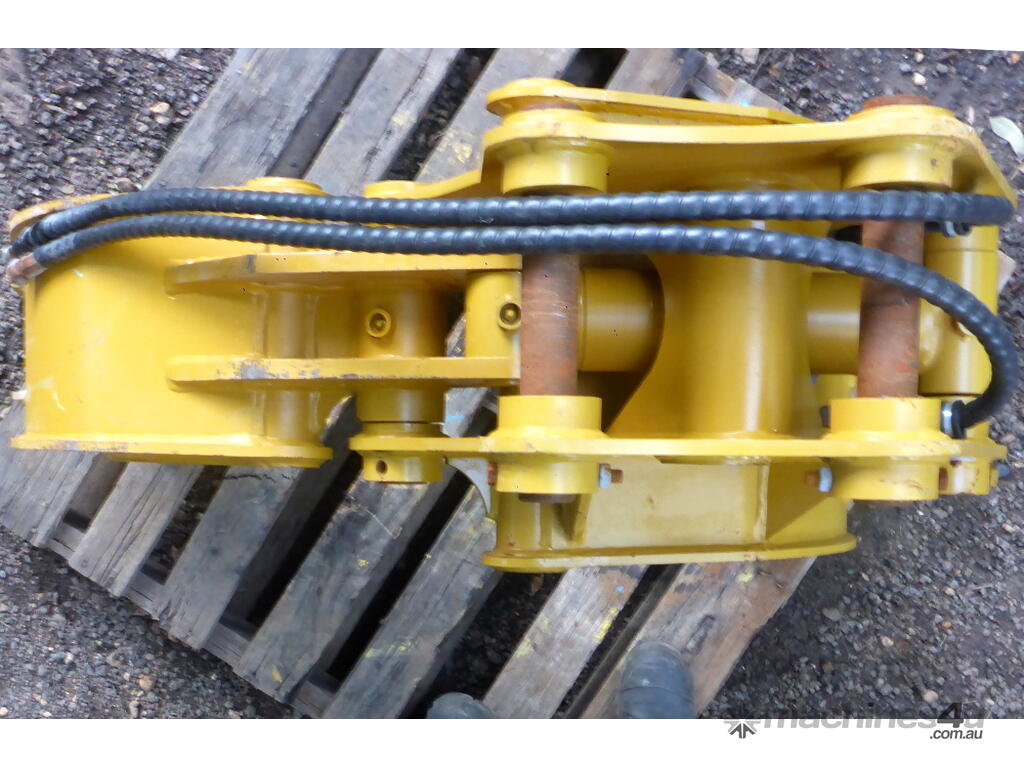

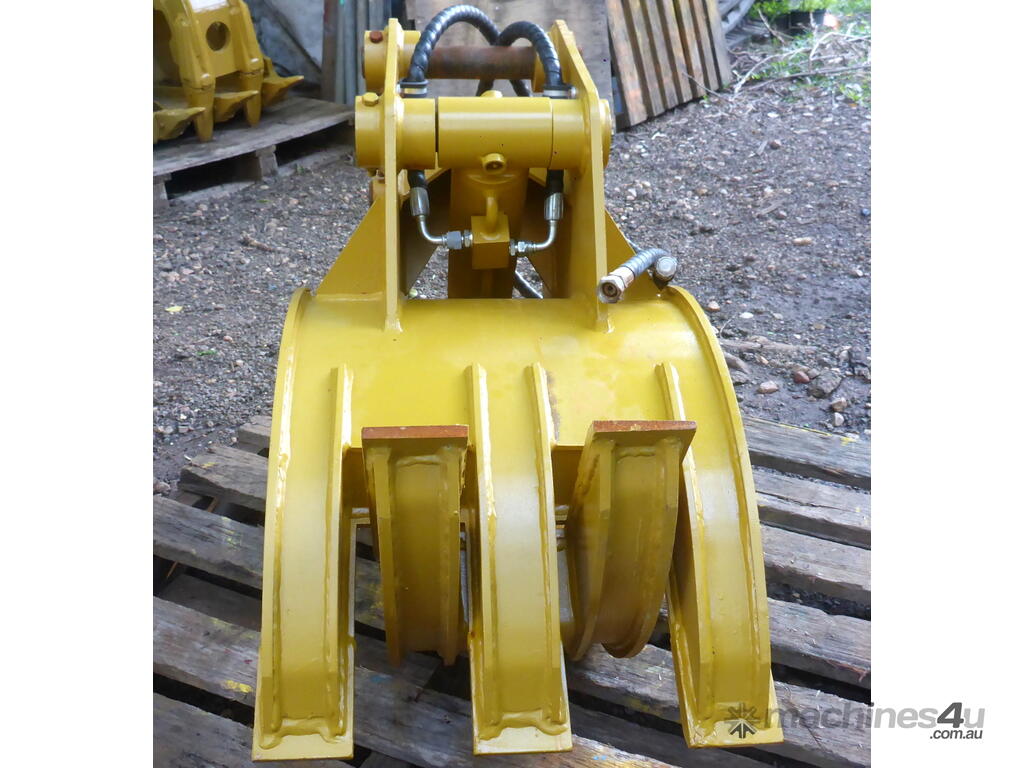

Shipping Dimensions (laying down as in pics #7-9): 492mm wide, 1015mm long, 677mm high. Weight: 250kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
