New 3-7 ton (45mm pin, 245mm CtoC) 600mm AHE Excavator Digging GP Bucket

Name: New 3-7 ton 45mm pin 245mm CtoC 600mm AHE Excavator Digging GP Bucket
Brand: ATLAS HEAVY ENGINEERING
SKU: 1476AL24012377
Price: 995 AUD
Availability: InStock

PULLENVALE, QLD

$995 AUD($1,095 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Excavator Bucket

Make:

ATLAS HEAVY ENGINEERING

Year:

Not specified

Member Since: Oct 2023

Bronze Member

Listings: 177

Bucket Type:

GP Digging Bucket

Bucket Width (mm):

600 Wide Bucket

Hitch/3PL Pin size(mm):

Sellers stock ID:

1476AL24012377

Description

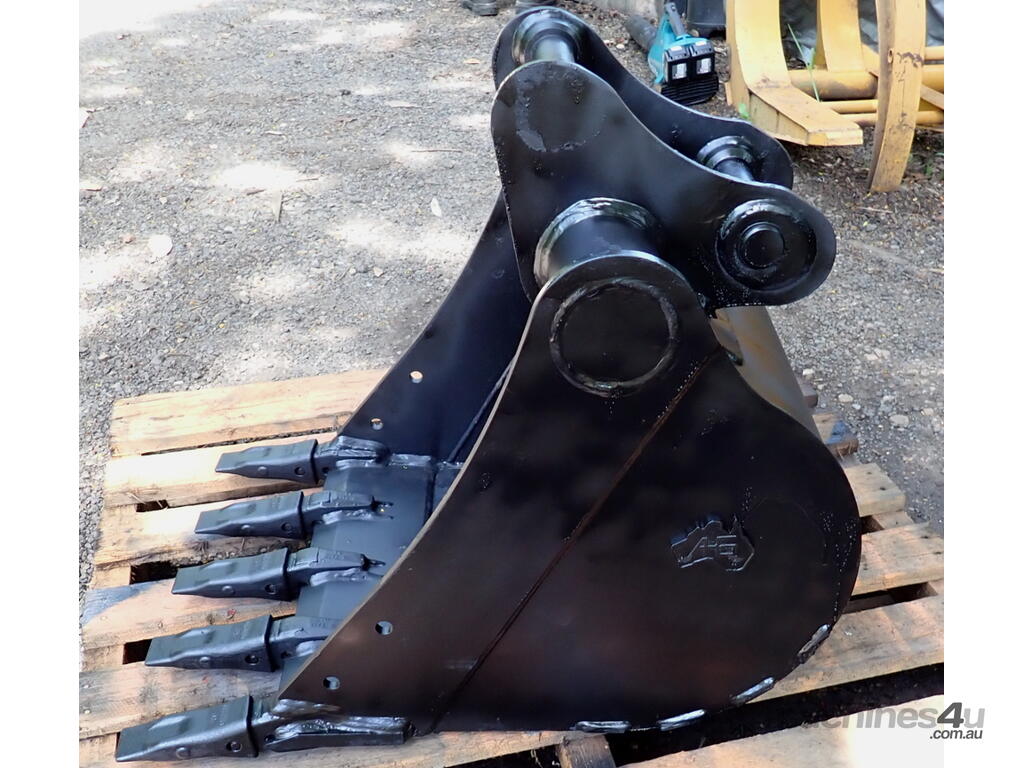

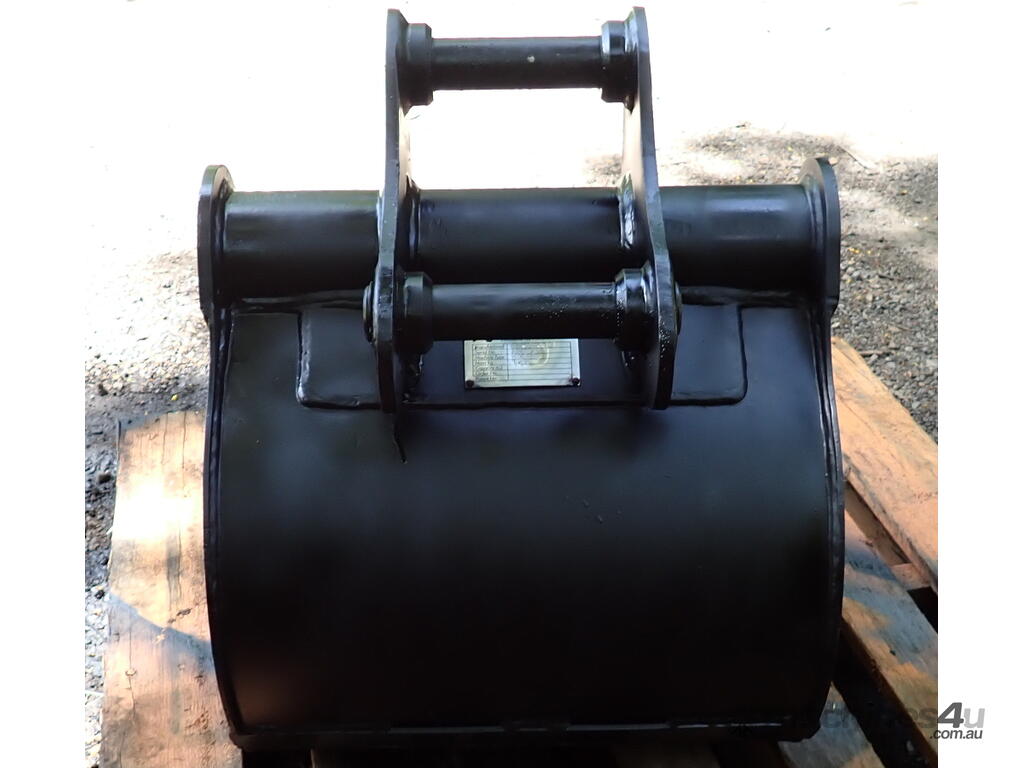

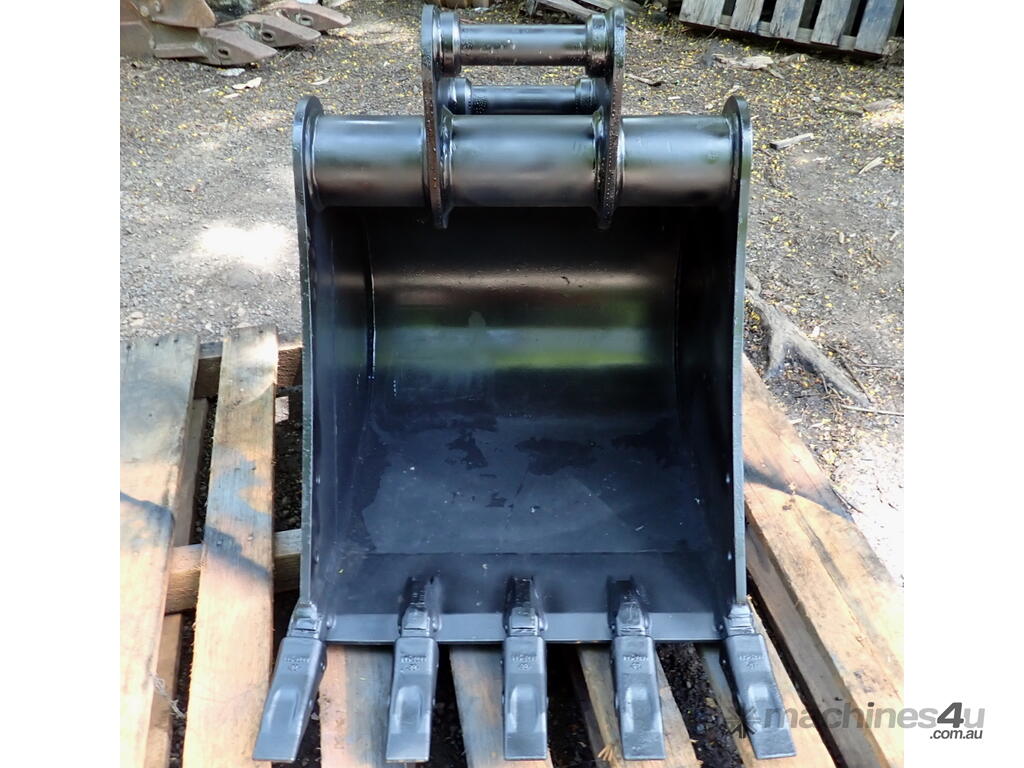

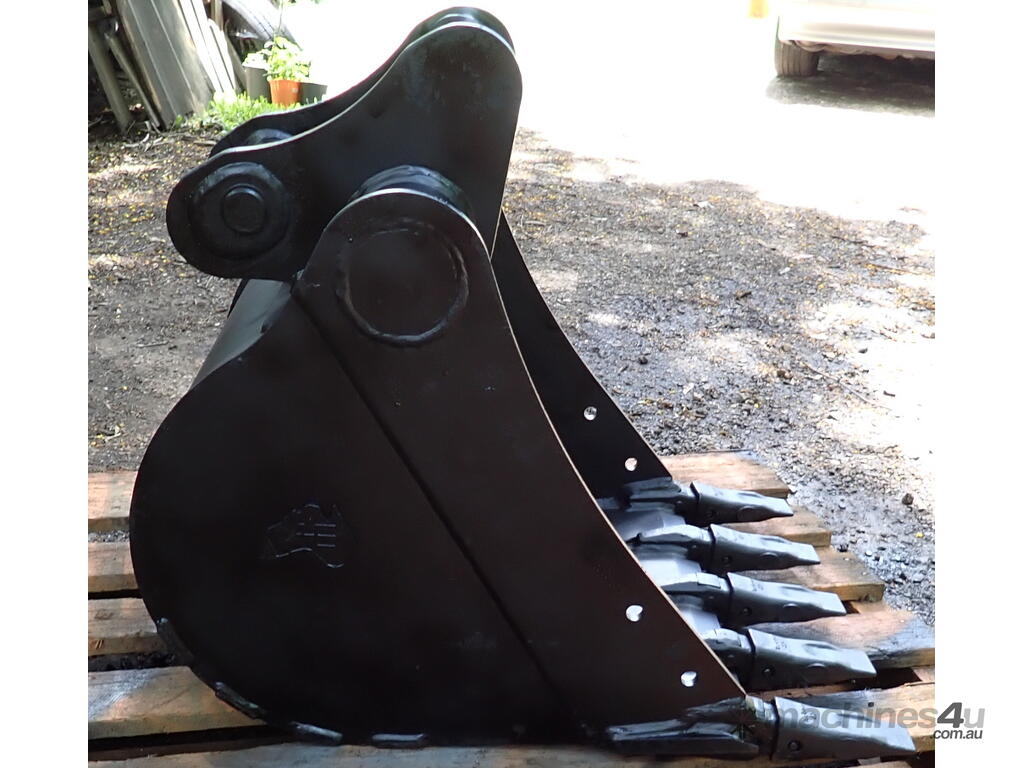

New 600mm Atlas Heavy Engineering (AHE) Excavator Digging & Trenching GP Bucket suit 3-7 Ton machine.

This bucket has come from surplus stock from Atlas Heavy Engineering (AHE).
It is New & Unused but there was some paint scuffs & chips from warehouse storage & handling, we have given it a quick paint just to preserve it further.

Designed for Hitachi EX 58MU, Komatsu PC 40 / PC 45R-8 / PC 45R-8E / PC 58UU-3, Kubota KH151 / KH161-3 / KH191 / KX151 / KX161-2 / KX161-3 / KX191 / RX501 / U45, Yanmar YB 50 etc. but will fit other machines (see below list of machines we have found so far).

The bucket also has holes ready for bolt-on removable Side Cutters, and there are extra Wear Strips welded underneath for durability (see pic #10).

Current Headstock configuration:
45mm Pin Diameter, 245mm Pin Center to Pin Center (CtoC), 145mm Between the inside Ear Bosses (which can be shaved back up to 200mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Hitachi EX 58MU, Komatsu PC 40 / PC 45R-8 / PC 45R-8E / PC 58UU-3, Kubota KH151 / KH161-3 / KH191 / KX151 / KX161-2 / KX161-3 / KX191 / RX501 / U45, Yanmar YB 50.

Maybe fit: Airman AX40 / AX40U / AX50U / AX50UU, Bobcat 337 / 435 / X335 / X337 / X341, Case CX 47 / CX 50B, Caterpillar 304C CR / 304CR-ISJ / 305C CR / 305CR-ISJ, Daewoo Solar 055 / 055V / 055V PLUS, Doosan S 55-V, Hitachi EX 40 / EX 40-2 / EX 40U / EX 45 / EX 50U / EX 55UR / EX 55UR Import, Hitachi Zaxis 40U / 40U-2 / 50U, Hyundai R 55 / R 55-3 / R 55S, Kobelco 45SR-2 / 50SR-3 / SK 40SR-2 / SK 40SR-3 / SK 45 / SK 45SR / SK 45SR-2 / SK 45SR-3 / SK 50SR-3 / SK 50UR-2, Komatsu PC 40-7 / PC 40-7E / PC 40FR / PC 40MR-2 / PC 40MRX / PC 40R-8 / PC 45-1 / PC 50FR / PC 50MR-2 / PC 50MRX-2 / PC 50UU-1 / PC 50UU-2, New Holland EH 50.B, Pel Job EB506, Samsung SE 50W, Takeuchi TB 45 / TB 53FR / TB 53R / TB 145, Volvo ECR 58, Yanmar B 50 / B 50-2 / VIO40-1 / VIO40-2 / VIO40V / VIO45 / VIO50 / VIO50-1 / VIO50-2 / VIO55 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

Shipping Dimensions: 612mm Wide (at the teeth), 820mm Deep, 703mm High. Weight: 122kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
