New 3-7 ton (45mm pin) Volvo Excavator Hydraulic Quick Hitch Coupler

Name: New 3-7 ton 45mm pin Volvo Excavator Hydraulic Quick Hitch Coupler
Brand: Volvo
SKU: 917163
Price: 2409 AUD
Availability: InStock

PULLENVALE, QLD

$2,409 AUD($2,650 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Quick Hitch

Make:

VOLVO

Year:

Not specified

Member Since: Oct 2023

Bronze Member

Listings: 181

Hitch/3PL Pin size(mm):

Description

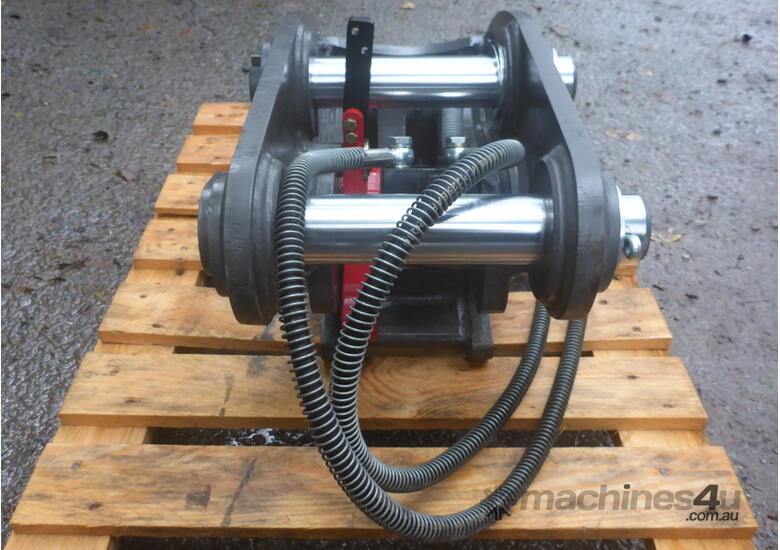

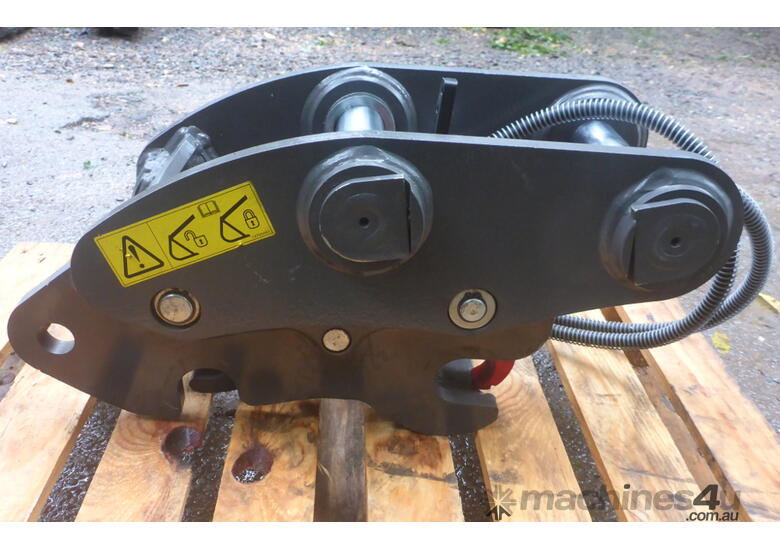

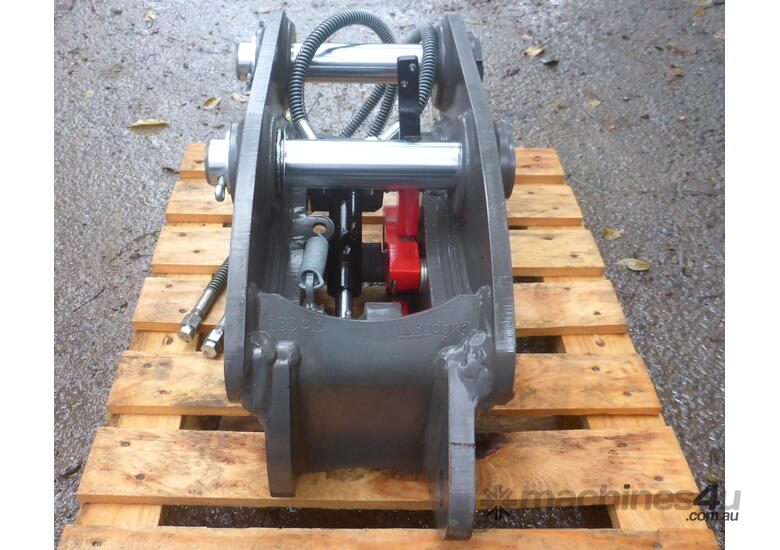

New Excavator Hydraulic Quick Hitch Coupling to suit 3-7 Ton machines.

Fully Automatic with Dual Pin Locking (no need to leave the cab to remove / re-insert the safety pin). It has a low profile and light weight. Strong and well engineered. Made by Volvo in Ireland.

It is brand New, never used. It was fitted to a new Volvo ECR58 and shipped to Australia then removed by Volvo when their customer wanted a tilting hitch fitted. It then sat in a Volvo warehouse for 5 years.

Lifting Eye rated: SWL 3000kg.

Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 45mm.
* Pin Center to Pin Center (CtoC): 220mm.
* Between The Ears (BTE): 161mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 184mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).

Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 45mm.
* Pin Center to Pin Center (CtoC): 220mm.
* Between The Ears (BTE): 157mm (your buckets/attachments need to have at least this much width between the ears).

Should fit: Bobcat 337, Bobcat 435, Bobcat X335, Bobcat X337, Bobcat X341, IHI (Cheiftain) 40G/H/J, IHI 45J, Volvo ECR 58.

Maybe fit: Airman AX40U, Airman AX50U, Case CX 47, Case CX 50B, Hitachi EX 40, Hitachi EX 45, Hitachi EX 40U, Hitachi EX 50U, Hitachi Zaxis 50U, Kobelco SK 40SR-2, Kobelco SK 40SR-3, Kobelco SK 45, Kobelco SK 45SR, Kobelco SK 45SR-2, Kobelco SK 45SR-3, Kobelco SK 50SR-3, Kubota KH151, Kubota KH161-3, Kubota KH191, Kubota KX151, Kubota KX161-3, Kubota KX191, Kubota U45, New Holland EH 50.B, Pel Job EB506, Takeuchi TB 45, Takeuchi TB 53FR, Takeuchi TB 53R, Takeuchi TB 145 and possibly other machines with similar pin spacings.

Shipping dimensions: 280mm Wide, 560mm Long, 285mm High. Weight: 62kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
