New 3-8 ton (45mm or 40mm pin) Excavator Roller Compaction Wheel

Name: New 3-8 ton 45mm or 40mm pin Excavator Roller Compaction Wheel
Brand: GIYI
SKU: 1053120
Price: 1527 AUD
Availability: InStock

PULLENVALE, QLD

$1,527 AUD($1,680 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Excavator Compaction Wheel

Make:

GIYI

Year:

2024

Member Since: Oct 2023

Bronze Member

Listings: 181

Hitch/3PL Pin size(mm):

Description

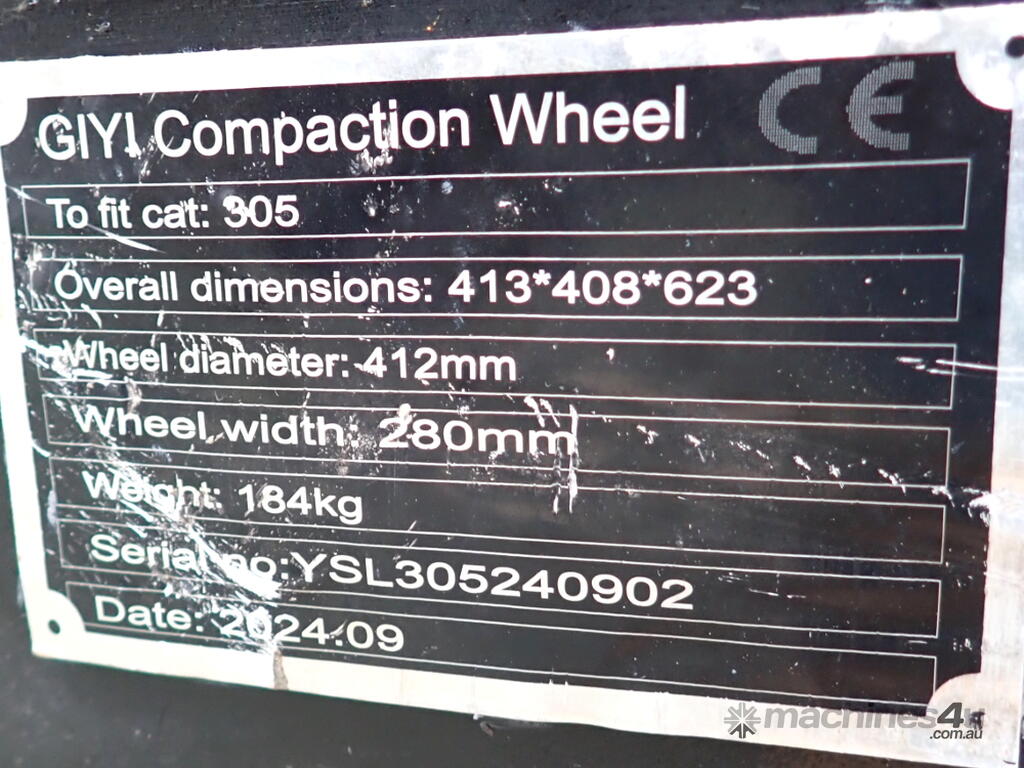

New GIYI Excavator Compaction Wheel suit 3-8 Ton machines.

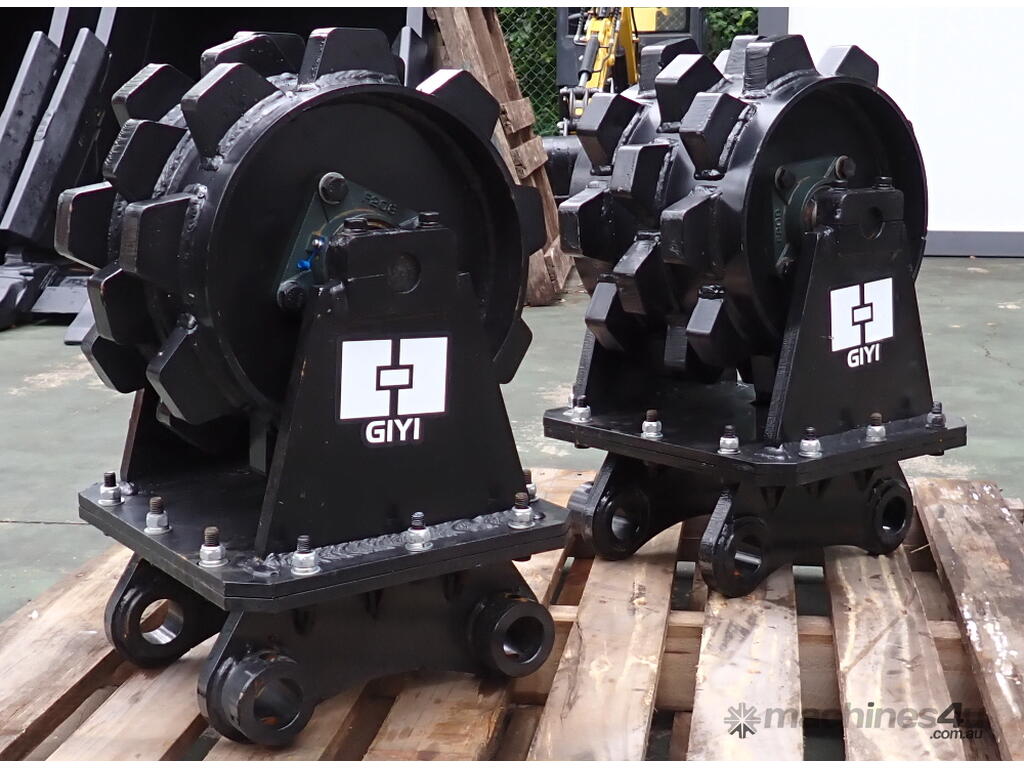

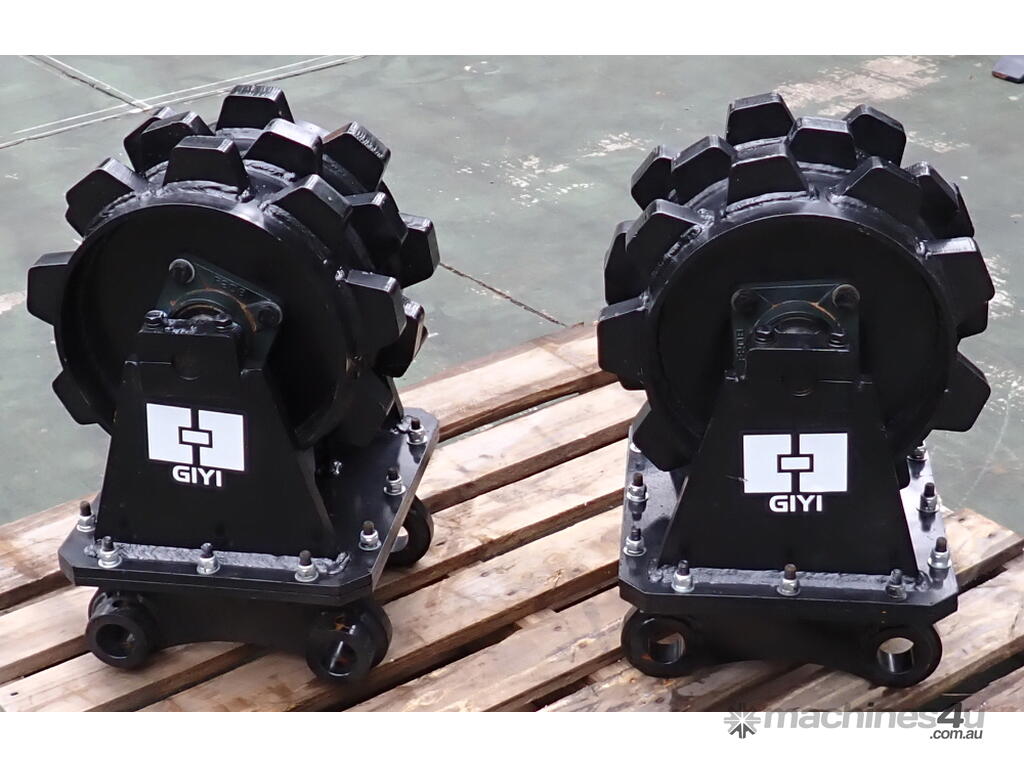

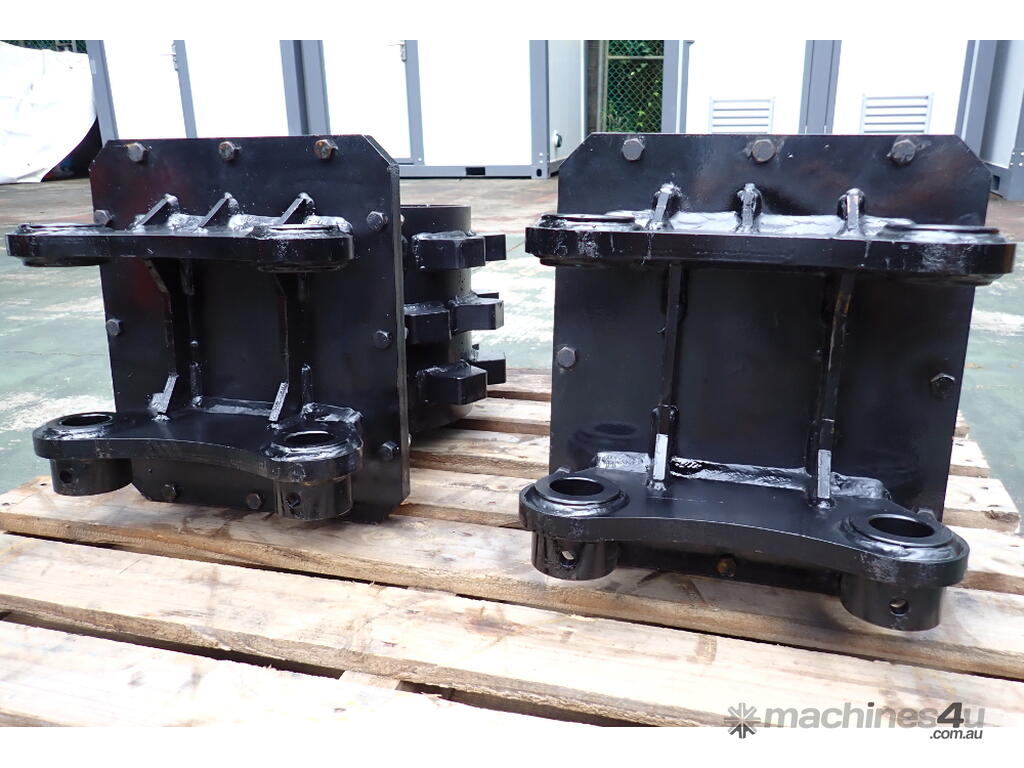

3 rows of pads and fitted with Mud Scrapers between the pads (see pics# 7 & 8).

Has 45mm diameter holes ready for 45mm pins, or use two 45mm pins and have the middle lathed down to 40mm if your machine takes 40mm pins.

Drum:
* Width: 280mm.
* Total Drum Diameter (including pads): 440mm.

Pads (solid steel not hollow):
* Height: 50mm.
* Size at Top: 35mm wide x 60mm long.
* Size at Base: 35mm wide x 90mm long.

***** Current Headstock configuration:
* 45mm Pin Hole Diameter
* 256mm Pin Center to Pin Center (CtoC)
* Between the Ears (comes in 2 variations)...
...159mm Between the inside Ear Bosses (which can be shaved back up to 176mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).
...or
...188mm Between the inside Ear Bosses (which can be shaved back up to 205mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

*** As a 45mm pin (just add two 45mm pins):
* Should fit: Case CX 47 / 50B, Caterpillar 304C CR / 304CR-ISJ / 305C CR / 305CR-ISJ, Daewoo Solar 055 / 055V / 055V PLUS, Doosan S 55-V, Hitachi EX55UR / EX58MU, Kobelco 45SR-2 / 50SR-3 / SK 50UR-2, Komatsu PC 50UU-2 / PC 58UU-3 / SE 50W.
* Maybe fit: Airman AX40 / AX40U / AX50U / AX50UU, Doosan S 75-V, Hitachi EX40 / EX40-2 / EX40U / EX45 / EX50U / EX55UR Import, Hitachi Zaxis 40U / 40U-2 / 50U, Hyundai R 55 / R 55-3 / R 55S, Kobelco SK 45 / SK 45SR, Komatsu PC 40 / PC 40-7 / PC 40-7E / PC 40FR / PC 40MR-2 / PC 40MRX / PC 40R-8 / PC 45-1 / PC 45-1 / PC 45R-8 / PC 45R-8 / PC 45R-8E / PC 50FR / PC 50MR-2 / PC 50MRX-2 / PC 50UU-1, Kubota KH151 / KH161-3 / KH191 / KX151 / KX161-2 / KX161-3 / KX191 / RX501 / U45, Takeuchi TB 45 / TB 53FR / TB 53R / TB 145, Yanmar B 50 / B 50-2 / B 50-2B / VIO40-1 / VIO40-2 / VIO40V / VIO45 / VIO45-5 / VIO50 / VIO50-1 / VIO50-2 / VIO55 / VIO55-5 / YB 50 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

*** As a 40mm pin (lathe the middle of two 45mm pins down to 40mm):
* Should fit: Case 580SLE, Caterpillar 304CR-OSJ / 304.5 / 305CR-OSJ, New Holland EC 45 / EH 45, Schaeff HR18, Terex HR18.
* Maybe fit: Bobcat 730 / 753, Hitachi EX50 / EX50URG and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

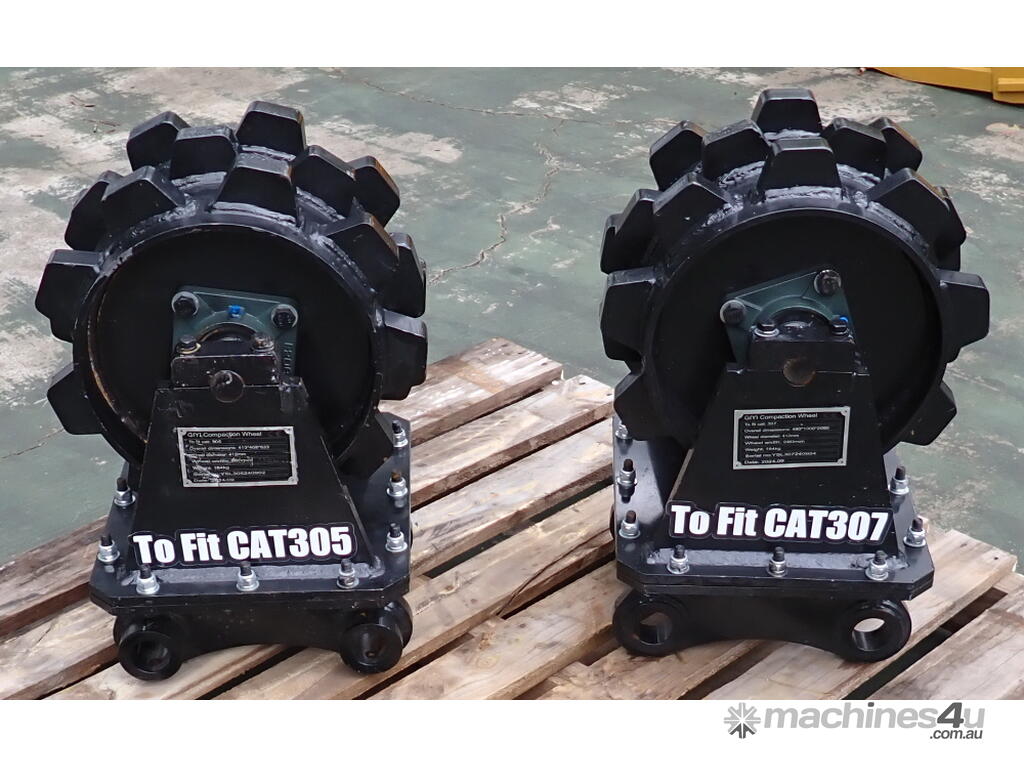

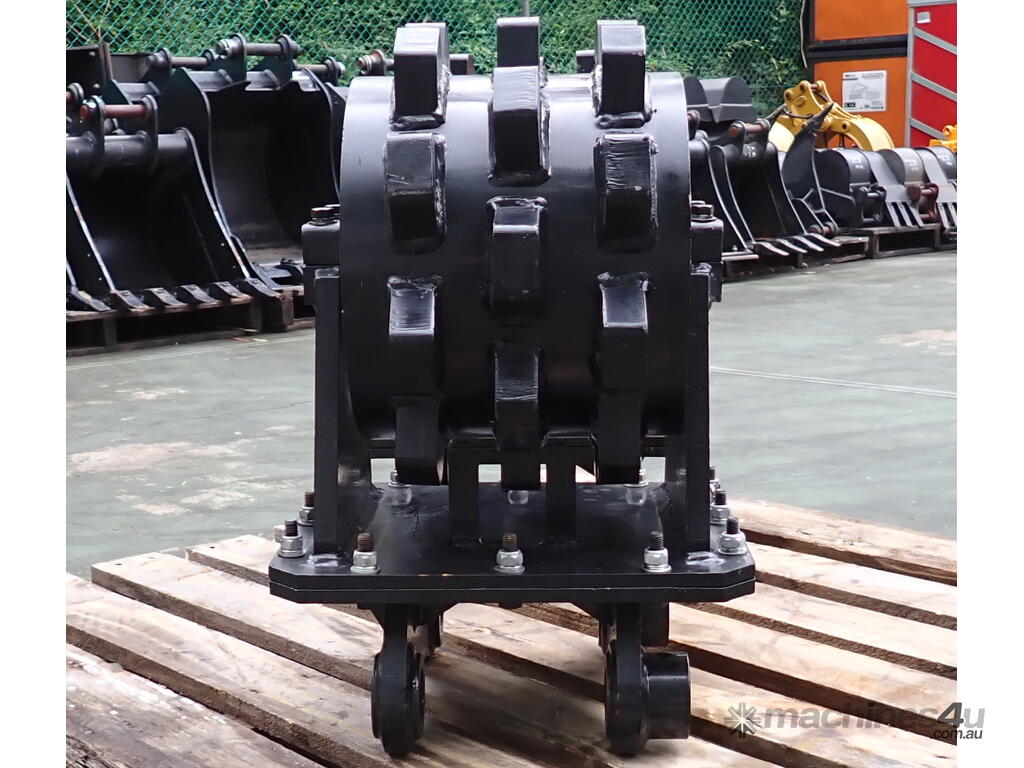

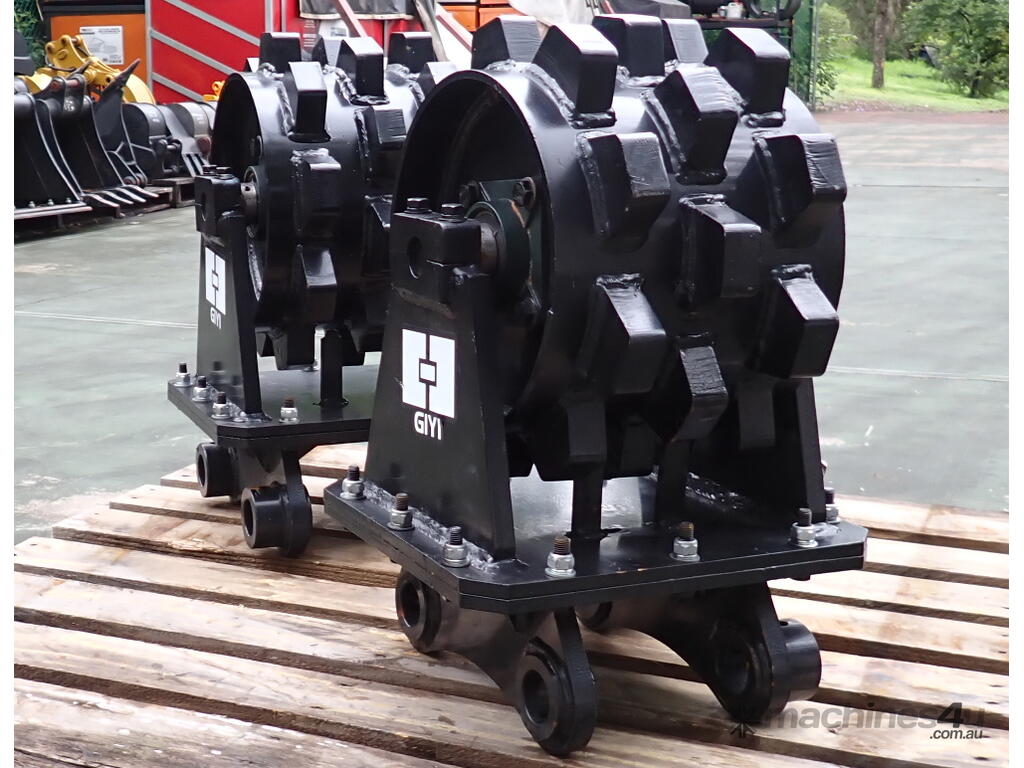

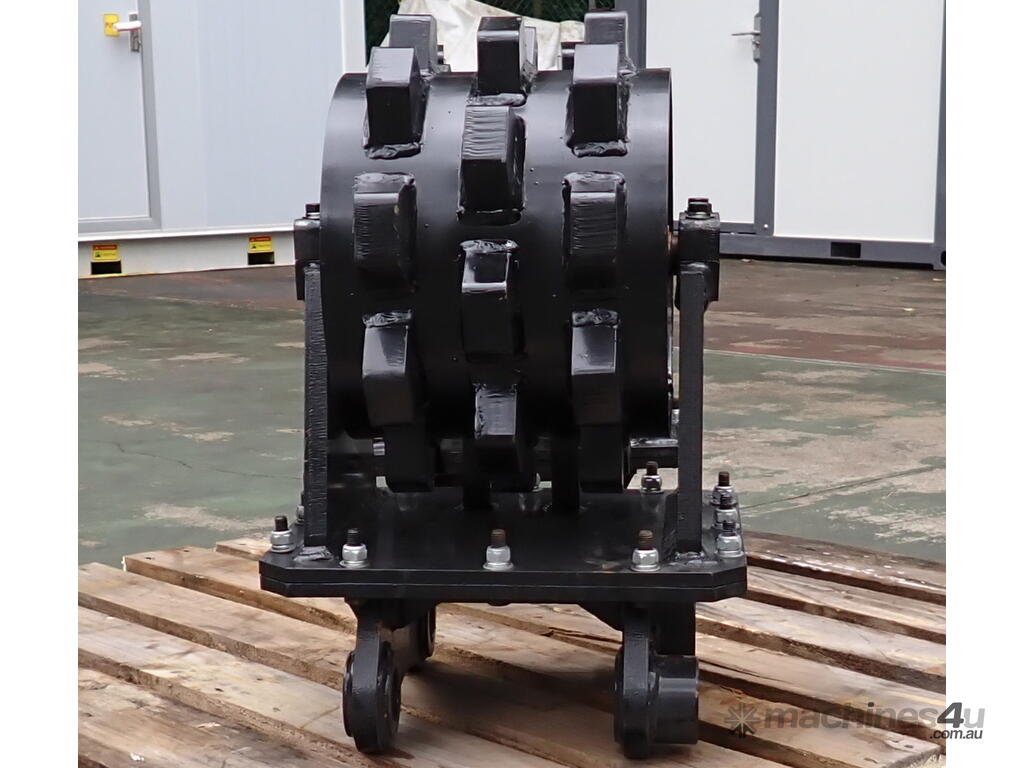

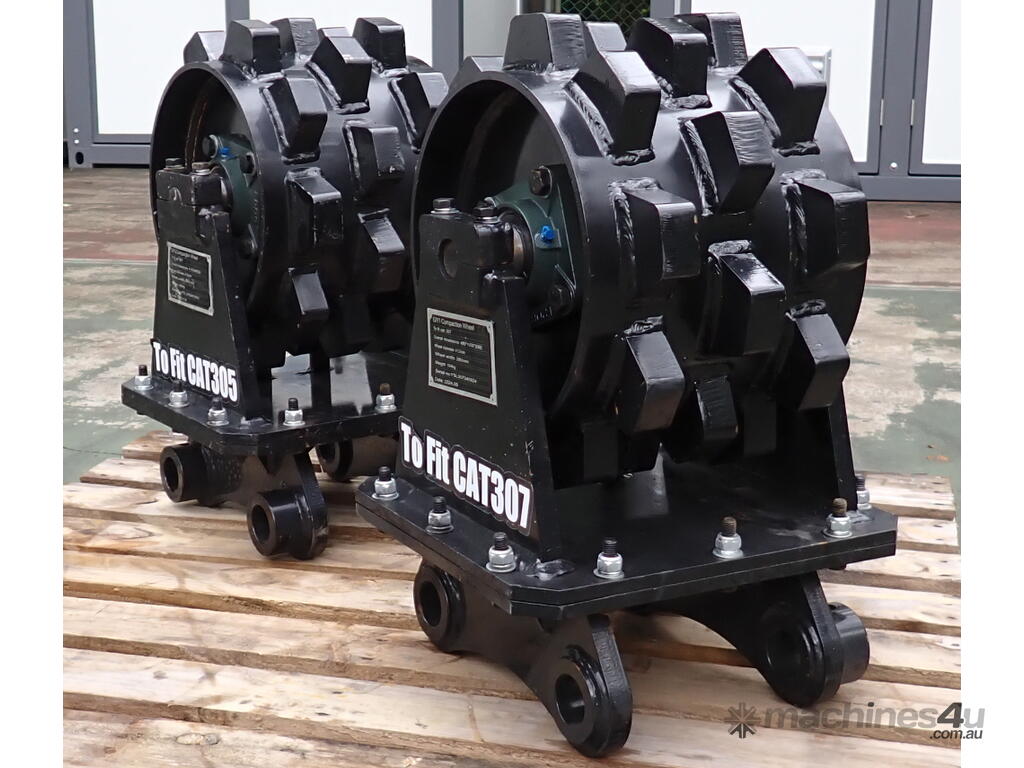

Dimensions (standing up as in pics # 1-8): 410mm Wide, 415mm Deep, 625mm High. Weight: 128kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
