New 5-10 ton (50mm pin) AHE Hydraulic Excavator Quick Hitch Coupling

Name: New 5-10 ton 50mm pin AHE Hydraulic Excavator Quick Hitch Coupling
Brand: ATLAS HEAVY ENGINEERING
SKU: 1574AL24061112A
Price: 2500 AUD
Availability: InStock

PULLENVALE, QLD

$2,500 AUD($2,750 Inc. GST)
Confirm with seller if additional costs apply

Specifications

Condition:

New

Category:

Quick Hitch

Make:

ATLAS HEAVY ENGINEERING

No. in Stock

Year:

Not specified

Member Since: Oct 2023

Bronze Member

Listings: 178

Hitch/3PL Pin size(mm):

Sellers stock ID:

1574AL24061112A

Description

New Atlas Heavy Engineering (AHE) Excavator Hydraulic Coupler Quick Hitch to suit 5-10 Ton machines.

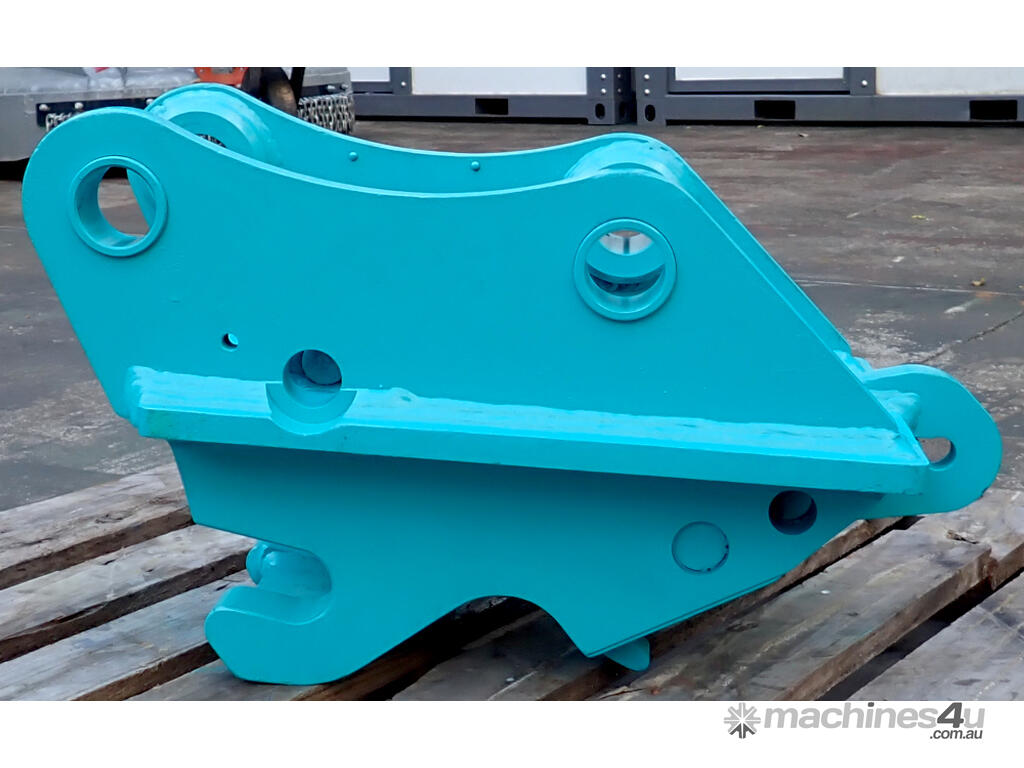

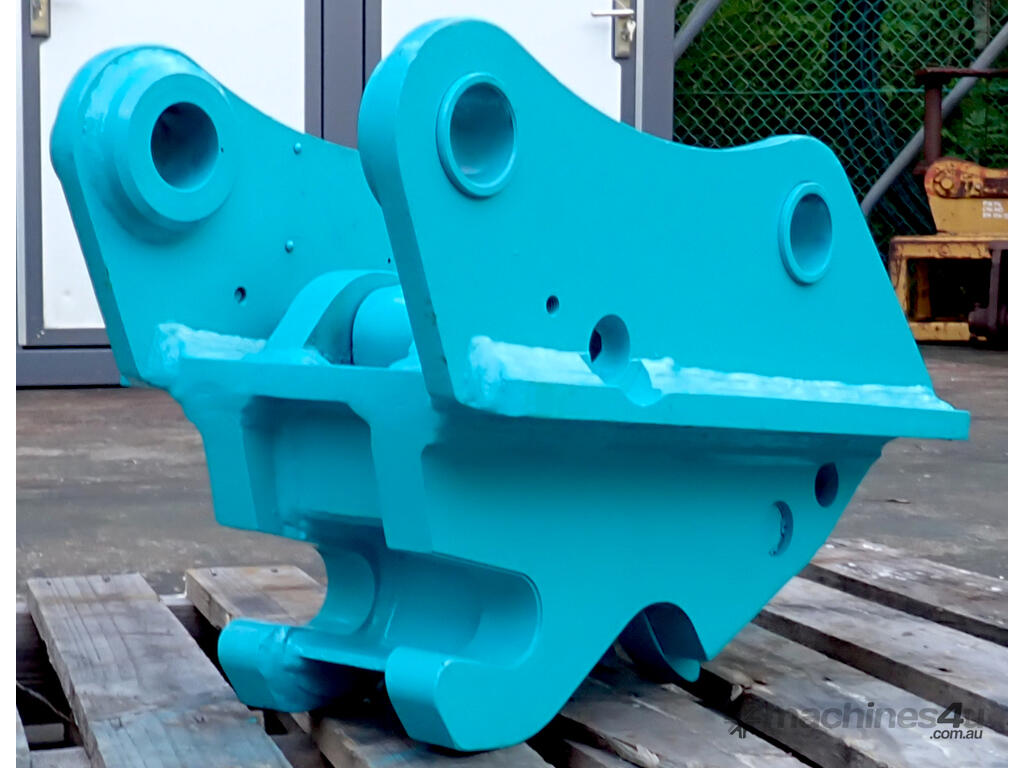

Has a built in Automatic Hydraulic Locking Actuator (see pics# 1, 2, 7, 8, 9, 10).

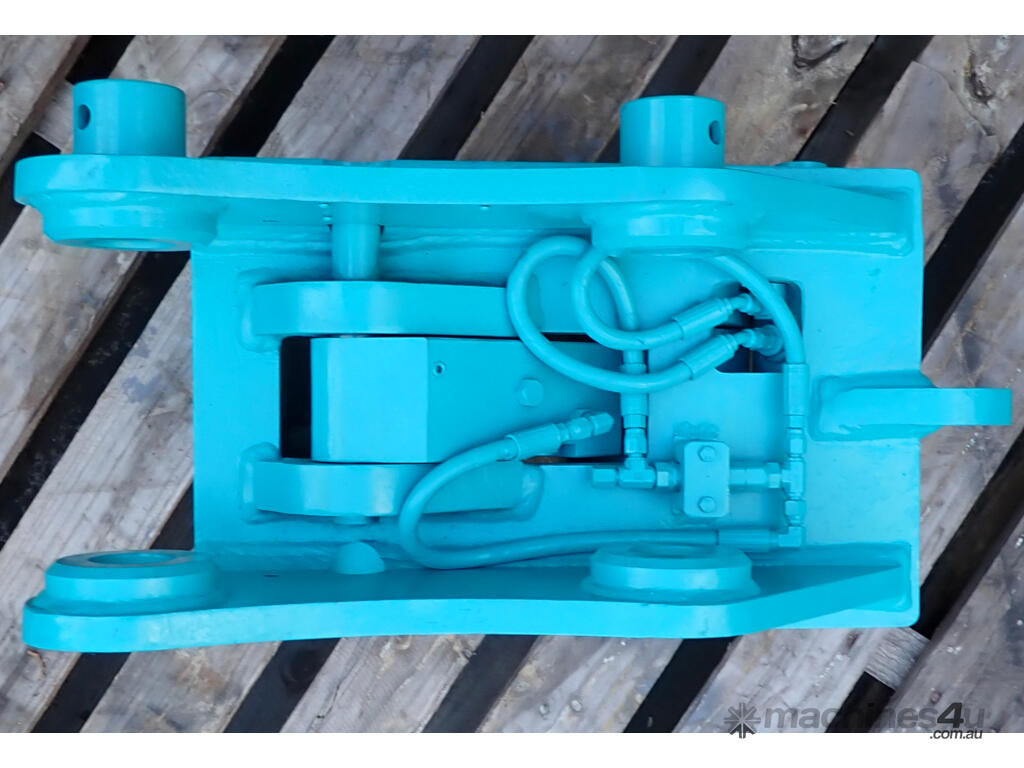

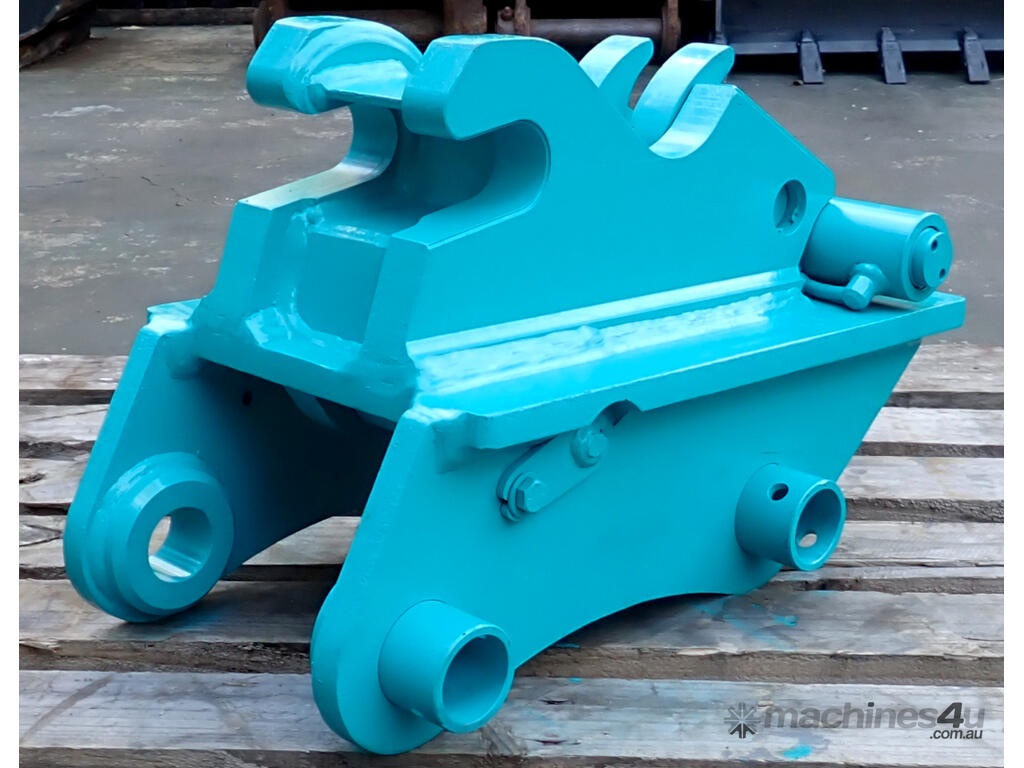

Has a rear Lifting Eye Hook (see pics# 1, 4, 5, 8, 9, 10).

This hitch has come from surplus stock from the Australian Manufacturer Atlas Heavy Engineering (AHE).

*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 50mm.
* Pin Center to Pin Center (CtoC): 320mm.
* Between The Ears (BTE): 182mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 227mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).

*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 50mm.
* Between The Ears (BTE): 177mm (your buckets/attachments need to have at least this much width between the ears).

Should fit: Hitachi EX60-5 / EX60-5 Import / EX75-5 / EX80 Import / Zaxis 75US / Zaxis 80, John Deere 75C / 80C, Komatsu PC 60 / PC 60-5 / PC 60-6 / PC 60-7 / PC 70FR / PC 75UU / PC 75UU-1 / PC 75UU-2 / PC 75UU-3 / PC 78MR-6 / PC 80-1 / PC 80-2 / PC 80-3 / PC 90-1 / PC 95R-2 / SV100, Sany SY 75C, Yanmar B 7 SIGMA / VIO70 / VIO75.

Maybe fit: Bobcat zx125, Case 9007 / 9007B / CX 75SR / CX 80SR, Caterpillar 308D / 308e2cr, Ingersoll-Rand ZX125, JCB 3CX Std to Suit G65 Bush / JS 70 / JZ 70, Kato 180G, Kobelco 70SR / 80CS / SK 60 / SK 70SR / SK 70SR-1E / SK 75UR / SK 80MSR, Komatsu WB146-5,PS-5, Link-Belt 75SA (Mono & Offset) / 80SA / 1600 QUANTUM, New Holland EH 70 / EH 80 CS, Sumitomo LS 1600F2U / SH 60 / SH 60-2 / SH 60DX-2 / SH 60SP / SH 60SR / SH 60X-2 / SH 75U / SH 75U-2 / SH 75UU / SH 75X-2 / SH 75X-3, Sunward SWE 75, Takeuchi TB 70 / TB 70FR / TB 80FR / TB 175 and possibly other machines with similar pin spacings.

Hitch dimensions: 665mm long, 340mm wide, 385mm high. Weight: 116kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
