New 5000w (15000w peak) 48Vdc-240Vac Pure Sine Wave Smart Power Inverter

RRP $4175.

Model: CNBOU / 8ZED 5000S-48V-BPlus. This is Brand New, Unused stock in perfect condition that has come from a closed down Solar Supplier. This is Not a Grid-Connect Inverter, it is for Off-Grid use with a 48volt Battery Bank setup.

Great for general fixed or portable Off Grid applications such as: Homes, Offices, Work Sites, Caravans, Motor Homes, Work & Recreational Vehicles, Boats & Yachts, Backup Power Systems etc.

The display screen can be detached for remote operation of more than 30 meters. Editable parameters include: AC output frequency 50HZ/60HZ conversion, degree Fahrenheit/Celsius switching, battery type selection, under voltage value adjustment, screen display of AC output voltage, DC (battery) voltage, five levels of battery capacity display, output power, output frequency, inverter temperature and software and hardware version number and other information.

BPlus full range of products are equipped with RS485 interface, an international standard MODBUS communication protocol, and can be connected to any of the same equipment and terminals in communication protocols.

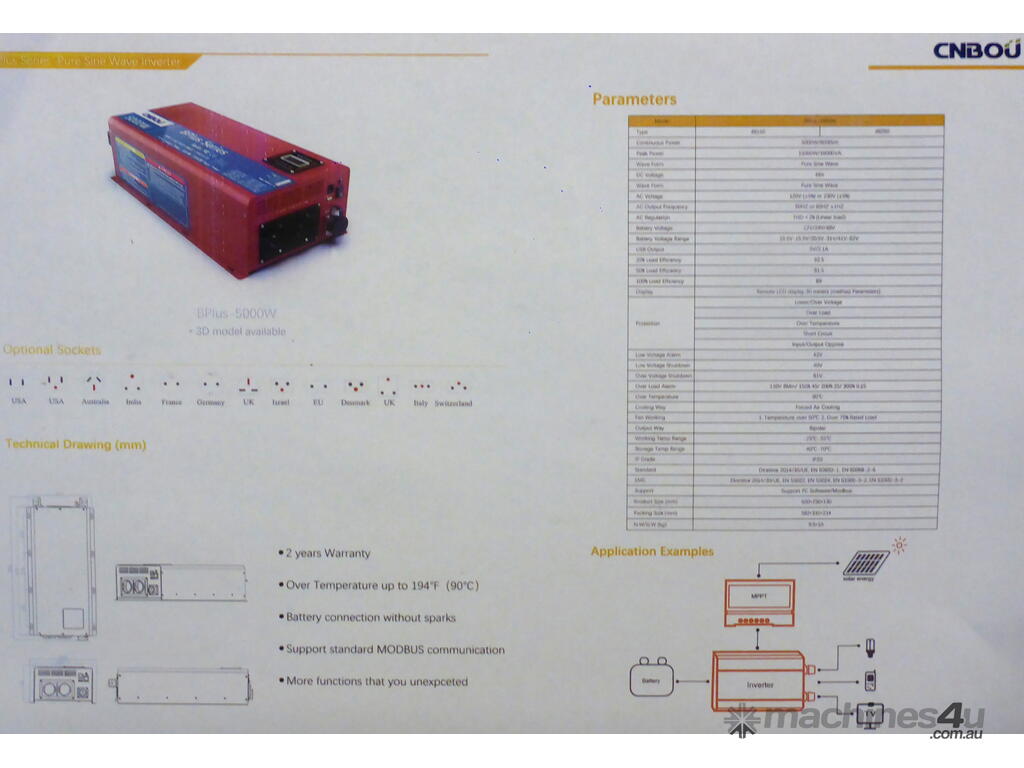

PRODUCT PAGE: (see link in 'View Brochure' above...)

FEATURES:
1. Optimized for 48VDC voltage system.
2. 15,000 watts surge power design same as low-frequency inverter.
3. 5000 watts full power long time running at a low-temperature design. Over-temperature up to 90 degrees Celsius.
4. No static or humming noises. Temperature and load(75% start) dual control fan.
5. DC low and over-voltage protection, over-load protection, over-temperature protection, and short circuit indication.
6. Anti-reverse protection, Max 94% conversion efficiency via 48VDC system.
7. Provide standard MODBUS communication.
8. USB charger 2.1 amp.

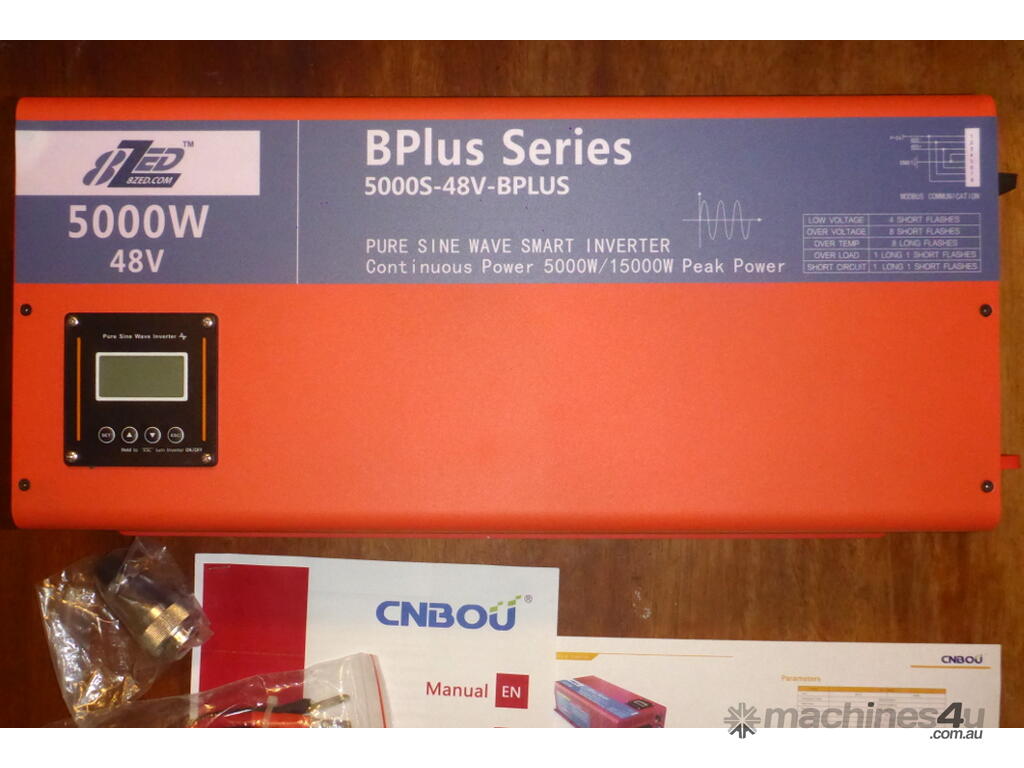

9. Include LCD in shell, which can be converted to remote >30 meters.

QUALITY CONTROL:
1. GB/T19001-2016 IDT ISO9001:2015.
2. Standard high-quality components.
3. Quality inspection of the 5 processes of the assembly line.
4. PCB ultrasonic cleaning and all PCB Three anti-paint protection.
5. 100% full power 30 minutes aging for different load types.
6. Before packing 5 function testing, including sine wave, low/over voltage, USB charger, and short circuit.

When deciding the sufficient required power output of an Inverter, allow for some electrical appliances that initially need many times more than their rated (running) power to get started (Power Tools, Pumps, Compressors, Refrigerators, Air Conditioners, some Cooking appliances etc.).

SPECIFICATIONS:
Volts & Power...
* Input Voltage Range: 41-62 VDC.
* Output Voltage: 230 VAC +/-5%.
* Output Frequency: 50Hz.
* Output Waveform: Pure Sine Wave (<2% THD).
* Continuous Power Output: 5,000 Watts.
* Peak Output Power: 15,000 Watts.
* Efficiency: 92.5% 25% Load.
* Efficiency: 91.5% 50% Load.
* Efficiency: 89.0% 100% Load.
Temperature...
* Effective Ambient Temperature Operation: -25°C ? +55°C.
* Cooling Fan Activation: 50°C.
* Thermal Overheat Protection cut out (manual restart): 75°C.
Protections...
* DC Low Voltage Protection: Yes.
* Low Input Voltage Alarm: 42V.
* Low Input Voltage Shut Down: 40V.
* DC High Voltage Protection: Yes.
* High Input Voltage Shut Down: 61V.

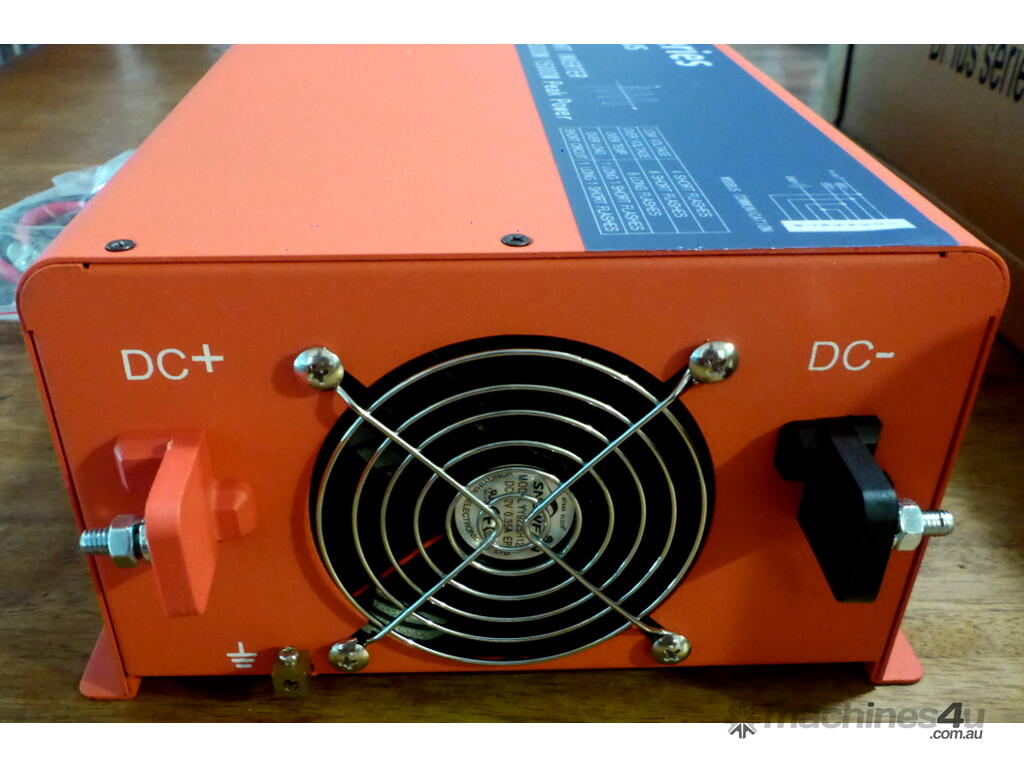

* DC Battery Reverse Polarity Protection: Yes.
* AC Overload Protection: Yes.
* AC Short Circuit Protection: Yes.
* Over Temperature Protection: Yes.

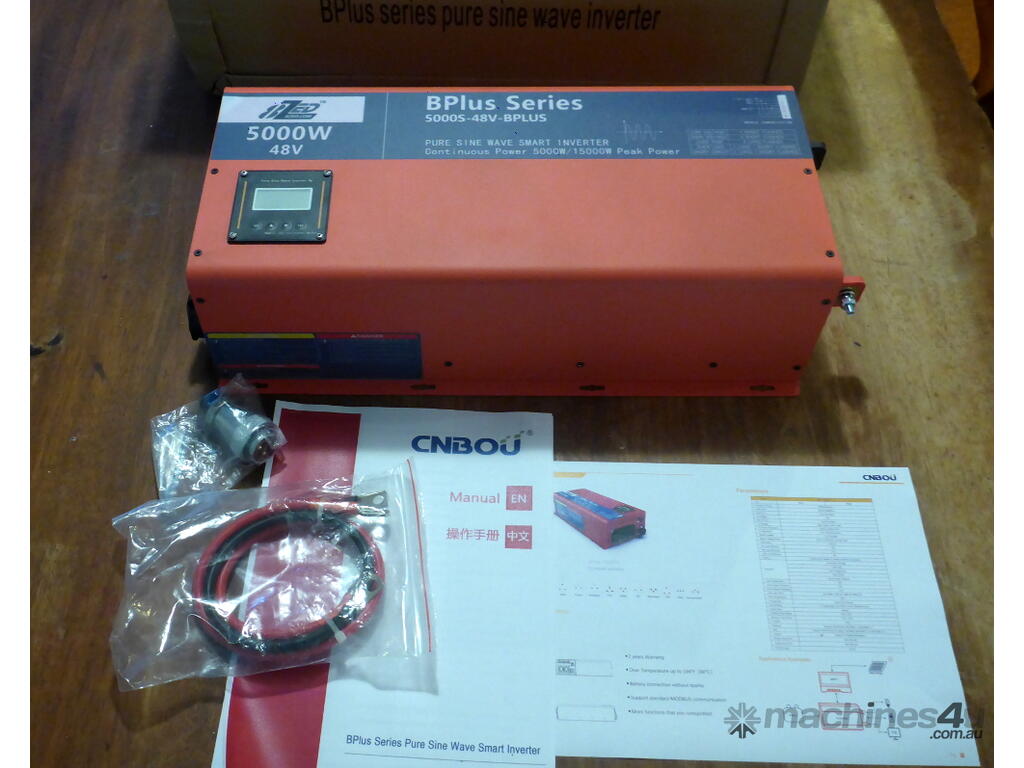

COMES WITH:
* 1x Positive (red) & 1x Negative (black) Cables to connect to your Battery Bank.

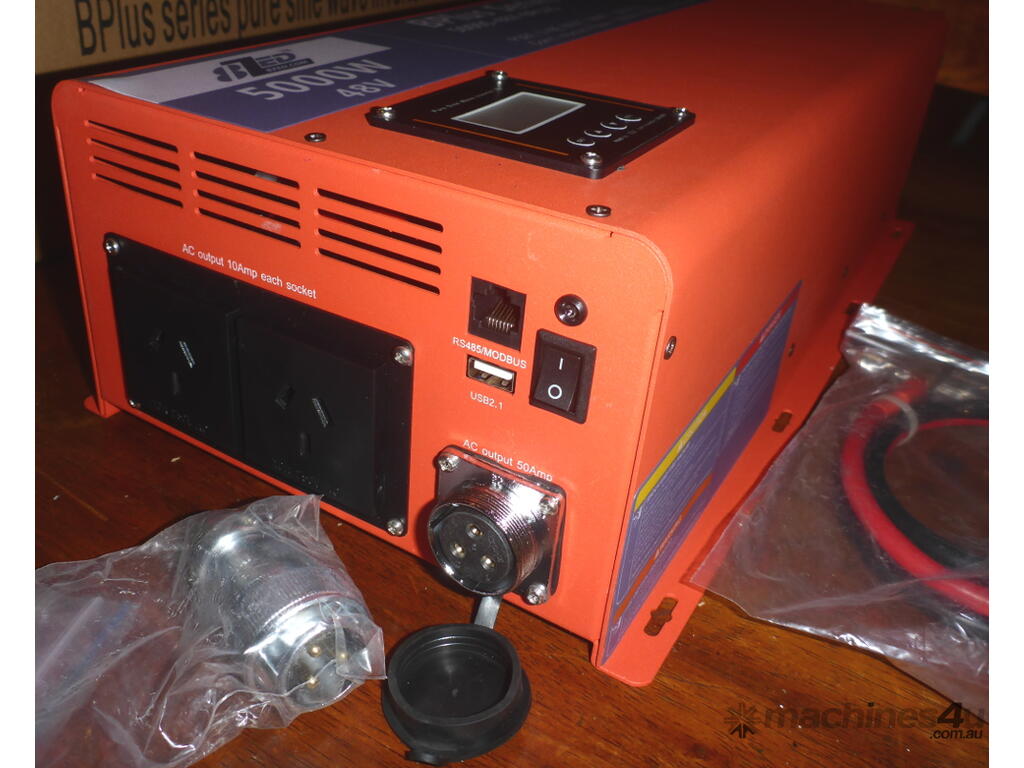

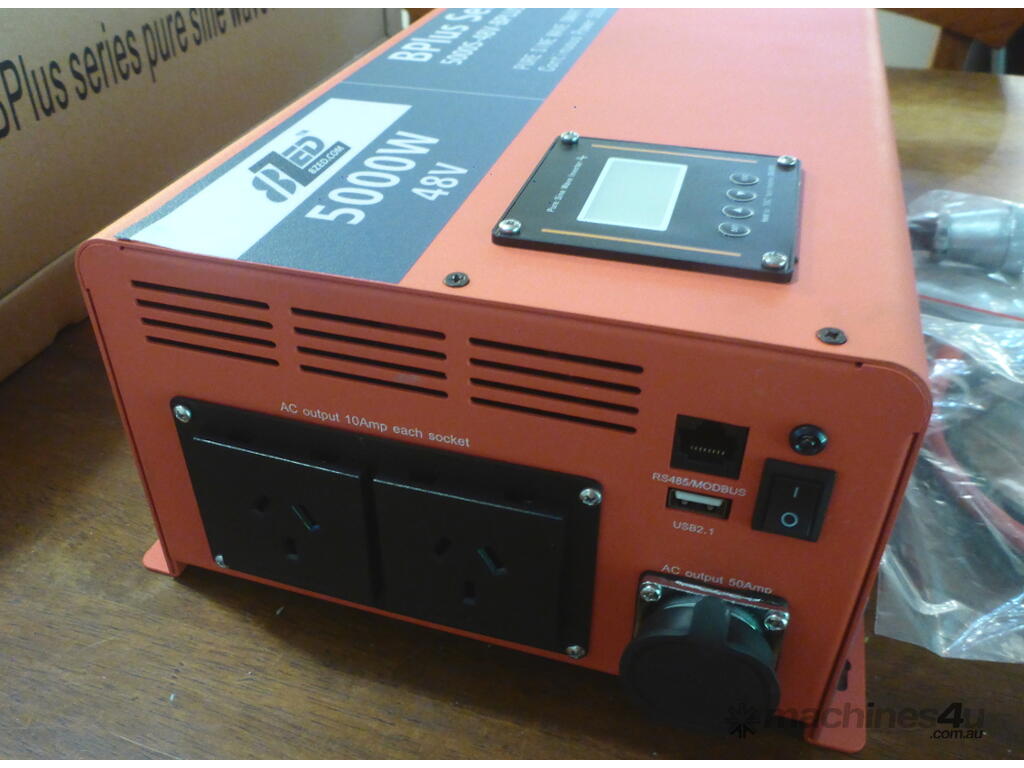

* 30Amp 3 pin male plug (for screw in socket - see Pic# 6).

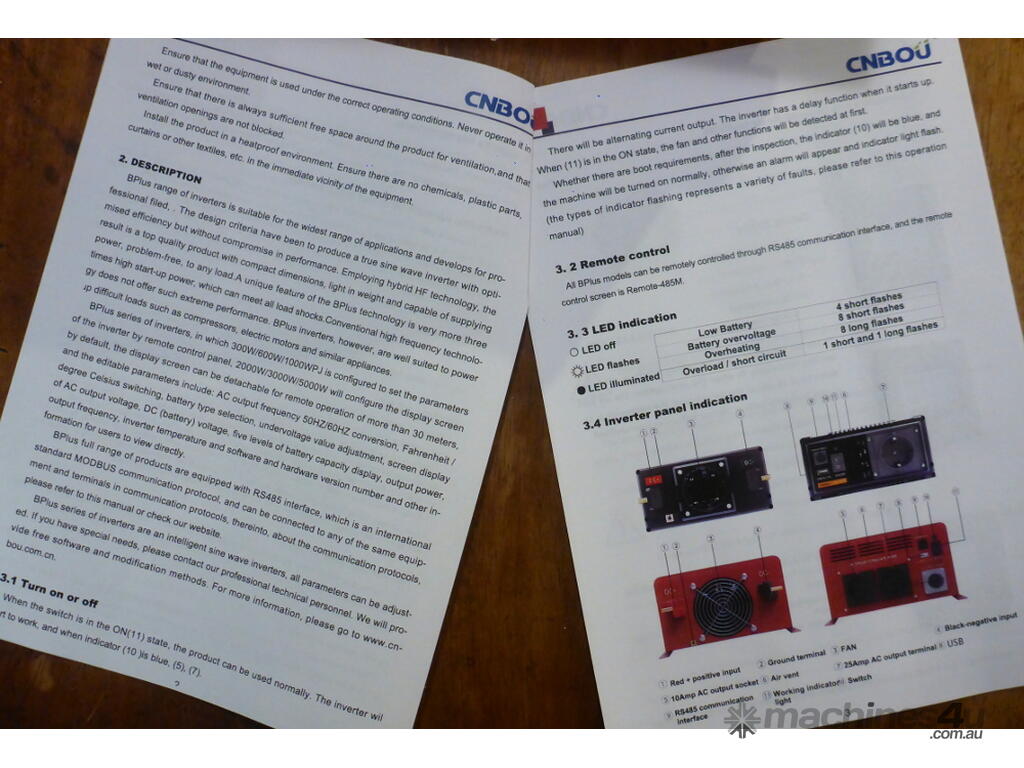

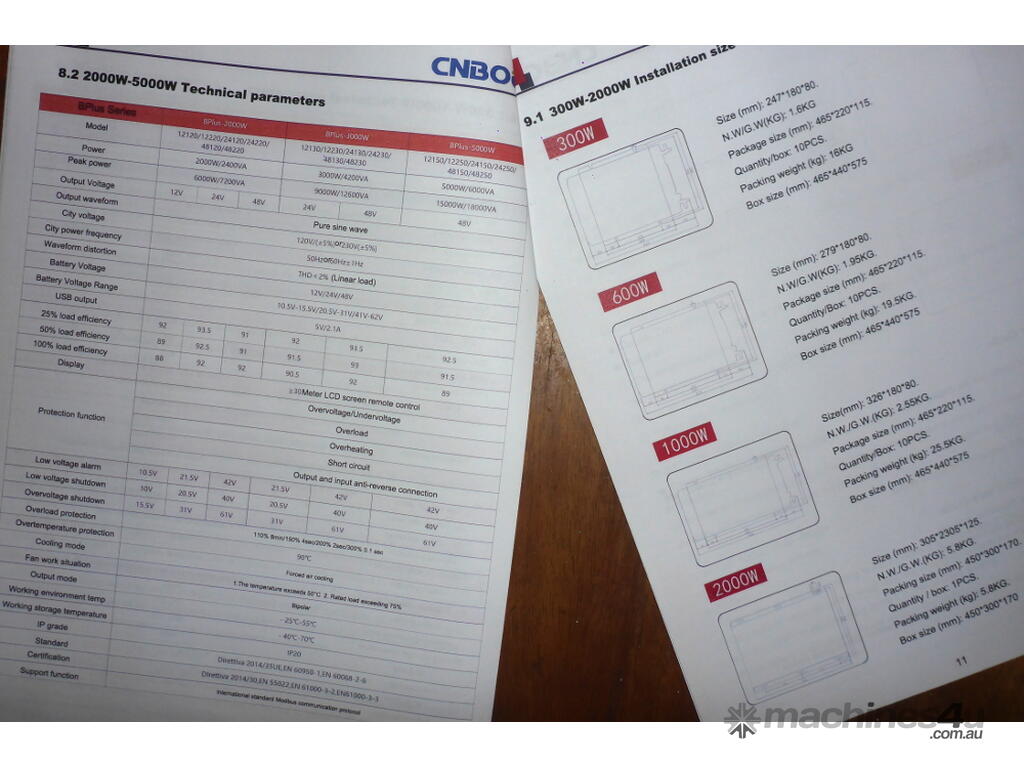

* Product Manual.


Inverter Dimensions: 500mm Long x 231mm Wide x 130mm High. Weight: 9kg.
Shipping Dimensions: 580mm Long x 310mm Wide x 210mm High. Weight: 10.7kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
