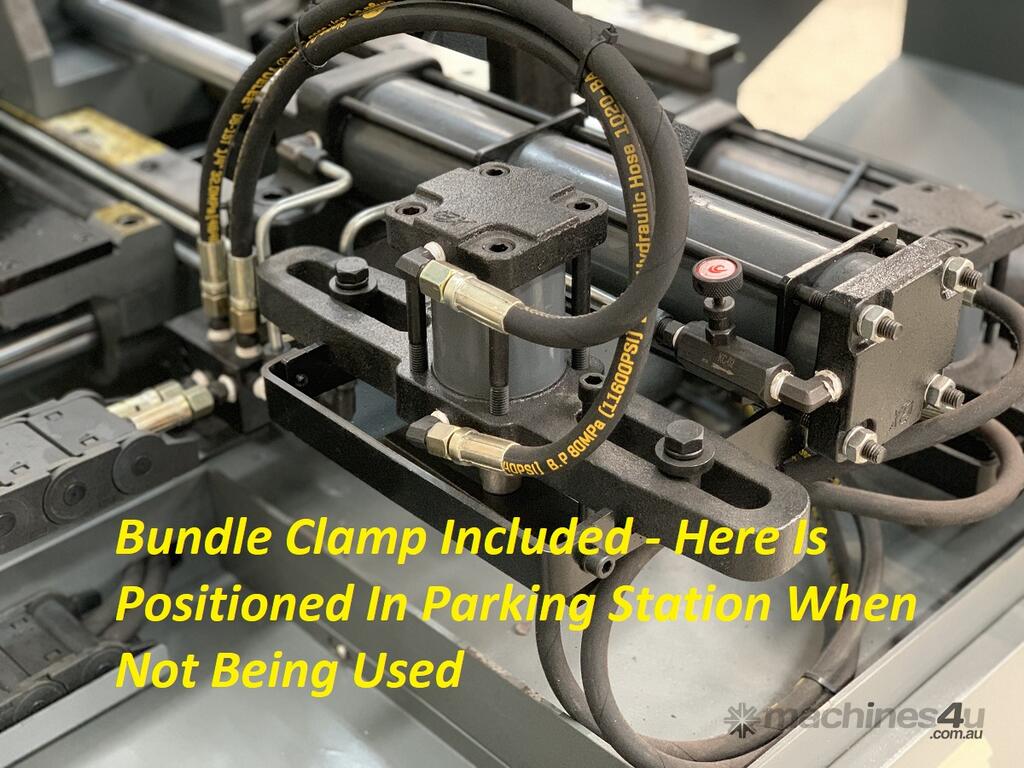

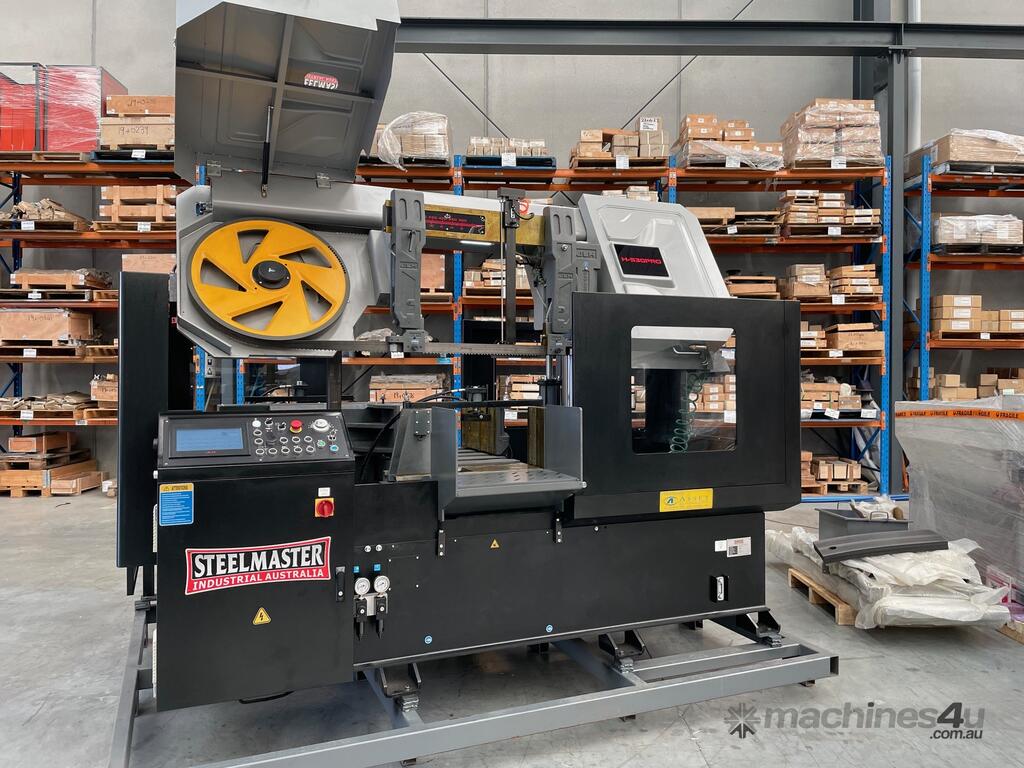

New 530mm Wide Column Type Full Auto Feed Bandsaw - Includes Bundle Clamping - Auto Pressure Feed

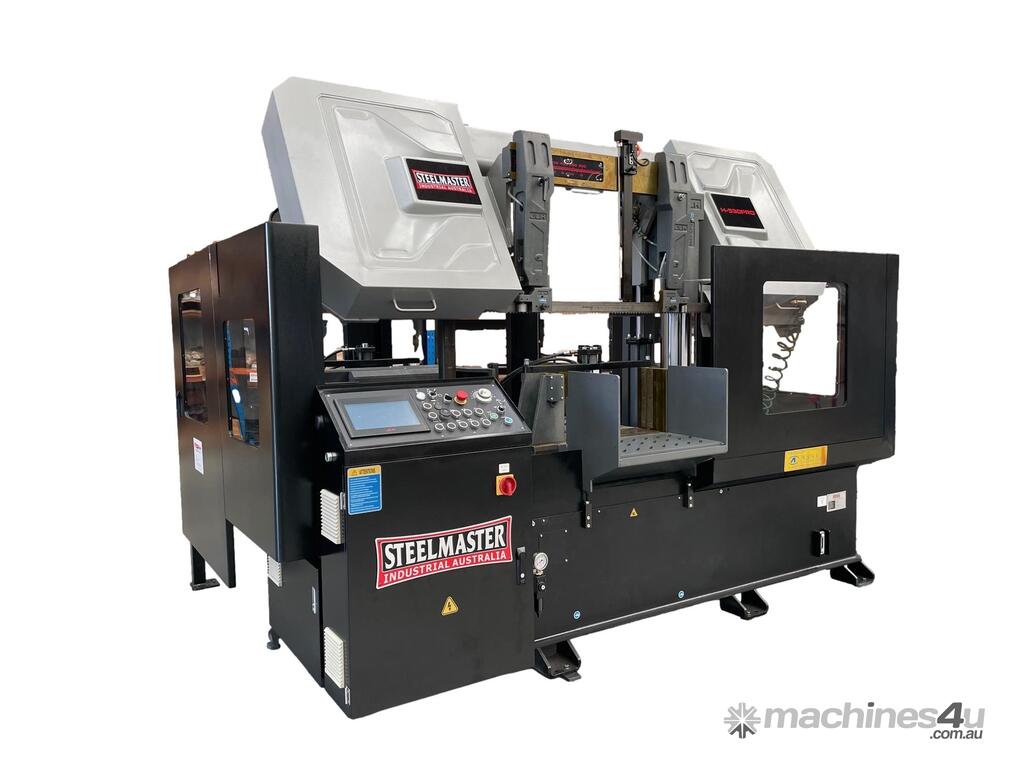

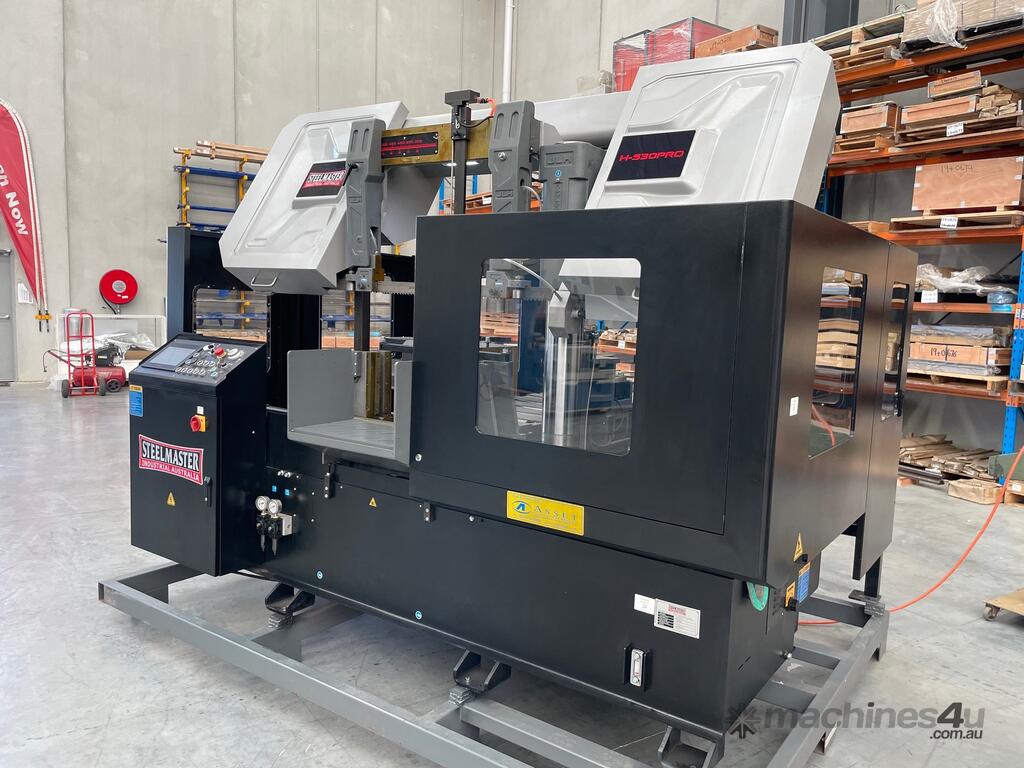

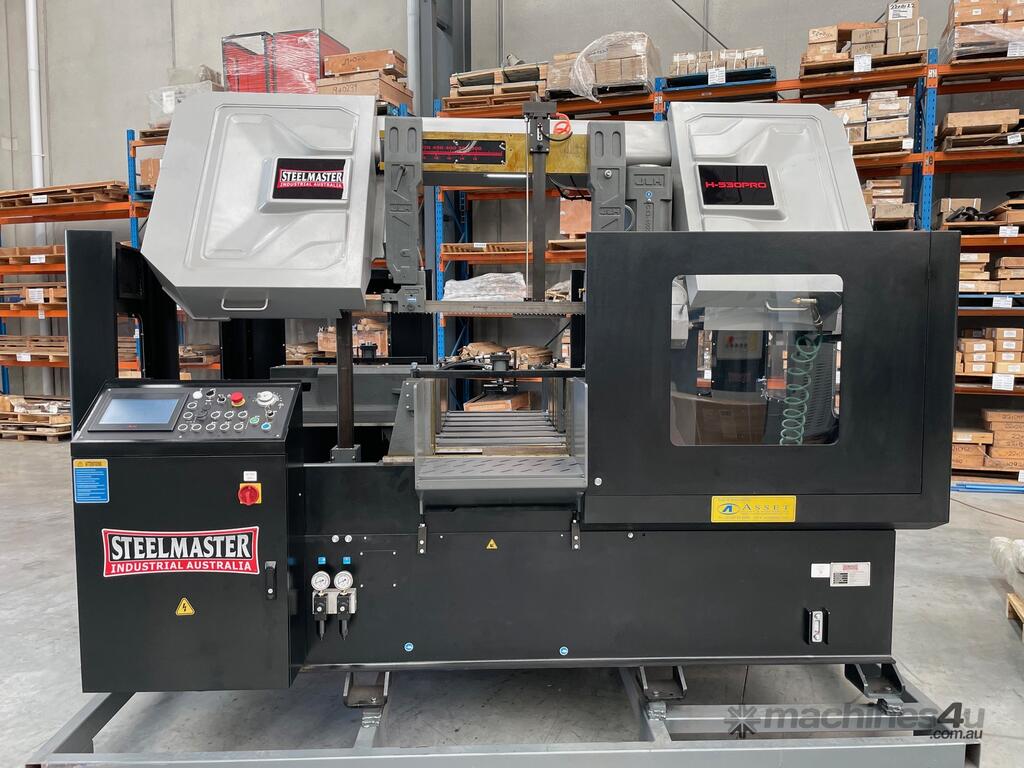

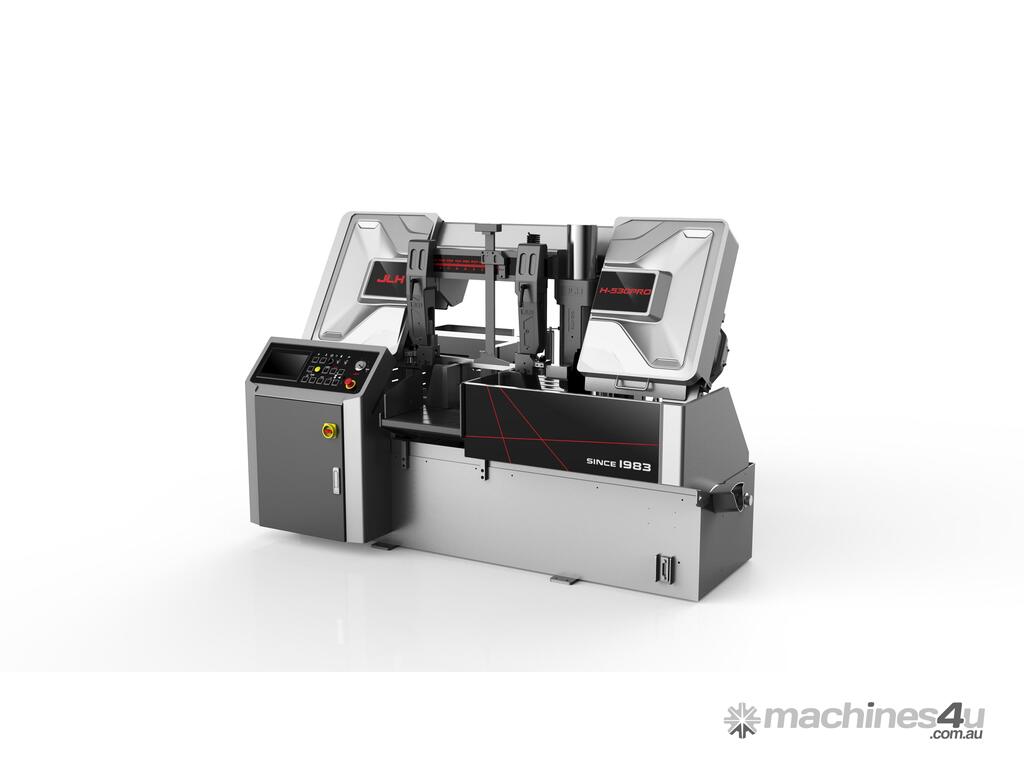

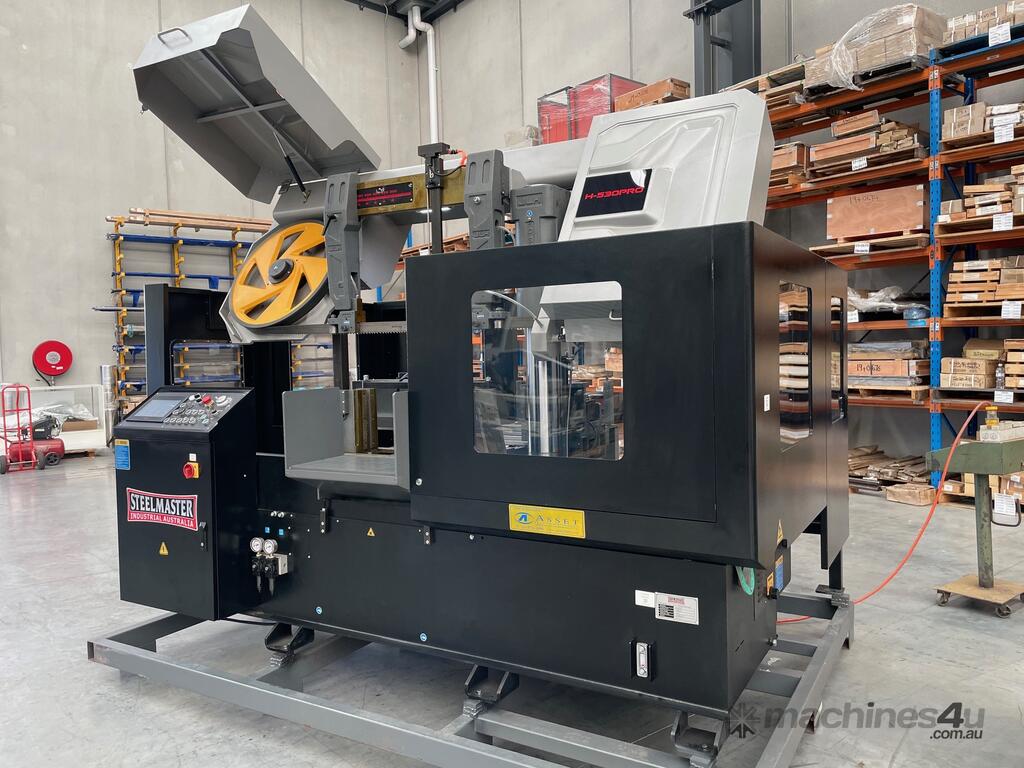

Steelmaster SM-H530HA Euro Fully Automatic Column Bandsaw. 530mm Round & Square Capacity, Euro Model
NC Operation, 1000mm Roller Feed Table, Chip Conveyor, Hydraulic Blade Tensioner. Volt

Description
This Large Capacity Heavy Duty full featured automatic Column Bandsaw is so feature packed, we dont know where to start! Offering precision auto feed cutting capacity via linear guides, twin hydraulic vice, tungsten guides, NC controller, duarable 41mm blade, variable speed control and built-in coolant system. If you're looking for something in this size range, you'll have a tough time finding a better metal-cutting band saw with these features and at this price anywhere else.
Set and forget! Metalworking production shops should take a good look at this!

Features
?our STEELMASTER auto series offers you the all-in-one solution
?auto material feeding and auto beam return.
?variable pressure down feed - automatically adjusts down feed pressure based on material being cut
?heavy duty capacity capable of processing all types of material including packs at full automatic speed
?600mm auto rollerfeed table

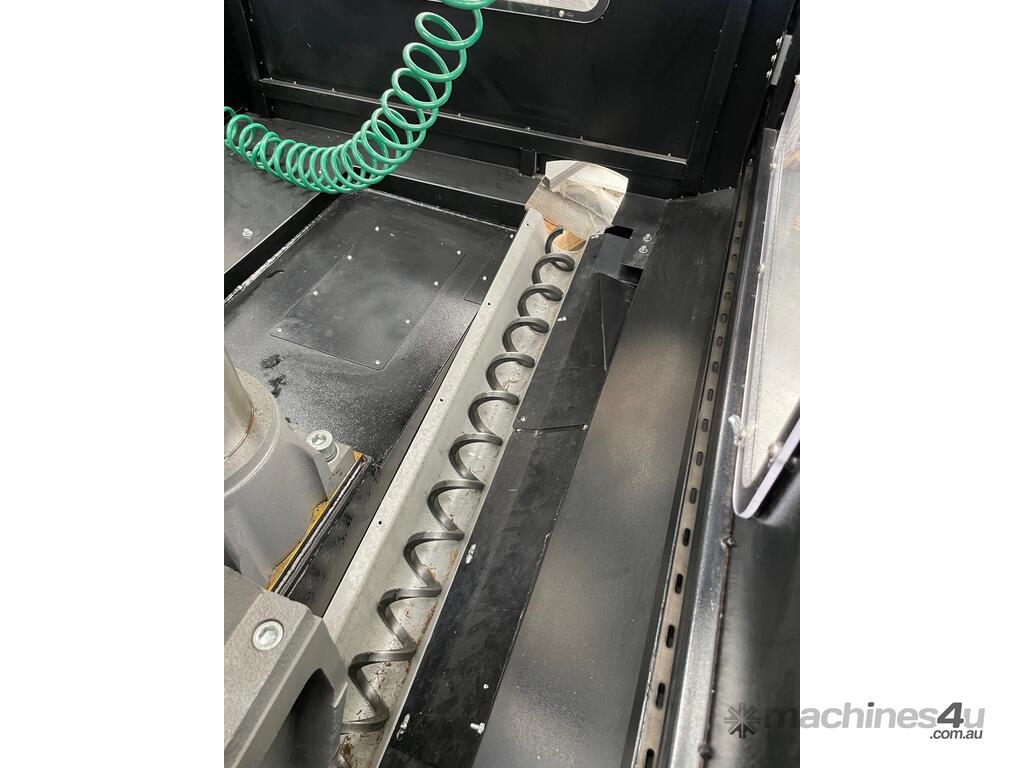

?chip conveyor

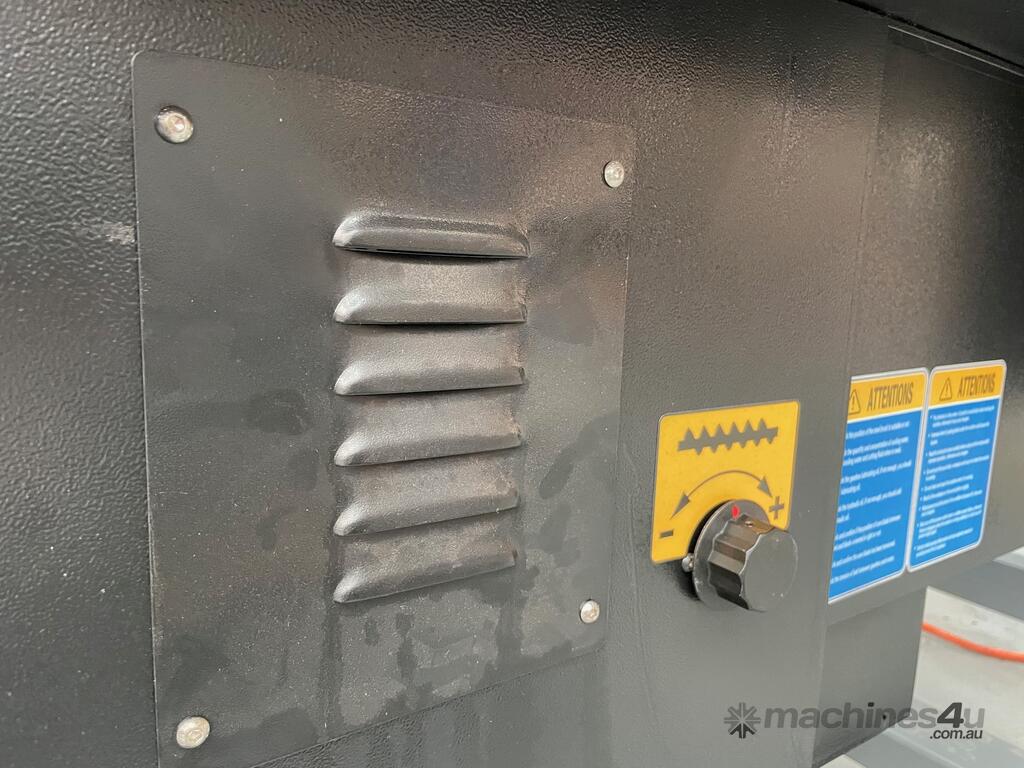

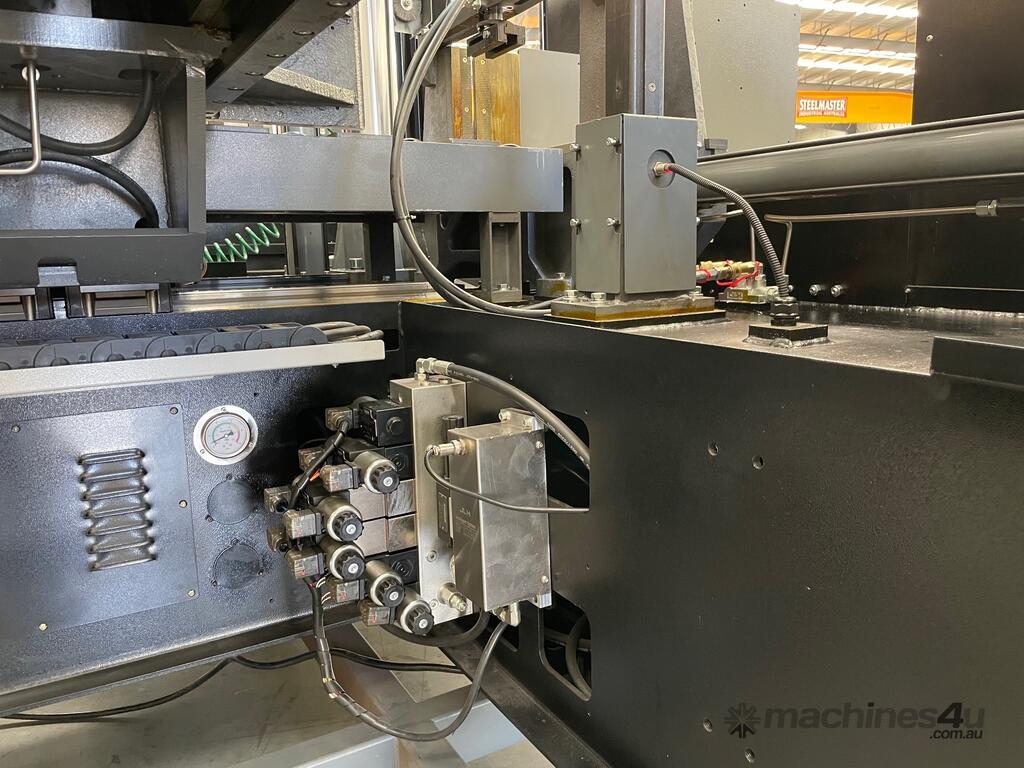

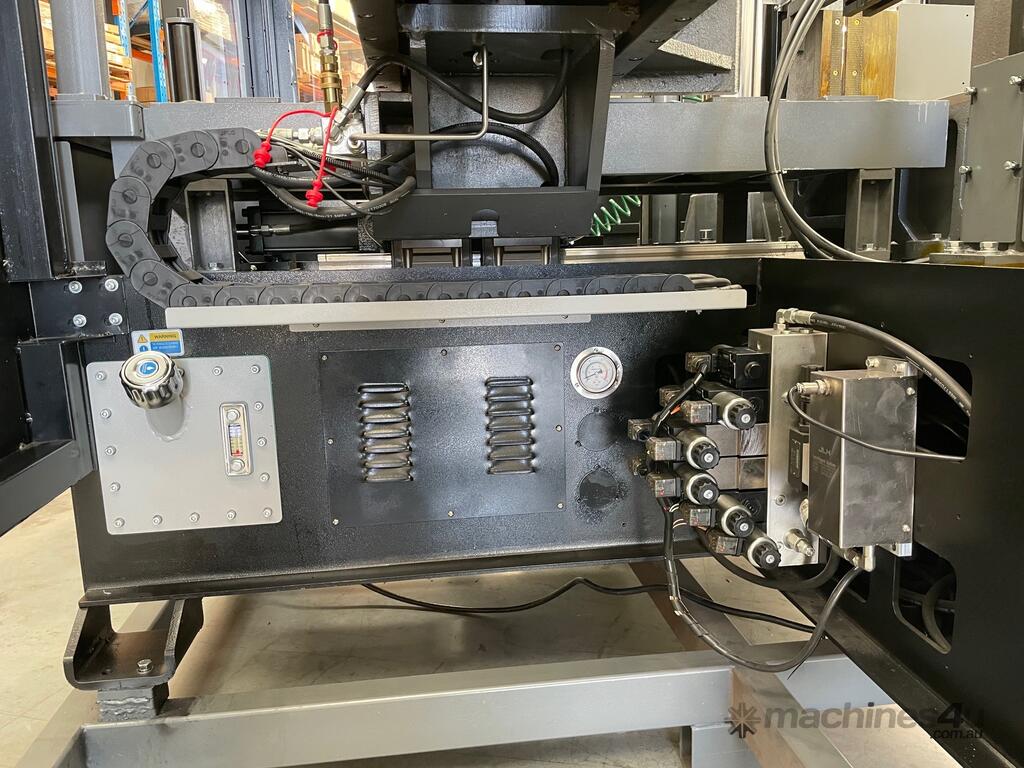

?vice pressure regulator and variable speed blade control system

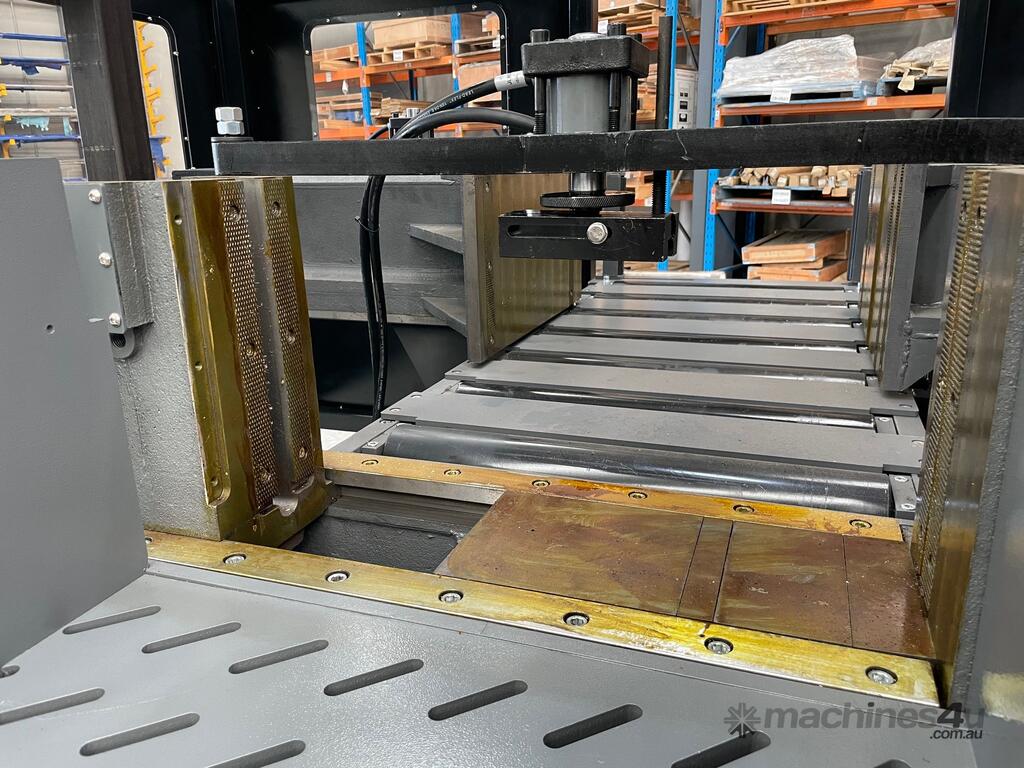

?twin hydraulic vice operation standard
?strong construction design
?heavy duty motors

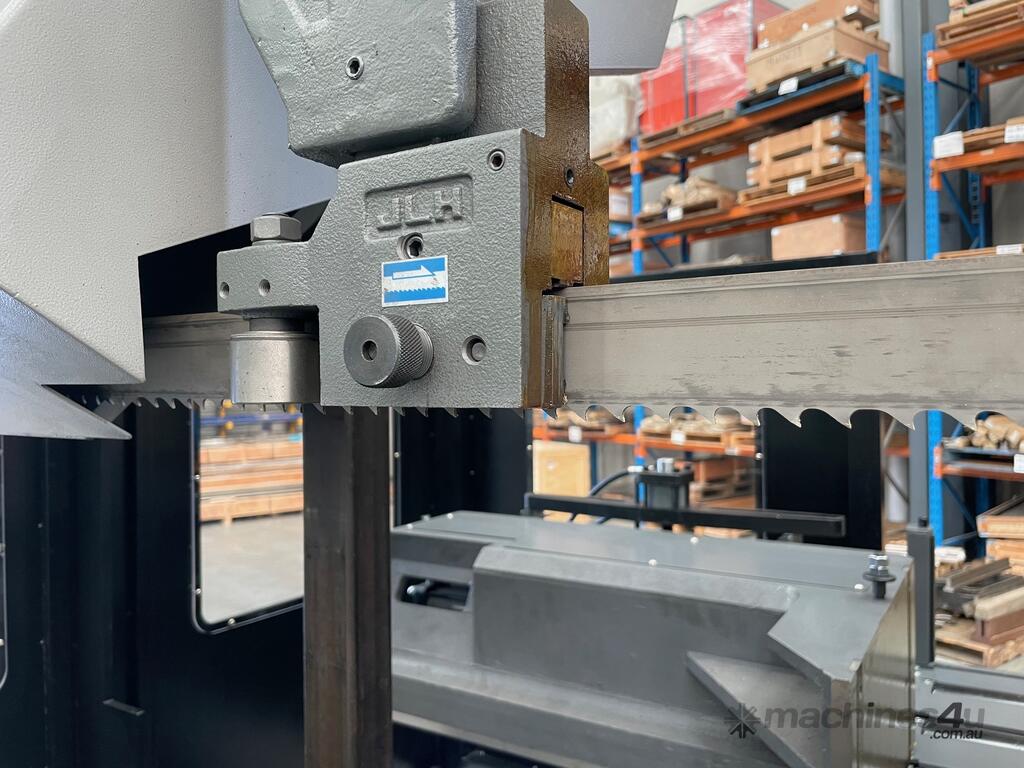

?tungsten carbide blade guides
?coolant system for increased efficiency
?auto cut-off switch

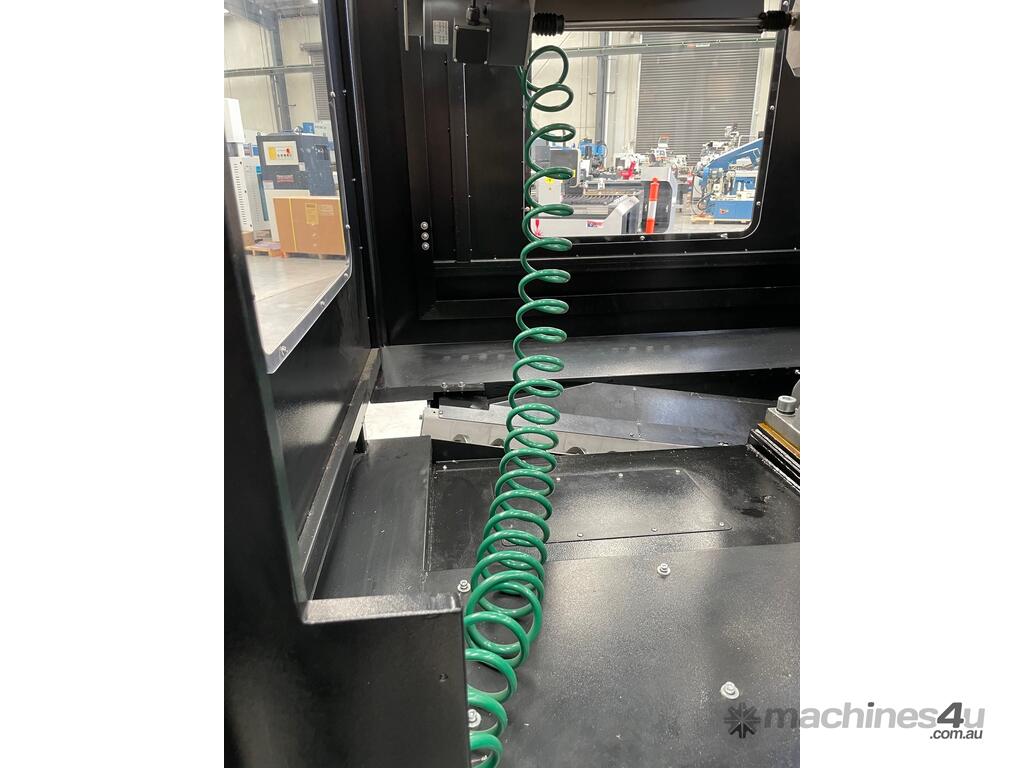

?on board trigger coolant hose

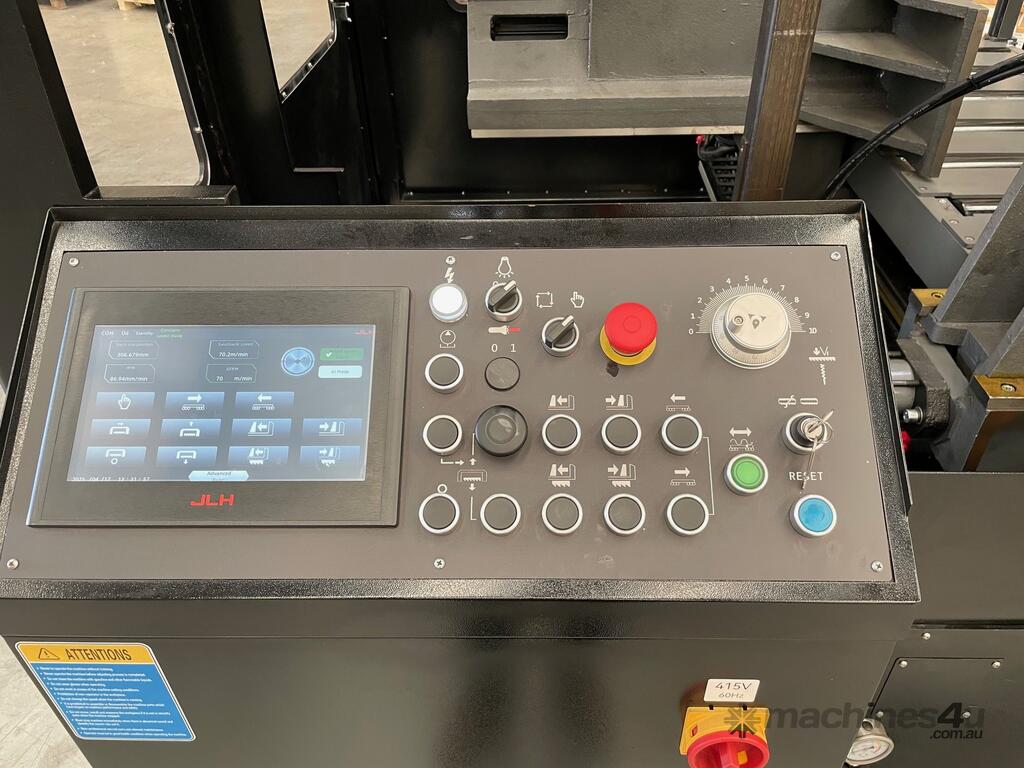

?centralised control panel
?CE compliant

Technical Data Snap-Shot

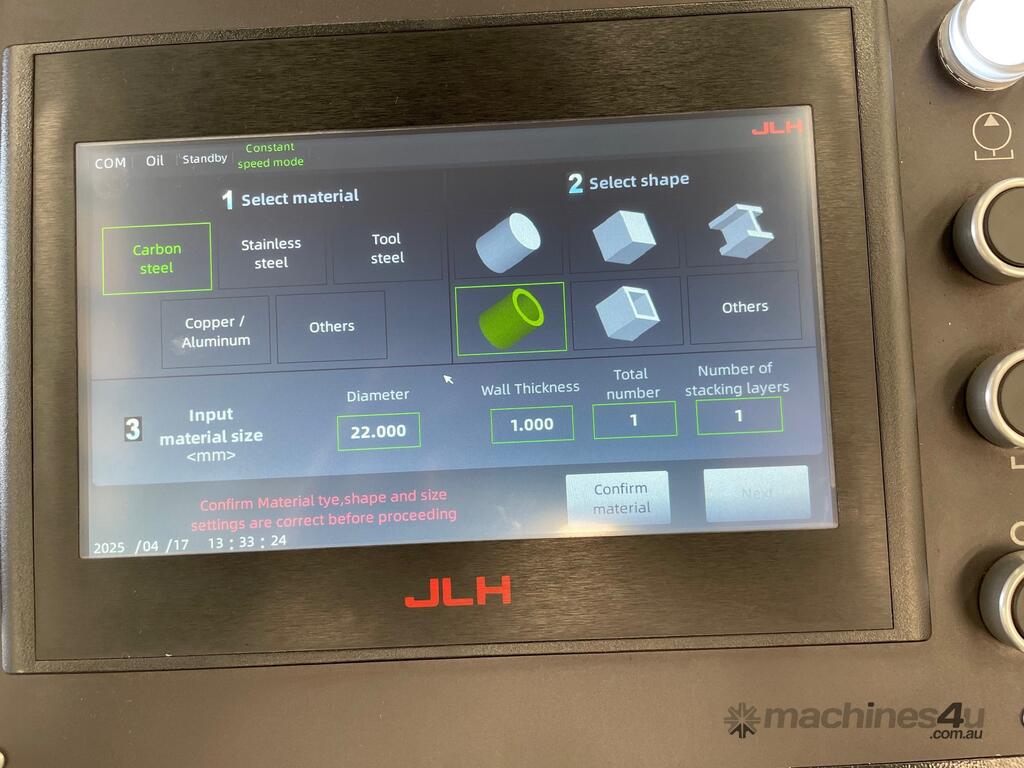

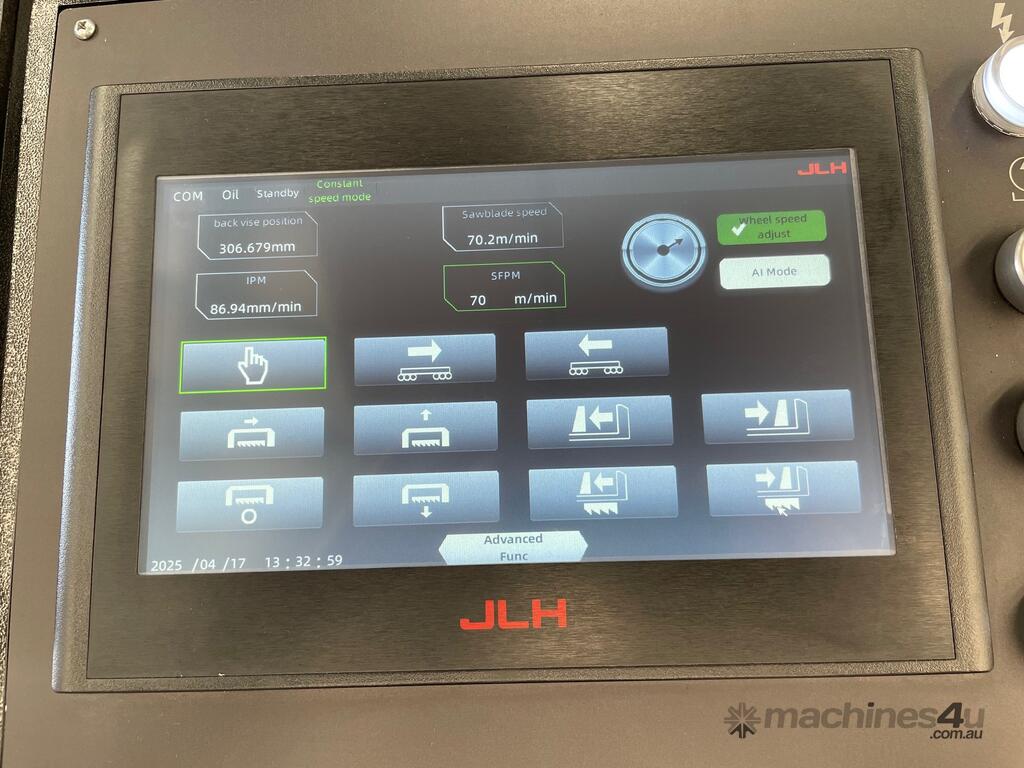

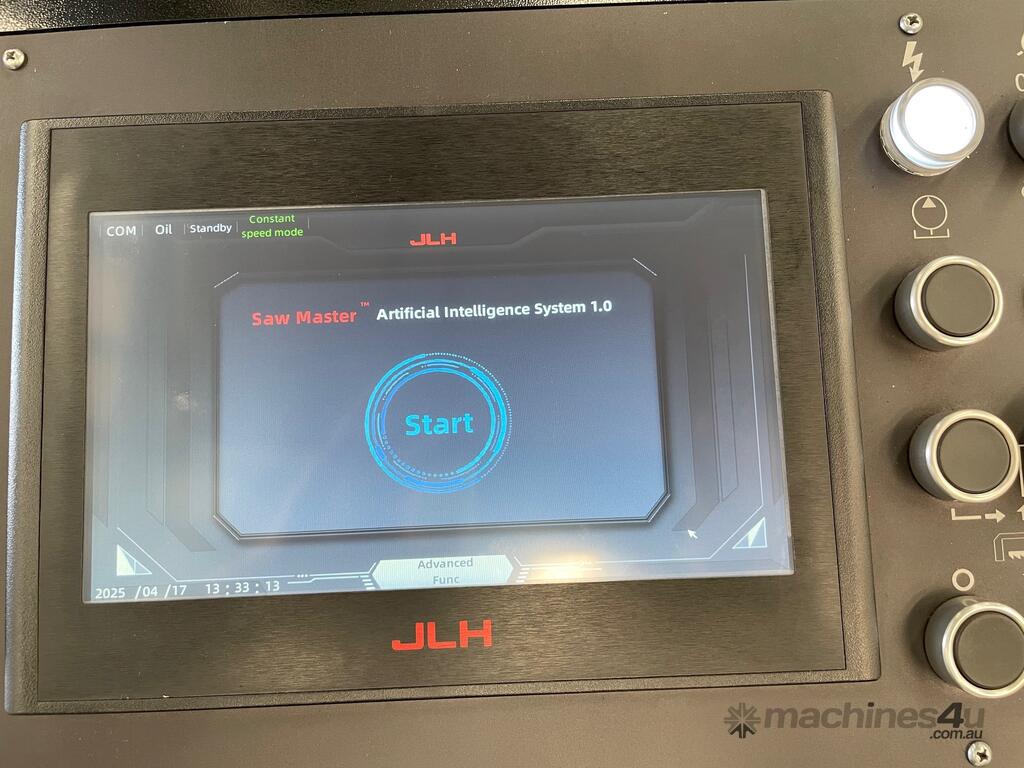

?Touch Screen NC programmable control
?530mm x 530mm cutting capacity
?550mm maximum jaw opening.
?20 ~ 80 variable speed range
?6200mm x 41mm x 1.3mm blade dimensions
?500mm NC feeding increments - Can pre set multiple for longer length cutting
?575mm roller conveyor height
?infeed roller working height - 780mm
?shipping dimensions - 2950mm x 2200mm x 1900mm
?power - V 7.5Kw
?approx weight: 3300Kg

Recommended Add On Accessories
?6200 x 41 x 3/4 Vari -Tooth Rontgen German Quality Bandsaw Blade.
?6200 x 41 x 4/6 Vari -Tooth Rontgen German Quality Bandsaw Blade..
?6200 x 41 x 5/7 Vari -Tooth Rontgen German Quality Bandsaw Blade..
?15+0292 - Heavy Duty Roller Conveyor & Stands, 620mm Wide x 500mm Long.
?15+0160 - Roller Conveyor Heavy Duty 2000mm Long x 620mm Wide with 280mm High side rollers Non-power feed.
?15+0146 - Roller Conveyor Heavy Duty 2000mm Long x 620mm Wide with 280mm High side rollers Power feed.
?15+0287 - Heavy Duty Roller Assembly 520mm Wide Complete with Bearing and Housing Assemblies - Sold Each
?11+0707 – Alfra Rotabest - Magnetic Swarf Remover
?15+0187 - Coolant Mineral Based XDP-1000 5Lt Drum Metalium - Soluble - 20:1 Mix

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
