New 7.6m x 10.1m (77m²) All Steel Double Garage Carport Shed Mancave

Normally $9,999 ($US).

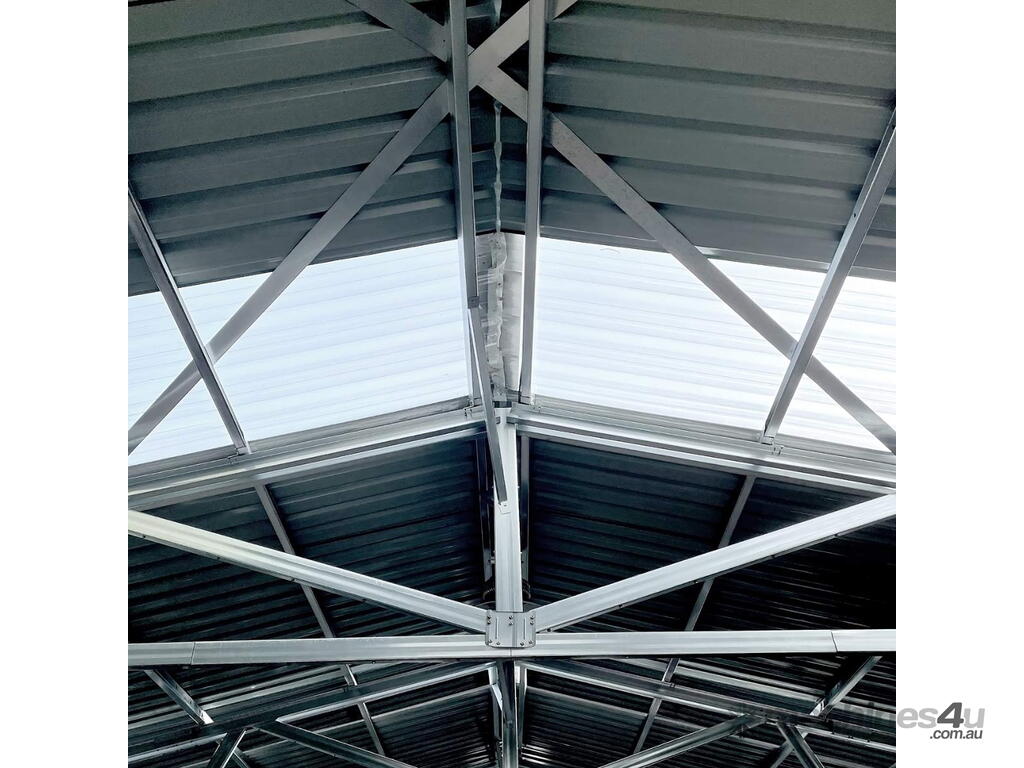

New 7.62m wide x 10.1m deep (=77m²) x 4.11m high (25' x 33' (=825 feet²) x 13'6" high) all steel construction Carport with Skylights.

Great for: Automotive & Caravan Garage, Carport, Hay Barn, Shelter for Small Trucks, Tractor or Farming supplies, Agricultural Building, Pallet & Equipment Storage, Paint Room / Spray Booth / Sand-Blasting Room etc.

Made by Canadian Company: TMG Industrial.
Model: TMG-MS2533.


Features:
* Approximately 77m² (828 sq-ft) of floor space to accommodate all your power tools, motorized machinery, farm equipment, pick up truck, RV, off road vehicles or boat.
* Two large garage door openings each provide a 2.59m (8’6") wide & high access opening for easy drive in/drive out of vehicles and farm equipment.

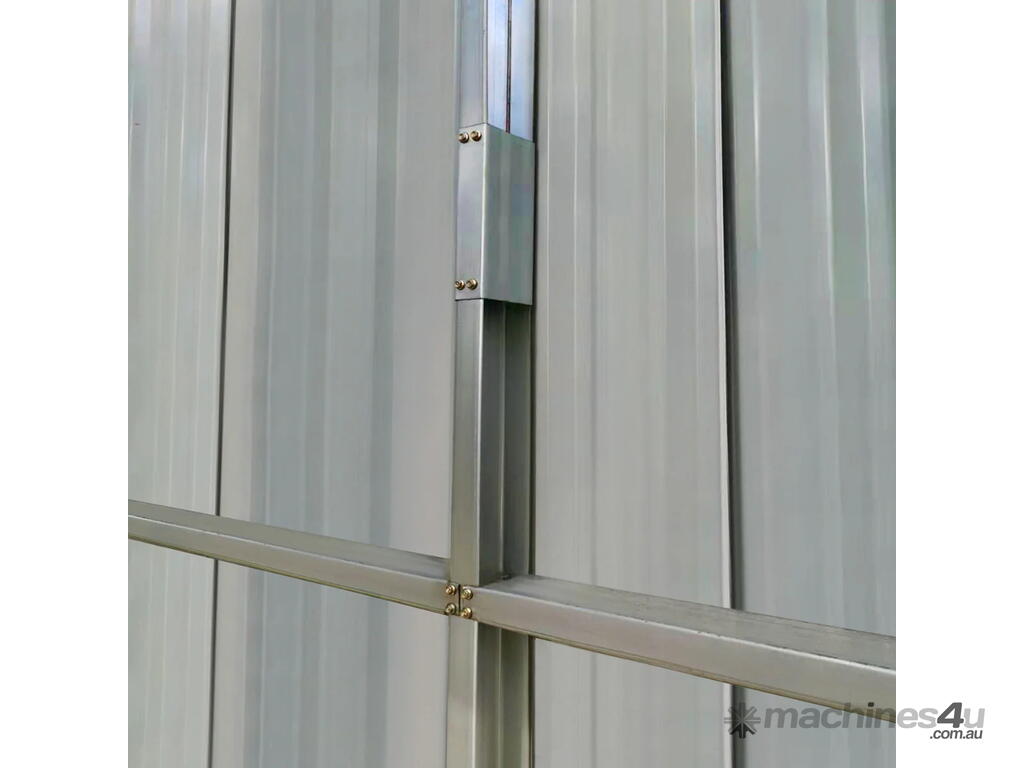

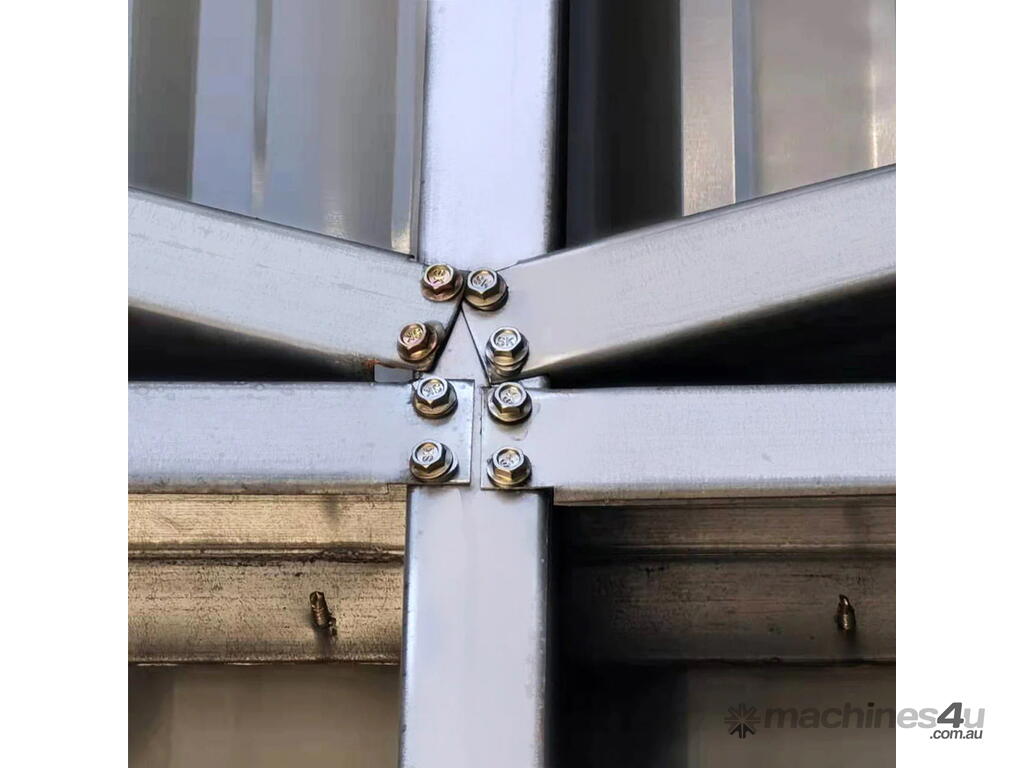

* Industrial quality 16 GA steel frame and 27 GA metal cover sheets create a strong, stable frame.
* Approx. 2.9m (9’6") of height clearance makes parking your pickup or bringing out the ride on mower effortless and worry free.
* Side entry door included and is installable on either side for an option that allows you to customize this shed according to the needs of your acreage farm or commercial property.
* Constructed with electro-galvanized steel sheets and polyester paint for corrosion resistance, rust protection and an overall long lasting, dependable exterior.

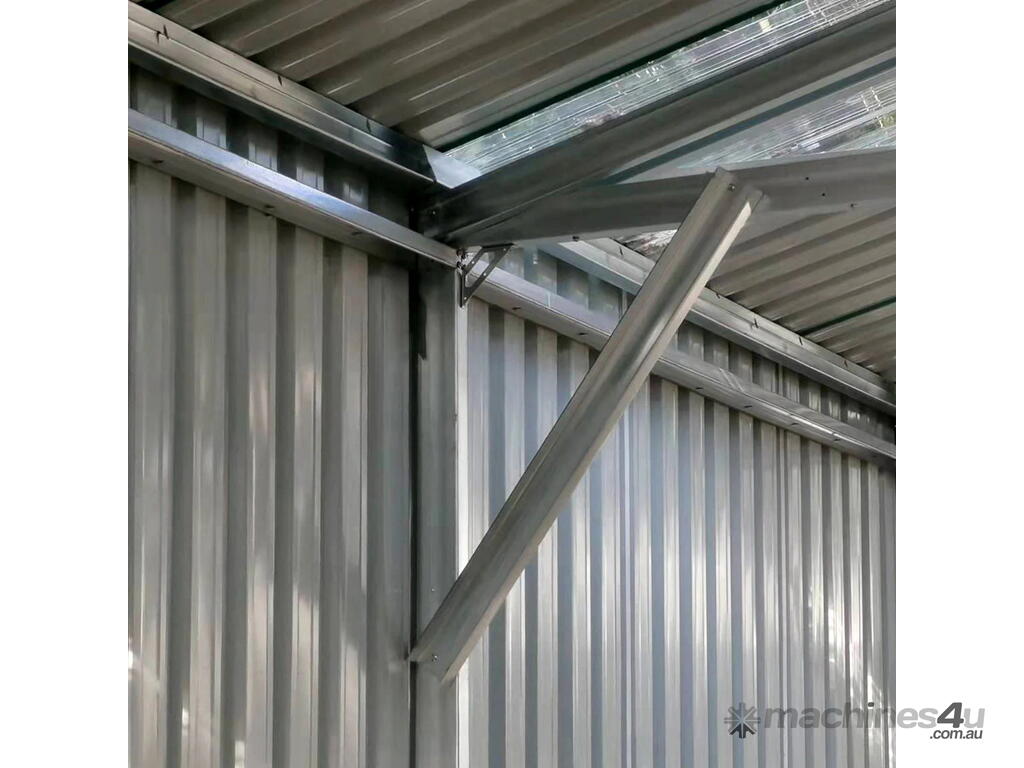

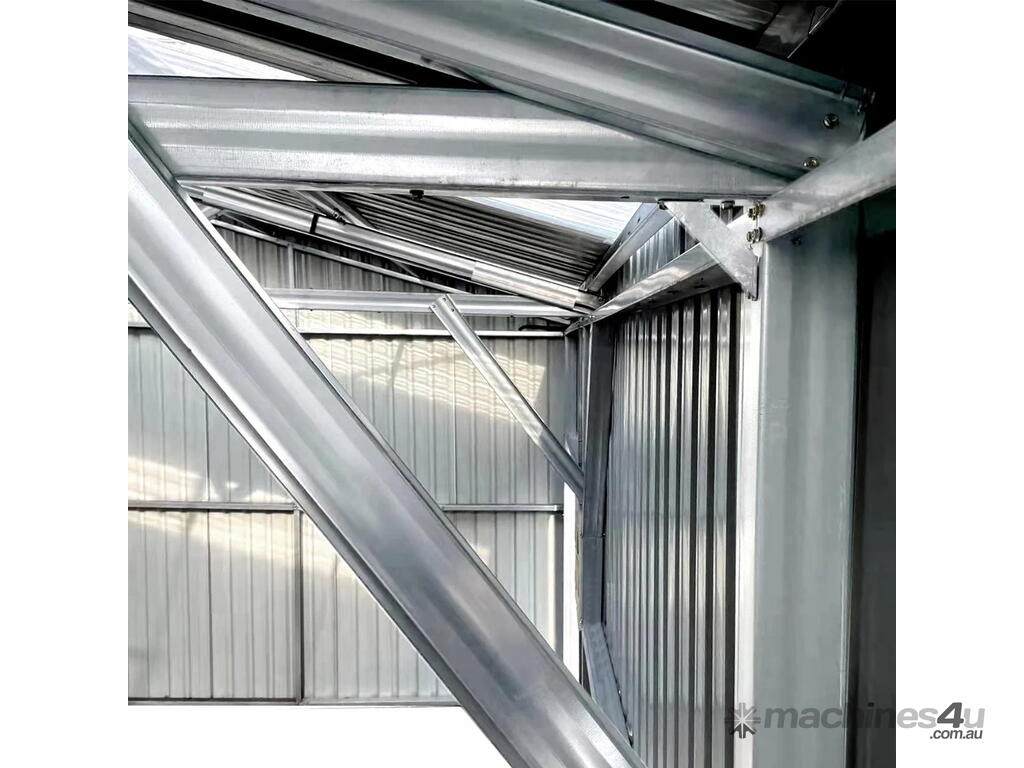

* Reinforced roof supports, wall bracings, and floor anchors make this metal garage built to last for years to come.
* L-shape brackets with sleeve anchor bolts for easy installation on any solid wood platform, concrete slab or equivalent.

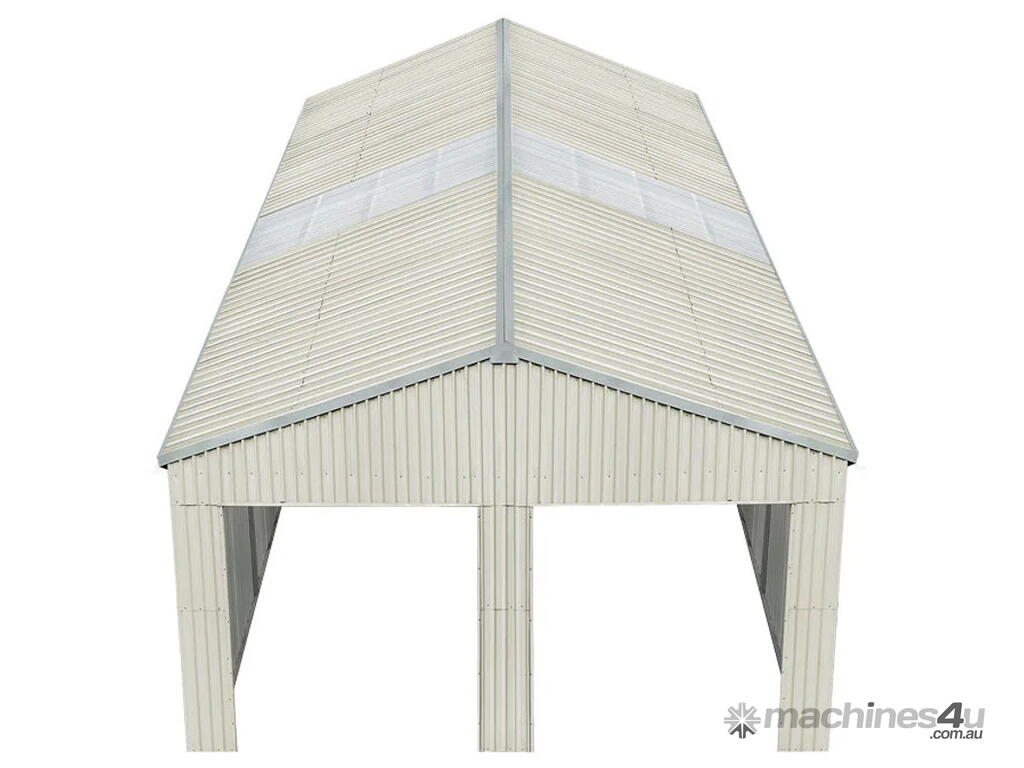

* Sloped, vertical gable roof to help prevent snow and water build-up on harsh winter days or during the rainy season.
* Enough space to park vehicles/equipment and still have room for a workshop or home project area.
* Modern cream colour integrates seamlessly into any commercial yard or farm field opening.
* Do it yourself, self-tap screw-together assembly that can be done with the help of a couple friends; no need to hire contractors or rent any expensive equipment.
* Not Included: automatic roll up doors.

Specifications:

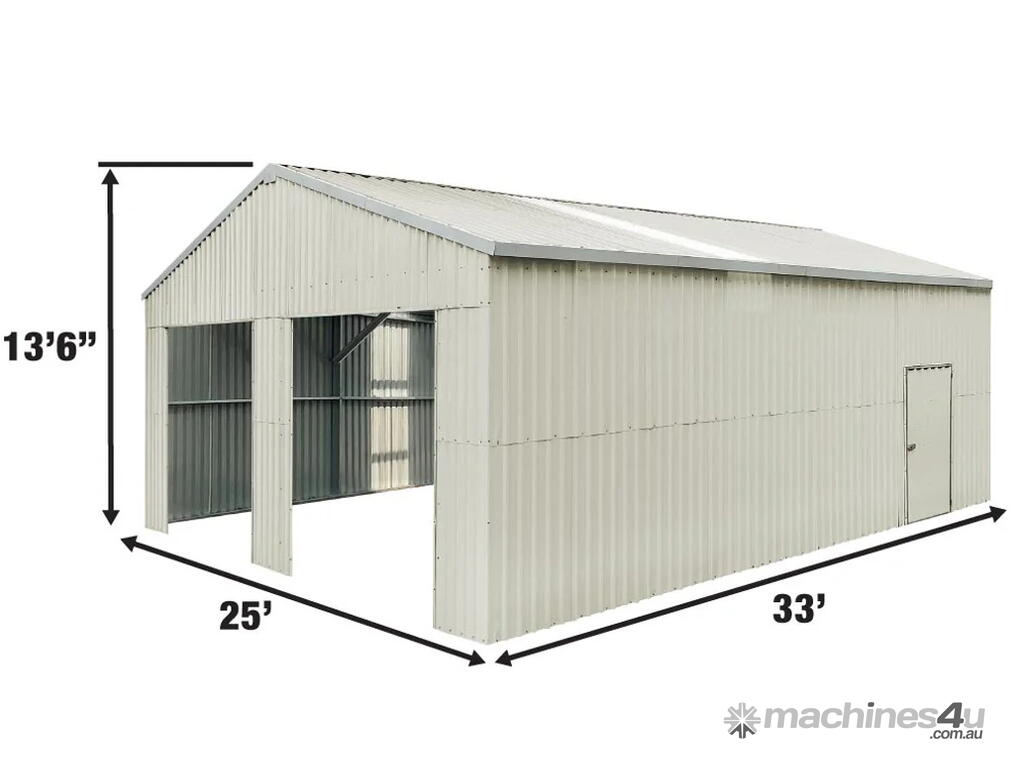

* Exact floor footprint / Assembled size: 7.62m wide x 10.1m deep (=76.96m²) x 4.11m high (25' x 33'2" (=828 feet²) x 13'6" high)
* Peak height: 4.11m (13’6")
* Eave height: 2.946m (9'8")
* Indoor clearance height: 2.895m (9’6")

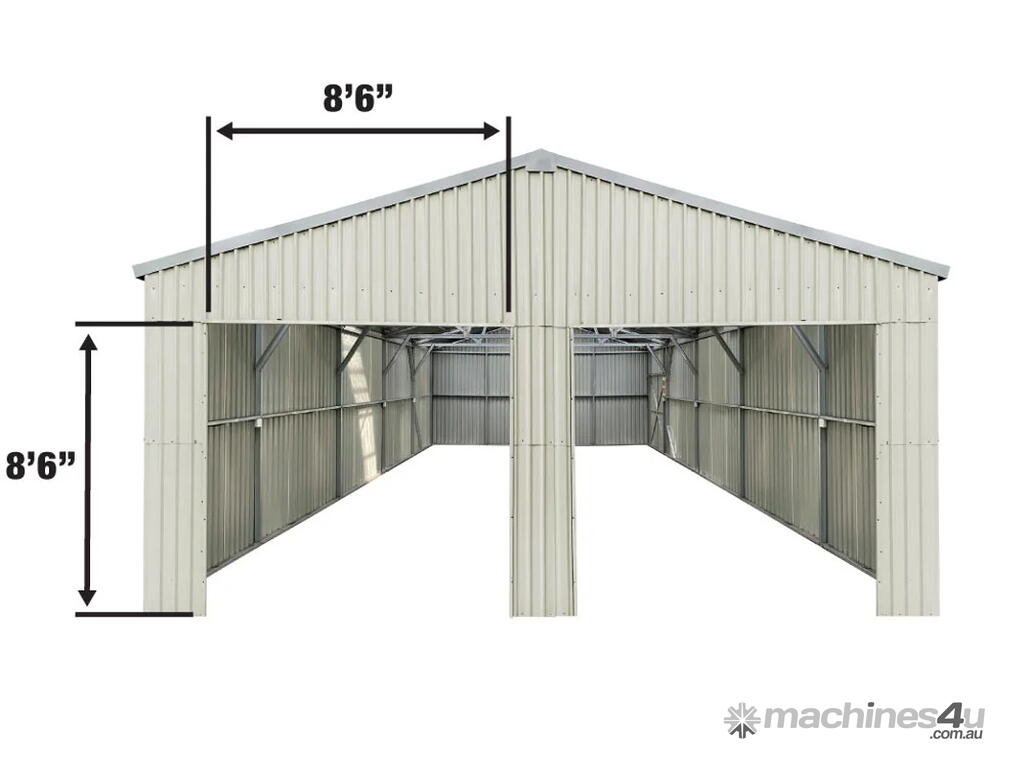

* Each door opening: 2.59m wide x 2.59m high (8’6"(W) x 8’6"(H))
* Side entry door: 0.914m wide x 1.981m high (3’(W) x 6’6”(H))
* Roof pitch: 4/12
* Steel frame thickness: 16 GA (1.29mm / 0.051")
* Metal cover sheet thickness: 27 GA (0.42mm / 0.0164")
* Anchoring: Sleeve anchor bolts
* Foundation required: Concrete slabs, solid wood or equivalent
* Colour: Cream
* Doors not included


More Detail on this model: (see links in 'View Brochure' above...)

Product Manual: (see links in 'View Brochure' above...)


Crate Dimensions: 2160mm(L) x 950mm(W) x 1010mm(H), weight of 1274kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
