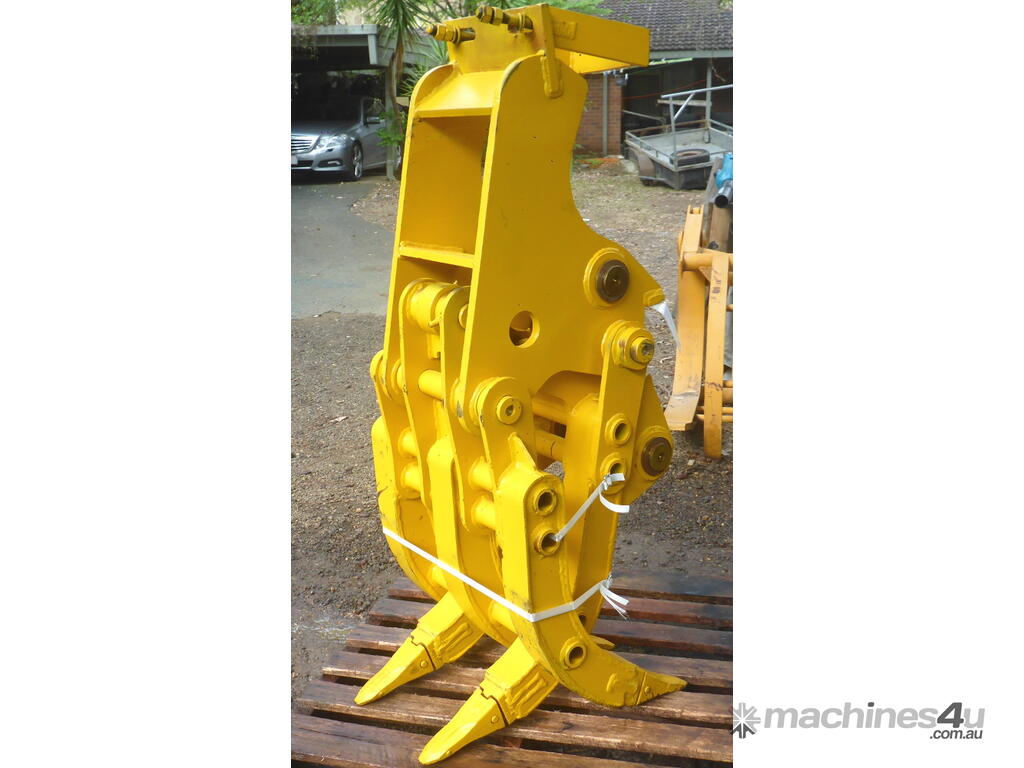

New 8-20 ton (65mm Pin) 5 Finger Mechanical Grapple Grab Excavator

New 65mm Pin Excavator 5 Finger Mechanical Grapple Grab suit 8-20 Ton machine.

Full range of Motion and Opening Grapple Grab without needing any Hydraulic lines.
The top bracket of the Grab mounts around your Excavator's Dipper Arm (see pic# 10) and you simply use your hand control that would normally Curl your bucket to open and close the Grab.

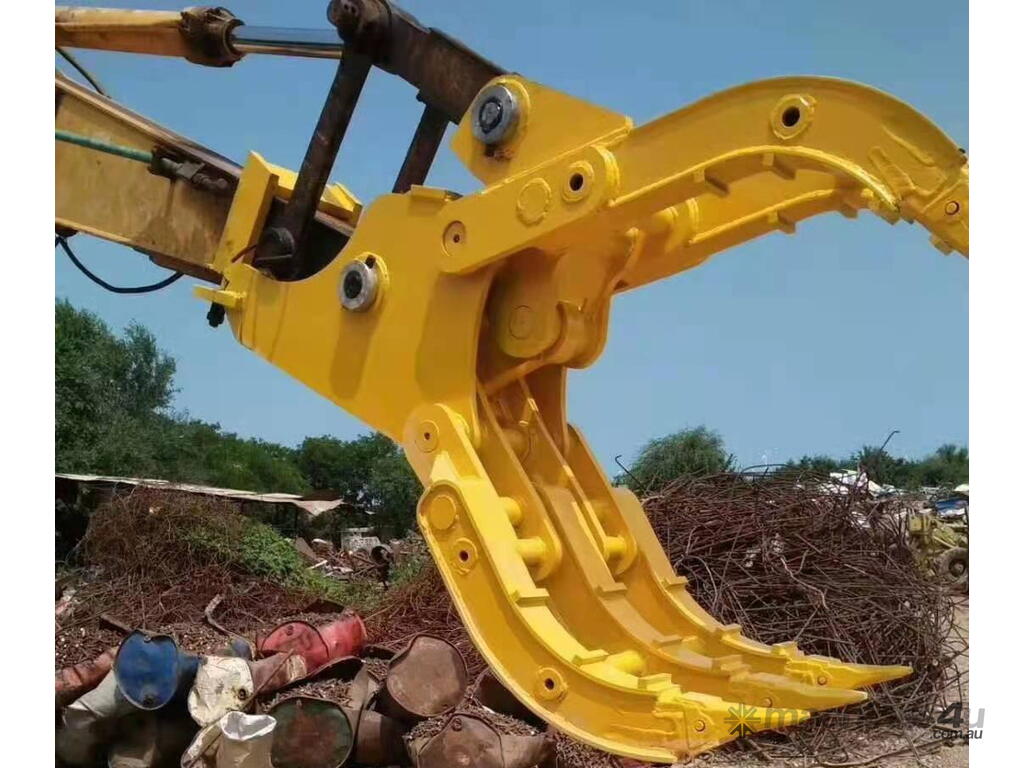

Ideally designed for Rock, Log & Trash work, but can also be used for light-medium duty Demolition and general material handling, picking things up, moving them around and other careful placement tasks.
Great for landscapers to position rocks and sandstone blocks when building retaining walls etc. and moving logs around in forestry.

Video of Grab in Action: (click link to 'Play Video' above...)

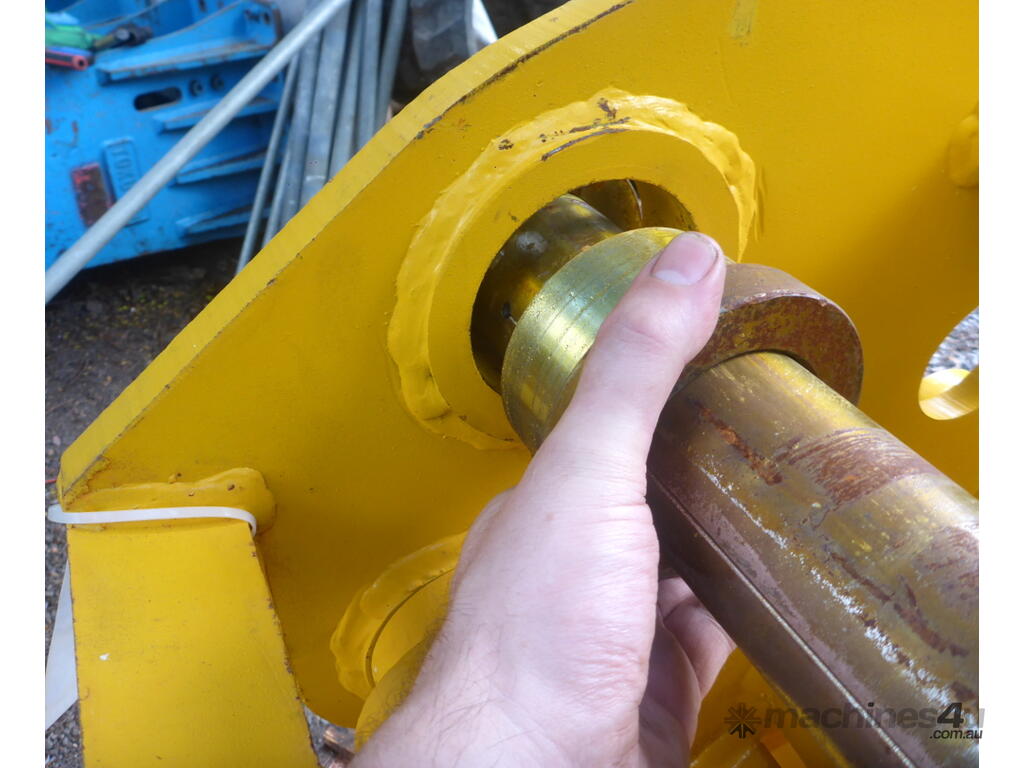

The Hitch Headstock currently has 65mm Pins fitted into collar bosses that fit into 90mm diameter Pin holes, so pins up to 90mm diameter can be fitted without needing to bore out the holes in the headstock.

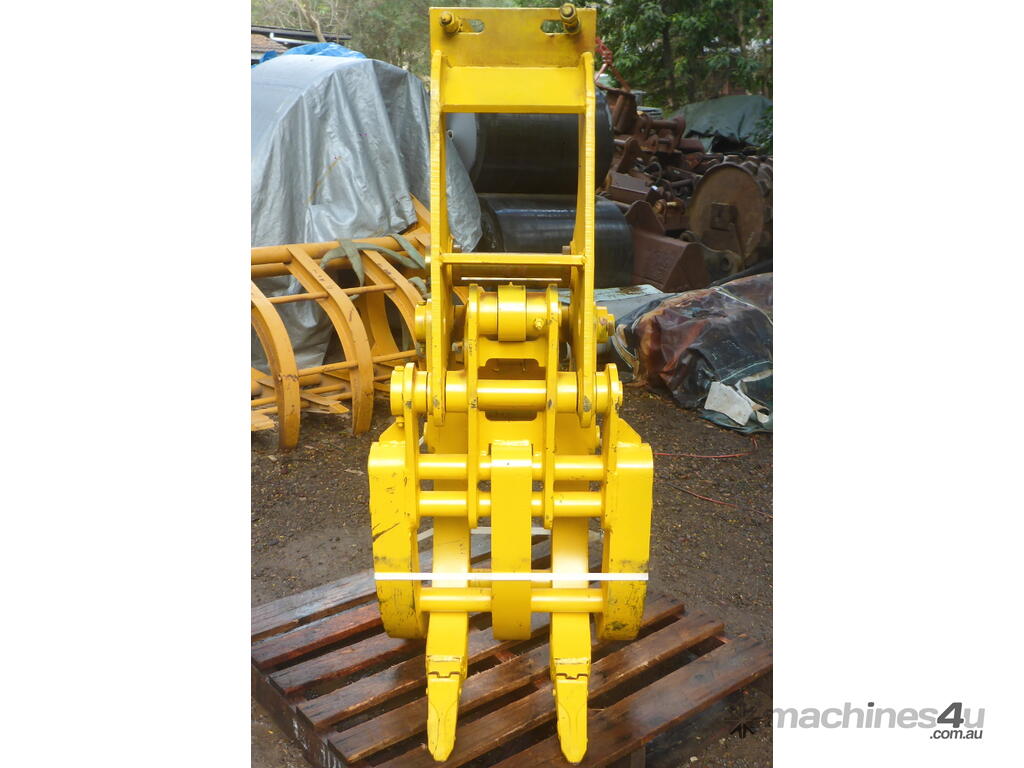

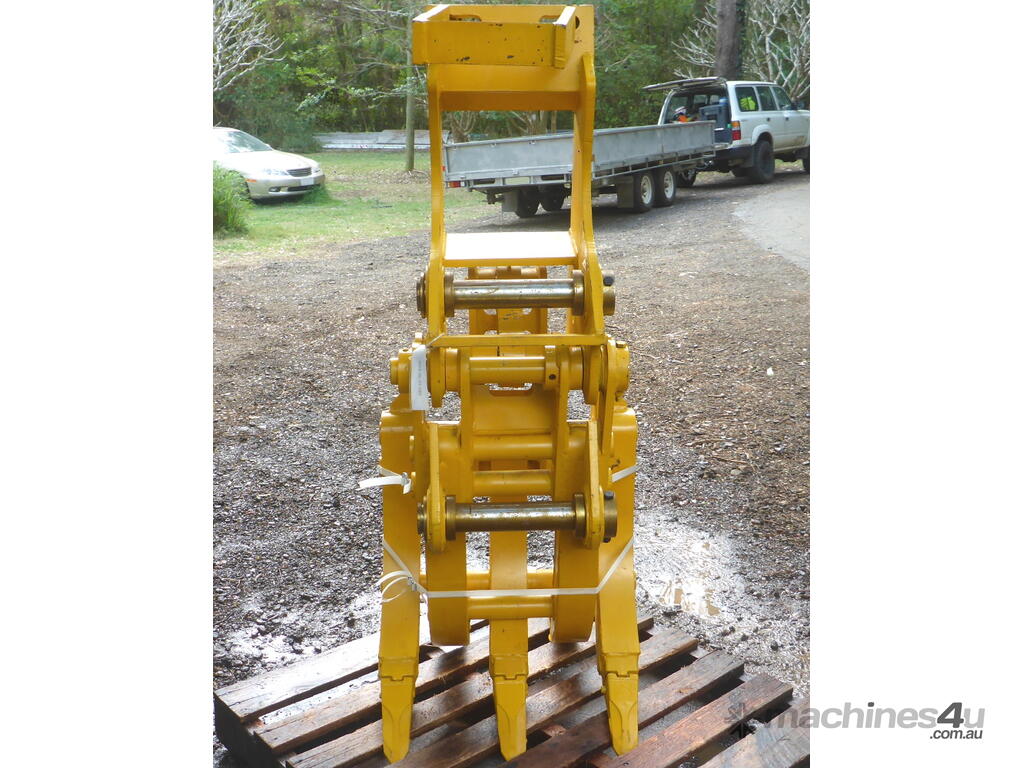

The distance between the collar bosses is 260mm. Removing the collar bosses (see pics# 3 & 9), the distance between the headstock bosses is 300mm, but these welded-on-bosses could also be shaved back on the insides to a maximum of 320mm (the distance Between the Ear Plates), if you need more inside width for your hitch or dipper arm to fit into.

Your machine's CtoC (Pin Center to Pin Center) is not important as your dipper arm's bucket linkage moves to accommodate this.

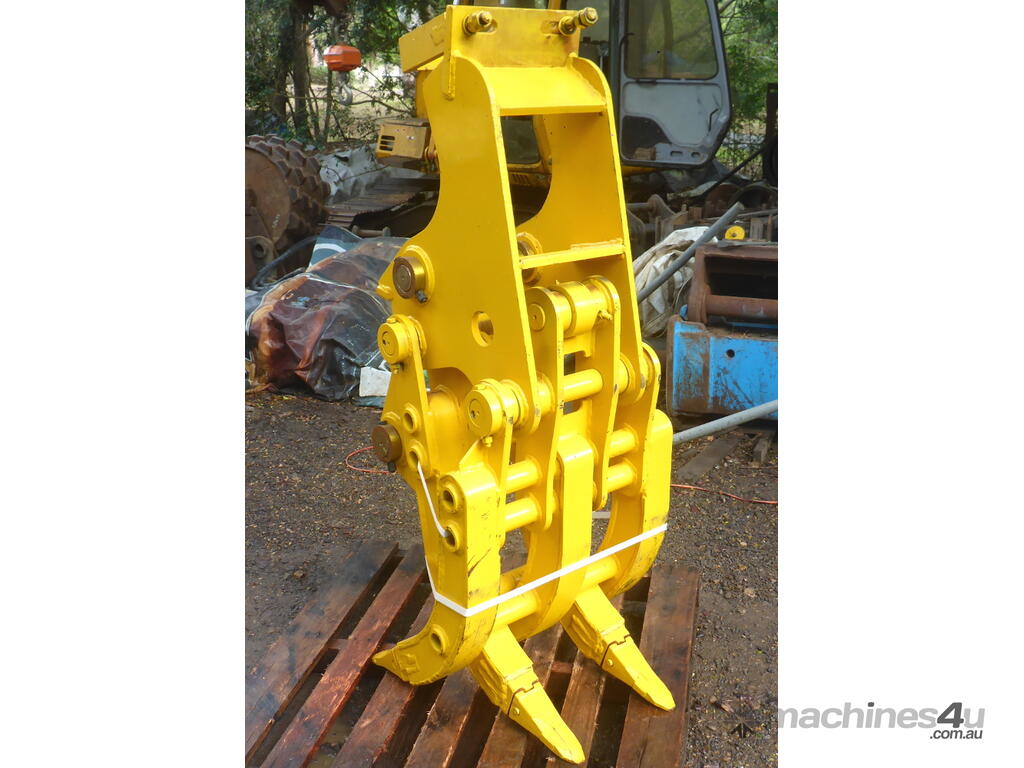

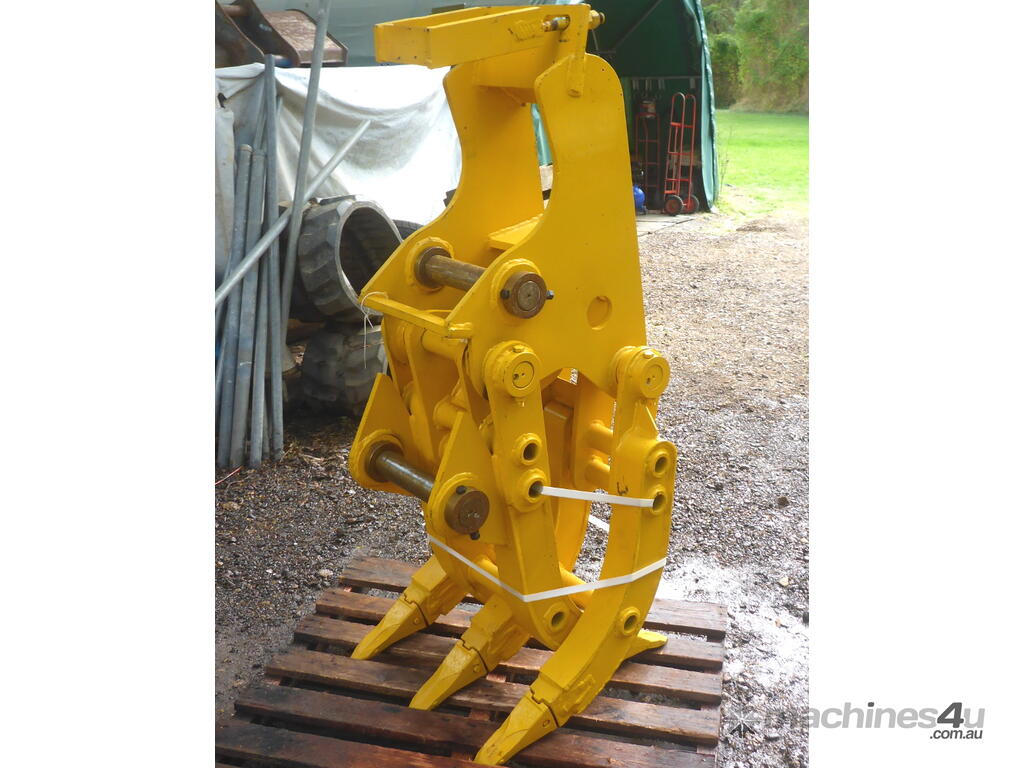

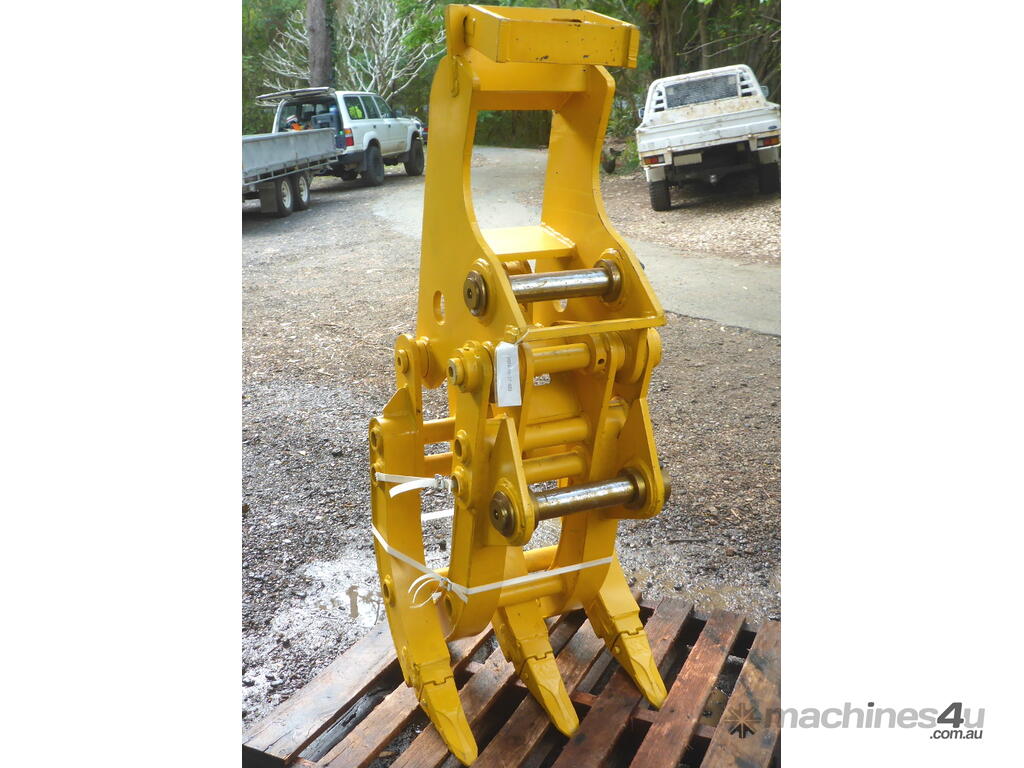

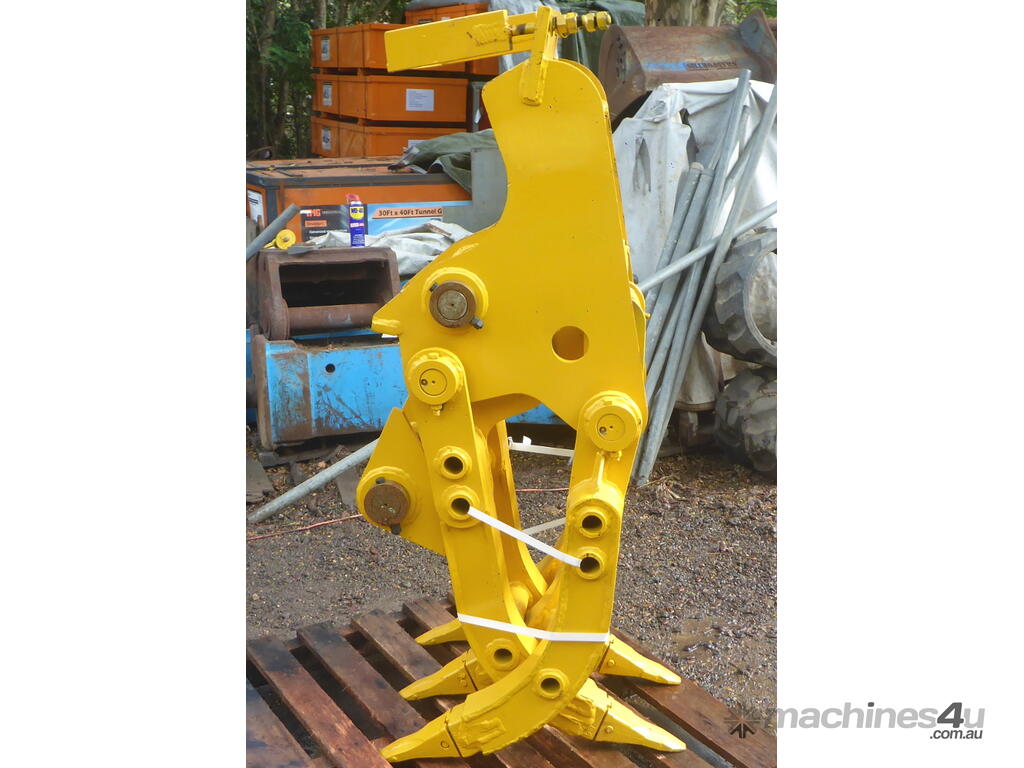

Dimensions (standing up as in pics): 1680mm High, 680mm Wide, 800mm Deep. Weight: 480kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
