New 9-22 ton (65mm pin) Hydraulic Excavator Quick Hitch Coupling

Name: New 9-22 ton 65mm pin Hydraulic Excavator Quick Hitch Coupling
Brand: Maifulai
SKU: 1745AE241114342
Price: 3136 AUD
Availability: InStock

PULLENVALE, QLD

$3,136 AUD($3,450 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$10.69
Per Week

3.18% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Quick Hitch

Make:

MAIFULAI

Year:

2024

Member Since: Oct 2023

Bronze Member

Listings: 178

Hitch/3PL Pin size(mm):

Sellers stock ID:

1745AE241114342

Description

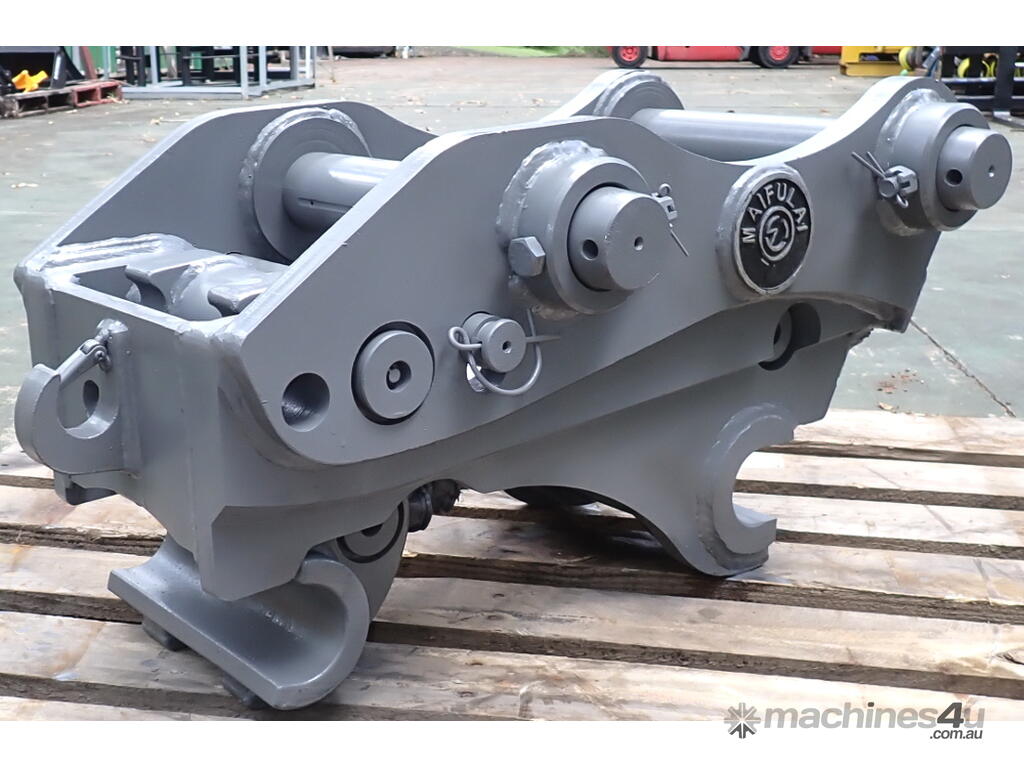

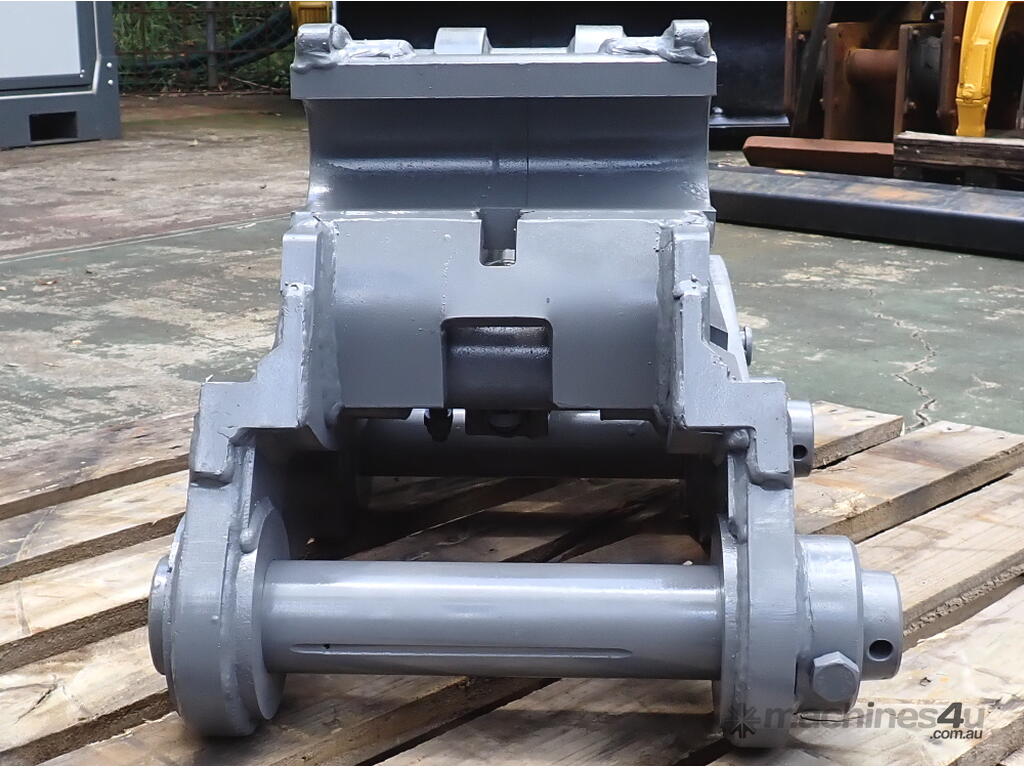

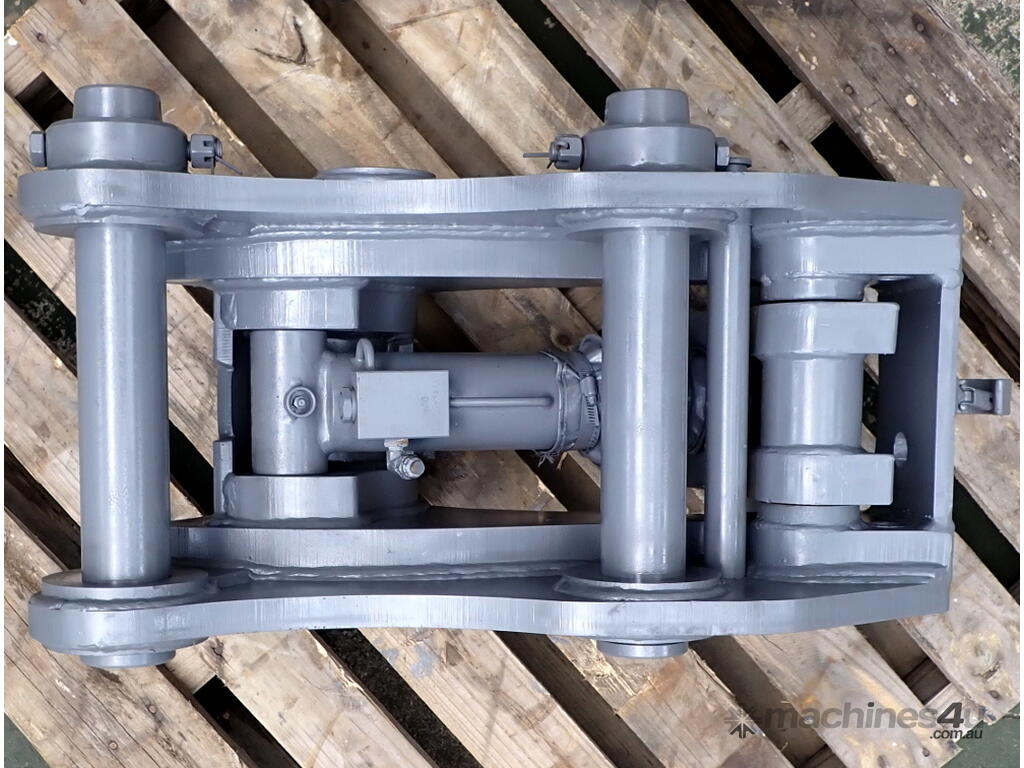

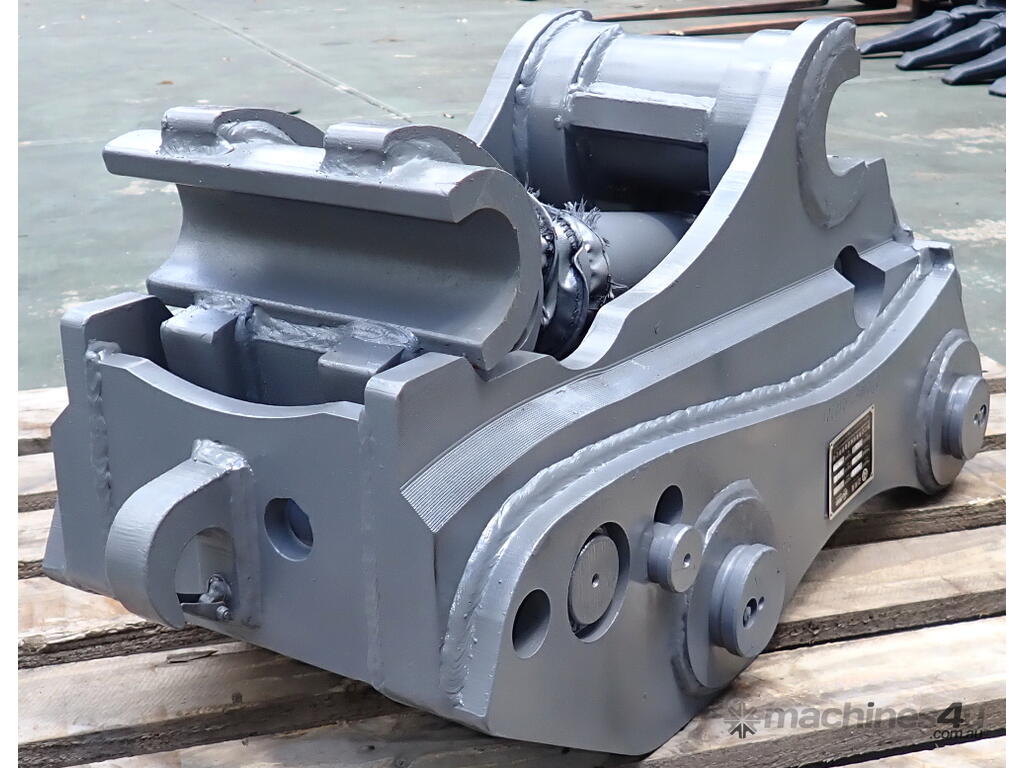

New Maifulai Excavator Hydraulic Coupler Quick Hitch to suit 9-22 Ton machines.

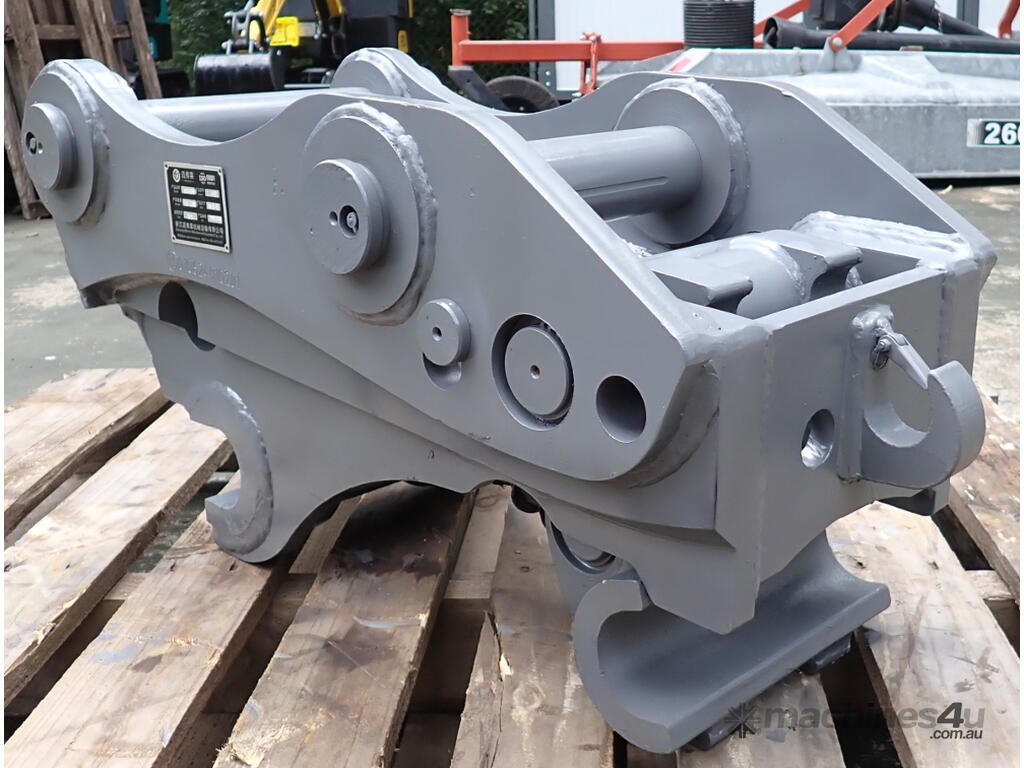

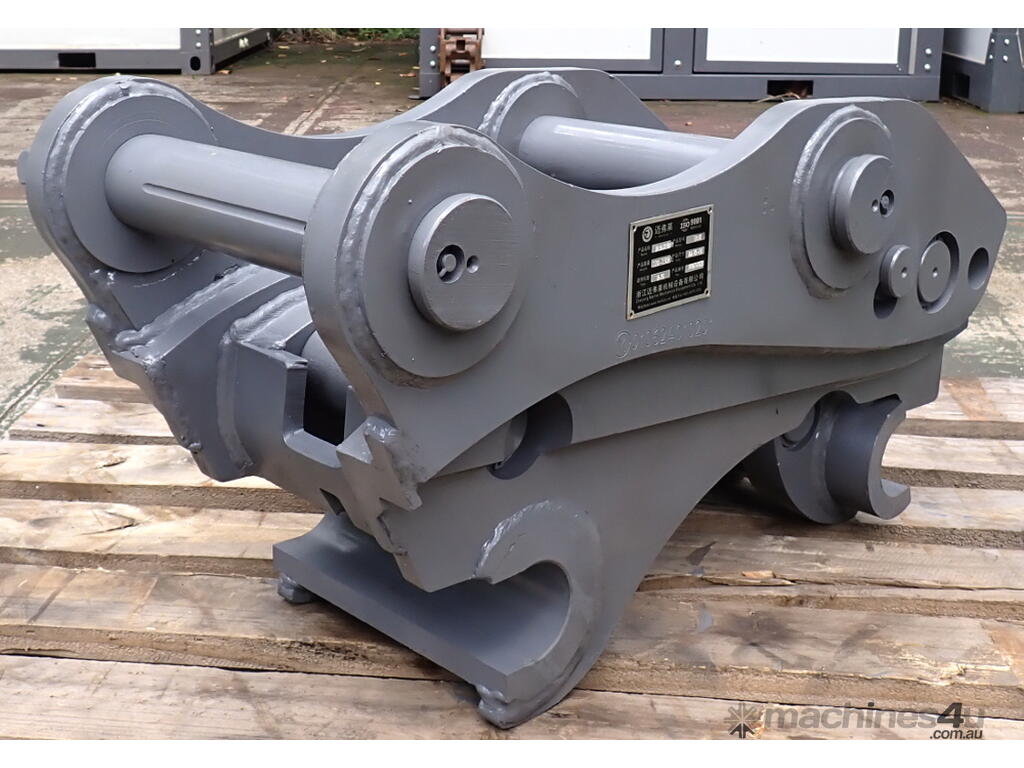

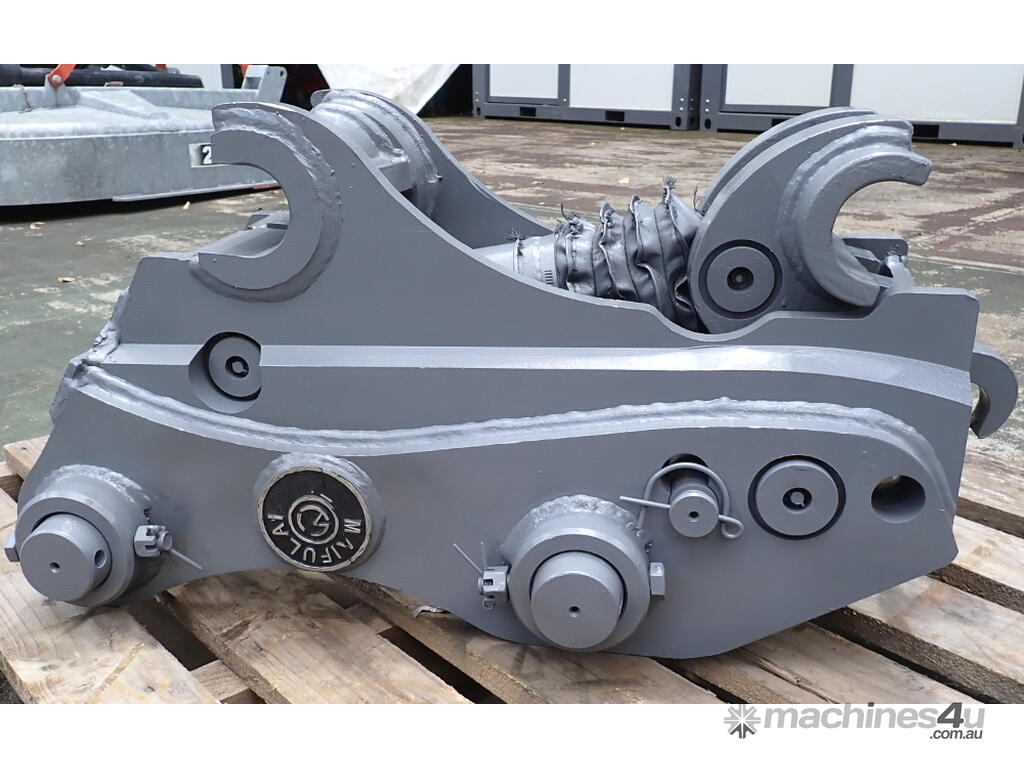

Has Lifting Eye Hook (see pics# 2, 3, 8).

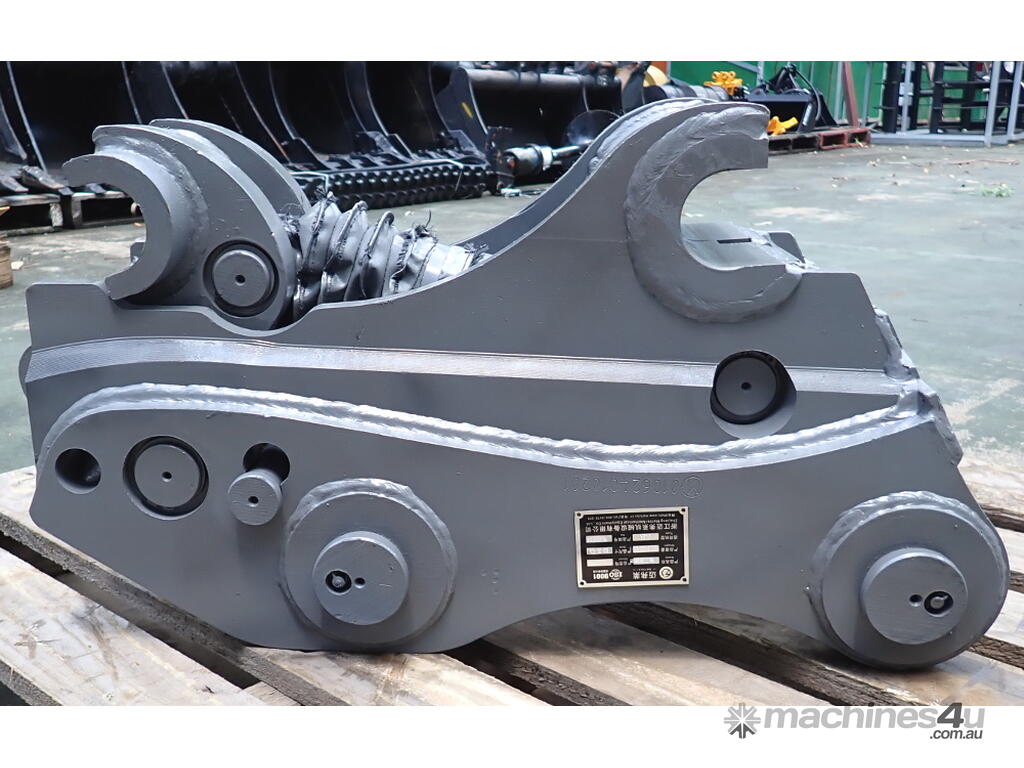

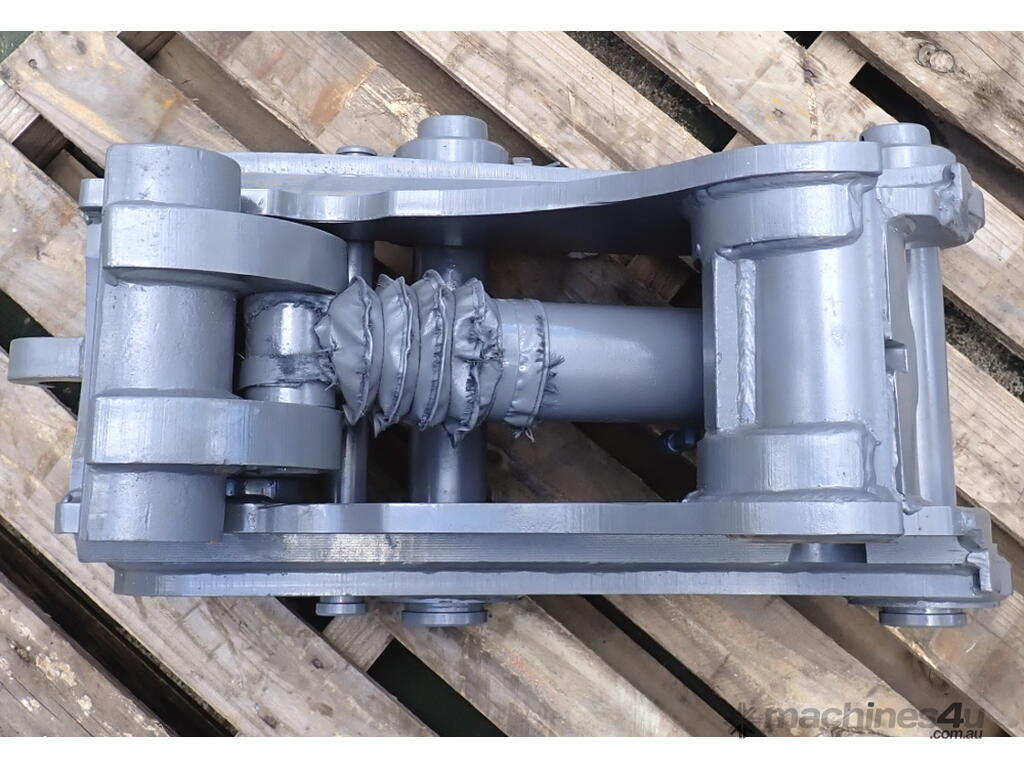

The Hydraulic Ram Chrome also has a protective cover boot.

Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 65mm.
* Pin Center to Pin Center (CtoC): 390mm.
* Between The Ears (BTE): 255mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 280mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).

Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 65mm.
* Between The Ears (BTE): 253mm (your buckets/attachments need to have at least this much width between the ears).

Should fit: Case 9013 / CX130 / CX135 / CX135SR, Daewoo Solar 130LC-V / 130W-2 / 130W-3 / 130W-V / 140LC-V, Doosan S130LC-V / S140LC-V / S140W-V / S255SLR / S300SLR, Hyundai R120 / R130LC / R130W / R130LC / R130LC-3 / R140LC-7, JCB JS110 / JS130 / JZ140, Kobelco SK130LC, Link-Belt 130LX / 135SA / 2650 QUANTUM, New Holland EH130LC, Samsung SE130-3 / SE130LC-3 / SE130W-3, Sumitomo SH100 / SH100-2 / SH100CT-2 / SH120 / SH120-2 / SH120CT-2 / SH135U-2 / SH135X-2 / SH145U / SH200LC-3LR, Terex TXC 140LC-1, Volvo EC130-3 / EC140 / EC140 / EC140 / EC140B / EC140B / EC140C / EC140D / EC145D / EC210C LR / EC210C LR / EC290C LR / ECR145C / EW130 / EW140C / MX135WS/LS / SE130W-3/LC-3, Yuchai YC135-7.

Maybe fit: Caterpillar 311 / 311C / 311D / 312 / 312B / 312C L / 312D / 313 / 314C LCR / 314D / 320D, Daewoo Solar 130-2 / 130-3, Doosan DX140LC-3 / DX140W / DX140W-3 / DX300LC-3 SLR, Halla HE130 / HE130W, Hitachi EX100 / EX110-5 / EX120 / EX120-1 / EX120-2 / EX120-3 / EX120-4 / EX120-5 / EX130 / EX135 / EX135UR / FH120 / FH130 / UHO62 / UHO63, Hitachi Zaxis 135US, JCB 805B / 814S, John Deere 135C RTS, Kato HD 512, Kobelco 115SRDZ / 135SRLC / K905 / SK120 / SK130 / SK135 / SK135SR, Sumitomo SH120-3 / SH125-3 / SH125X-3 / SH130-5 / SH135-3 / SH135X-3, Takeuchi TB 1140 and possibly other machines with similar pin spacings.

Hitch dimensions: 775mm long, 420mm wide, 405mm high. Weight: 182kg.

Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
