Aaron CNC Machines are heavy-duty, high-quality and competitively priced.
Use our configurator to price the machine to your needs.

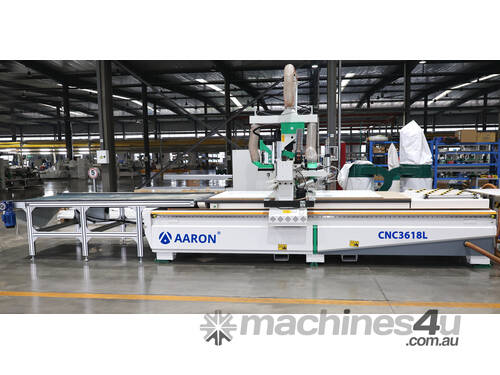

The Aaron CNC3618L has the following features:
X axis range : 0-1800mm
Y axis range : 0-3600
z axis range : 0-260mm
actual processing speed : 0-20 m/min
control system : syntec
spindle :12KW
Tool magazine : 12 Linear
Reducer : Shimpo
Transmission rack : T-WIN helical rack
Guide rai l: Lapping Guide
Frequency converter : Hpmont
Main electrical components : Schneider/ABB
Main pneumatic components : AIRTAC
Vacuum pump : BECKER 5.5kw*3
Main Equipment dimensions : 5600*2300*2300mm

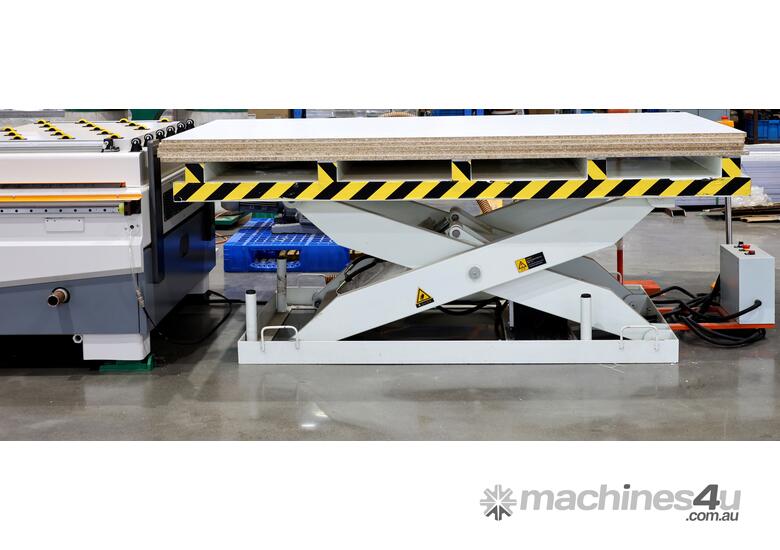

With lifting table and unloading conveyor Total dimensions:12600*2300*2300mm
Total power : 42 kw
Optional size : 3700 x1830 mm with labeling loading and unloading 12 linear tool magazine 12kw spindle.
3700 x 1260 mm with labeling loading and unloading 12 linear tool magazine 12kw spindle.
2860 x 1260 mm with labeling loading and unloading 12 linear tool magazine 12kw spindle.
(free delivery and installation below 300 km from our VIC Hoppers Crossing store and NSW Smithfield store )
