ANT BY800 MINI DUMPER - $9990.00 INC GST

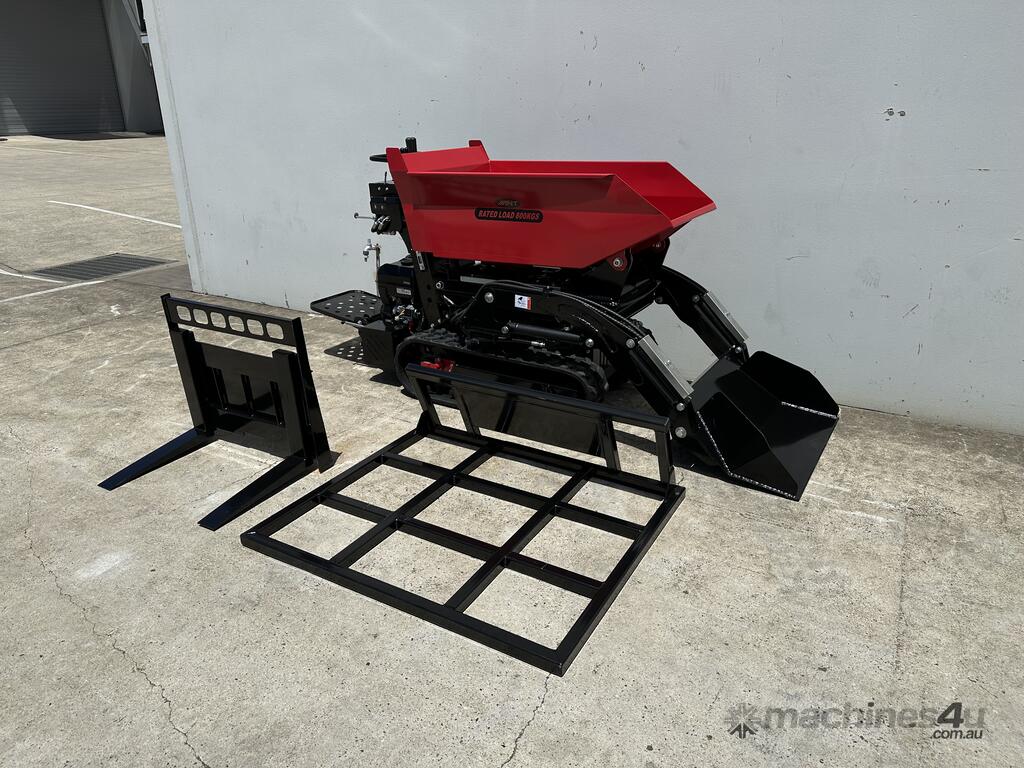

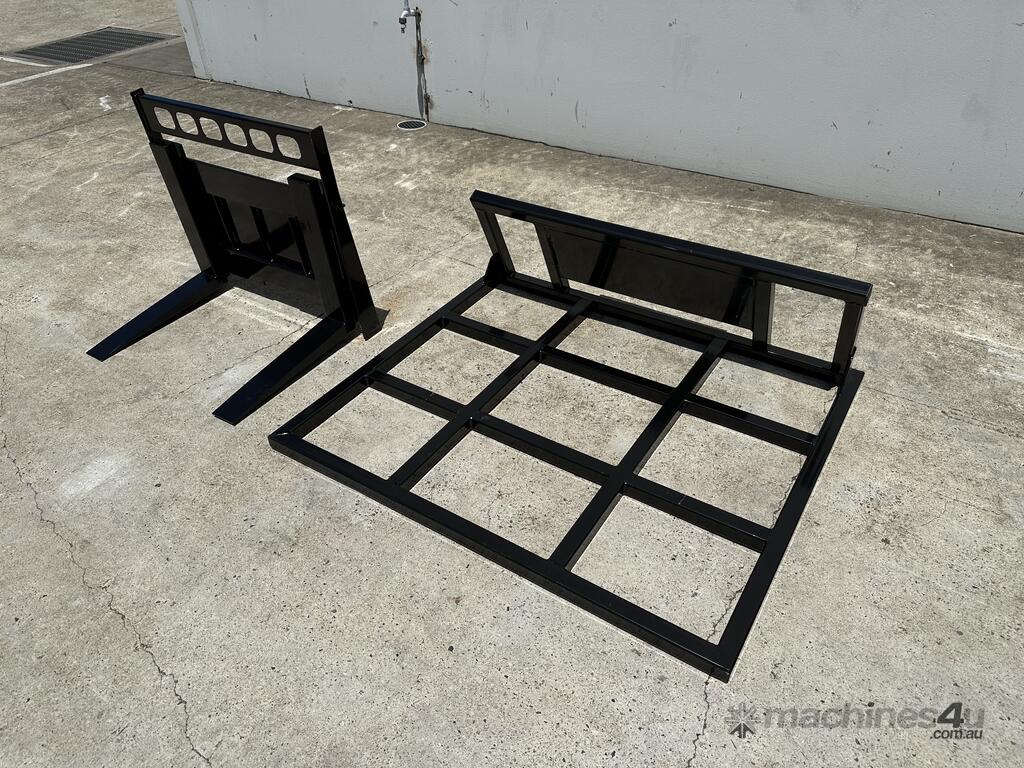

$14,990.00 INC GST - INCLUDES SELF LODING LOADER SPREADER BAR AND FORK LIFT ATTACHMENT.

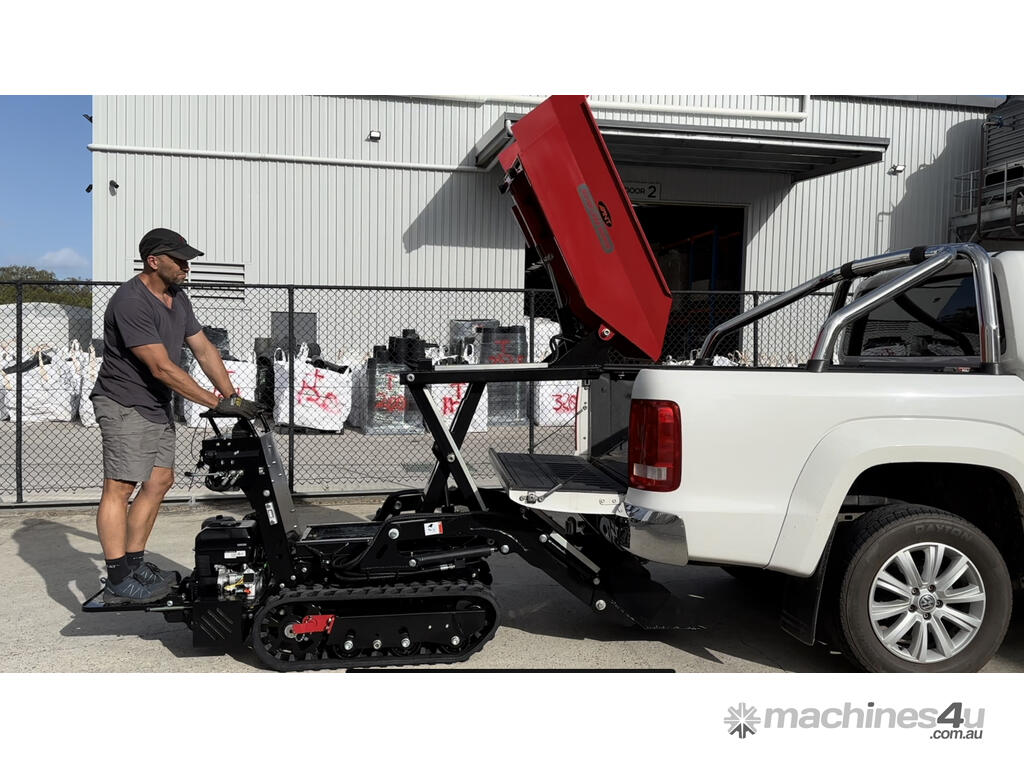

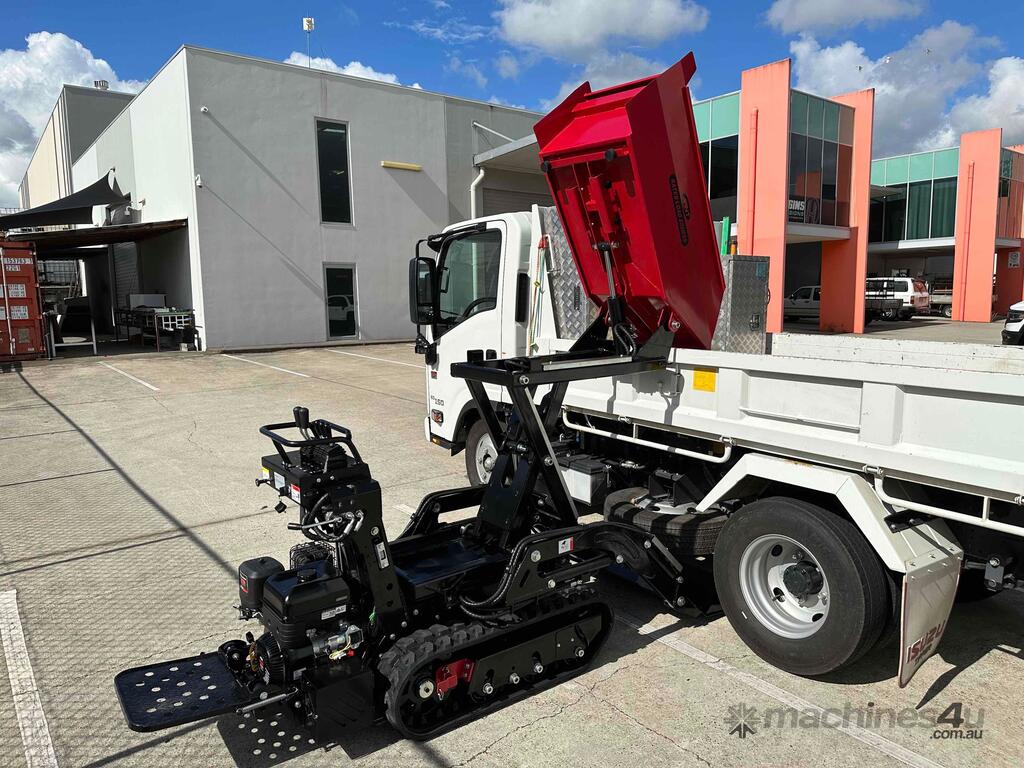

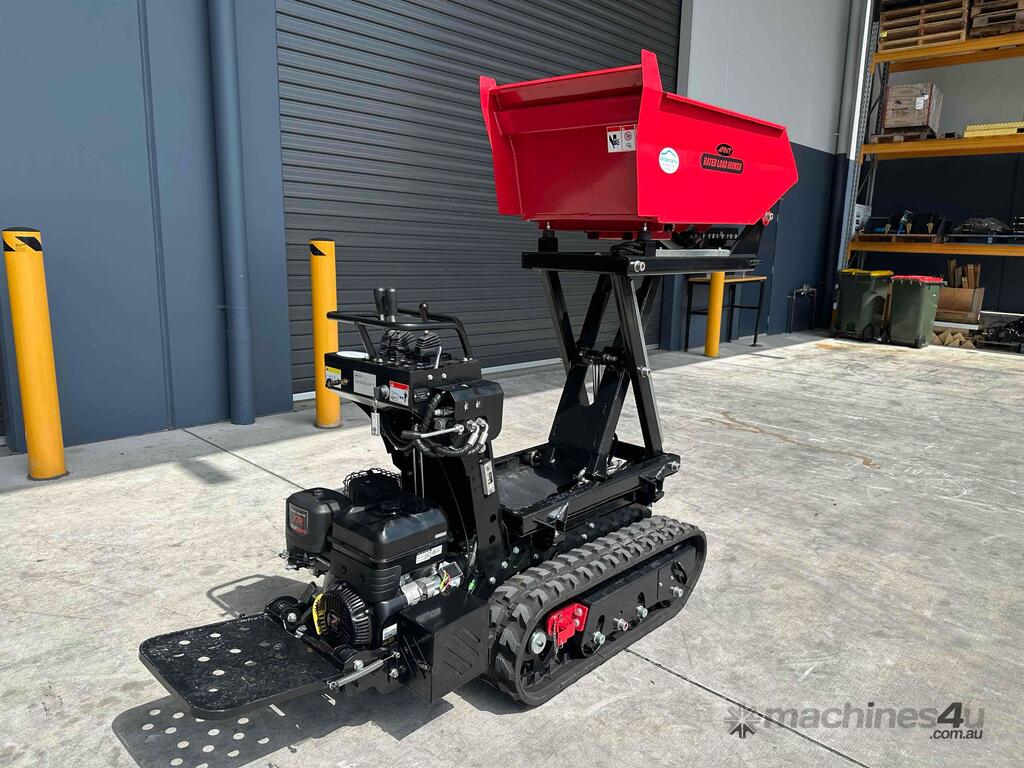

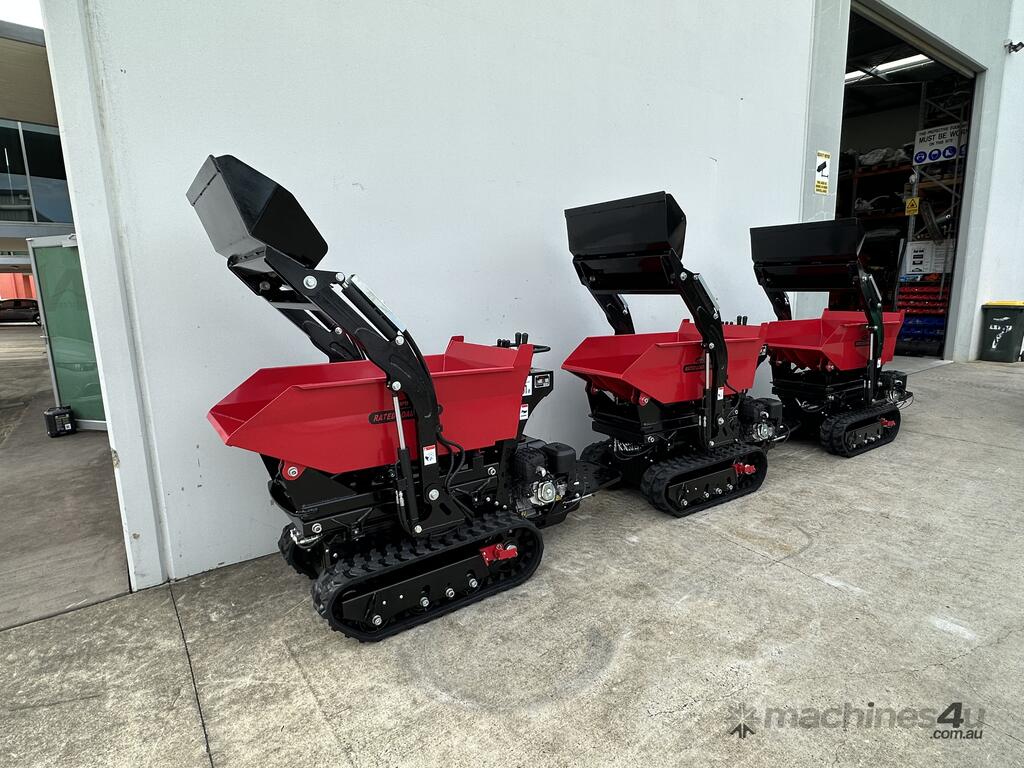

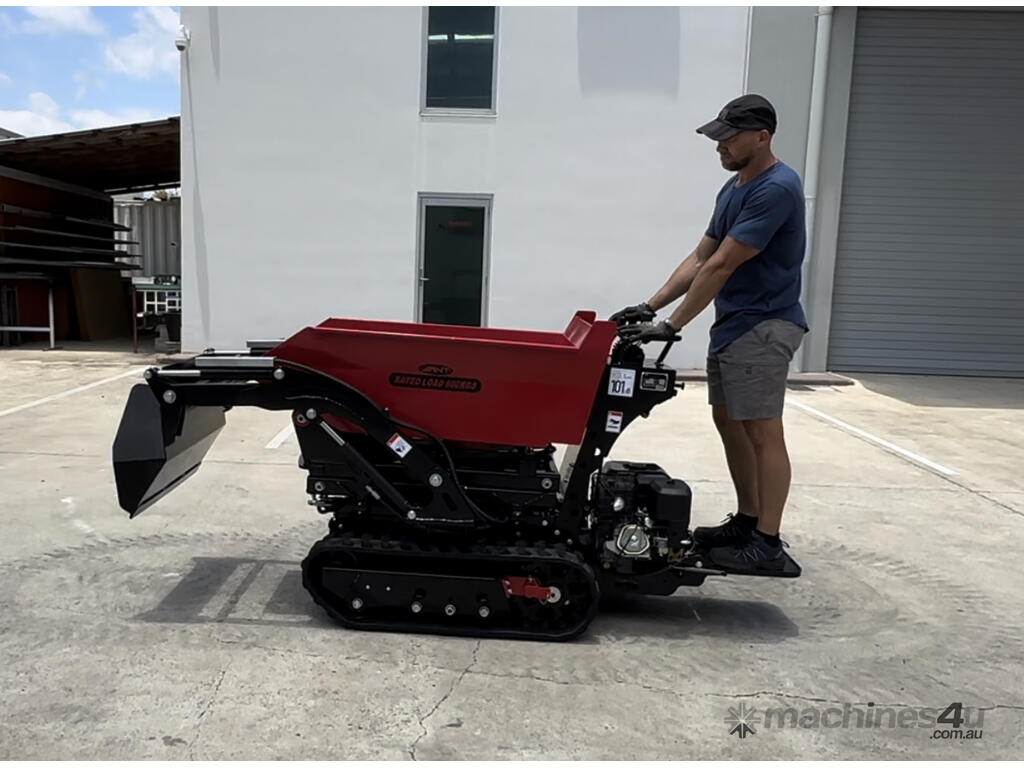

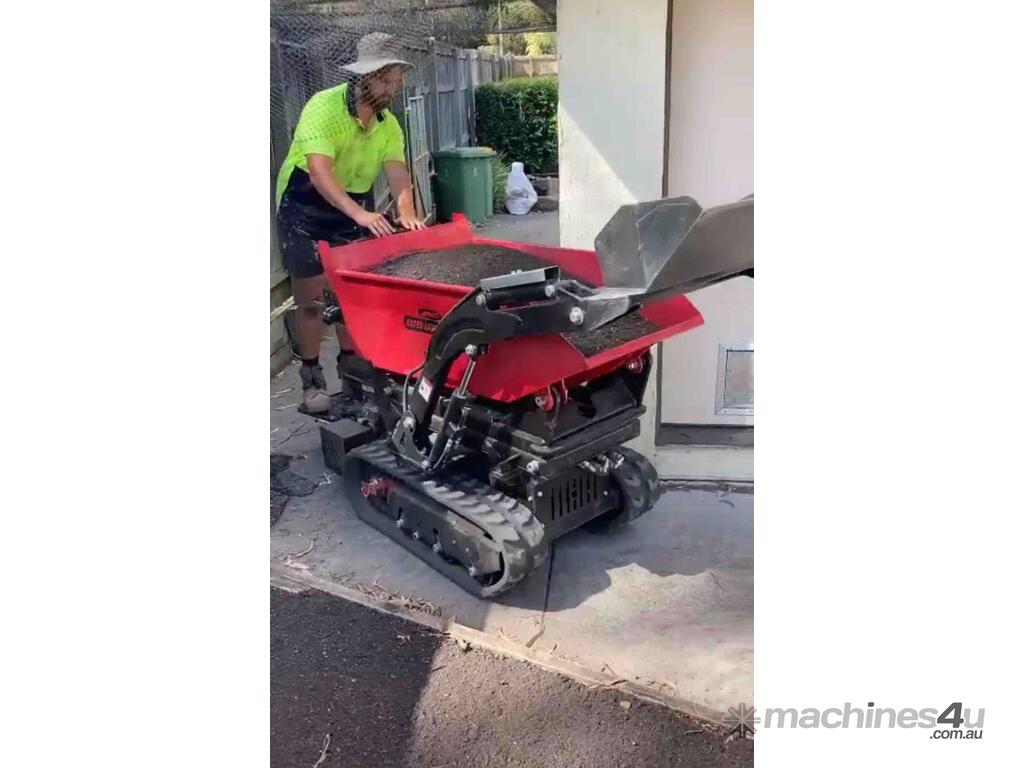

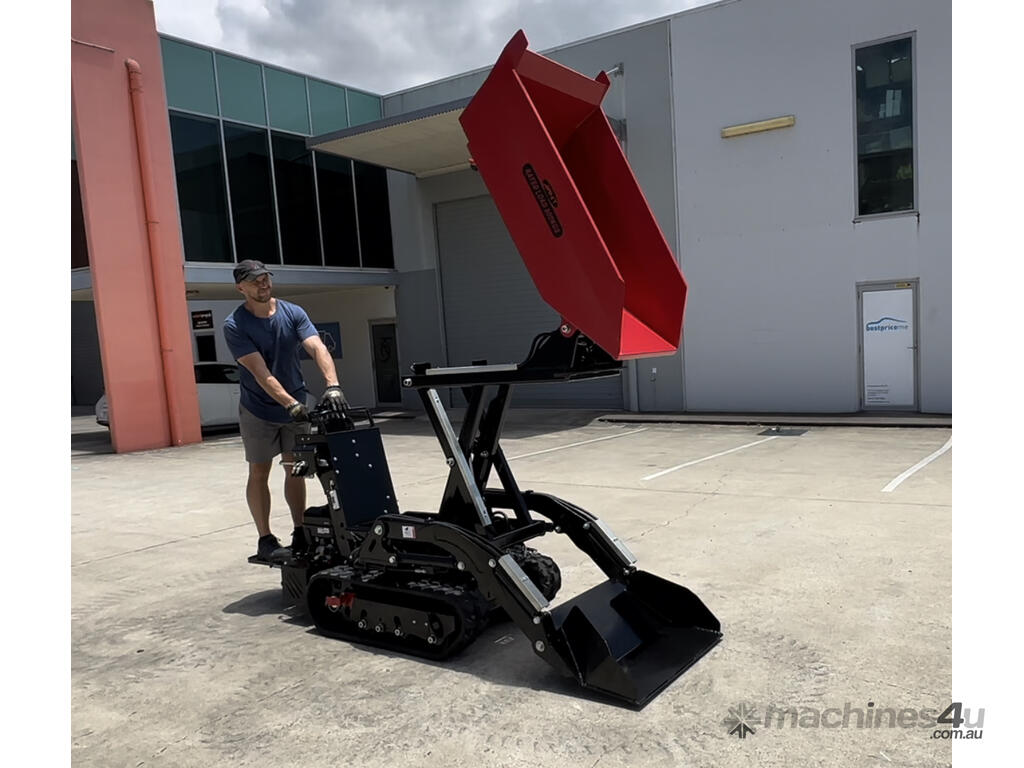

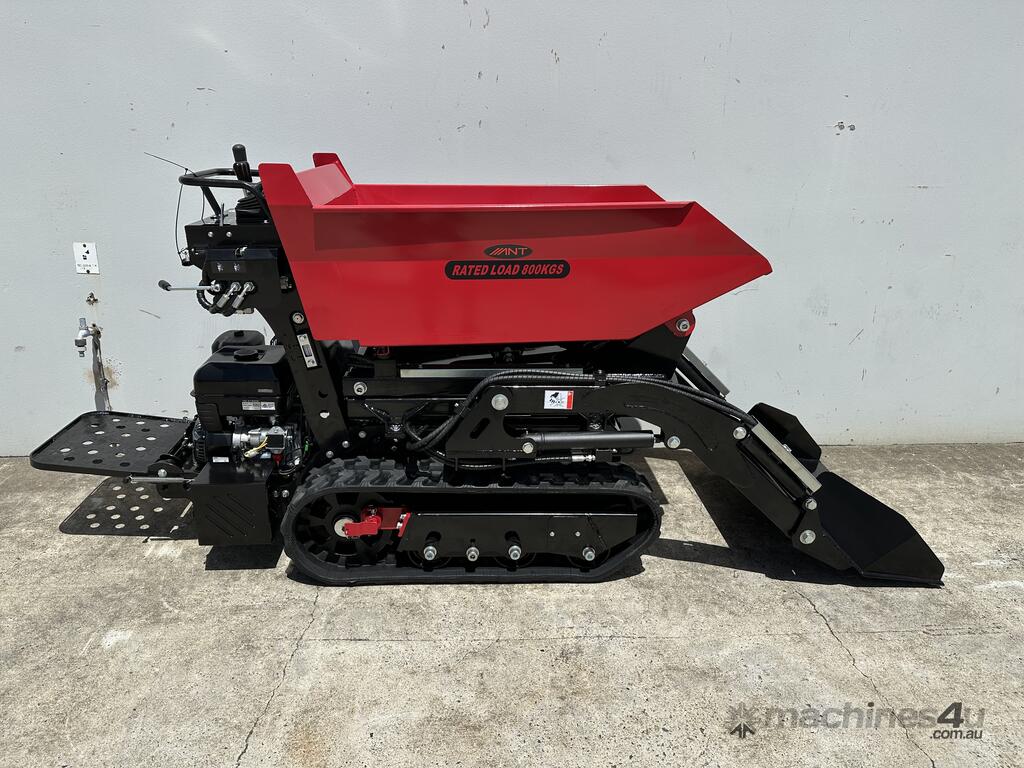

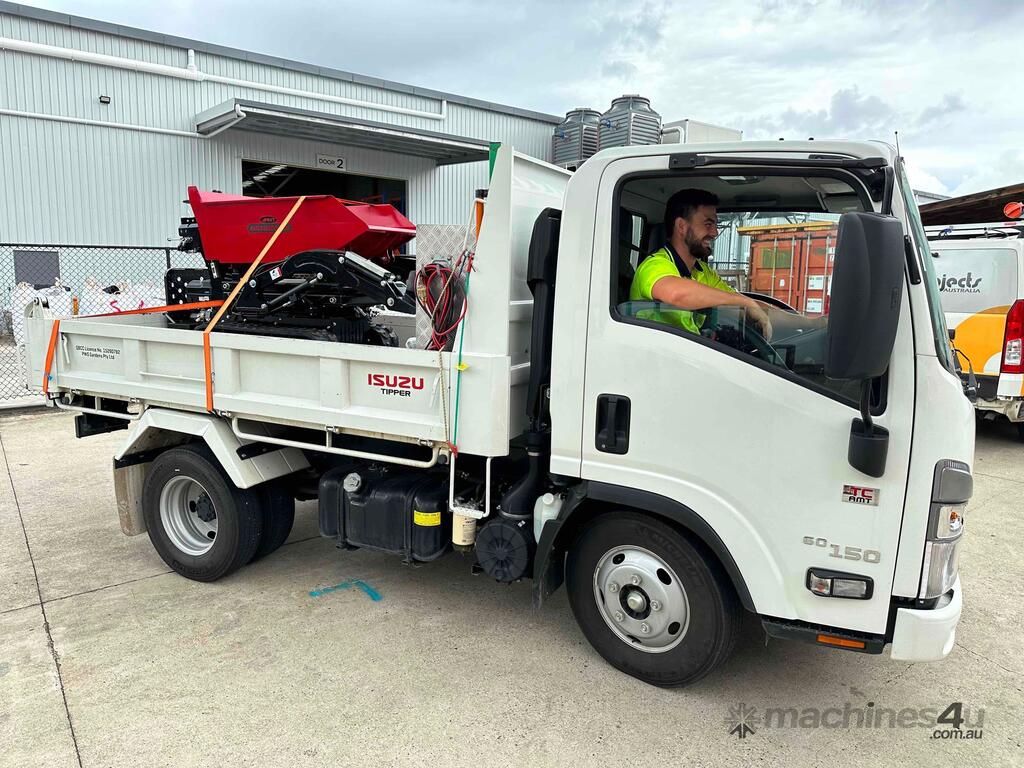

The BY800 is a track mounted, self-loading dumper with a load capacity of 800Kg. It has a hydraulically operated scissor lift which easily lifts the bucket to a height of 1450mm at the bucket pivot, which allows loading into a truck or 6m3 skip bin.

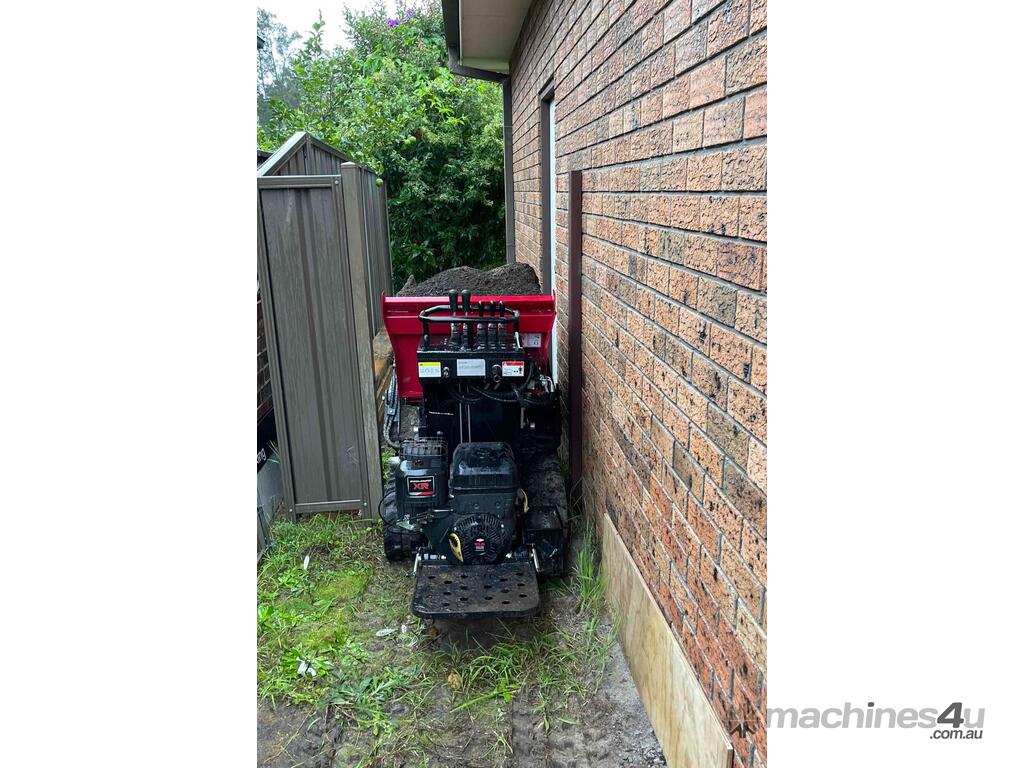

The BY-800 is powered by a Briggs & Stratton 13hp petrol engine, electric start, has American-made hydraulics. As the BY800’s width is only 850mm, it is highly suitable for use in limited access locations.
Features
Only 850mm wide

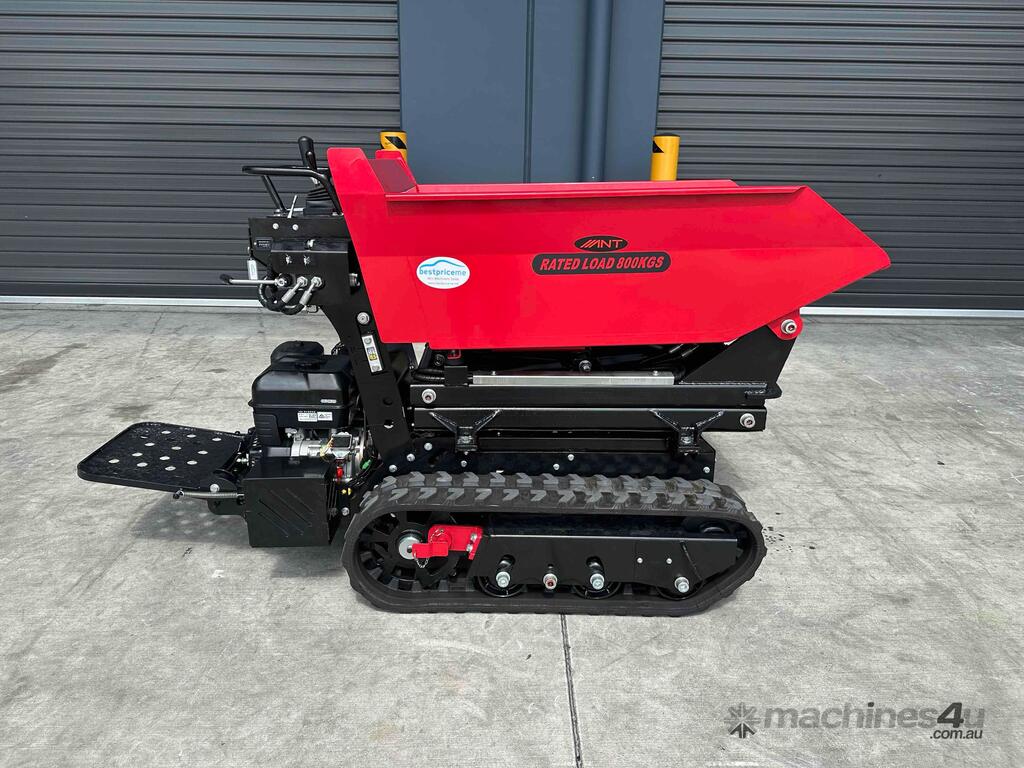

800kg load capacity
Bucket lifts to 1450mm

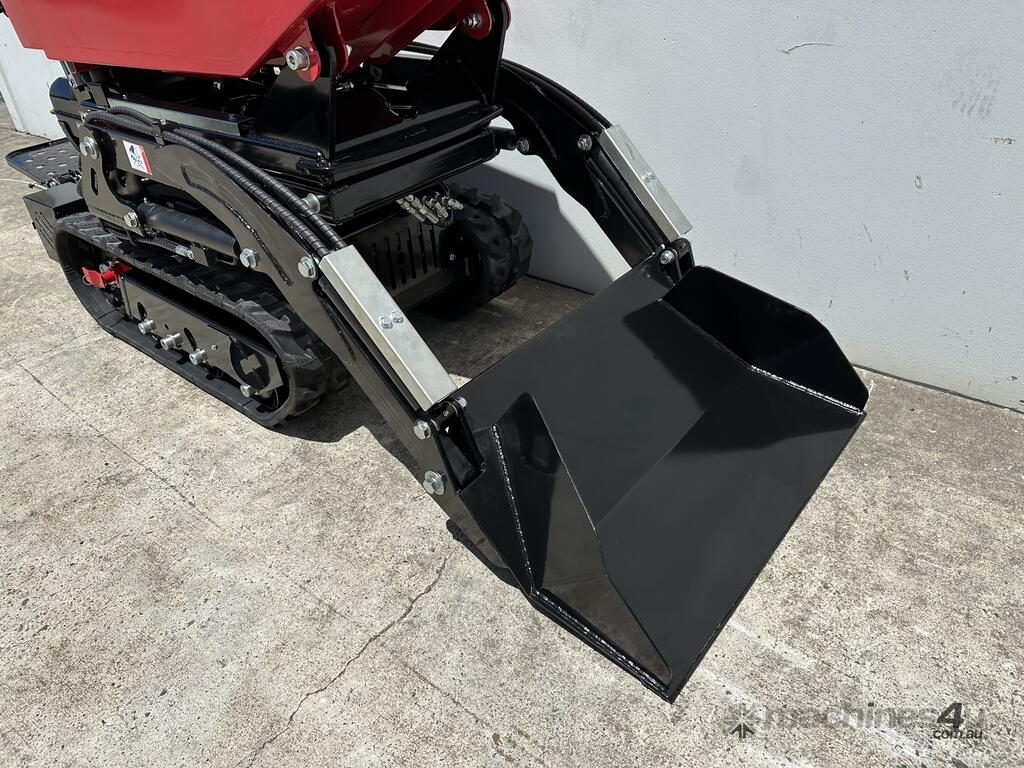

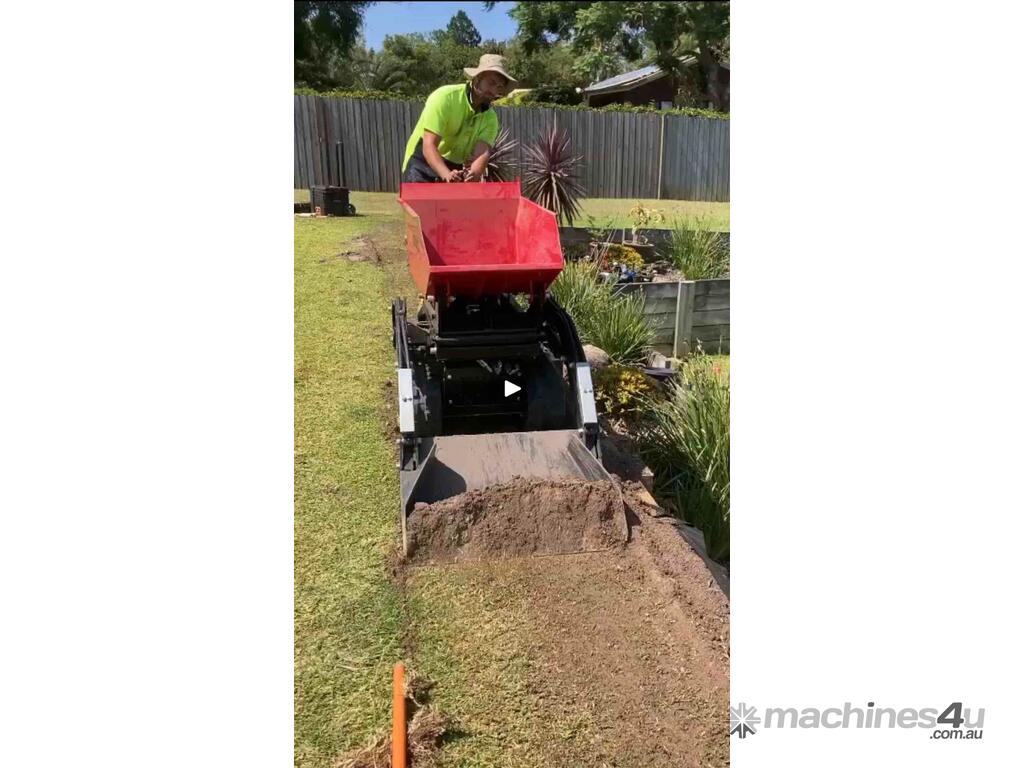

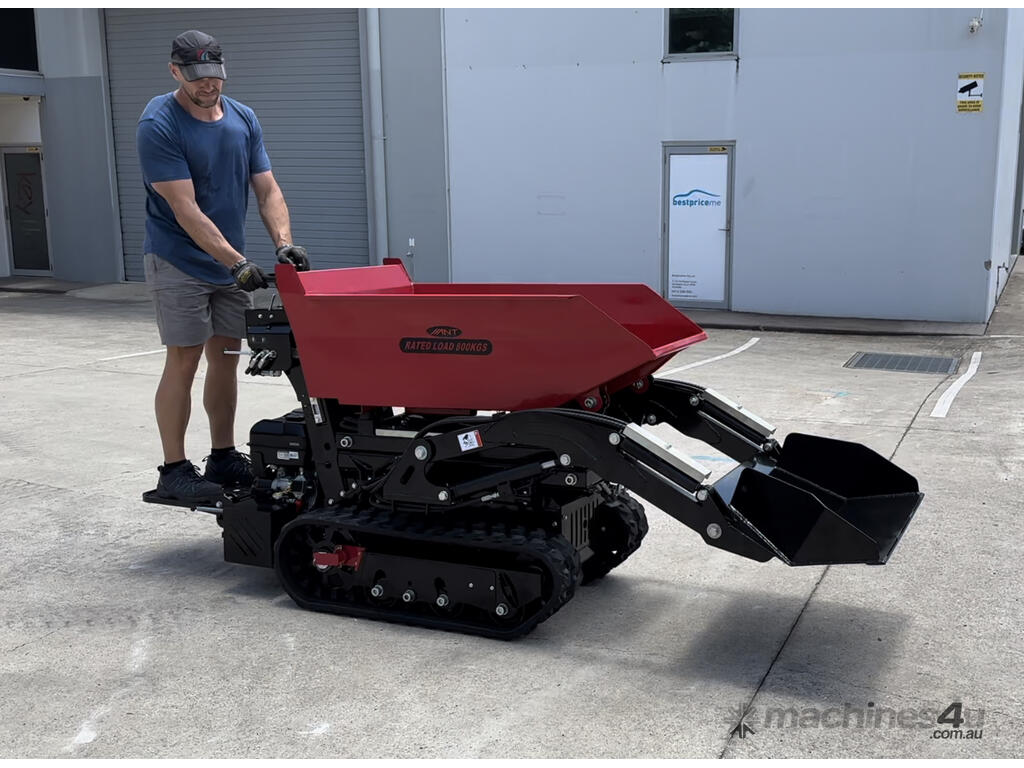

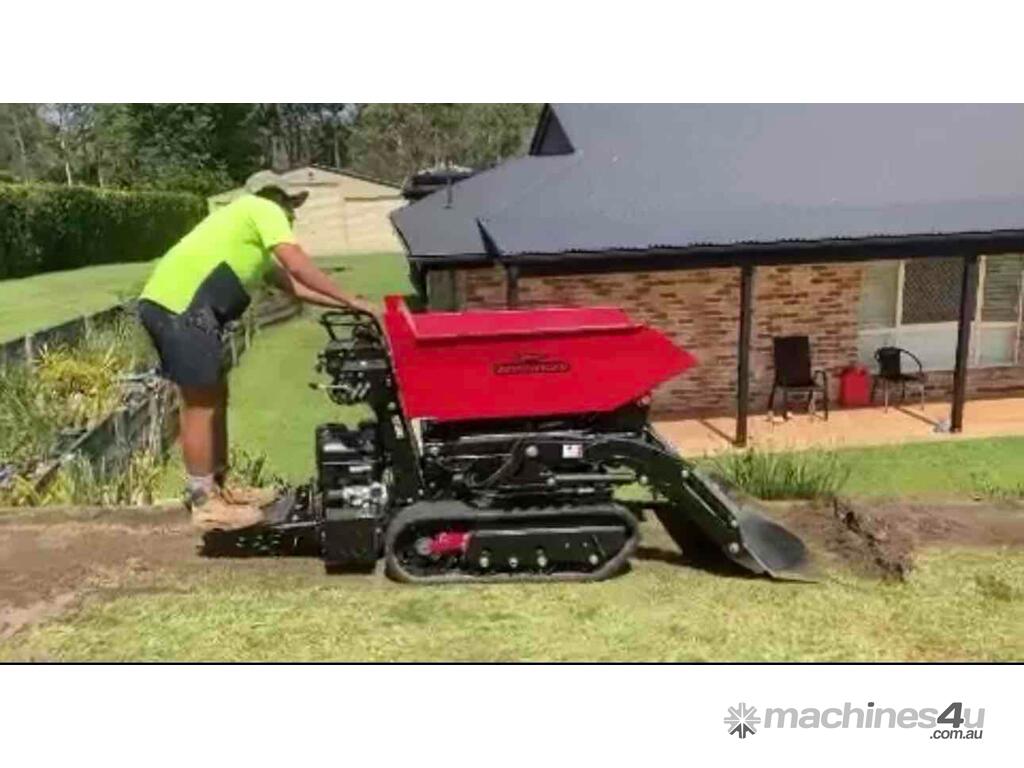

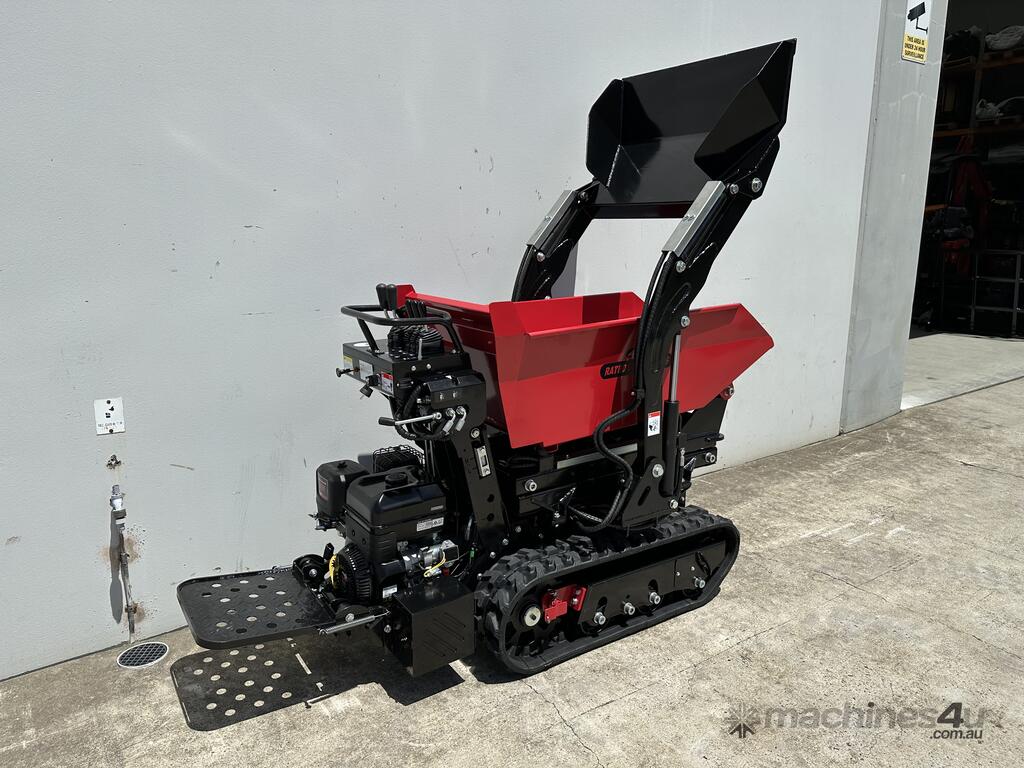

Self-loading mini loader
13HP Briggs & Stratton engine
Electric start
American-made hydraulics
Easy servicing and maintenance
Crane anchor points
Great value mini loader
BY800 SPECIFICATIONS
Self loading : Yes
Bucket lifting height : 1450mm
Dimension max : L2440 x W820 x H1140mm
Weight : 650kg
Max. load capacity : 800kg
Max. speed : 6.3kph
ENGINE

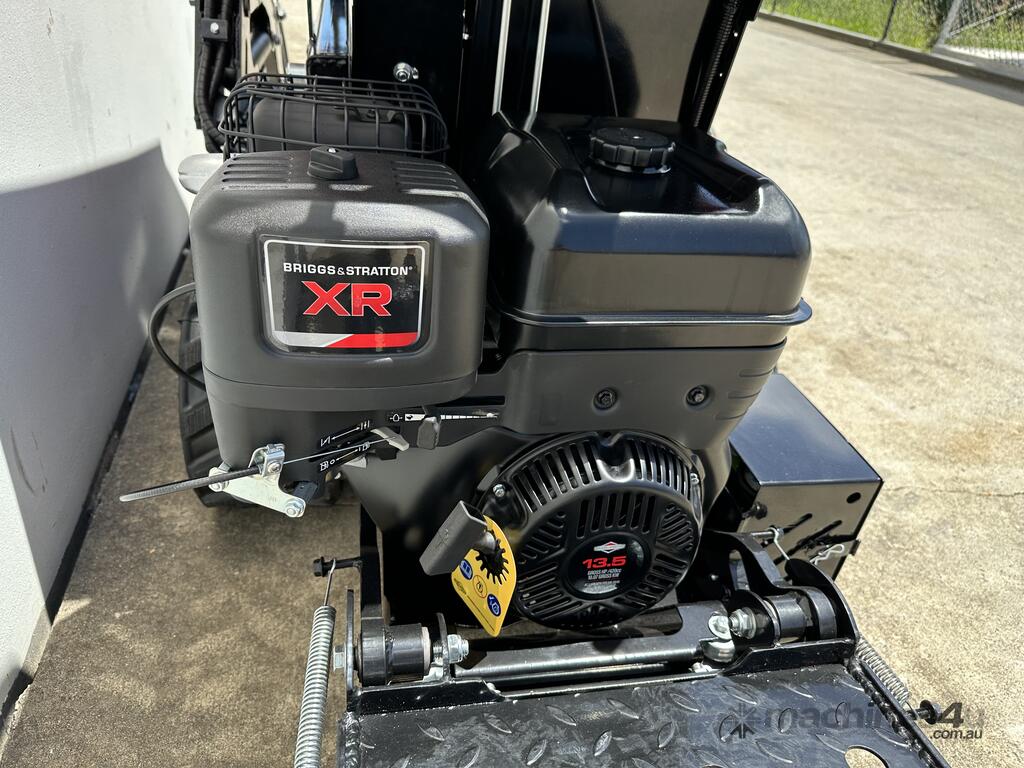

Engine brand : Briggs & Stratton
Engine power : 13hp
Engine type : Petrol, 4 Stroke
Engine start : Electric / Manual
TRANSMISSION
Type : Hydrostatic
Hydraulic Pump : 2 X Variable Displacement ( Piston Pump )
Flow rate : 2 x 32.4 (L/m)
Hydraulic motors : 2 x Orbital
HYDRAULIC SYSTEM
Hydraulic pump : Gear Pump
Flow rate : 13.5L/m
High flow rate : 22L/m
Max. pressure : 150 bar
Main valve : 2-3 way

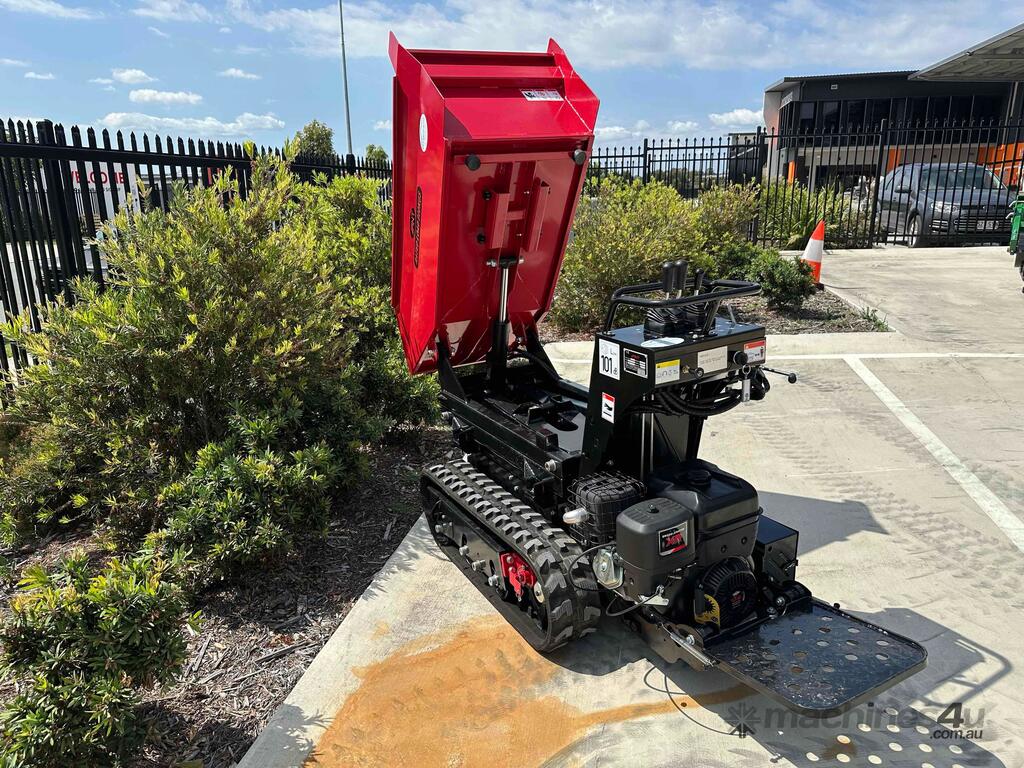

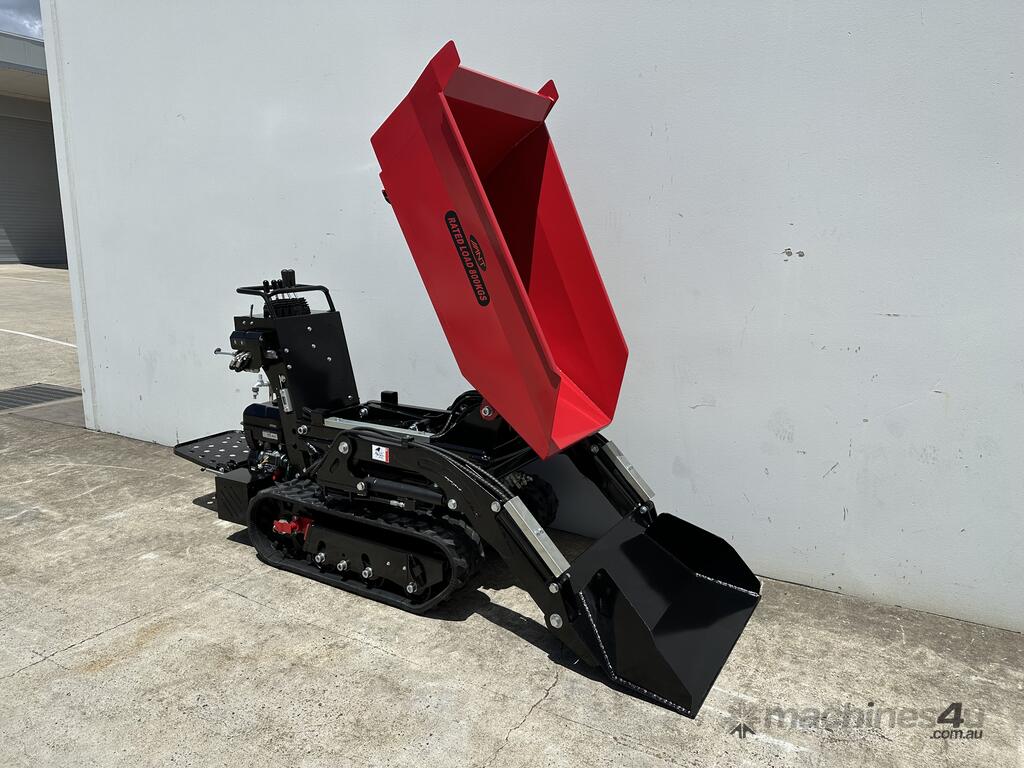

Skip tipping system : Hydraulic

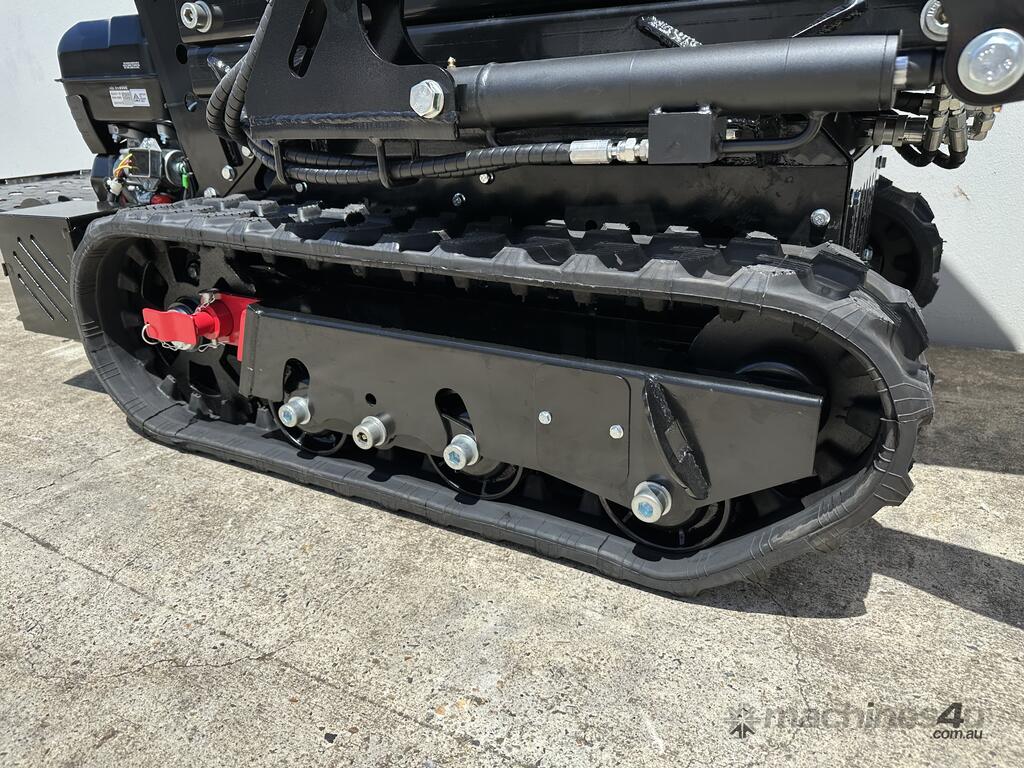

TRACKS
Standard track width : 180mm
Track rollers : 3
Rocking rollers : Yes
Track tensioning : Yes

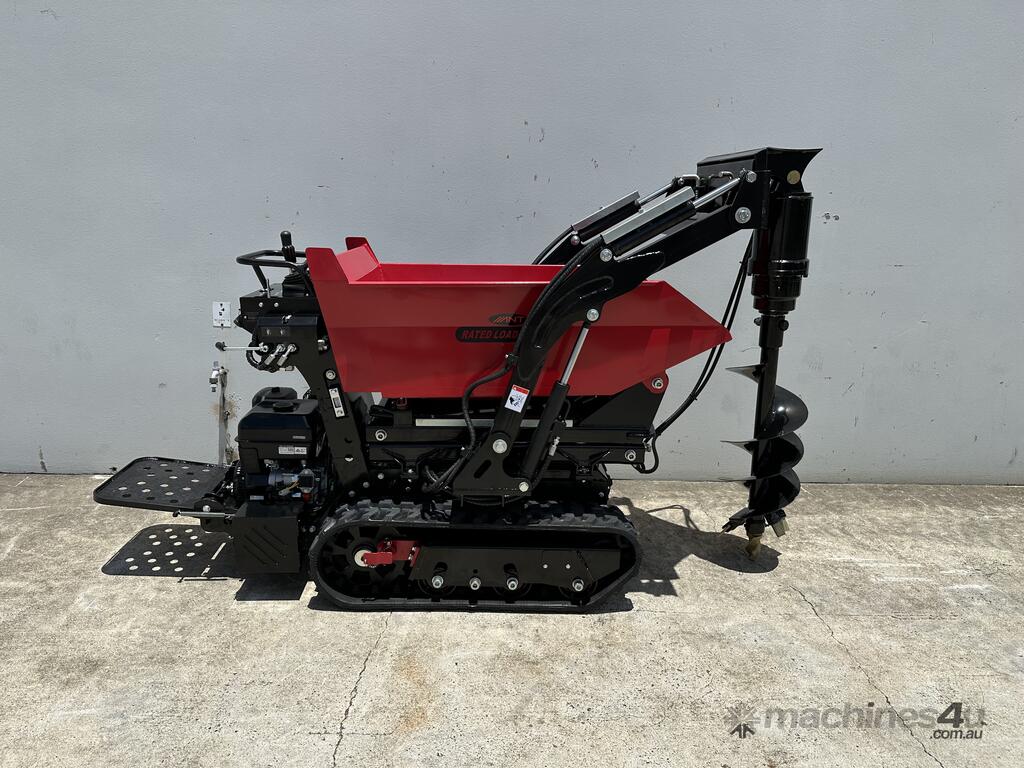

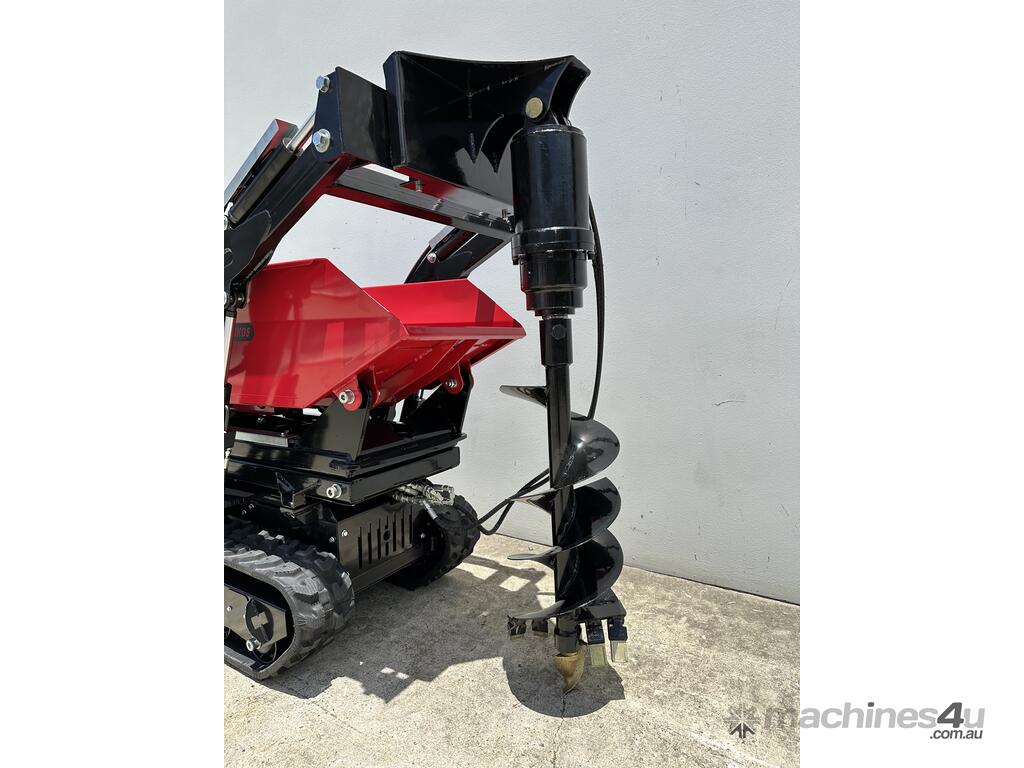

Optional Post hole digger 300mm and 200mm Auger $2850.00
