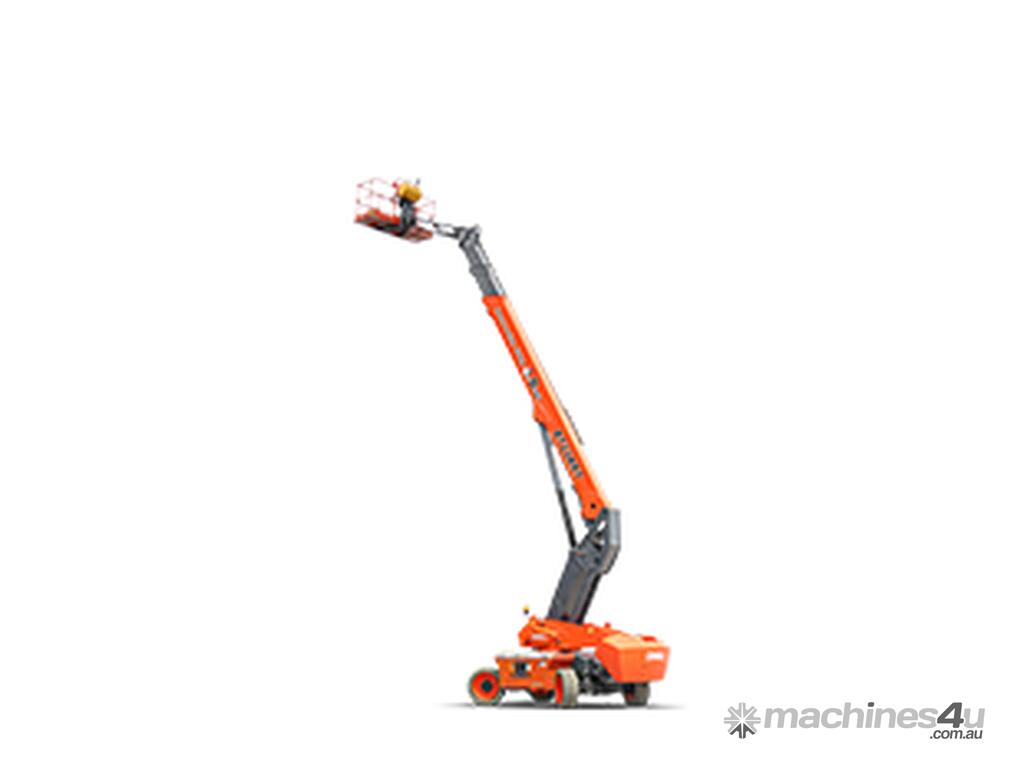

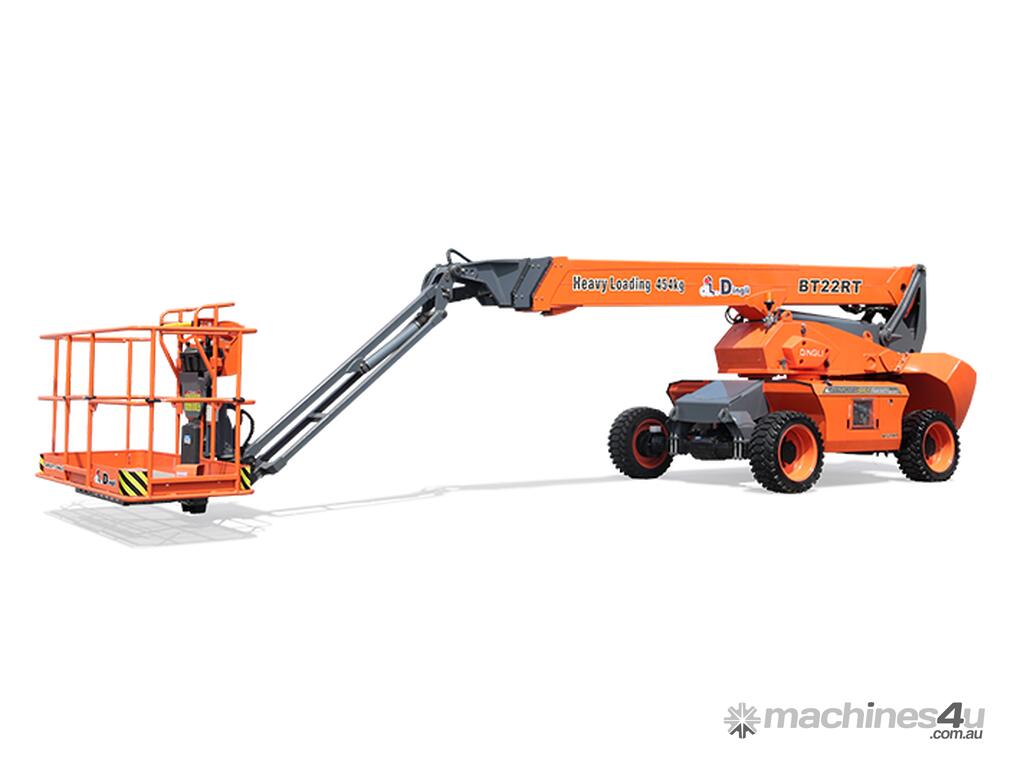

Dingli is currently the largest supplier of EWP's in the Australian market, and 3rd largest supplier in the world. Leading the charge with quality and innovation, the Dingli products will not disappoint.
Product Highlights and benefits:
Large load, strong power, easy maintenance, high chassis, high energy saving, stable control, easy transport
Unique design makes the whole part move down, so centre of gravity is shifted down, making the machine more stable
All components are located on both sides of the chassis, making maintenance easier
Equipped with integrated four-wheel drive system with axles for greater off-road performance
Dimension:
Max. Working Height 22.51m
Max. Platform Height 20.51m
Max. Operating Range(+0.6m) 17.28m
Max. Platform Range 16.68m
Overall Length(Stowed) 10.16m
Overall Length(Transport) 10.36m
Overall Width(Stowed) 2.50m
Overall Width(Transport) 2.28m
Overall Height(Stowed) 2.65m
Overall Height(Transport) 2.46m
Platform Size(Length×Width) 2.44m×0.91m
Turntable Tailswing 1.19m
Ground Clearance 0.28m
Wheelbase 2.40m
Performance:
S.W.L 454kg
Max. Occupants 3
Gradeability 45%
Travel Speed(Stowed) 6.0km/h
Travel Speed(Raised) 1.1km/h
Max. Working Slope X-5°/Y-5°
Turret Rotation 360°Continuous
Platform Rotation 180°
Jib Movement 135°
Main Boom Maximum Angle 70°
Turning Radius(Inside/Outside) 1.65m/2.62m
Tyres 315/55D20
Weight:
Overall Weight 13,000kg
Power:
Emergency Power System 12V
Diesel Engine Deutz D2.9 L4 / 36.4kW
Diesel Tank 135L
Hydraulic Tank 165L
