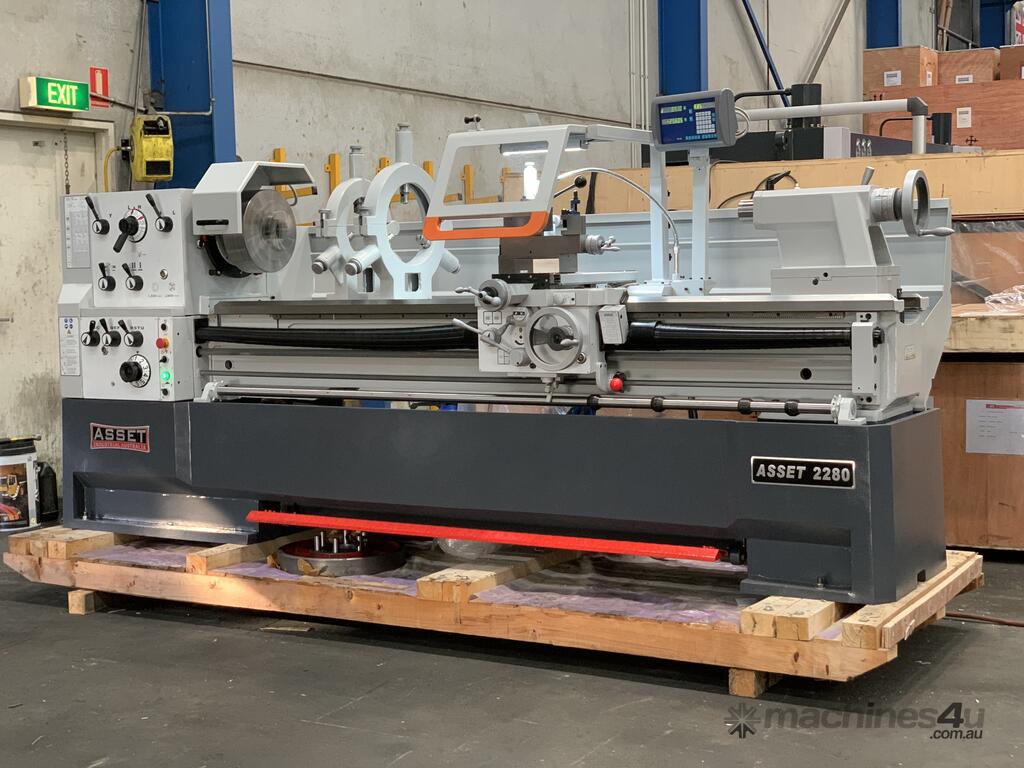

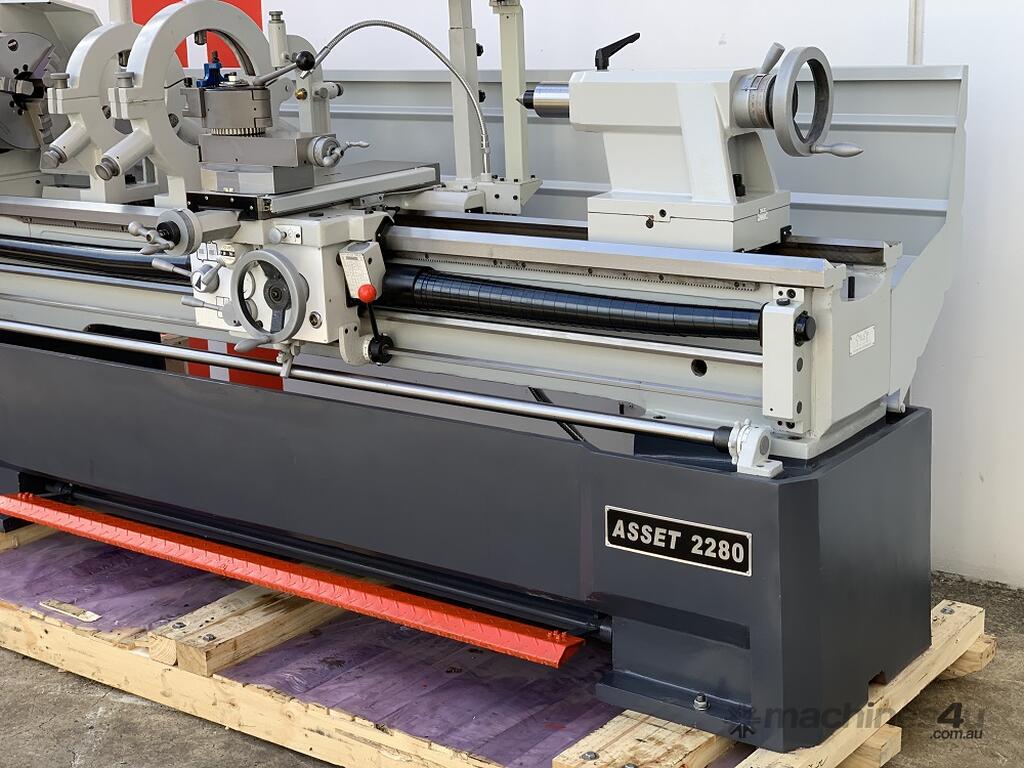

New EURO Heavy Duty Lathe - 2000mm Bed, 105mm Bore, 560mm Swing, Fully Featured

ASSET 2280.Euro Big Bore Lathe. Steelmaster Heavy Duty, 2000mm Centres, 560mm Swing, 105mm Bore,3, 4 Jaw Chucks, Faceplate, Steadies, 2 Axis Easson DRO, Quick Change Post & More.V

Description
This feature packed lathe should be the workhorse in your shop. We've combined the mass, power and precision needed for turning tough to machine materials and extra heavy work pieces to exacting dimensions and finishes.

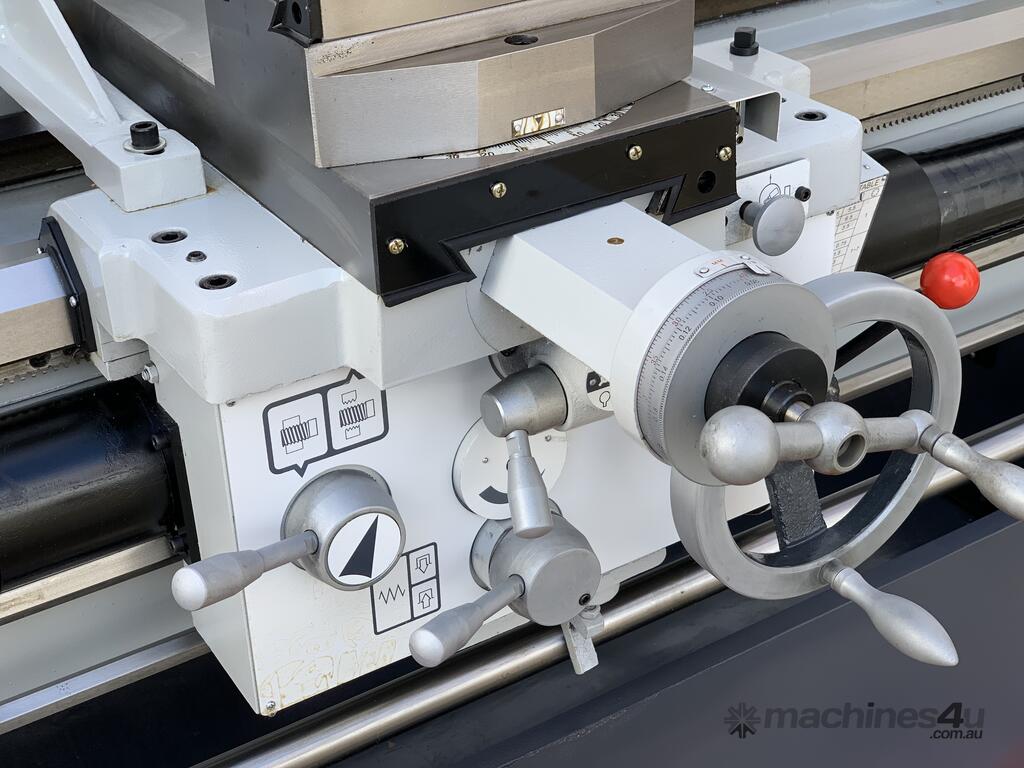

Check out this spindle speed range from 25 - 1500 RPM! You'll be able to spin that work piece up for fine finishing or slow that part down to a crawl, all the time with unparalleled power and rigidity. Aside from this we've included standard features like: auto carriage stop with indexable cams, interlocked apron controls, adjustable apron clutch, heavy-duty tailstock and more!

Take a close look at everything included with the package and you'll agree that this is one great value you won't want to miss out on.

Features
# large 105 mm spindle bore
# triple precision head stock bearings fitted
# induction-hardened and ground cast iron bed and slide ways
# spindle holding camlock system
# main spindle running in oil bath, hardened and ground with two # adjustable precision taper roller bearings ensures accuracy
# maximum accuracy and quiet operation, even at high speeds
# capable of turning over 200 different types of threads with a low speed of 25 rpm
# transversal adjustment of tailstock for taper cutting applications

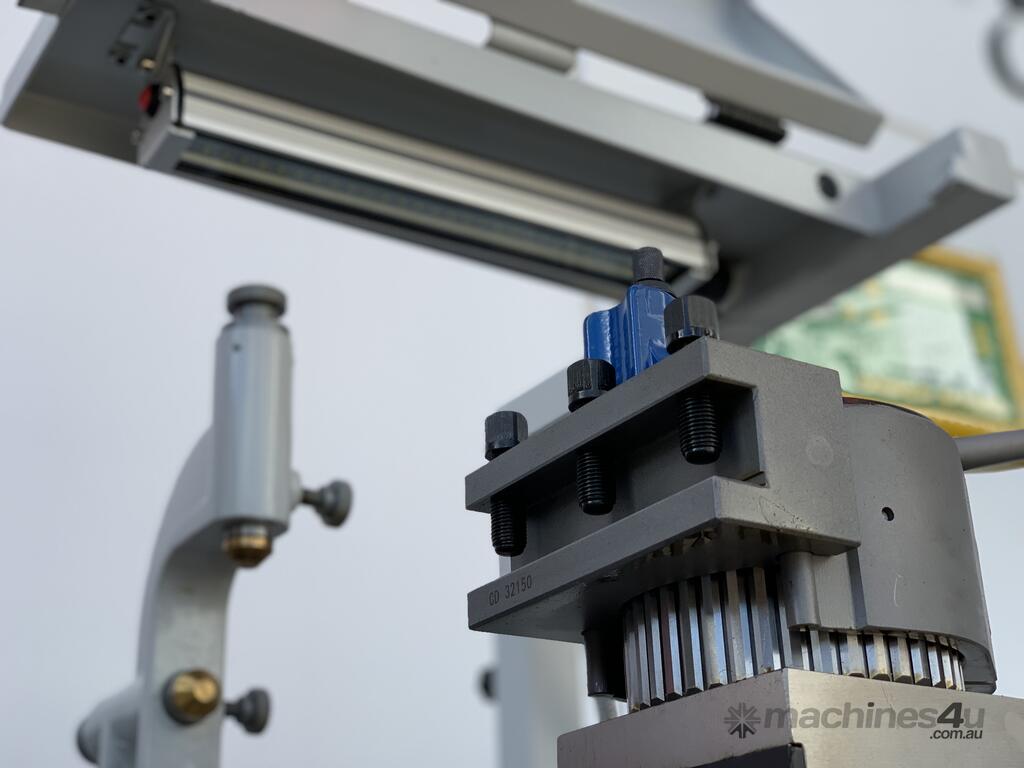

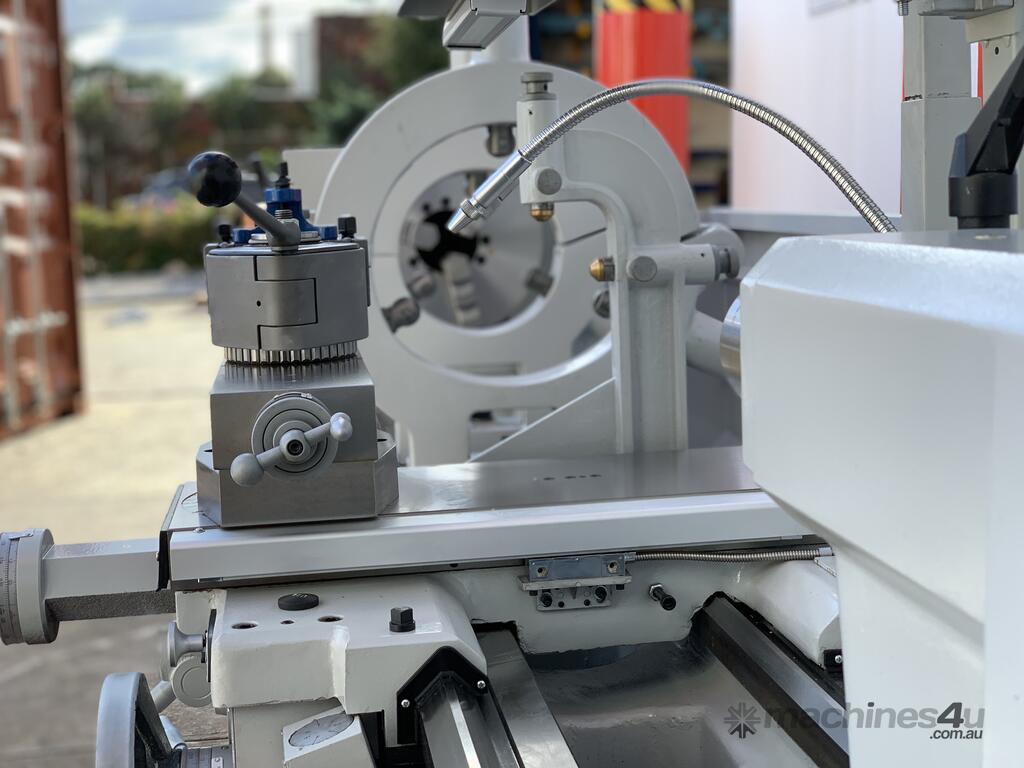

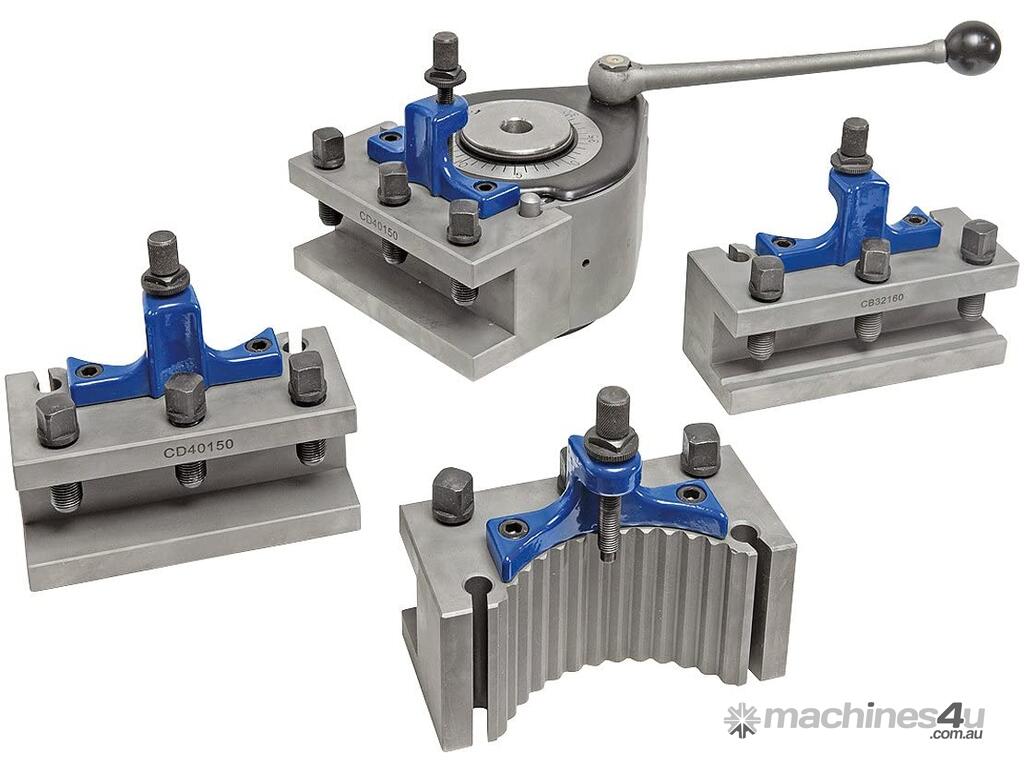

? Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning
# 2 axis DRO fitted as standard
# safety covered lead screw

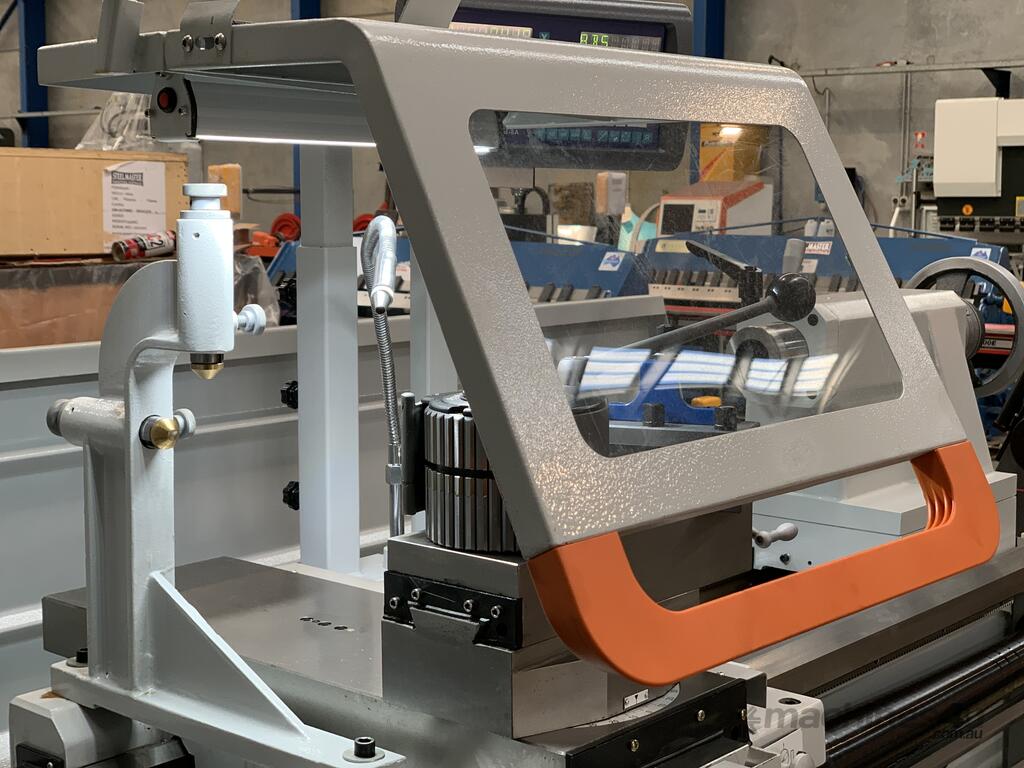

# safety interlocks on chuck guard, gear box and foot brake
# v 3ph, CE compliant

Technical Data Snap-Shot
?560mm swing over bed
?355mm swing cross slide
?785mm swing in gap
?2000mm between centres
?105mm spindle bore
?camlock - D1-8
?headstock taper – No.7

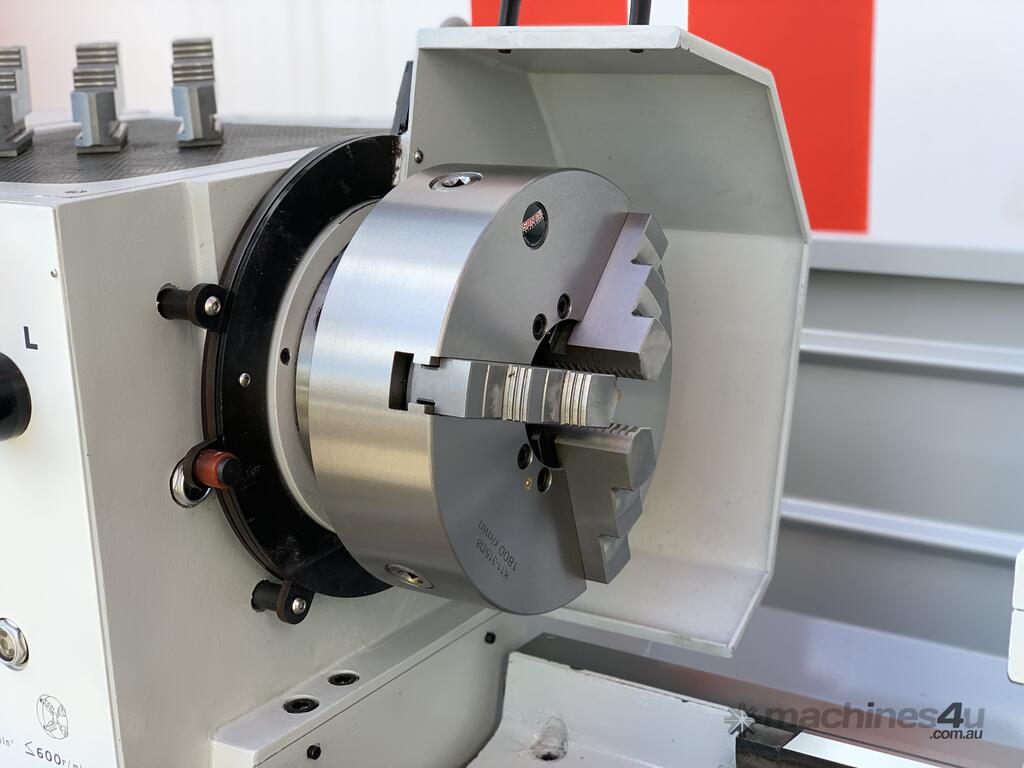

?320mm 3 jaw chuck
?400mm 4 jaw chuck
?speed range – 25 ~ 1500 (12)
?cross slide travel - 316mm
?top slide travel - 130

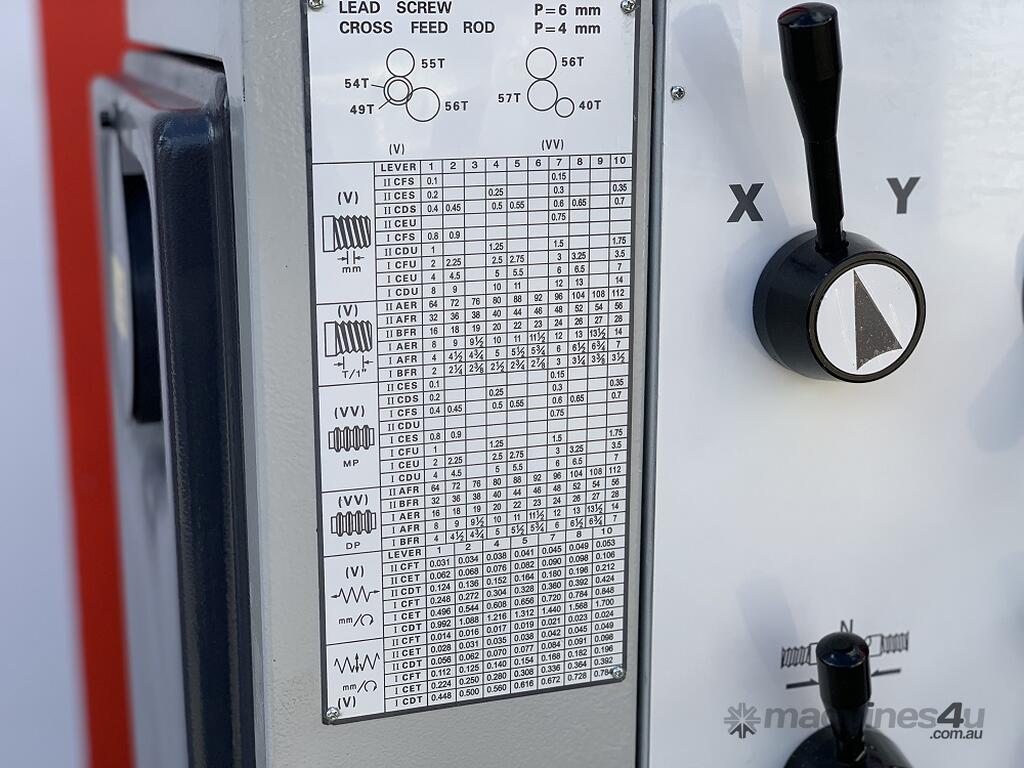

?metric threads - 0.2 ~ 14mm (47)
?imperial threads - 2 ~ 112 tpi (60)
?dp threads - 4 ~ 112dp (50)
?modular threads - 0.1 ~ 7mp (34)
?350mm bed width
?faceplate supplied

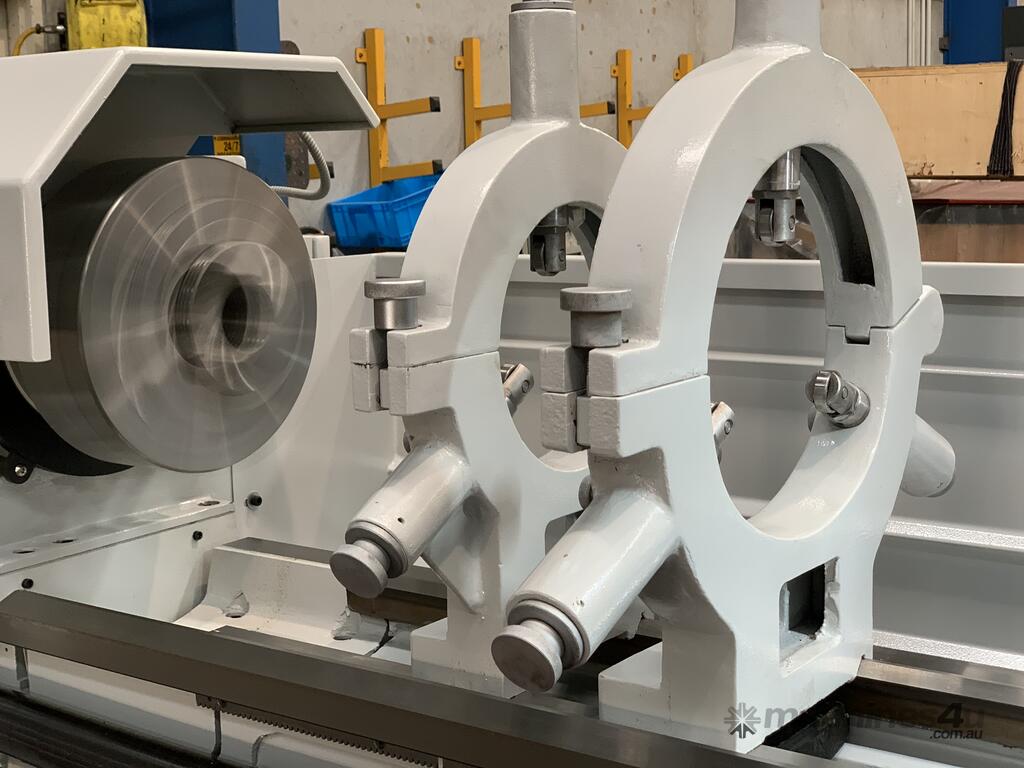

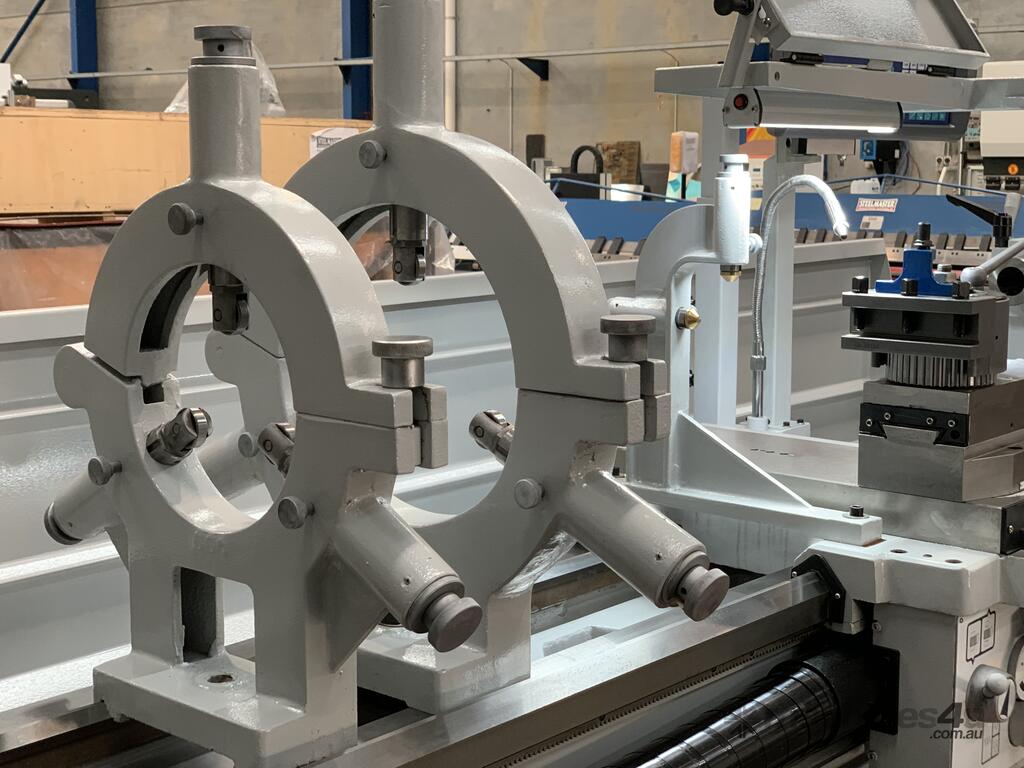

?fixed & travelling steadies
? Haase / Multifix type quick change post with 3 x holders offering full 360 degree positioning
?tools to suit - 25mm & 32mm (CD Tool Holders Fitted)

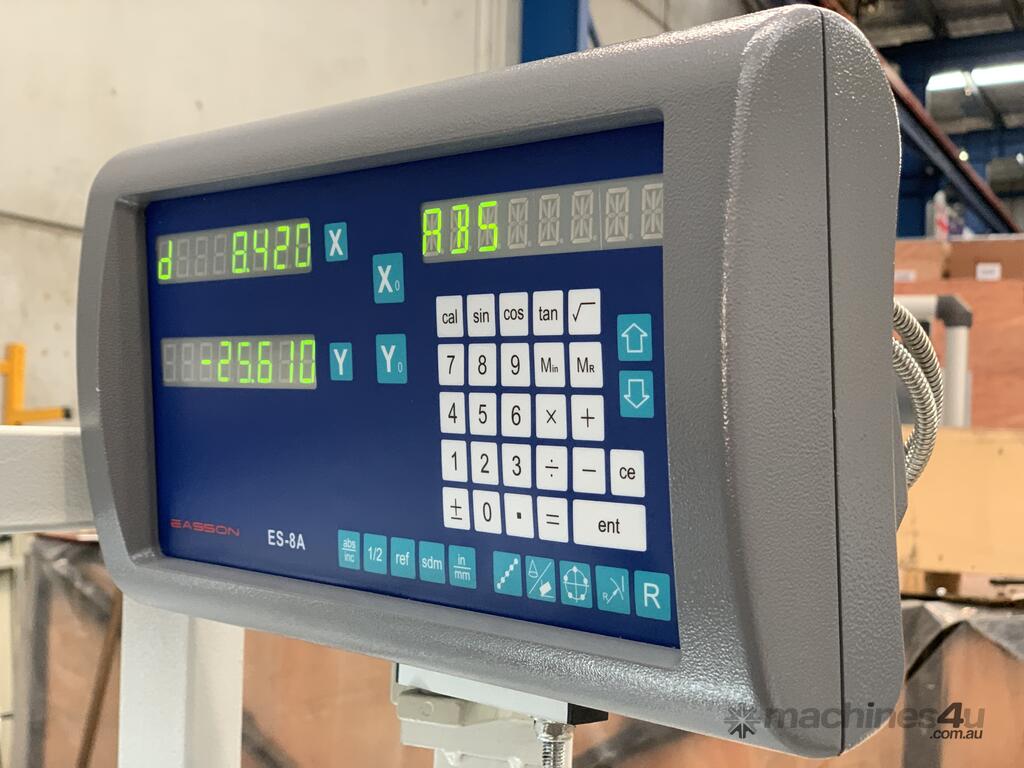

?2 axis digital read out fitted
?tailstock taper - 5MT
?tailstock travel - 180mm
?shipping dimensions - 3350mm x 1200mm x 1500mm
?power - V 7.5Kw
?approx weight: 3300kg

EQUIPMENT & ACCESSORIES SUPPLIED
Easson 2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steadies &
1 travelling steady, full length splash guard up to 2000mm,


MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
