New EURO Model 1640TR Precision Lathe Is Here - Loaded With Features

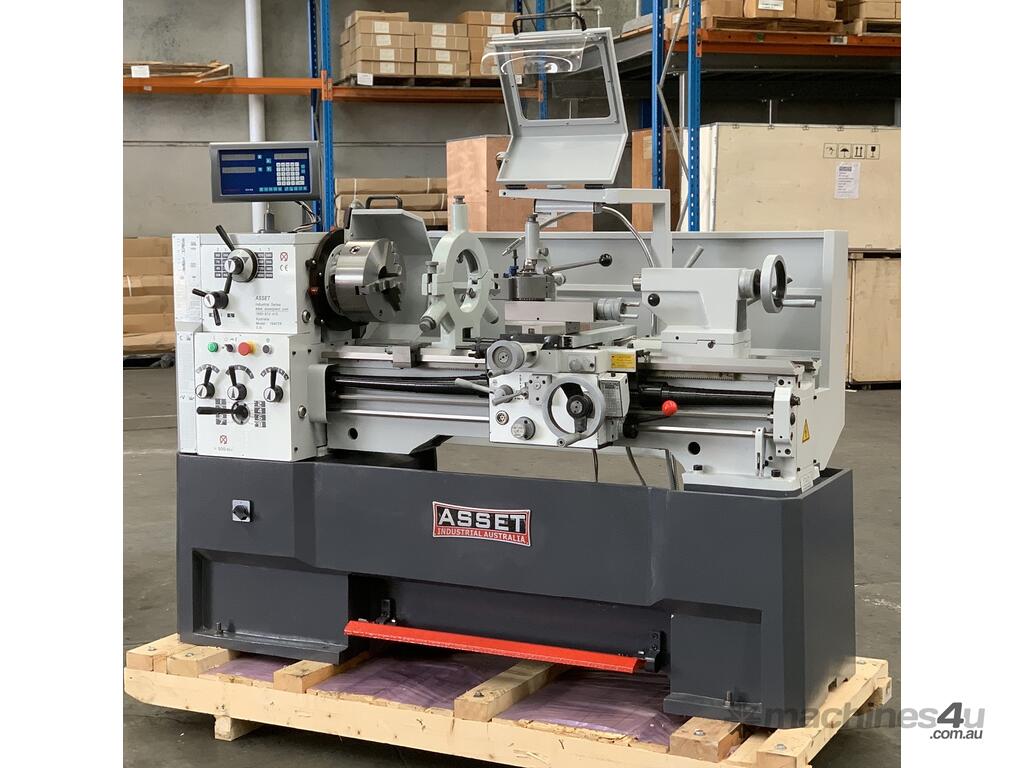

ASSET 1640TR – EURO Toolroom Precision Lathe. 1000mm Centres, 410mm Swing, 52mm Bore, 2 Axis DRO, 3, 4 Jaw Chucks, Faceplate, Steadies, 2 Axis Easson DRO, Quick Change Post & More.V

Description
Our New Euro model offering full length cast body, 410mm swing & 1000mm bed is a favoured size of machine shops around the country!
This fine quality tool room model is an excellent high precision machine that will become an indispensable part of your shop.

Features

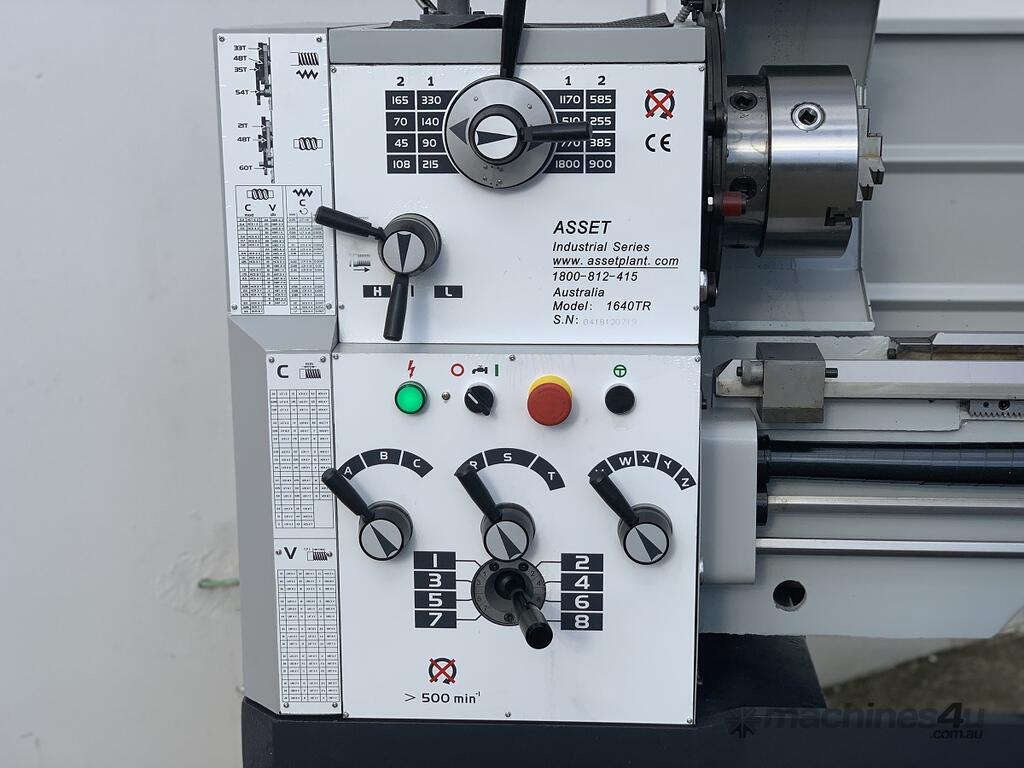

* Practical control panel with ergonomic layout of selection levers
* New Euro Designed Induction-hardened and ground cast iron bed and slide ways

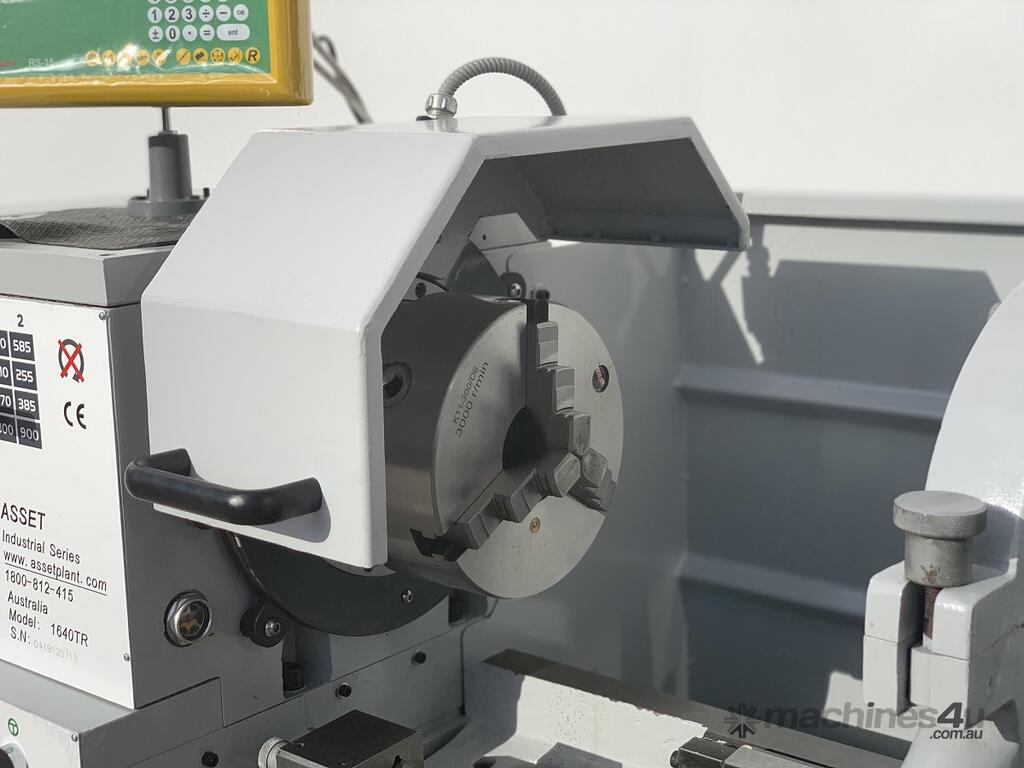

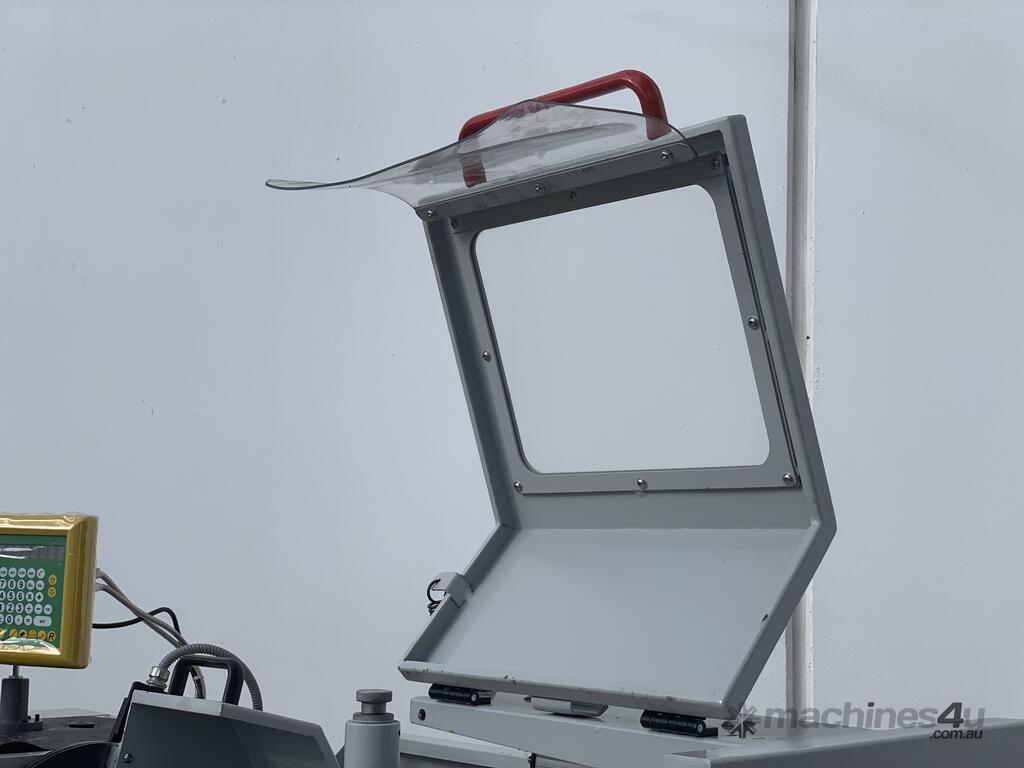

* New Euro type retractable chuck guard cover, tool post cover with LED workshop
* Spindle holding camlock system
* Main spindle running in oil bath, hardened and ground with two adjustable precision taper roller bearings ensures accuracy
* Maximum accuracy and quiet operation, even at high speeds
* Metric and imperial calibrations

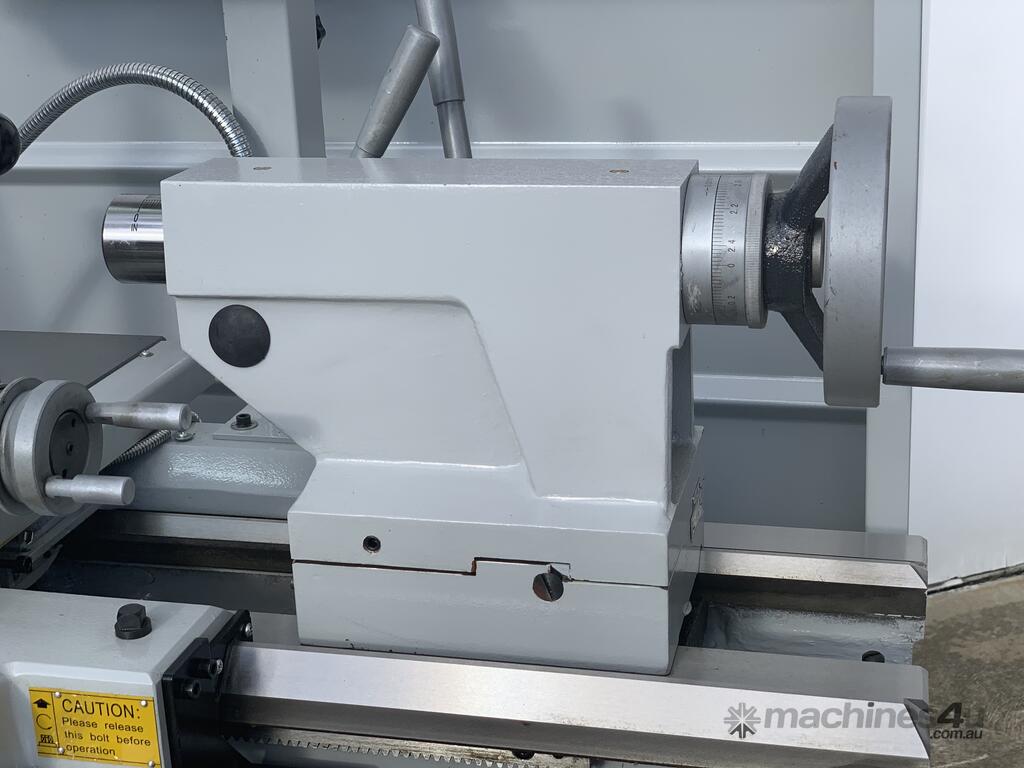

* Transversal adjustment of tailstock for taper cutting applications
* 2 axis dro fitted as standard

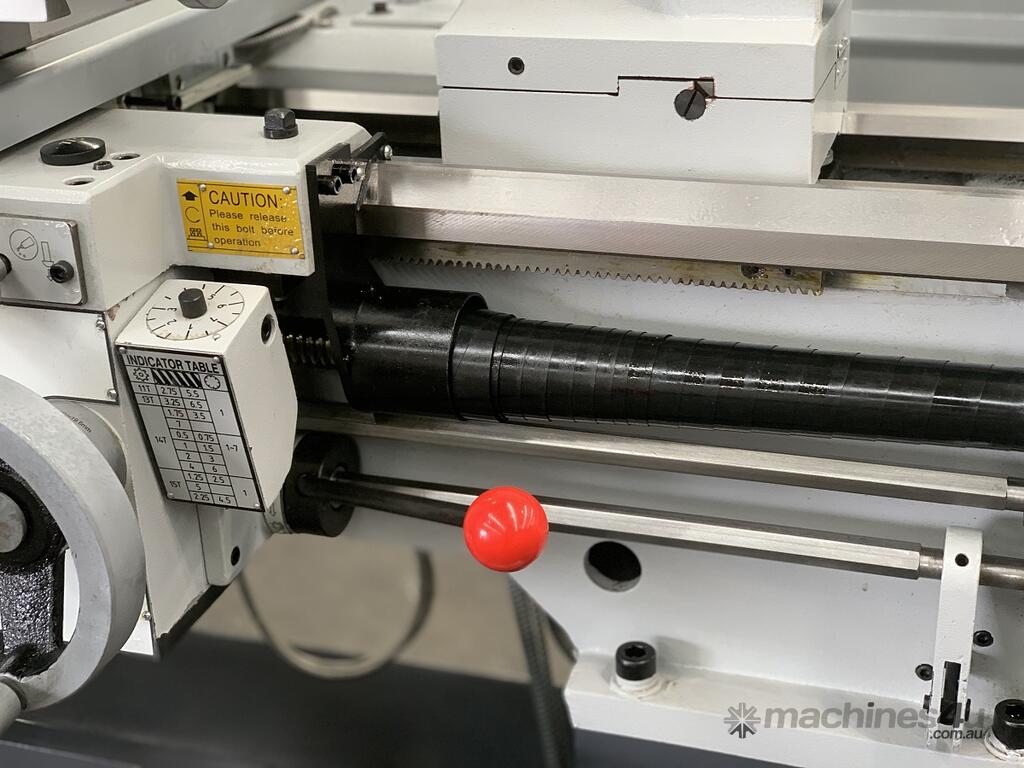

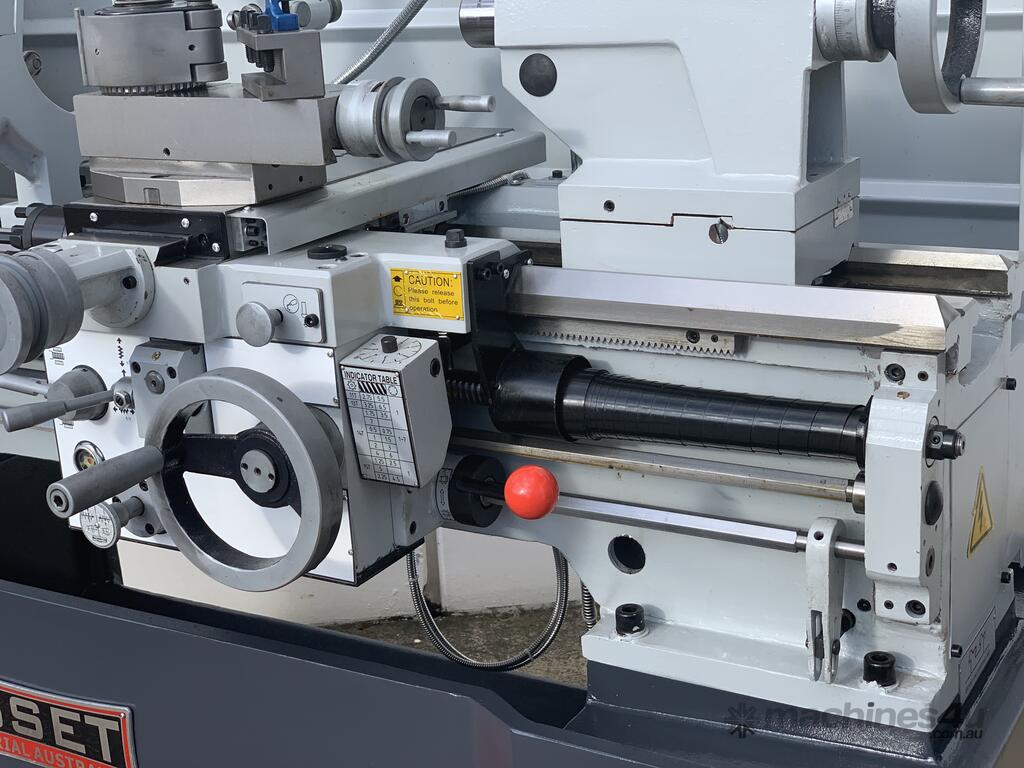

* Safety covered lead screw

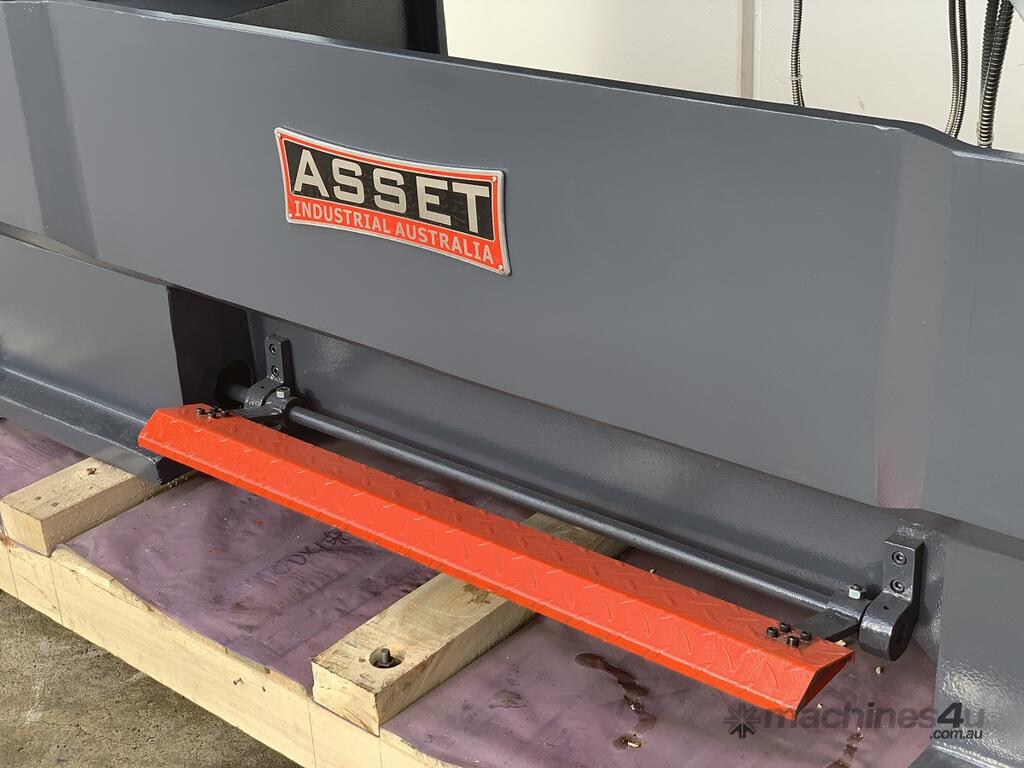

* Safety interlocks on chuck guard, gear box and foot brake
* v 3ph
* CE compliant

Technical Data Snap-Shot
*410mm swing over bed
*580mm swing in gap
*255mm swing over cross-slide
*1000mm between centres

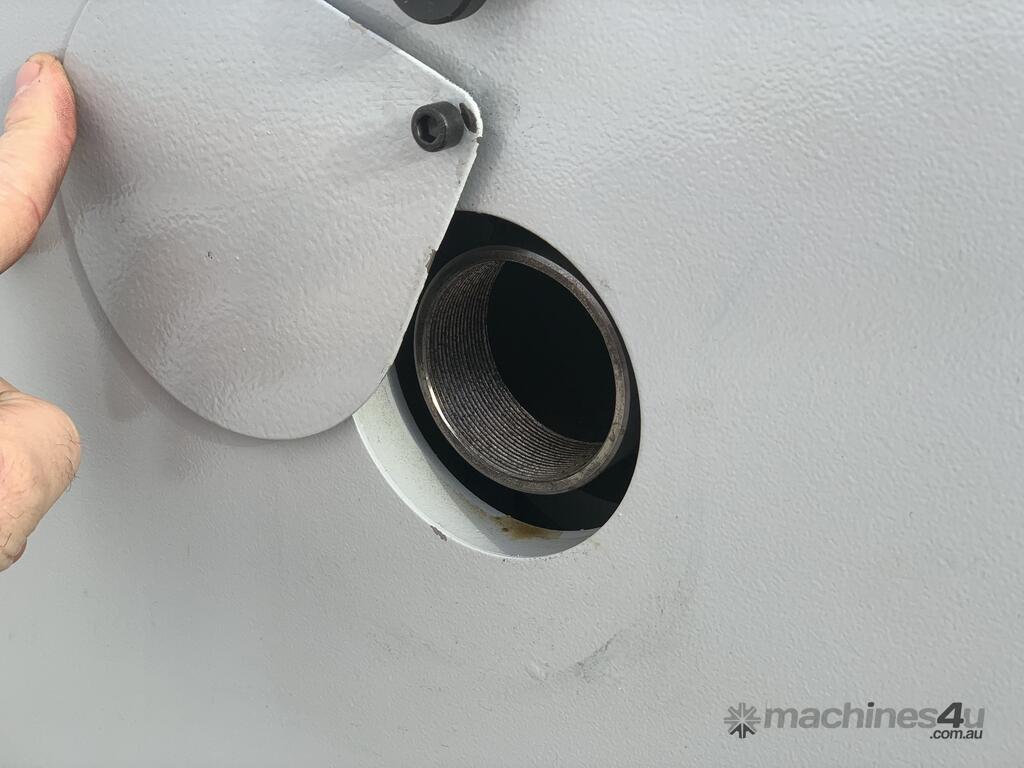

*52mm spindle bore
*speeds(16)-45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/
*210mm - cross slide travel
*140mm - top slide travel
*120mm - tailstock travel
*55mm - tailstock diameter
*250mm - bed width
*200mm 3 jaw chuck
*250mm 4 jaw chuck
*20mm or 25mm cutting tool used
*faceplate supplied

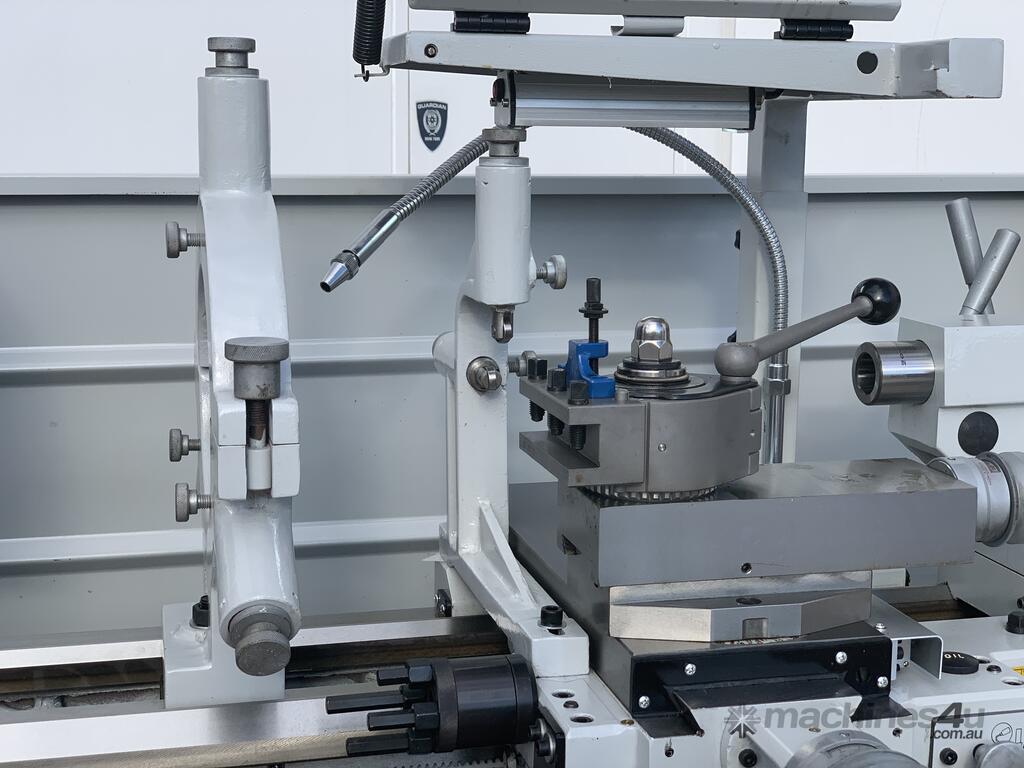

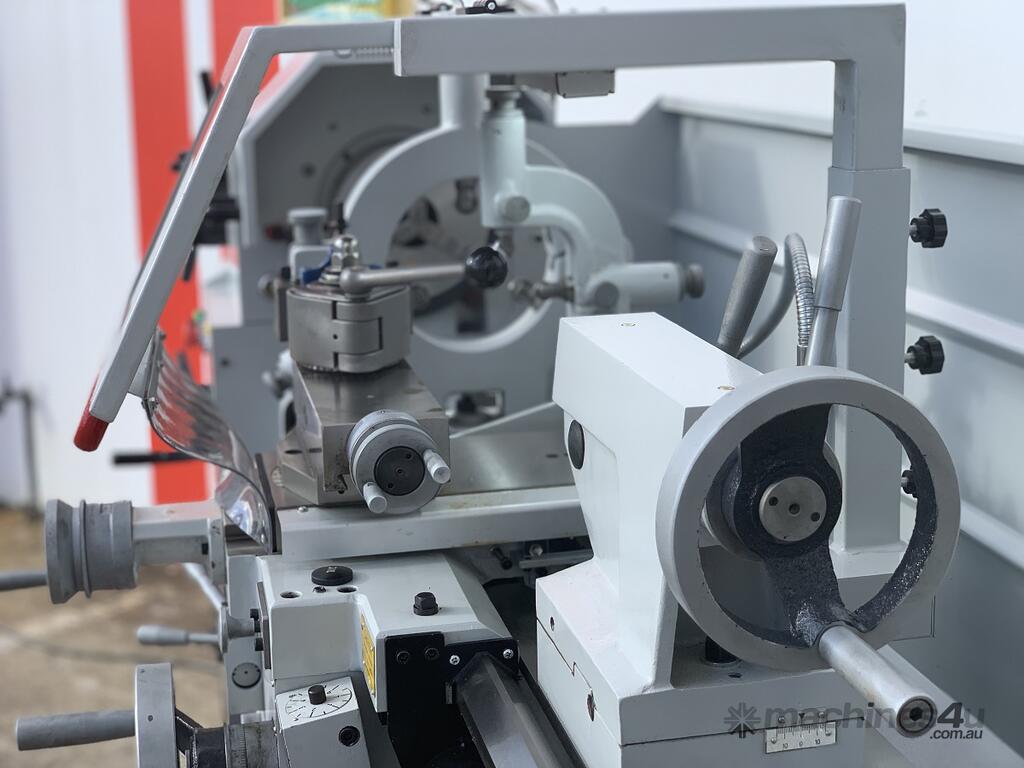

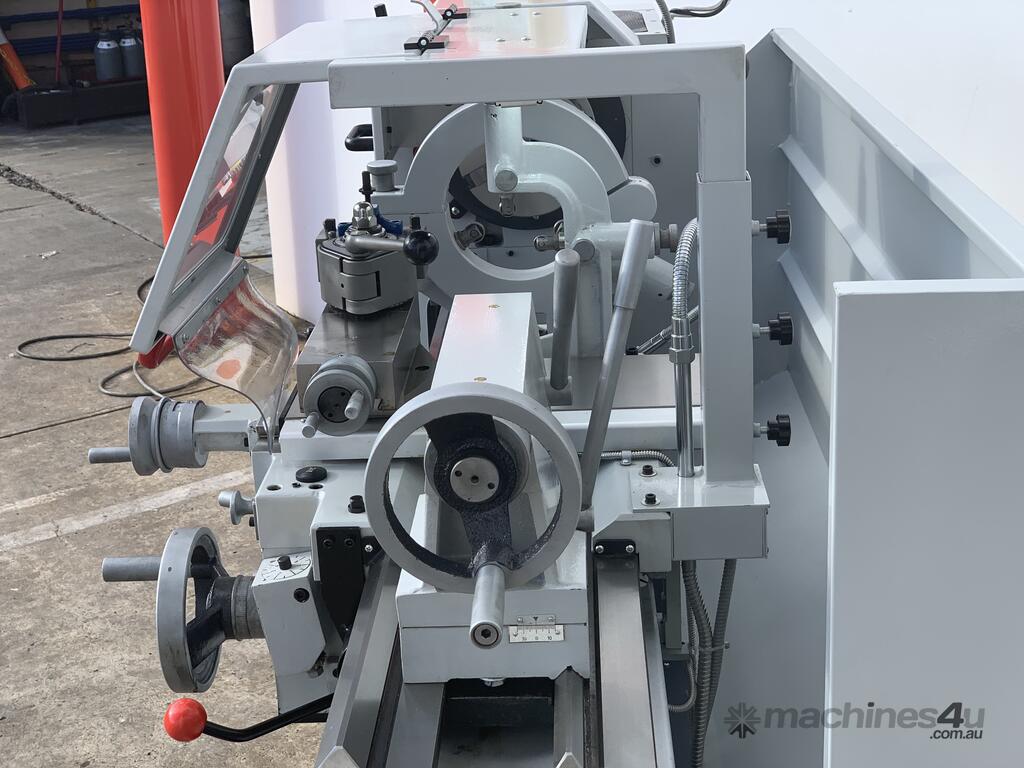

*fixed & travelling steadies

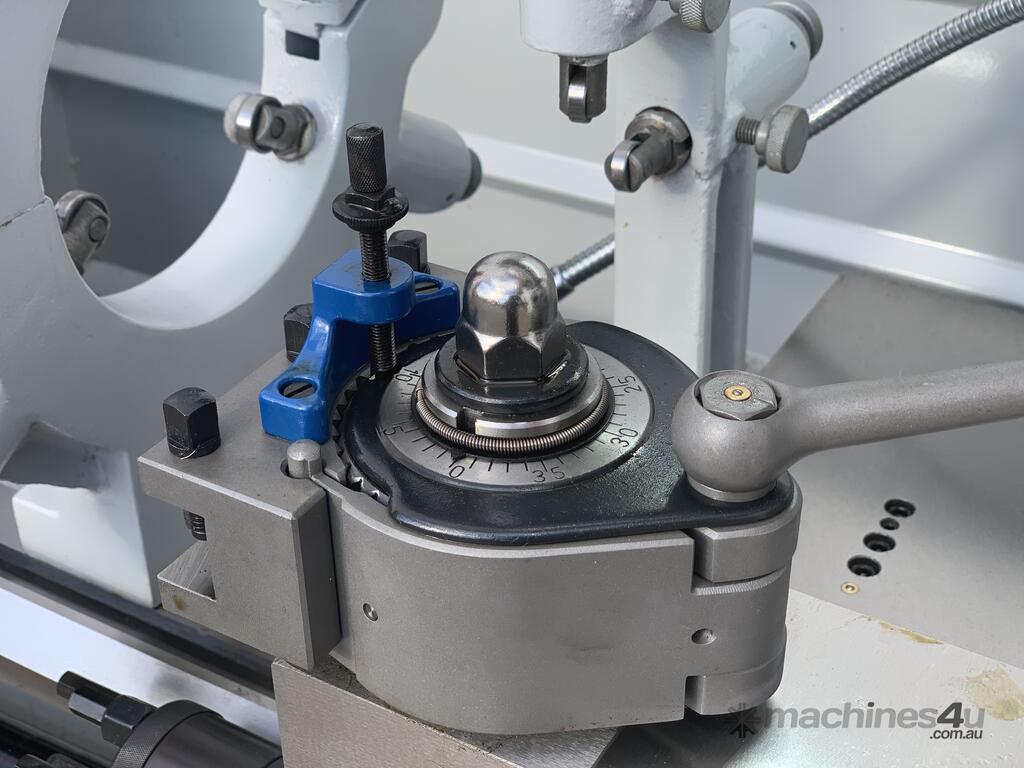

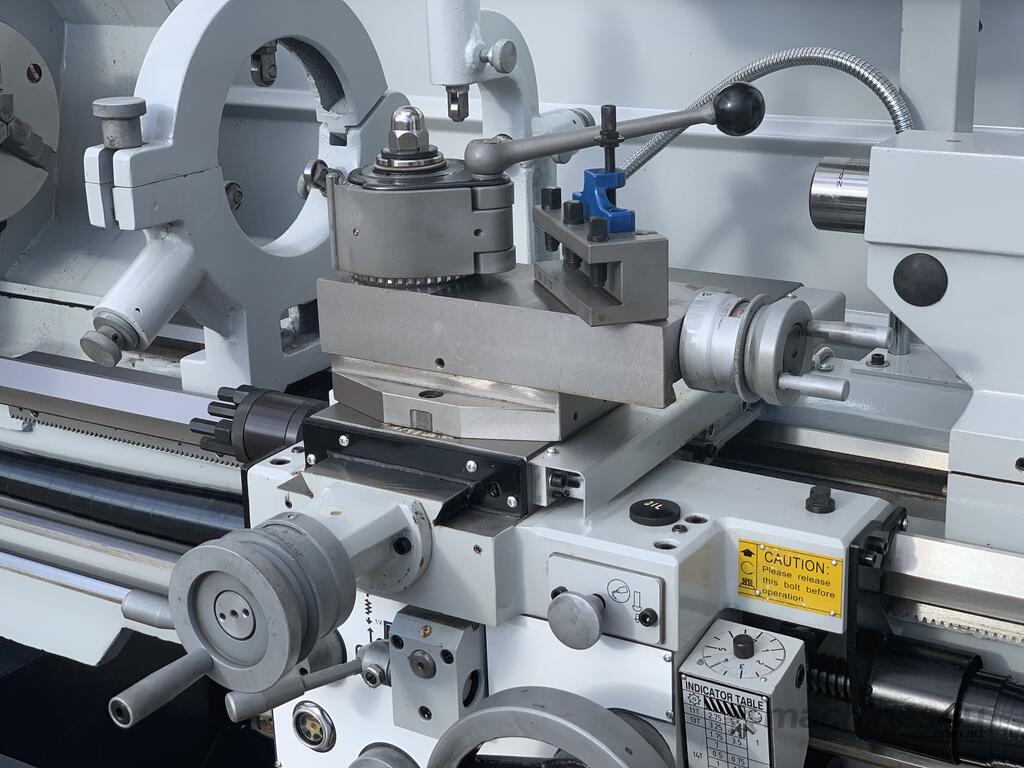

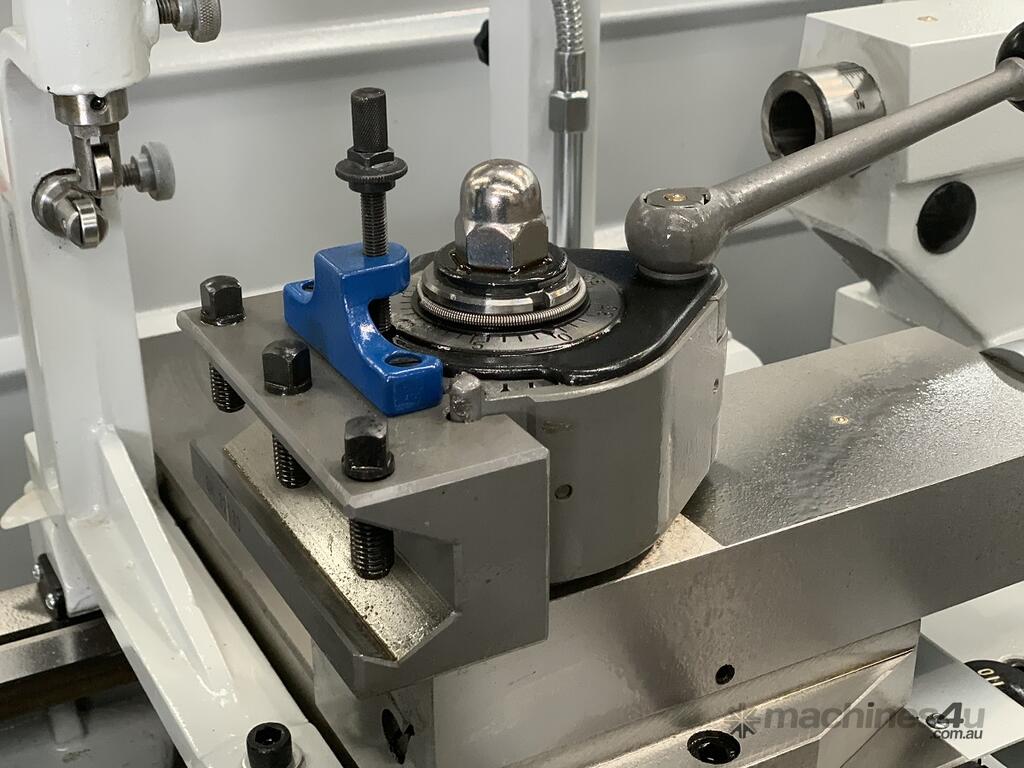

*euro Haas type quick change post with 3 x holders

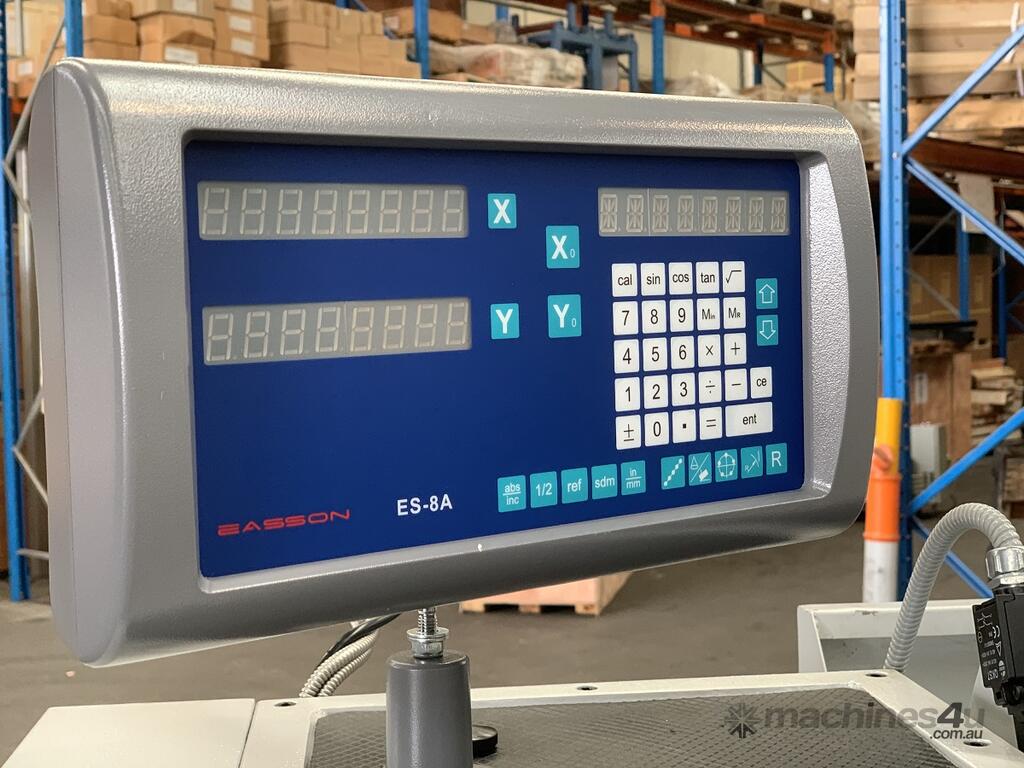

*2 axis digital read out fitted
*shipping dimensions - 1950mm x 830mm x 1400mm
*crate dimensions - 2050mm x 830mm x 1650mm
*power - 2 speed V 5.5Kw
*approx weight: 1650kg

EQUIPMENT & ACCESSORIES SUPPLIED
2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steady &
1 x travelling steady, full length splash guard up to 1000mm,
covered leadscrew, interlocked chuck guard, headstock cover.

Shipping Dims: 2050mmx 830mm x 1650mm 1600kg
