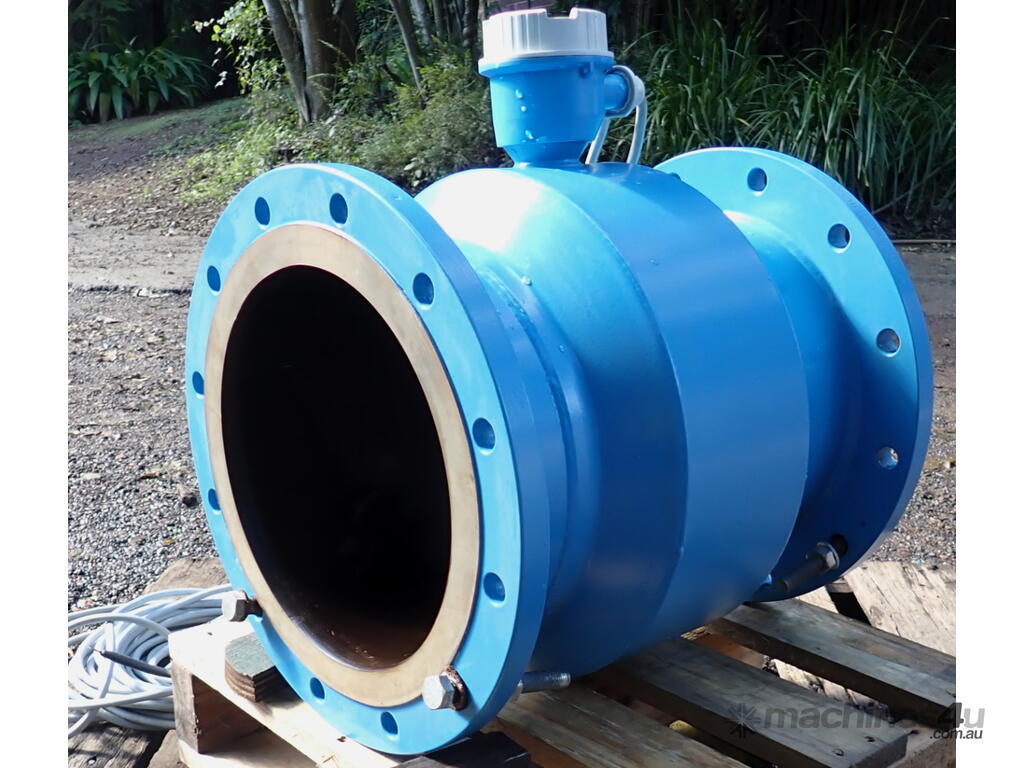

New Endress+Hauser DN300, Proline Promag W 400 Electromagnetic Flowmeter

Price from Endress+Hauser Australia $13,750.

The world's first electromagnetic flowmeter for unrestricted measurement.
The best-performing flowmeter for all applications in water distribution as well as wastewater treatment.

Made in France by Endress+Hauser.


FEATURES & BENEFITS:

* The first and only electromagnetic flowmeter with no inlet and outlet runs (0 x DN) as well as no pipe restriction (full-bore design) and thus no pressure loss.
* Measure reliably – independent of flow profile and mounting location.
* Installation after bends, perfect for space-restricted areas and on skids.
* Industry-optimized flowmeter with internationally recognized drinking water approvals.
* Heartbeat Verification for reliable fulfillment of traceability requirements in accordance with ISO 9001.
* Reliable measured values thanks to innovative signal analysis and processing.
* Based on tried-and-tested sensors: installed successfully in over 3 million applications since 1977.


SPECIFICATIONS:

* Measuring principle: Electromagnetic.
* Measured variables: Volume flow, conductivity, mass flow.
* Measuring / Flow range (Qmax): 40,000 L/min = 2,400 m3/h (10,567gal/min).

Sensor features:
* EN ISO 12944 corrosion protection for underground or underwater installation.
* International drinking water approvals.
* Degree of protection IP68 (Type 6P enclosure).
* Approved for custody transfer to MI-001/OIML R49.

Transmitter features:
* Safe operation – no need to open the device due to display with touch control, background lighting.
* Time?saving local operation without additional software and hardware – integrated web server.
* Integrated verification – Heartbeat Technology.
* Transmitter housing made of durable polycarbonate or aluminium.
* WLAN access. Integrated data logger: measured values monitoring.

Wetted materials:
* Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
* Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
* Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
* Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum

Max. measurement error:
* Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
* Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec

* Sensor housing material: AlSi10Mg, coated.
* Transmitter housing material: Polycarbonate; AlSi10Mg, coated.

* Display/Operation: 4?line backlit display with touch control (operation from outside), Configuration via local display, web browser and operating tools possible.

* Outputs: 0?20 mA/4?20 mA HART (active), Pulse/frequency/switch output (passive), Pulse/frequency output (passive), Switch output (passive).

* Digital communication: HART, PROFIBUS DP, EtherNet/IP, Modbus RS485.

* Hygienic approvals and certificates: Drinking water approval: ACS, KTW/W270, NSF 61, WRAS BS 6920.


Product Page: (see links in 'View Brochure' above...)

Video: (see links in 'View Brochure' above...)

Data Sheet: (see links in 'View Brochure' above...)

Technical Information: (see links in 'View Brochure' above...)

Operating Instructions: (see links in 'View Brochure' above...)


Overall Dimensions (with meter & cables inside): 455mm Wide, 494mm Long, 590mm High.
Weight: 68kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
