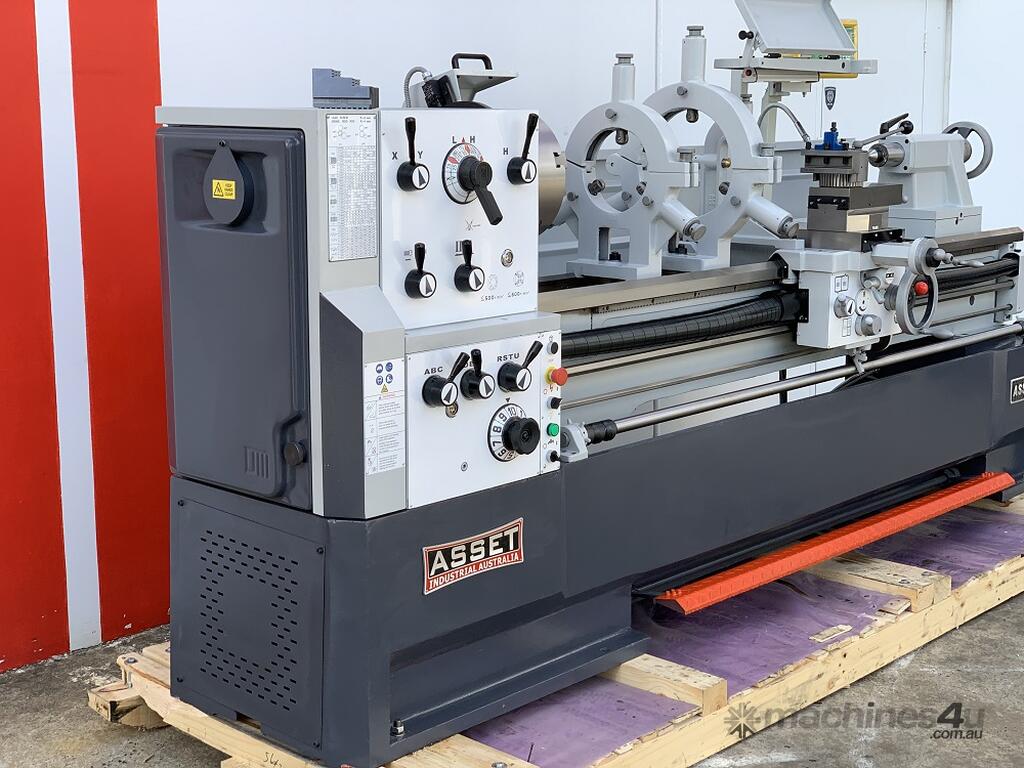

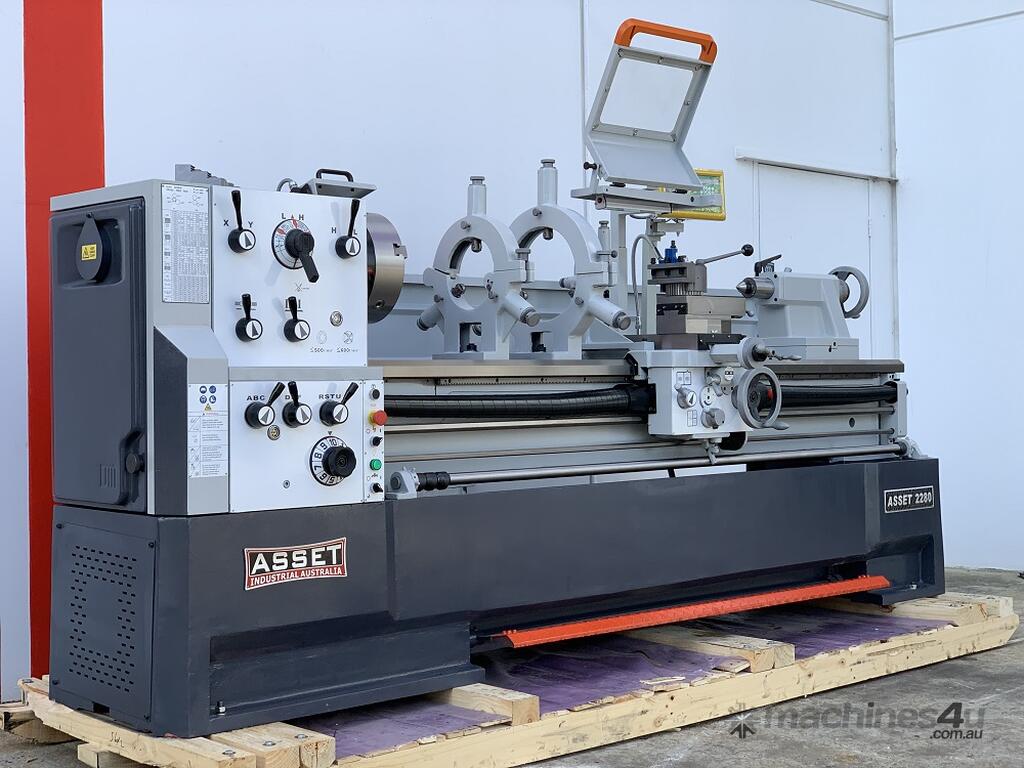

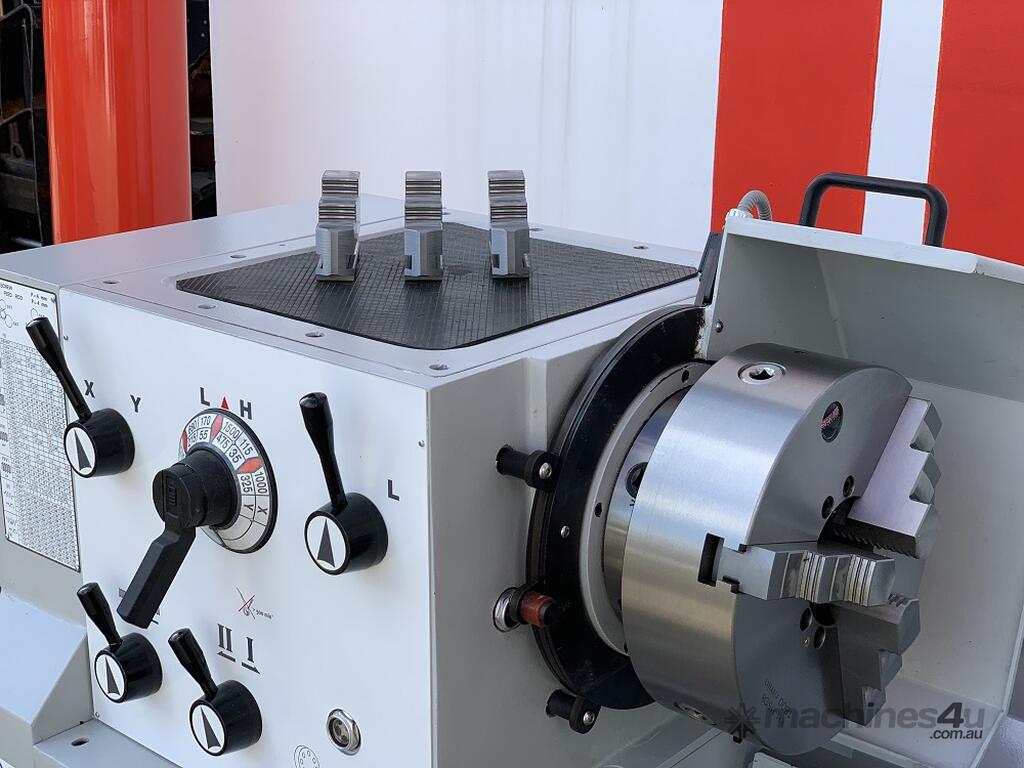

New Euro Model ASSET 560mm Swing, 105mm Bore, 2000mm Long

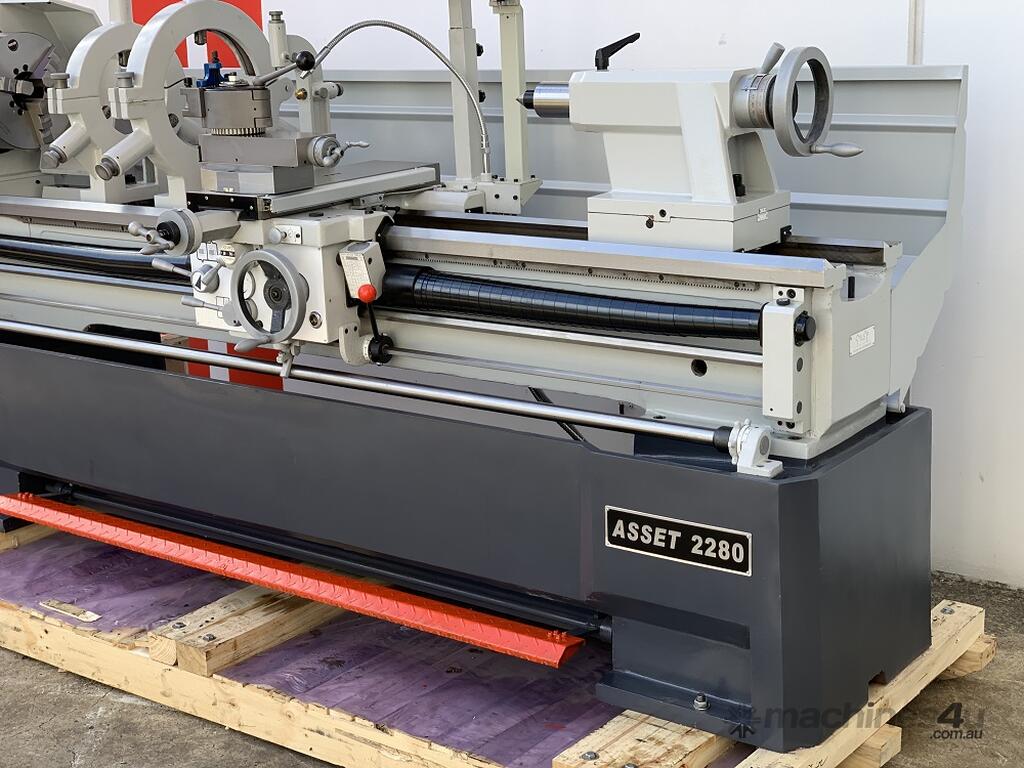

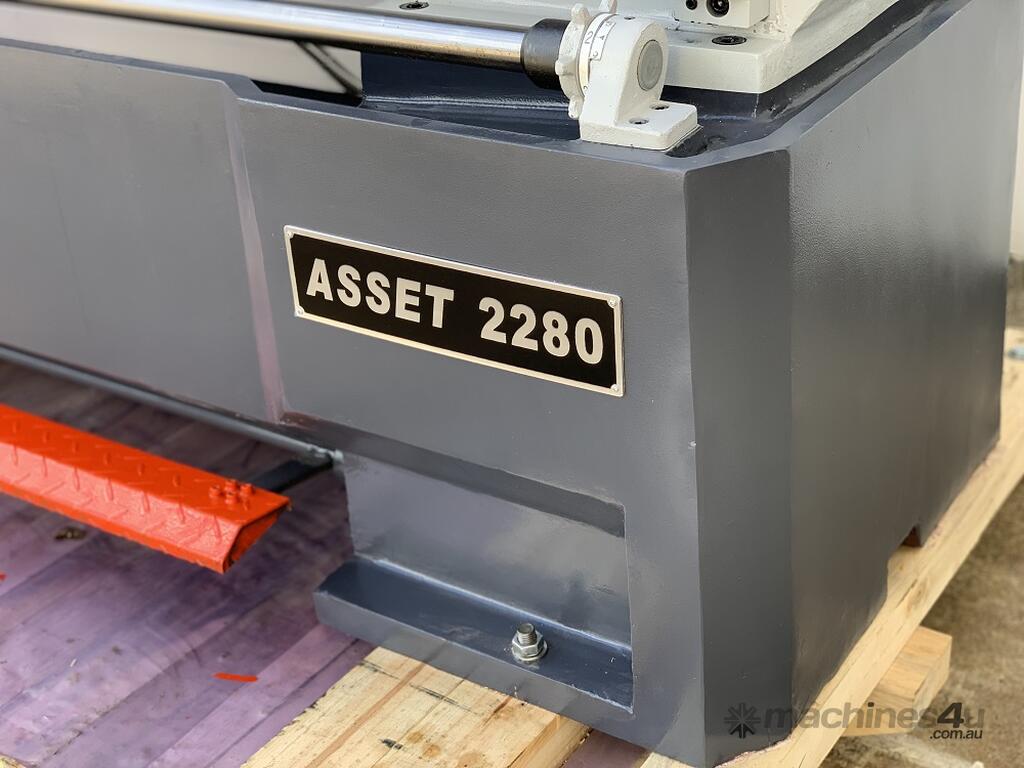

ASSET 2280. Big Bore Lathe. Steelmaster Heavy Duty, 2000mm Centres, 560mm Swing, 80mm Bore,3, 4 Jaw Chucks, Faceplate, Steadies, 2 Axis Easson DRO, Quick Change Post & More.V

Description
This feature packed lathe should be the workhorse in your shop. We've combined the mass, power and precision needed for turning tough to machine materials and extra heavy work pieces to exacting dimensions and finishes.
Check out this spindle speed range from 25 - 2000 RPM! You'll be able to spin that work piece up for fine finishing or slow that part down to a crawl, all the time with unparalleled power and rigidity. Aside from this we've included standard features like: auto carriage stop with indexable cams, interlocked apron controls, adjustable apron clutch, heavy-duty tailstock and more!

Take a close look at everything included with the package and you'll agree that this is one great value you won't want to miss out on.

Features
large 80 mm spindle bore
induction-hardened and ground cast iron bed and slide ways
spindle holding camlock system
main spindle running in oil bath, hardened and ground with two adjustable precision taper ollerbearings ensures accuracy
maximum accuracy and quiet operation, even at high speeds
metric and imperial calibrations
capable of turning over 200 different types of threads with a low speed of 25 rpm

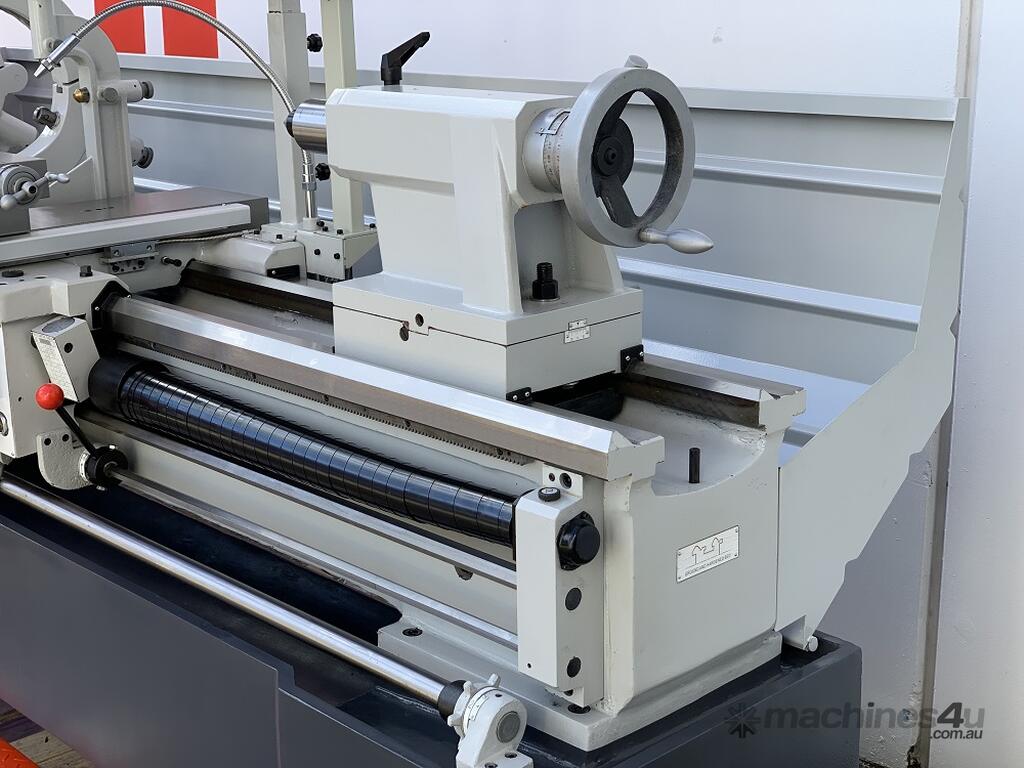

transversal adjustment of tailstock for taper cutting applications

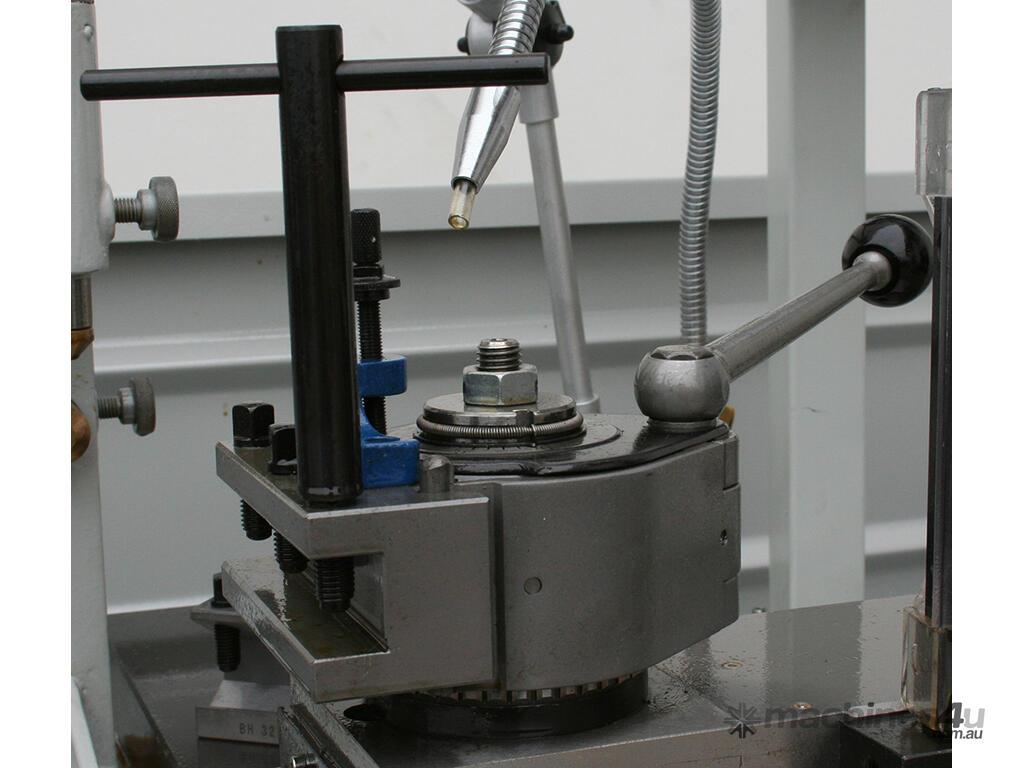

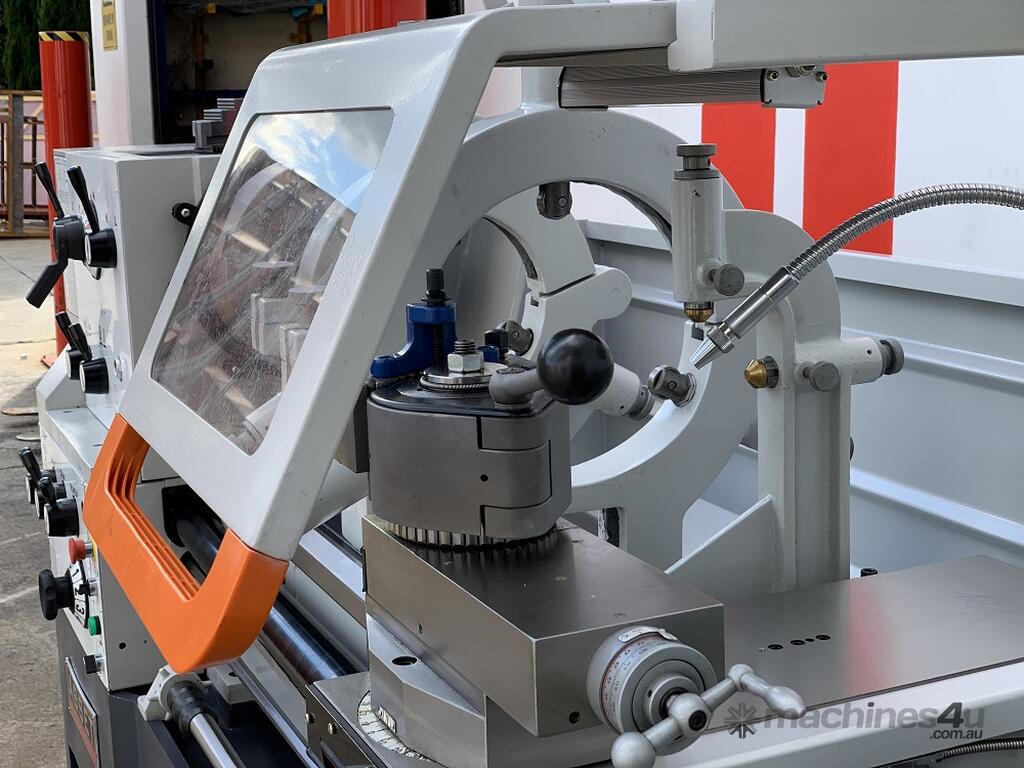

quick change tool post standard
2 axis DRO fitted as standard
safety covered lead screw

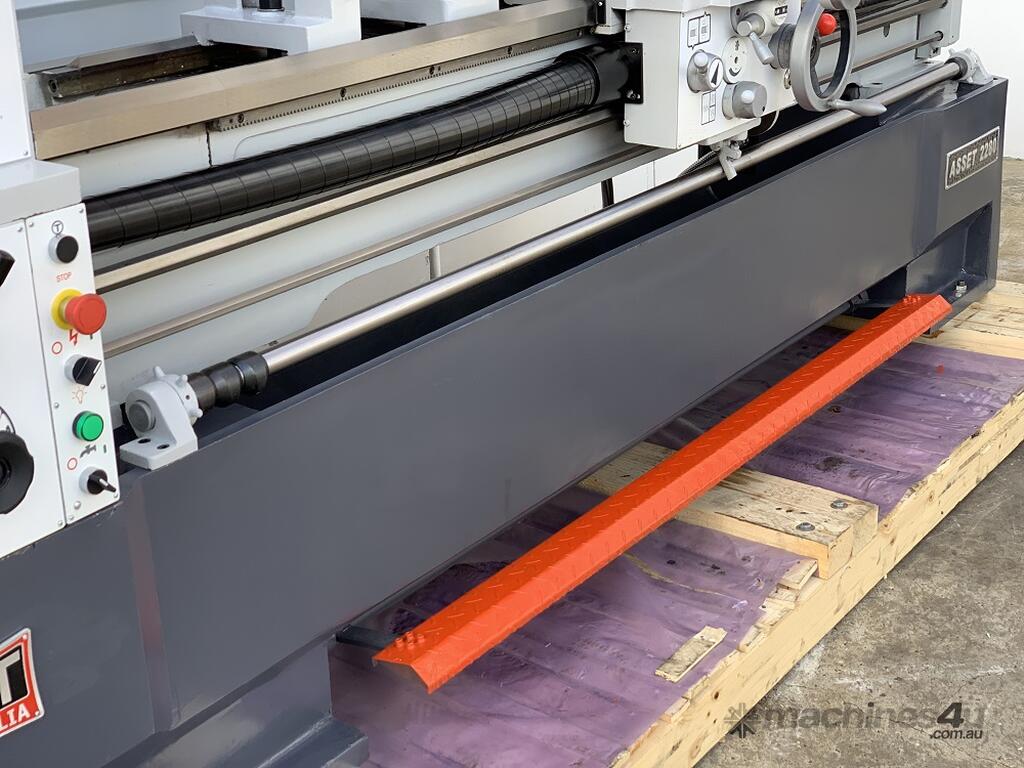

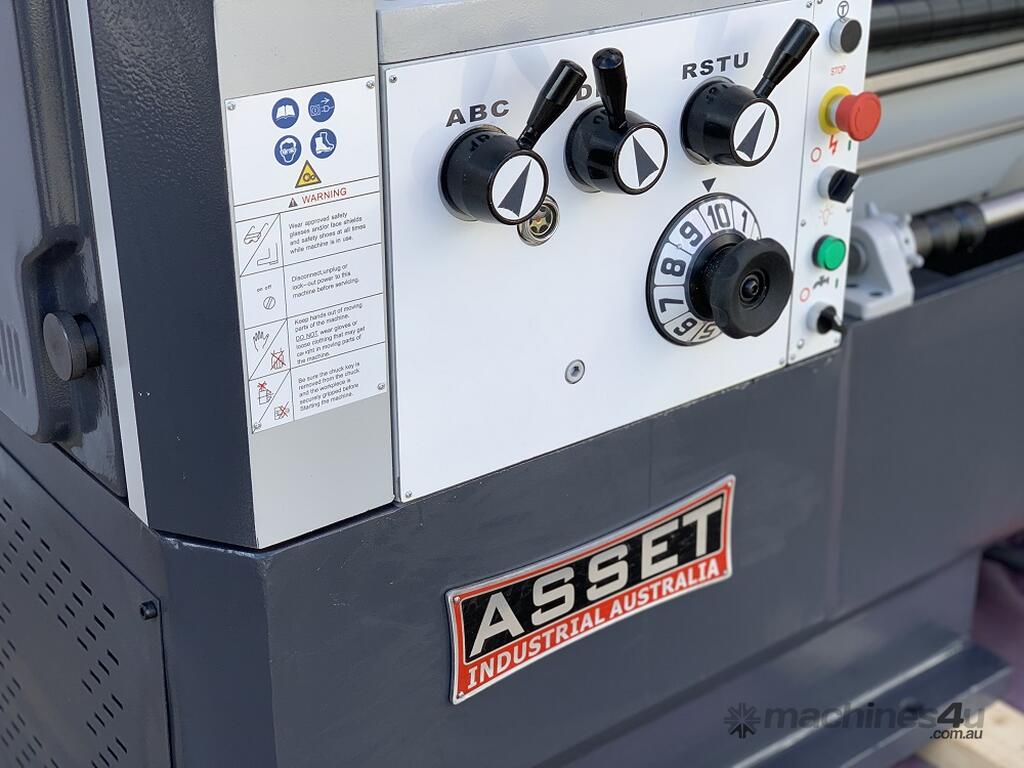

safety interlocks on chuck guard, gear box and foot brake
v 3ph, CE compliant

Technical Data Snap-Shot
560mm swing over bed
355mm swing cross slide
785mm swing in gap
2000mm between centres
105mm spindle bore
camlock - D1-8
headstock taper – No.7

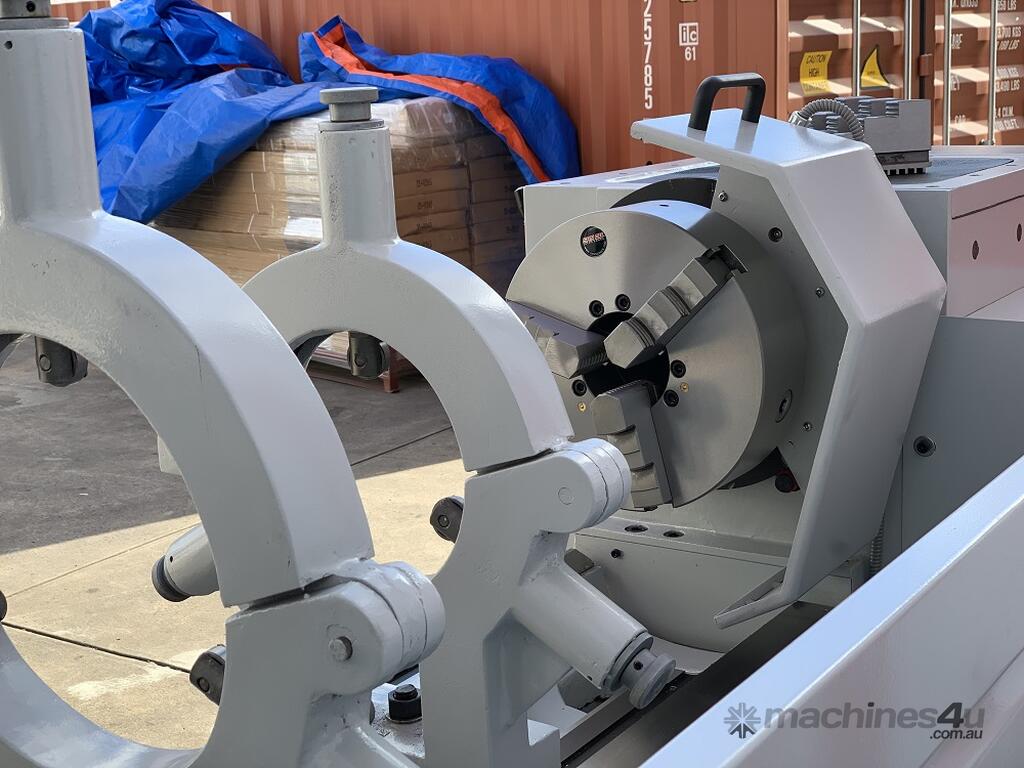

320mm 3 jaw chuck
400mm 4 jaw chuck

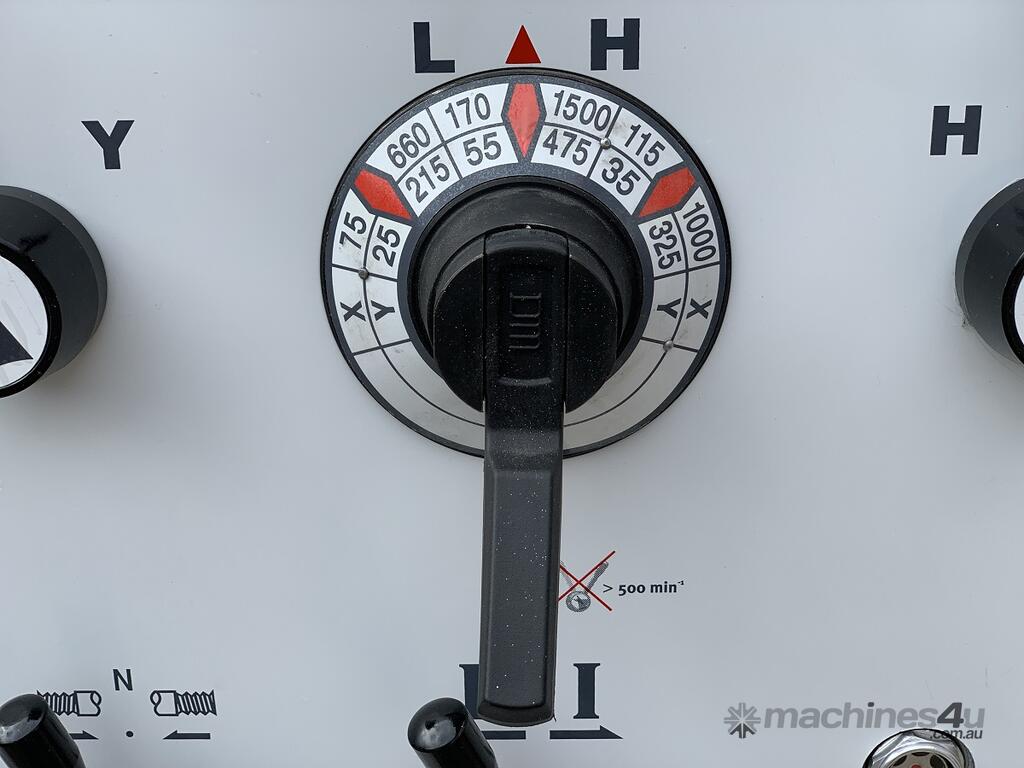

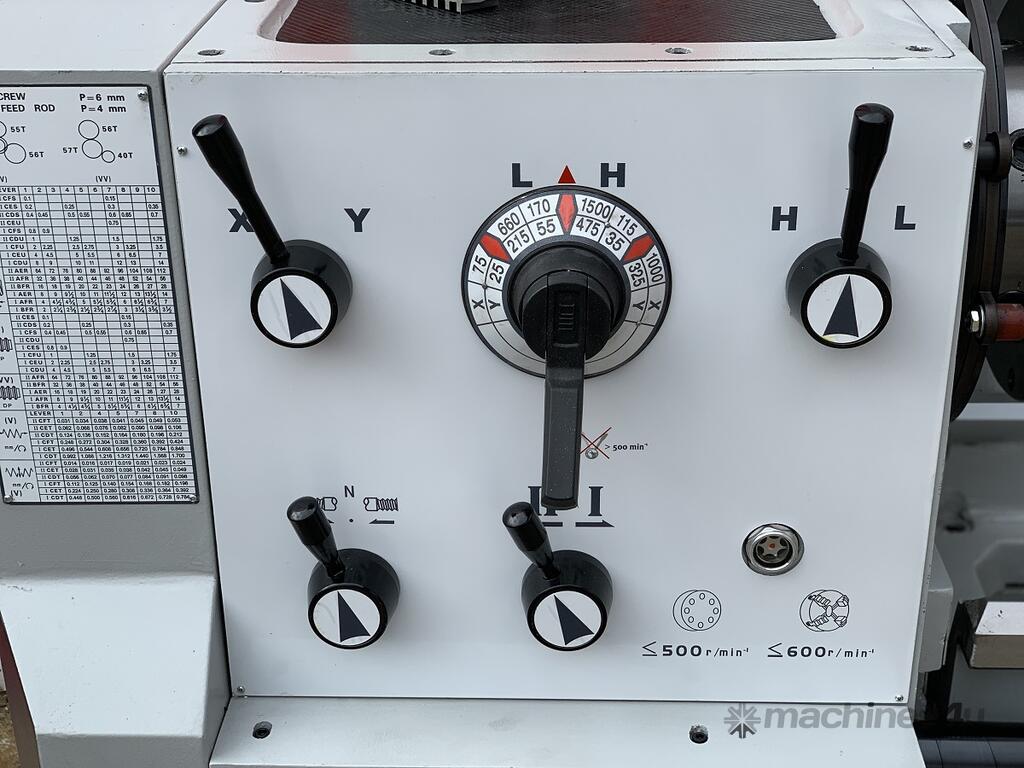

speed range – 25 -1600 (12)
cross slide travel - 316mm
top slide travel - 130

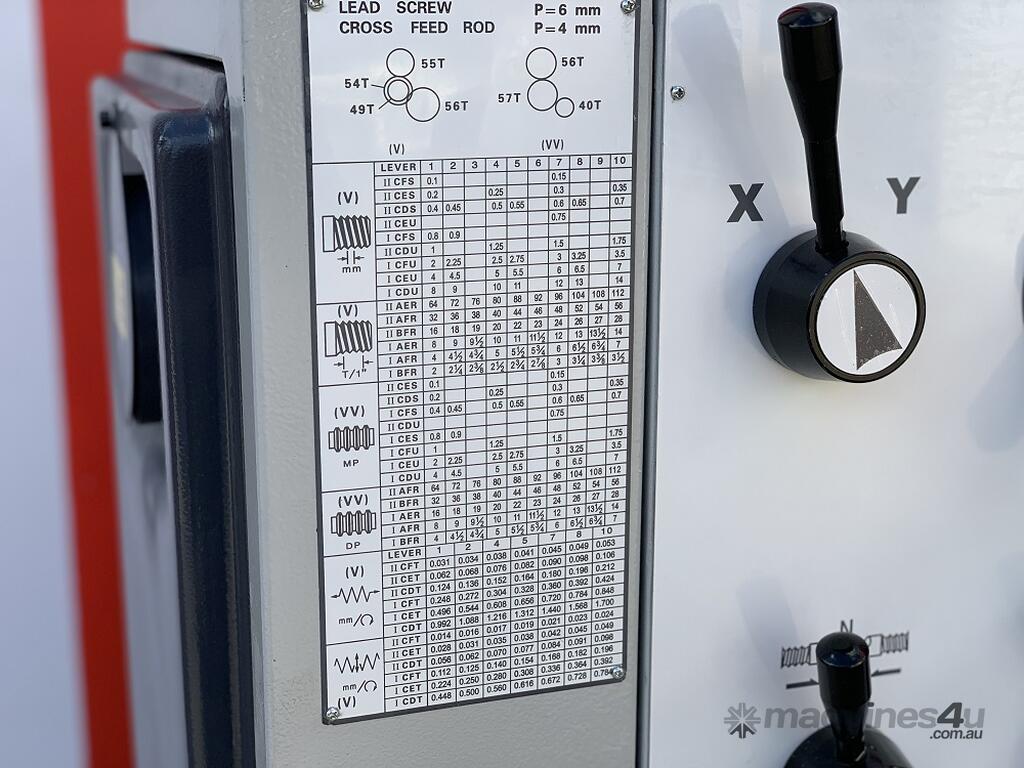

metric threads - 0.2 - 14mm (47)
imperial threads - 2 - 112 tpi (60)
dp threads - 4 - 112dp (50)
modular threads - 0.1 -7mp (34)
350mm bed width
faceplate supplied
fixed & travelling steadies
quick change post with 3 x holders
tools to suit - 25mm
2 axis digital read out fitted

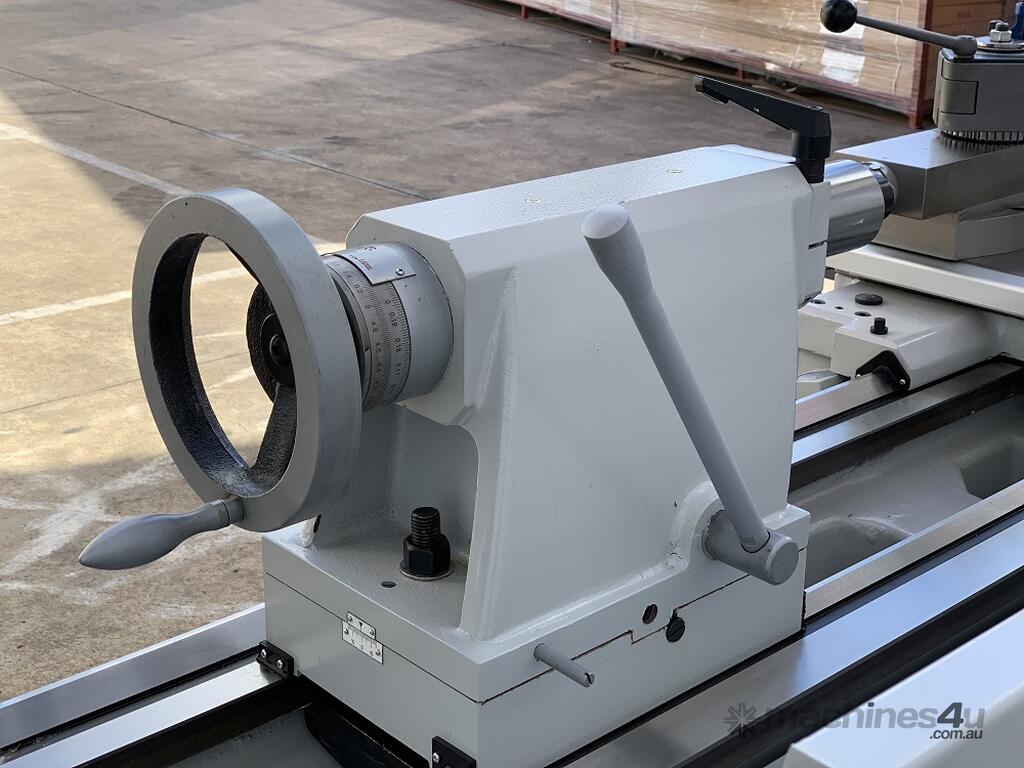

tailstock taper - 5MT
tailstock travel - 180mm
shipping dimensions - 3250mm x 1200mm x 1500mm
power - V 7.5Kw
approx weight: 3200kg

EQUIPMENT & ACCESSORIES SUPPLIED
Easson 2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steadies &
1 travelling steady, full length splash guard up to 2000mm,
