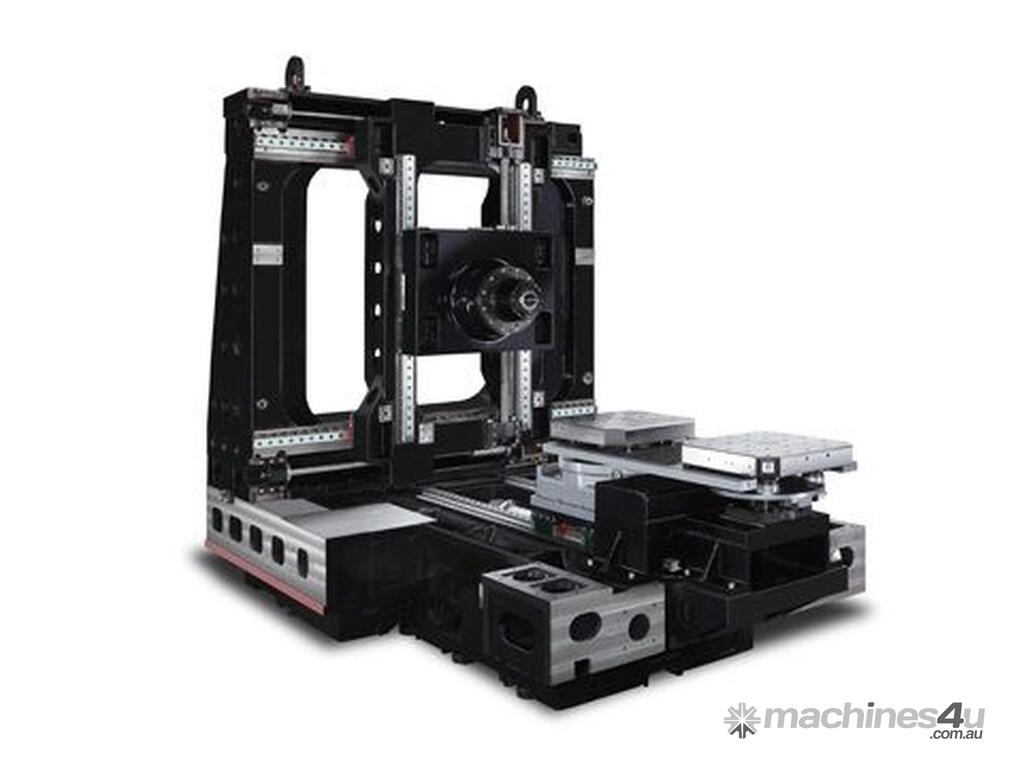

New HURCO HMX500-BT50 CNC Machining Centre

New HURCO HMX500-BT50 CNC HORIZONTAL Machining Centre.

Features and inclusions:

Travel:
- 813 mm x-axis travel
- 610 mm y-axis travel
- 642 mm z-axis travel
- 120-730 mm Spindle centre to Pallet surface
- 80-722 mm Spindle nose to Pallet centre


Table:
- 500 x 500 mm pallet size (2 pallets)
- 500 kg max load


Spindle:
- 8000 rpm spindle speed
- 56/38 kW spindle motor
- 445/302 Nm spindle motor torque
- BT#50 spindle taper


Feedrate :
- 45 m/min x-axis rapid traverse
- 40 m/min y-axis rapid traverse
- 45 m/min z-axis rapid traverse
- 15 m/min cutting feedrate


Automatic Tool Changer :
- BT#50 tool shank
- 60 Tools ATC
- 450 mm Max tool length
- 20 kg Max tool weight


General:
- Machine size: 4980 x 5400 x 3115 mm (L x W x H)
- Nett machine weight: 17,840 kg (2 pallet 60 ATC)


Included:
- Hurco Winmax CNC control (600 blocks look ahead)
- 2 GB RAM, 40 GB Hard Drive
- Ultimotion Software (Enabling upto 10,000 blocks look ahead)
- SFQ surface quality and throughput control
- Power loss z-axis retract
- Power loss/E-stop tap/drill recovery
- Renishaw Tool measurement system TS-27R
- 20 Bar Spindle through Coolant
- Spindle Chiller
- Spindle Air Blast
- 2 pallet APC
- 8,000 rpm spindle speed
- 60 tools ATC
- Chip conveyor with trolley
- RS 232 & RJ 45 Ports for DNC
- USB Ports
- Transformer
