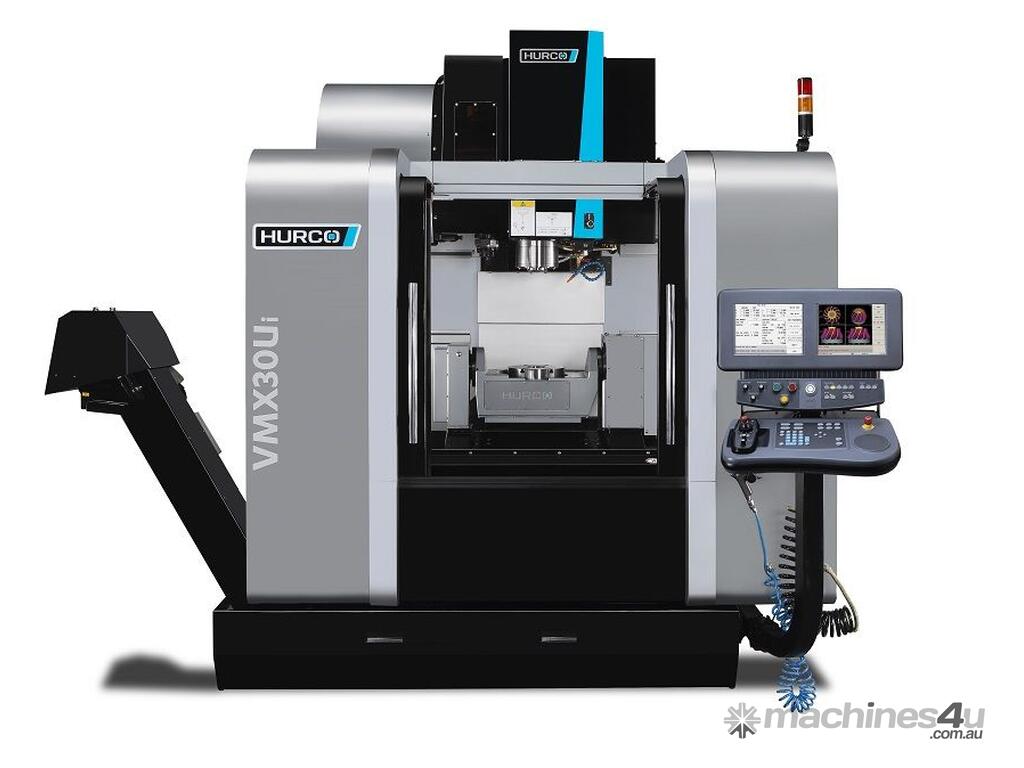

New HURCO VMX-30Ui CNC VMC 5 axes

New HURCO VMX-30Ui CNC VERTICAL 5 Axes Machining Centre.

Features and inclusions:

Travel:
- 762 mm x-axis travel
- 508 mm y-axis travel
- 520 mm z-axis travel
- + 30/-110 deg A axis movement
- 360 deg C axis movement


Table:
- 250 mm rotary table
- 200 kg max load
- Ø 400 x 305 mm Max workpiece size


Spindle:
- 12000 rpm spindle speed
- 13.4 kW spindle motor
- 214 Nm spindle motor torque
- BT#40 spindle taper


Feedrate :
- 35 m/min x-axis rapid traverse
- 35 m/min y-axis rapid traverse
- 30 m/min z-axis rapid traverse
- 22.9 m/min cutting feedrate
- 25 rpm A axis Max rotation speed
- 25 rpm C axis Max rotation speed


Automatic Tool Changer :
- BT#40 tool shank
- 24 Tools ATC
- 300 mm Max tool length


General:
- Machine Floor Space : 2180 x 2480 x 2910 mm (L x W x H)
- Nett machine weight: 4,980 kg


Included:
- Hurco Winmax CNC control (600 blocks look ahead)
- 2 GB RAM, 64 GB Hard Drive
- Ultimotion Software (Enabling upto 10,000 blocks look ahead)
- SFQ surface quality and throughput control
- Tool Centre Point Management
- Auto Interrupt Cycle
- Renishaw Tool measurement system TS-27R
- Renishaw OMP-400 Part probing system
- Renishaw Datum Sphere
- HURCO Automated Centreline Software
- 20 Bar Spindle through Coolant
- Spindle Chiller
- Spindle Air Blast
- 12,000 rpm spindle speed
- 24 tools ATC
- Chip conveyor with trolley
- X, Y, Z axes Linear feedback scales
- RS 232 & RJ 45 Ports for DNC
- USB Ports
- Transformer
- Ultimonitor function
- Extended Shop Floor function

Enquire today Ring Prashant
