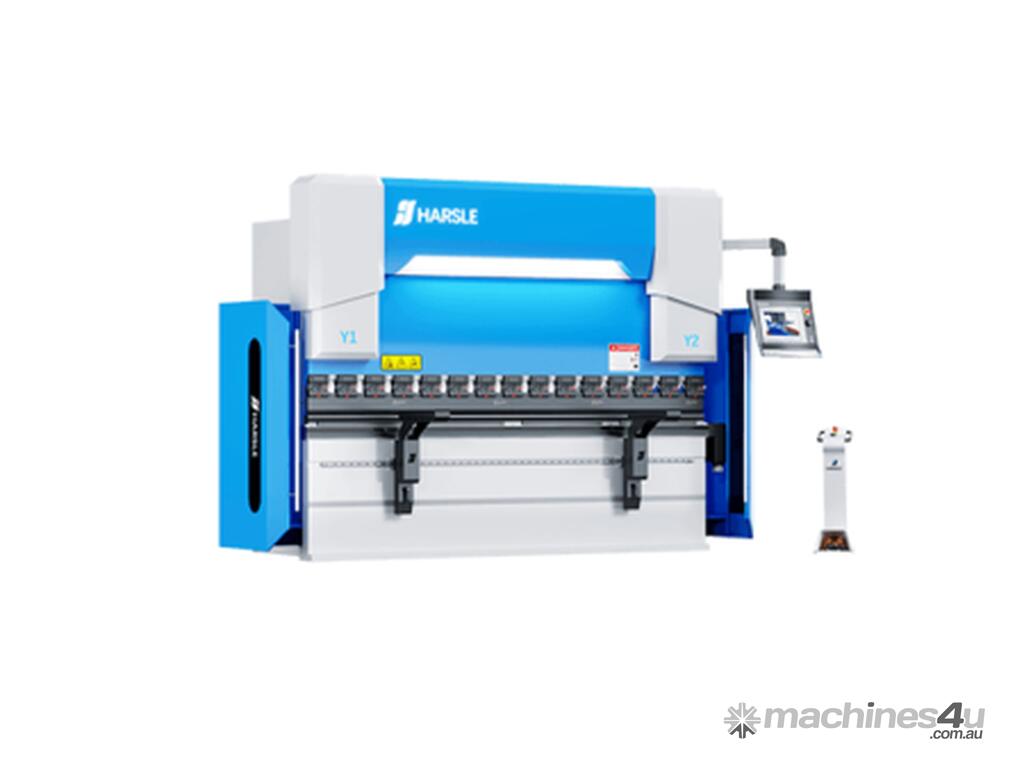

New Harsle CNC Electro-Hydraulic Press brake 3200 mm x 100 Tonnes 6+1 Axis

Description

This NEW HARSLE Genius Press Brake WE67K-100T3200 is available for immediate sale and delivery.

With a 1000 kN (100 ton) bending force and a maximum bending length of 3200 mm, this machine features a 7-axis CNC-controlled system, a Delem DA-66T graphical touch screen controller with 2D/3D visualization, advanced safety features, and comes fully equipped with HARSLE tooling profiles - top and bottom.

Discover why HARSLE CNC press brakes are a top choice for precision and reliability. The robust feature set, combined with a competitive price point, makes this machine a standout in the market.

Over years of innovation, HARSLE has supplied numerous CNC press brakes to satisfied customers worldwide. The attached brochure showcases the quality and scale of HARSLE’s manufacturing capabilities.

Arrange a demonstration at your convenience. Contact us to experience the machine’s capabilities firsthand.

Whether you’re new to CNC bending or have extensive experience with press brakes, we’re confident that the HARSLE WE67K-100T3200 will prove to be an excellent addition to your operations.

Take a look at the features …

100 ton bending force (1000 kN)
3200 mm bending length
2600 mm between columns
350 mm throat depth
200 mm ram stroke
480 mm daylight (open height)
7-axis CNC (Y1, Y2, X, R, Z1, Z2, V-axis for CNC crowning)
2 front sheet supports for workpiece stability
Controller:

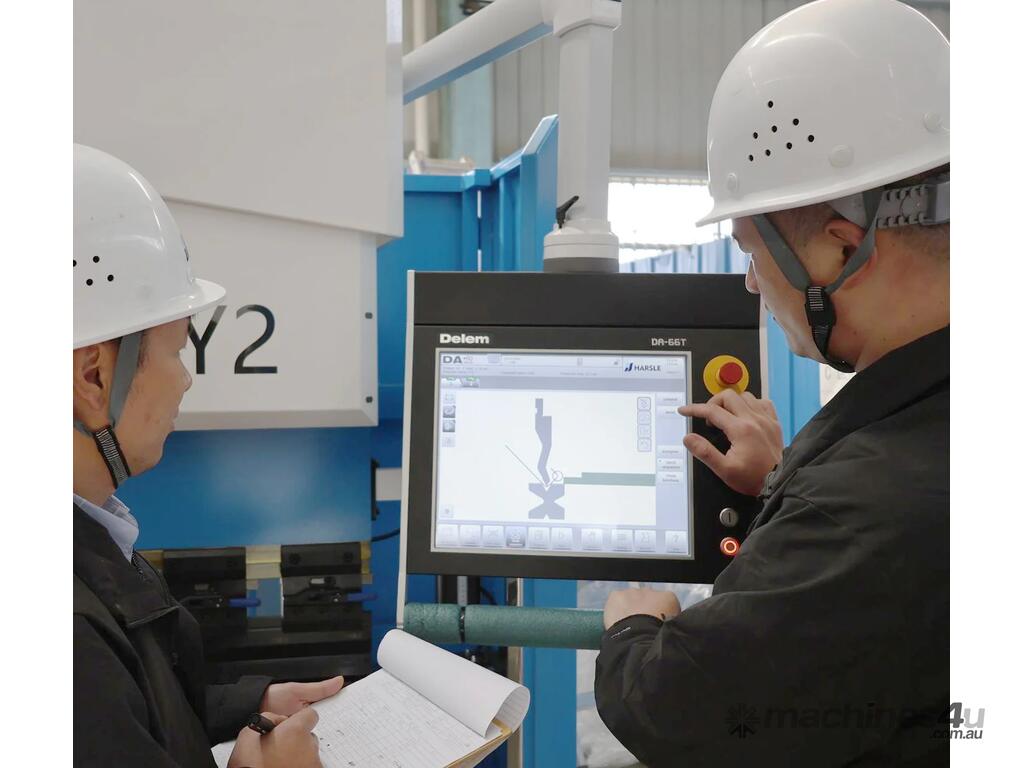

Delem DA-66T touch screen graphical CNC control
2D graphical touch screen programming mode
3D visualization in simulation and production
17-inch high-resolution color TFT
Full Windows application suite
USB and peripheral interfacing
Profile-TL offline software compatibility
Supports DXF file imports for streamlined programming

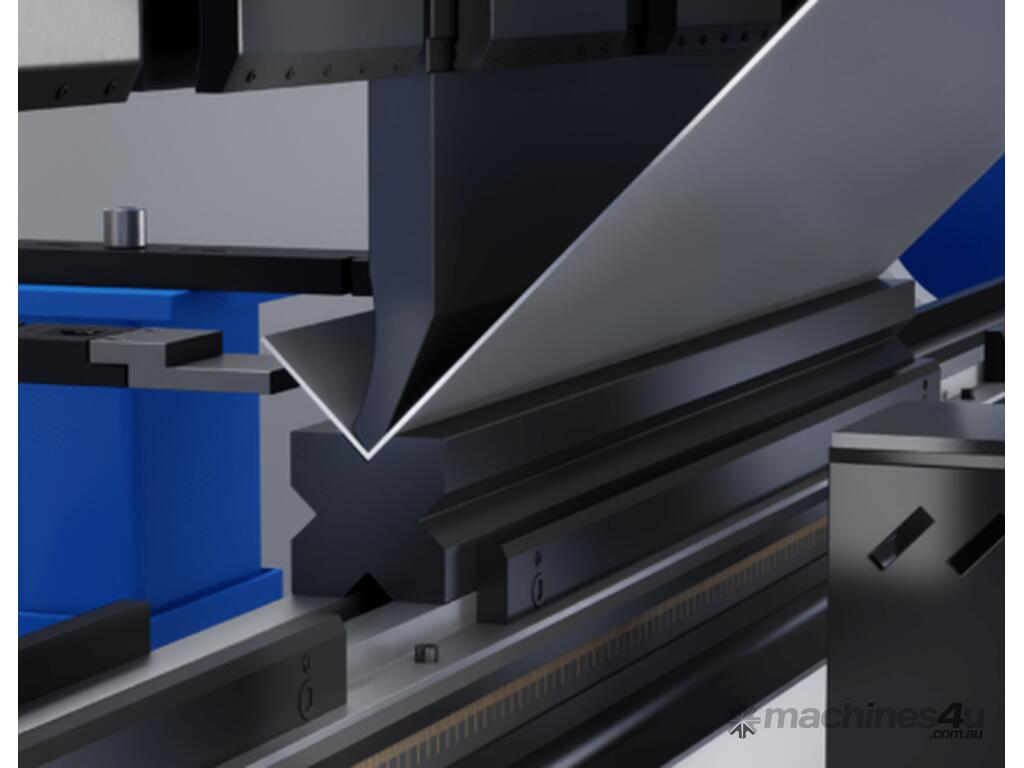

Tooling:

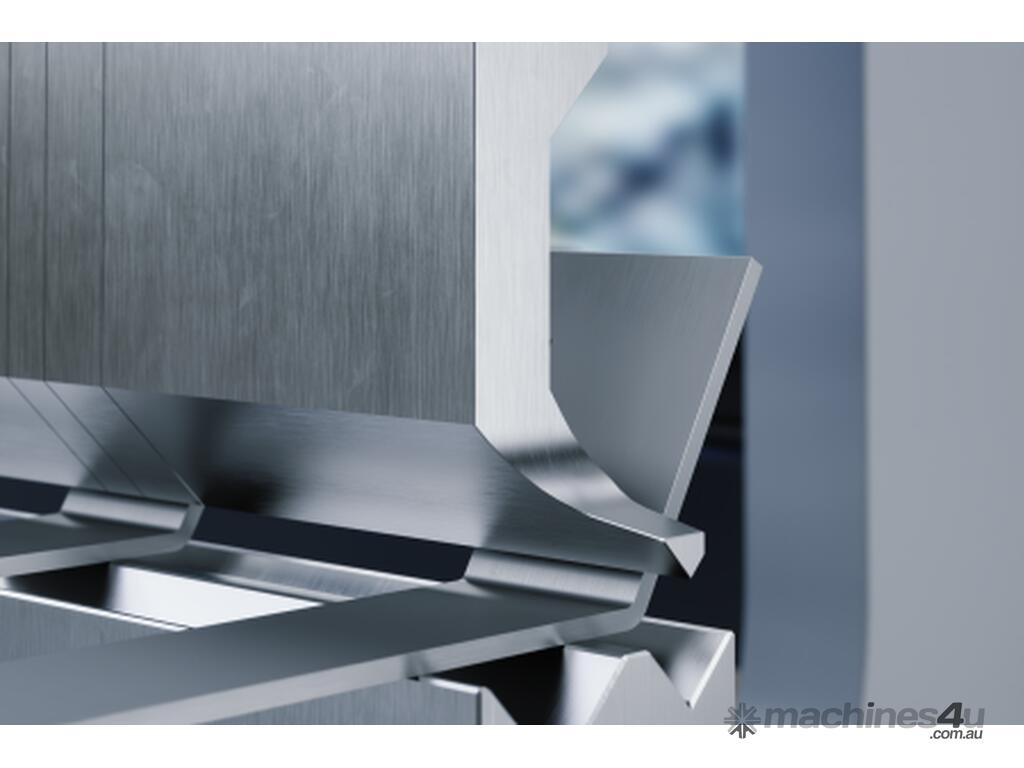

Full set of HARSLE top tooling (includes Sash Punch, Gooseneck Punch, Standard Punch, Arrow Punch)
Full set of HARSLE bottom tooling (includes Double V Die, Single V Die, 4V Die, Multi V Die)
HARSLE 3-step fast clamps for quick and efficient tool changes
Optional WILA hydraulic clamps or AMADA-type tool clamps available
Guards:

Back light curtain system for rear safety
Safety door switch for electrical cabinet
Optional DSP/AKAS laser protection for operator safety
Physical rear and side guards with interlock
General:

REXROTH hydraulic system (Germany)
GIVI linear encoders for precise positioning
FIRST hydraulic pump
HIWIN ball screw and linear guide for backgauge
ESTUN main servo motor (8.7 kW)
250 L oil tank
Weight: Approx. based on dimensions
Size: 3500 x 1600 x 2600 mm
High-speed performance: Rapid speed 200 mm/sec, working speed 0-15 mm/sec, return speed 160 mm/sec
Backgauge: X-axis travel 550 mm, R-axis travel 160 mm, with 4 stop fingers
Additional Features:

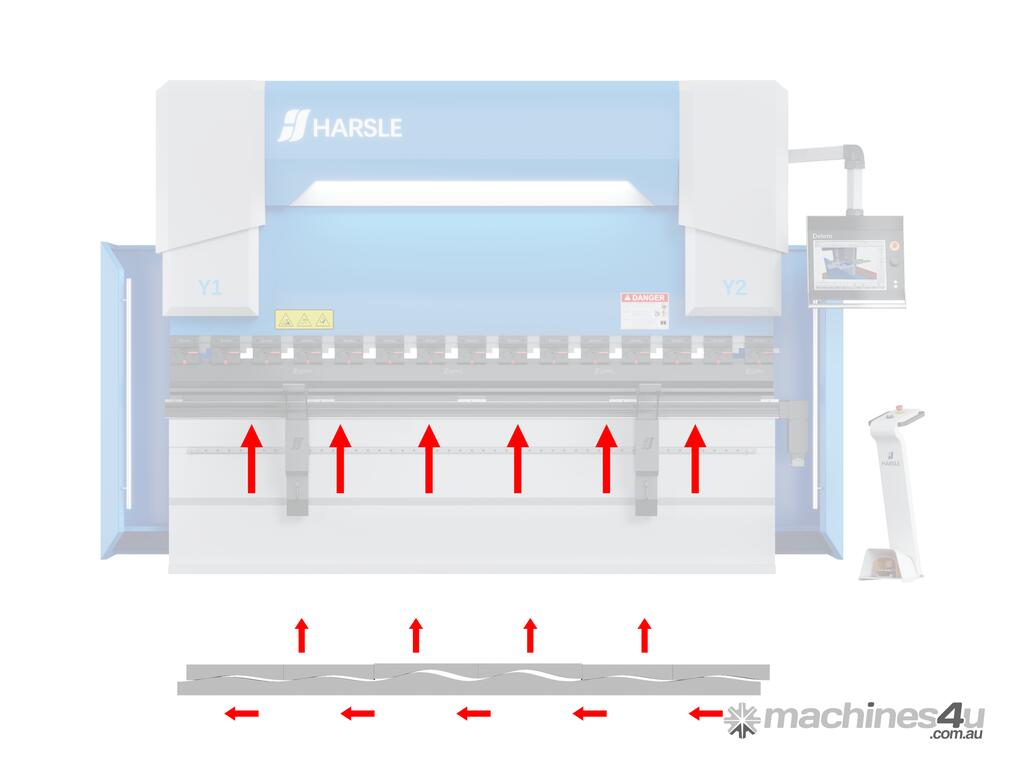

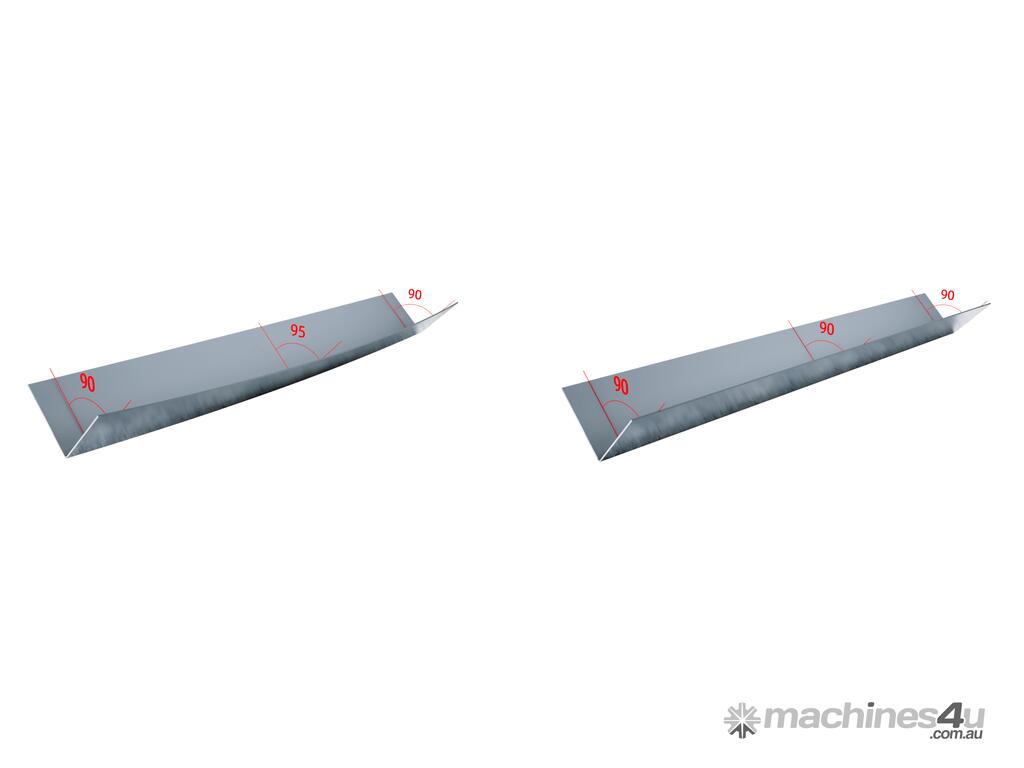

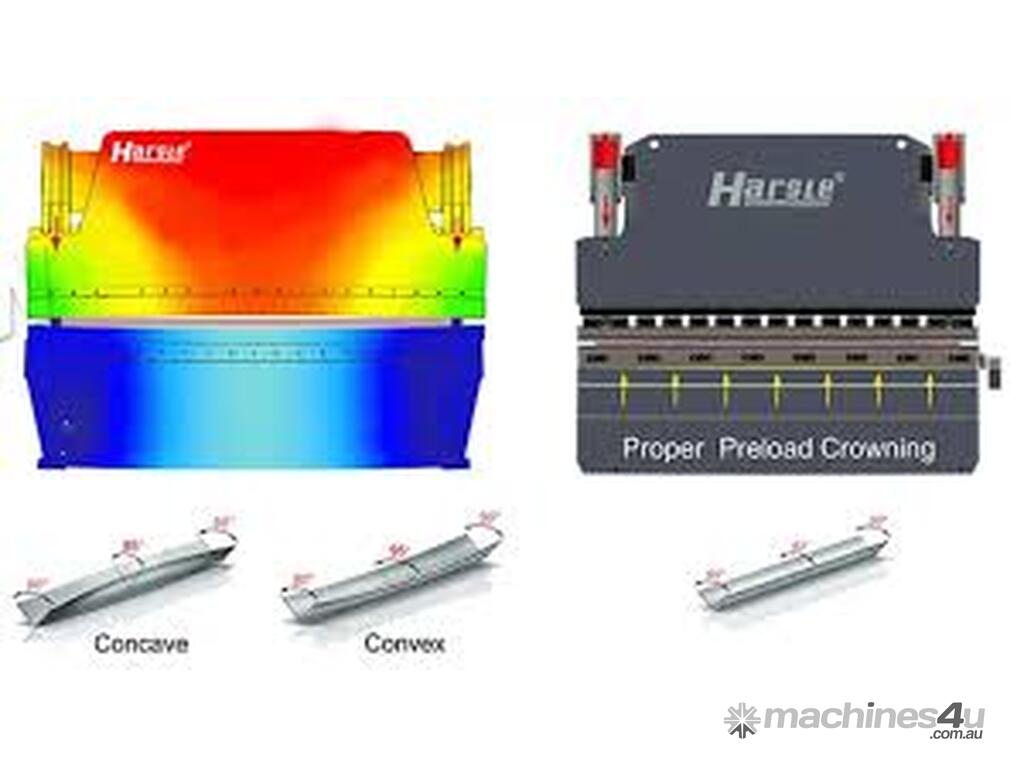

CNC Crowning System for consistent bend angles
Servo Pump Unit for energy efficiency and lower noise
Optional Dual Servo Hybrid System for up to 47% reduced power consumption and 11 dB(A) lower noise
Optional Sheet Follower and Retractable Sheet Support for handling large or long sheets
Optional Bending Robot for automated loading and unloading
SCHNEIDER electrical components and NOK seal rings for reliability
Tooling Cabinet option for organized storage
All HARSLE Genius Press Brakes ensure precise control of the ram positioning through a fully closed-loop electro-hydraulic servo system (Y1 & Y2). The ram position is measured by independent GIVI linear encoders, ensuring high accuracy and repeatability.

This press brake is built for high-production, high-precision environments, delivering durability and performance for demanding applications.
