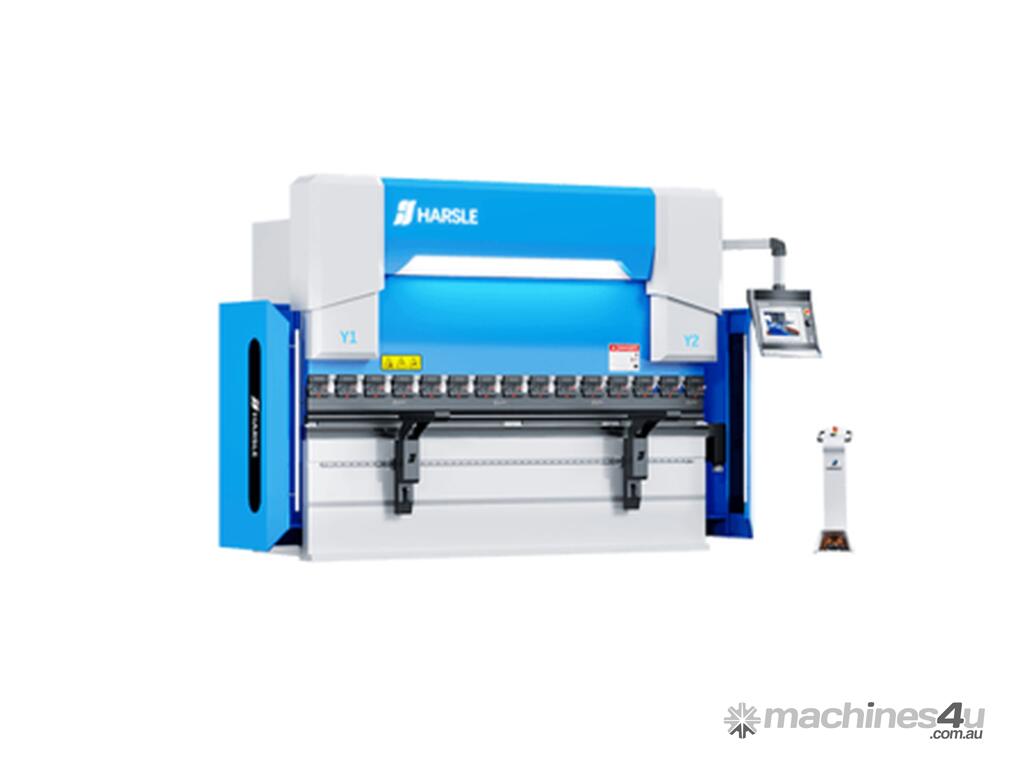

New Harsle CNC Electro-Hydraulic Press brake 3200 mm x 160 Tonnes 4+1 Axis

HARSLE Smart Press Brake WE67K-160T3200 for Sale

This NEW HARSLE Smart Press Brake WE67K-160T3200 is available for immediate sale and delivery.

With a 1600 kN (160 ton) bending force and a 3200 mm bending length, this machine is equipped with a 6-axis CNC-controlled system, a Delem DA-53T touch screen controller, advanced safety features, and a full set of HARSLE tooling. It’s designed for precision, efficiency, and reliability in high-production environments.



Why Choose HARSLE?

HARSLE is a leading Chinese manufacturer of metalworking machines, known for innovation and quality. With a focus on customer service and advanced technology, HARSLE has delivered press brakes globally, achieving sales revenue exceeding $10 million. The attached brochure highlights their manufacturing capabilities and commitment to excellence.

Arrange a demonstration to see the machine in action.



Key Features
160 ton bending force (1600 kN)
3200 mm bending length
2600 mm between columns
400 mm throat depth
200 mm ram stroke
480 mm daylight (open height)
6-axis CNC (Y1, Y2, X, R, Z1, Z2)
2 front sheet supports for workpiece stability
Table width: 100 mm
Oil tank capacity: 310 L

Controller

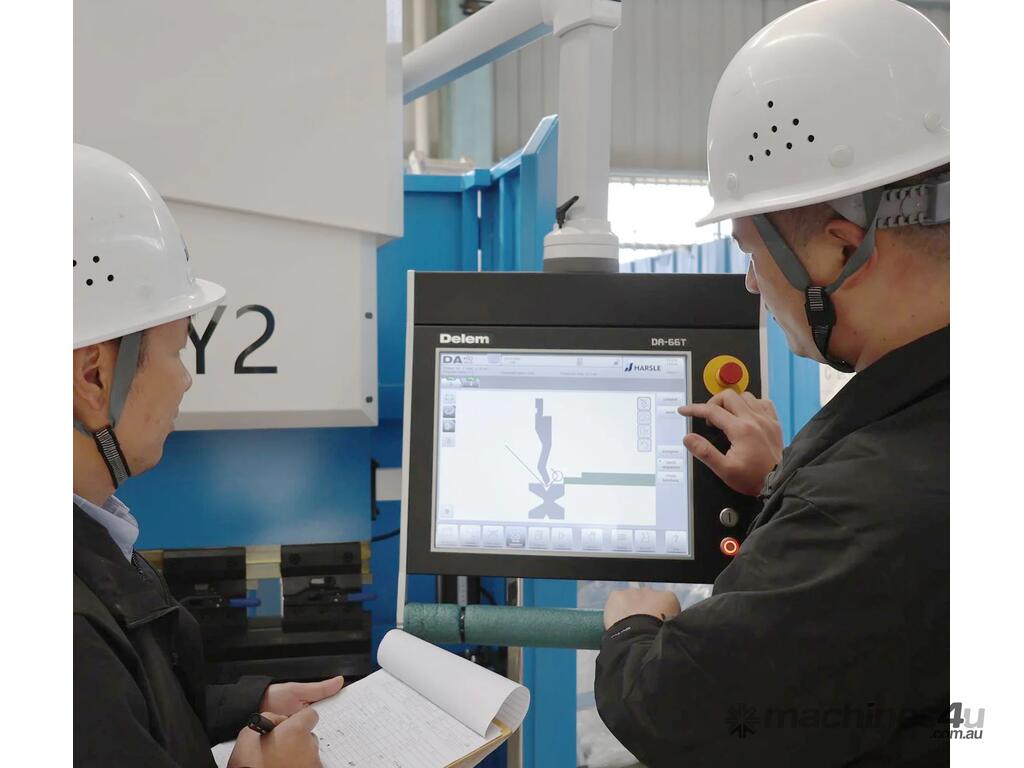

Delem DA-53T touch screen CNC control
10.1" high-resolution color TFT
2D graphical programming mode
Bend sequence and expansion calculation
USB and peripheral interfacing
Profile-53TL offline software included
Supports DXF file imports for efficient programming

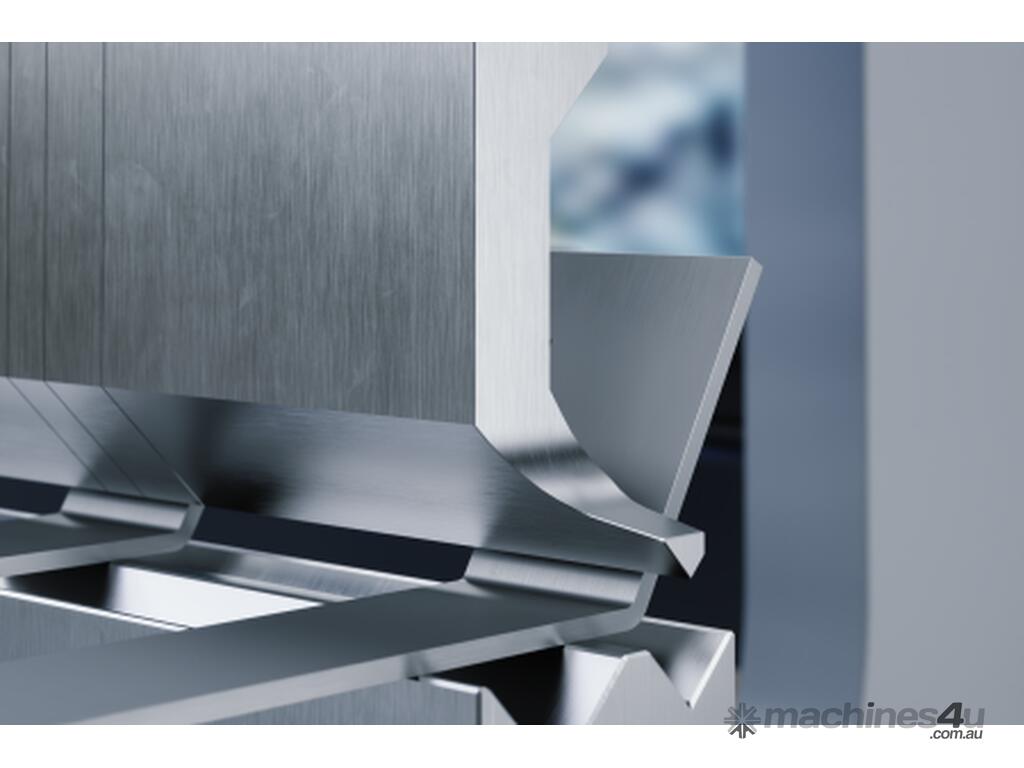

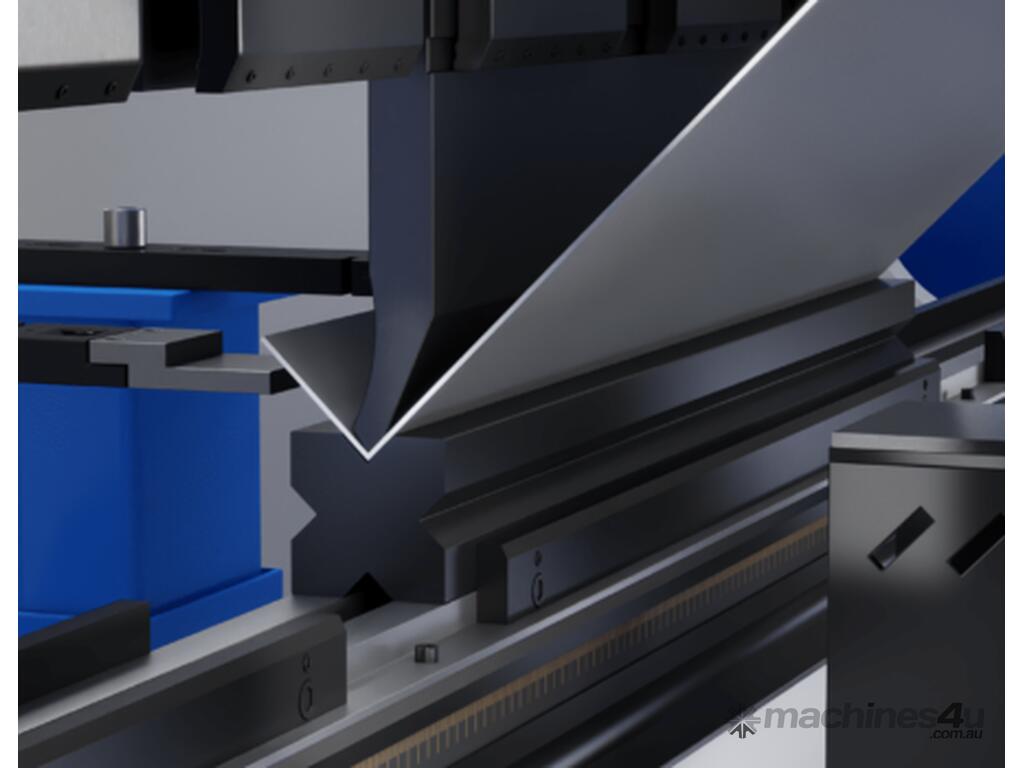

Tooling
Standard set included (free):
Punches: Standard, Gooseneck, Sash, Arrow
Dies: Single V, Double V, 4V, Multi V
HARSLE 3-step fast clamps for quick tool changes
Optional WILA hydraulic clamps or AMADA-type tool clamps available
Additional tooling available

Safety Features
Back light curtain for rear safety
Safety door switch for electrical cabinet
Physical rear and side guards with interlock

Optional:
DSP/MSD laser protection for operator safety
Safety relay for emergency shutdowns
Safety guard switch for guardrail doors

General Specifications
Main AC motor: INNOMOTICS (SIEMENS), 11 kW
Hydraulic system: REXROTH (Germany)
Hydraulic pump: FIRST, 25 ml/r
Linear encoders: GIVI for precise positioning
Ball screw/linear guide: HIWIN for backgauge
Backgauge servo unit: ESTUN
Seal rings: NOK
Tubing connector: EMB
Foot switch: KACON
Dimensions: 3600 x 1750 x 2700 mm

Performance:
Rapid speed: 150 mm/sec
Working speed: 0-15 mm/sec
Return speed: 150 mm/sec

Backgauge:
X-axis travel: 550 mm
R-axis travel: 160 mm
4 stop fingers
Positioning accuracy: 0.05 mm
Hydraulic pressure: 28 MPa

Additional Features

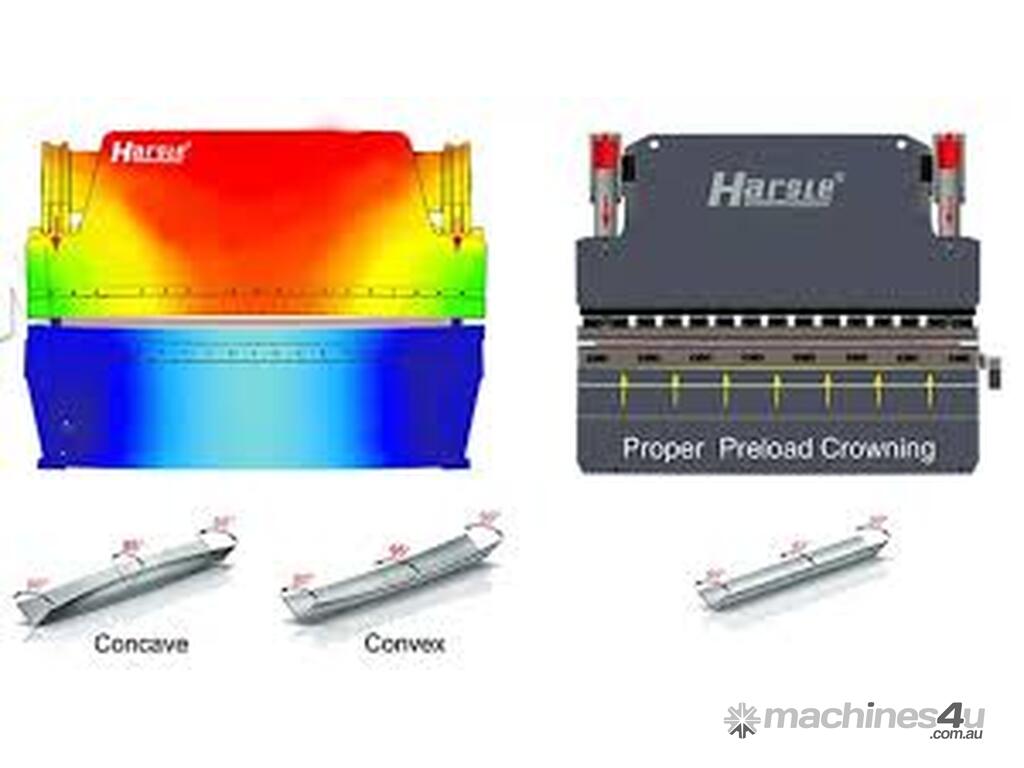

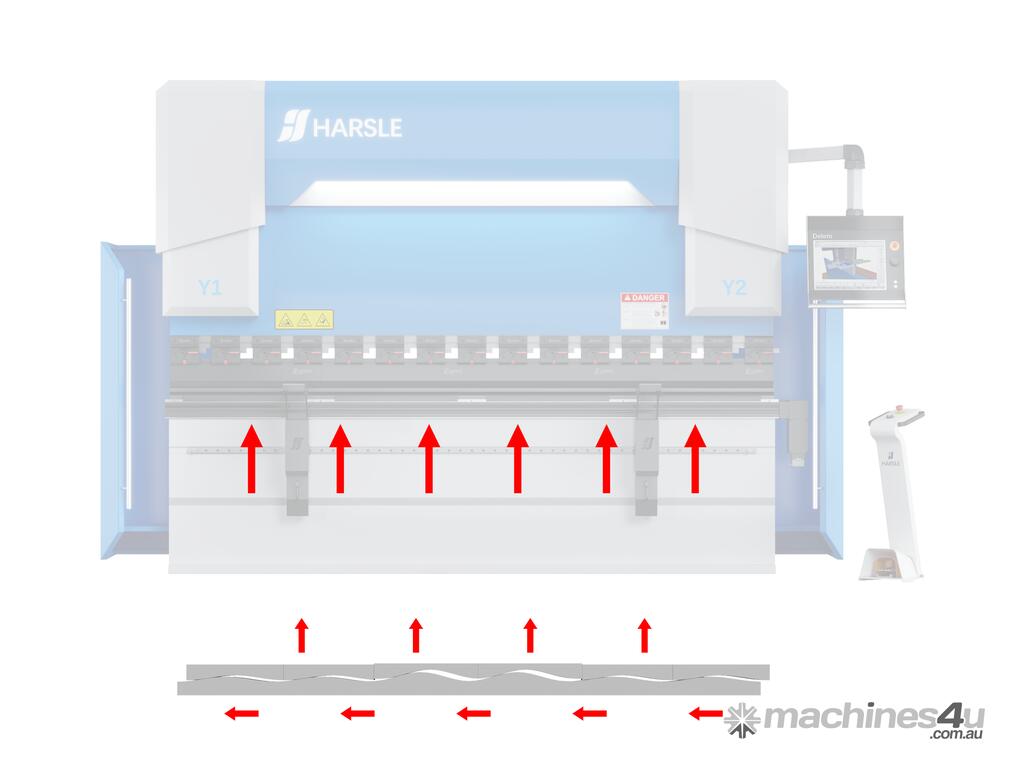

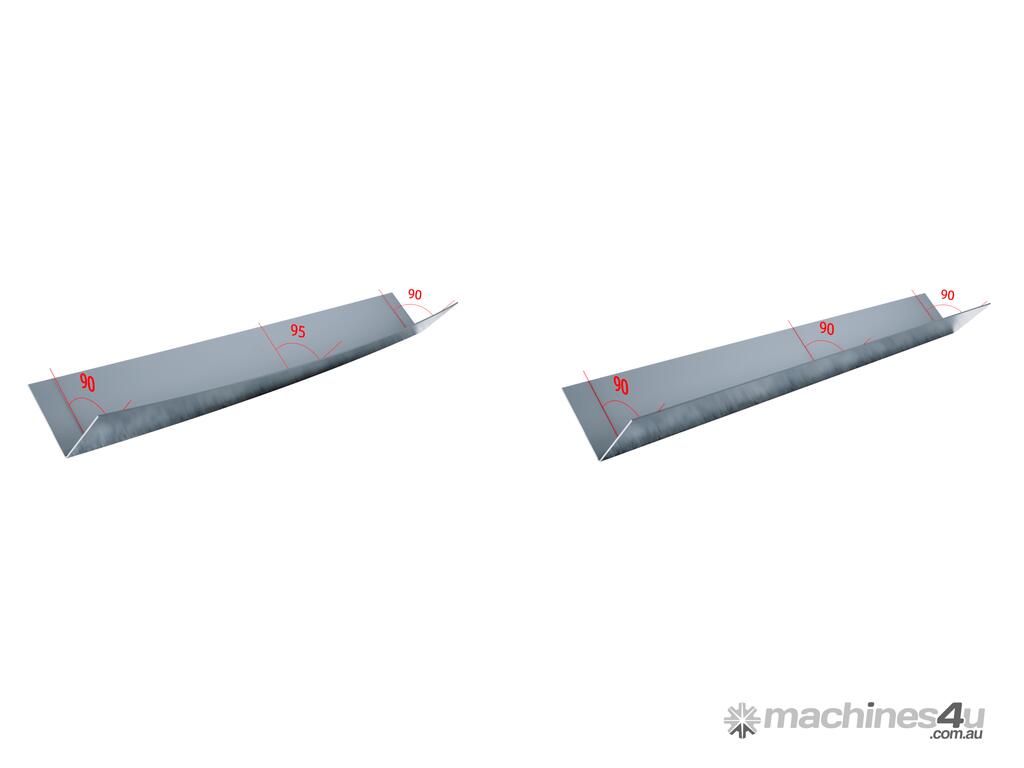

CNC Crowning System (motorized, standard) for consistent bend angles
Servo Pump Unit (ESTUN) for energy efficiency and reduced noise
Optional Hydraulic Crowning for enhanced precision
Optional Robotic Arm (ESTUN/ABB) for automated loading/unloading
Optional Prime Z1+Z2 with 7" Schneider touchscreen for storing 16 position sets
Optional Squaring Arms for precise corner bends
Optional Tooling Cabinet for organized storage


Electrical components: SCHNEIDER
Oil cooler and electrical cabinet AC options for system stability
High-Precision Design

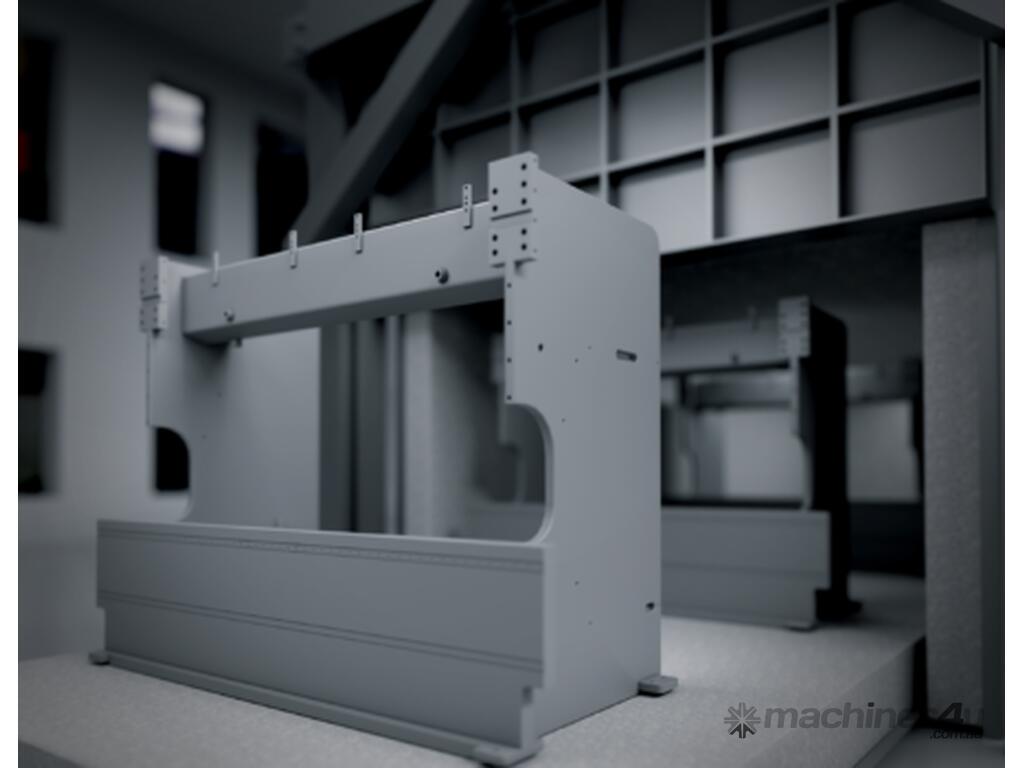

Stress-relieved frame using high-temperature tempering or vibration to minimize deflection and ensure durability.
Machining process supports large workpieces with CNC automation for milling, drilling, cutting, and trimming.
Closed-loop electro-hydraulic servo system (Y1 & Y2) with GIVI linear encoders for superior accuracy and repeatability.

Efficiency Enhancements

Offline software (Profile-53TL, free) enables virtual testing and programming to reduce downtime and double production efficiency.

Fast clamps (HARSLE 3-step, standard) for rapid tool changes in high-frequency workpiece environments.

Front support adjusts to various workpiece shapes, ensuring stability and reducing errors.

Comprehensive Services

Warranty: 36 months, with free quick-wear parts.
