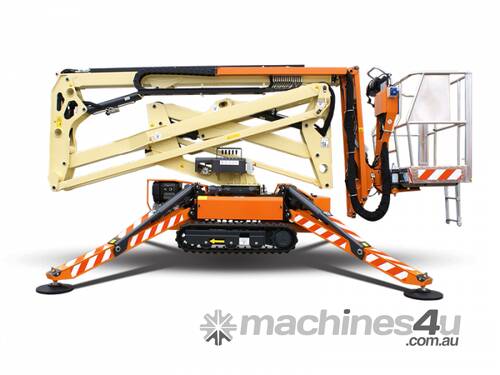

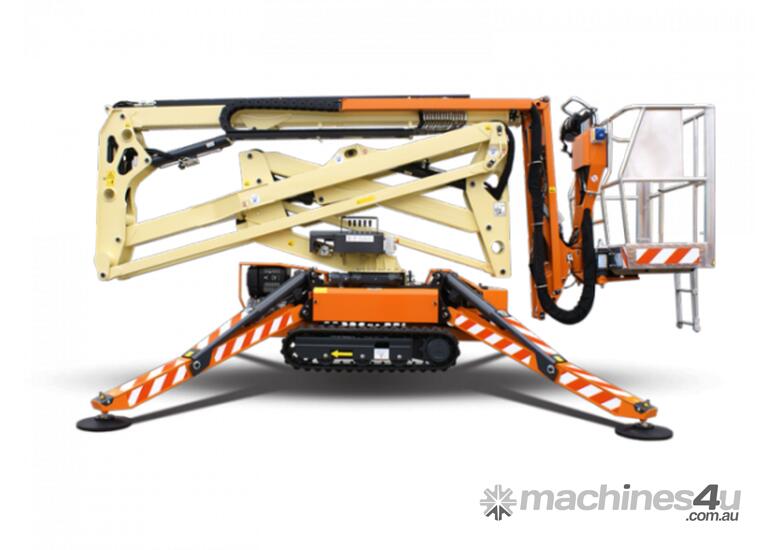

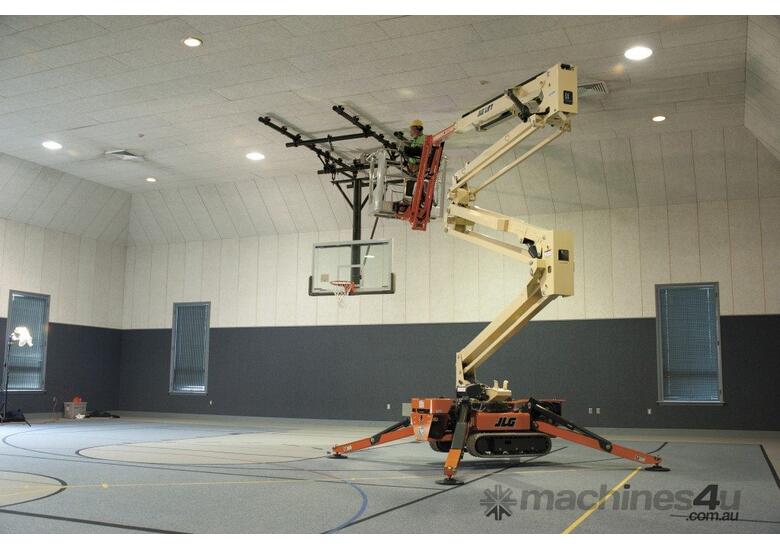

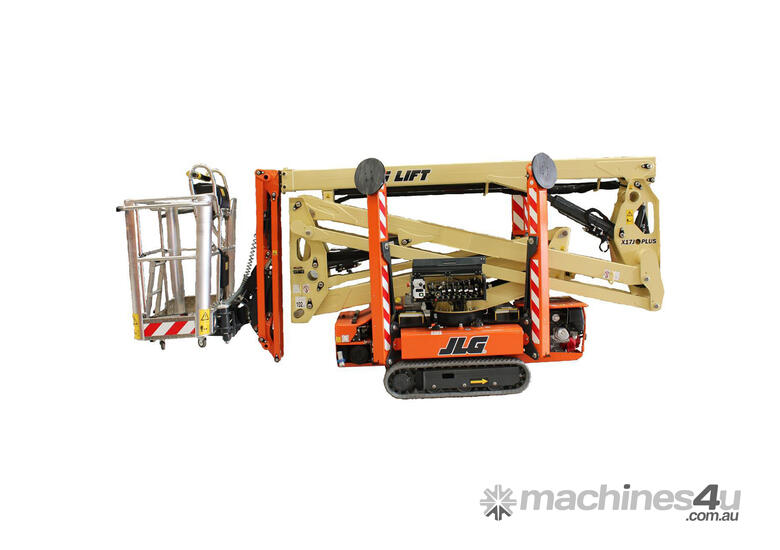

New From JLG the X17J Spider Boom Lift
Performance
Working Height 16.96 m
Platform Height 14.96 m
Working Outreach 7.65 m
Up and Over Height 7.80 m
Swing 360° (Non-continuous)
Jib - Overall Length 1.68 m
Jib - Range of Articulation (+/-) 89° (+0/-89°)
Platform Capacity (unrestricted) 230 kg
Platform Size 0.69 m x 1.34 m
Stowed Width 1.48 m
Machine Weight* 2,230 kg
Gradeability 28%
Maximum Operating Slope 16°
Maximum Approach/Depart Angles 20°
Width of Undercarriage (Retracted/Extended) 0.79 m/1.09 m
Petrol Engine Honda iGX390 11.7 kW
AC Electric Motor 230V, 50 Hz, 2.2 kW
•• SkyGuard® Enhanced Control Panel
Protection
•• 0.69 m x 1.34 m Aluminium
Two-person Platform
•• Slide Bar Rear Entry
•• Footswitch
•• Full Proportional Control
•• Articulating Jib
•• Powered Platform Rotator (124°)
•• Remote Control (Via Cable to Platform)
•• Full Remote Control of Drive
and Stabilization
•• Multi-lingual LCD Display on
Platform Console
•• Platform Console Position Sensor
and Lock
•• Envelope Management Load
Sensing System
•• Platform Designed for Ease of
Removal/Changeover
•• 6.5 mm Air Line to Platform
•• Engine Protection
•• Rubber Outrigger Pads
•• Cylinder Rod Protection on Outriggers
•• Automatic Cut-out When Out of Level
•• Powered Track Extension/Retraction
•• 360° Non-continuous Turntable
Rotation
•• Turntable Alignment Sensor and Gauge
•• Three Emergency Descent Systems
•• Electro-hydraulic Controls
•• Full Pressure Hydraulic Controls
•• 2nd Drive Speed (High)
•• Lifting/Tie Down Points
•• Forklift Pockets
