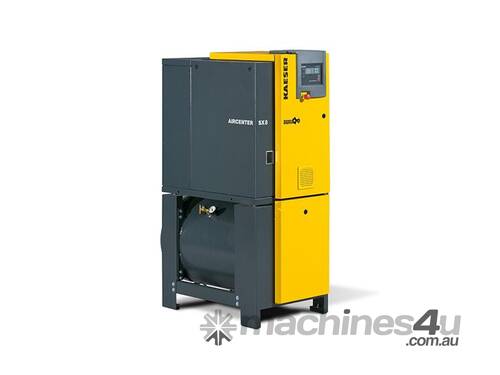

New Kaeser SM13 Air Centre. 7.5kw - 45cfm Rotary Screw Air Compressor

SM Series
With the world-renowned SIGMA PROFILE
Flow rate 0.39 to 1.64 m³/min, Pressure 5.5 to 15 bar

SM series
Long-term savings

Discerning compressed air users expect maximum availability and efficiency even from smaller compressors. It will come as
no surprise therefore that KAESER’s SM series rotary screw compressors go far beyond meeting these key expectations.
Not only do they deliver more compressed air for less energy, but they also combine ease of use and maintenance friendliness
with exceptional versatility and environmentally responsible design.

SMart with SIGMA 06
The latest generation SM series rotary screw compressors
feature the new SIGMA 06 airend with further-refined
SIGMA PROFILE rotors for even greater intake volume
and efficiency. The result? Up to 13 percent reduced energy
requirement and up to 10 percent higher flow rate.

Energy-saving performance
The efficiency of a machine depends on the total costs
incurred throughout the equipment’s entire service life.
With compressors, energy costs account for the lion’s
share of total expenditure. KAESER therefore designed its
SM series compressors with optimum energy efficiency in
mind. Refinements to the energy-saving SIGMA PROFILE
airend rotors and the use of Super Premium Efficiency IE4
motors (Premium Efficiency IE3 motor in the SM 10) have
significantly contributed to the increased performance
of these versatile compressors. The combination of the
SIGMA CONTROL 2 internal controller, low airend speeds,
minimised internal pressure losses and KAESER’s unique
cooling system has helped to push the boundaries of
efficiency even further.

Optimised design
The new SM models all share logical and user-friendly
design throughout. For example, the left-hand side panel
can be removed in a few simple steps and allows excellent
visibility of the system’s intelligently laid out components
– moreover, all maintenance points are easily accessible.
When closed, the sound-absorbing compressor enclosure
keeps operational sound levels to a minimum thereby
ensuring a pleasantly quiet work environment. In addition,
the enclosure features four inlet openings for separate
airflow cooling of the compressor, the motor, the control
cabinet and the compressor intake air. Last, but not least,
SM series compressors are impressively compact, which
makes them the perfect choice for applications where
space is at a premium.

Modular system concept
SM series compressors are available as standard
versions, as so-called “T” models (equipped with an
integrated, thermally shielded refrigeration dryer) and
as “AIRCENTER” models that additionally include an
under-slung air receiver. KAESER’s intelligent modular
design therefore offers incredible flexibility. Moreover,
the SM 13 model is also available with an integrated frequency
converter for infinitely-adjustable flow rate control.

Current stock x 2 Melbourne
