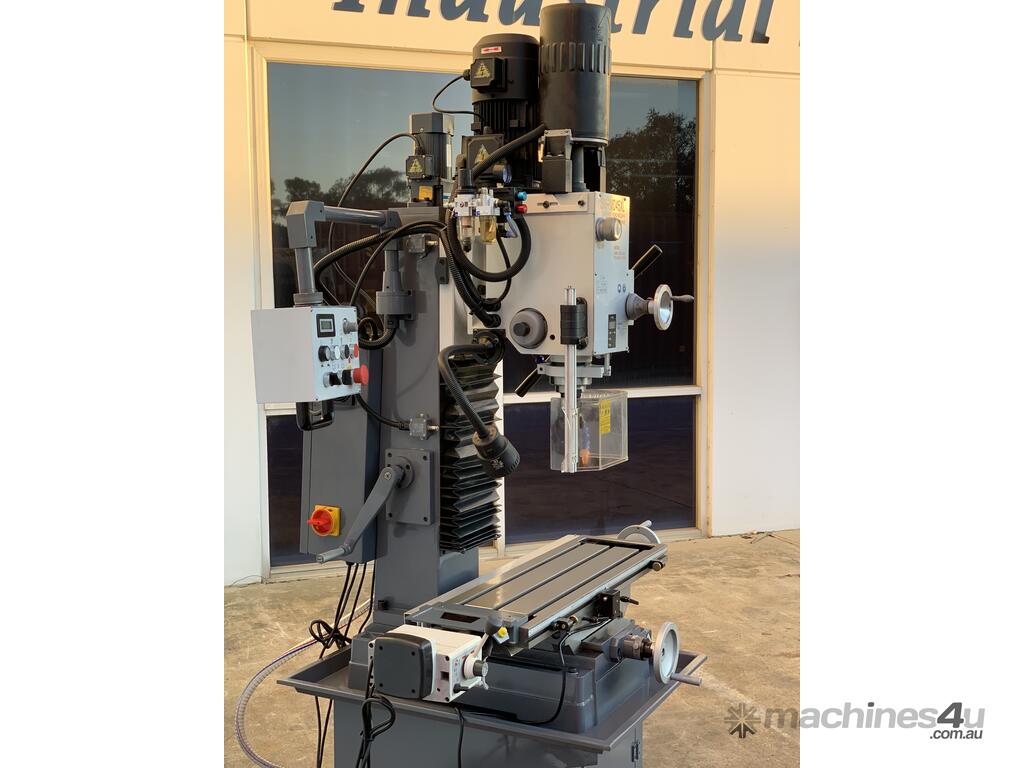

New Model - Industrial Geared Head Mill Drill With POWER DRAW BAR, Variable Speed & 3 Axis DRO

SM-MD45XL. Mill Drill with DRO. Steelmaster Geared Drive Mill Drill With Power Draw Bar, Coolant,
Swivel Head, ISO 30 Spindle, 820mm x 240mm Table, 75 ~ 2500 Speeds, 560/190/460mm X-Y-Z Travel, 240V
## NEW Z AXIS POWER FEED & POWER OPERATED DRAW BAR NOW INCLUDED ##
Description
Now offered in our popular Industrial Grey Colour Schedule -This machine sports a dovetail column with a power feed & 3 Axis Digital Read Out. That’s right! No more cranking the head up and down for tool changes or clearance, just push a button and save yourself the trouble. And there’s more great features, too! A stand is supplied that has a coolant return trough. This adds mass and convenience to an already exceptional gear head mill. Check out the specs and don’t forget the tooling. You’ll want to fire this puppy up the minute it’s delivered!

Features

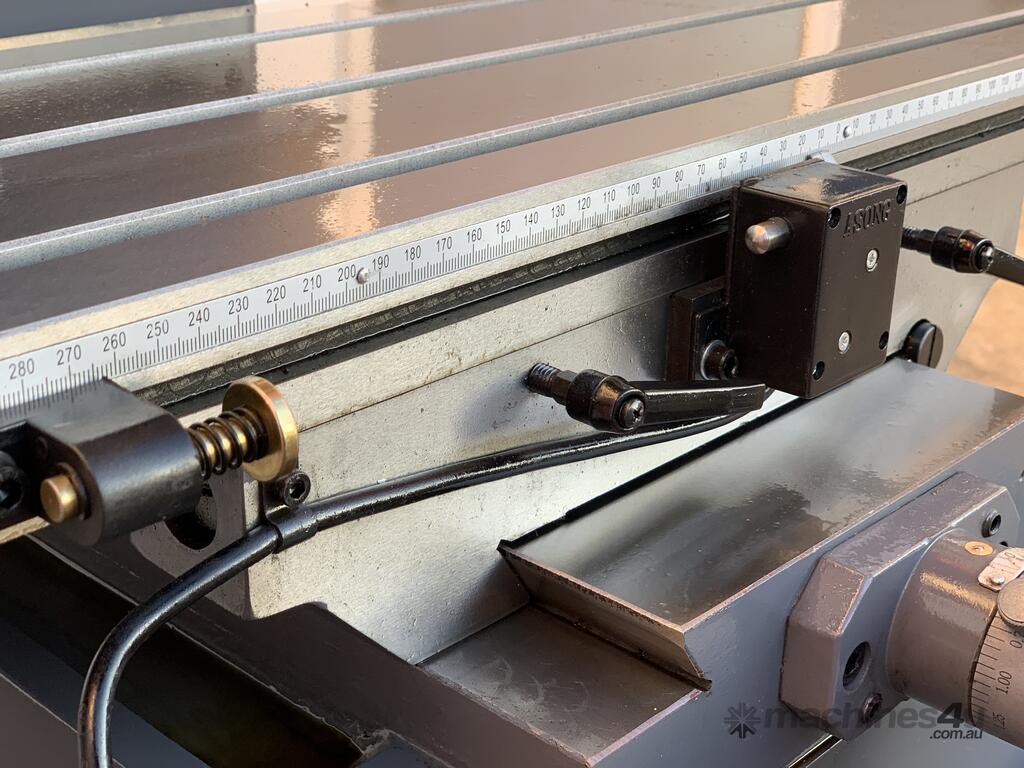

?3 axis DRO

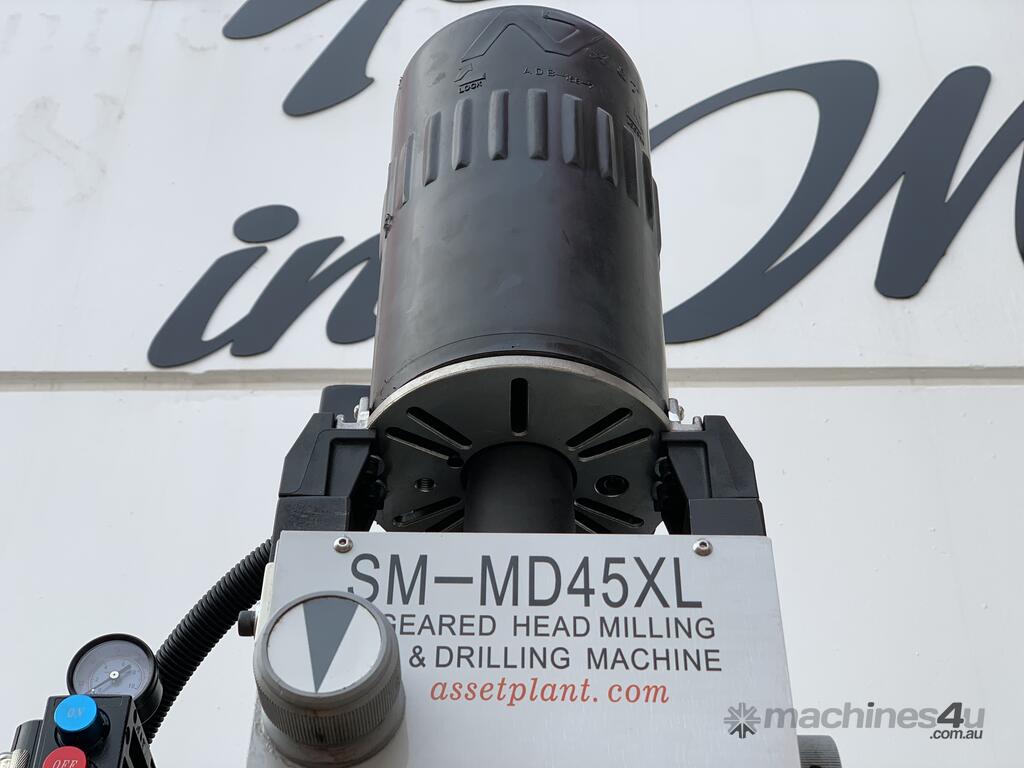

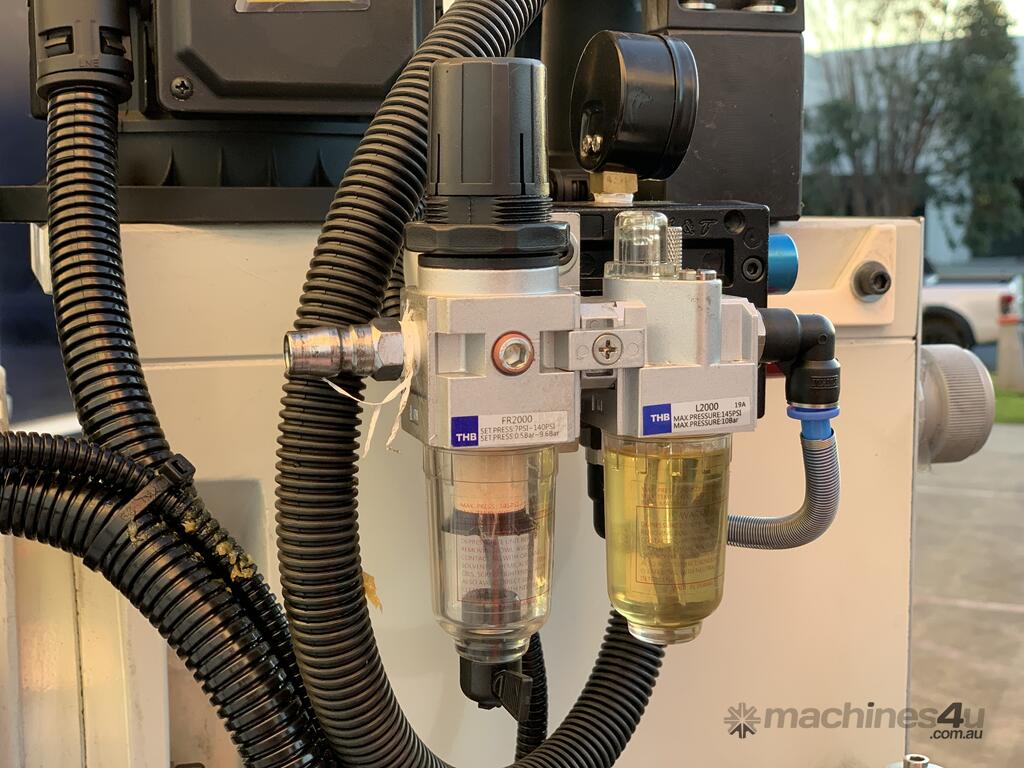

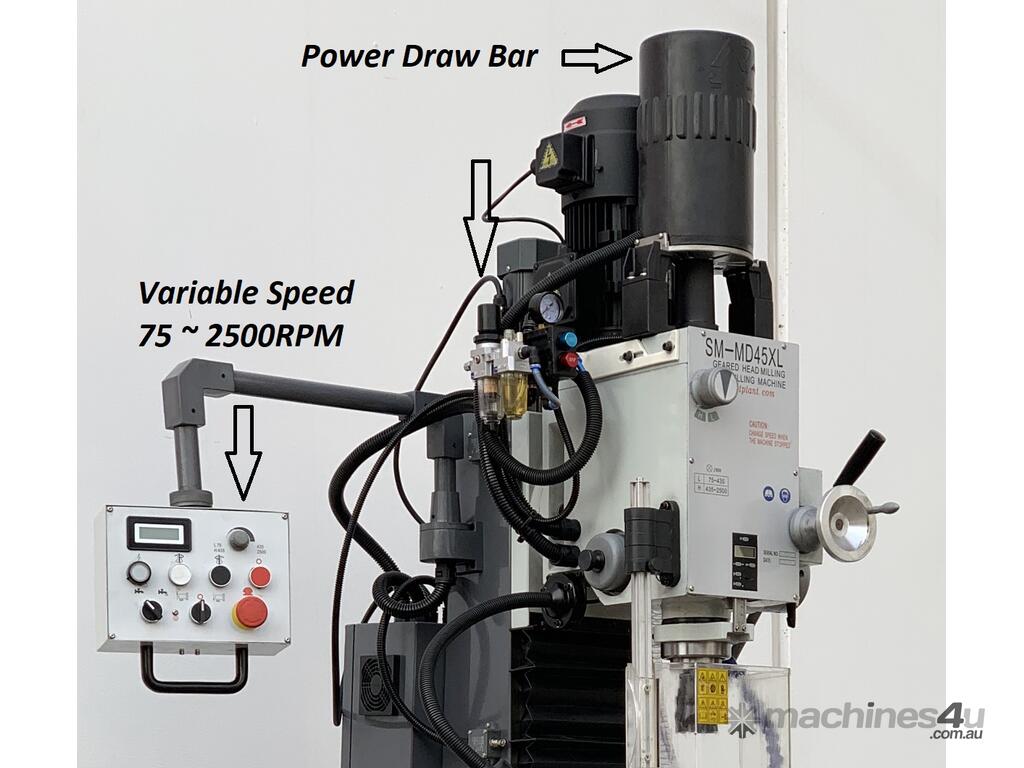

?Power Operated Draw Bar For Quick Tool Change

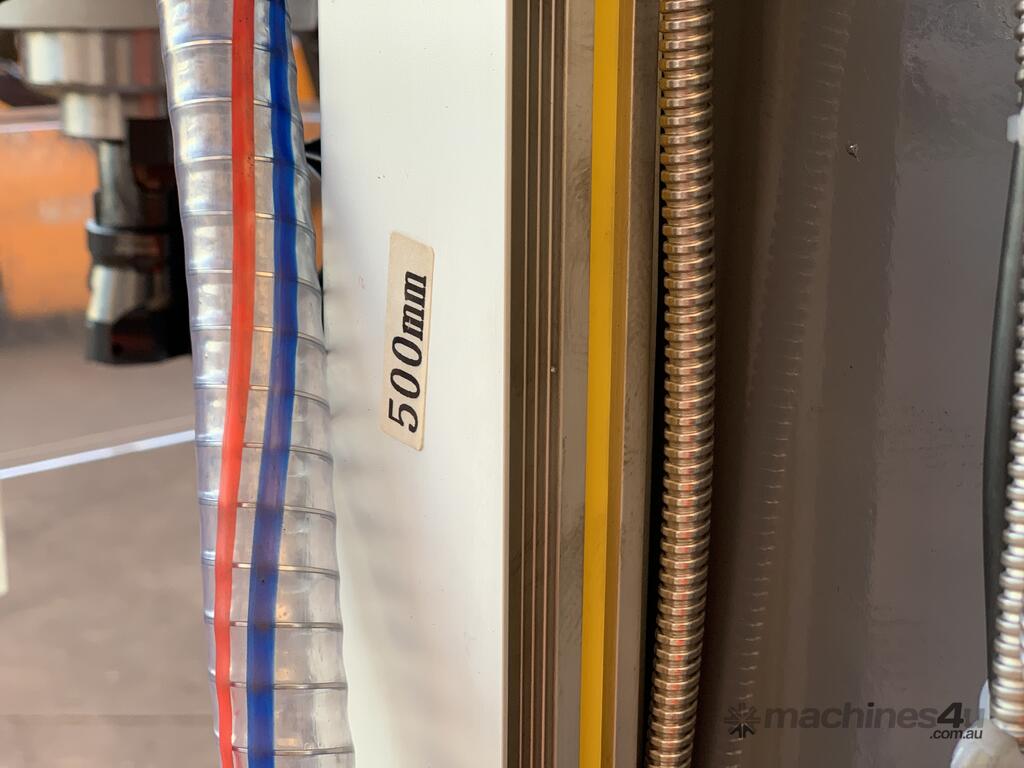

?power up & down via dovetail guides
?power spindle quill down feed.

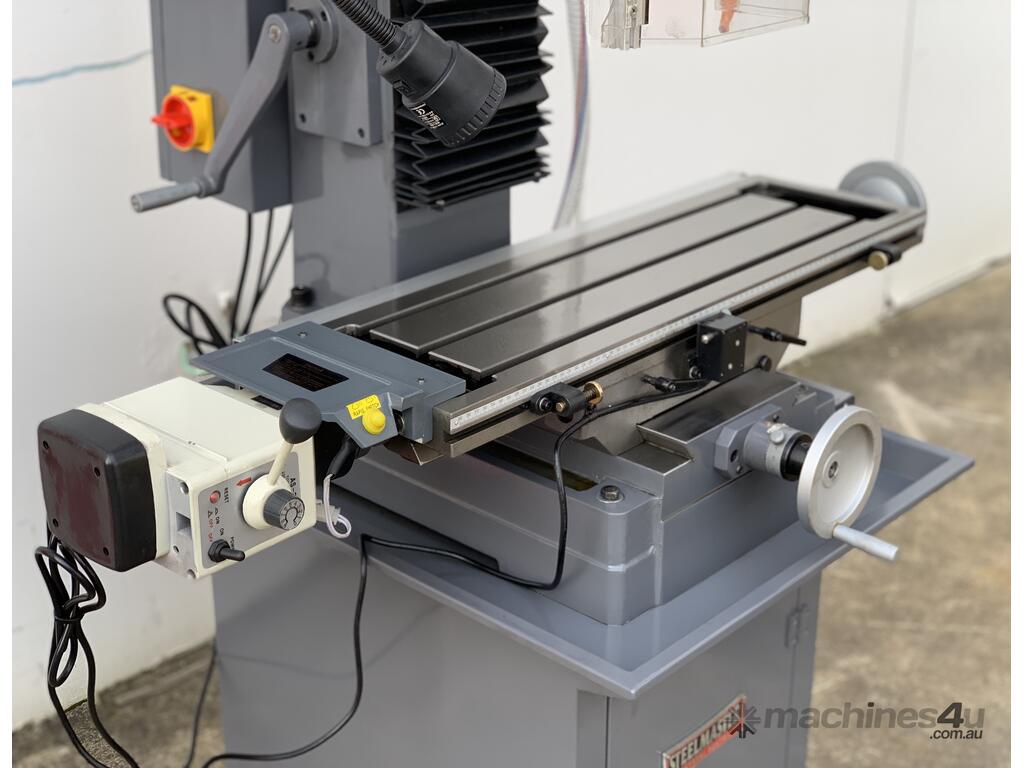

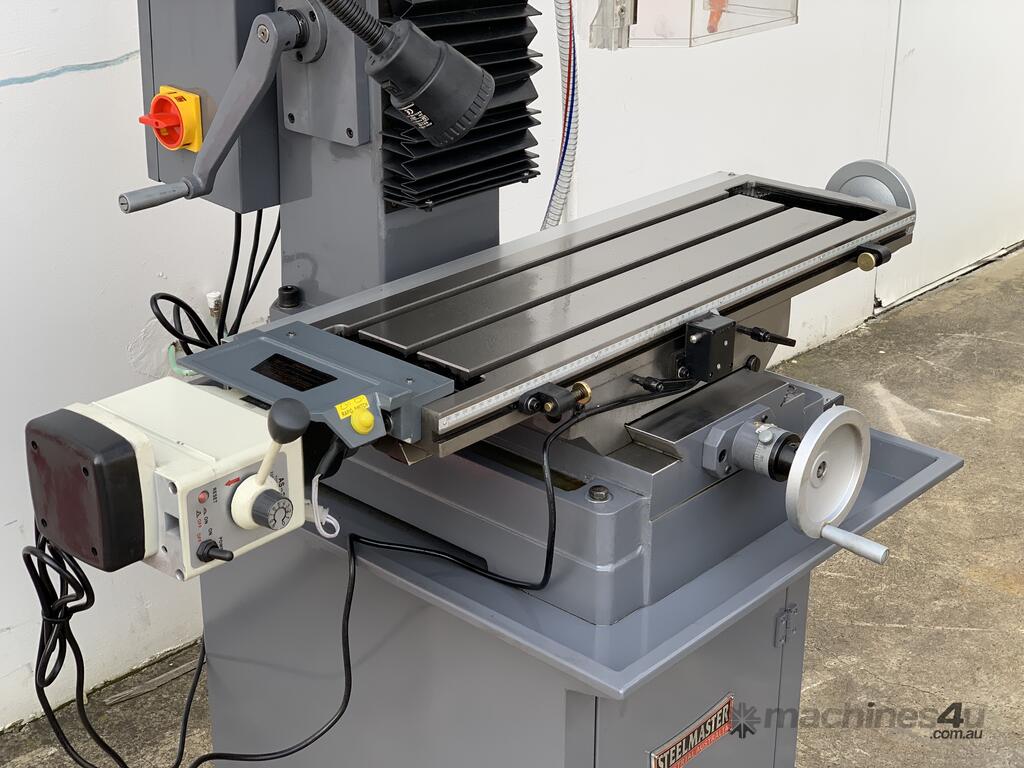

?longitudinal power feed of work table
?draw bar spindle for milling
?large ISO30 Spindle

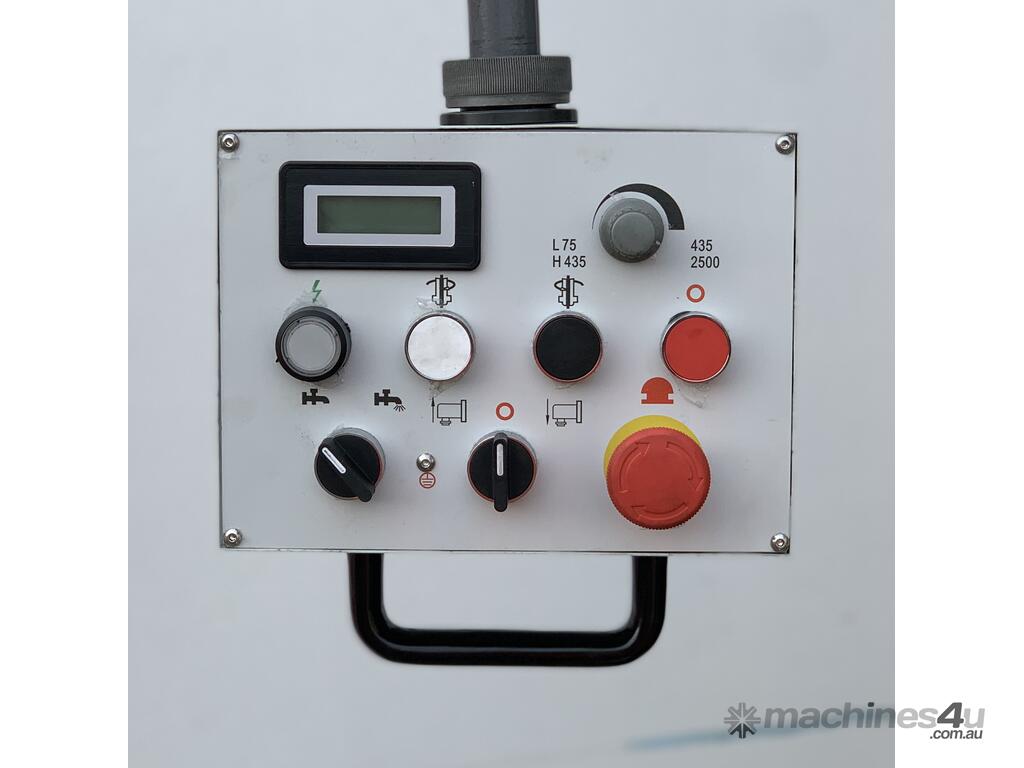

?forward and reverse operation
?adjustable depth stop
?digital depth display with zero position
?ideal workshop drill for all applications
?heavy duty tapered roller bearing spindle offering stability and long life
?positive spindle lock standard
?perspex safety guard
?gear drive with low noise

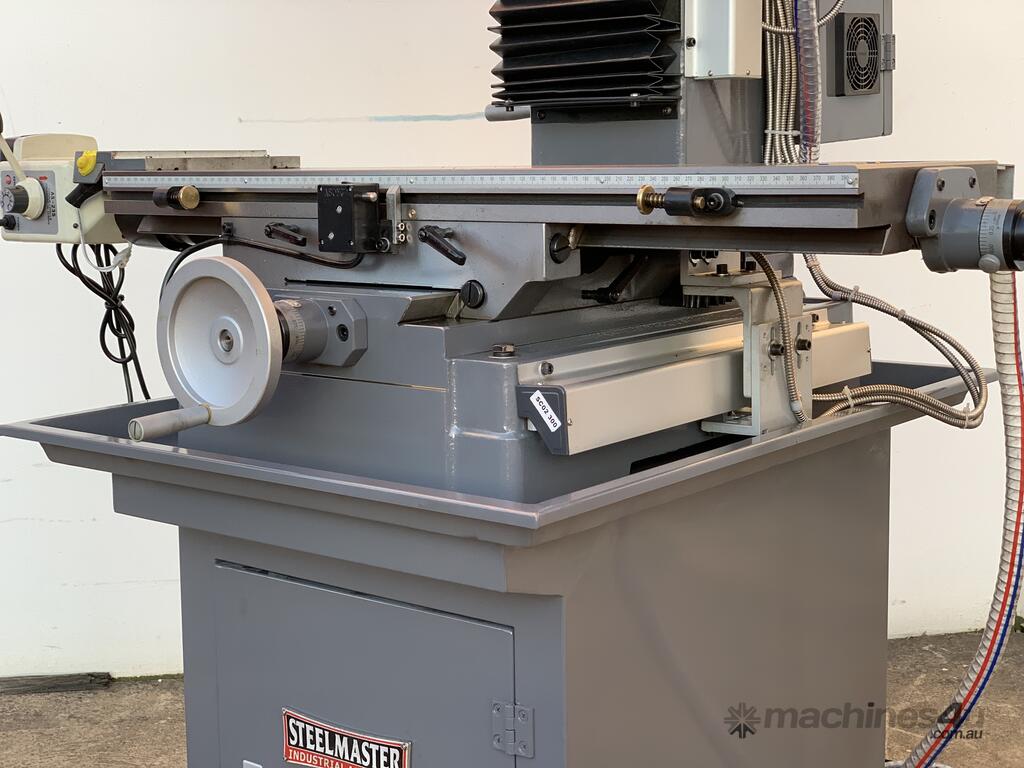

?heavy duty stand with coolant tray
?coolant system supplied standard
?LED work light fitted
?240 Volt operation
? CE compliant

Technical Data Snap-Shot
?820mm x 240mm tee slotted work table

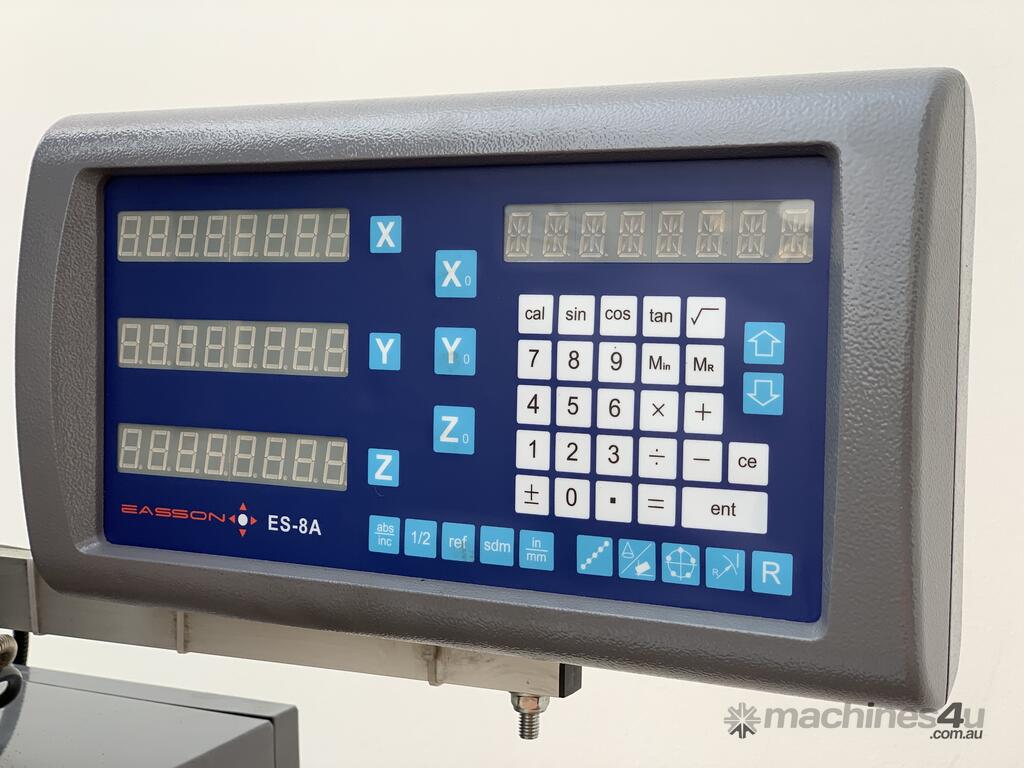

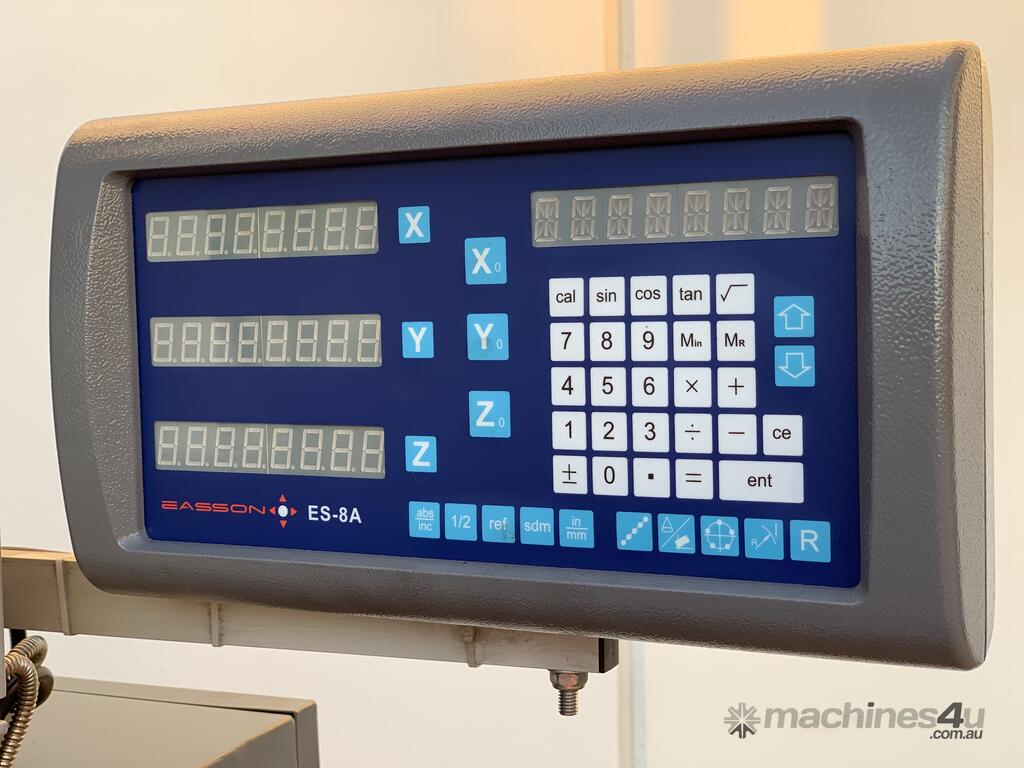

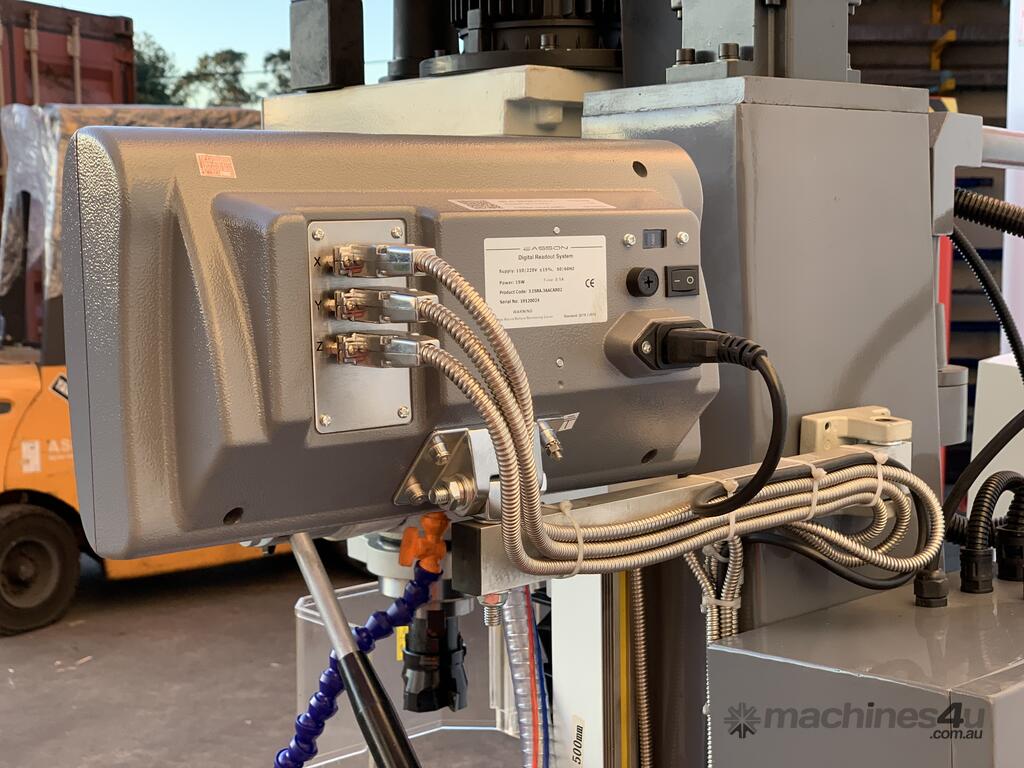

?New Easson ES-8A 3 axis digital read out
?travel (x,y,z) 560mm, 190mm, 420mm
?ISO 30 taper spindle

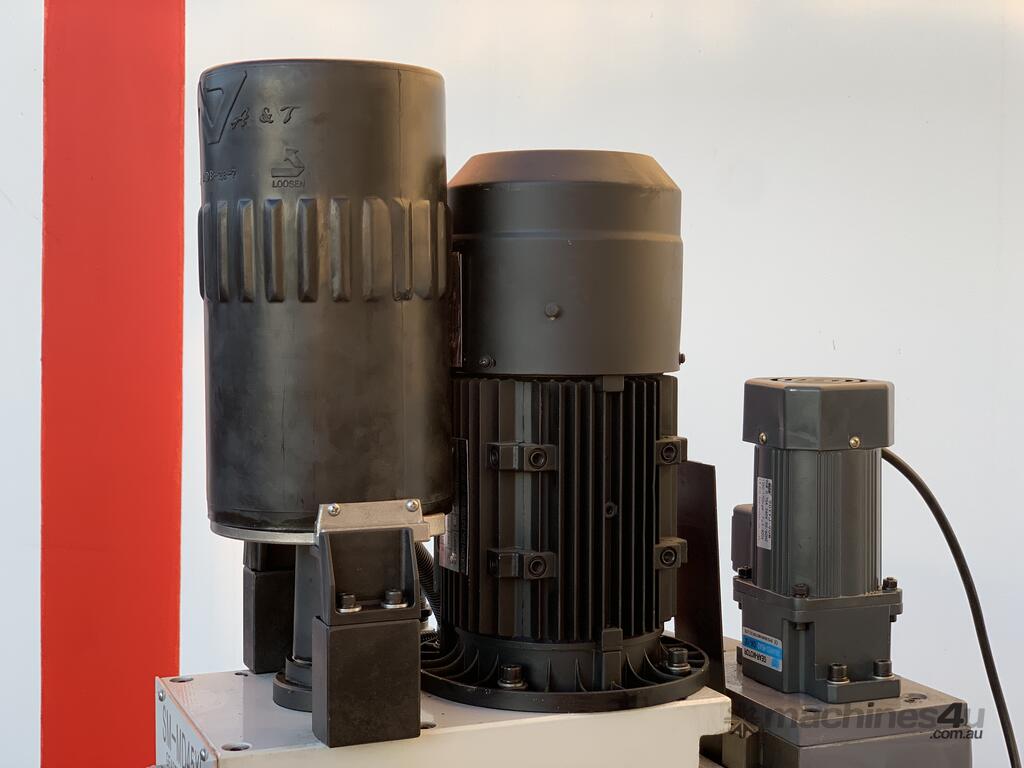

?Power Operated drawbar
?95mm spindle diameter
?490mm spindle to table
?273mm throat depth

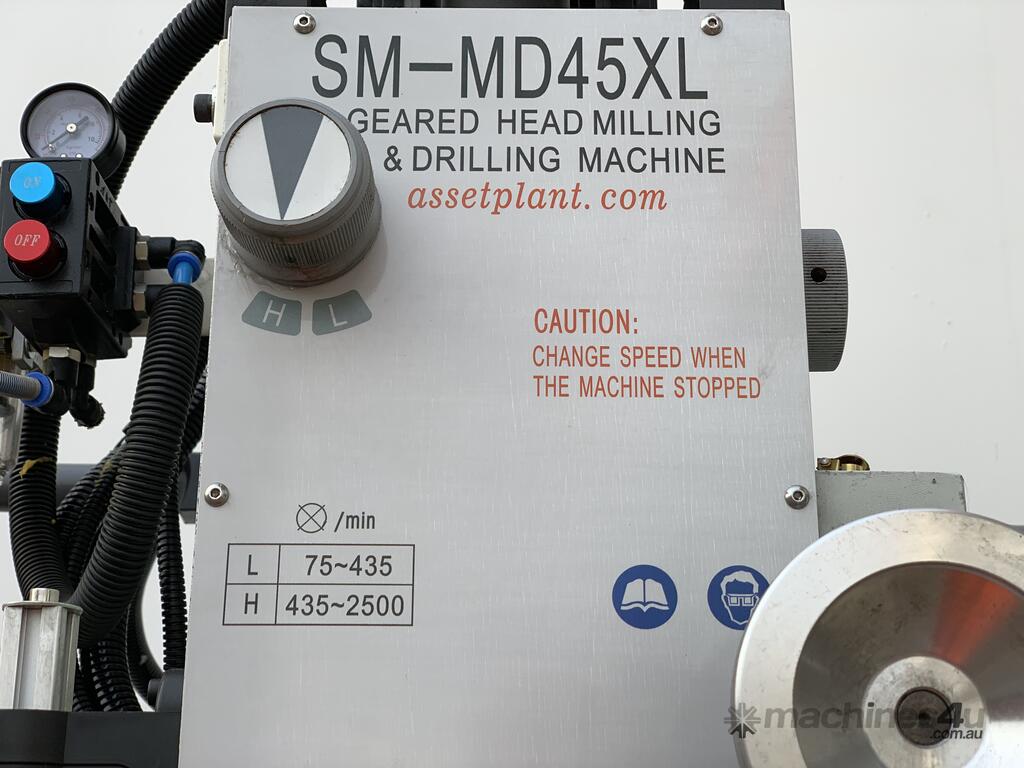

?speeds range - 75 ~ 2500
?motor capacity - 1.5Kw x 240Volt
?machine dimensions - 850mm x 780mm x 1650mm
?shipping dimensions - 930mm x 1240mm x 2100mm
?approx weight: 470kg
?same machine builder at Grizzly model G0755

Recommended Add On Accessories
?30+0112 – Heavy Duty Stand With Drip Tray & Lockable Cabinet
?13+0126 - Industrial Series Clamping Kit - 58 Piece - 14mm T-Slot, M12 Thread.
?13+0113 - Machine Vice Swivel Base - 125mm Jaw Width. 100mm Jaw Opening.
?13+0141 - ER32 Collet Set 4MT - 6 Piece Quick Change System.
?13+0153 - End Mill & Slot Drill Set: 20 Piece 2 & 4 Flute. Quality Cutters.
?13+0165 - Boring Headset - MT4, 50mm Cutter Dia. 10 Piece Set Complete with Shank.
?13+0061 - Semi Universal Dividing Head BS-0-4C, Comes With 3 & 4 Jaw 100mm Dia. Chucks & Tailstock
?50+0158 - Magnetic Base & Dial Indicator Combo: Adhesion 620 N.
?50+0121 - Measuring Tool Set. 5 Piece, Vernier, Micrometer, Square, Depth Gauge & Steel Edge.
?15+0187 - Coolant Mineral Based XDP-1000 5Lt Drum Metalium - Soluble - 20:1 Mix
