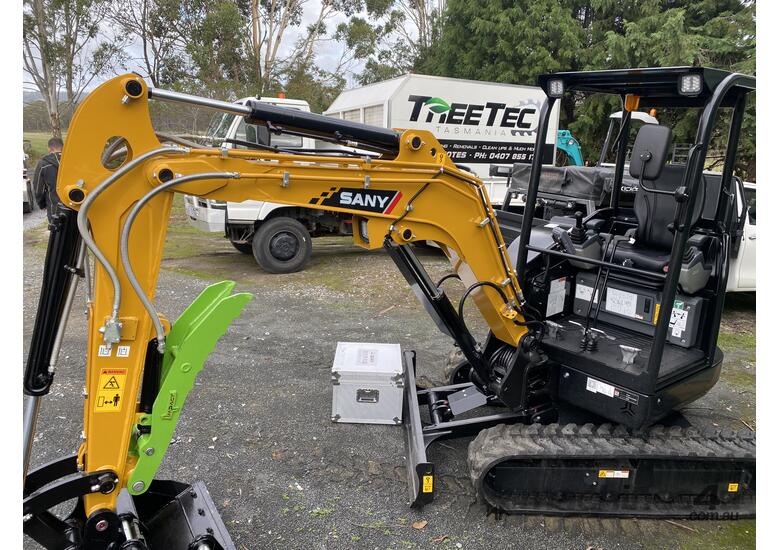

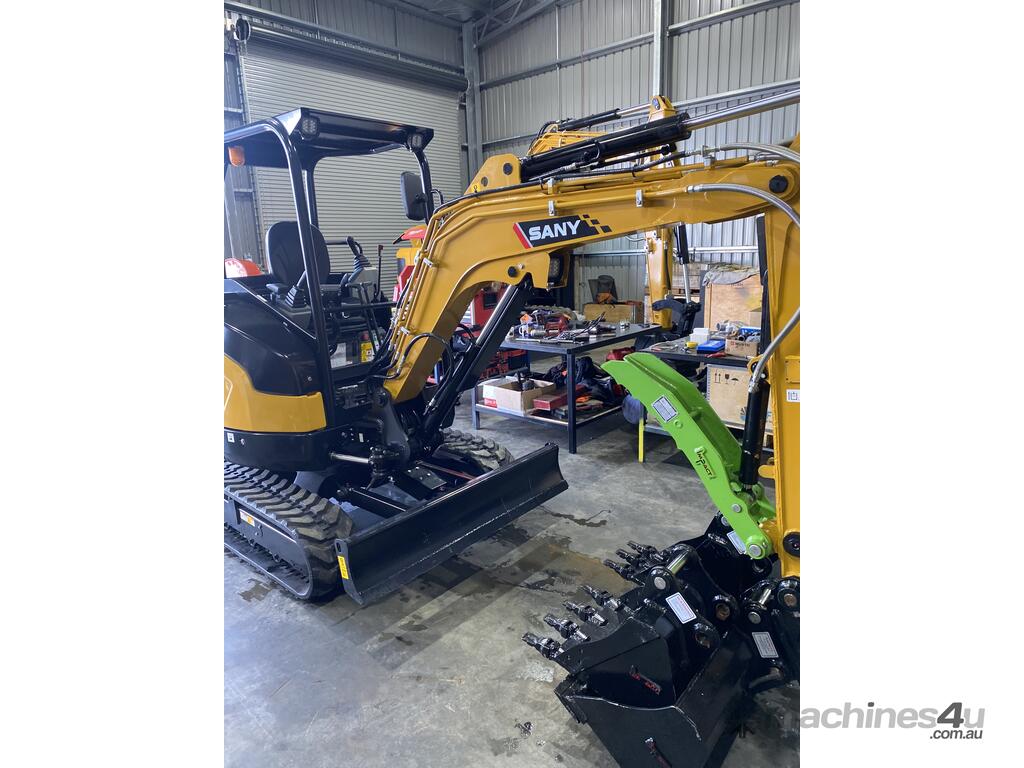

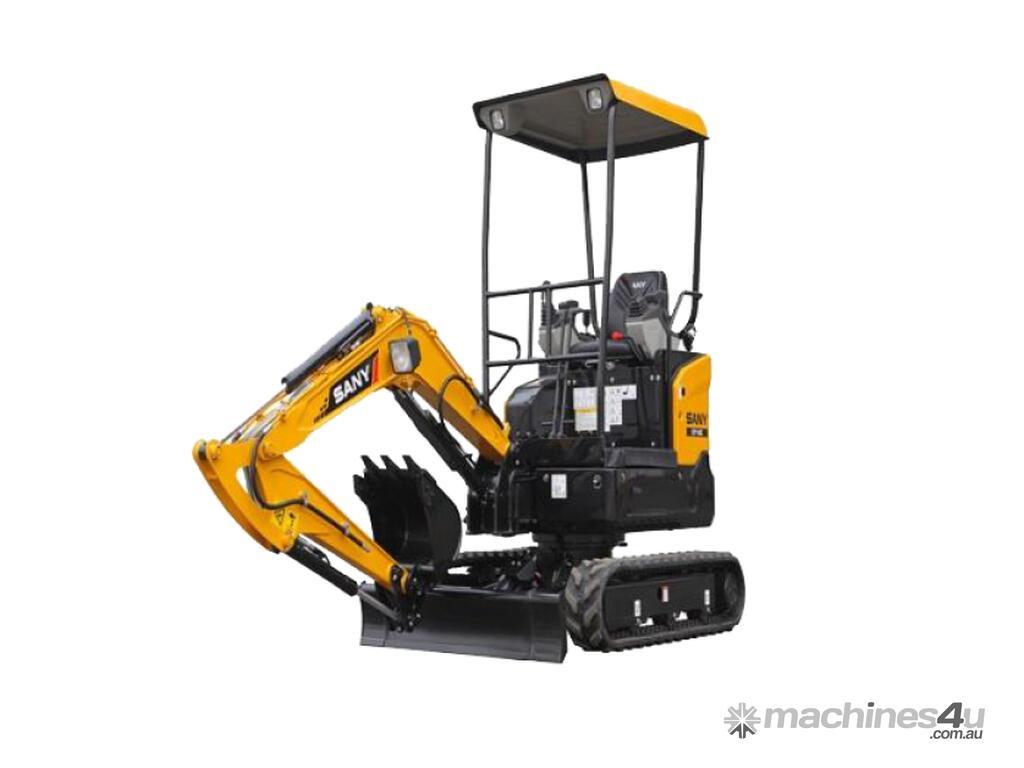

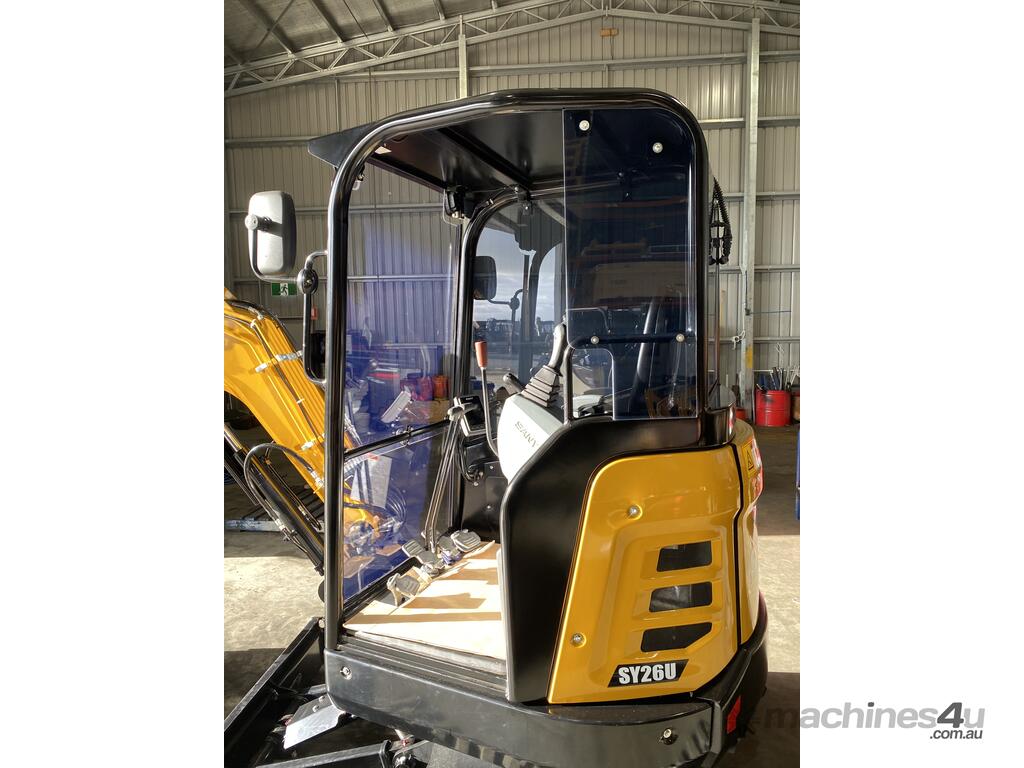

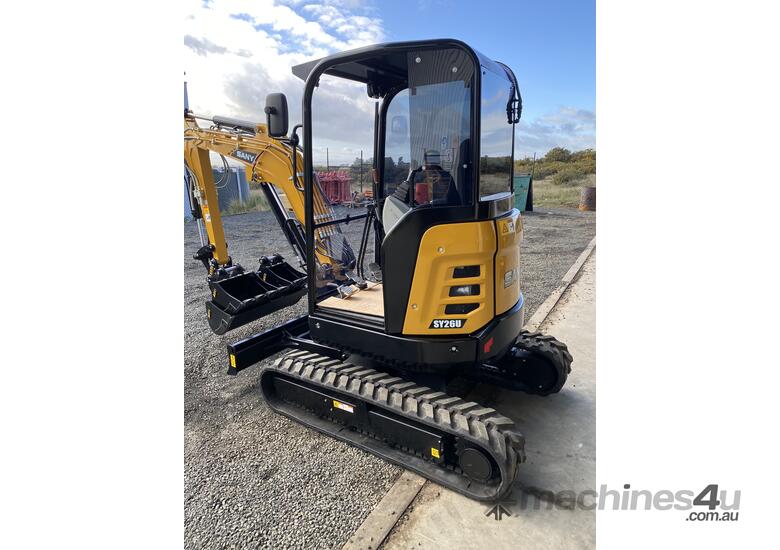

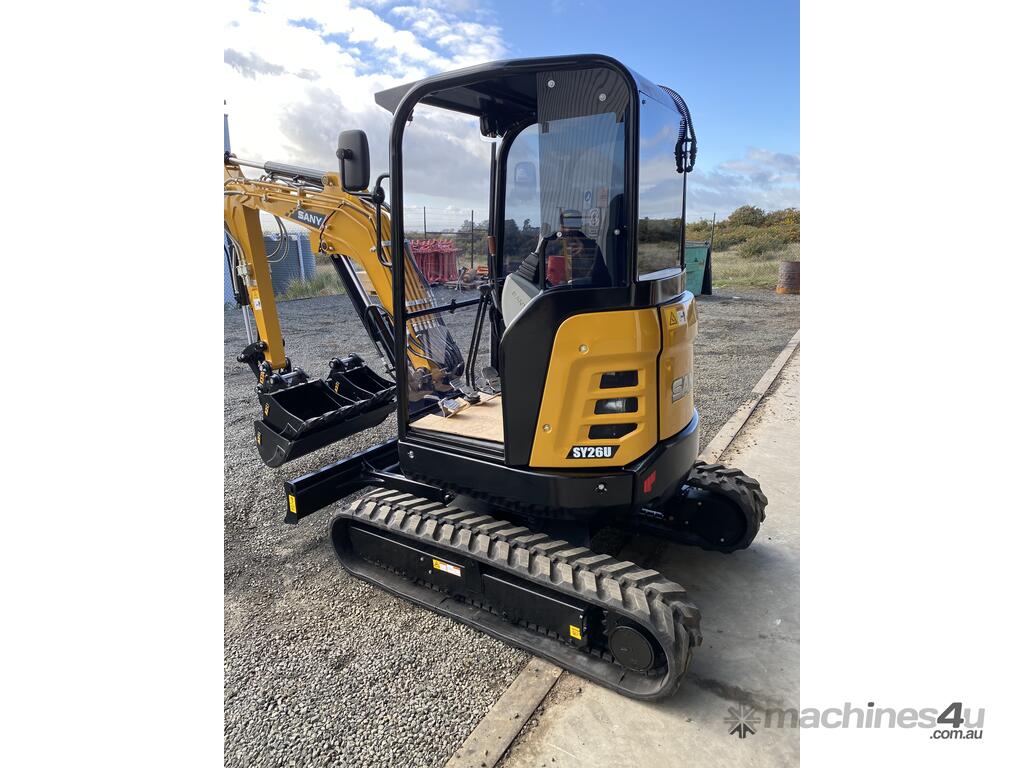

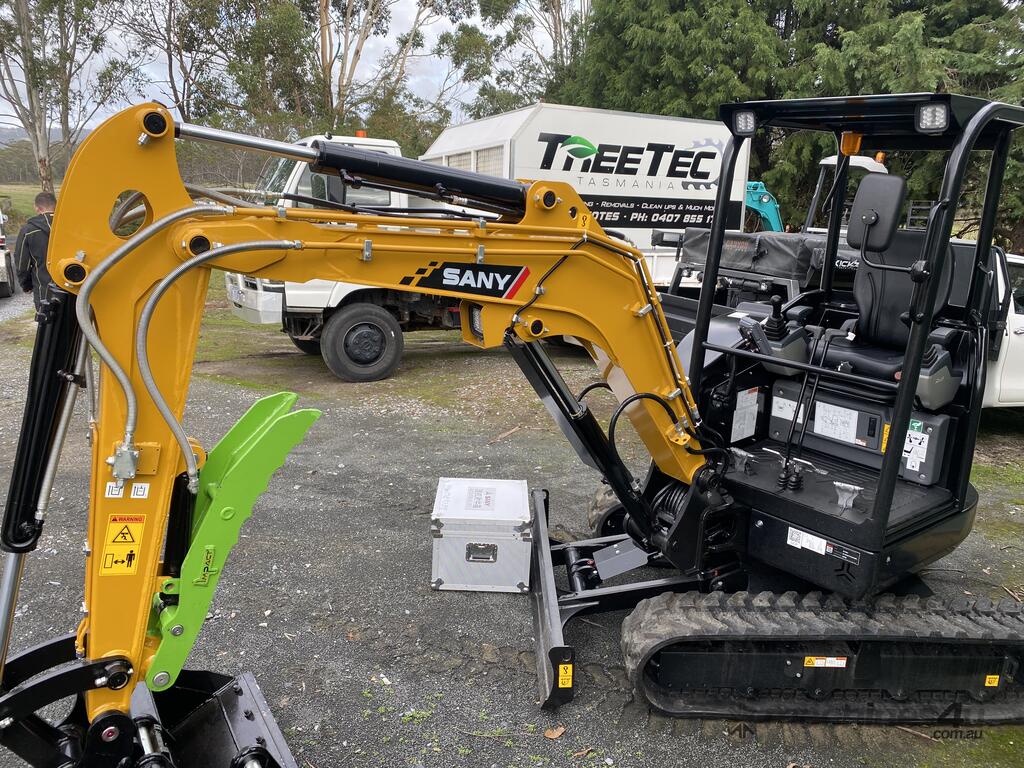

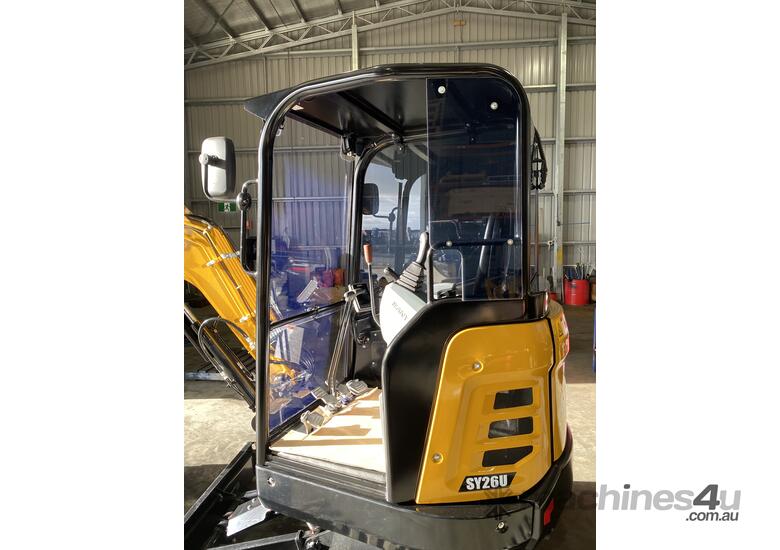

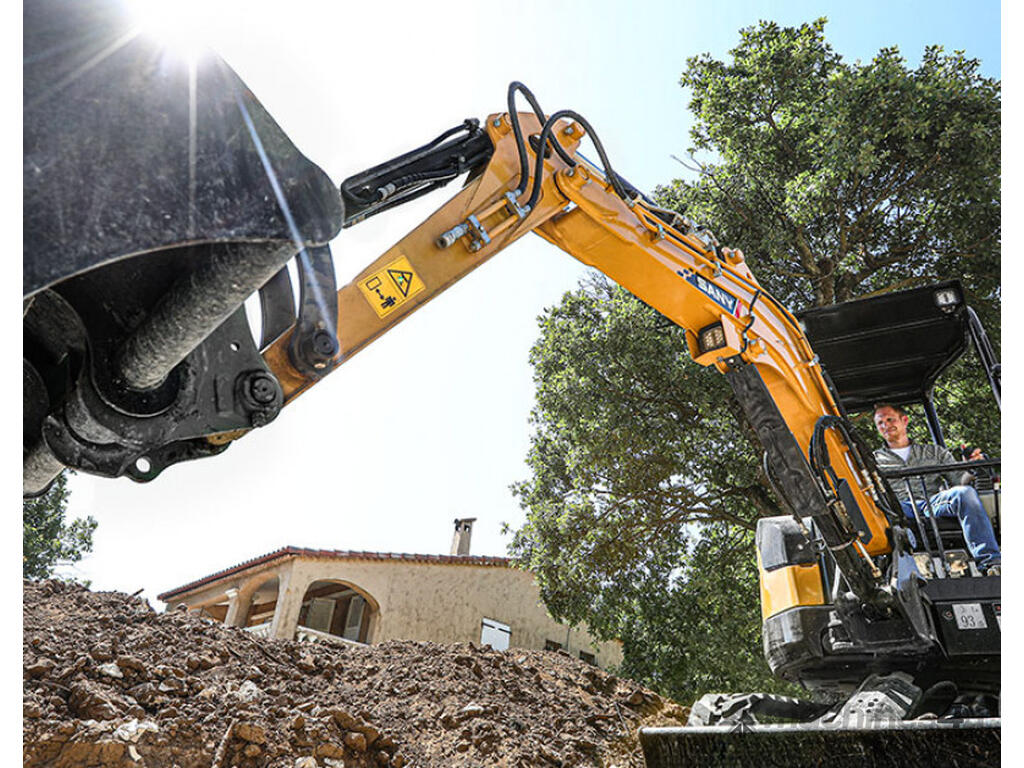

The SY26U is designed to be your go-to in any small-scale construction endeavour. With a powerful engine and exceptional durability, it delivers outstanding performance, complemented by precise response characteristics of its components facilitated by an advanced hydraulic system. Offering a compelling combination of power and endurance at a fair price, the SY26U is the epitome of cost-effectiveness.

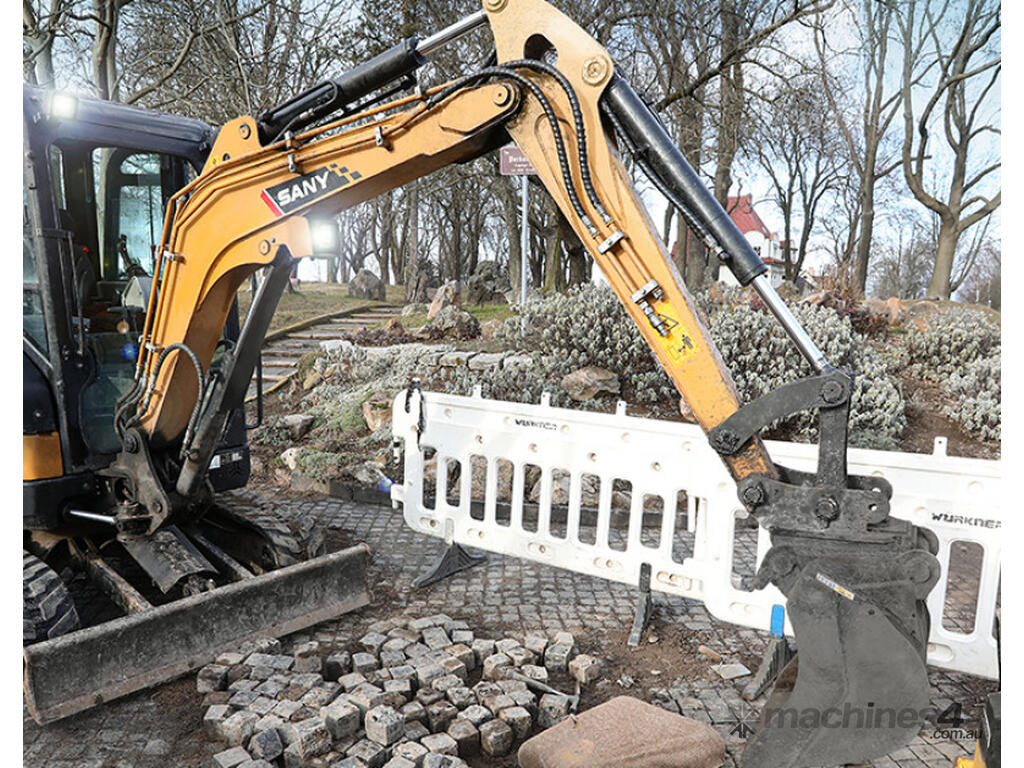

Whether you're tackling intricate tasks on construction sites in urban areas, working in horticulture, or engaging in landscaping projects, the SY26U stands out with its unparalleled maneuverability and precise control. This excavator is a high-quality powerhouse, providing you with the reliability you need to excel in your projects.
ENGINE
Displacement 1.267L
Engine model Yanmar Tier 5
Rated power 15.2kW/2500rpm
OPERATION RANGE
Height at min. swing radius 3200mm
Max. depth of blade down 330mm
Max. digging depth 2820mm
Max. digging height 4410mm
Max. digging reach 4850mm
Max. dumping height 3100mm
Max. excavating distance 4850mm
Max. ground clearance of blade up 360mm
Max. vertical digging depth 2585mm
Min. swing radius 2110mm
Operating weight 2780kg
DIMENSIONS
Blade height 300mm
Cab height
Min. ground clearance 290mm
Tail swing radius 775mm
Track length 1960mm
Transport height 1620mm
Transport length 4285mm
Transport width 1550mm
Upper width 1375mm
UNDERCARRIAGE/WORKING DEVICE
Arm length 1300mm
Boom length 2100mm
Bucket capacity
Roller gauge
Track gauge 1250mm
Track width 300mm
PERFORMANCE
Arm digging force 14.2kN
Bucket digging force 24.3kN
Cooling system 4.1 L
Engine oil 3.4L
Fuel tank capacity 34.0L
Gradeability 35 degrees
Ground pressure 25.5kPa
Hydraulic tank capacity 30
Swing speed 10RPM
Travel speed 2.4/4.5 KM/H
HYDRAULIC SYSTEM
Hydraulic motors - swing 10RPM
Hydraulic motors - travel 2.4/4.5km/hr
Main pump - maximum flow 72 L/min
