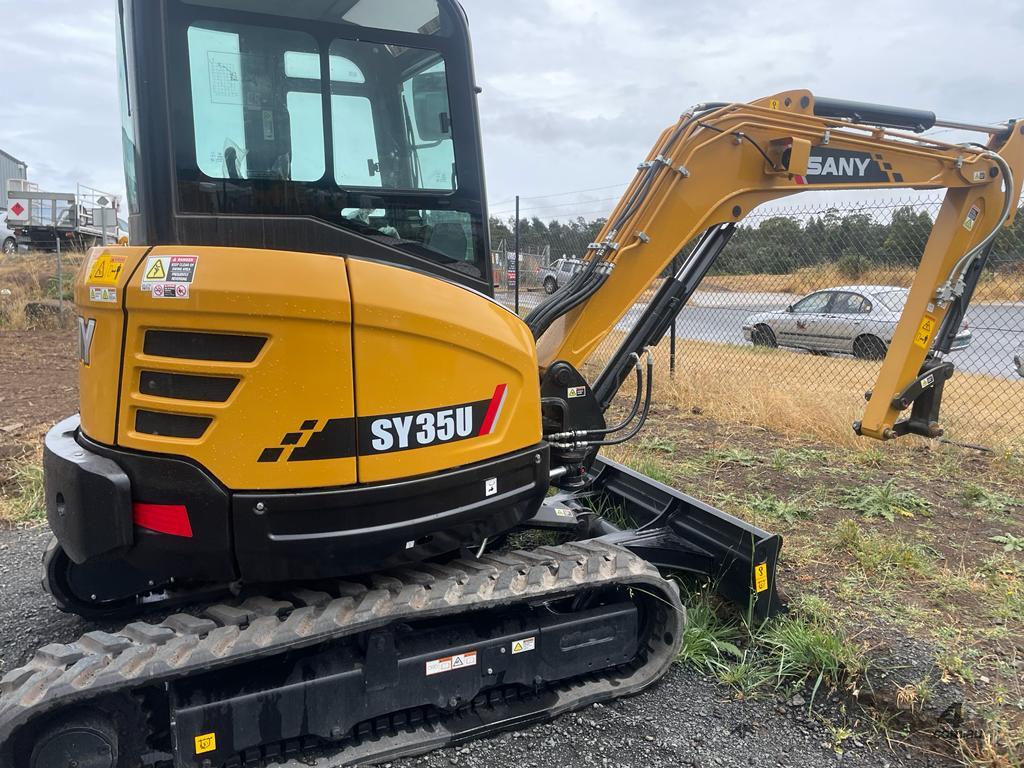

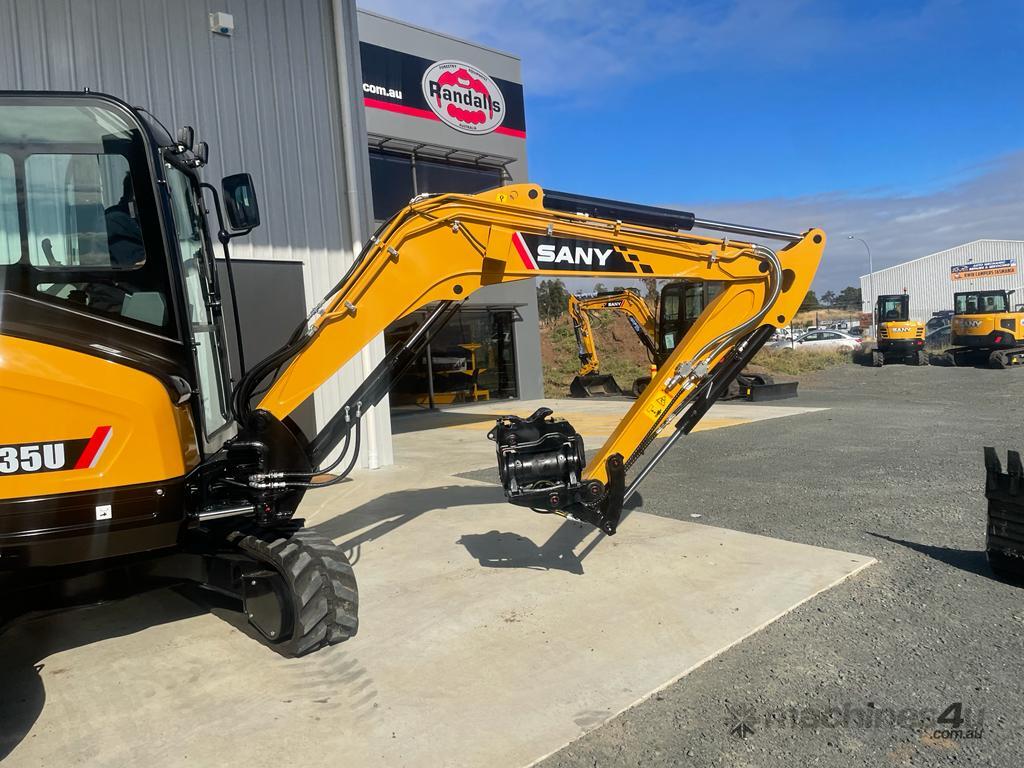

New Sany Excavator for sale - New Sany Sy35U

ENGINE
Displacement 1.6L
Engine model Yanmar Tier 5
Rated power 18.2/2200 kW/rmp

OPERATION RANGE
Height at min. swing radius 3685mm
Max. depth of blade down
Max. digging depth 3105mm
Max. digging height 4855mm
Max. digging reach 5465mm
Max. dumping height 3460mm
Max. excavating distance 5465mm
Max. ground clearance of blade up
Max. vertical digging depth 2700mm
Min. swing radius 2475mm
Operating weight 3680kg

DIMENSIONS
Blade height 350mm
Cab height
Min. ground clearance 295mm
Tail swing radius 1670mm
Track length 1420mm
Transport height 2515mm
Transport length 4915mm
Transport width 1720mm
Upper width 1550mm

UNDERCARRIAGE/WORKING DEVICE
Arm length 1400mm
Boom length 2540mm
Bucket capacity 0.12m³
Roller gauge 1670mm
Track gauge 1420mm
Track width 300mm

PERFORMANCE
Arm digging force 18.2kN
Bucket digging force 30.4kN
Cooling system 6.5L
Engine oil 6.7L
Fuel tank capacity 40L
Gradeability 35 degrees
Ground pressure
Hydraulic tank capacity 40L
Swing speed 9rpm
Travel speed 4.4/2.4 km/h

HYDRAULIC SYSTEM
Hydraulic motors - swing 9RPM
Hydraulic motors - travel 2.4/4.4 km/h
Main pump - maximum flow 88lpm
