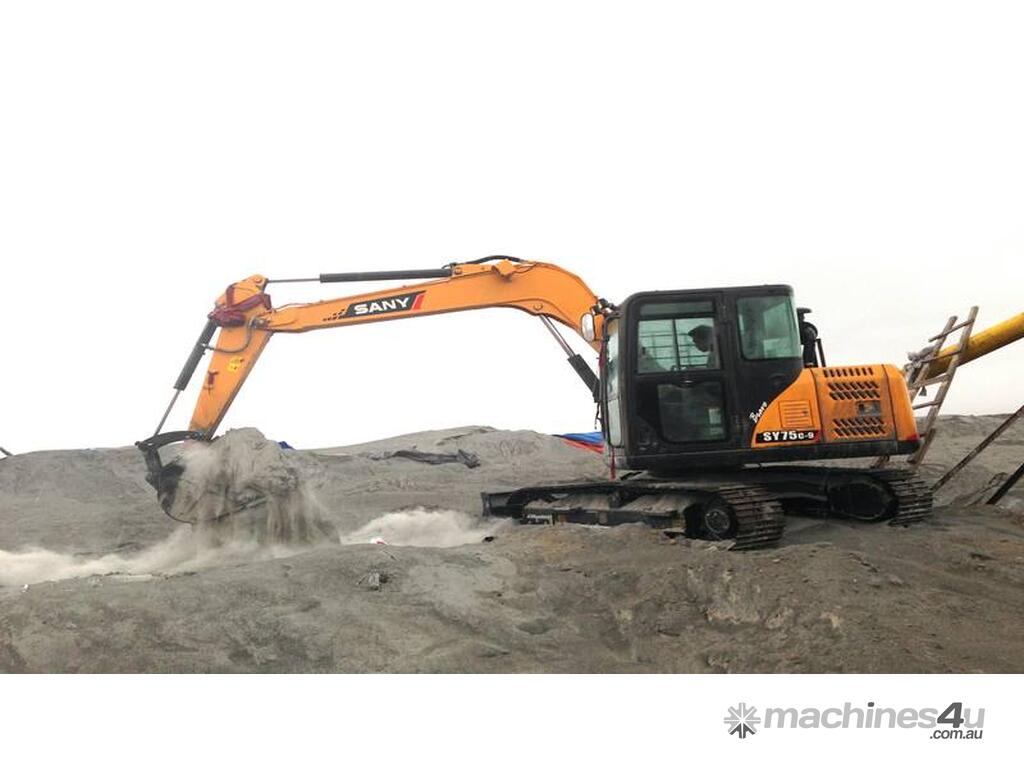

New Sany Sy75C excavator

SY75C small excavator is designed with high engine output power, fast speed and high fuel efficiency, suitable for demanding jobsites.

ENGINE
Displacement 2.2L
Engine model ISUZU Tier 4
Rated power 43kW/2000rpm

OPERATION RANGE
Height at min. swing radius 5500 mm
Max. depth of blade down 330 mm
Max. digging depth 4450 mm
Max. digging height 7390 mm
Max. digging reach 6600 mm
Max. dumping height 5490 mm
Max. excavating distance
Max. ground clearance of blade up 380mm
Max. vertical digging depth 3840 mm
Min. swing radius 1940 mm
Operating weight 7280kg

DIMENSIONS
Blade height 405 mm
Cab height
Min. ground clearance
Tail swing radius 1800 mm
Track length 2820mm
Transport height 2760 mm
Transport length 6095 mm
Transport width 2220 mm
Upper width 2040 mm

UNDERCARRIAGE/WORKING DEVICE
Arm length 2050 mm
Boom length 3720 mm
Bucket capacity 0.28m³
Roller gauge
Track gauge 1750 mm
Track width 450 mm

PERFORMANCE
Arm digging force 30kN
Bucket digging force 51kN
Cooling system
Engine oil 10 L
Fuel tank capacity 150 L
Gradeability 35°
Ground pressure 33kPa
Hydraulic tank capacity 120 L
Swing speed 10rpm
Travel speed 4.4/2.4(km/h)

HYDRAULIC SYSTEM
Hydraulic motors - swing 10.5 rpm
Hydraulic motors - travel
Main pump - maximum flow
