New Wacker Neuson 803 Dual Power Excavator

803 dual power - 1 excavator, 2 drives

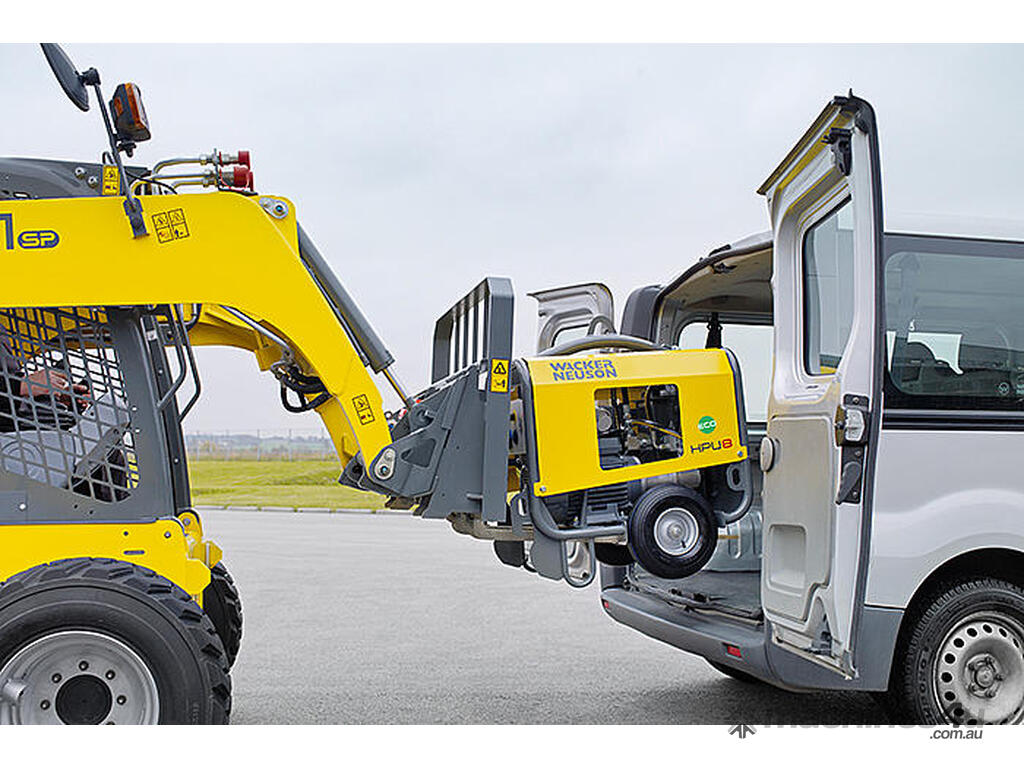

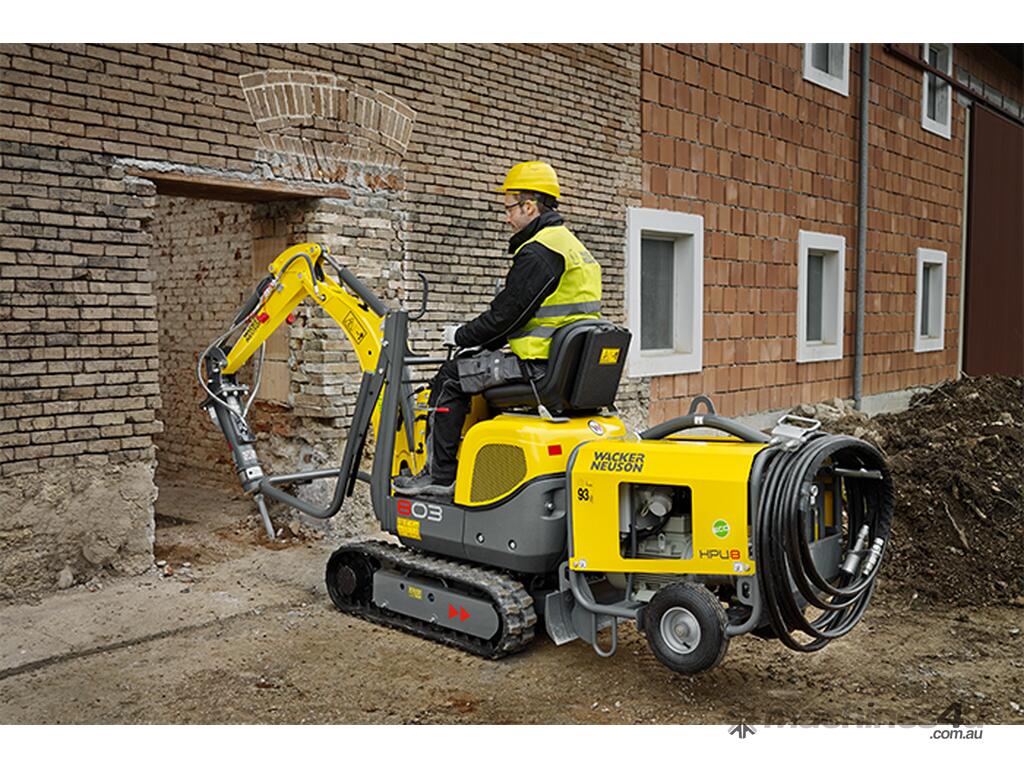

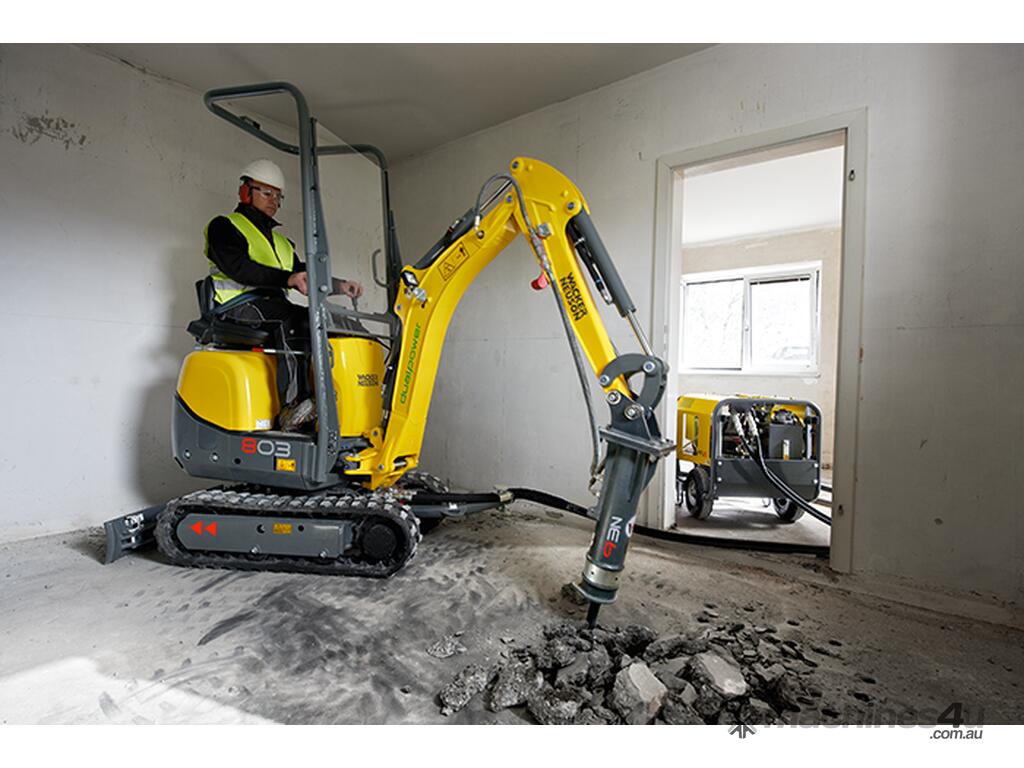

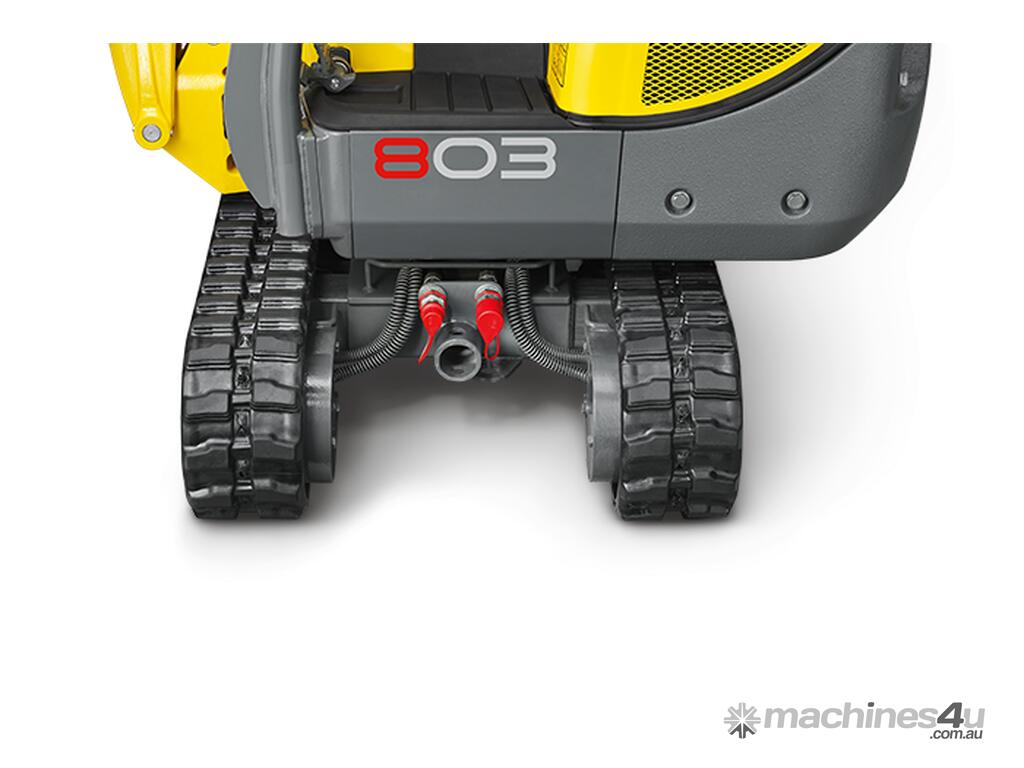

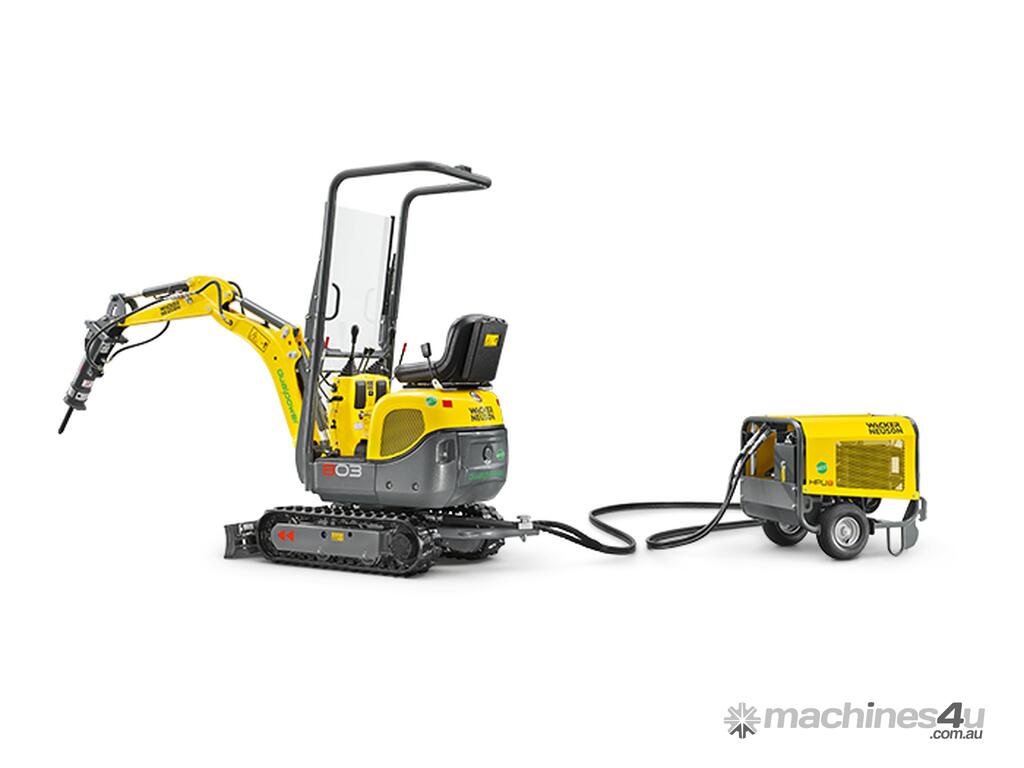

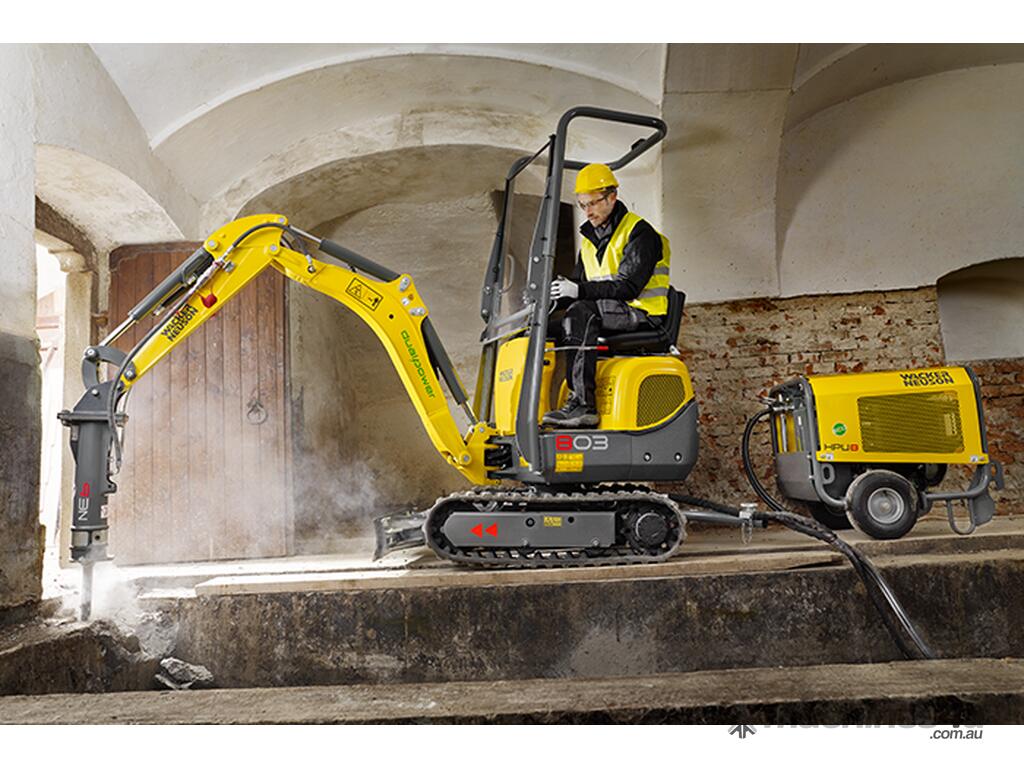

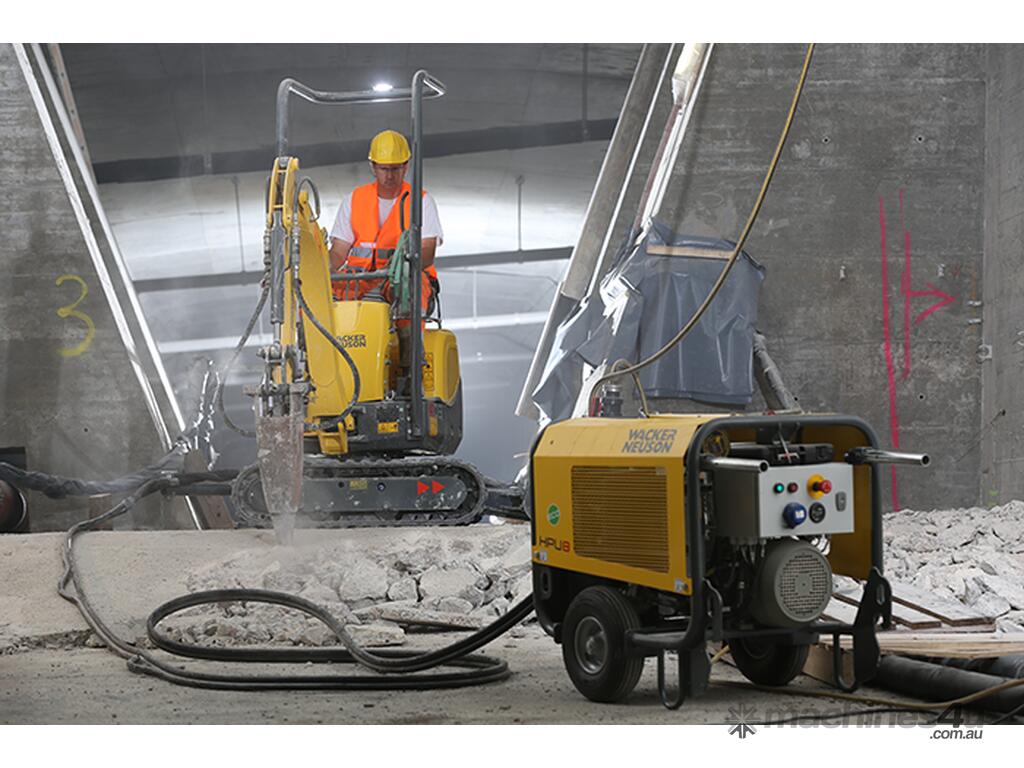

Wacker Neuson dual power is the innovative solution for an emission-free auxiliary drive. In addition to the integrated diesel engine, the electro-hydraulic unit HPU8 can be connected to the 803 compact excavator if necessary. The HPU8 is technically tailor-made to the requirements of the excavator 803. In this way, the excavator can be operated electrically and emission-free if necessary. The handling is easy: The generator is connected to the undercarriage via Plug & Play – done.

Warranty: 5 year/5000hr Covered by Wacker Neuson Australia.

Dimensions:
Engine: Yanmar 3TNV70 3 cylinder Diesel
Hydraulics: 2 gear pumps
Max flow rate: 10.7 l/min
Width: 730mm,
Length: 2828mm,
Height: 2261mm ROPS Folded 1427mm,
Weight: 1029-1089kg,
Max. Digging Depth: 1763mm,
Dump Height : 2012-2035mm

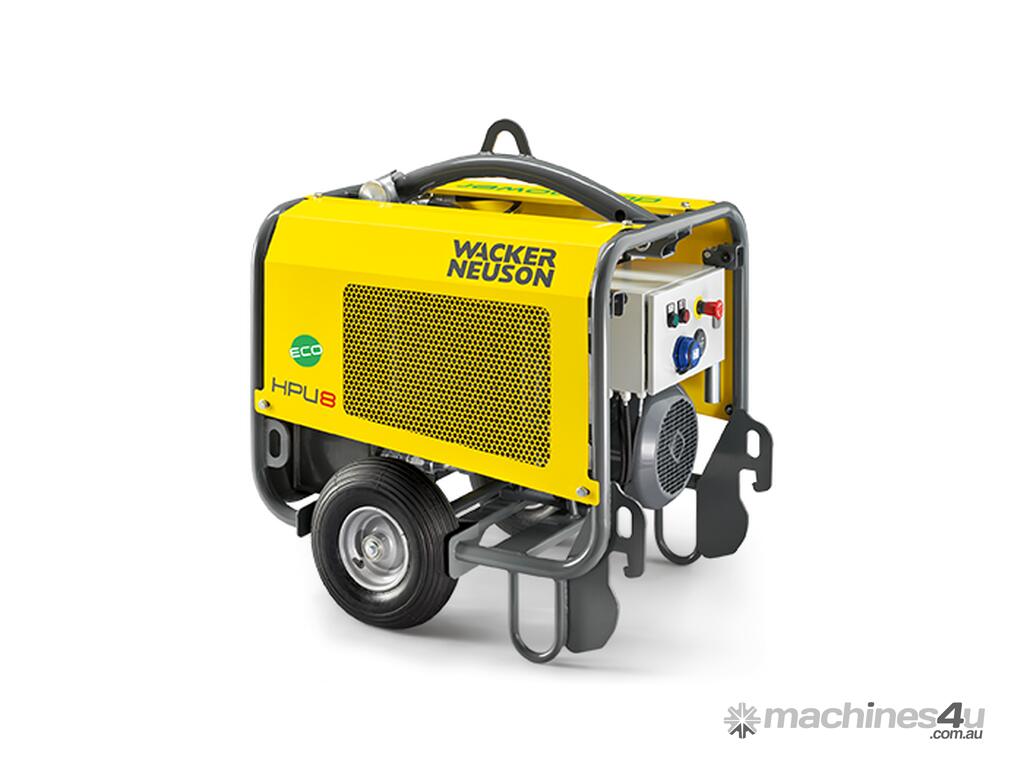

Electro-hydraulic unit HPU 8

Engine / Motor: 3-phase electric motor
Engine performance: 7.5kW
Voltage: 400v
Input current:16A
Frequency: 50Hz
Hydraulic system
Flow rate: 20 l/min
Operating pressure: 210 bar
Hydraulic oil tank: 9.6l
Hose 12m
