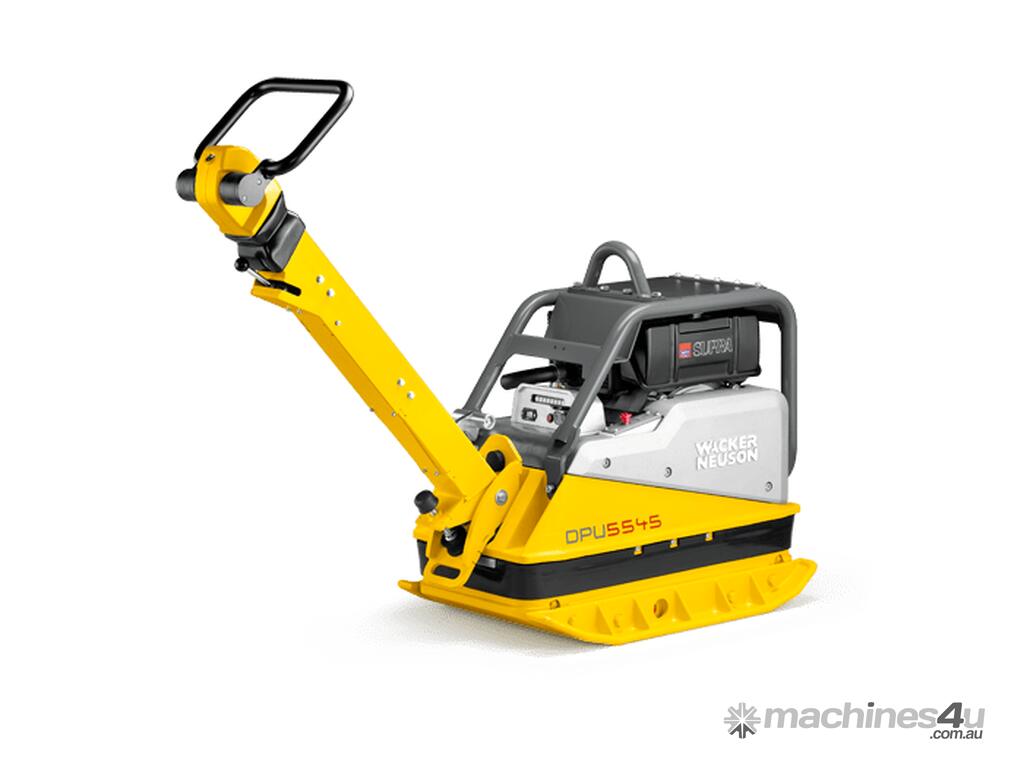

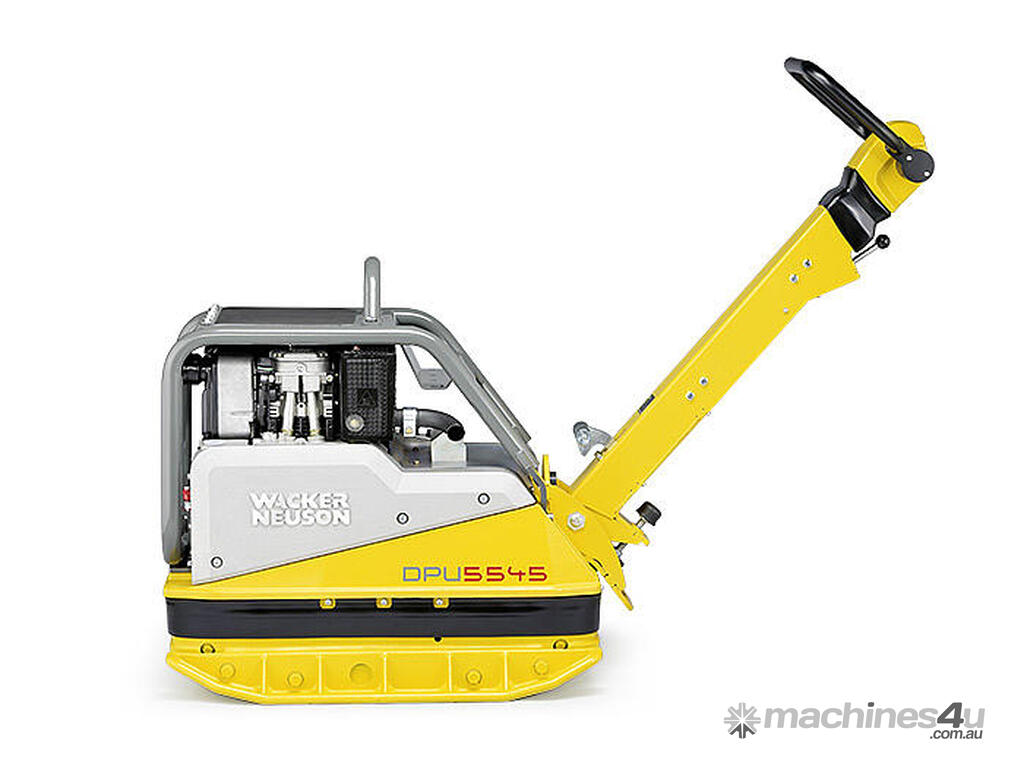

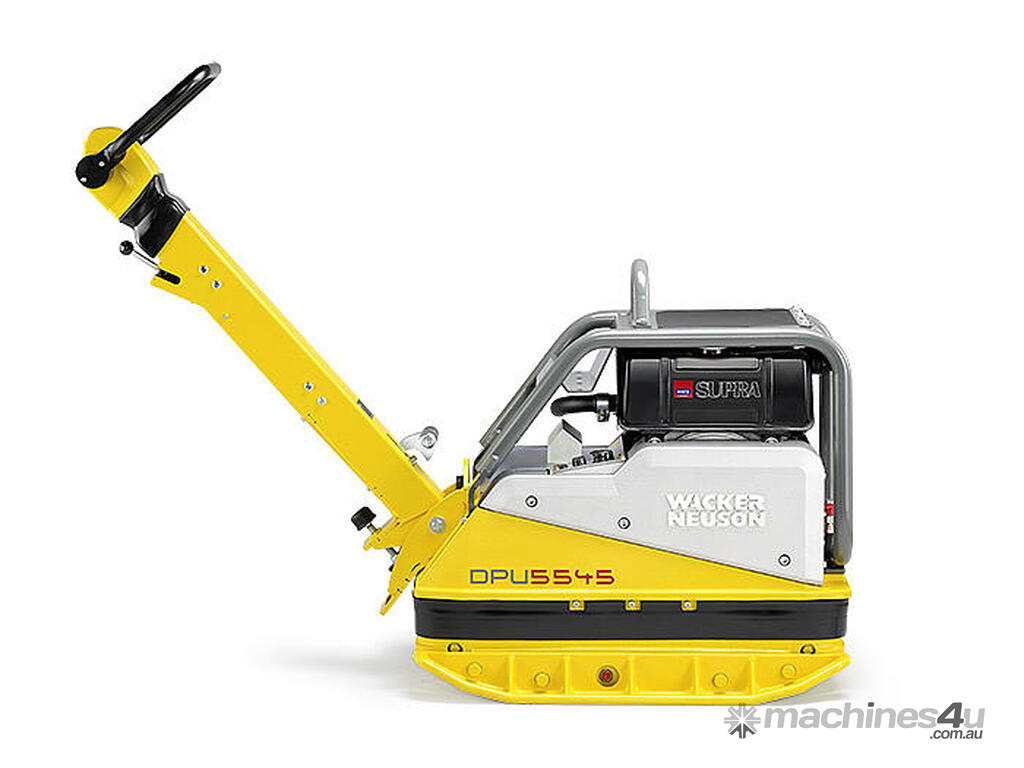

Thanks to its excellent compaction force combined with a quick forward and reverse travel direction, the DPU5545 offers a high level of productivity. It is equipped with a Yanmar diesel engine and is an all-rounder for all job sites where high demands are placed on the performance efficiency of a unit. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and subbases in street, path and parking lot construction as well as backfilling buildings. Thanks to a frequency of 69 Hz, the DPU5545 is universally applicable and even reliably compacts medium-weight interlocking paving stones.
The new center pole reduces hand-arm vibration (HAV) to a minimum and therefore offers a high level of operating comfort at full compaction performance. No restriction for the time of operation and no documentation effort.
A dead man function prevents the operator from being trapped between the equipment and an object when working in reverse.
All maintenance points are quickly and easily accessible. Extensive comfort functions: such as low oil shutdown, self-tightening V-belt, maintenance-free alternator, pull-out external jump-start connection that is accessible from outside.
A large dimensioned Hatz diesel engine offers sufficient power reserves and ensures for a high level of efficiency and long service life.

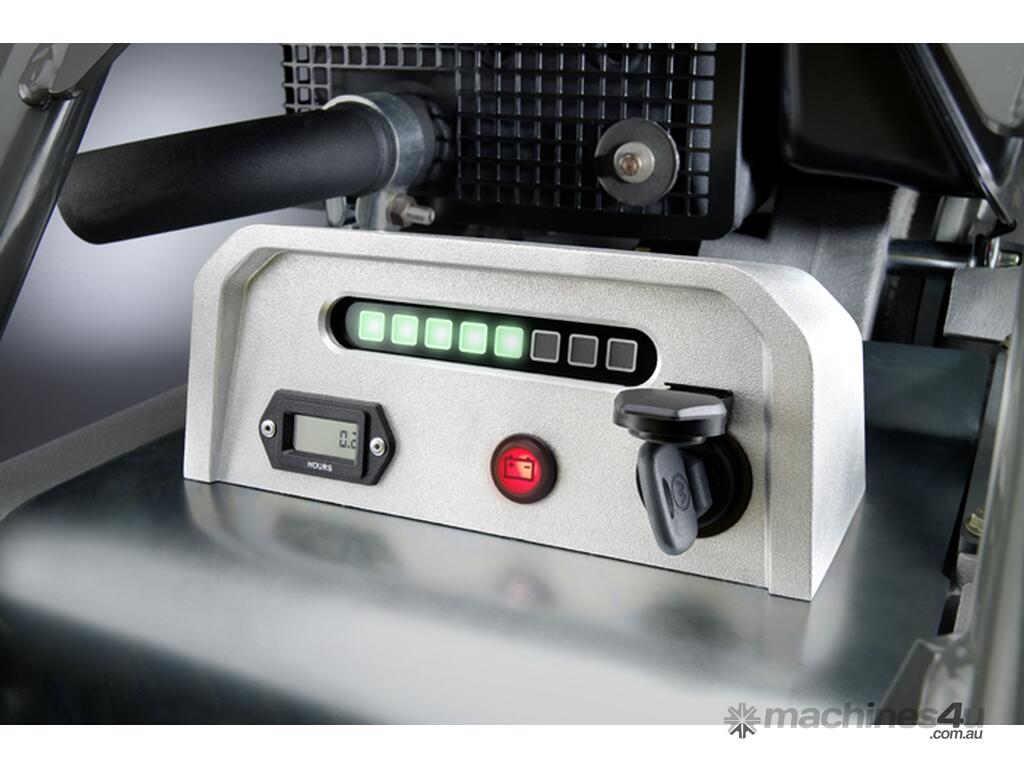

Compatec: Easy-to-read display of the relative compaction progress. Warning for overload and over-compaction. Brightness adjustment of the lights to the ambient light. Extremely sturdy and reliable.
Warranty: 5 year Covered by Wacker Neuson Australia
Operating weight - 424kg
Centrifugal force 55 kN
Base plate size (W x L) - 440 x 900 mm
Base plate thickness - 12 mm
Height (without centre pole) - 790 mm
Operating width (with extension plate) - 600 mm
Frequency - 69 Hz
Hand-arm vibrations - < 2.5 m/s²
Advance travel max. (dependent on soil and environmental impacts) - 27 m/min
Surface capacity max. (dependent on soil and environmental impacts) - 980 m²/h
Transport height - 1,514 mm
Transport length - 1,048 mm
Transport width - 780 mm
Engine - Hatz 1D42S Diesel
