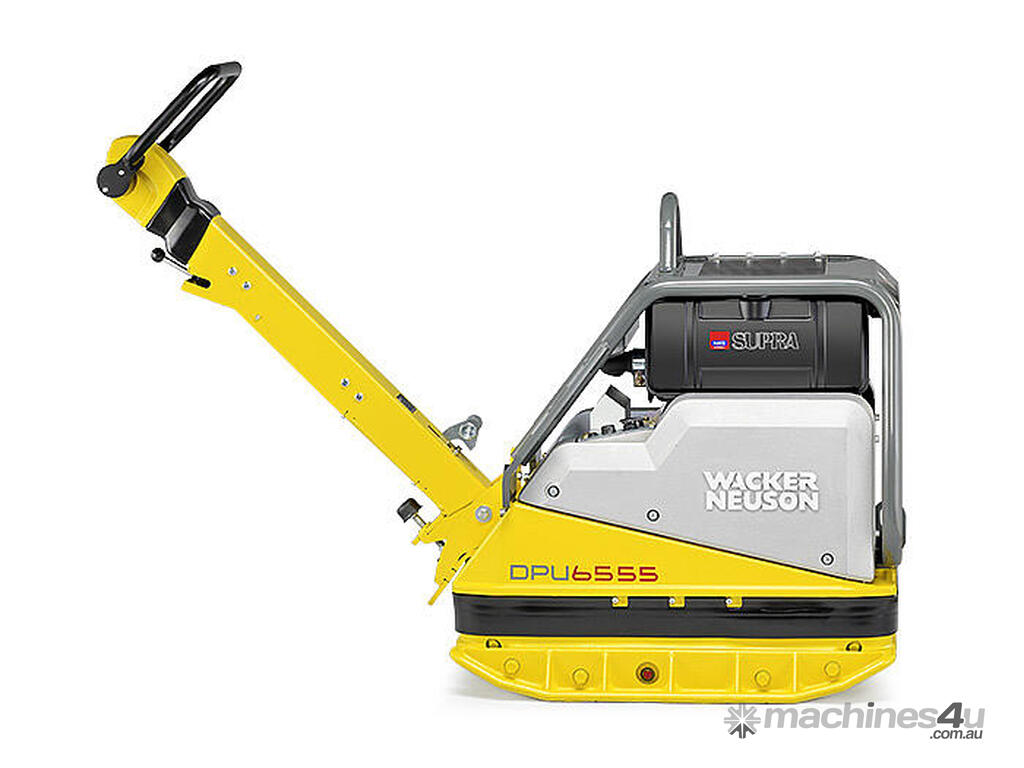

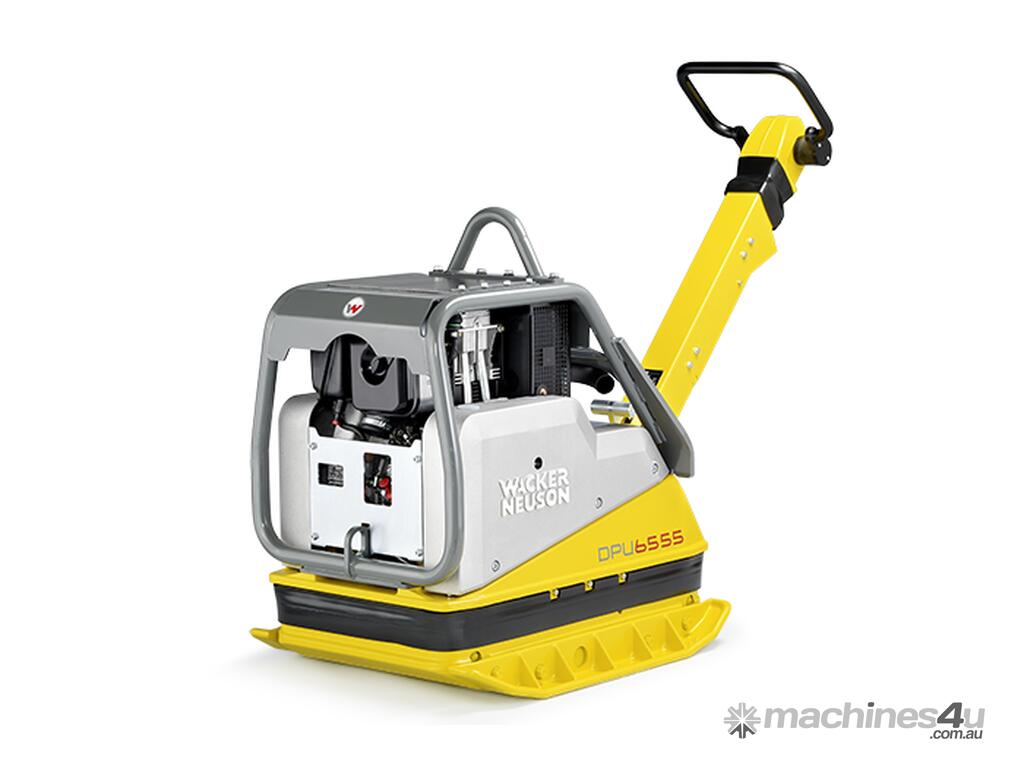

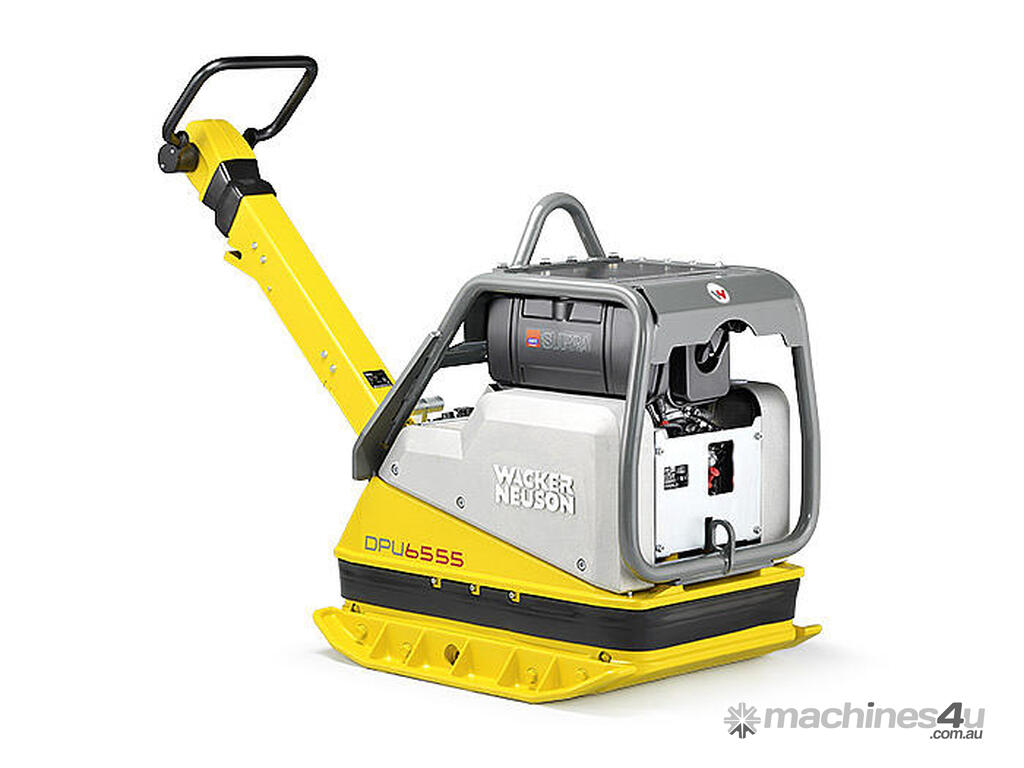

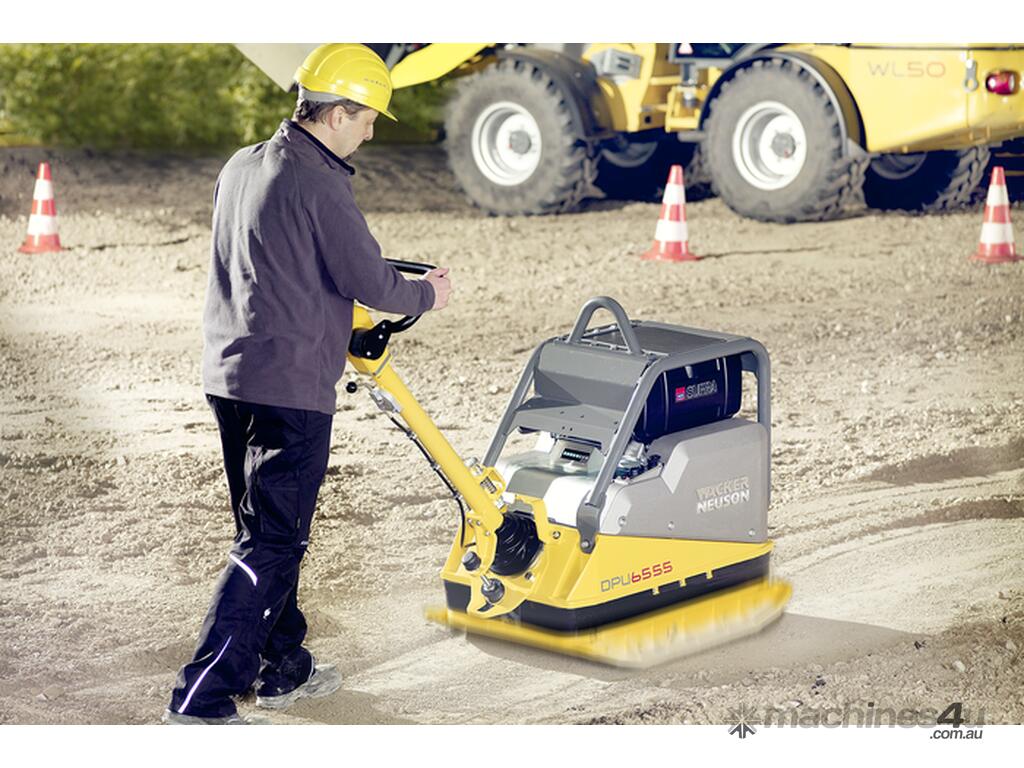

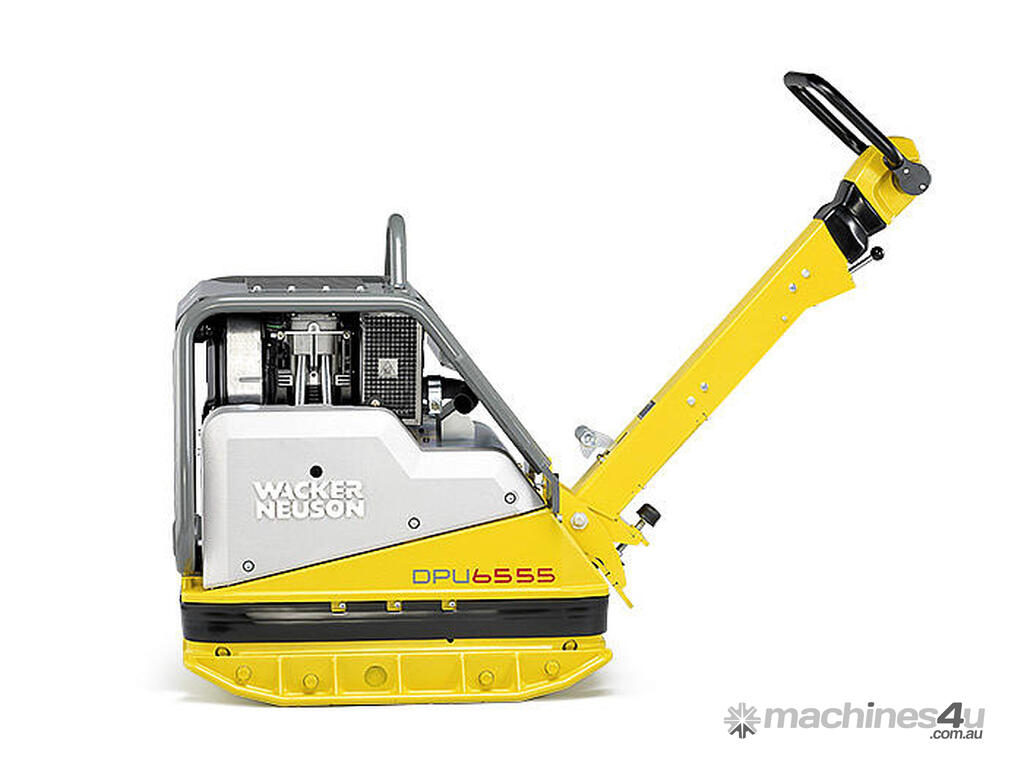

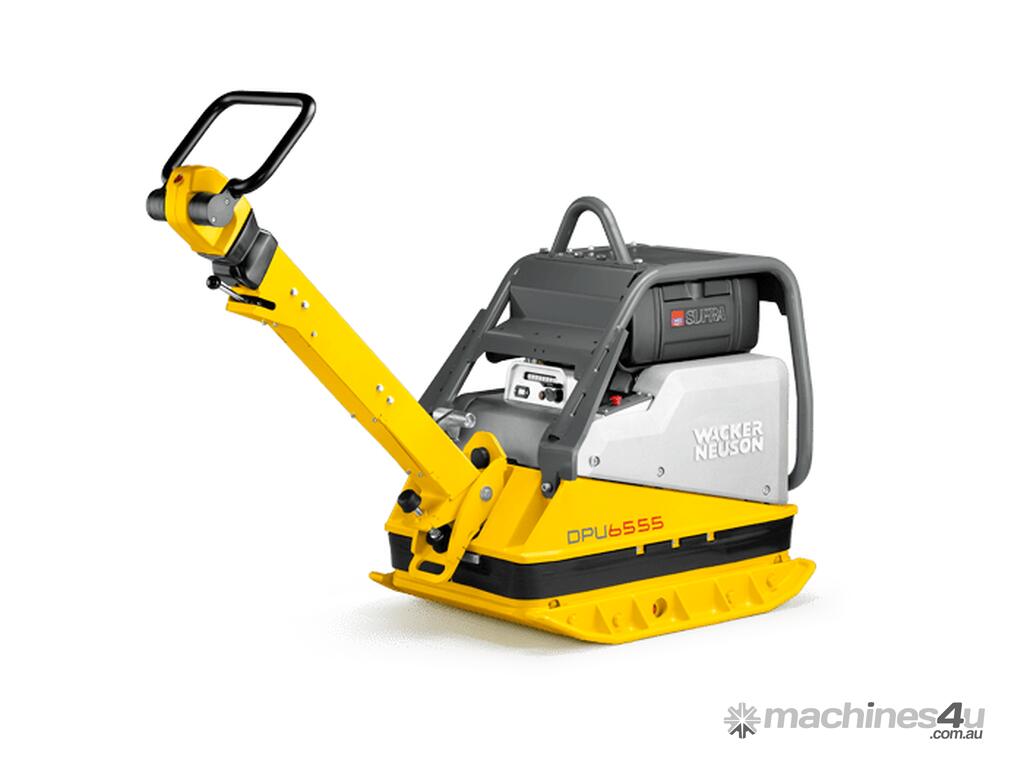

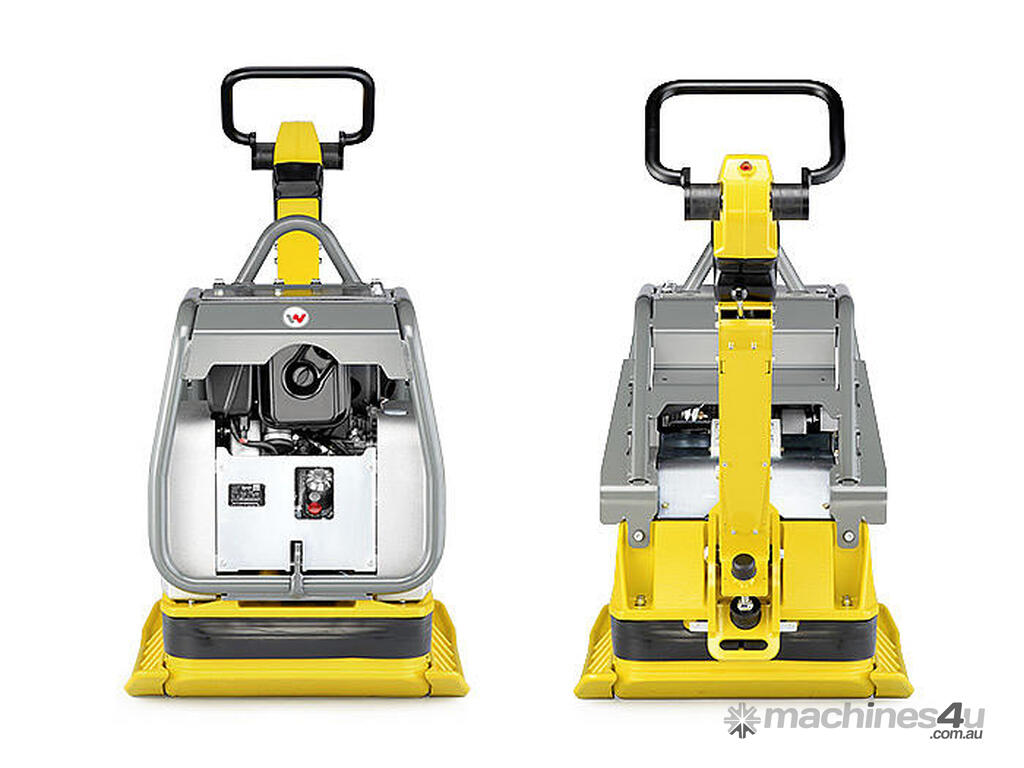

Thanks to its enormous compaction force combined with a quick forward and reverse travel, the DPU6555 offers an extremely high level of productivity. It is an all-rounder for all job sites where extreme demands are placed on the performance efficiency of a unit. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and base layers in street, path and parking lot construction as well as backfilling buildings. Thanks to a frequency of 69 Hz, the DPU6555 is universally applicable and even reliably compacts heavy interlocking paving stones. The model version DPU6555Hec is equipped with Compatec, the compaction control by Wacker Neuson.

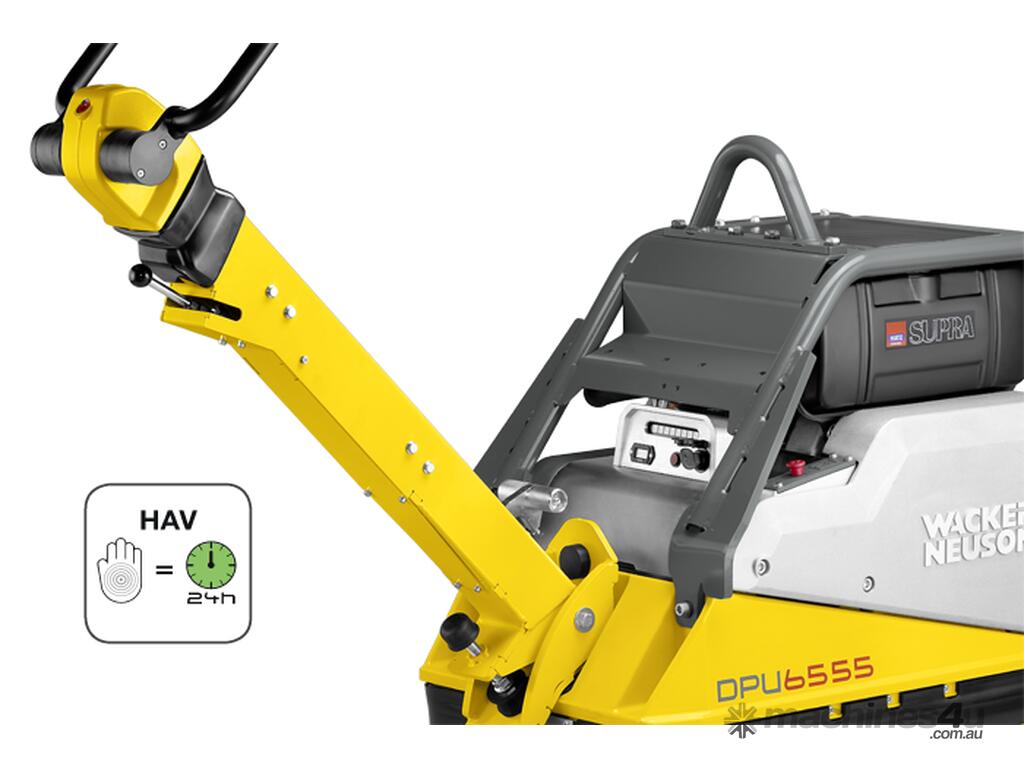

The new center pole reduces hand-arm vibration (HAV) to a minimum and therefore offers a high level of operating comfort at full compaction performance. No restriction for the time of operation and no documentation effort.

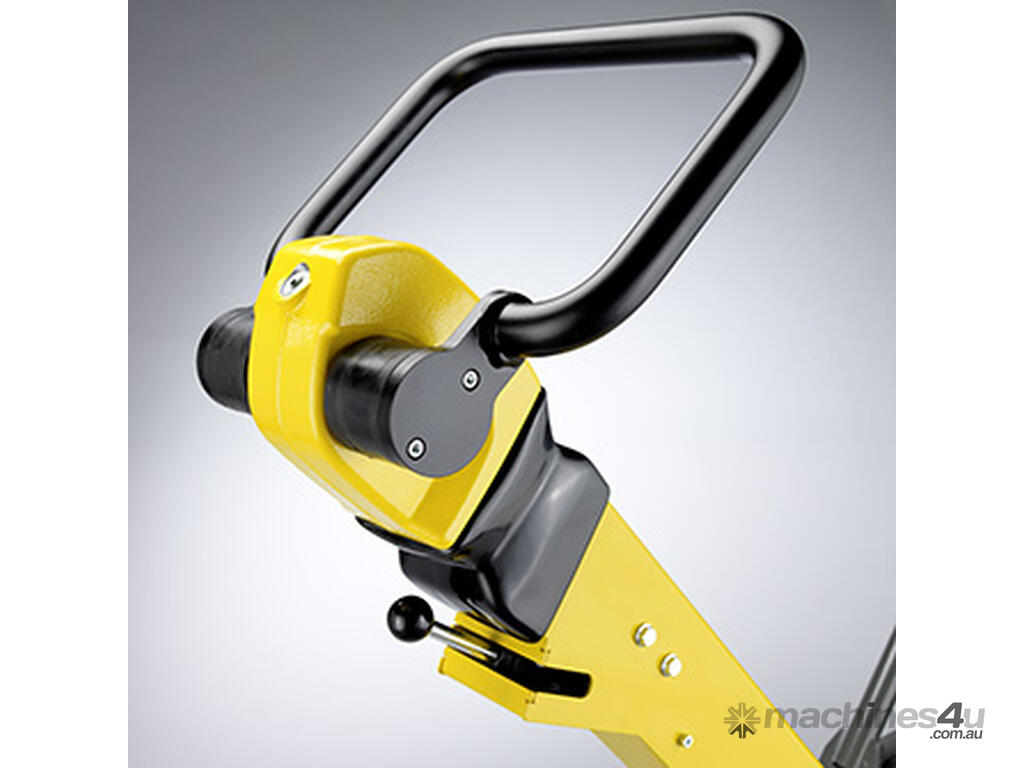

A dead man function prevents the operator from being trapped between the equipment and an object when working in reverse.

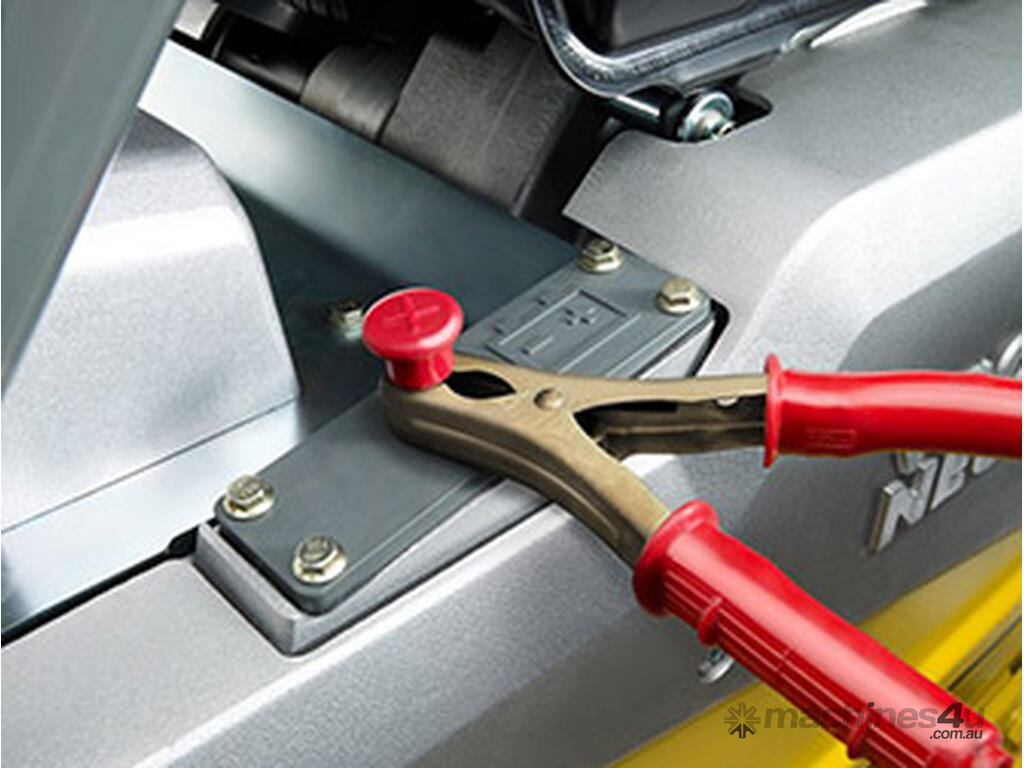

All maintenance points are quickly and easily accessible. Extensive comfort functions: such as low oil shutdown, self-tightening V-belt, maintenance-free alternator, pull-out external jump-start connection that is accessible from outside.
A large dimensioned Hatz diesel engine offers sufficient power reserves and ensures for a high level of efficiency and long service life.
A narrower frame is optionally available. The compact dimensions facilitate application in tight spaces.

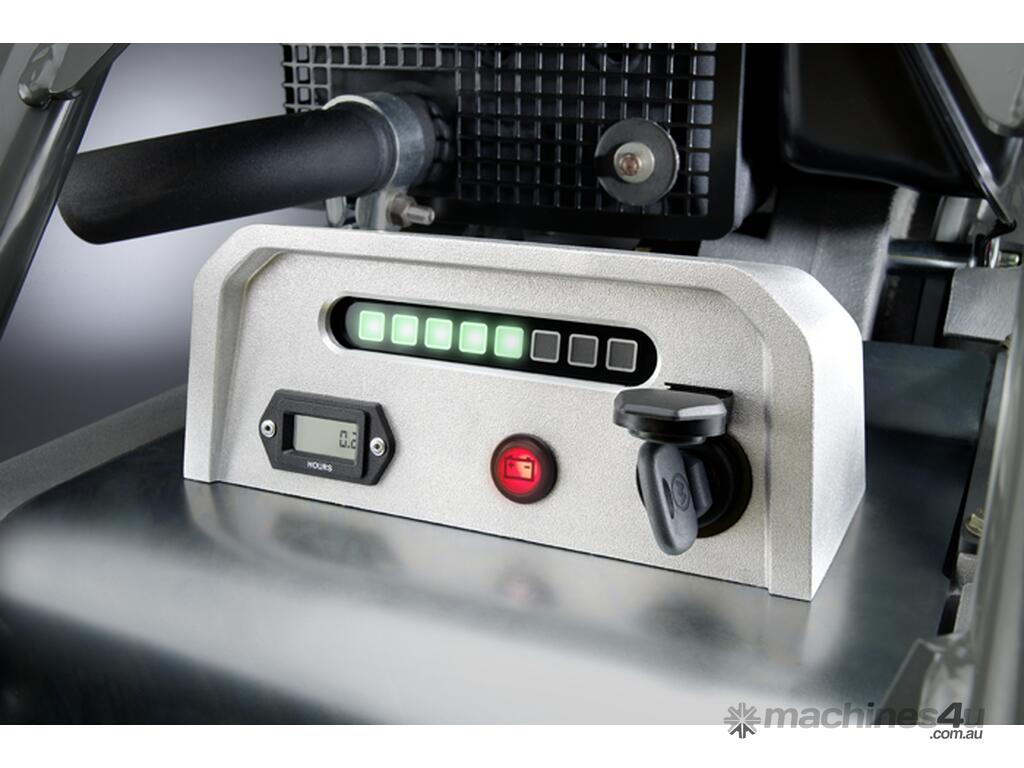

Compatec: Easy-to-read display of the relative compaction progress. Warning for overload and over-compaction. Brightness adjustment of the lights to the ambient light. Extremely sturdy and reliable.
Warranty: 5 year Covered by Wacker Neuson Australia
Operating weight - 497kg
Centrifugal force 65 kN
Base plate size (W x L) - 550 x 900 mm
Base plate thickness - 12 mm
Height - 861 mm
Operating width (with extension plate) - 860 mm
Frequency - 69 Hz
Hand-arm vibrations - < 2.5 m/s²
Advance travel max. (dependent on soil and environmental impacts) - 28 m/min
Surface capacity max. (dependent on soil and environmental impacts) - 1445 m²/h
Transport height - 1,521 mm
Transport length - 1,060 mm
Transport width - 780 mm
Engine - Hatz 1D81S Four Cylinder Diesel
