New Wacker Neuson RTX-SC3 Remote Trench Roller

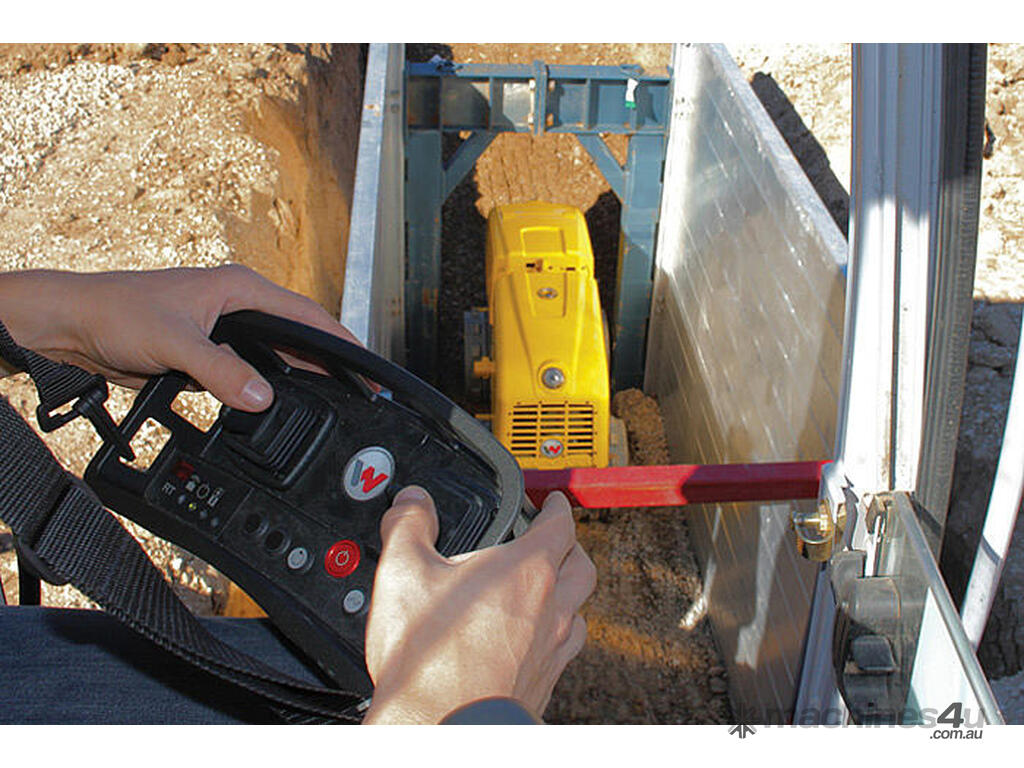

The RT trench roller with the SC3 infrared-remote control offers proven compaction results with safer operation. The smart control uses an infrared signal with line-of-sight control. The machine stops moving and vibrating should the line-of-sight be lost or if the operator comes within one meter (three feet) of the roller’s receiving eyes with the control box. The articulated trench roller offers below the axle exciter in each drum to allow for the efficient transfer of compaction energy to the soil for superior compaction results.

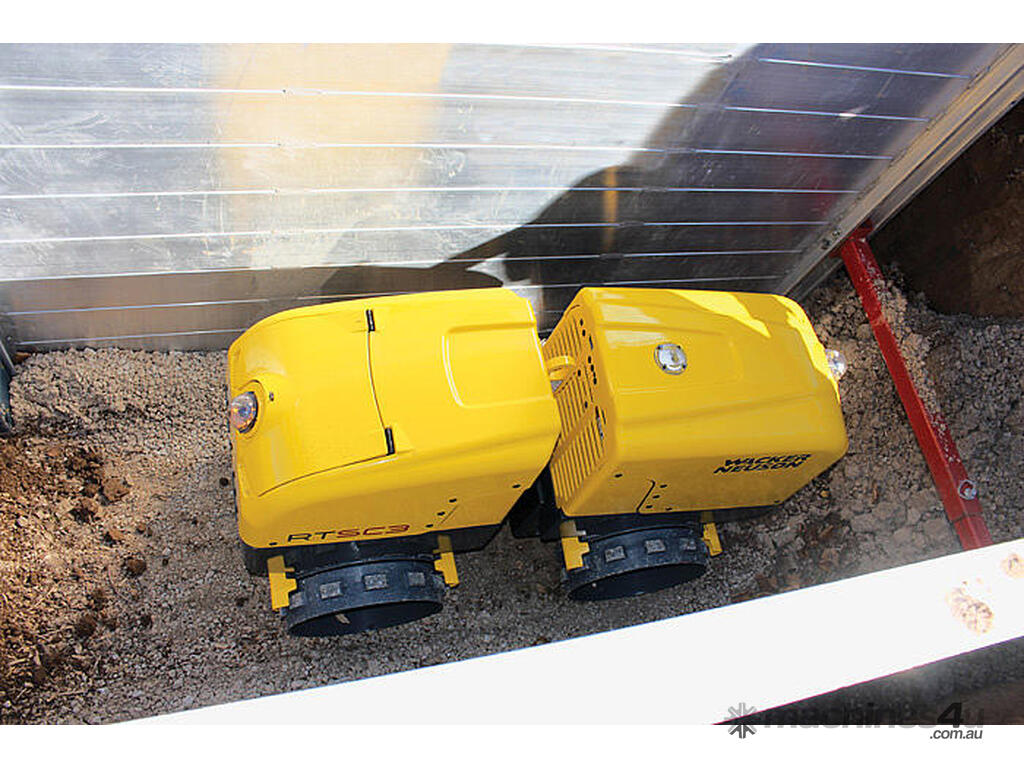

Patented three receiving eye design eliminates signal loss from trench shoring while retaining the line-of-sight control of the roller. With 16 channel transmission, multiple rollers can be operated on the same job site without interference from one another.

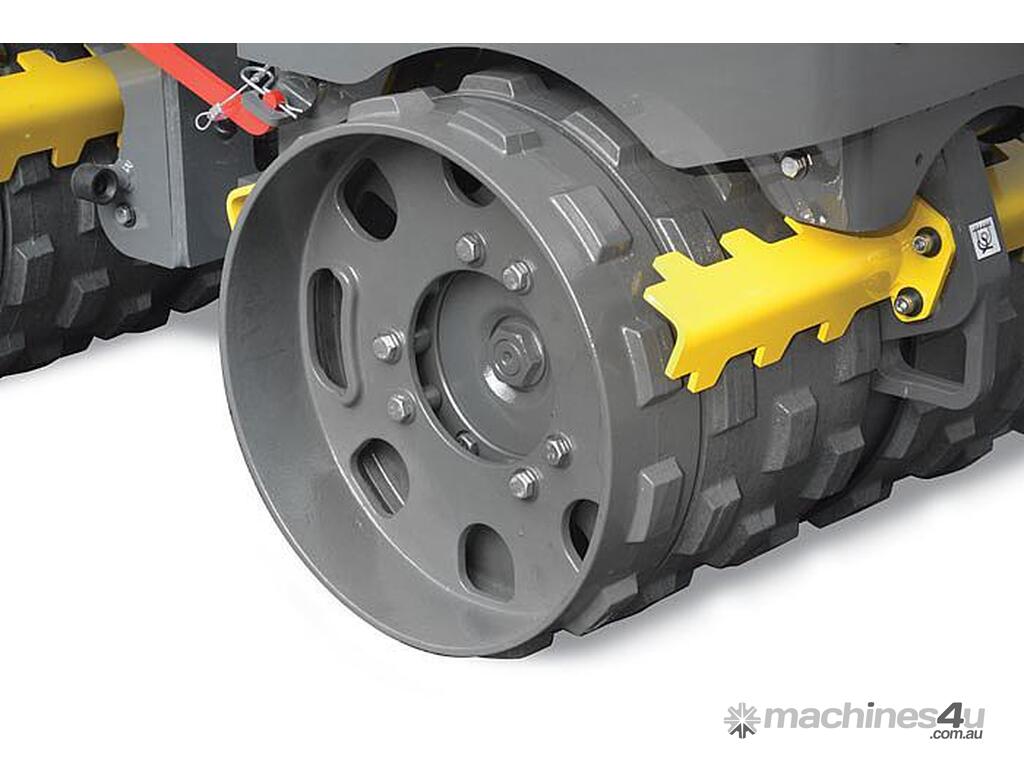

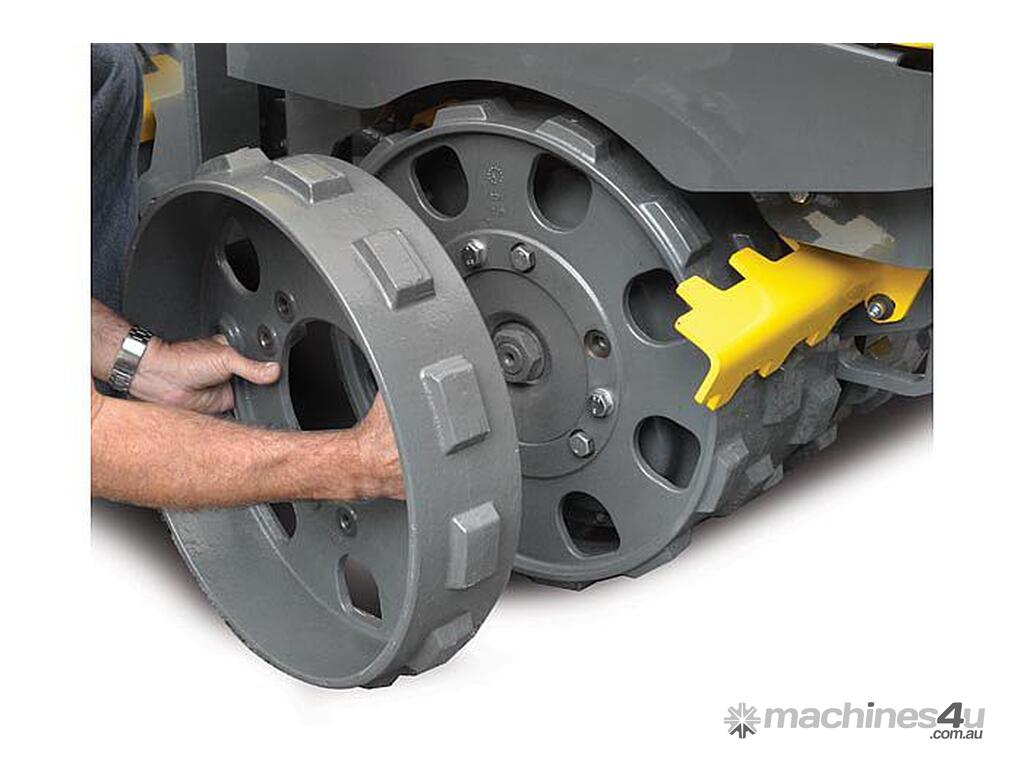

RTx model offers flexible drums that allows for convenient conversion from 82 cm/32 in to 56 cm/22 in. The easy to remove extensions have a central mounting system that protects the bolts
from exposure to damage during operation.

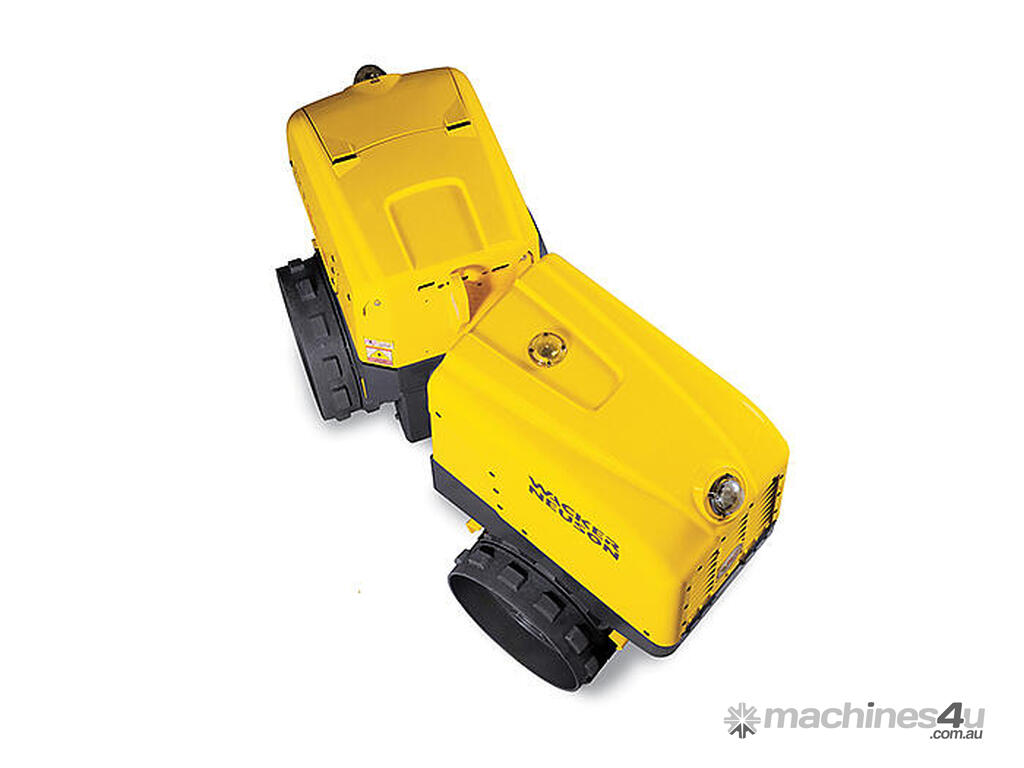

The articulated joint increases maneuverability and the low center of gravity improves stability. High and low compaction force provides flexibility depending on the job.

The lower end is completely maintenance-free due to the self-lubricating design of the drive and the exciter.

The engine control module with diagnostic LEDs monitors machine functions such as oil pressure, radiator level, engine temperature, glow plug, battery and air filter capacity for easy operation and troubleshooting.

Warranty: 5 Year/5000hr - Covered by Wacker Neuson Australia

Specifications:
Engine: Kohler KDW 1003, 3 cylinder Diesel
Weight: 1495kgs
L x W x H: 1853mm x 820mm x 1270mm
Drum Diameter: 520mm
Drum Width: 560mm - 820mm
Travel Speed: 2.5km/h
Surface Capacity Max (Depending on soil conditions): 990 m²/h
Gradeability max. without vibration: 50%
Gradeability Max. with vibration: 45%


* Prices are subject to change. 10% GST included in price estimates.

* Please call us with any questions you may have about our Wacker Neuson RTX-SC3 Trench Roller. With three convenient store locations in North Geelong, Grovedale, and Ocean Grove, we offer our equipment hire & sales in Geelong and surrounding suburbs.
