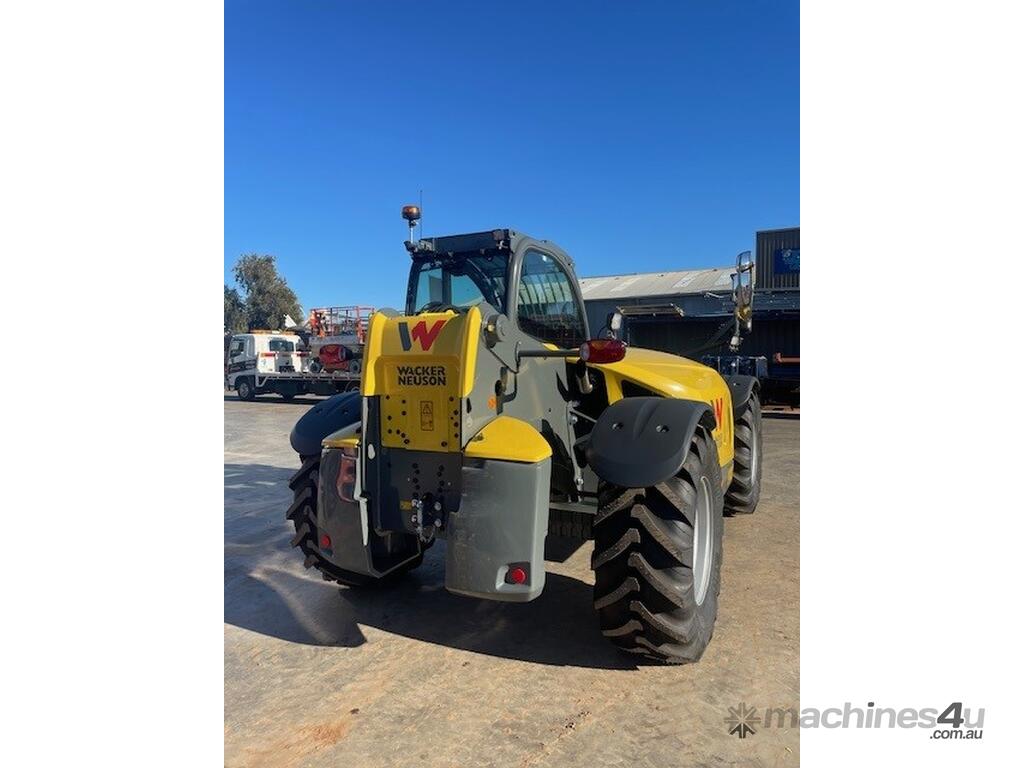

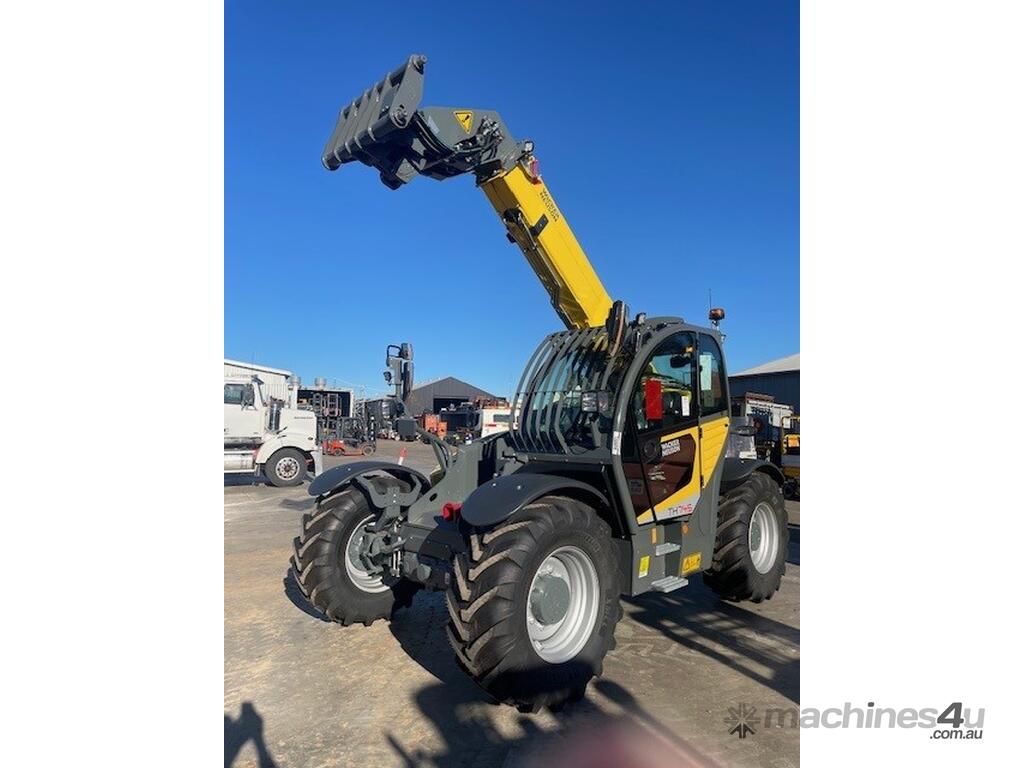

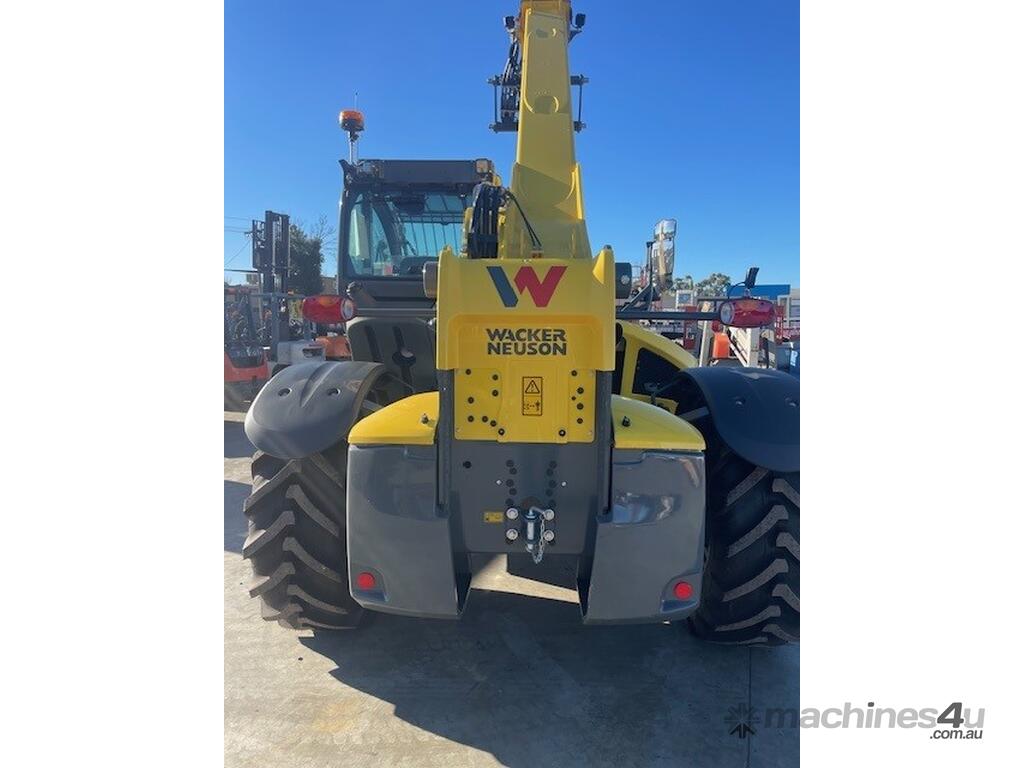

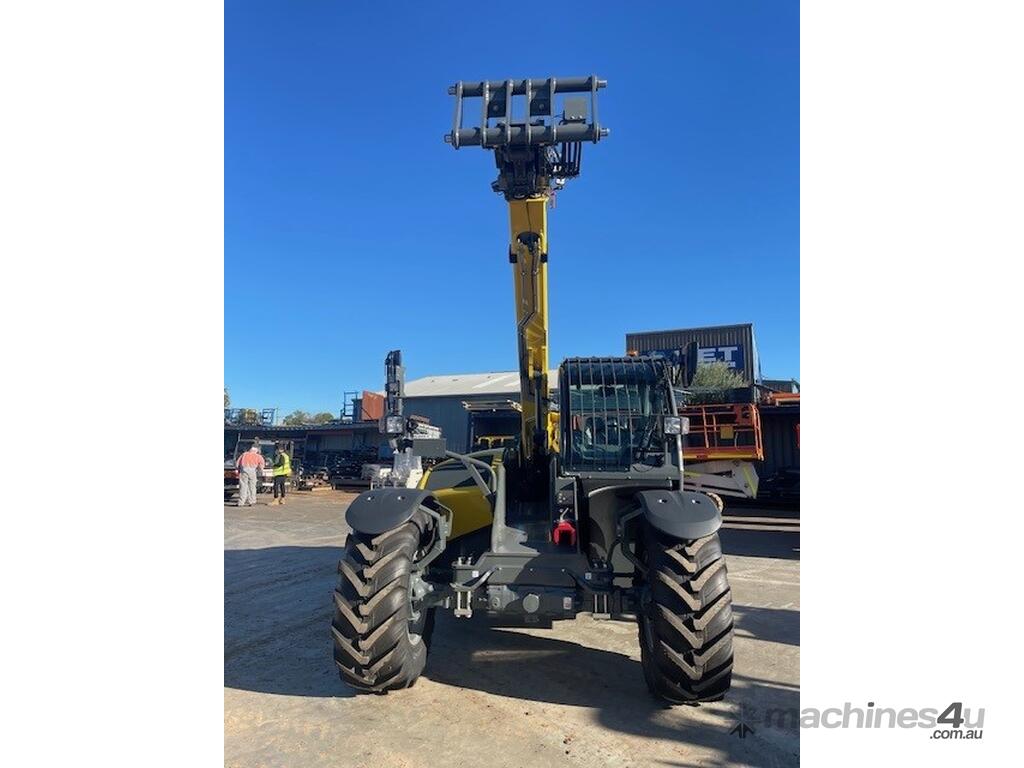

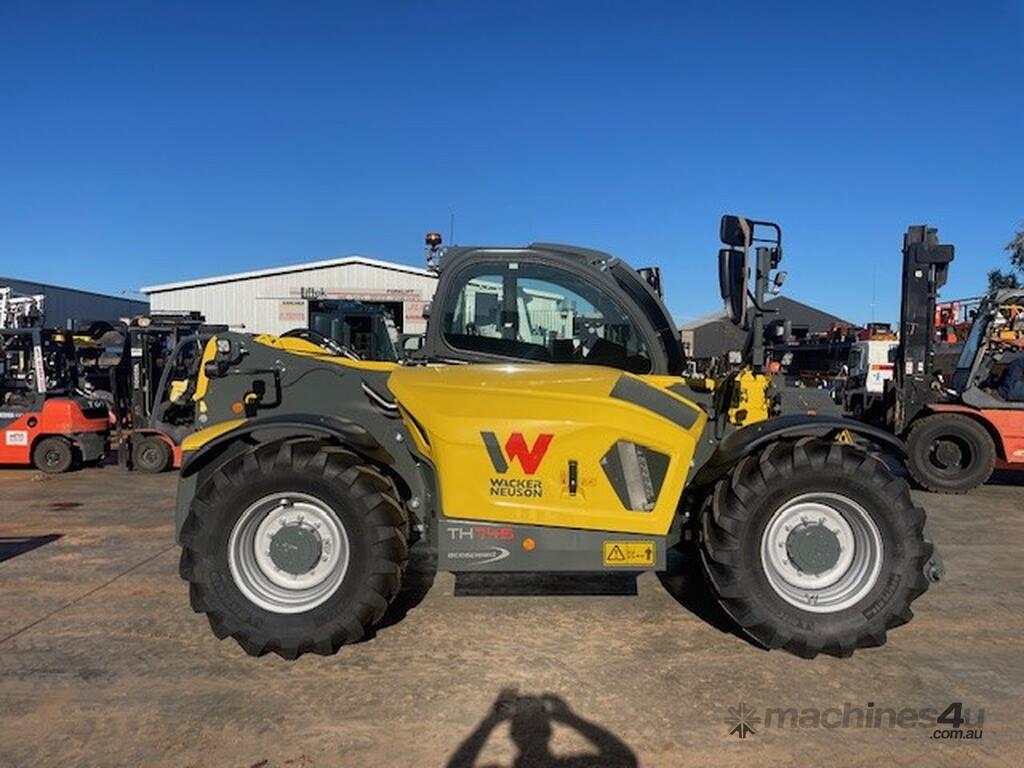

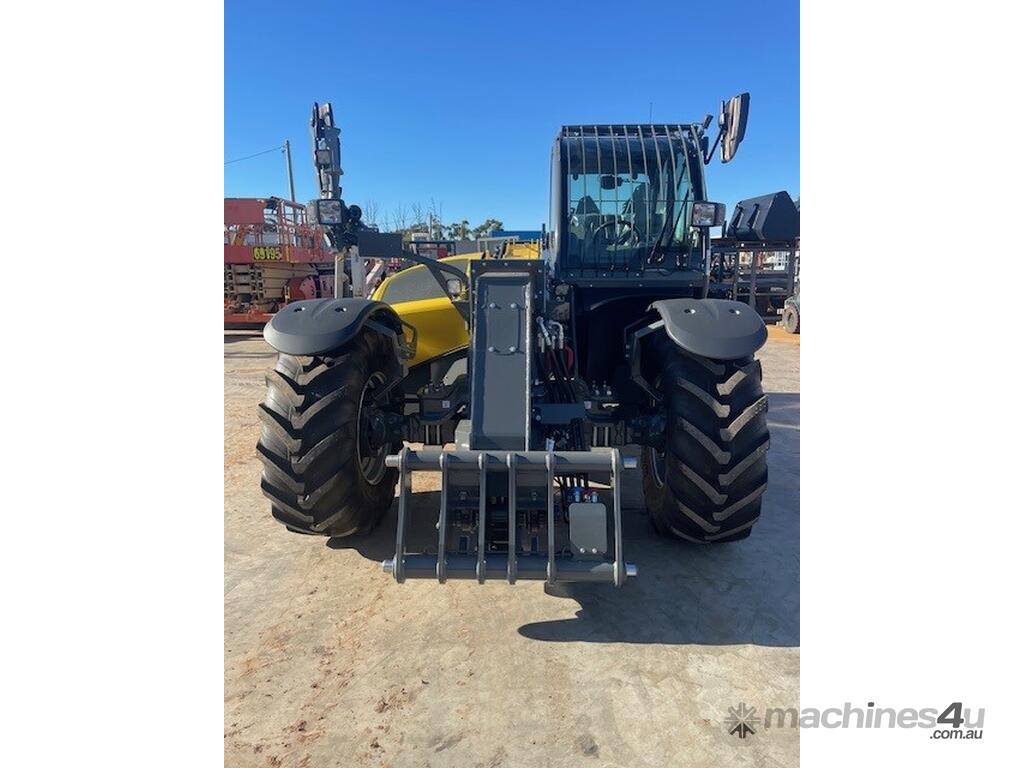

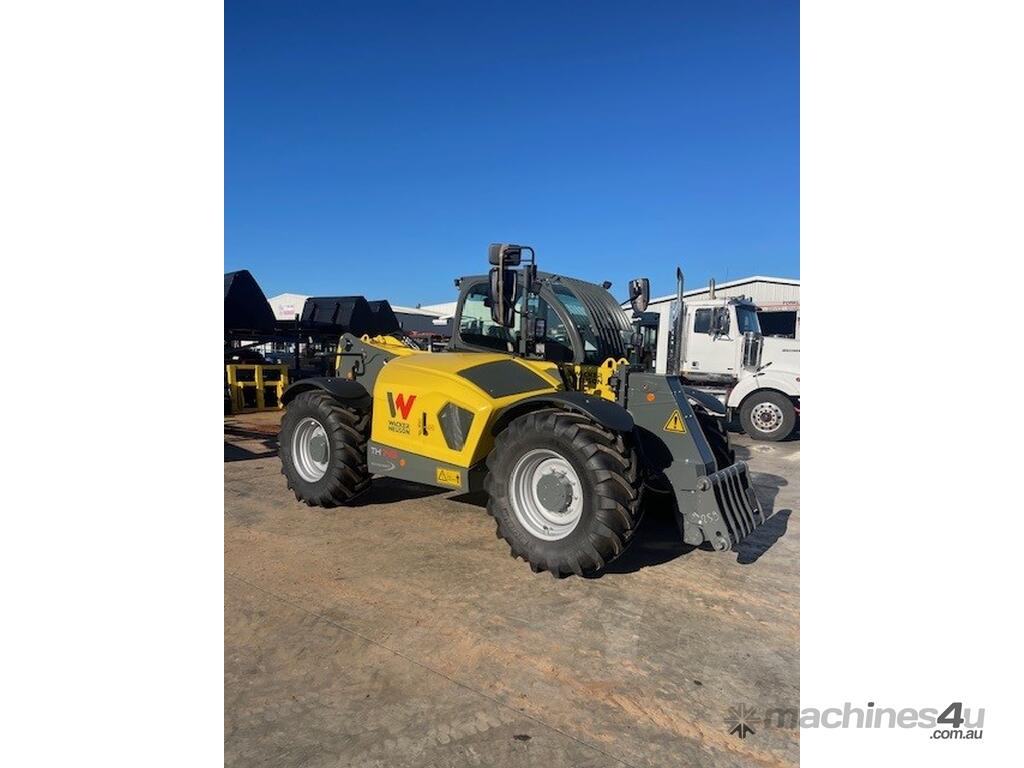

New Wacker Neuson Telehandler - TH745

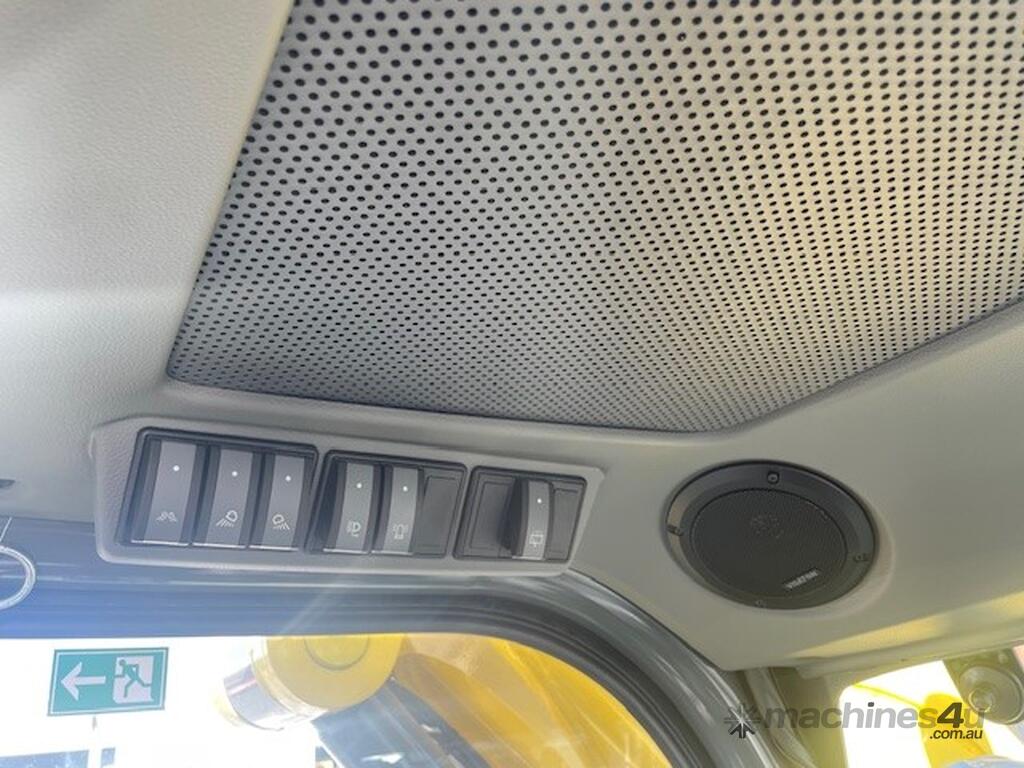

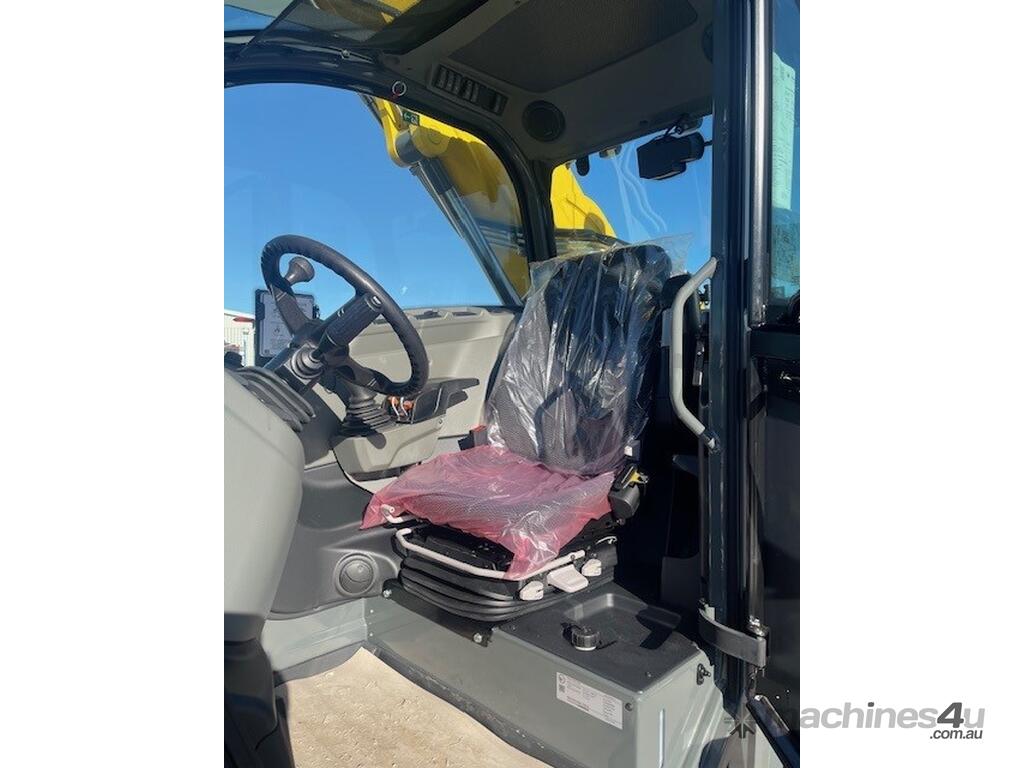

The multifunctional joystick of the TH745 is a true all-rounder – it controls 16 functions. Practical for night job sites: the joystick and all of the switches are illuminated. The cabin of the Wacker Neuson telehandler is very comfortable and highly ergonomic. A comfortable, adjustable seat and practically arranged operator's controls ensure even more precise work. Excellent visibility and a low noise level make the TH745 a comfortable place to work. And the telehandler also convinces with an enormous stacking height of 7.017 meters combined with a payload of 4.4 tons.

- Engine speed reduction for lower fuel consumption
- High performance hydraulics for rapid work cycles
- 136 PS Deutz engine
- Ergonomically shaped joystick console

Operating data
Lift height (max.) 7,017 mm
Weight 9,000 kg
Turning radius over tires 4,240 mm

Engine / Motor
Engine / Motor manufacturer Deutz
Engine performance 100 kW
Displacement 3,621 cm³
Emission standards stage IV
Sound emission at the operator ear 78 dB(A)

Power transmission
Traction drive Wide angle hydrostat
Speed (optional) 0–30 / 0–40 km/h
Axles Planetary-steering drive axle
Total pivoting angle 20 °

Steering and operating hydraulics
Duty pump Load Sensing
Flow rate 140 l/min
Pressure 260 bar
Kinematics
Bucket capacity 1.2 m³
Total rotation angle of the vehicle carrier 150 °
Payload (max. LC 500 mm) 4,400 kg
Lift height at max. payload 5,100 mm
Payload at max. lifting height 3,300 kg
Payload at max. reach 1,500 kg
Range at max. load 1,600 mm
Range (max.) 3,790 mm

Filling capacities
Fuel tank capacity 180 L
Hydraulic oil tank 100 L
