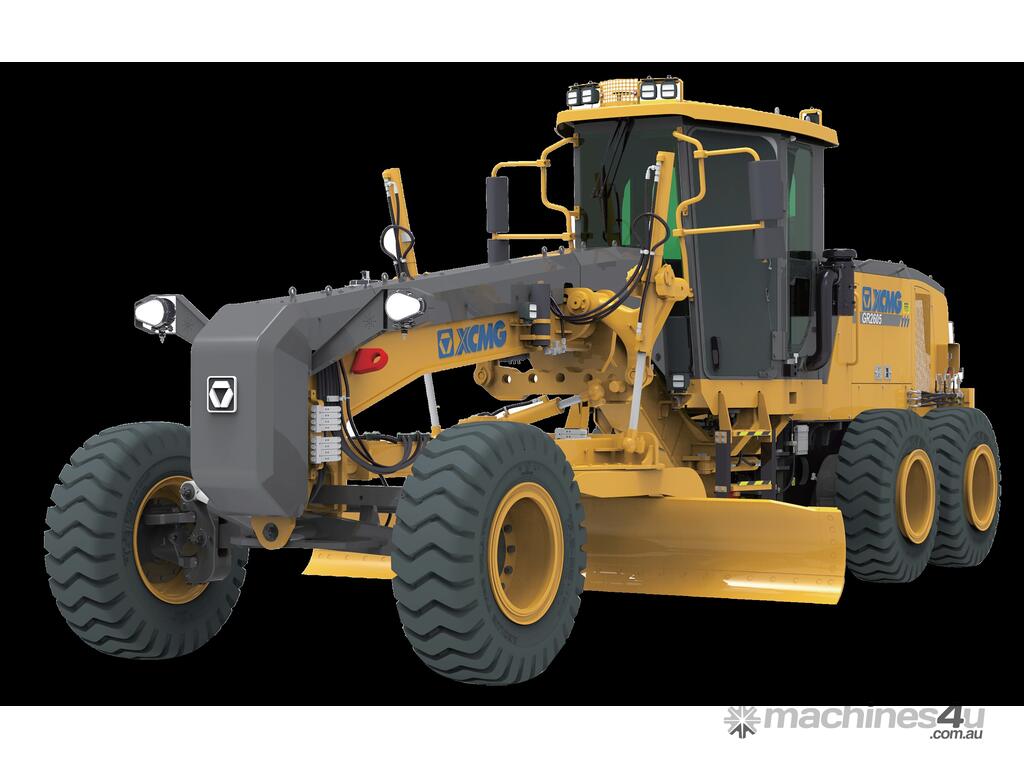

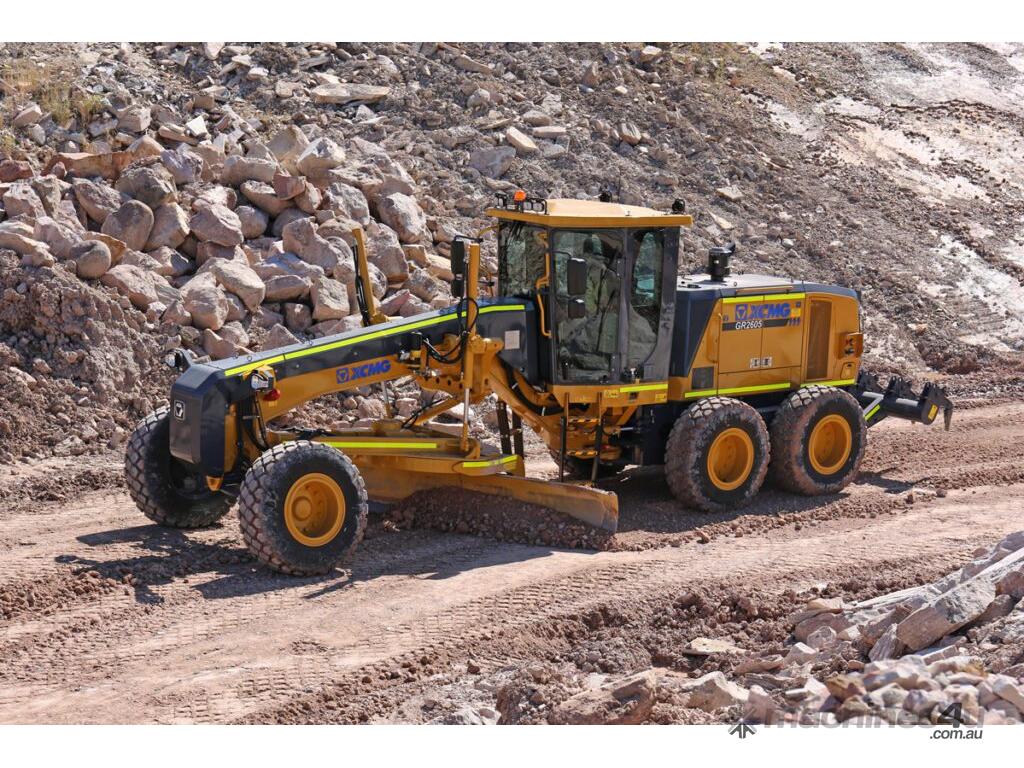

New XCMG Motor Grader GR2605

XCMG graders are competitively priced and offer high power, heavy-duty work capability, impressive operator comfort, and overall renowned satisfaction.
The XCMG GR2605 grader is the benchmark of graders in its 19-tonne size class. XCMG makes full use of its international R&D platform to integrate global technology and produce completely independent designs.

As a result, the GR2605 grader is durable, reliable, safe, and comfortable – as well as efficient to maintain. Renowned worldwide for its performance and value for money, the GR2605 is the ideal solution for customers seeking a 19-tonne grader for any application or industry.

Equipped with a Cummins QSL8.9 engine, slewing bearing and overload protection circle drive, wet brake drive axle, a spacious and comfortable ROPScab, and an electronic parking system, the entire grader offers significant reliability, efficiency, comfort, and control.



Excellent maneuverability and controllability.
Exceptional reliability and heavy-duty work capability using premium componentry.
Safety of operation with a spacious ROPS FOPS cab, double emergency stops, reverse cameras, and more.


Key Performance Specs
Operating Weight: 19000 kg (approx)
Engine: Cummins QSL8.9
Length: 9448 mm
Width: 2625 mm
Height: 3472 mm
Tyre Spec: 17.5R25
Ground Clearance (Front Axle): 592 mm
Tread: 2156 mm
Axle Distance (Front to Rear): 6465 mm
Tread Between Middle and Rear Wheel: 1622 mm
Forward Speed (km/h): 4.9 / 8 / 11 / 17.9 / 24.7 / 40.2
Rearward Speed (km/h): 4.9 / 11 / 24.7

Blade Specs
Max Lift Height: 452 mm
Max Shoveling Depth: 755 mm
Max Tilt Angle: 90 Degrees
Cutting Angle: Front 40 Deg / Rear 5 Deg
Slewing Angle: 360 Degrees
Length x Chord Height: 3965 x 610 mm
MANEUVERABILITY HIGHLIGHTS
1 Comfortable operating environment

Three-dimensional all-around air-conditioning system.
Air suspension seat for high-level comfort.
Optimized cab control layout, more comfortable operation.
Humanized setting.
2 Broad vision

The front and operation vision is wider.
Wide-angle rearview mirror inside the cab and dual rearview.
mirrors on both sides.
3 Intelligent control system

Electronically controlled dual joysticks, more labor-saving operation.
Integrated CAN key panel, more convenient.
Intelligent fault diagnosis system.
Optional 2D/3D automatic leveling system.
Load-sensitive hydraulic system.
Temperature-controlled independent cooling system.
