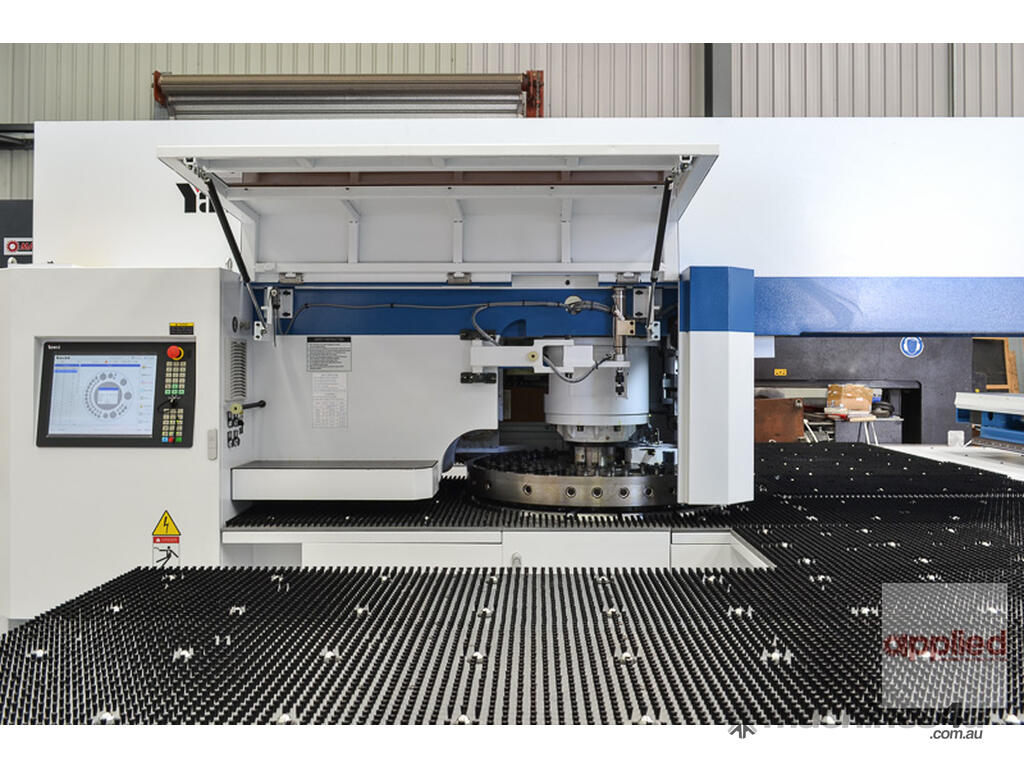

New Yawei HPE-3058 CNC Turret Punch Press. Siemens 840D & upgraded turret.

This Yawei CNC, servo drive turret punch press is one of Yawei's most popular configuration punching machine.

For maximum versatility, this machine has an upgraded turret featuring 40 stations, including 2 auto index D-stations, along with an E-station.

1500spm, 1500 x 2500mm axis travel (1500 x 5000mm max sheet size), Siemens 840D CNC control, 3 moveable pneumatic clamps, LUST SP servo punching system from Germany ….. the list goes on an on.

This turret is another precision machine in the line-up from Yawei and Applied Machinery, and of course is exceptionally well priced for the Australian market.

If you're in the market for a new turret, please take the time to consider these machines. The features and value for money stack up really nicely in the market and will offer a great value proposition for your business.

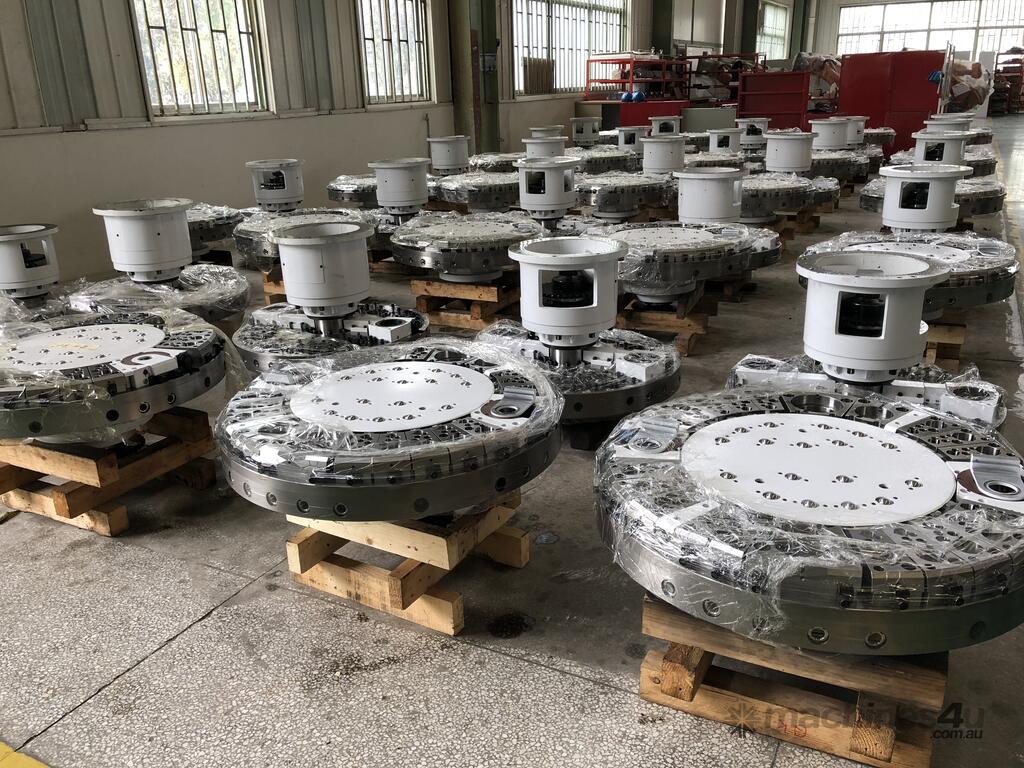

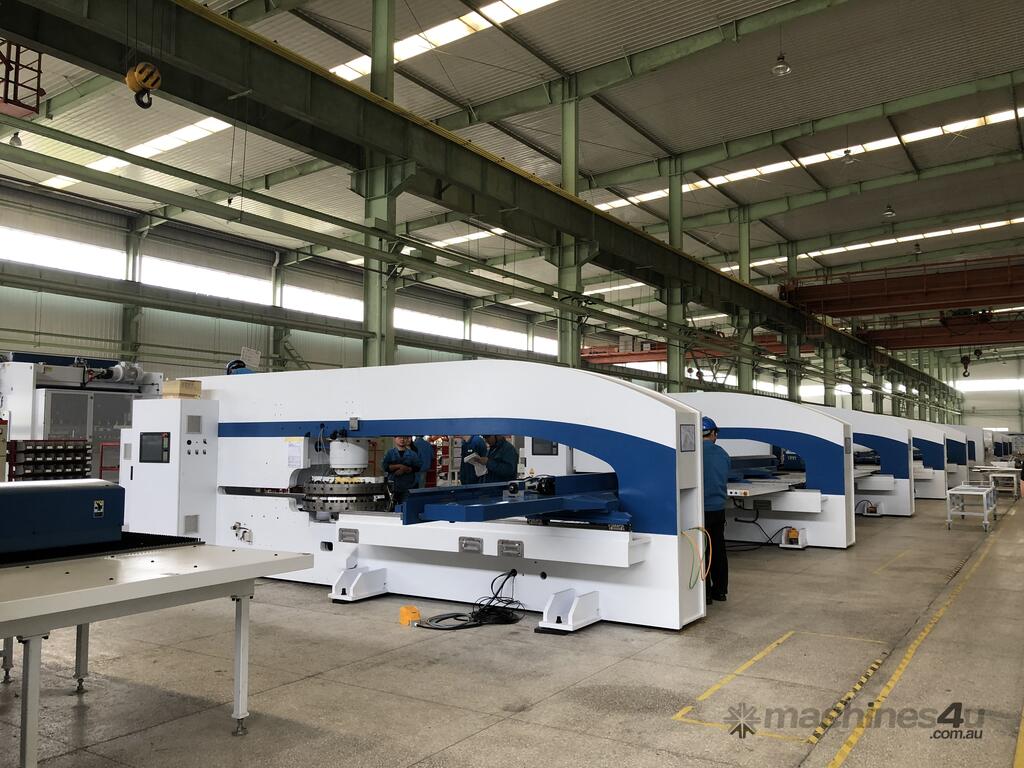

We've included a few photos of Yawei's turret punch press factory. They manufacture their own frames in-house, including heat treatment to ensure complete quality control of their products. The tool turrets are imported from Nisshinbo, Japan.

------------------
Of course other sizes and capacities are available, and we'd be happy to discuss

Also, we will consider trading in your current turret punch press if you are looking for a straight upgrade.
------------------

- 30 ton punching force
- LUST SP servo punching system (Germany)
- 1500 x 2500mm axis travel
- 102m/min axis travel rate (X and Y)
- 400hpm punch frequency (25.4mm pitch and 6mm stroke)
- 1500 x 5000mm maximum sheet size (with one repositioning)
- 6.35mm maximum sheet thickness
- 40 station turret with 2 auto index (D)
- 1500spm

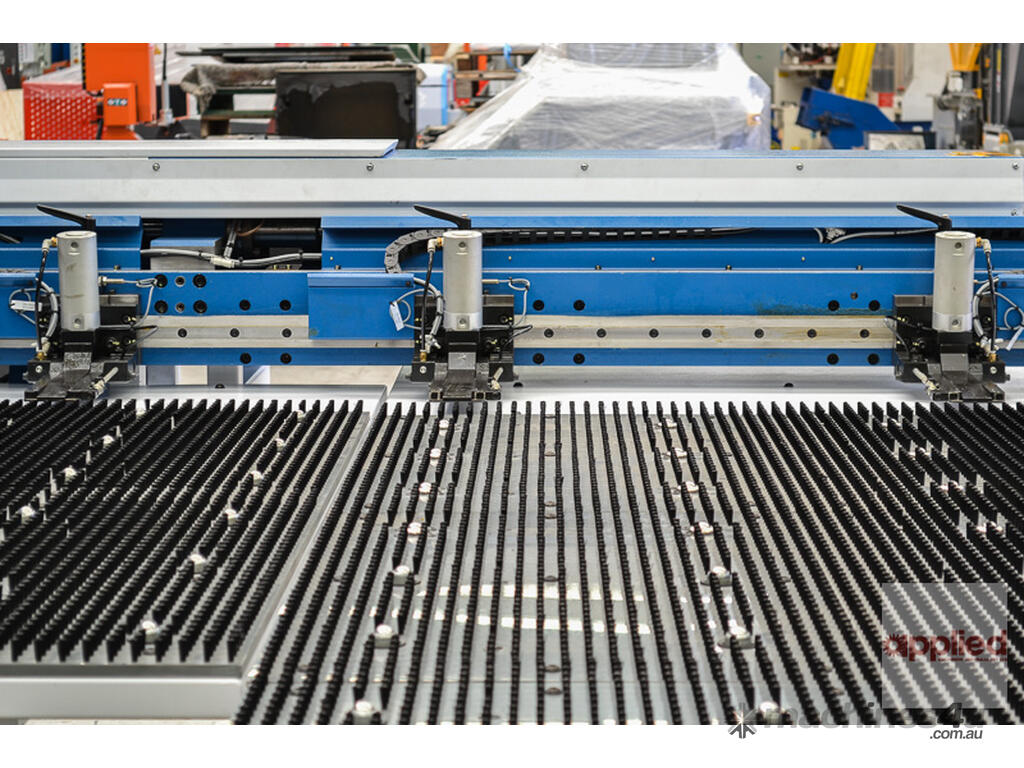

- 3 moveable pneumatic clamps
- automatic x gauge block
- brush table
- strip away detection
- automatic lubrication system

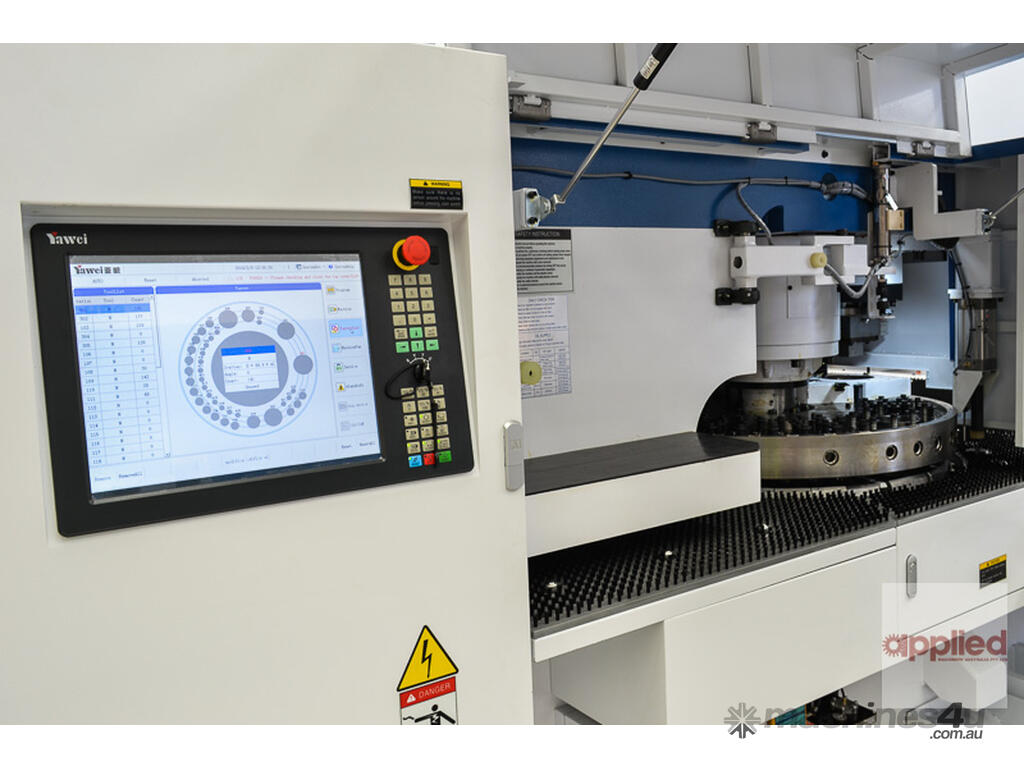

- Siemens 840D CNC control system
- 5 axes CNC: X, Y, Z, T, C
- Tool hoisting device
- 5.1kW/h working power
- 0.9kW/h standby power
- machine weight: 19000kg
- machine size: 5830 x 5000 x 2250mm (LxWxH)
