New Yawei PBH 250t x 4100mm CNC5 Pressbrake with Delem DA-66T. Arriving in stock in 6 weeks

Give us a call to discuss how a new Yawei CNC pressbrake could improve your productivity and your bottom line.

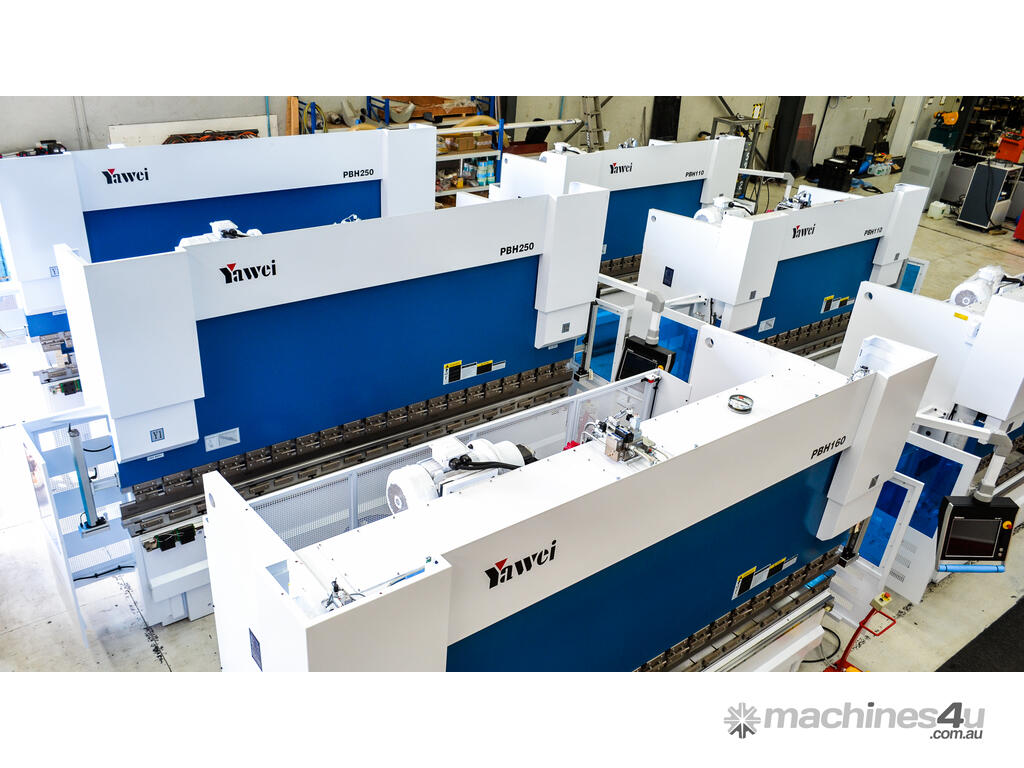

New stock machines are arriving arriving all the time, though given the current shortage of supply, they are generally becoming pre-sold before they arrive. If you want to secure a machine, we ask for a small deposit, then payment prior to delivery.

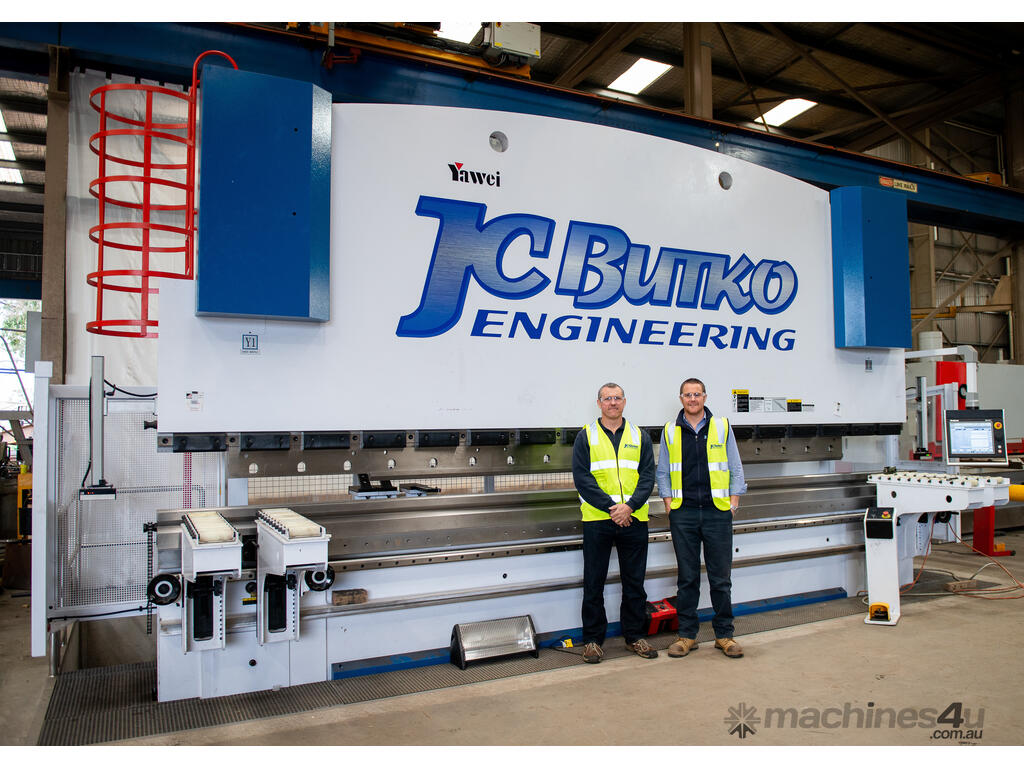

Inspections/Demonstrations can be arranged with some of our existing customers in your area.

-------------------------

New Yawei Synchro Pressbrake model PBH 250-4100 CNC7.

Features include:
• 250 ton bending force
• 4100mm bending length
• 3600mm between frames
• 410mm throat depth
• 215mm ram stroke
• 530mm open height
• 5 axis CNC (Y1, Y2, X, R & CNC hydraulic crowning compensation)

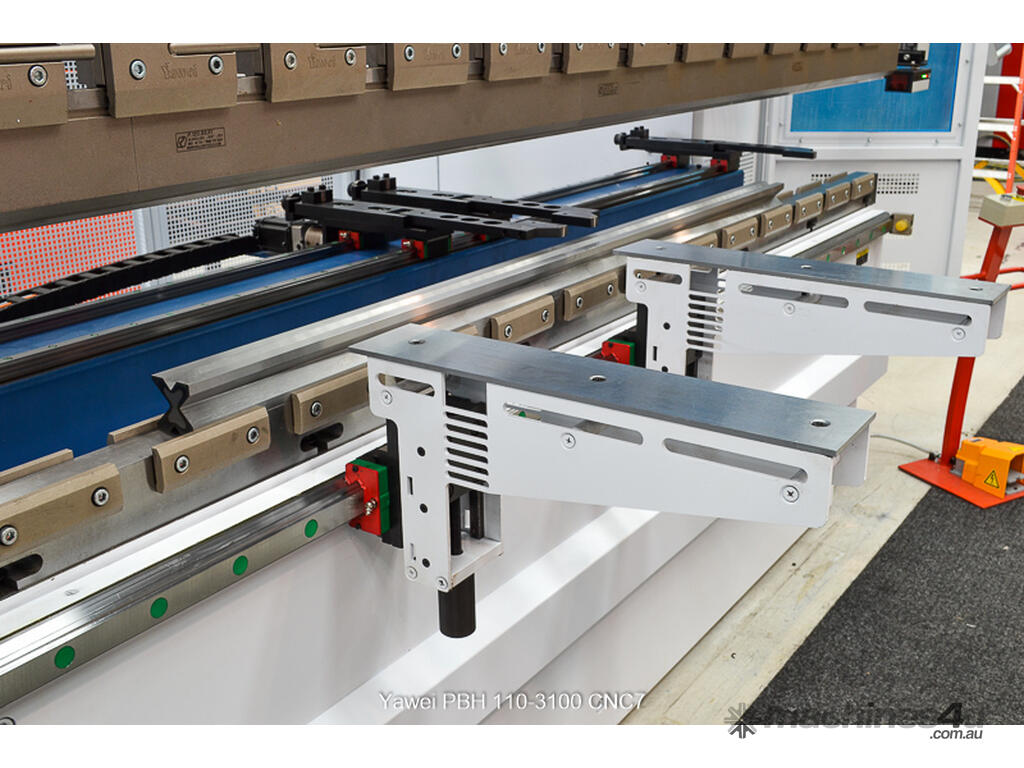

• 2 front sheet supports moving freely on linear guide

Controller:

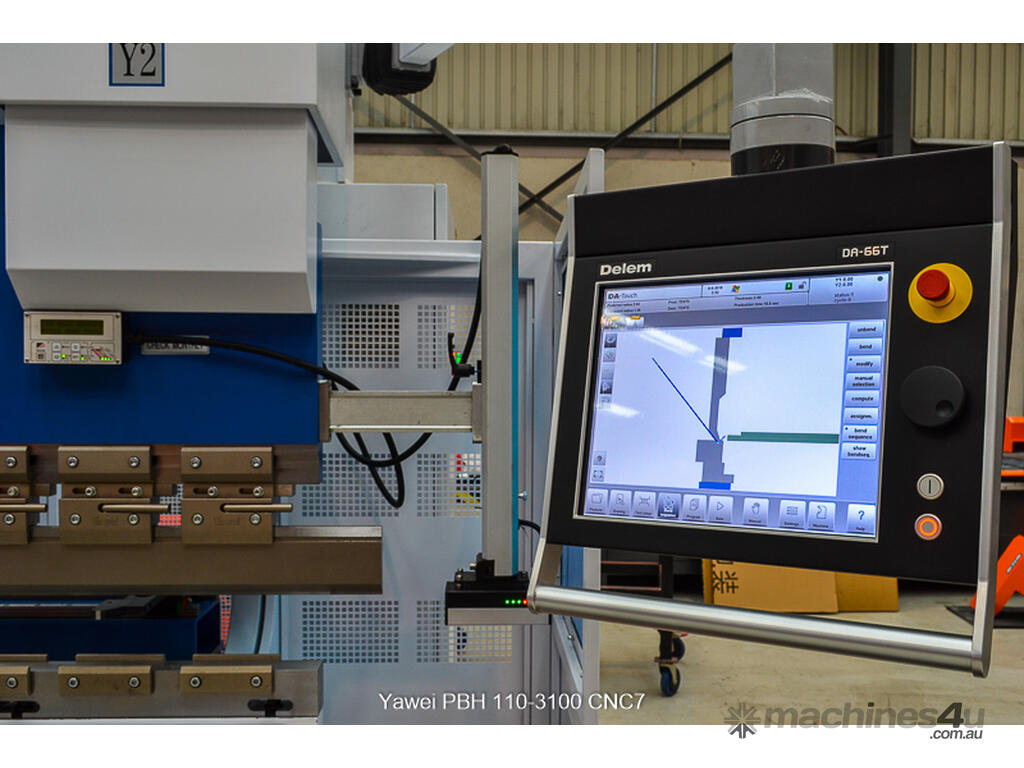

• Delem DA-66T touch screen graphical CNC control
• 2D graphical touch screen programming mode
• 3D visualisation in simulation and production
• 17 inch high resolution colour TFT
• Full Windows application suite
• Delem Modusys compatibility (module scalability and adaptivity)
• USB, peripheral interfacing
• User specific application support within the controllers multitasking environment
• Sensor bending & correction interface

Tooling:
• Full set of Rolleri (Italian) top tooling in 835mm lengths
• Full set of Rolleri (Italian) bottom tooling in 835mm lengths

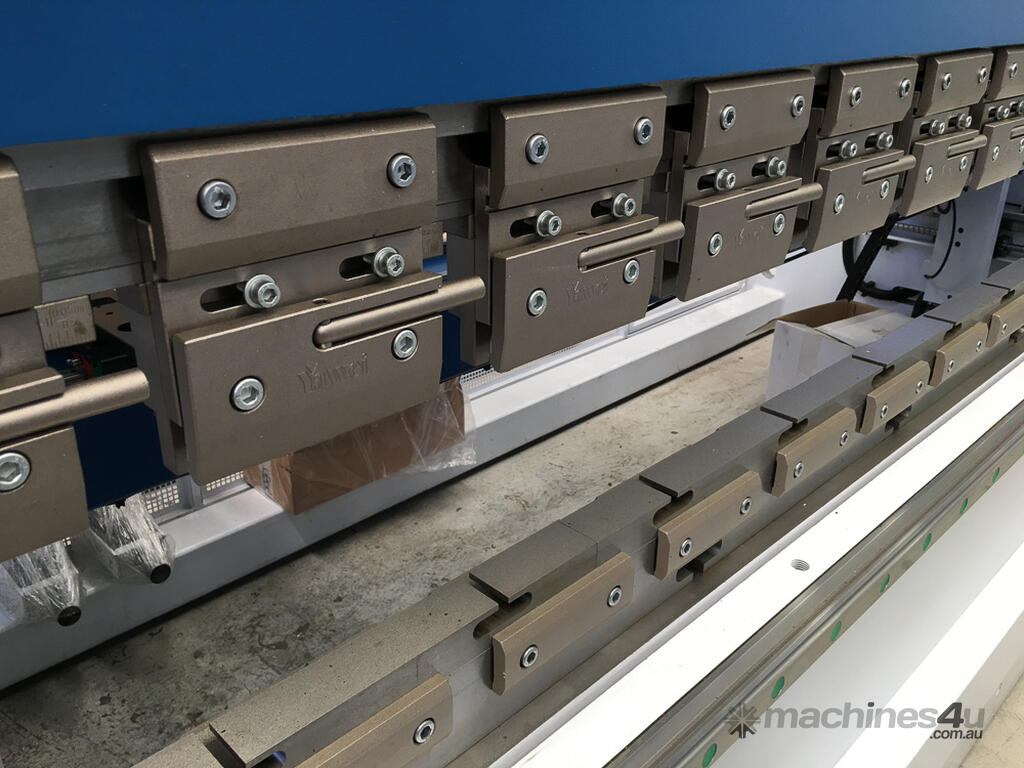

• Quick release clamps for fast, efficient tool changes

Guards:

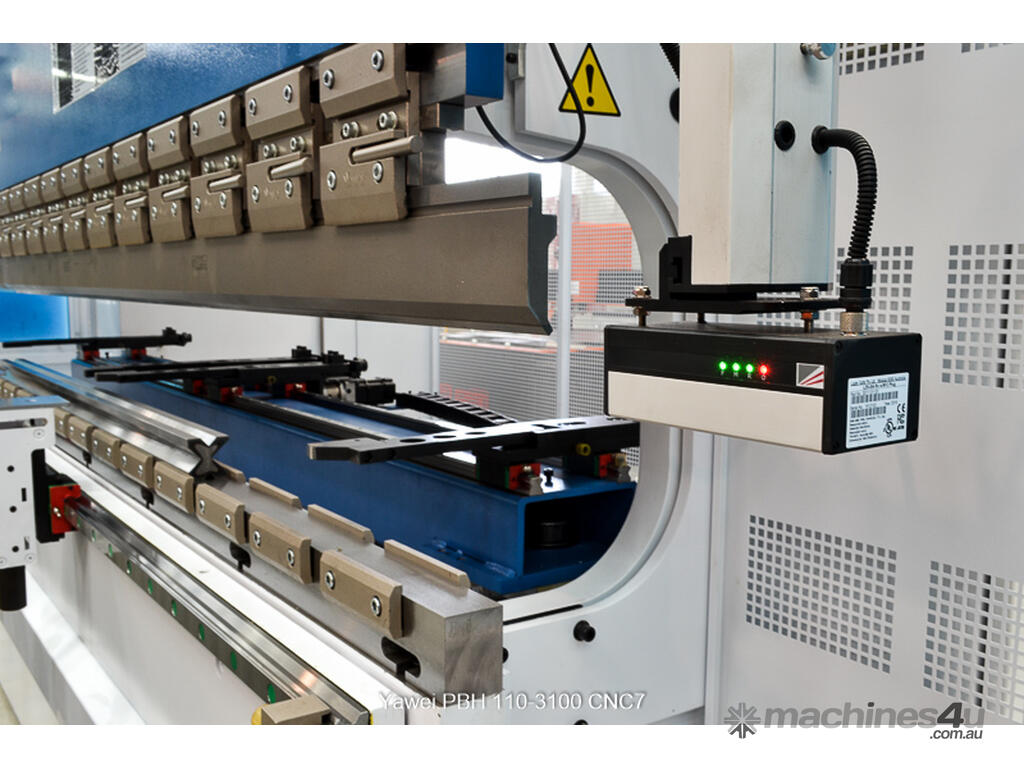

• Lazersafe Light Guard System (Australia)
• Physical rear and side guards with interlock

General:
• Hoerbiger hydraulic system (Germany)

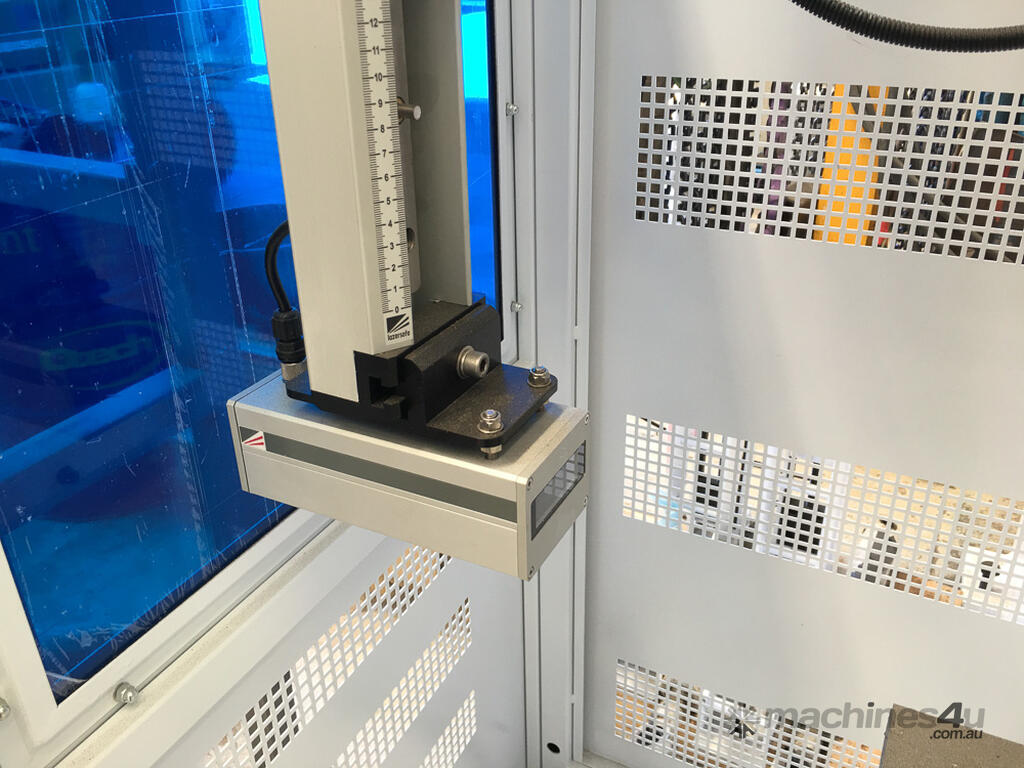

• Heidenhain linear scales
• Sumitomo oil pump
• Deformation compensation on throat
• Precision ballscrew backgauge, AC servo motor driven and running on a linear guide.
• 18.5kW main motor power
• 500L oil tank
• Weight: 18,200kg
• Size: 4630 x 1830 x 2730mm

All Yawei CNC synchro PBH series pressbrakes maintain perfect control of the beam positioning at all times. This is achieved by fully closed loop electro-hydraulic servo control of Y1 & Y2. The beam position is measured by independent linear scales, attached to decoupled measuring frames.

These pressbrakes are of the highest quality and are perfectly suited to high production, high accuracy work environments.
