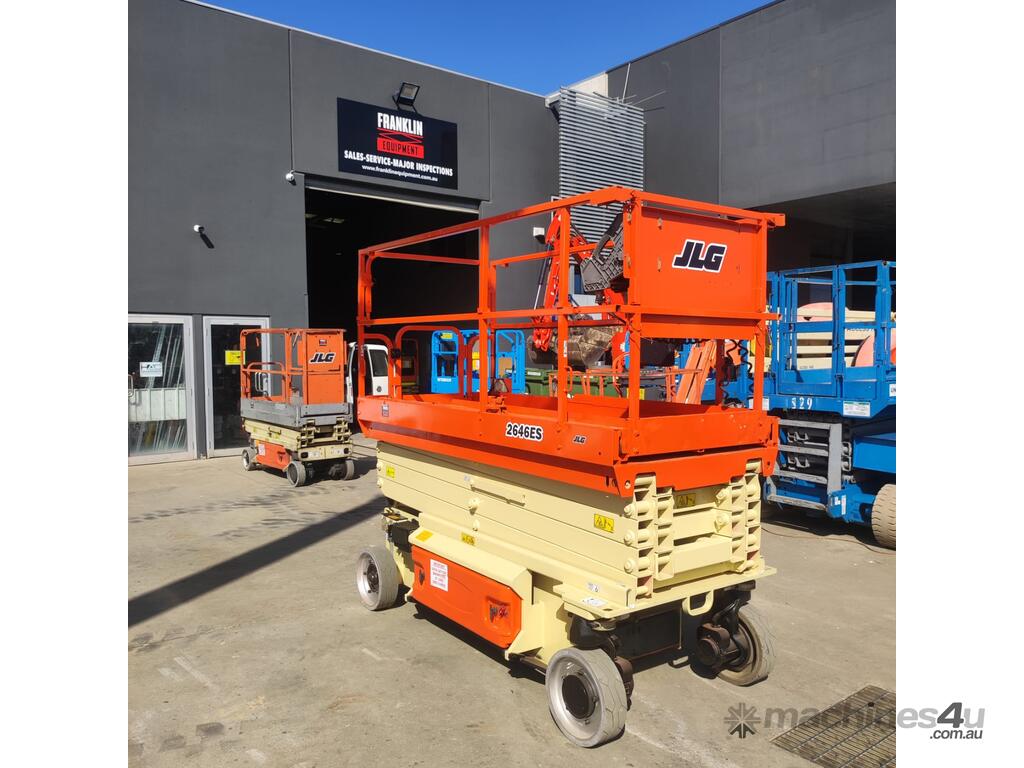

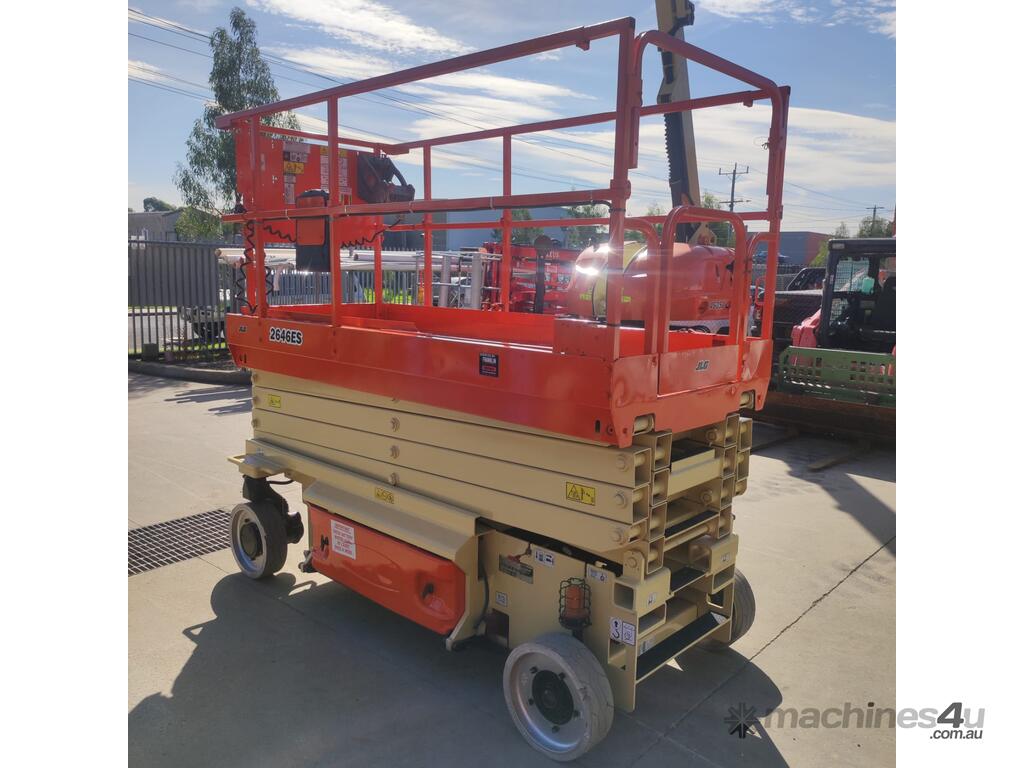

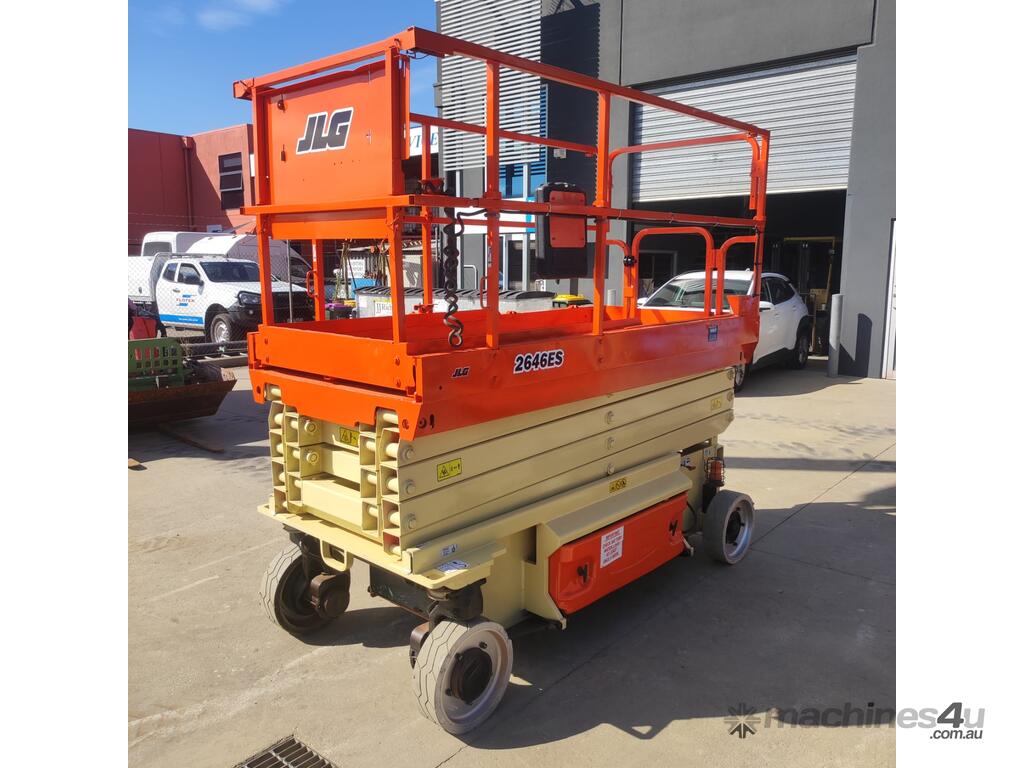

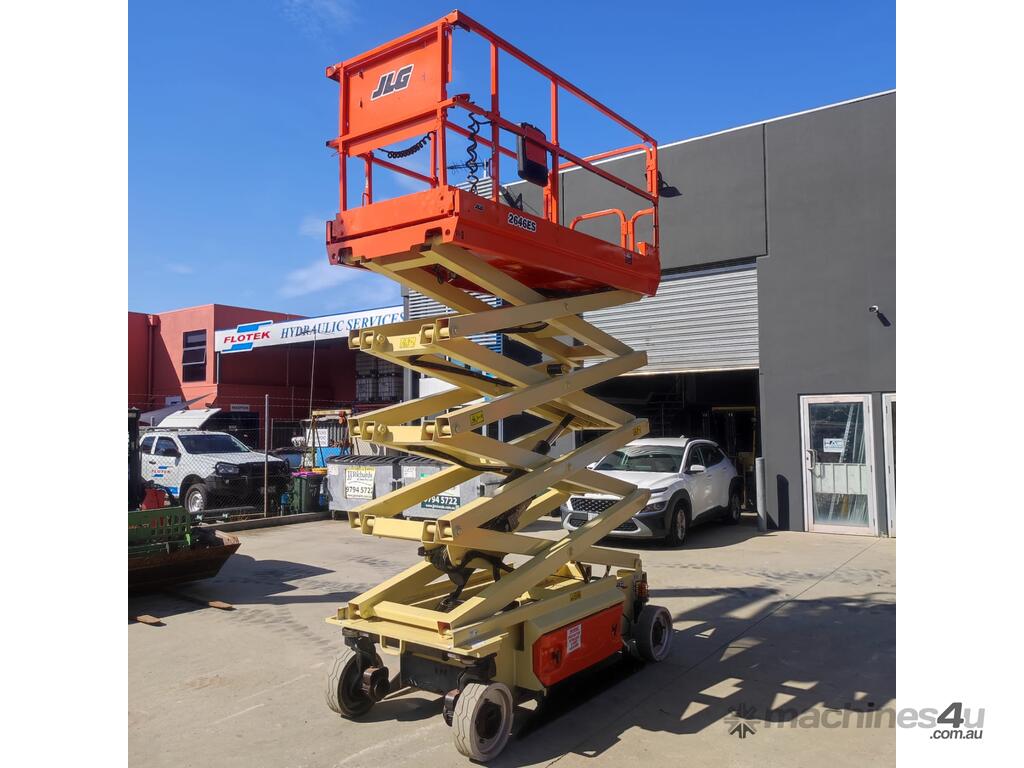

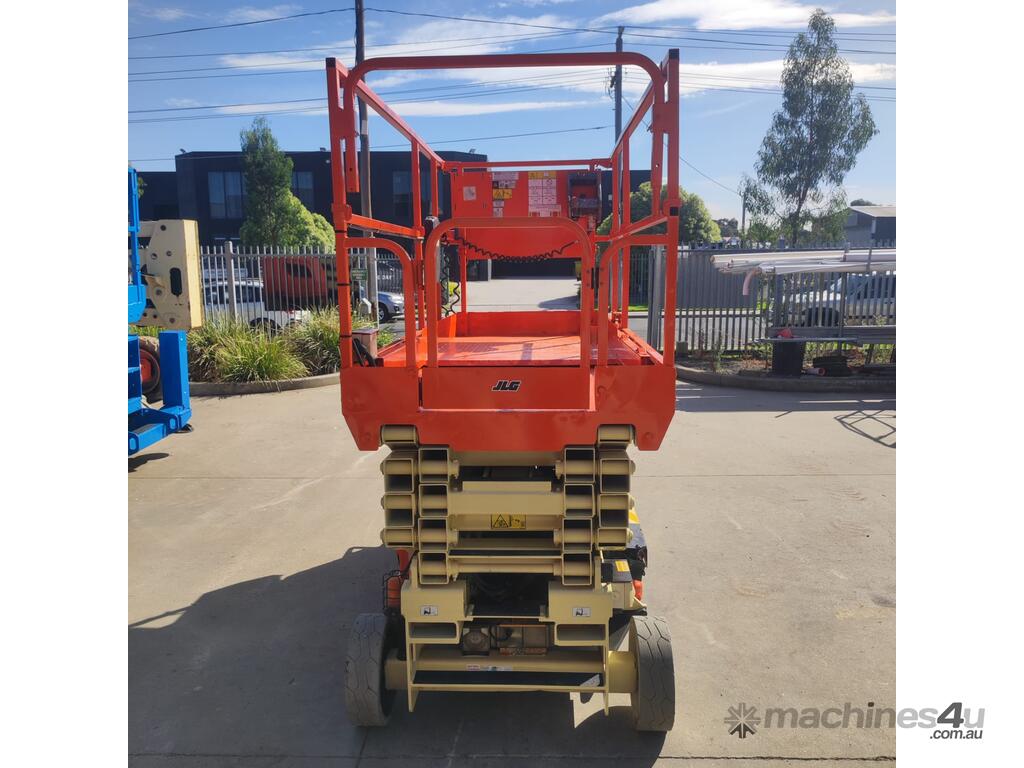

Newly Certified 26ft Electric Scissorlift

2015 JLG 2646ES
Newly Certified March 2025

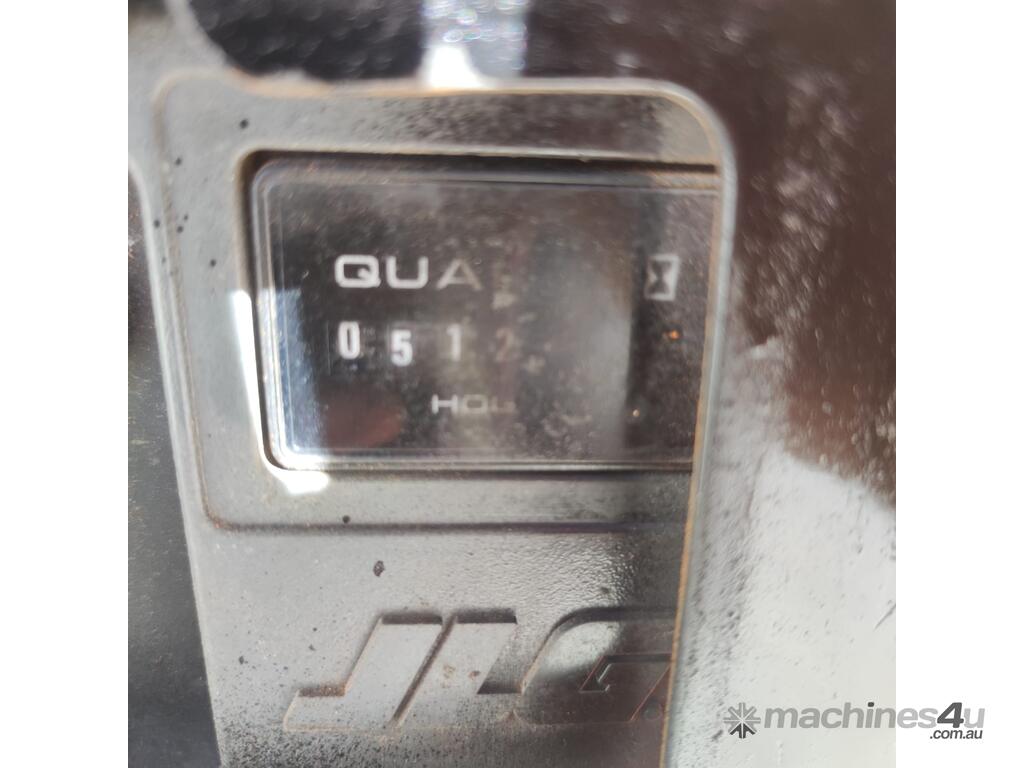

512 Hours
10m Working Height

•Working Height 9.92 m
• Platform Height – Elevated 7.92 m
A. Stowed Height 2.39 m
B. Platform Railing Height 1.10 m
C. Stowed Height (Rails Folded) 1 2.01 m
D. Platform Size (W x L) 1.12 m x 2.50 m
E. Deck Extension 1.27 m
F. Overall Width 1.17 m
G. Overall Length 2.50 m
H. Wheelbase 2.09 m
I. Ground Clearance 0.13 m
• Platform Capacity 2 450 kg
• Capacity on Optional Deck Extension 120 kg
• Lift/Lower Time 40/50 sec.
• Maximum Drive Height 7.92 m
• Machine weight 3 2,740 kg
• Maximum Ground Bearing Pressure 6.98 kg/cm2
• Drive Speed - Lowered 4.0 km/h
• Gradeability 25%
• Turning Radius – Inside Zero
• Turning Radius – Outside 2.41 m



Franklin Equipment is a Melbourne based supplier of new and used EWP and Construction Equipment. Expertise in Major Inspections for elevated work platforms as well as paint and refurbishment for various construction equipment, including Boom Lifts, Scissor Lifts, Forklifts, trailers and more. Franklin Equipment also provide training, trade ins, preform annual and 90-day inspections both on-site and in the field.

Send Franklin Equipment a message about the equipment you are interested in or give us a call - we will offer you the best advice and the fairest deal on your next piece of quality equipment.
