Working height
20.8m (68ft 6in)
Unrestricted working
outreach at 250kg
13m (42ft 8in)
45% Gradeability
4WD for rough terrain
GVW Only 6,640kg
Lightest in its class
Superb Manoeuvrability
3.89m outside turning radius
ToughCage with SiOPS® as Standard
Multi-award winning operator protection
Unique Suspension System
Improving traction & comfort
Swing-Out Engine Tray
Quick & easy to service
Platform Rotation
& Fly-Boom
Improved access to
applications

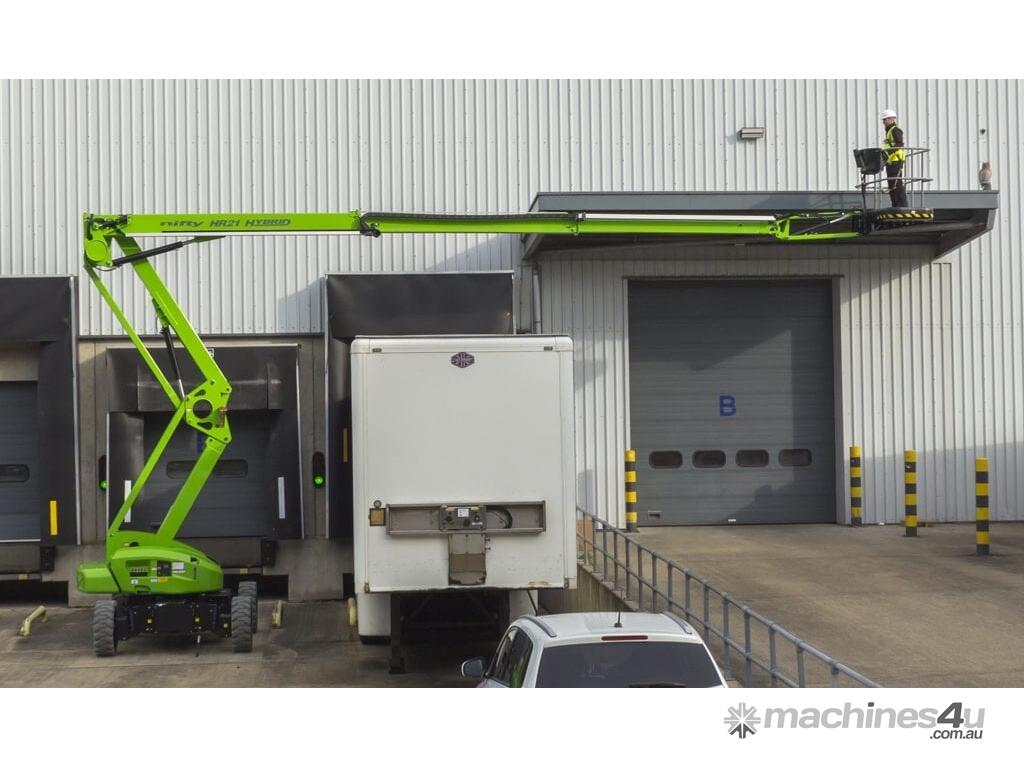

The Height Rider 21 4×4 (HR21 4×4) self-propelled cherry picker will lift 2 persons and their tools to a working height of 20.8m or a working outreach of 13m. Proportional controls deliver smooth, measured operation while 160º cage rotation and a 150º fly-boom allow precise positioning anywhere in its vast working envelope.
Weighing just 6,640kg, the HR21 4×4 combines innovative weight and space saving design with an excellent turning circle to deliver outstanding manoeuvrability on-site and lower transportation costs.
The HR21 4×4’s 1.8m wide ToughCage (steel cage option available) offers more space for materials and tools and the tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage also give additional strength and durability, while the multi-award-winning SiOPS® provides additional operator protection.
The HR21 4×4 is available with two power options, Diesel-only or Hybrid power:
The Diesel-only option incorporates a versatile and efficient TIER IV compliant engine to deliver maximum traction and gradeability, making it ideal for rough or uneven ground.
For more information regarding the HR21 Diesel 4×4 or any other self-propelled boom lift, including the HR21 4×4 Hybrid, HR17 4×4 and HR28 4×4, please contact us.
