Working height 20.8m (68ft 6in)
Unrestricted working outreach at 250kg 13m (42ft 8in)
45% Gradeability 4WD for rough terrain
GVW Only 6,640kg Lightest in its class
Superb Manoeuvrability 3.89m outside turning radius
ToughCage with SiOPS® as Standard Multi-award winning operator protection
Unique Suspension System Improving traction & comfort
Swing-Out Engine Tray Quick & easy to service
Platform Rotation & Fly-Boom Improved access to applications
HR21 Hybrid 4×4 is the winner of the International Powered Access Federation’s IAPA Product of the Year 2018 award.

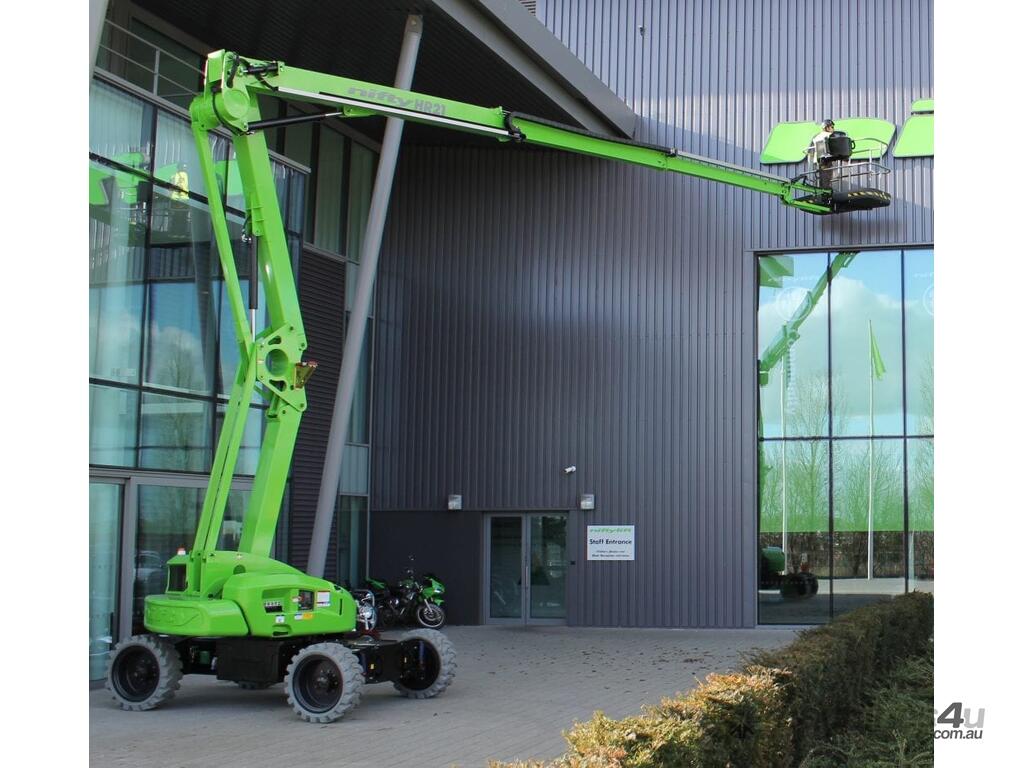

The Height Rider 21 Hybrid 4×4 (HR21 Hybrid 4×4) self-propelled cherry picker will lift 2 persons and their tools to a working height of 20.8m or a working outreach of 13m. Proportional controls deliver smooth, measured operation while 160º cage rotation and a 150º fly-boom allow precise positioning anywhere in its vast working envelope.
Weighing just 6,640kg, the HR21 Hybrid 4×4 combines innovative weight and space saving design with an excellent turning circle to deliver outstanding manoeuvrability on-site and lower transportation costs.
The HR21 Hybrid 4×4’s 1.8m wide ToughCage (steel cage option available) offers more space for materials and tools and the tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage also give additional strength and durability, while the multi-award-winning SiOPS® provides additional operator protection.
The HR21 Hybrid 4×4 is available with true Hybrid power
The Hybrid option incorporates a smaller, power-optimised TIER IV compliant engine supported by the machine’s battery pack for when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative ‘Diesel Re-Gen’ feature also recharges the batteries without a mains power source, giving a ‘fast-charge’ whenever the machine is idle and the engine running. In addition, an electric-only mode allows zero-emission operation, making it ideal for indoor use, or for quiet, clean operation.
For more information regarding the HR21 Hybrid 4×4 or any other self-propelled boom lift, including the diesel version, HR21 4×4, HR17 4×4 and HR28 4×4, send us a message
