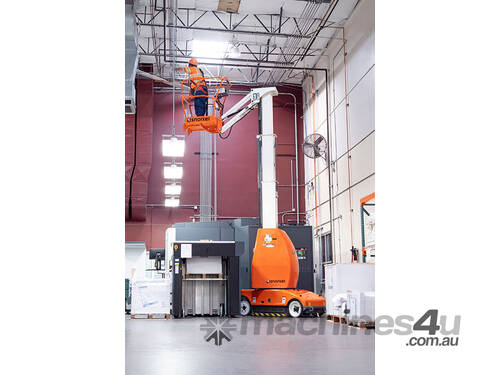

Nifty MB20J Electric Mast Boom Lift

Max. Working Height: 8.1m
Max. Working Outreach: 2.6m
Platform Capacity: 215kg
Weight: 2,590kg

The Snorkel MB20J is a self-propelled electric mast boom lift fitted with a jib boom, which is ideal for working in compact spaces requiring ‘up and over’ capabilities. Fitted with non-marking tyres as standard.

STANDARD FEATURES
Ultra-tight inside turning radius
Proportional controls
Tilt alarm
Non-marking rubber tires
2 persons indoors
1 person outdoors
Self-seeking automatic battery charger
Automatic battery fill
Power line to platform
Hour meter & on-board diagnostics display
Hydraulic pothole protection system
2 year parts & labor, 5 year structural warranty


Max Working Height
8.1m

Max. Platform Height
6.1m

Max Working Outreach
2.6m

Platform Size
0.78m x 0.73m

Overall Width
0.81m

Overall Length
2.41m

Stowed Height
1.98m

Ground Clearance
100mm

Platform Capacity (SWL)
215kg

Max Drive Height
6.1m

Max. Wind Speed
12.5m/s

Max Drive Speed (stowed)
3.2km/h

Max Drive Speed (elevated)
0.48km/h

Jib Length
1.02m

Jib Arc
130°

Mast Rotation (non-continuous)
360°

Raise/Lower Time
54/26sec

Gradeability
25%

Inside Turning Radius
0.3m

Outside Turning Radius
1.83m

Tyres
323mm non-marking rubber

Controls
proportional controls

Drive System
electro/hydraulic

Power Source
4 x 6V x 375 AH batteries

Weight
2,590kg
