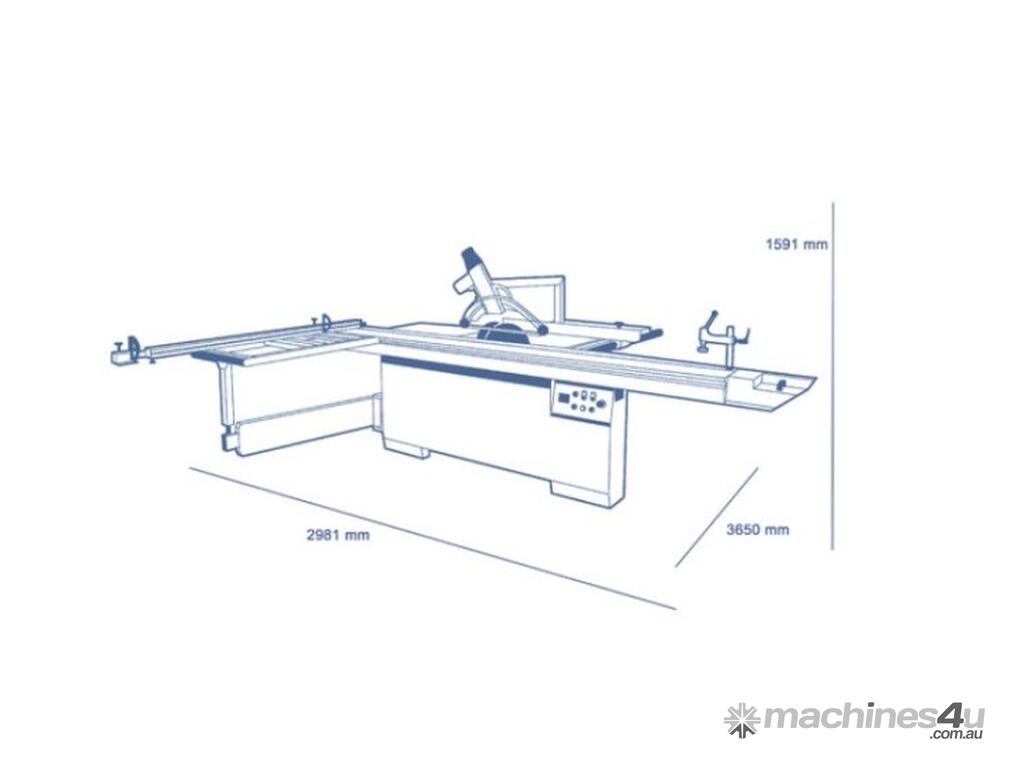

Nova SI 40 (2.6) Panel Saw

Circular saw with tilting blade with professional performances, for a quality without compromises.

Maximum torsional rigidity and the total absence of vibration through the closed loop structure of the saw unit which ensures perfect alignment of the blades during tilted and difficult cuts. The wide section of the carriage, with closed reticular geometry provides extreme rigidity and minimum deflection. A smooth operating motion is guaranteed over time by the system of sliding bearings running on hardened steel guides using an exclusive method of mechanical fixing.

-Saw unit. The saw blade lifting is carried out by a strong cast-iron structure with sliding on ground round slideways which guarantee the best accuracy.
-The unit tilting is carried out on cast-iron rotation sectors in a crescent shape to ensure reliability over time.
-Squaring frame (dimensions 1200 x 650 mm). Panel loading is easy on the large squaring frame with an idle roller at the end and the mobile cross beams offer an optimal support also to smaller panels
-Telescopic squaring fence with the inclined metric scale and two reversible stops can be used to square panels measuring 3200×3800 mm and for tilted cuts at up to 45° on both sides of the frame.
-Dedicated saw parallel fence for a smooth, fast and precise positioning. The fence is equipped with high rigidity cast iron fence support, micrometric adjustment and cam-locking system, rectified steel round sliding bar, 45 mm diameter.
-Readout of sawblades tilt on the machine front side
-2 saw blade rotating speed (3500/5000 rpm)

Additional Information
Unique in the world in its category!
The cast iron saw unit with a rigid closed loop structure can accommodate a blade of max. 400 mm diameter with the scoring blade mounted, ensuring perfect and easy cutting of veneer panels and thick solid wood material.

The carriage sliding system is guaranteed for 10 years: a proof of reliability and technology without comparisons.

Optimal support also to larger pieces
with the sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding.

SCM Thundercut
App for mobile devices: optimizer/sequencer even for not skilled workers.

Technical data NOVA SI 40
Max cutting height at 90° (mm) 136 with blade 400
Max cutting height at 45° (mm) 97 with blade 400
Blade tilt (degrees) 45
Blades lifting and tilt manual
Main blade rotating speed (rpm) 4000
Scoring unit rotating speed (rpm) 9200
Saw unit motor power kW (HP) 50Hz 5 (6,6)
Scoring unit motor power[S1] kW (HP) 50Hz 0,55 (0,75)
Squaring capacity 2600×3200
Cutting width on parallel fence (mm) 1270
"Exhaust outlet diameter
– at the base (mm) 120
– on overhead protection (mm) 80
