Nukon ECO 315 - 2kW-6kW - Fiber Laser

Nukon ECO Fiber Laser Cutting Machine
With its small footprint and low operating costs, it is the most suitable machine series for businesses with limited budget.
2kW, 3kW, 4kW and 6kW power options.

Unlike conventional rear-loading models, the auto-changing tables are on the side of the machine.
It has a compact design that can be easily installed on an area of just 7m x 7m.

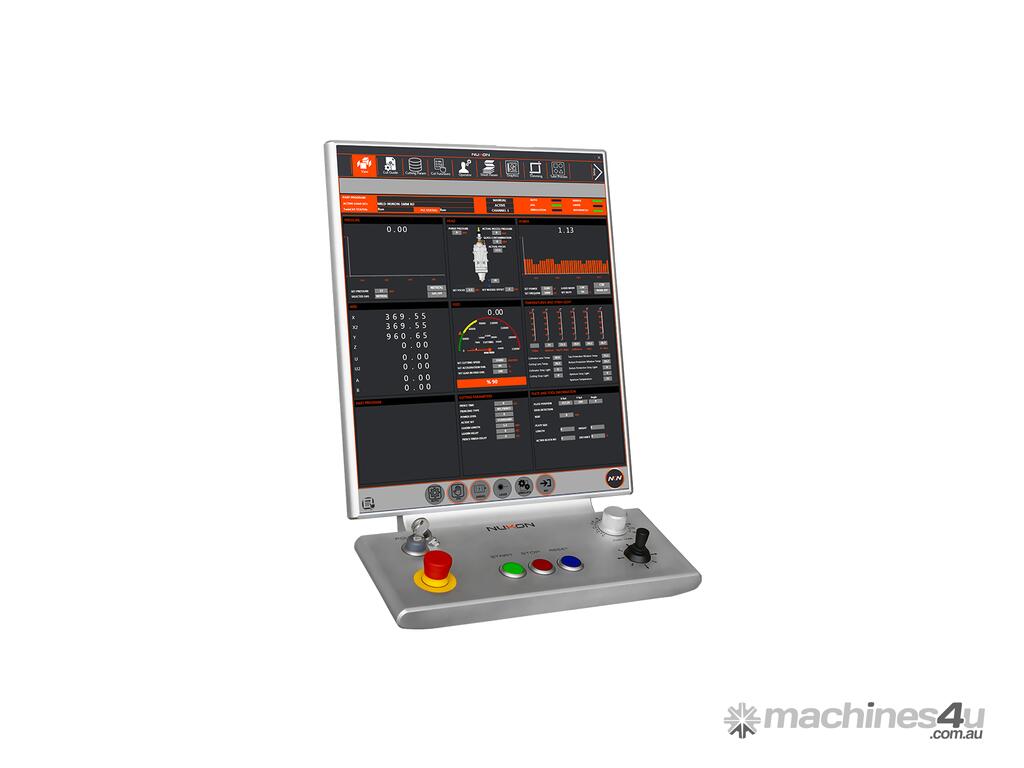

Industry best components and software including Beckhoff drives and lantek offline software.

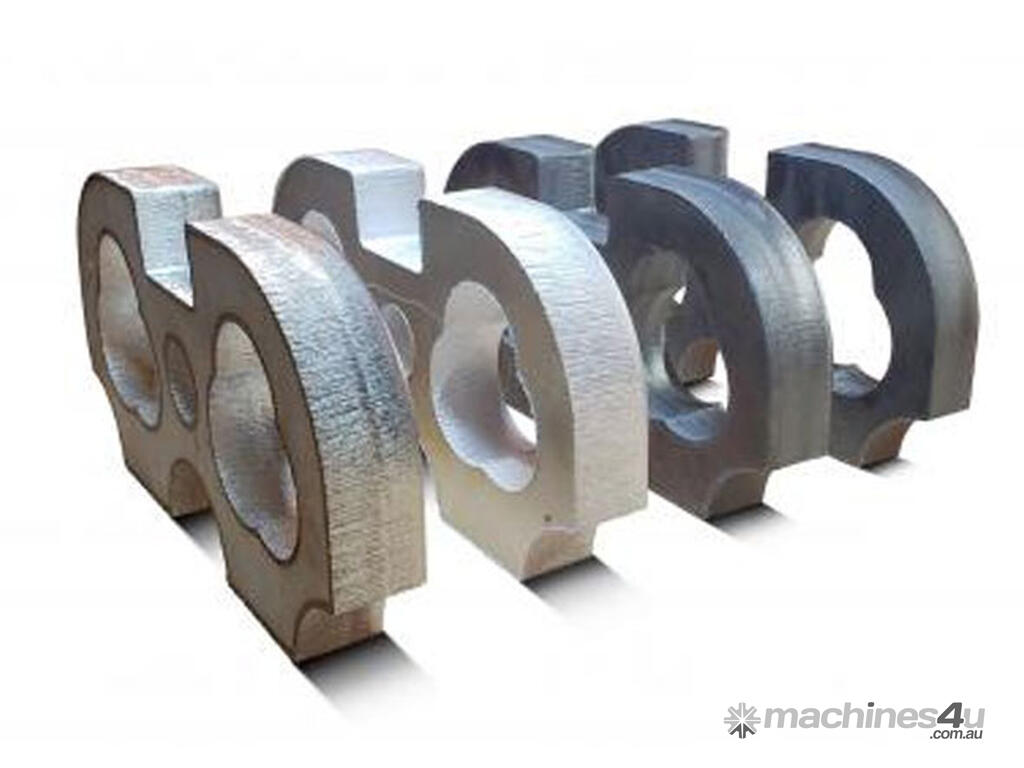

2kW laser cutting parameters.
16mm Mild steel max
6mm Stainless steel max
6mm Aluminium max
2mm Brass max
2mm copper max

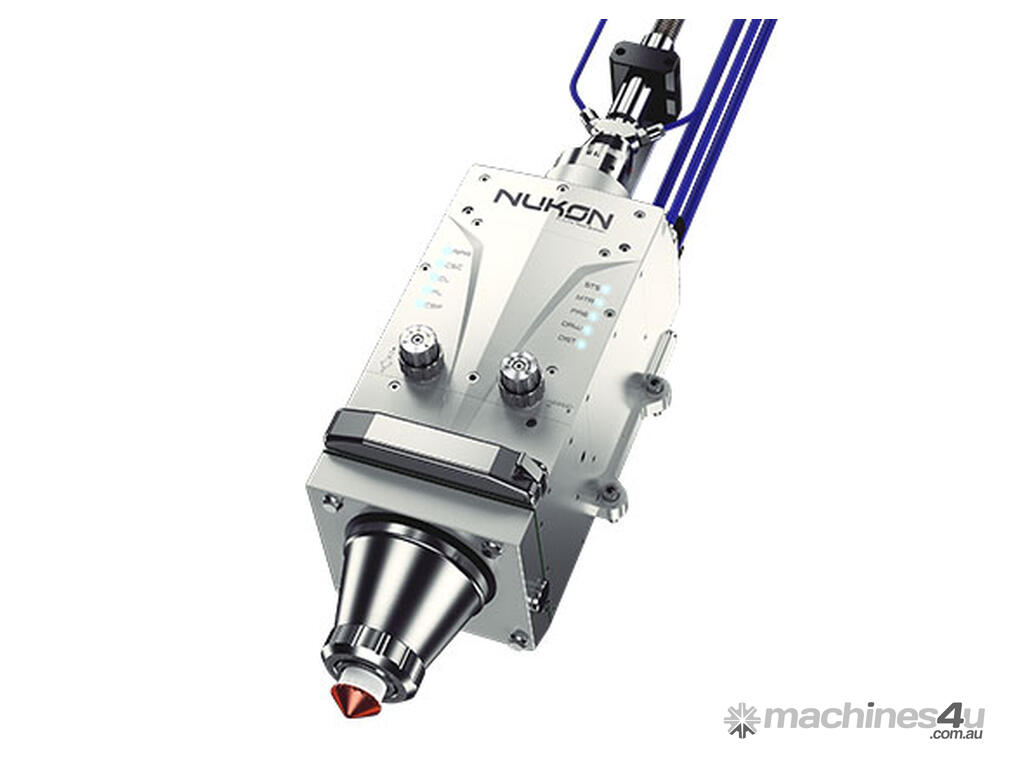

For high quality cutting results on both thick and thin material the 6Kw model is available with CutLine option.
This allows the operator to adjust the laser beam diameter for any thickness.

Additonal options include
Linear motors on the X-axis to achieve better precison and faster travel speeds.

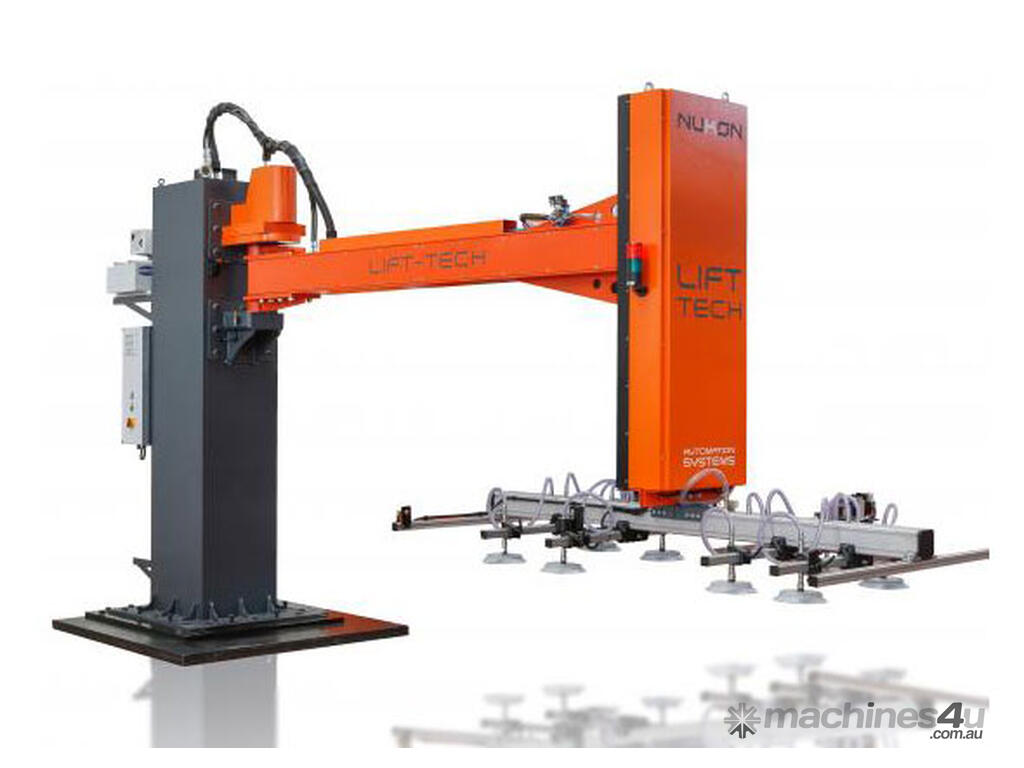

Lift tech loading system for easy loading of sheets
