Nukon Vento - Fiber Laser

Nukon VENTO 315/420/620 LINEAR SYSTEM
High productivity and upper segment standards.

Why Linear? Higher precision and repeatability, faster acceleration and deceleration and most importantly no wear.

4 kW, 6 kW, 8 kW, 10 kW and 12 kW laser power options.

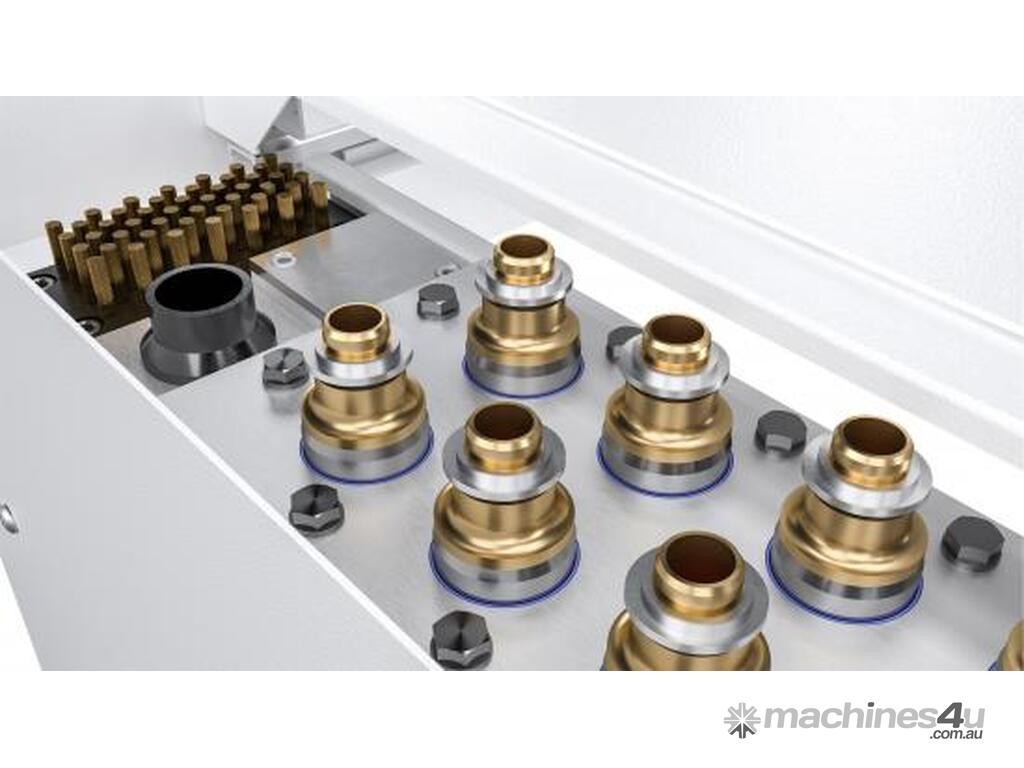

Speed, sensibility, reliability and low operating cost with linear system, nozzle cleaning, auto nozzle changing, loading/unloading system, tube cutting and more features.

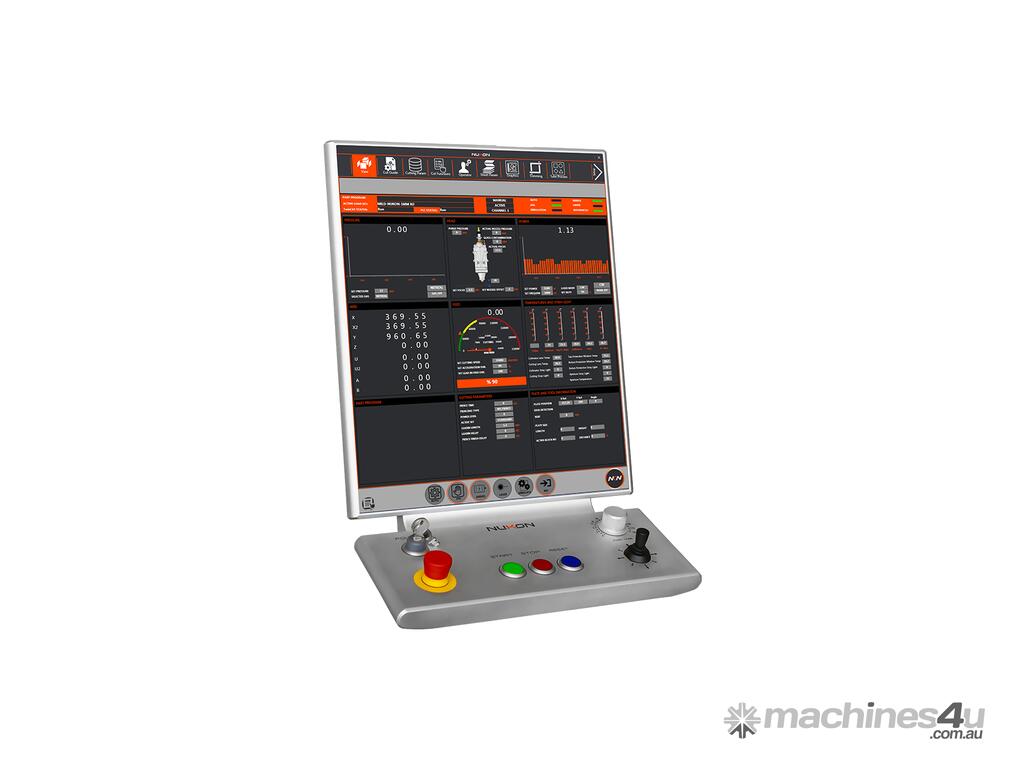

Industry best components and software including Beckhoff drives and Lantek offline software.

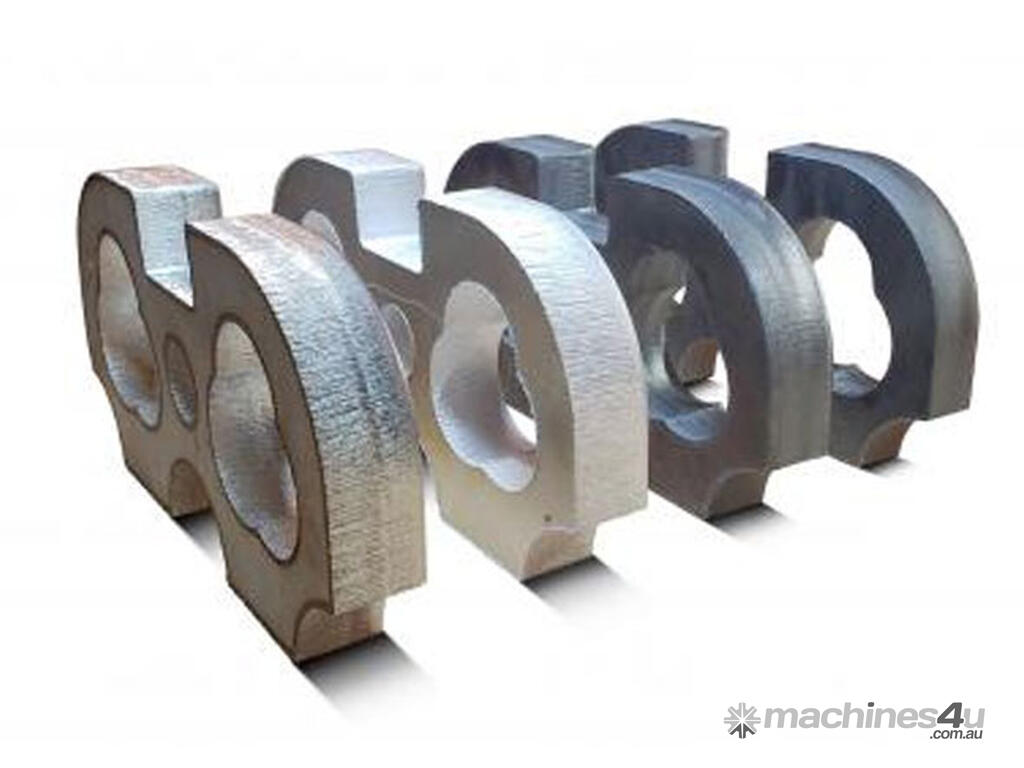

6kW laser cutting parameters.
20mm Mild steel max
20mm Stainless steel max
20mm Aluminium max
12mm Brass max
12mm Copper max

For high quality cutting results on both thick and thin material the 4kW, 6kW. 8kW, 12kW model is available with CutLine option.
This allows the operator to adjust the laser beam diameter for any thickness.
