OAV 370P EDGE BANDER

Hot Melt OAV 370P Edge Bander with pre milling end cut, top and bottom trimmers, corner rounding, scrapers, glue scrapers.
The OAV Edge Bander outperforms the market standard and is reliable, accurate and delivers professional results every time.

OAV Edge Bander 370P is the industrial choice which is with CORNER ROUNDING function which will deliver high-quality results.

It coils up to 3mm thick, and strips up to 4mm.


PLC parameter setting & temperature control bring stable and reliable working conditions, optimising output and performance.

Edge feeding is automatic for roller materials with the thickness between 0.4-3 mm.

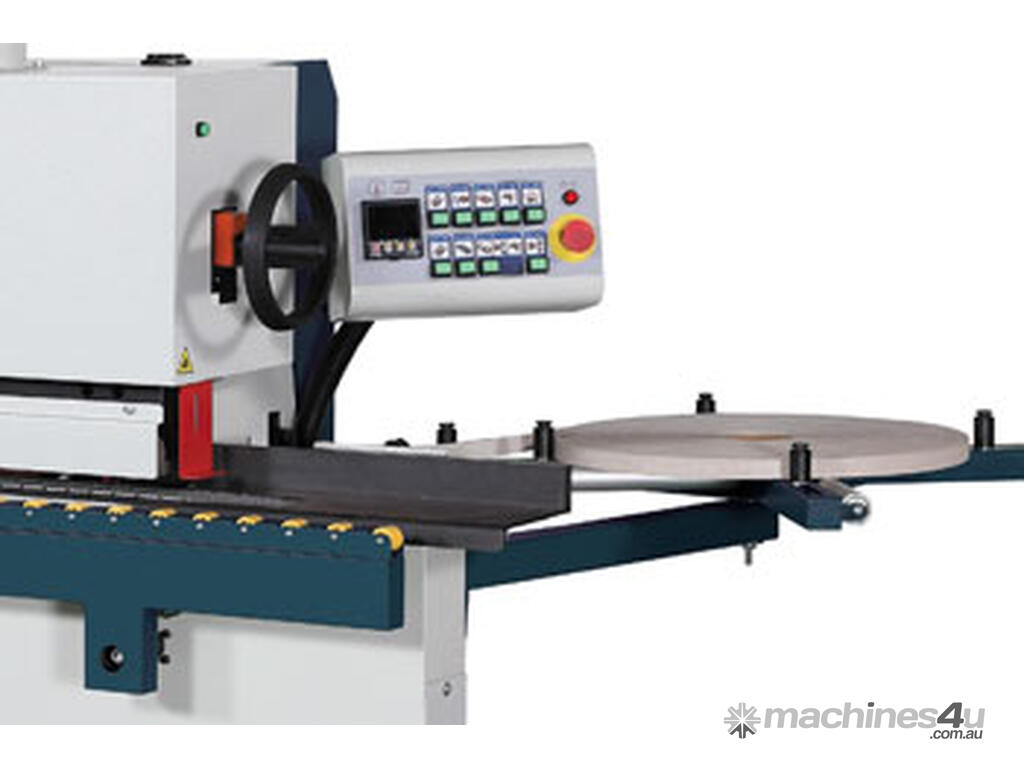

Operating Panel with LED Keypad- Glue temperature setting
Choose and disengage any units individually.

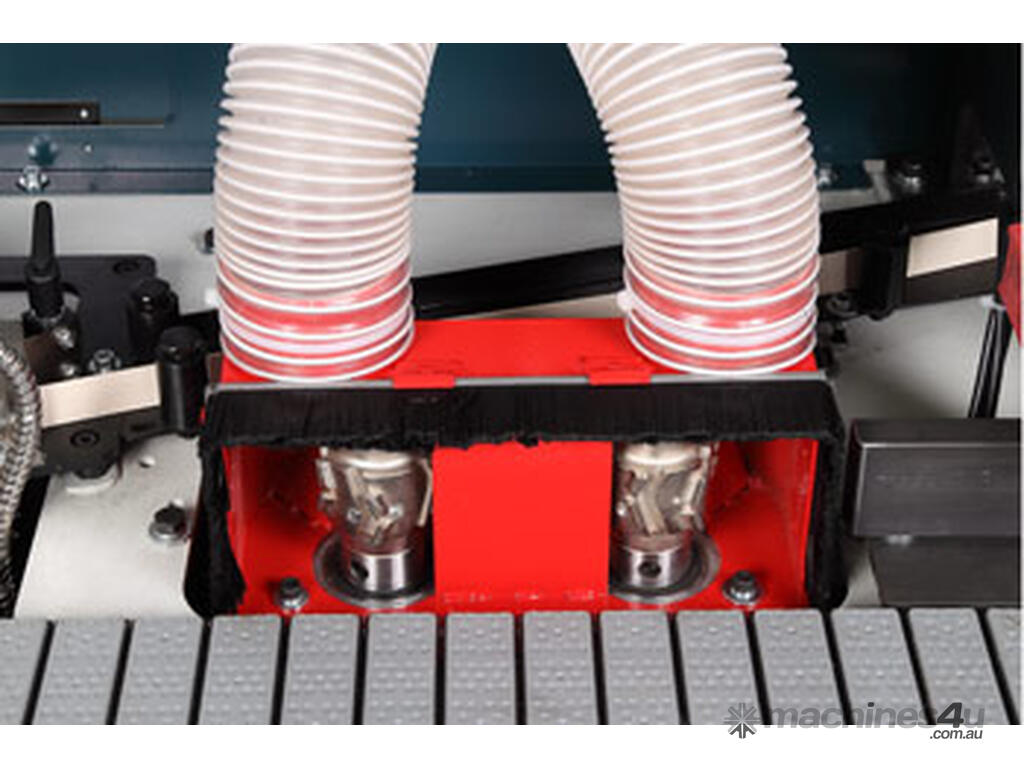

Two diamond milling heads ensure the edge of workpiece is absolutely straight to the material of edge being glued.

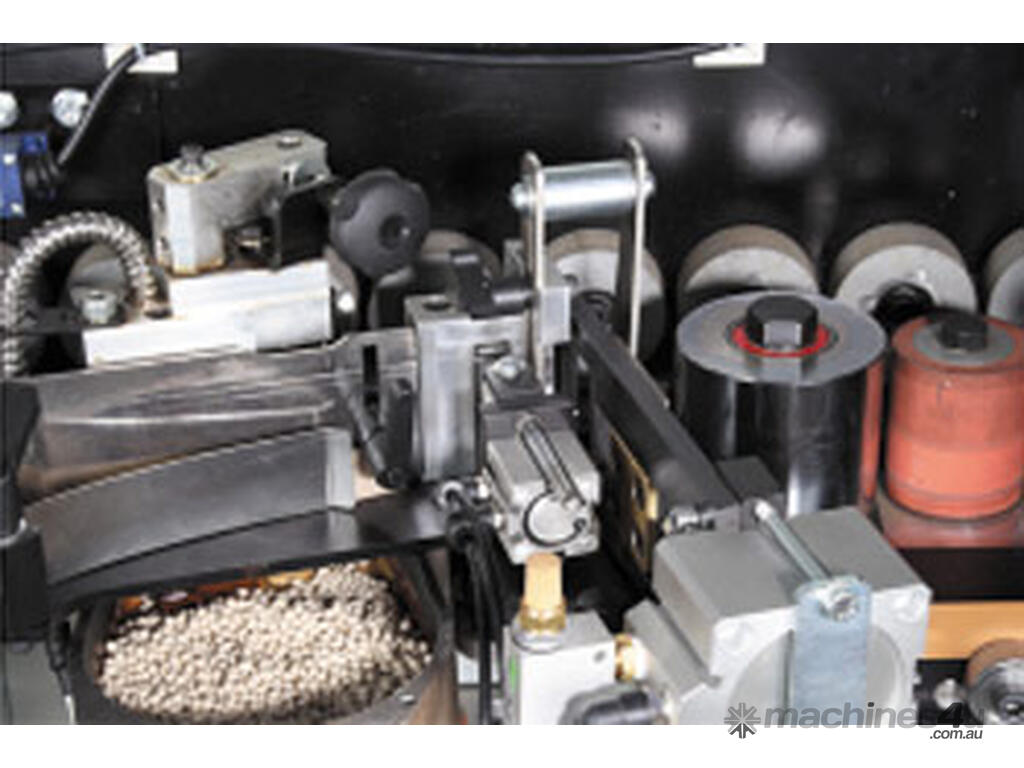

1.2kg Teflon-coated glue pot is designed for EVA hot-melt glue.
The glue is applied with an adjustable glue roller.
Coiled material up to 3mm in thickness can be trimmed by the guillotine shears.
Swing design guillotine shears would not pull edge.

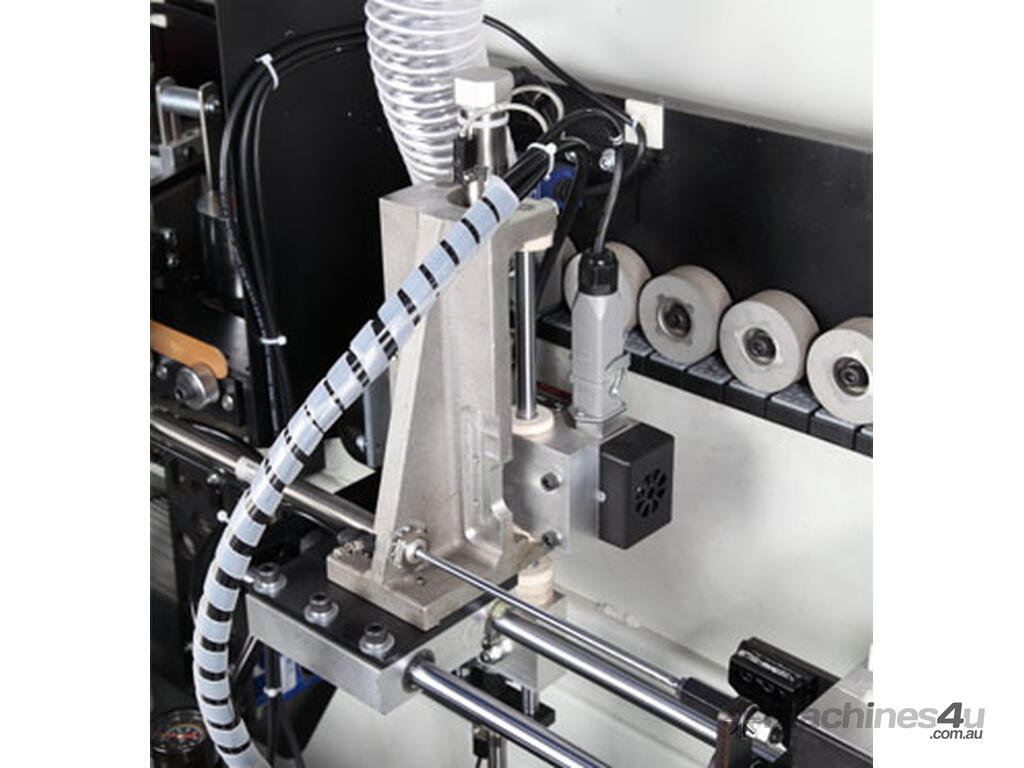

End Cutting Unit is mounted on high-precision linear bearings, which ensure perfect cutting results.

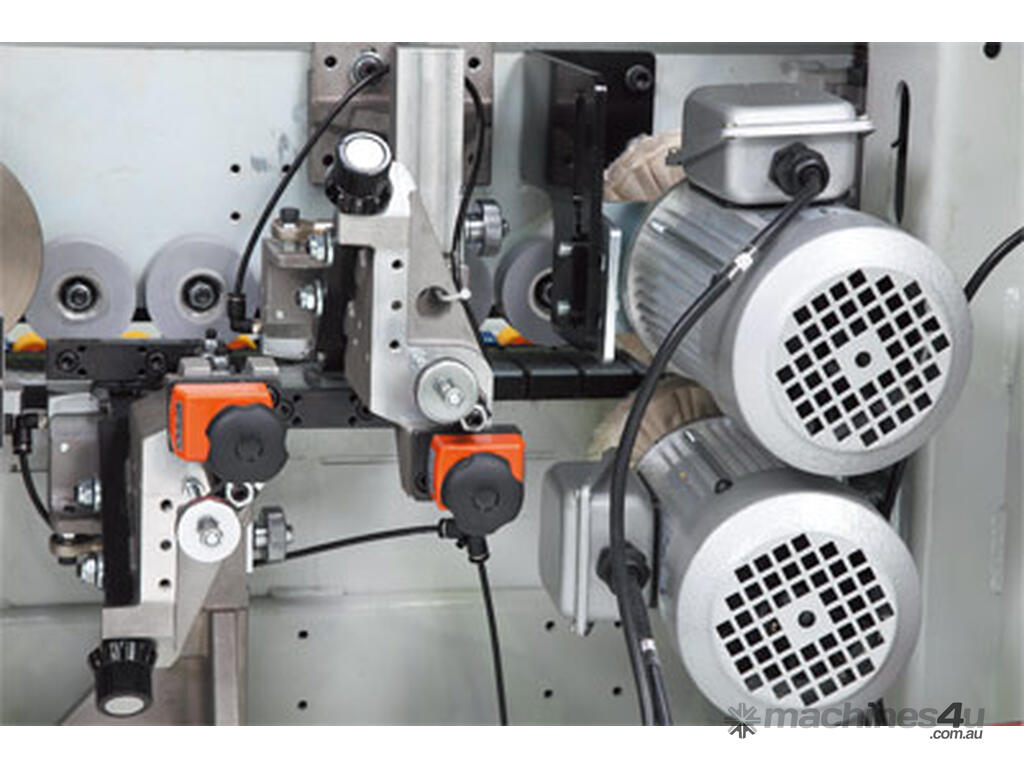

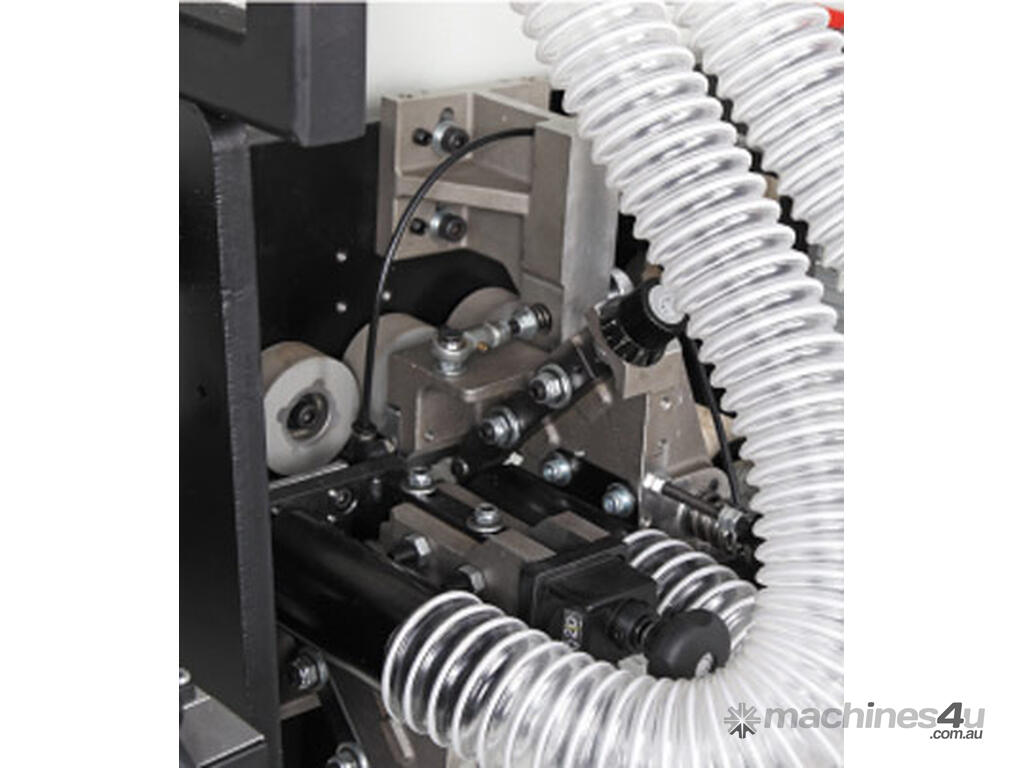

The adjustment of the settings from flush trimming for thin edge, as well as radius trimming for thicker edge, is quick and easy. TC 2mm radius tooling is included as standard, with dust collection design.

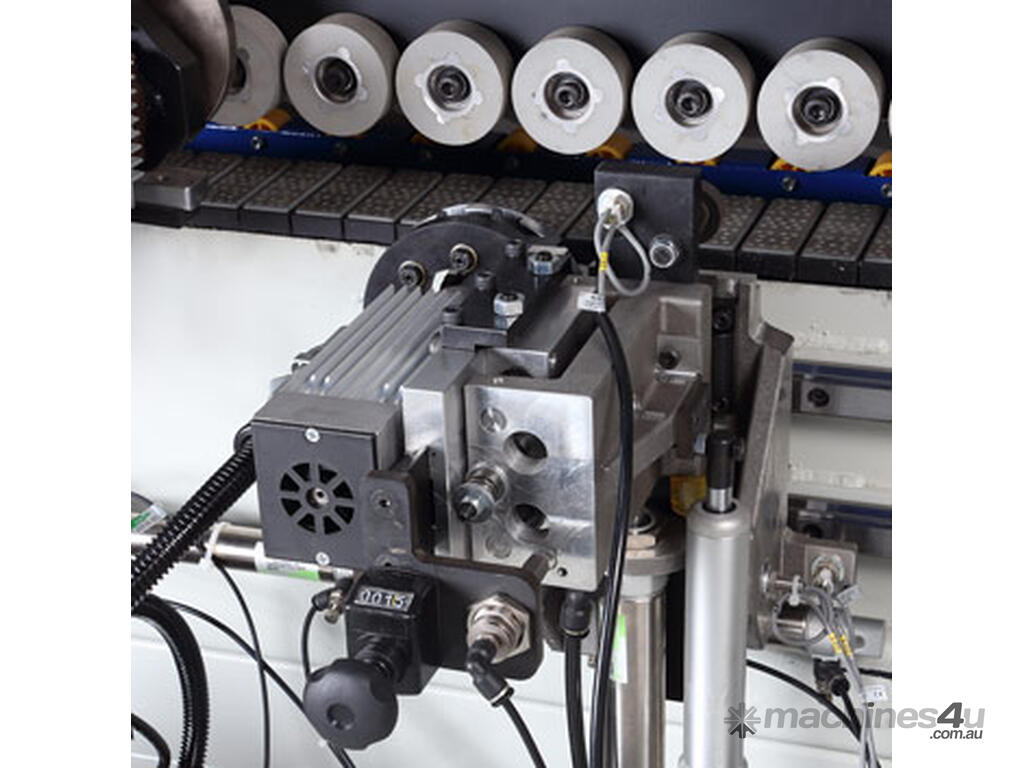

Corner rounding unit will allow you to get perfect corners of your panel every time without any cutter jointing marks. All the essential functions of trimming are programmed by the operator and executed at high speed to an exceptional degree of accuracy.

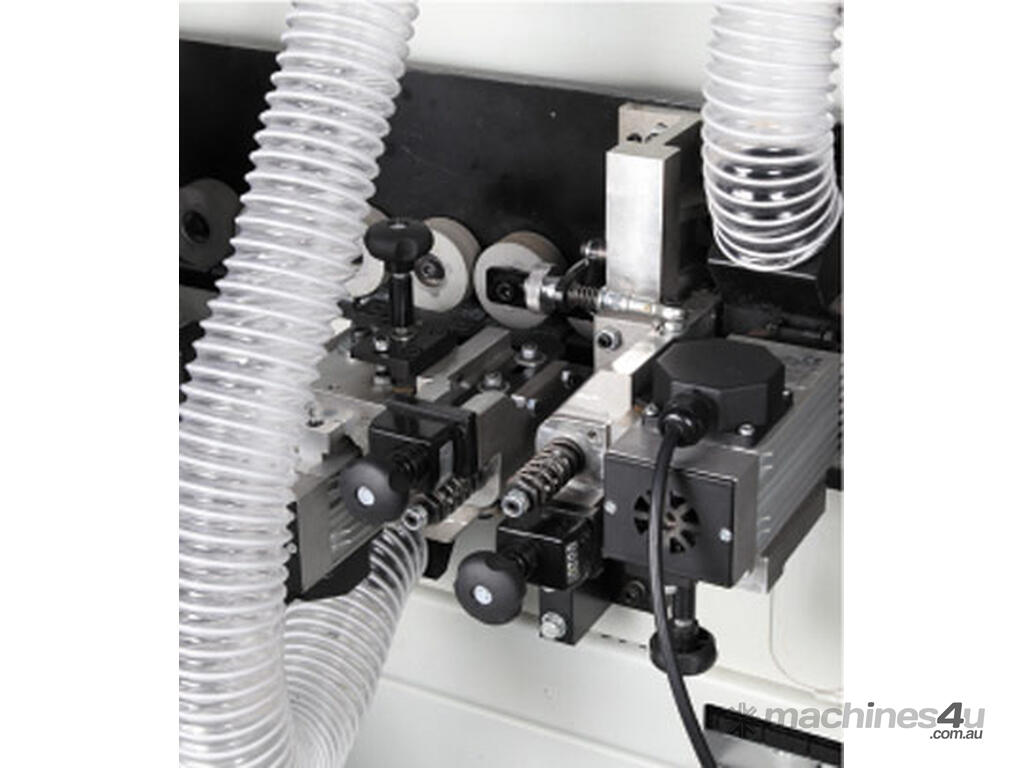

The scraping unit fine-tunes the edge radius and removes excess glue.
Buffing Unit leaves a super finish on ABS and PVC edging, and removes any discoloration on the edges, which is especially noticeable when working with dark edge material.

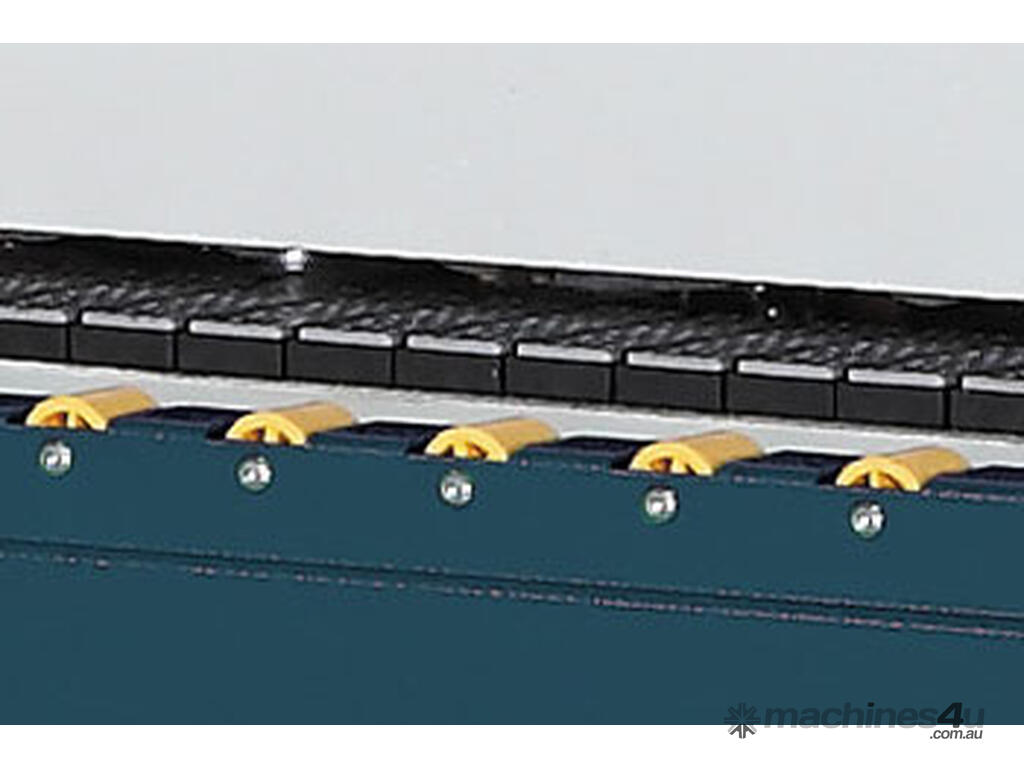

The steady work-piece feeding mechanism is comprised of a chain and set of drive rollers, which will leave no scratches on the work-piece surface.
