OAV P30CE Panel Saw 548 x 896mm Cast Iron Table Ø305mm Saw Blade, Ø120mm Scoring Blade Diameter & I

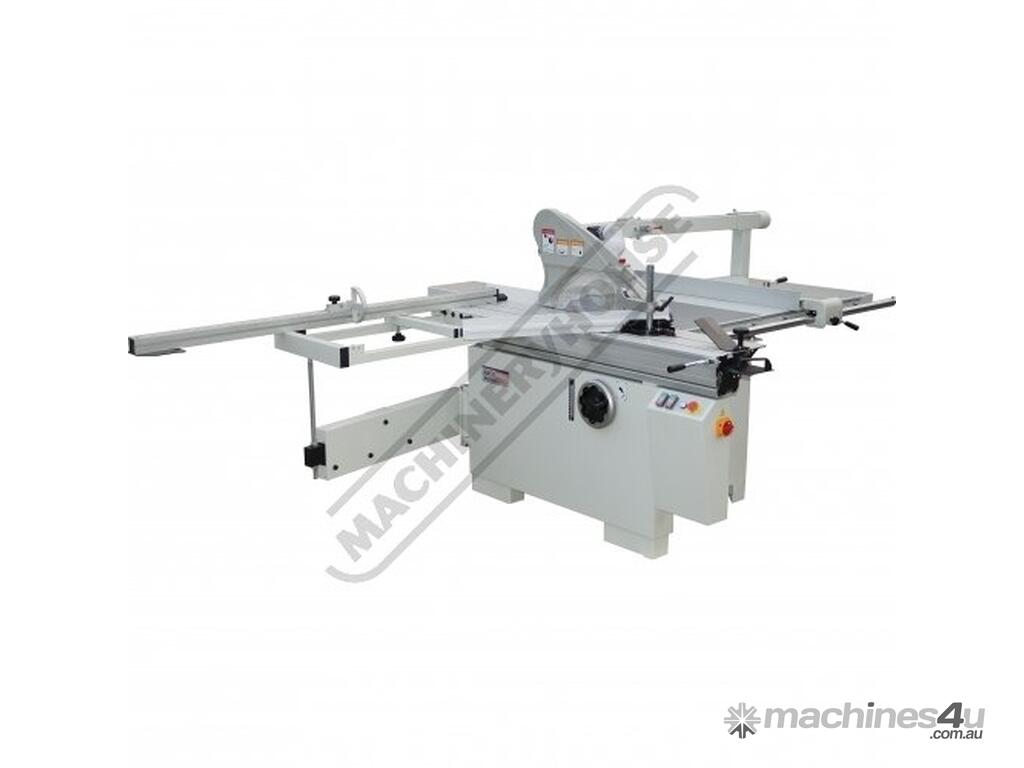

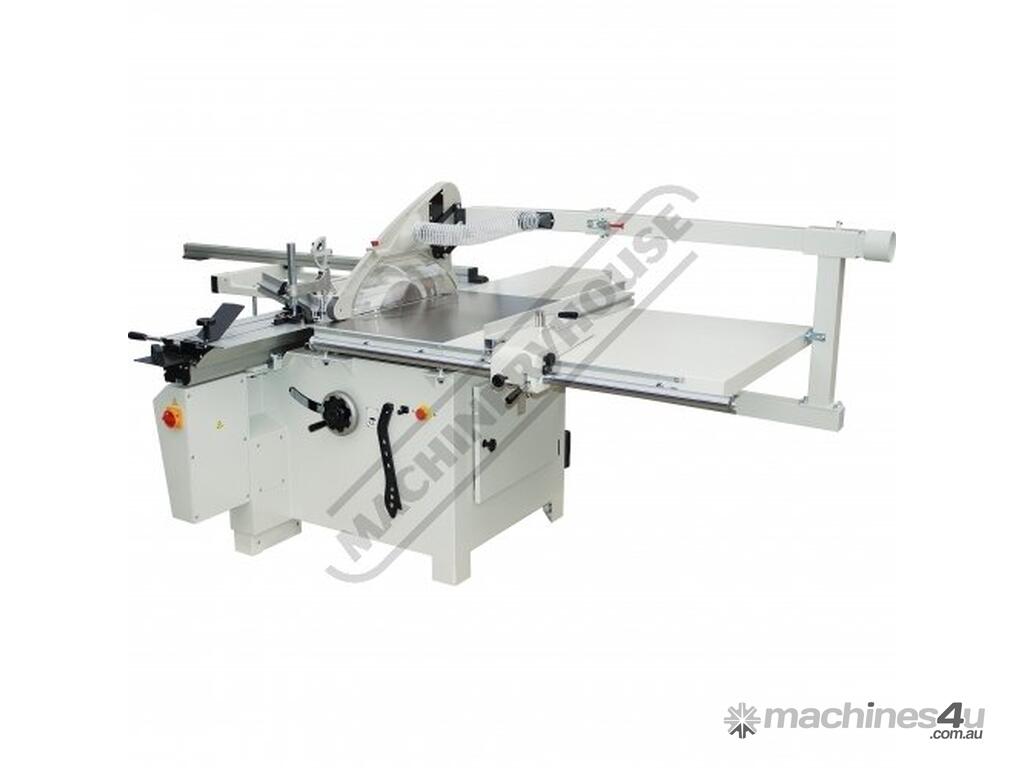

HAFCO-WOODMASTER OAV P30CE Panel Saw 548 x 896mm Cast Iron Table Ø305mm Saw Blade, Ø120mm Scoring Blade Diameter & Includes 1600mm Sliding Table & Over Head Guard
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W740

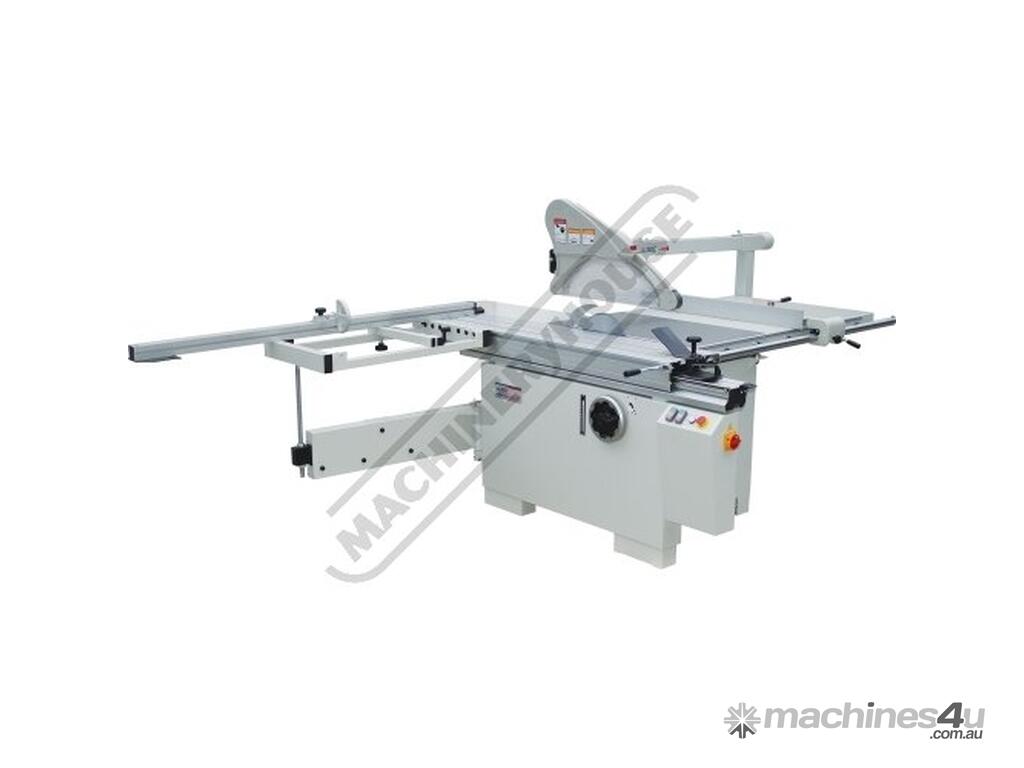

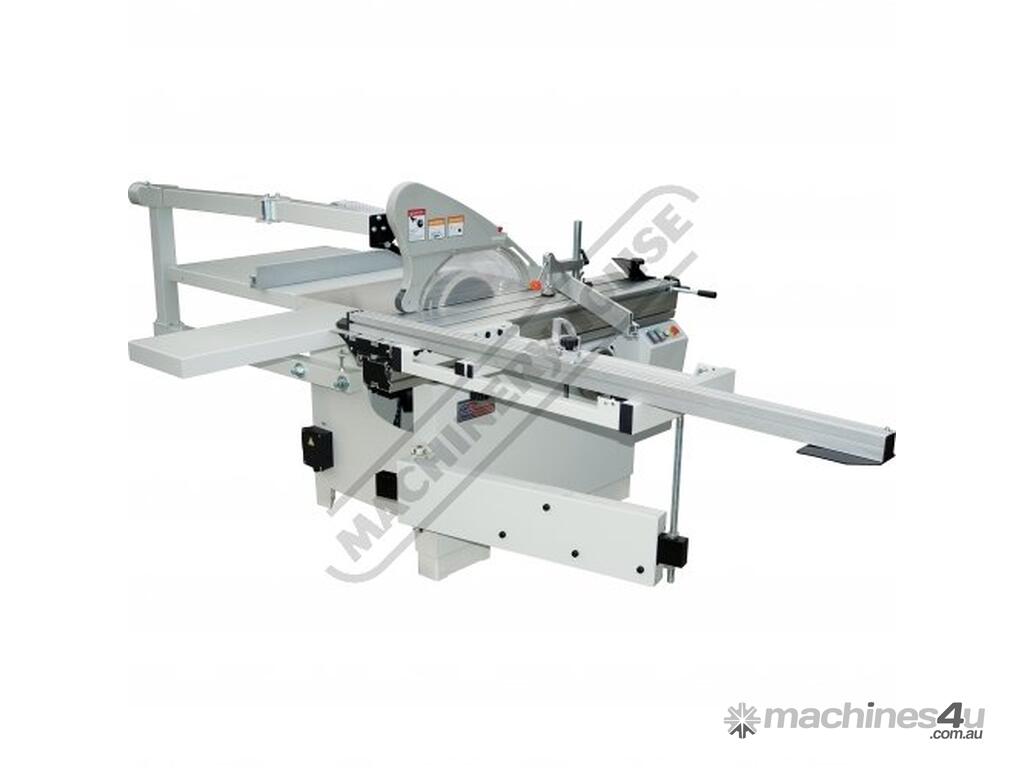

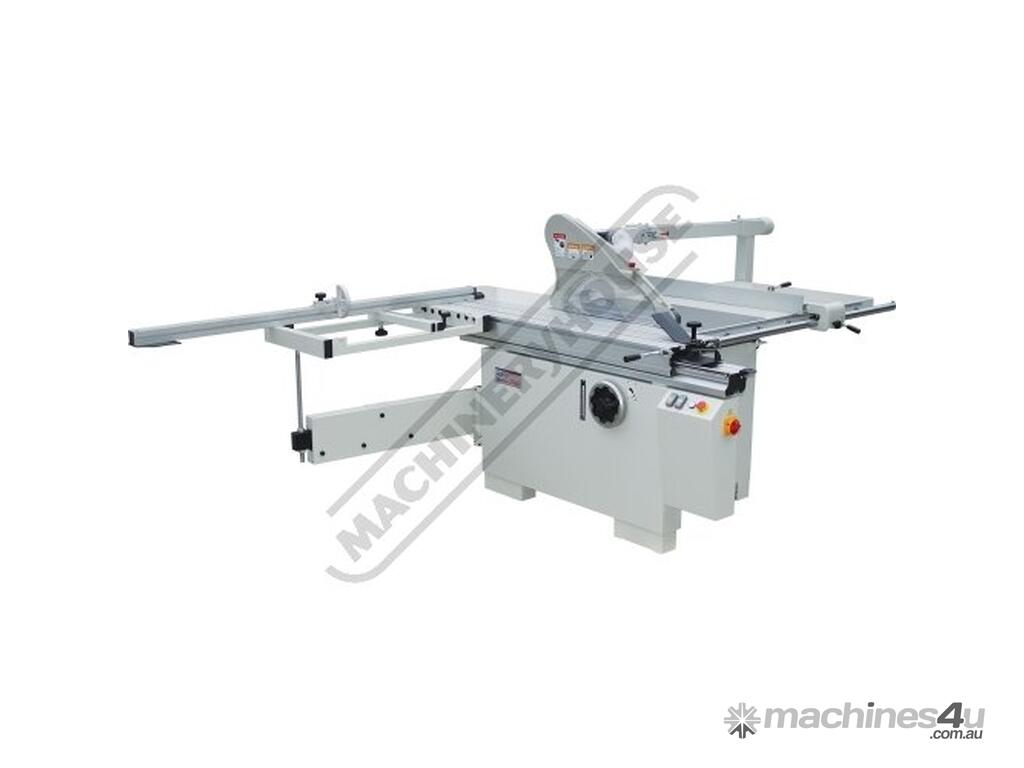

This is a great mid-sized heavy-duty panel saw designed for ease of use with high accuracy cutting of all types of board materials. This is a very reliable and accurate panel saw, easy to use and an asset in any workshop.

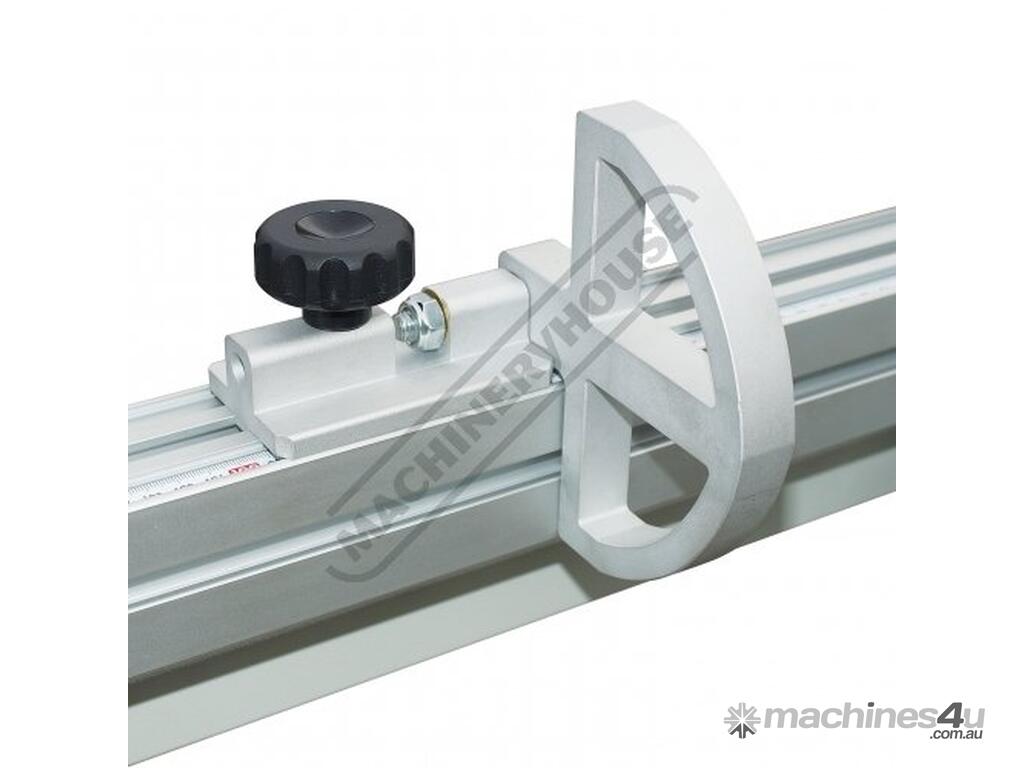

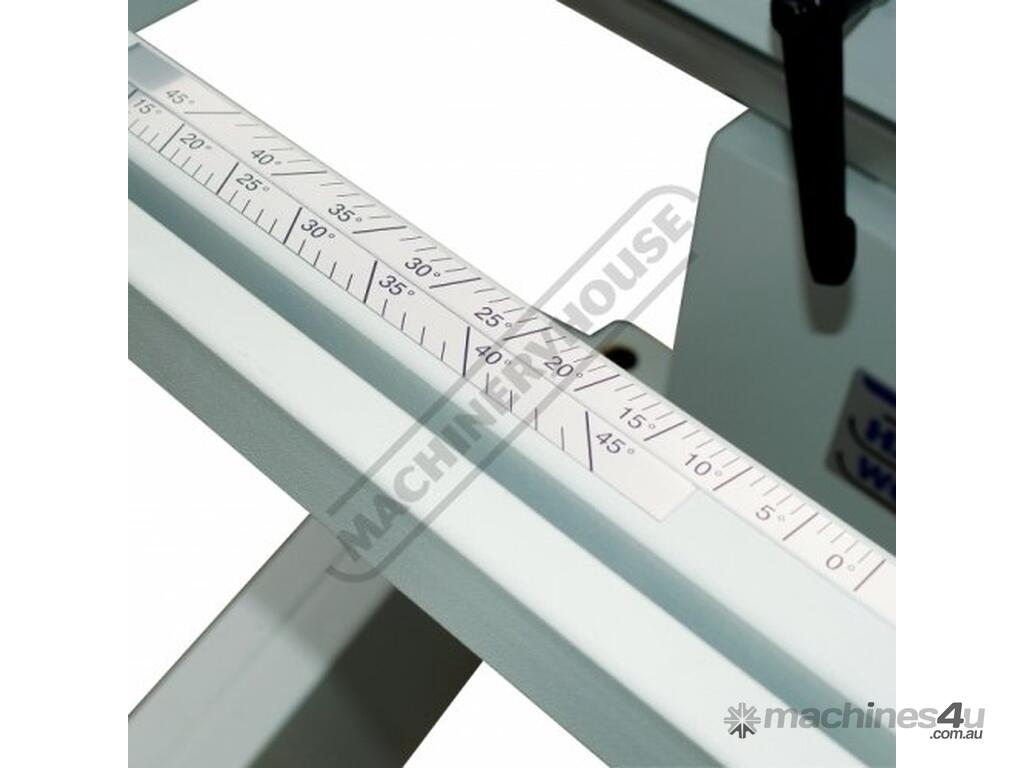

The OAV P30CE offers a full 1600mm before the blade, the heavy duty 1600 x 315mm sliding table is robust and smooth running on its slides. A panel frame supports the larger boards and a mitre fence with extension plus 2 length stops are included as standard. There are plenty of adjustments that can be made to ensure accurate cuts all day every day.

The saw blade size is 305mm, driven by a 5hp 415V motor spinning the blade at 4000rpm, giving a maximum depth of cut of 90mm at 90°. The 120mm scoring blade powered by a separate 0.75hp motor is spinning at a grand 8000rpm, giving the finest of scoring cuts on laminated materials, preventing chipping of the edge of the cut.

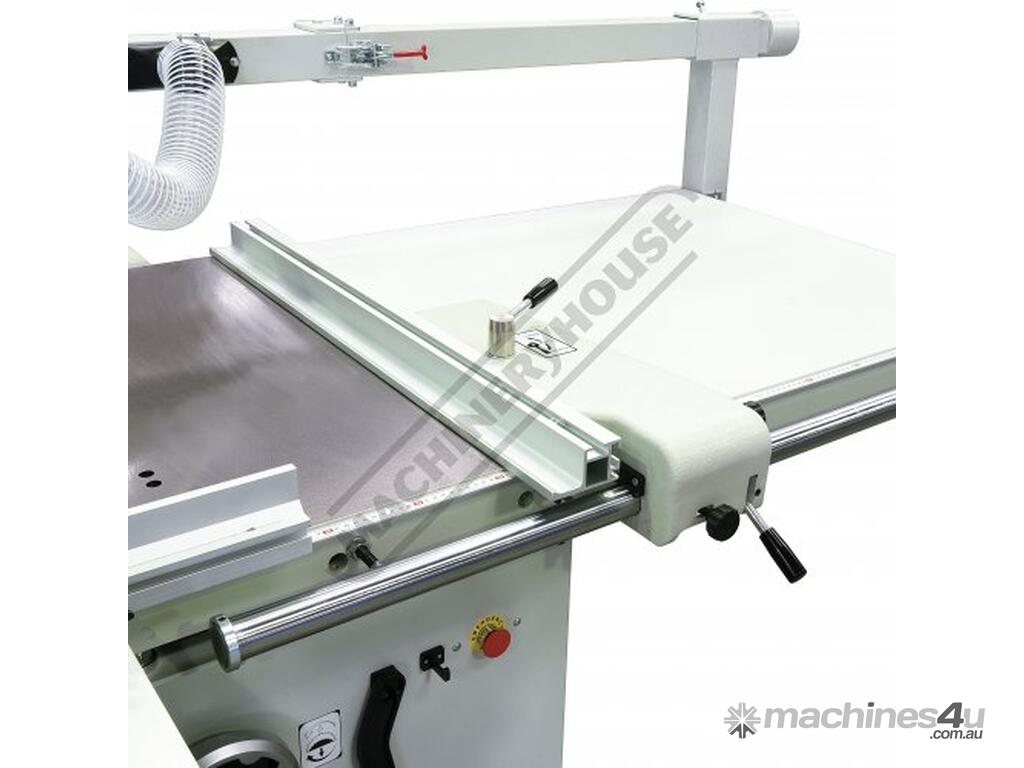

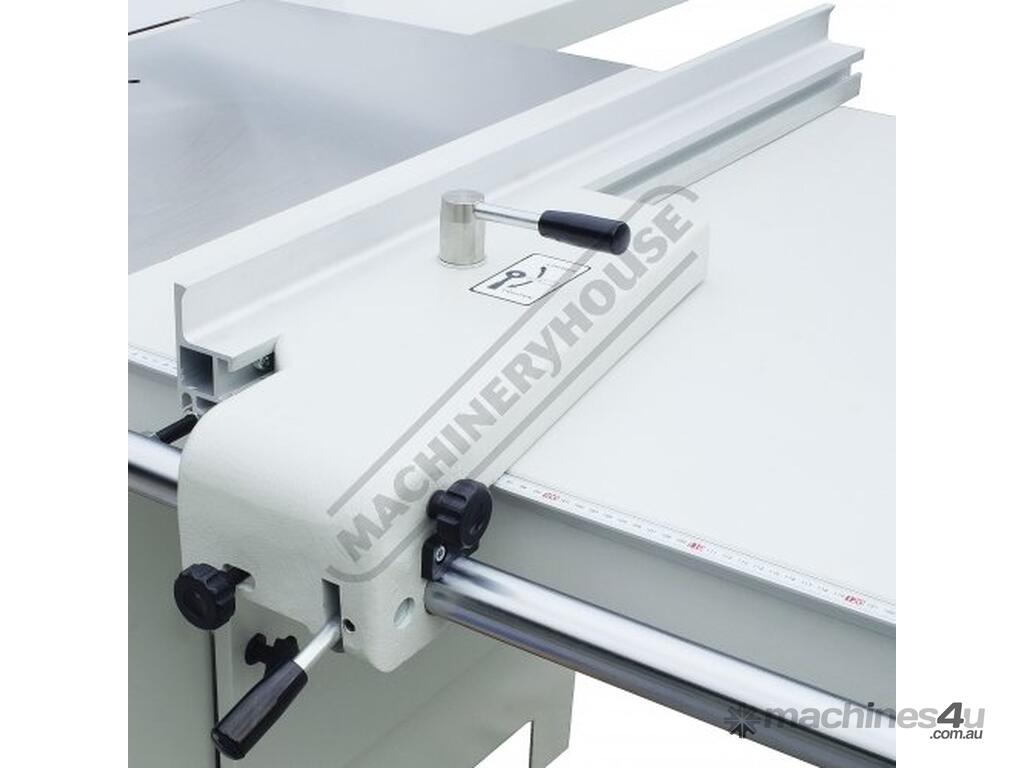

The main table is a rigid, precision ground, cast iron surface of 548 x 896mm supported by a welded steel chassis, powder coated for long term protection. A cast iron rip fence body with fine width adjustment is complemented by a long, alloy extrusion fence arm, all running on a solid 40mm diameter chromed steel rail. Rear outfeed and side extension tables in thick gauge sheet steel are included as well.

Features:

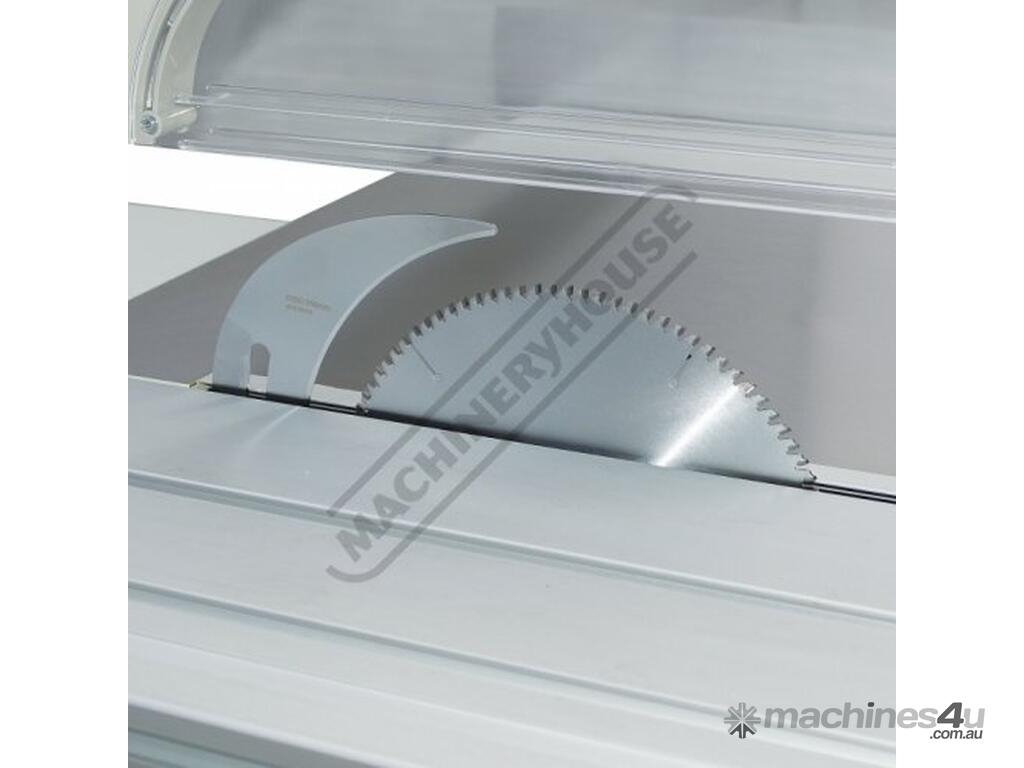

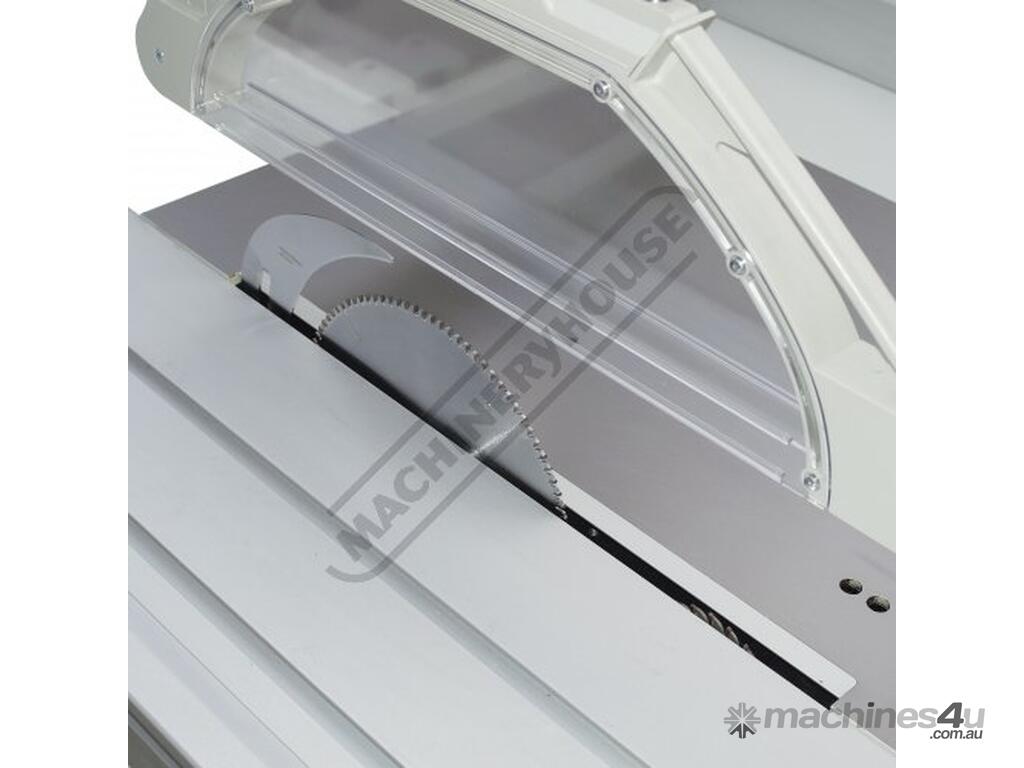

Main and scoring saw blade ensures tear-free cutting
Ø305mm main blade driven by powerful 3.75kW / 5hp 415V motor
Ø120mm scoring blade driven by 0.56kW / 0.75hp 415V motor
Main blade spindle speed 4000rpm
Scoring blade spindle speed 8000rpm
Depth of cut: 90mm 90º 63mm 45º
1600mm sliding table stroke

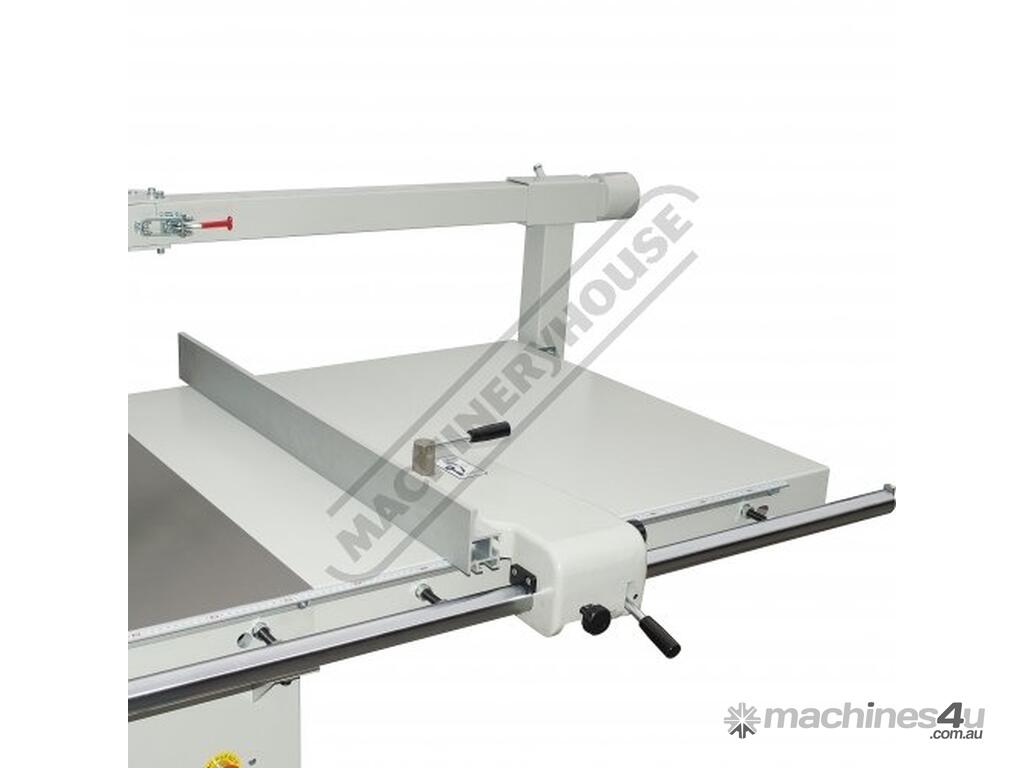

1300mm ripping capacity with smooth rip fence & adjustment

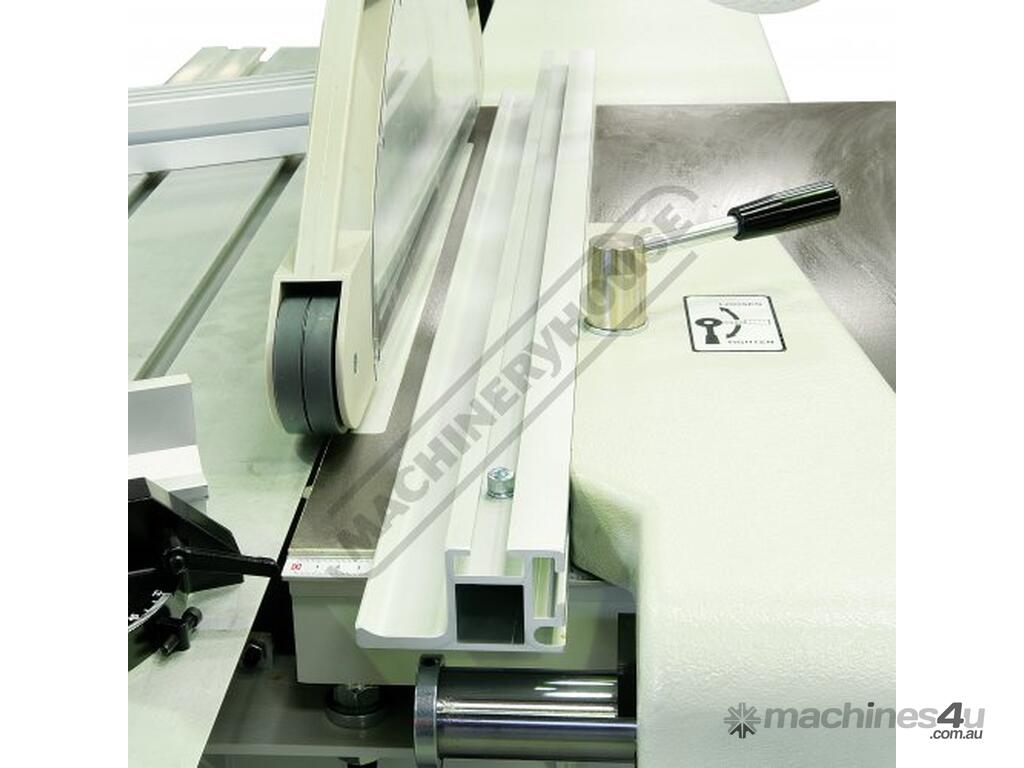

Heavy duty aluminium extruded fence with 2 height options

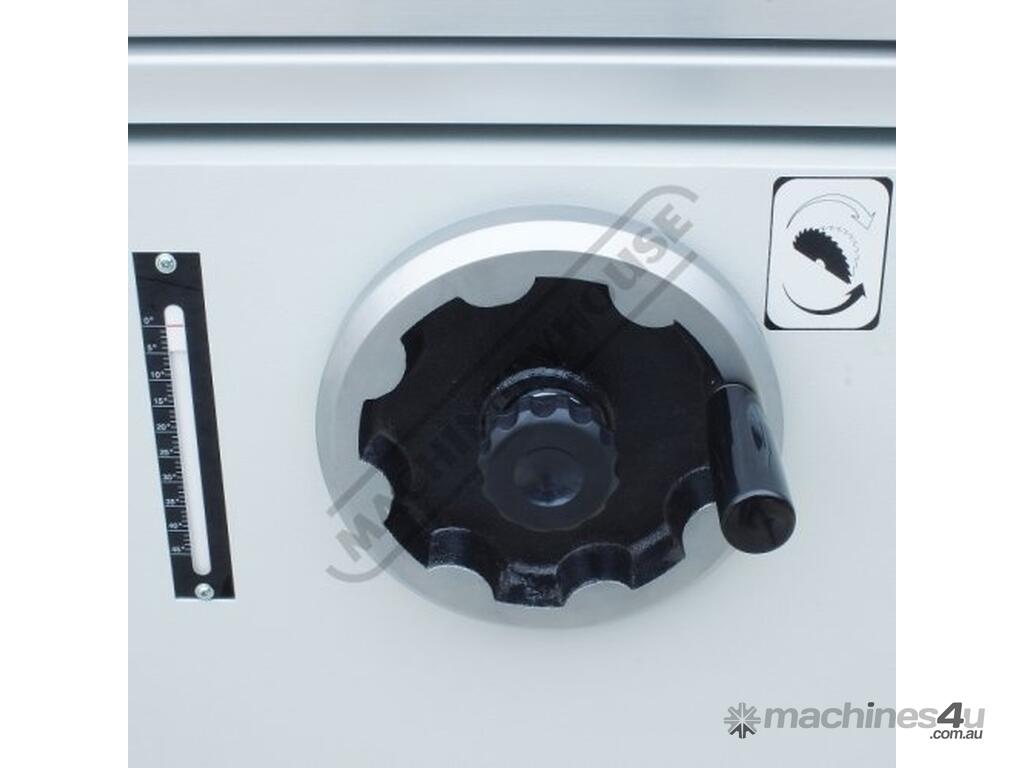

Precision ball bearing main spindle tilts to 45º
Cast iron main table with steel extension
Durable extruded aluminium slide provides extremely smooth traverse table is 1600 x 315mm wide
Heavy duty internal mechanism

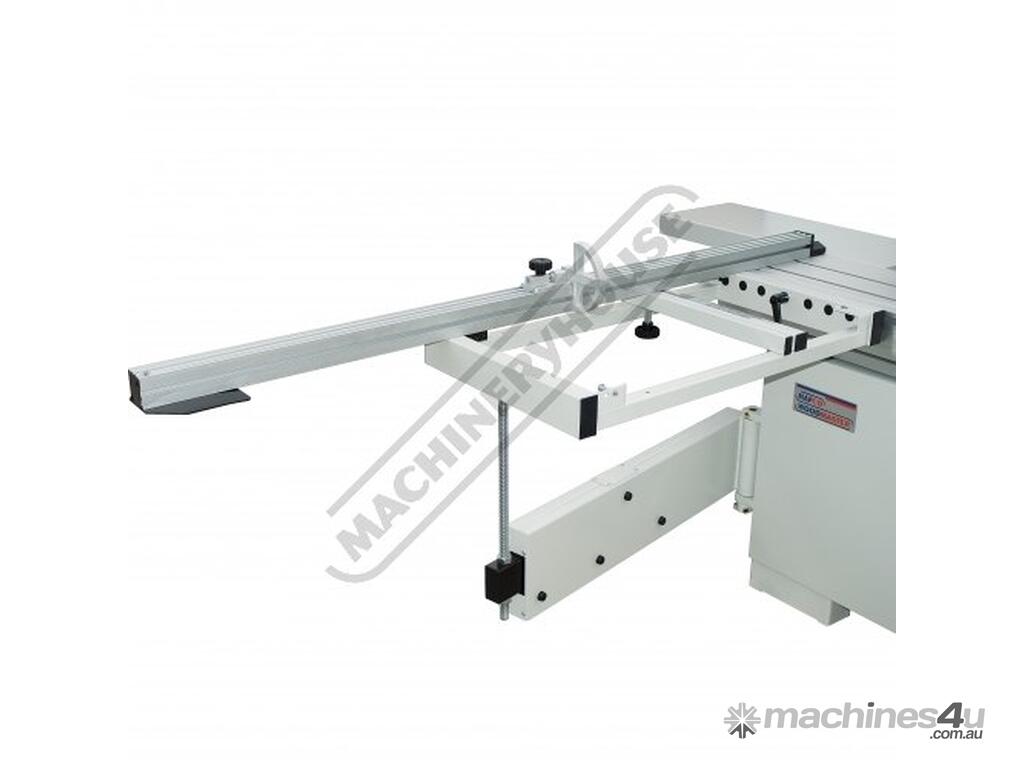

Solid outrigger table with swing arm

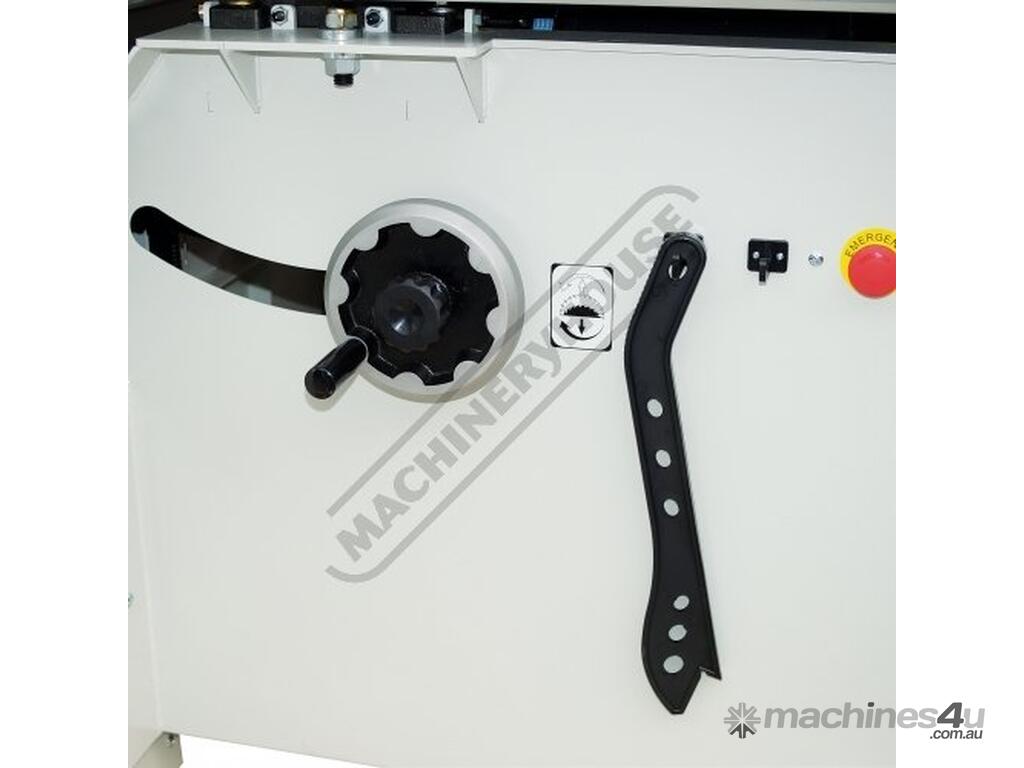

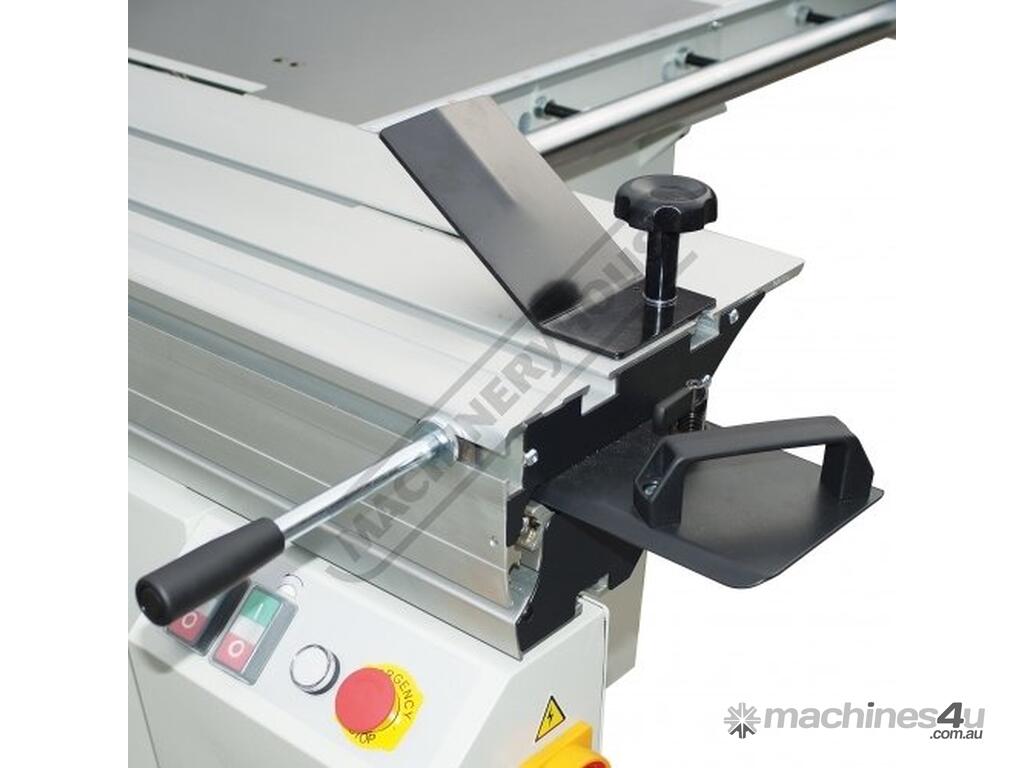

Easy access electrical controls on main frame

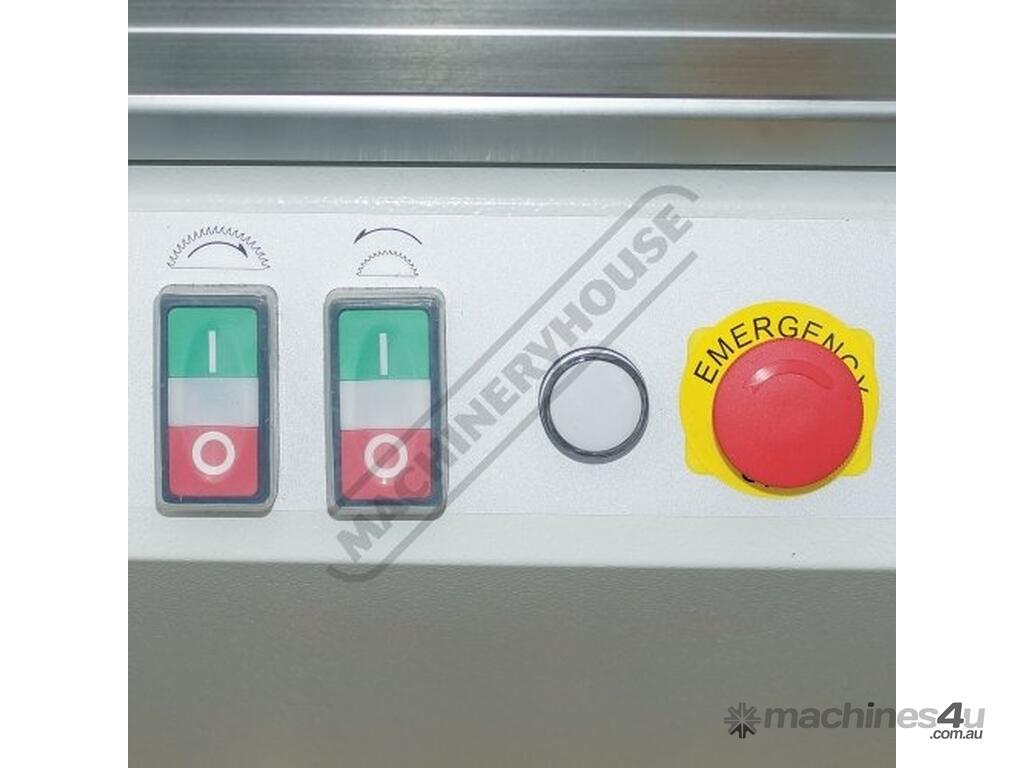

Magnetic switch with overload protection

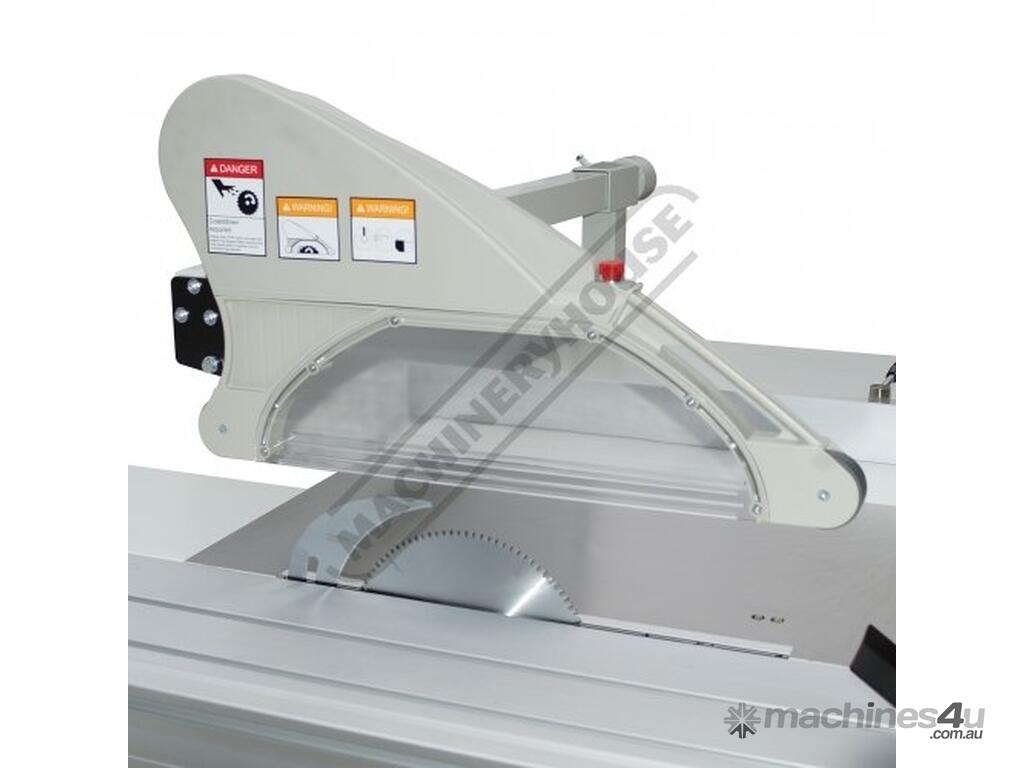

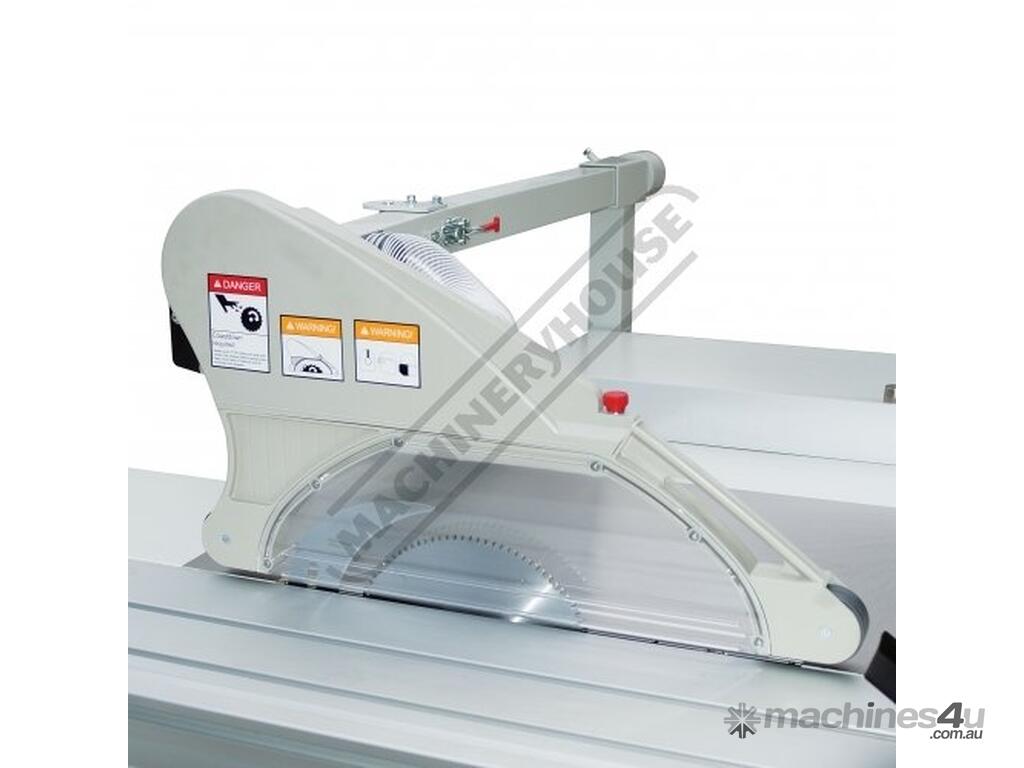

Heavy duty overhead saw blade guard with dust collector port
Industrial Taiwanese machine


Specifications:
ORDER CODE: W740
MODEL: OAV P30CE
Blade Diameter (mm): Ø305
Table Size (W x H) (mm): 548 x 896
Table Size With Extensions (mm): 1003 x 1726
Max. Depth Of Cut 90º & 45º (mm): 90 / 63
Scribe Blade Diameter (mm): Ø120
Tilt Arbor To 45º: Yes
Sliding Table Stroke (mm): 1600
Cross Cut with Flip Over Stop (mm): 1400
Cross Cut with Extension Stop (mm): 1400 - 2600
Rip Capacity (mm): 1300
Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Floor Space Required (W x D x H) (mm): 3650 x 3700 x 1450
Weight (nett) (kg): 607
