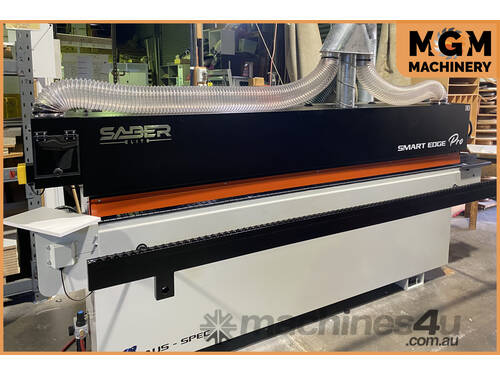

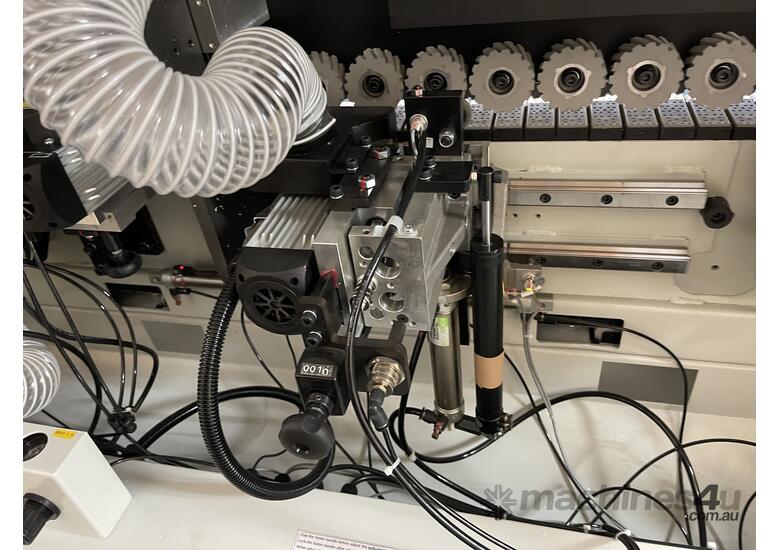

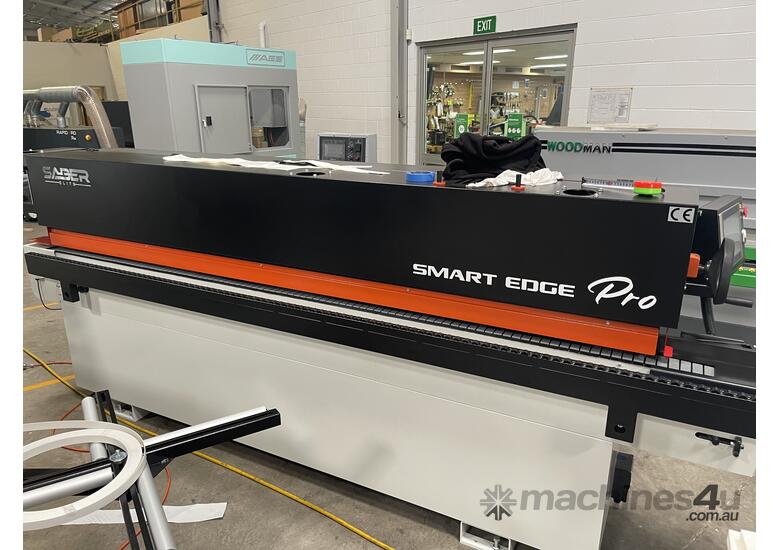

OAV Saber Elite Smart Edge Pro - A perfect blend of simplicity, quality and affordability.

The Saber Elite Smart Edge Pro from MGM Machinery is designed to be a compact yet feature rich and durable edgebander offered at an affordable price. This machine is equipped with pre-milling, end trimming, Radius trimming, corner rounding, Radius scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
This model has been carefully thought out with specification to suit the Australian manufacturer in mind, we are more than excited to introduce this model the Saber Elite family of products.

Standard Features:

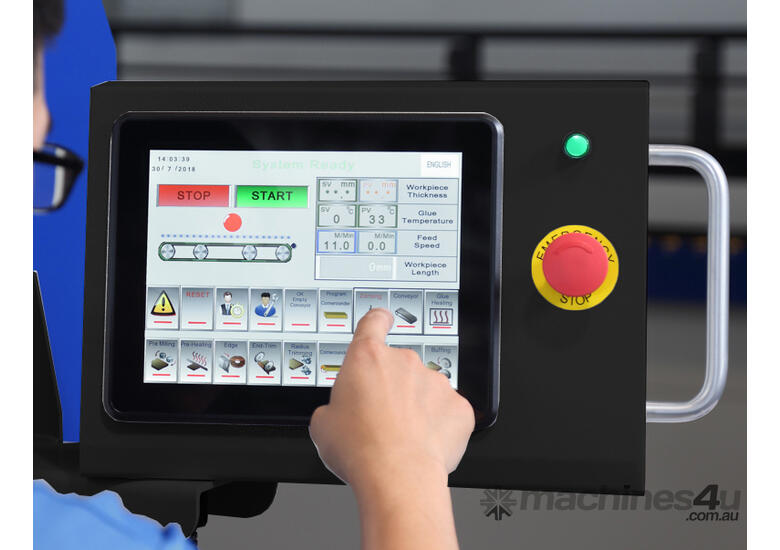

Touch screen control for operator convenience
Equipped with line control for precise timing adjustment of working units.
Workpiece is fed by chain
Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS
Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed.
Coiled edge banding up to 3 mm in thickness in Hard-PVC/ABS cut with guillotine shears.
Teflon-coated hot-melt glue pot
Spring loaded pressure unit with (2) pressure rollers
Pre-milling function can remove up to 3mm and is designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels. (2) counter rotating diamond cutterheads for optimum cut results.
High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
High frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel
Radius scraper with 2mm radius
3000 RPM top & bottom buffing units
Heavy duty pressure beam with extendable work-piece support
Heated infeed fence for pre-heating the panel for optimum glue penetration

Technical Specifications:

Feeding speed 9 meters/min.
Panel thickness 8- 45 mm
Edge thickness 0.4- 3 mm
Min. panel width 95 mm
Min. panel length 90 mm
Working table height 940 mm
Extension support width 560 mm
Dust collection outlet Ø 127 mm
Electrical consumption 10.9 HP 8.1 KW
Electrical 230/3/60
Machine weight 910 kgs



- MGM Machinery
