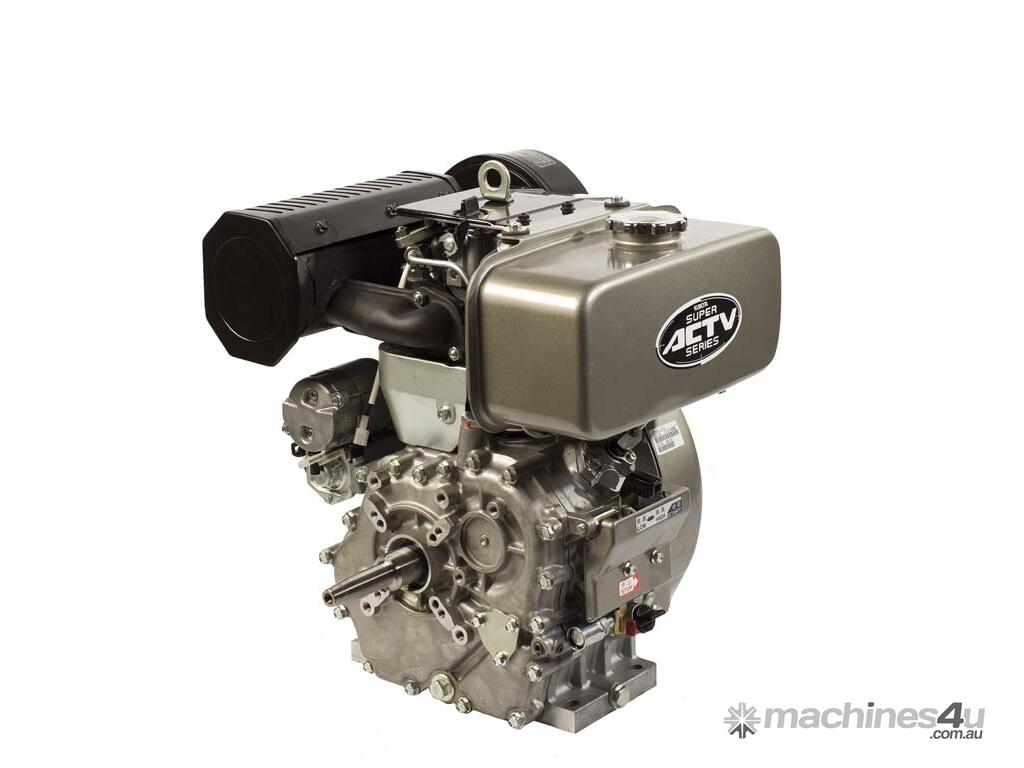

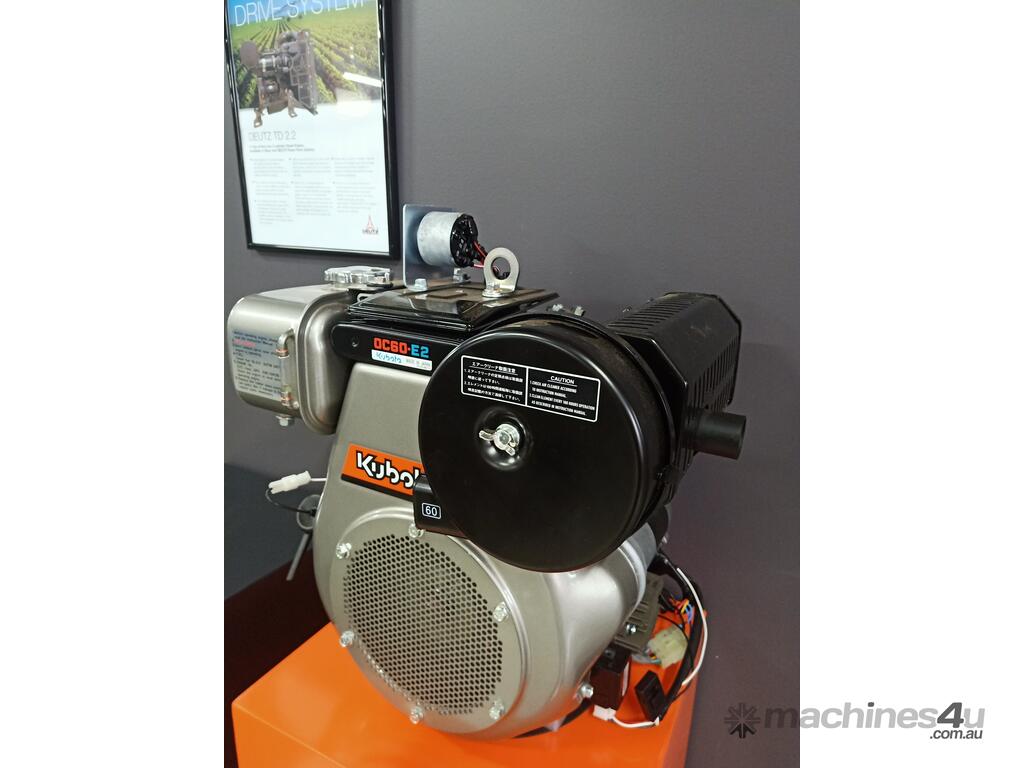

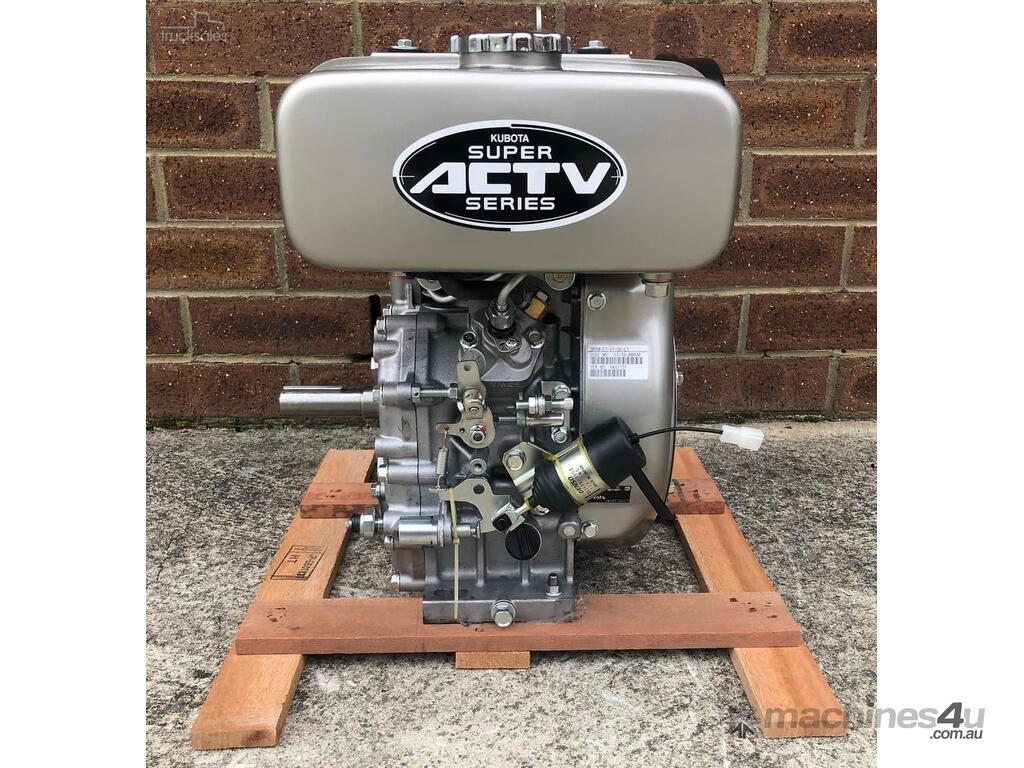

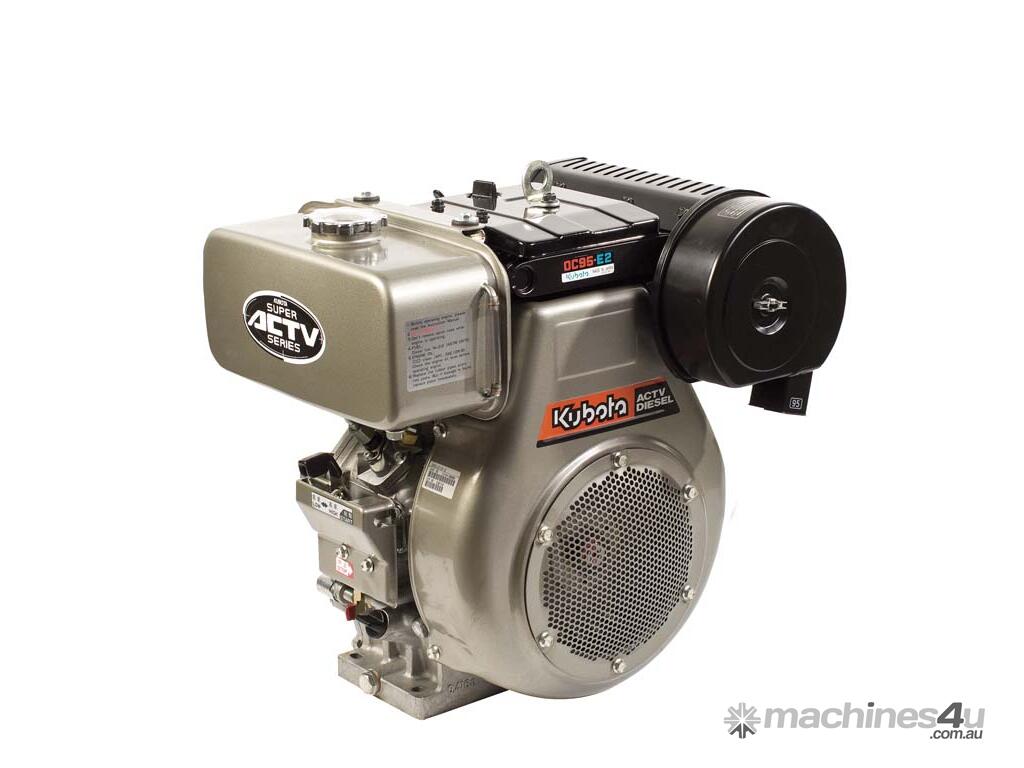

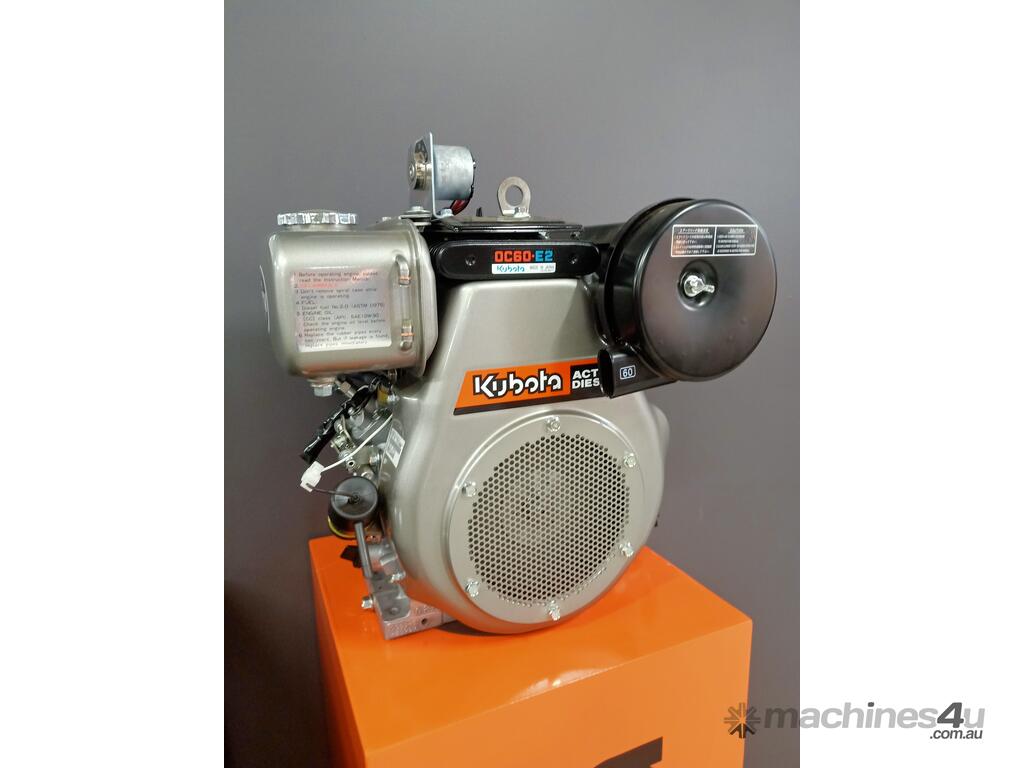

OC60 KUBOTA AIR/OIL COOLED DIESEL ENGINE

OC60 Kubota 6.2hp at 3600 rpm
The Kubota OC60 is an oil-cooled, 4-cycle diesel engine with a capacity of 5.6HP at 3600RPM. Compact and lightweight, the Kubota OC60 provides clean, portable power for power generation on construction sites to pumping solutions and beyond, reducing vibration and emissions.
This engine is commonly used for truck sleeper cab applications

* Kubota’s ACTV and E-TVCS systems maintains low noise levels.
* Compact and light compared with air-cooled petrol and diesel engines.
* Efficient burning of fuel results in cleaner emissions and reduced fuel consumption.
* Low vibrations are achieved by counteracting piston forces by a balancer mechanism.

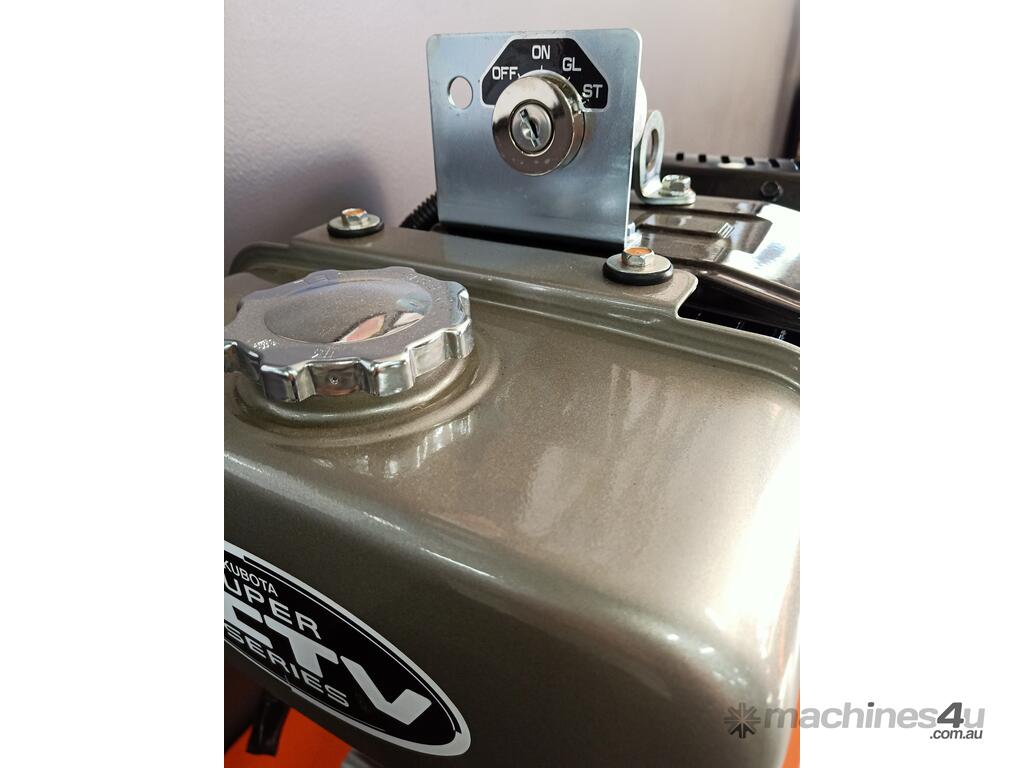

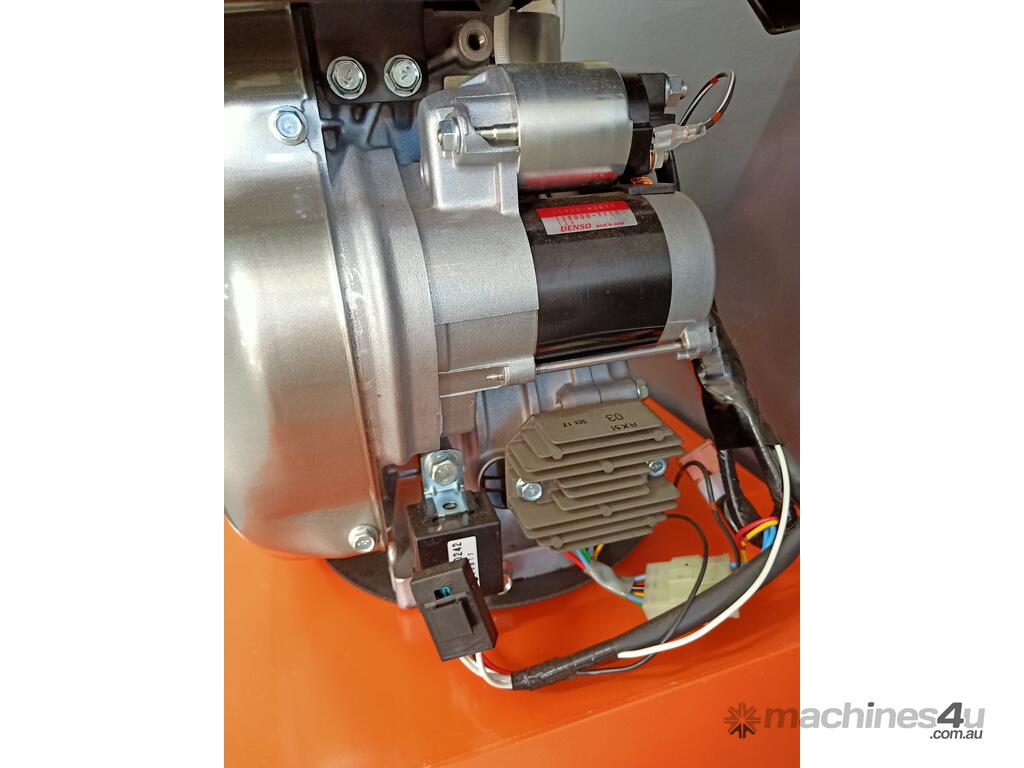

* 12 volt electric start system is fitted as standard to provide easy starting.

Type Air/Oil Cooled Vertical Diesel Engine
Number of Cylinders 1
Bore & Stroke 72mm x 68mm
Total Displacement (cc) 276
Combustion System Three Vortex Combustion System
Max Output Net Intermittent kW/rpm (hp/rpm) 4.5/3600 (6.1/3600)
Maximum Output Continuous kW/rpm (hp/rpm) 4.2/3600 (5.6/3600)
Starting System Electric Start (Manual back-up as option)
Dry weight (kg) 38

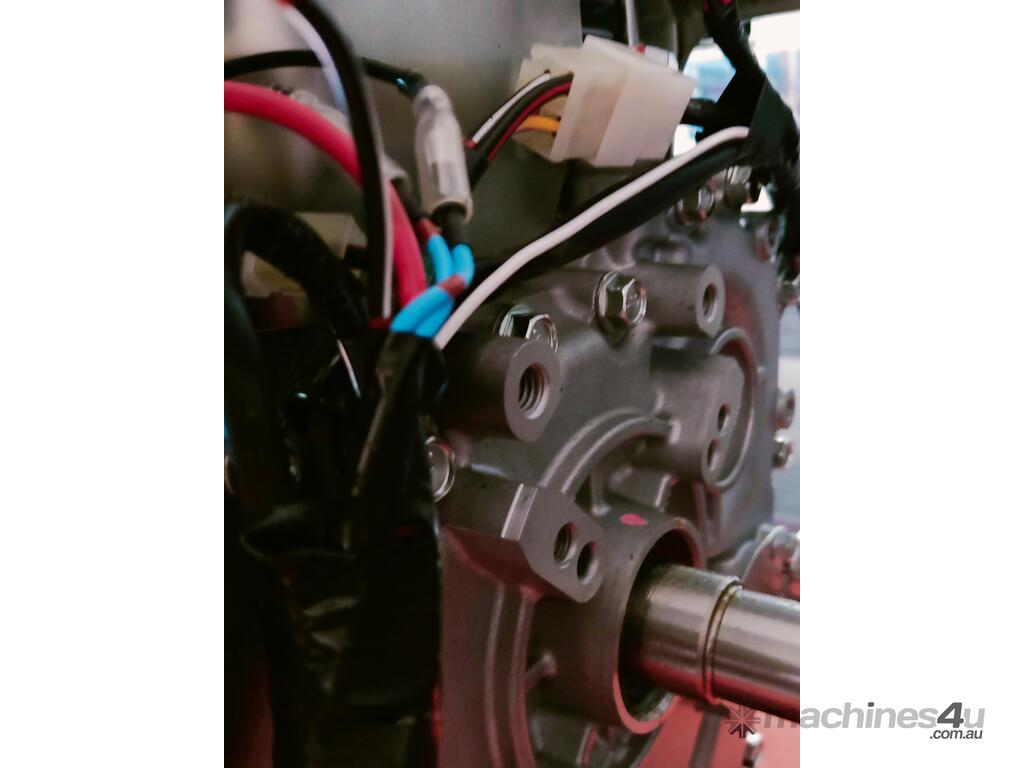

Shaft options
Q Shaft: 1” Key Way Shaft
G Shaft: Tapered Generator Shaft
