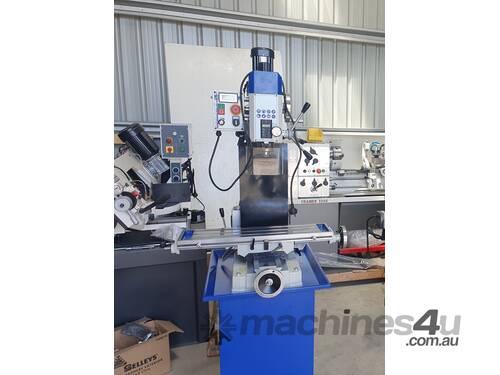

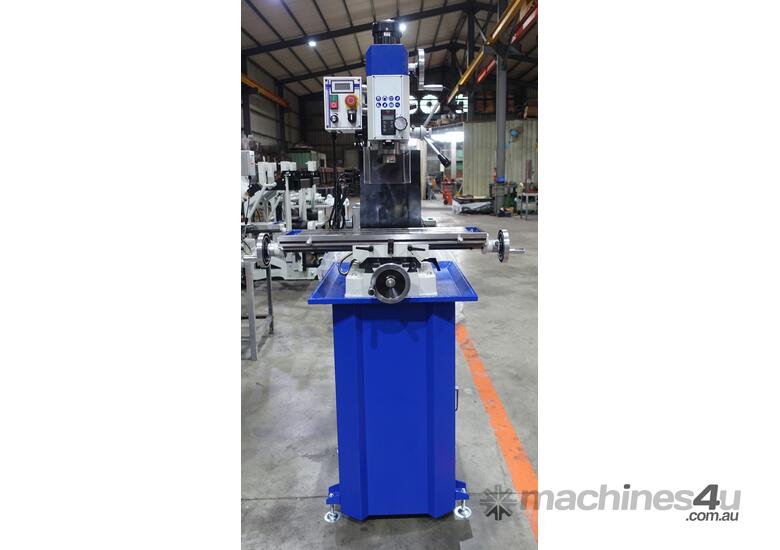

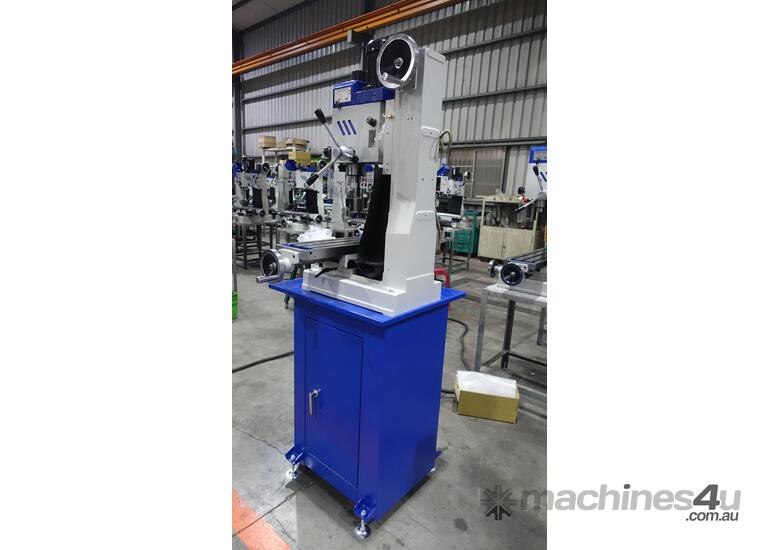

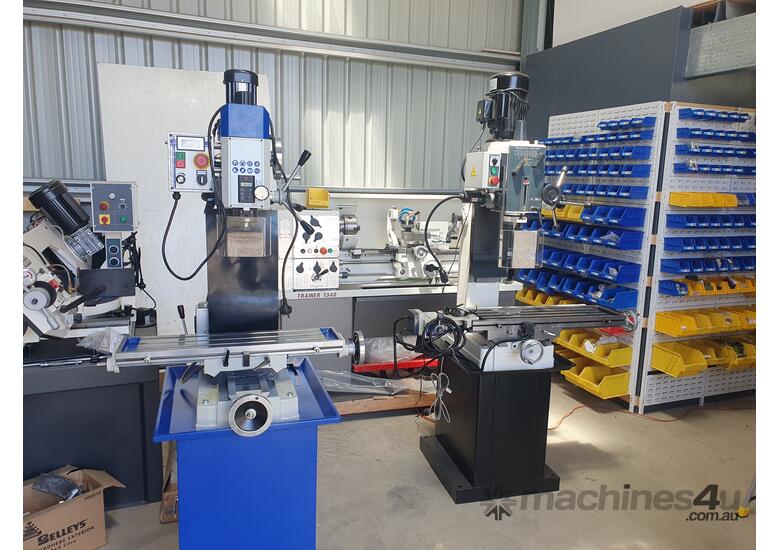

OE-728VT Ultra Precision Milling Machine, an ideal candidate for CNC conversion. New shipment just arrived, secure your OE-728VT before they sell out.
This bench-type powerhouse outperforms its peers, setting new standards in quality and precision. Crafted with meticulous attention in Taiwan, it features a precision spindle with advanced ball bearings for unwavering accuracy and a DC brushless motor with frequency conversion for silent, smooth operation. Professional grinding and scraping techniques ensure stability and precision. The cabinet-style stand design exudes excellence, delivering high rigidity and quality. Don't settle for less; choose the OT-728V for unparalleled precision and performance.
Taiwanese quality machine
One shot lubrication standard
2-year warranty standard
100kg max table load standard
This machine was developed by Precision Mathews USA, as they were tired of the quality issues with the lower cost machines.
4000 RPM Variable speed with high and low speeds
Taper of Spindle R-8
Range of Spindle Speeds 75-4000 RPM, 2 Steps, Variable
Headstock Tilt Left & Right ±90°, with worm gear movement for easier tram adjustments
Motor 1 HP, Brushless DC Variable
Ultra Precision ground spindle, with triple bearing support.
Spindle is supported by P5 angular contact bearings, which run precise and stay cool at high speeds.
Quill DRO Included Standard (This is for the spindle up/down movement).
One shot lubrication pump standard.
Standard Accessories:
R8 spindle
Table size: 177 x 711mm (7" x 28")
Variable speeds
B.L.D.C. 1HP motor
Rubber shield on the rear saddle
One-shot oil lubrication
Chip tray
RPM: 75~4000
Quill travel D.R.O.
High-precision P5 spindle bearings
Control panel for REV switch, R.P.M. display, E-STOP
Drawbar
Chuck guard
Metal wire braided hose for milling machine lubrication tube
Crate package: 77cm x 77cm x 113cm
See photos for full specs. Ollie Trading sells higher quality machines at sustainable prices. Ships Australia wide, very competitive freight options available.
