OMGA T50 350 Mitre saw new

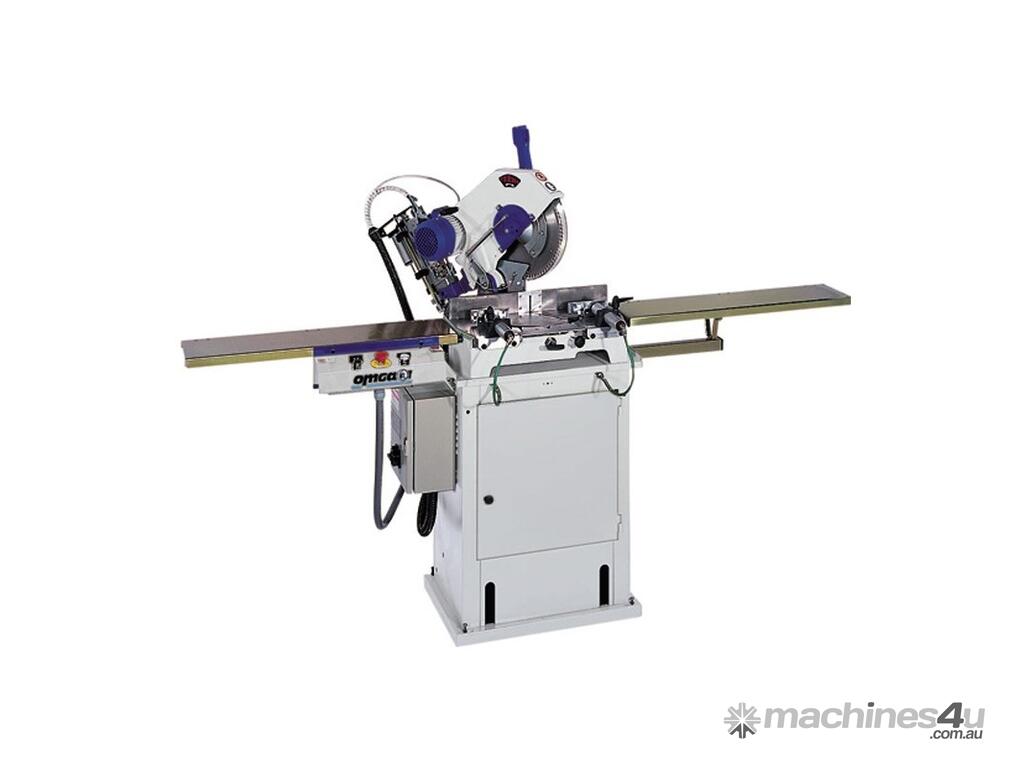

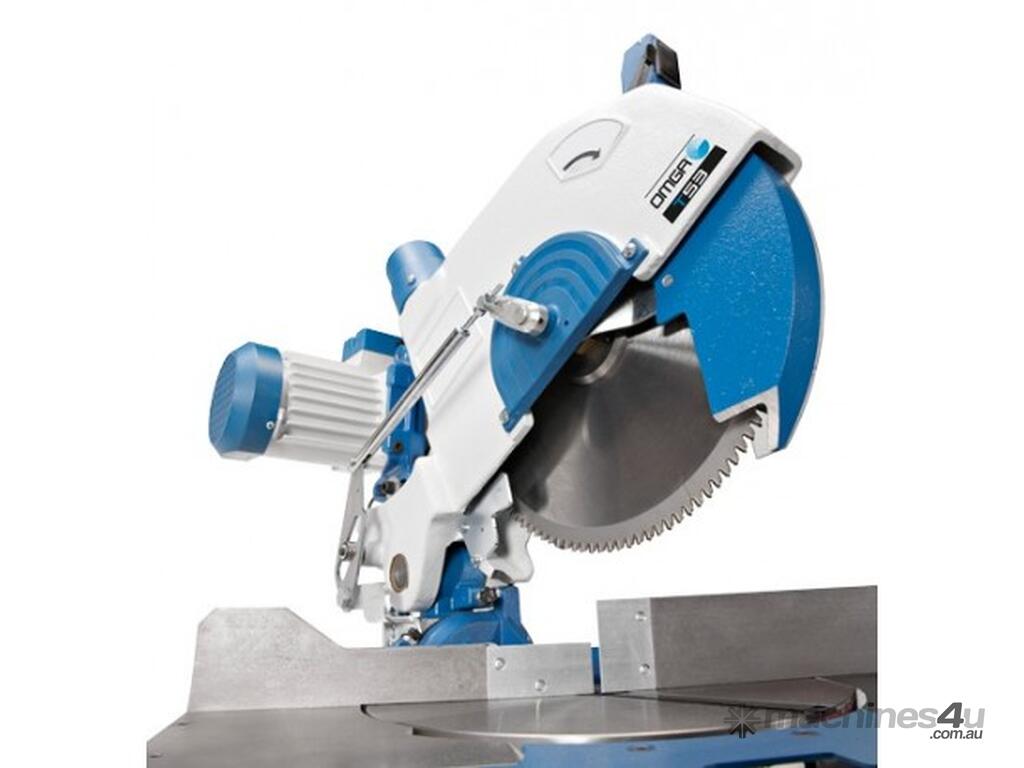

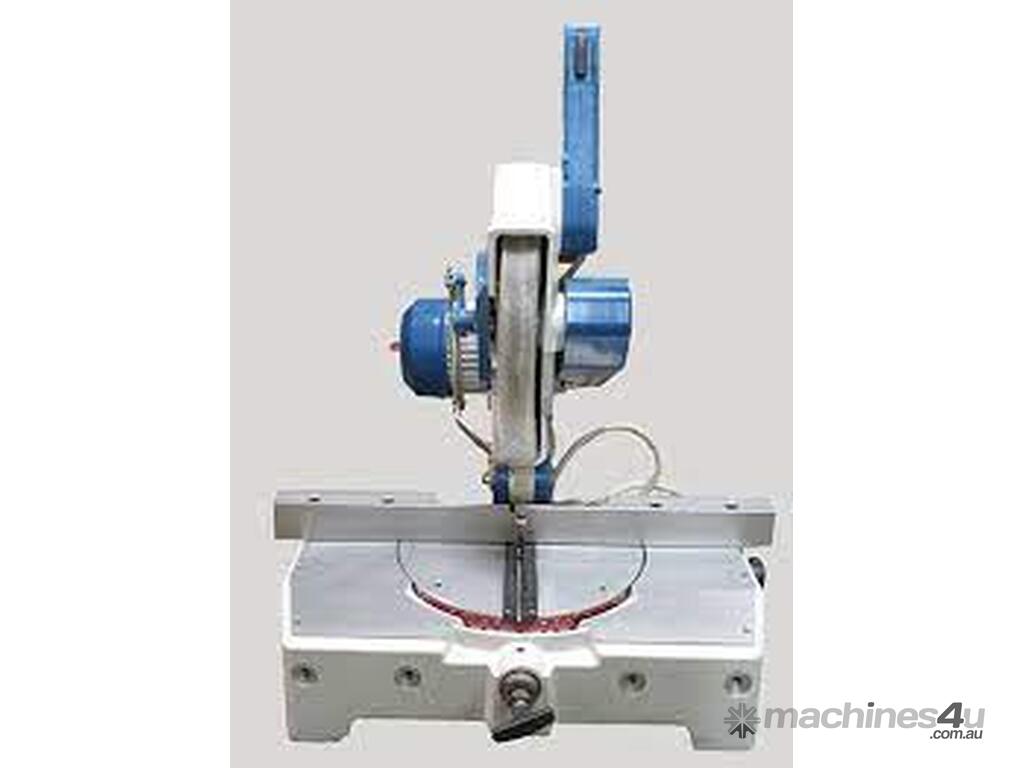

T 50 350 and T 53 370 Heavy duty compound mitre saw
Mitre Saw – Motor 3HP Motor – Saw blade 350 mm – Cast Iron Structure

If you need accuracy and reliability then look no further. These machines have a proven track record for the precision mitre cutting of Picture frames, Furniture components, Aluminum window & PVC window components. Proven strong trusted and reliable. MADE IN ITALY.

Heavy duty Precision Mitre Saws. It features a solid cast iron base and head construction. The rotating table rides on axial roller bearings for maximum smoothness and accuracy. Positive stops at 45° - 30° - 22°30', 15° - and 10° on both sides of the rotation and an independently fine tunable one at 90°. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The belt driven powerful 3 HP induction motor makes the T 50 350 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi purpose machine suitable for use in general carpentry, for cutting moulding, picture frames, furniture components and any application requiring precision cutting. Also available the "Compound Mitre Version" T53 370.


T 50 350 Heavy duty Mitre saw and T 53 370 Heavy duty compound mitre saw
Cross cut capacity 90 Deg. 173 mm 185 mm
Cross cut capacity 45 Deg. 105 mm 130 mm
Max. Depth of Cut 110 mm 110 mm
Max. Depth of cut 45° N /A 40 mm
Motor power 2,2 kW 2,9 kW
Max. Beveled Cross Cut N /A 185 mm
Saw bore 30 mm 30 mm
Saw blade diameter 350 mm 370 mm
Arbor Speed RPM 3000 3000
Dust Chute Diameter 80 mm 80 mm
Table Size 580 x 600 mm 580 x 600 mm
Shipping Weight 106 Kg. 148 Kg.
Crated Dimensions 580 x 600 x 765 mm 790 x 790 x 770 mm
